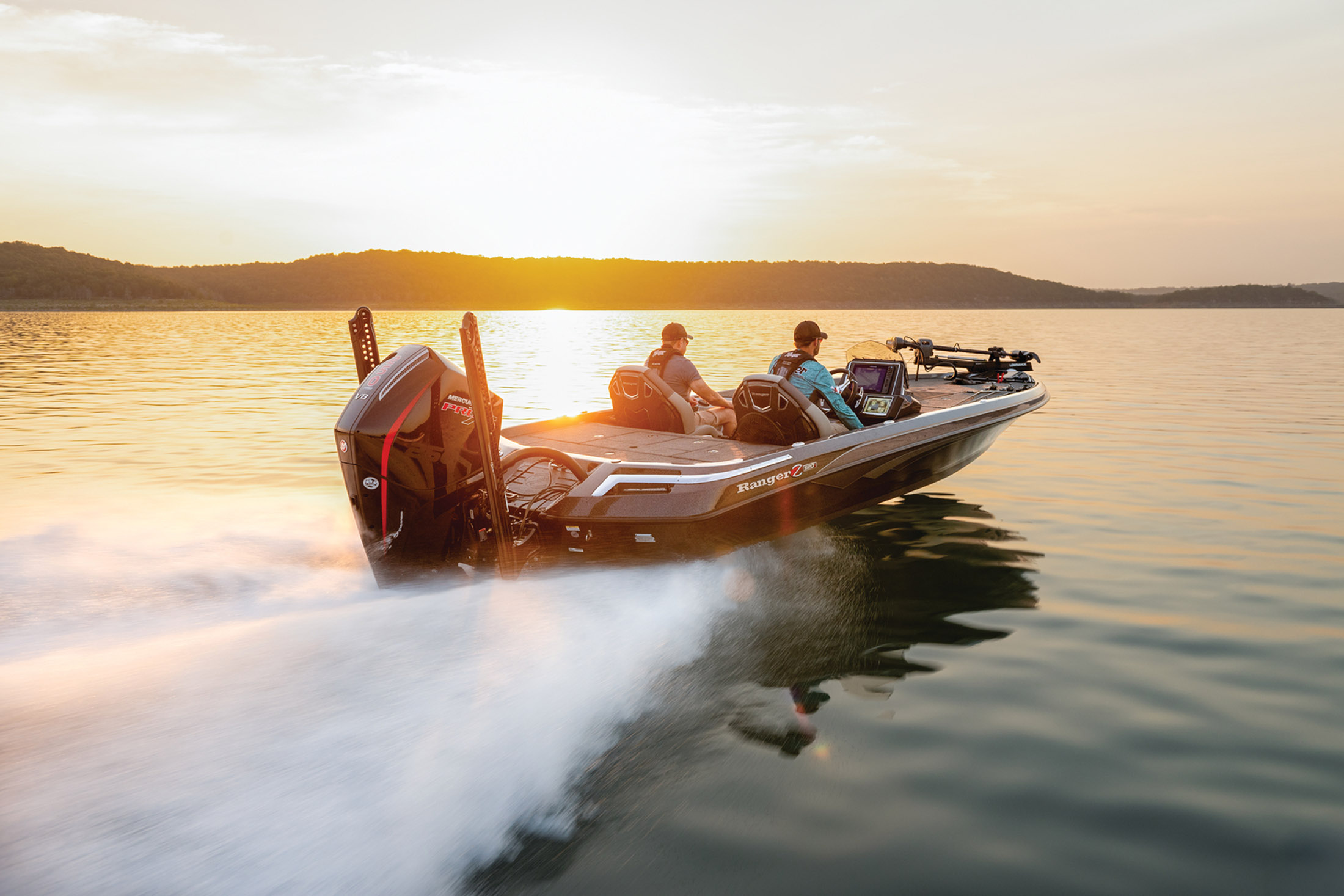

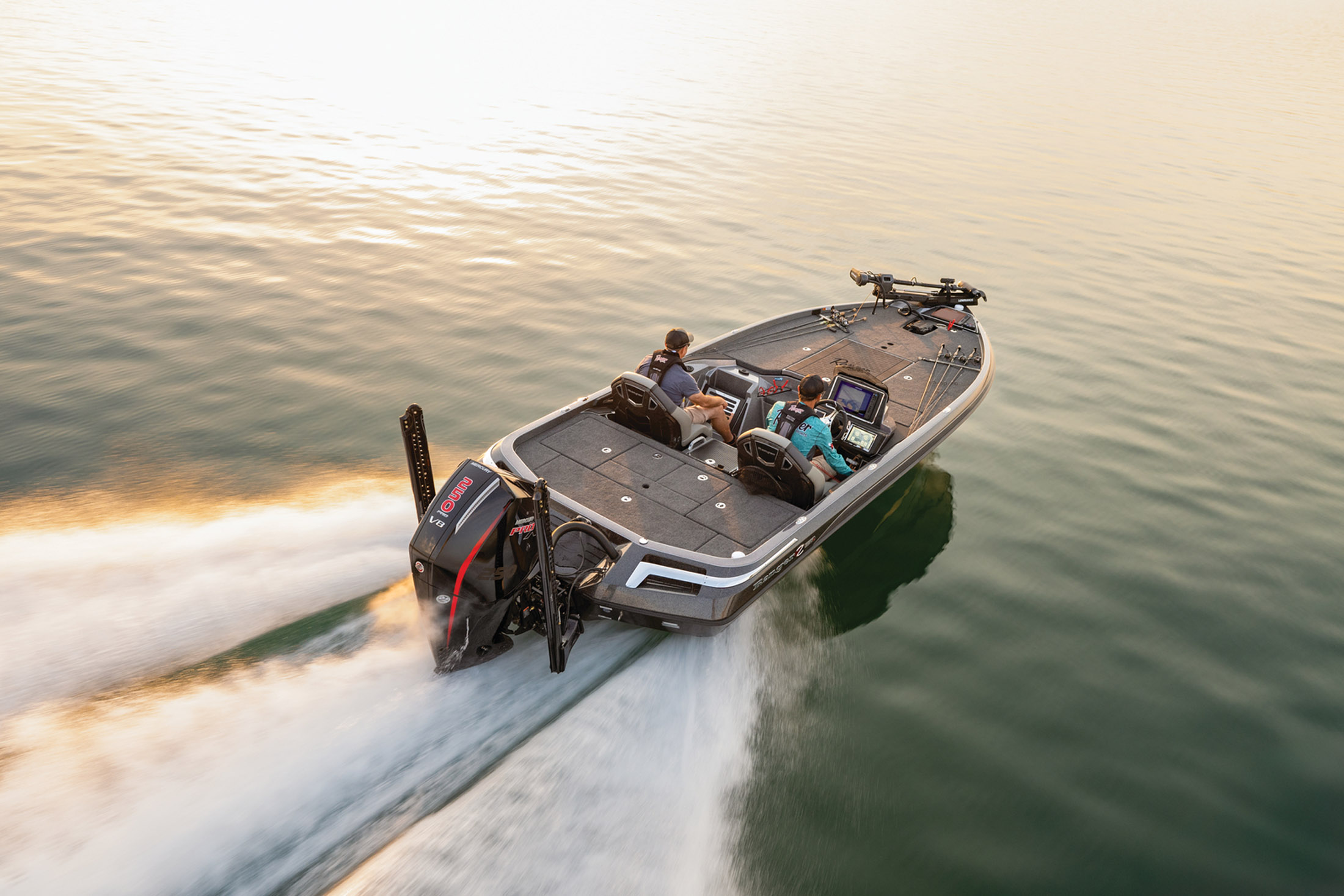

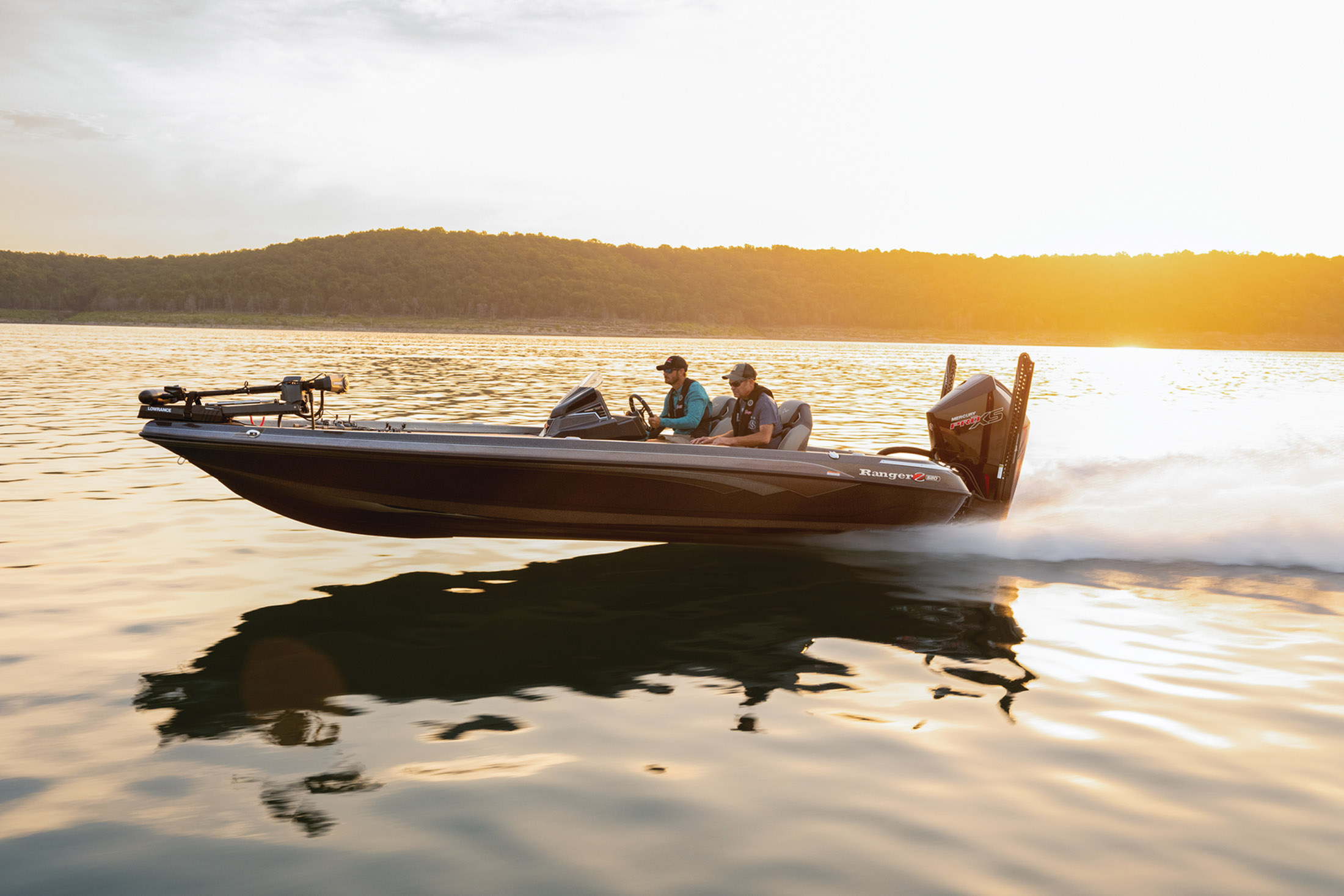

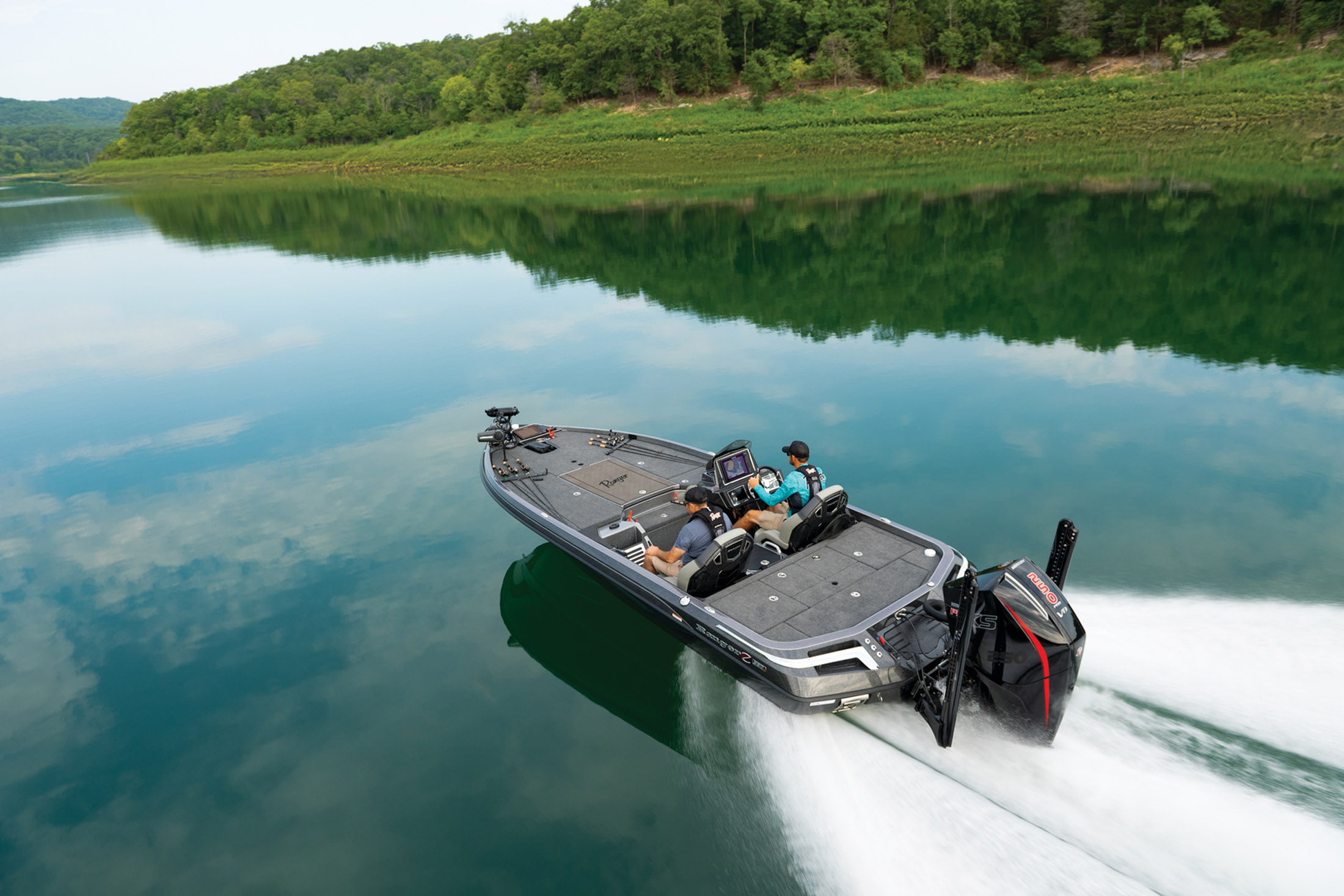

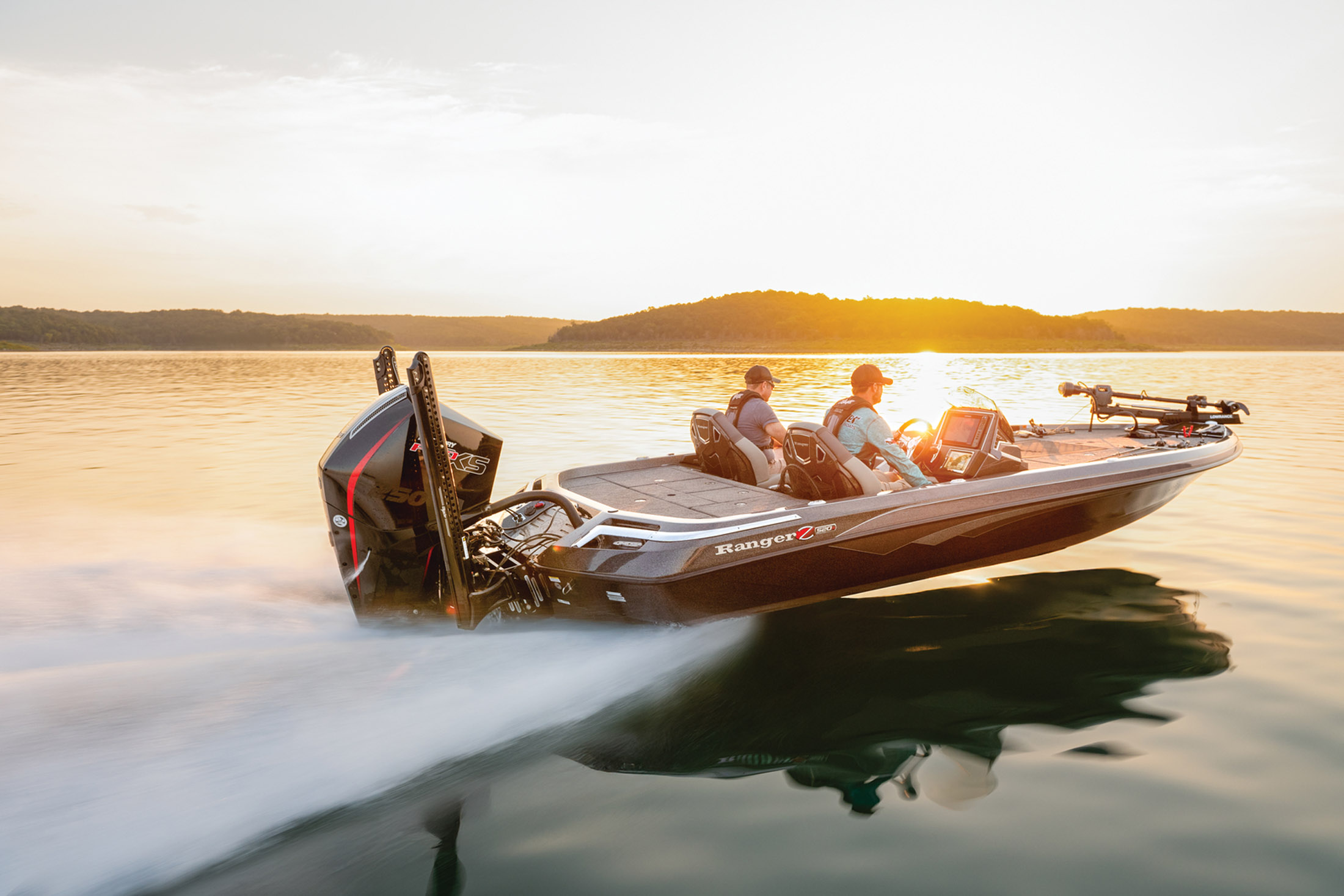

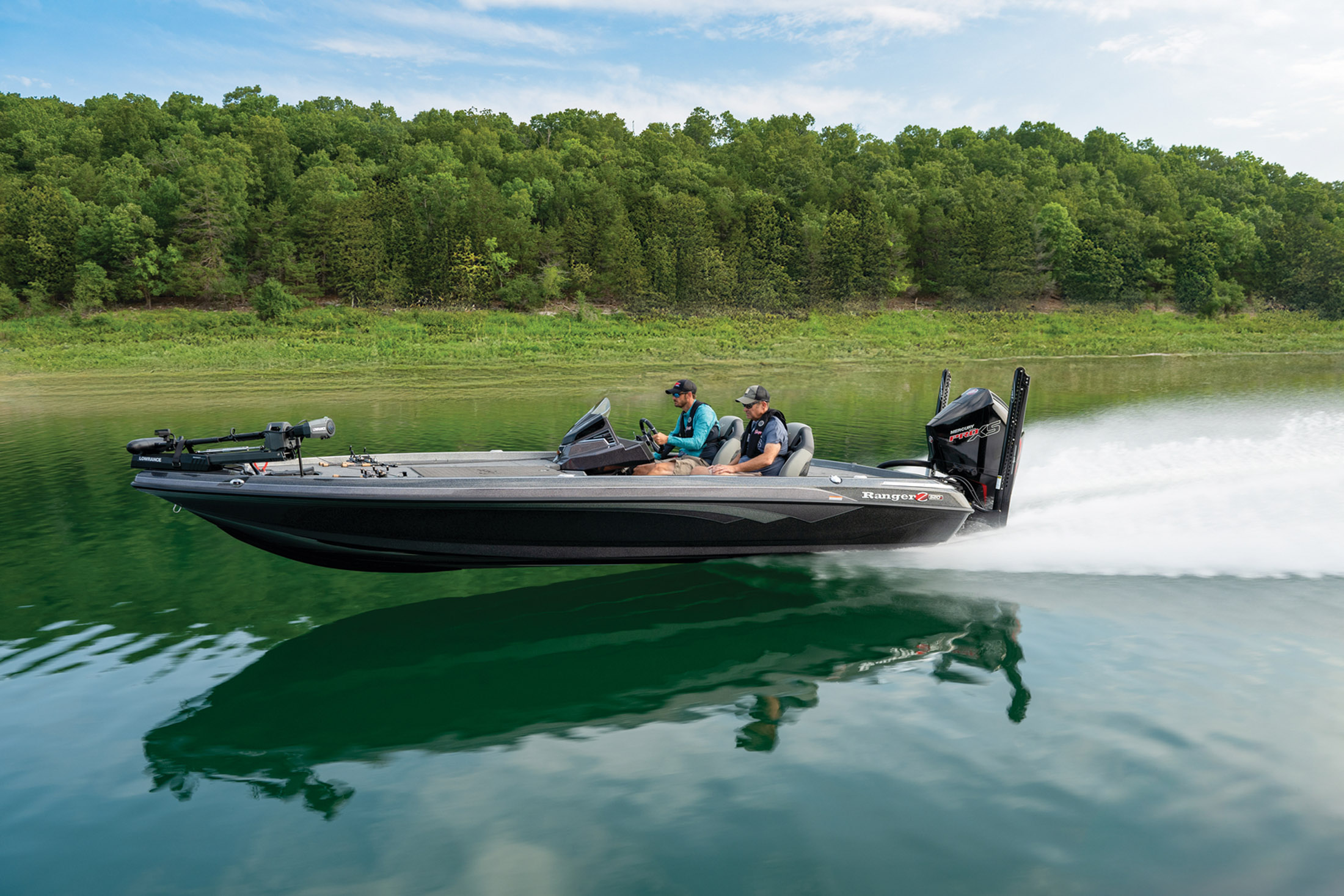

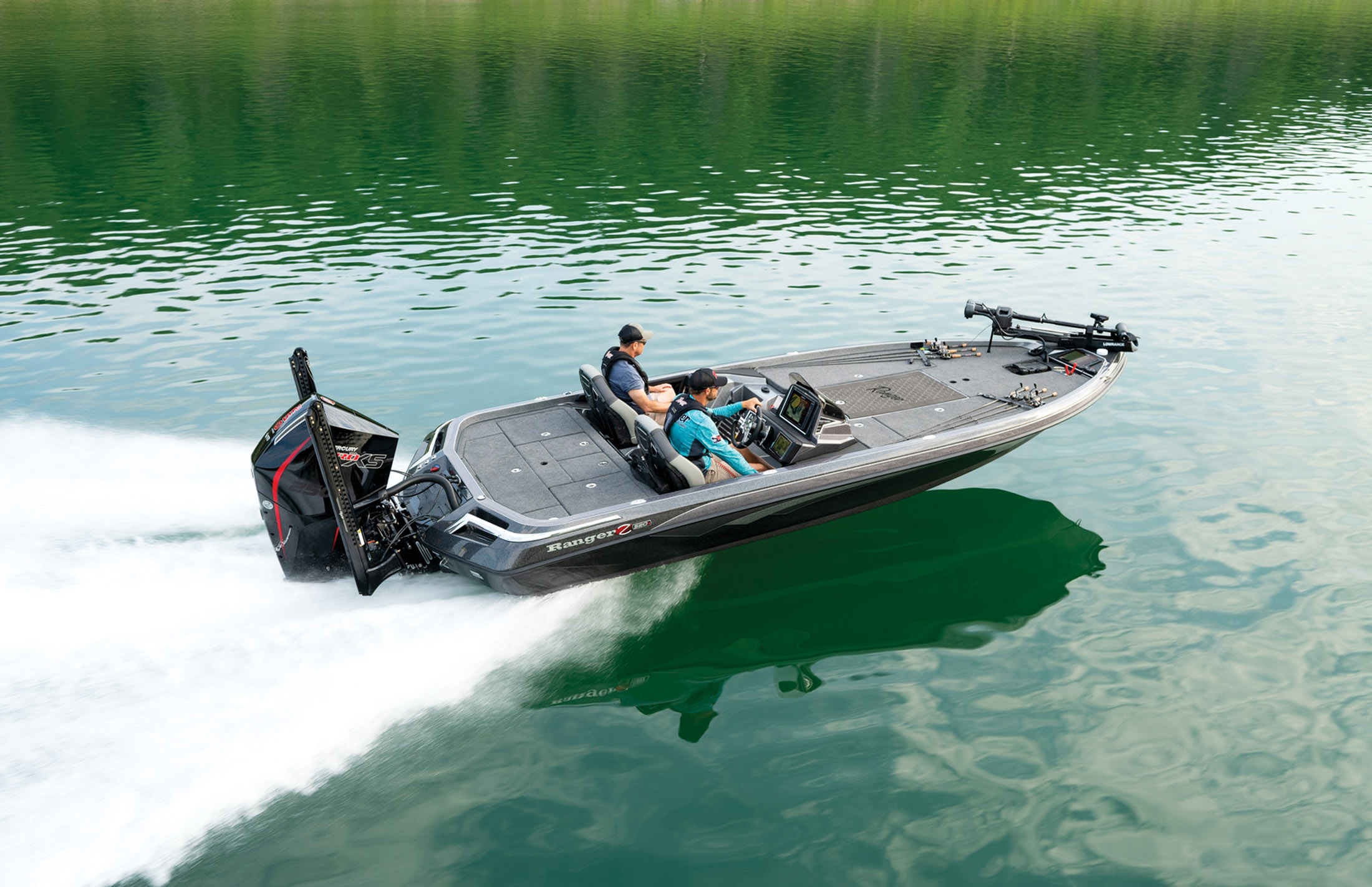

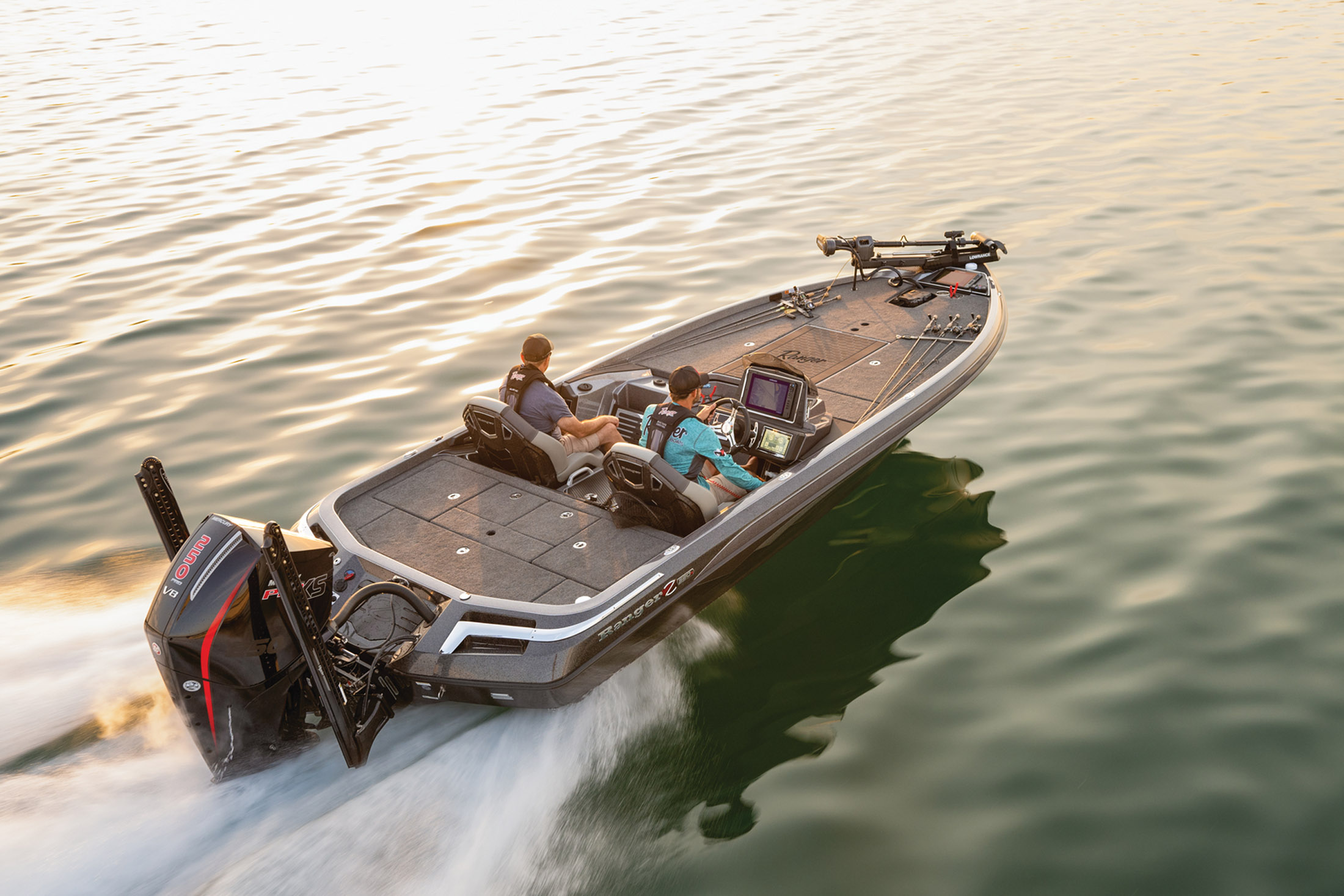

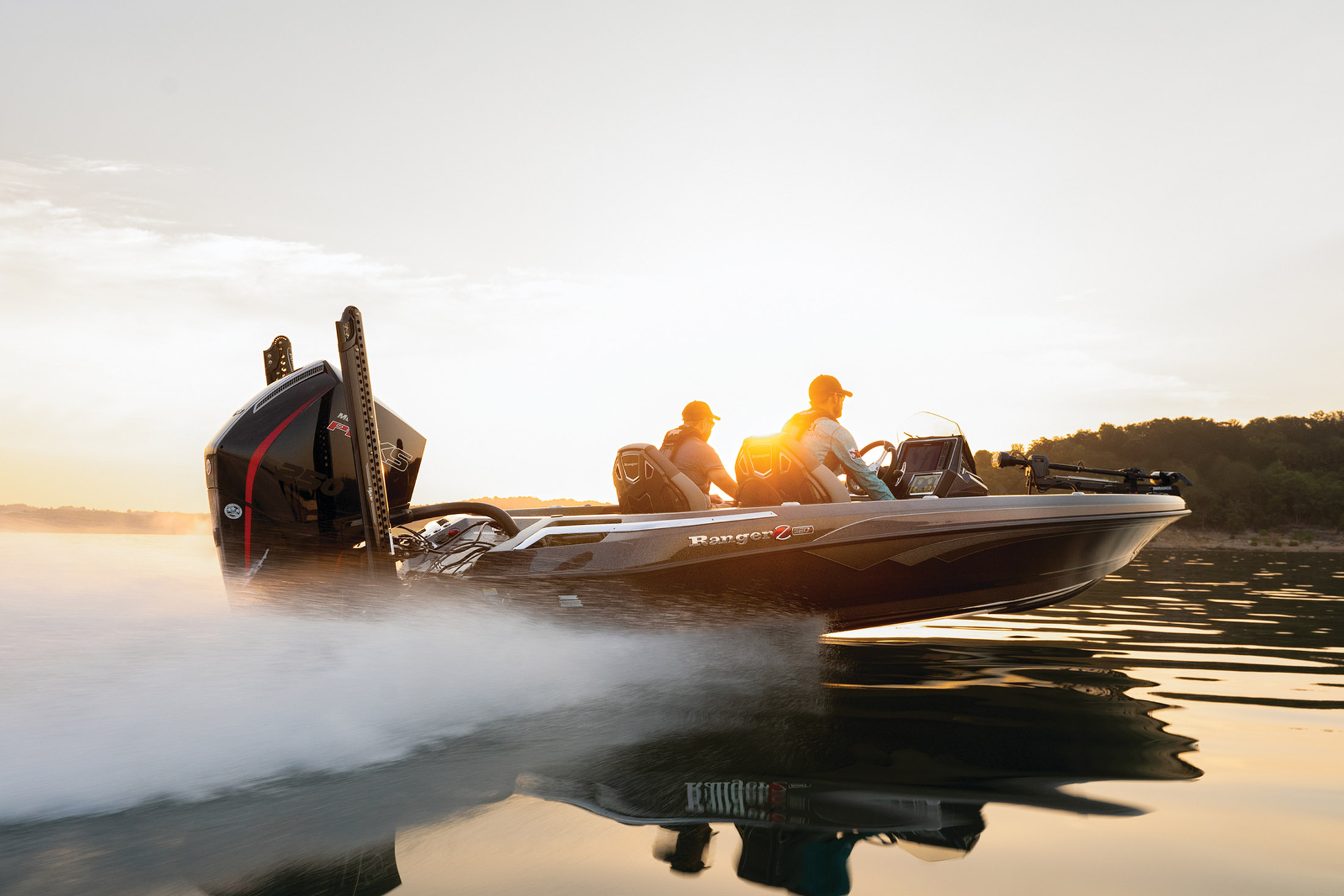

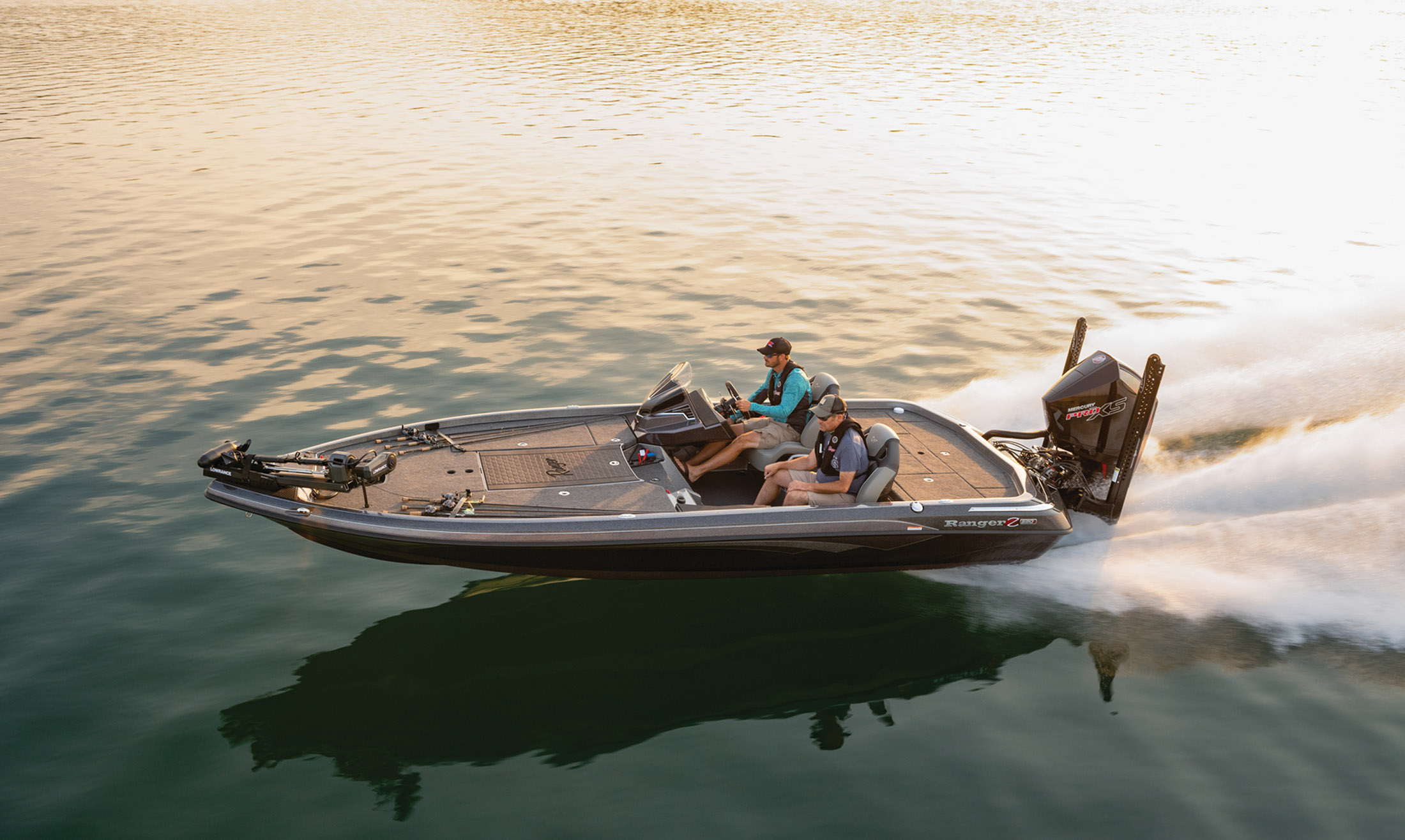

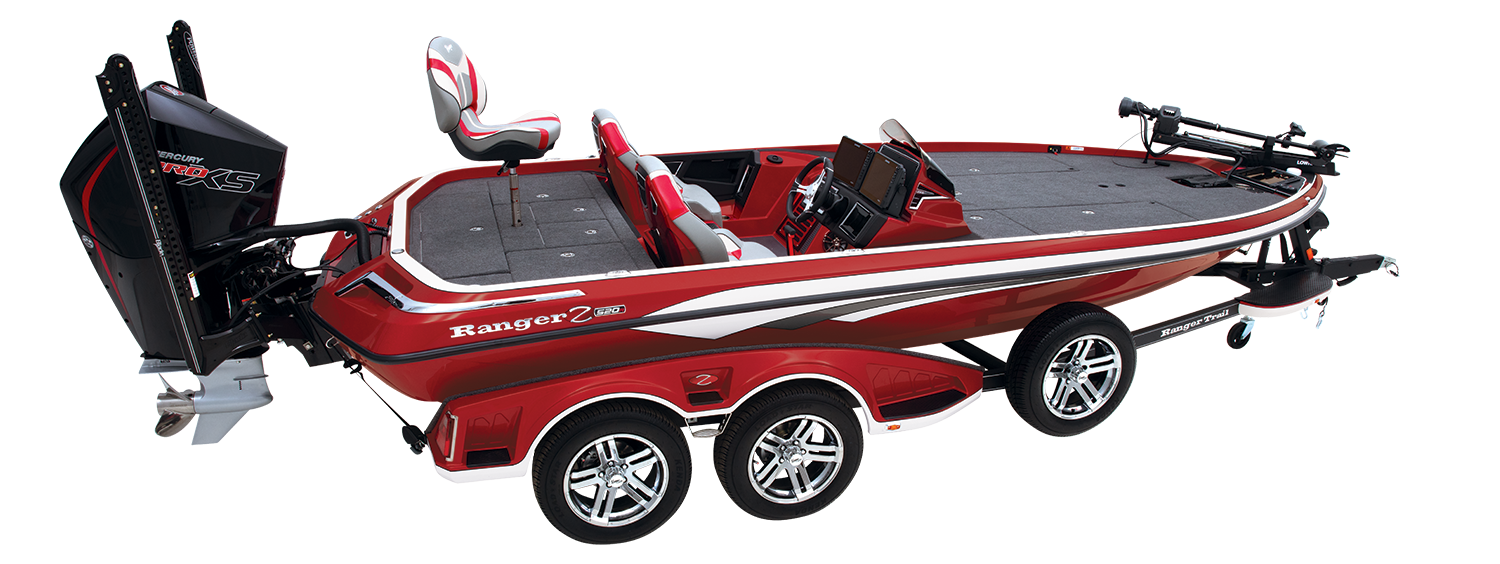

Z520R

W/ Mercury® 250 L Pro XS Torque Master 1.75
priced to be yours $76,995 BEFORE FREIGHT

Z520R

W/ Mercury® 250 L Pro XS Torque Master 1.75
priced to be yours $76,995 BEFORE FREIGHT
The apex of bass boat performance, technology and style

The all-new Ranger Z520R heralds the next chapter in bass boat evolution and a quantum leap in design, functionality and dominating performance at all levels. We’ve taken the most proven and successful hull in the industry and reimagined it for even more fishability and capability across the board. A redesigned industry-first touchscreen delivers whole-boat control that complements twin 12” console graphs, revamped NASCAR-inspired seating that sits atop a performance-driven hull and retooled angler-centric decks for our largest storages yet. Inside and out, the Z520R lets you release a new level of domination. The Z520R. It’s a whole new era of Ranger.

Key Features
  • Proven Hull w/ All-New Decks
  • Standard Ranger RIDE system
  • NEW Shellback Bolstered Seating
  • Standard TRACKER Lithium Batteries
  • Removable Passenger Console
  • Peak all-around performance



Hull Length 20'11"
Beam 96"
Max. Recommended HP (HP) 250
Engine Shaft Length 20"
Inside Depth 22"
Fuel Capacity (gal.) 54
Livewell Capacity (gal.) 31
Total Person, Motor, Gear (lbs.) 1650
Approximate Boat Weight (lbs.) 1850

Rod Box Length - Port 8'0"
Rod Box Length - Center Row 1 8'0"
Rod Box Length - Center Row 2 7'6"
Max. Person Capacity (persons) 5
Trailer GVWR (lbs.) 5400
Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate) 27'3"
Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate) 25'2"
Width On Trailer 102"
Power/Performance
  • Minn Kota® Fortrex 80 24V trolling motor
  • High performance stainless steel prop
  • Flush-mounted remote throttle control
  • Foam-filled unitized 1 pc fiberglass stringer system
  • Ranger I Beam Fiberglass transom
  • Pultruded fiberglass transom
  • Manual setback plate
  • New high performance steering wheel
  • Recirculating aerated livewell w/ removable divider
  • Dual livewell lids with cull bouy organizer STBD side
  • Venturi Air & livewell pump-out system
  • Integrated engine setback
  • Electrical system disconnect / jumper switch
  • Tilt hydraulic steering
  • Power trim
  • Recessed trolling motor foot pedal
  • AGM starting battery
Trailer Features
  • 17" black chrome Challenger wheels
  • Aluminum wheels w/ matching spare tire & wheel
  • Matching fiberglass fenders w/ step pads
  • Hydraulic surge disc brakes
  • Swing-away tongue
  • Center swing jack (black powder coated)
  • NMMA®/NATM certified
  • Ranger® Boats Road Armor Equipped® trailer protectant
  • Torsion axles
  • LED lighting
  • Stainless steel ratchet tie downs
  • (2) Back-up lights
Electronics
  • On-board Dual Pro™ charger, 15 x 4, Lithium capable
  • Push to Start Ignition system with proximity keyfob
  • New Digital switching at bow with foot activated trim buttons
  • Console panel w/ Ranger® R-I-D-E System (Ranger Intelligent Display Engine), integrating full-boat control and monitoring via 9" touchscreen
  • Custom multi-function gauges - speed, tach, water pressure, trim, fuel, volt, temp
  • Heavy duty 6-gauge trolling motor wiring w/ 60 amp breaker
  • 12V DC power receptacle with USB
  • LED compartment & livewell light package
  • Automatic box light sensors
  • Integrated LED bow navigation lights
  • Removable LED stern light
  • LED courtesy light(s)
  • Heavy duty 6-gauge electronics (MFD) wiring w/ 30 amp breaker
  • Solid state resettable switching w/ 30A master breaker
  • Wireless phone charger in coin box
Custom Details
  • Gas spring lid assists
  • Custom colors package
  • Molded-in driver/ passenger footrests
  • Trim package featuring chrome and polished aluminum accents
  • Retractable rod buckles
  • Ranger® tournament measuring board
  • Remote drain plug
  • Stainless steel compression lid locks
  • 3 Level rod shelves port rod locker
  • 2 Level rod shelves STBD rod locker
  • Power Ventilation Rod Storage™
  • Insulated cooler w/ gelcoat liner & drain
  • Runnin' rod rack w/ retractable strap
  • Integrated rod and tackle management system
  • Double wall insulated cooler (10 gal) w/ drain
  • Stainless steel seat bases
  • Line spooling station under aft lid
Safety/Comfort
  • Upright, level flotation
  • Fire extinguisher & horn
  • Jump start pack
  • Tinted windshield(s)
  • Pop-up tie cleats (drivers side cleat for easy tie up STD)
  • Integrated grab handles
  • Skid resistant material on bow
  • Automatic and manual bilge pump
  • Custom-fitted premium marine upholstery - SRS bucket seats w/ center storage, (1) bike seat w/ pro pole, (1) SRS all-weather fold down w/ power pedestal
  • NASCAR Molded Fiberglass (CCBM) Seat to color match boat
  • Stainless steel seat bases
  • Integrated boarding ladder
  • Padded front deck
