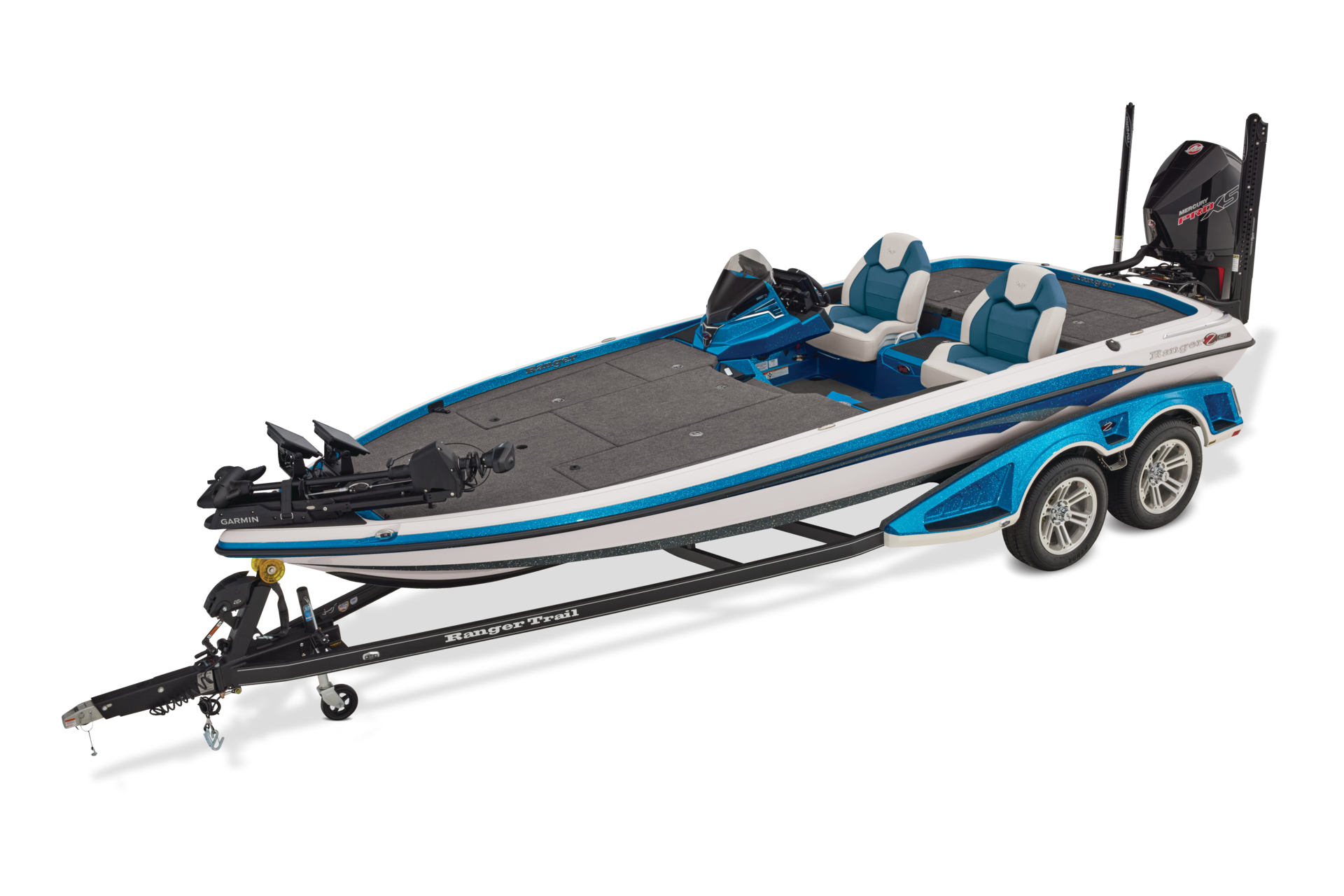

2027
Z521VS Cup-Equipped
w/ 250L Pro XS Torque Master Mercury®
Boat, Motor, & Trailer
| View Price w/ Prep & Freight: | Select Dealer |
|
PRICED TO BE YOURS®
|
$81995
USD
|
Standard with your choice of tournament proven technology
or
WE DIDN’T LOWER THE BAR. JUST THE BARRIER.

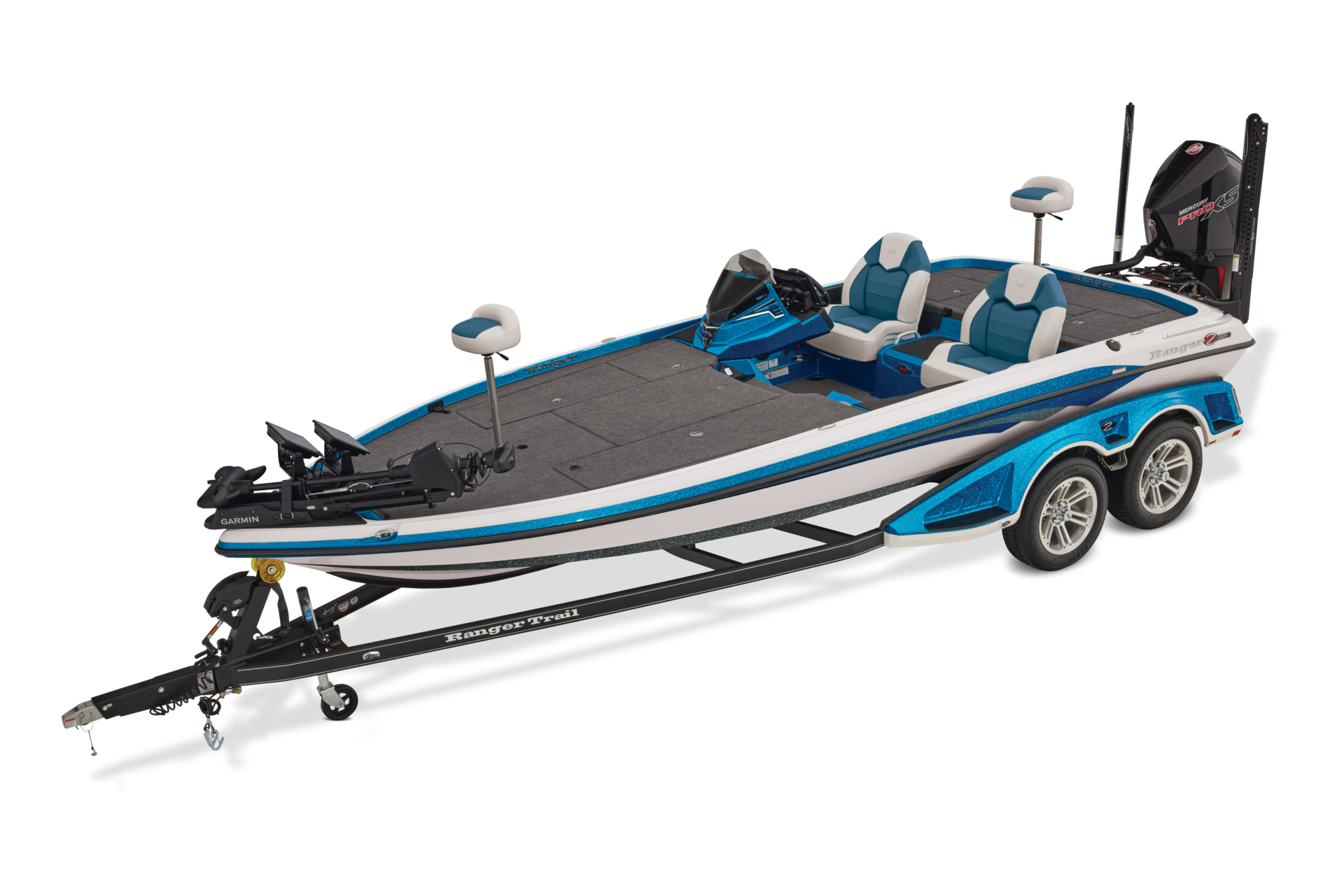

The Ranger® Z521VS Cup-Equipped is built for anglers who expect every advantage when competition day arrives. At 21'11" and rated for up to 250 horsepower, the flagship VS Series platform delivers the size, stability, and fishability needed to perform at the highest level.
Designed around today's tournament electronics, the Z521VS Cup-Equipped features your choice of Lowrance® or Garmin® Cup Packages, pairing industry-leading graphs, live sonar technology, and premium trolling motors into a fully integrated fishing system. The Ranger® ProCircuit™ dedicated 6-gauge clean power harness provides clean, dependable power from bow to stern, while push-button solid-state digital switching streamlines control of essential systems.

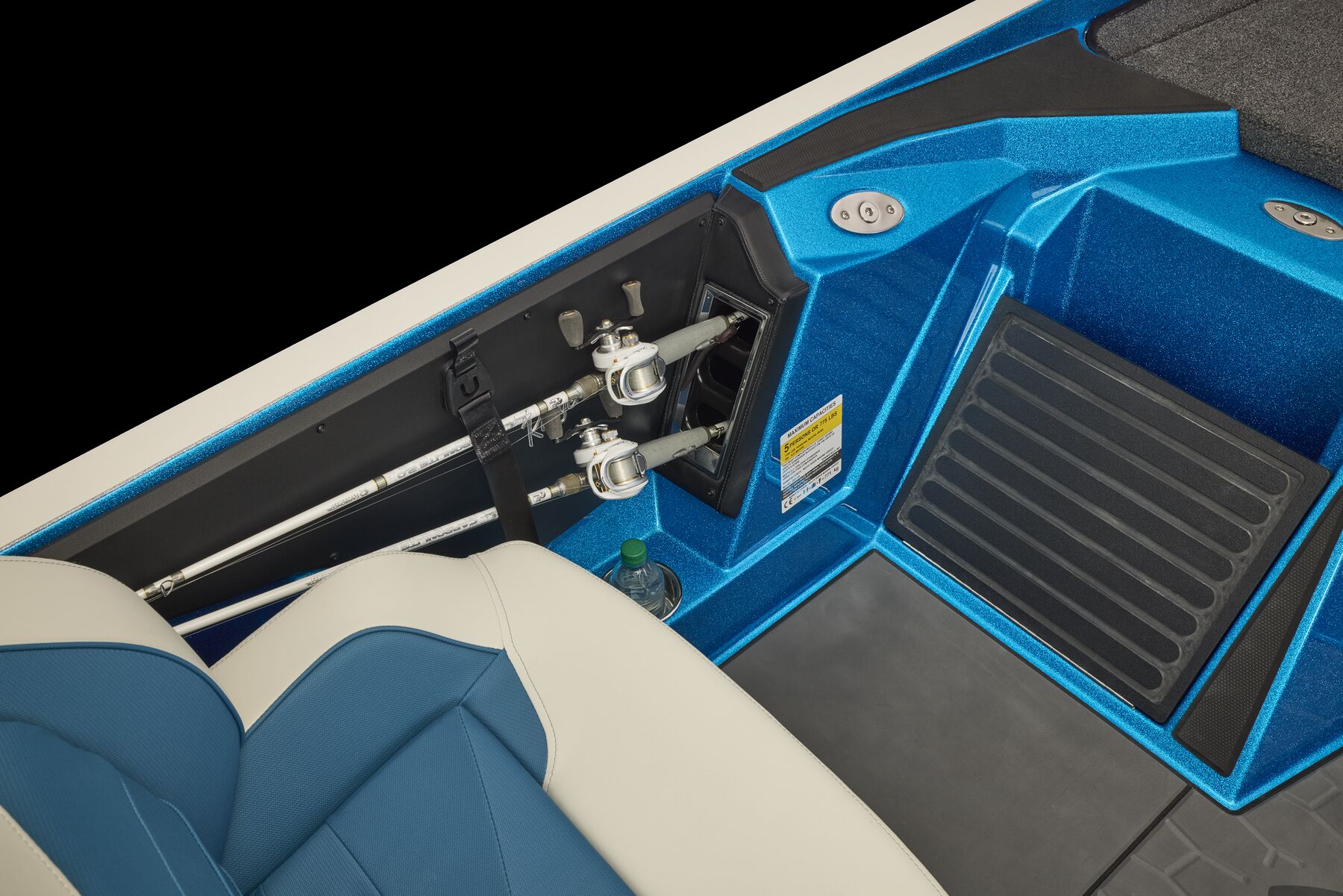

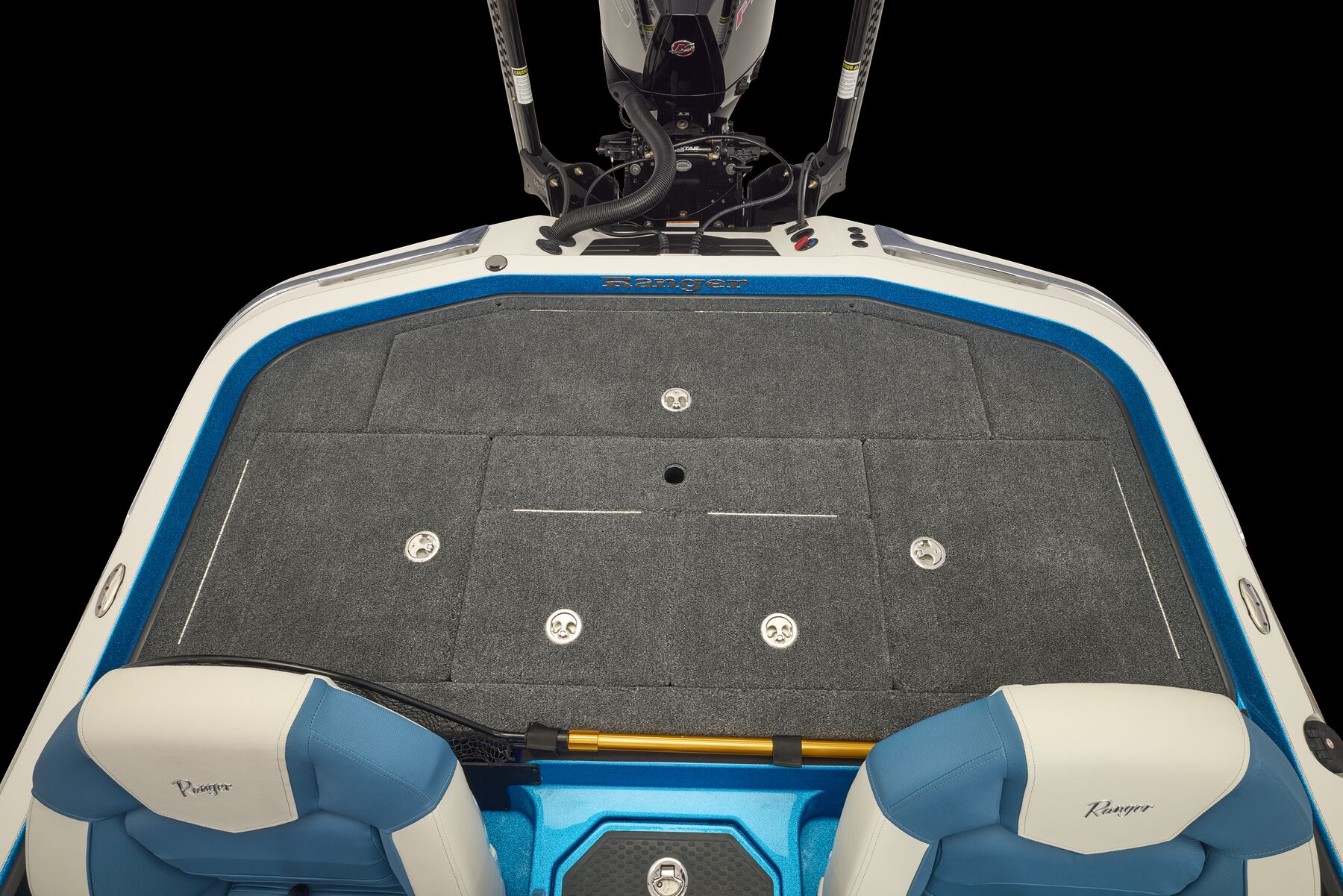

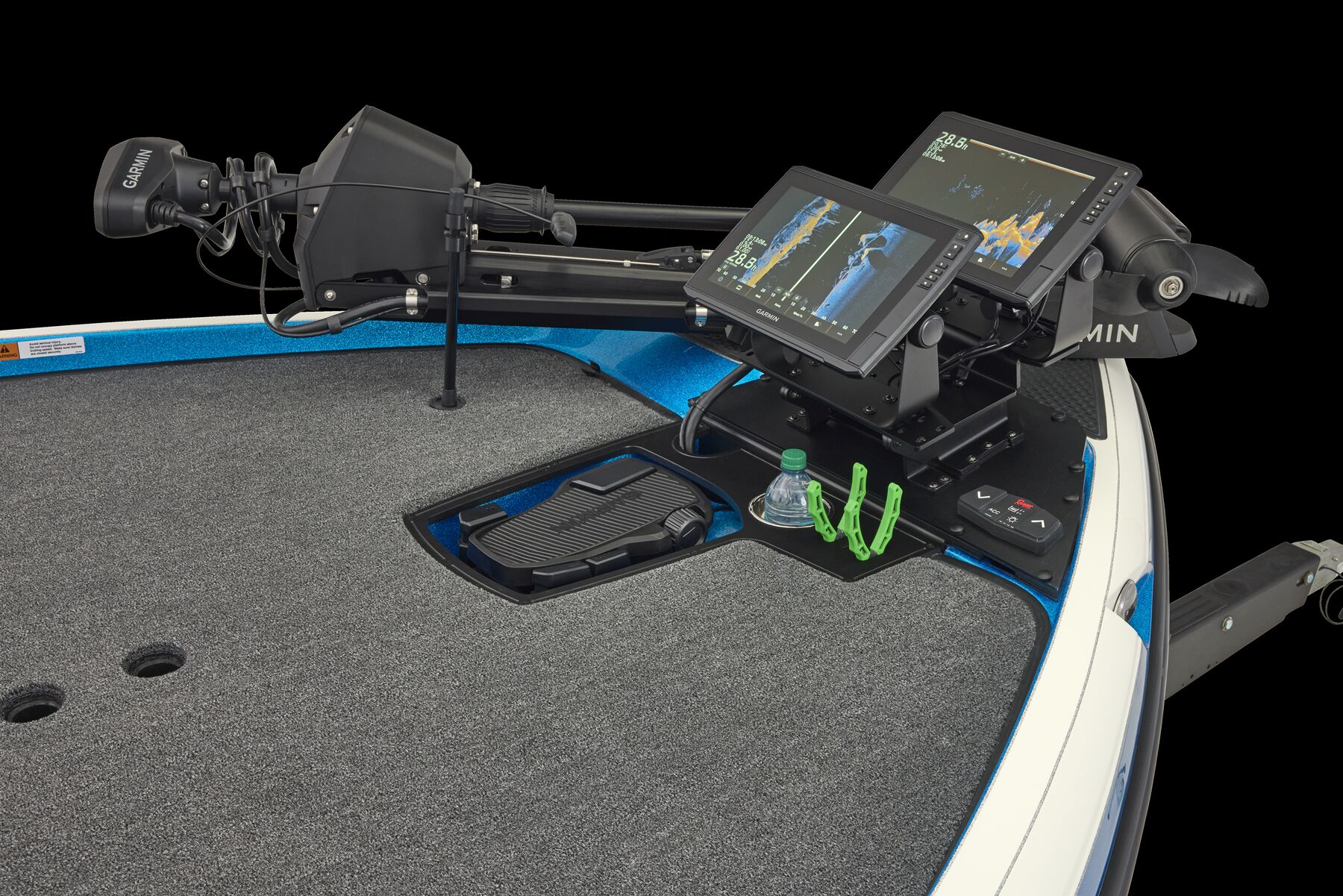

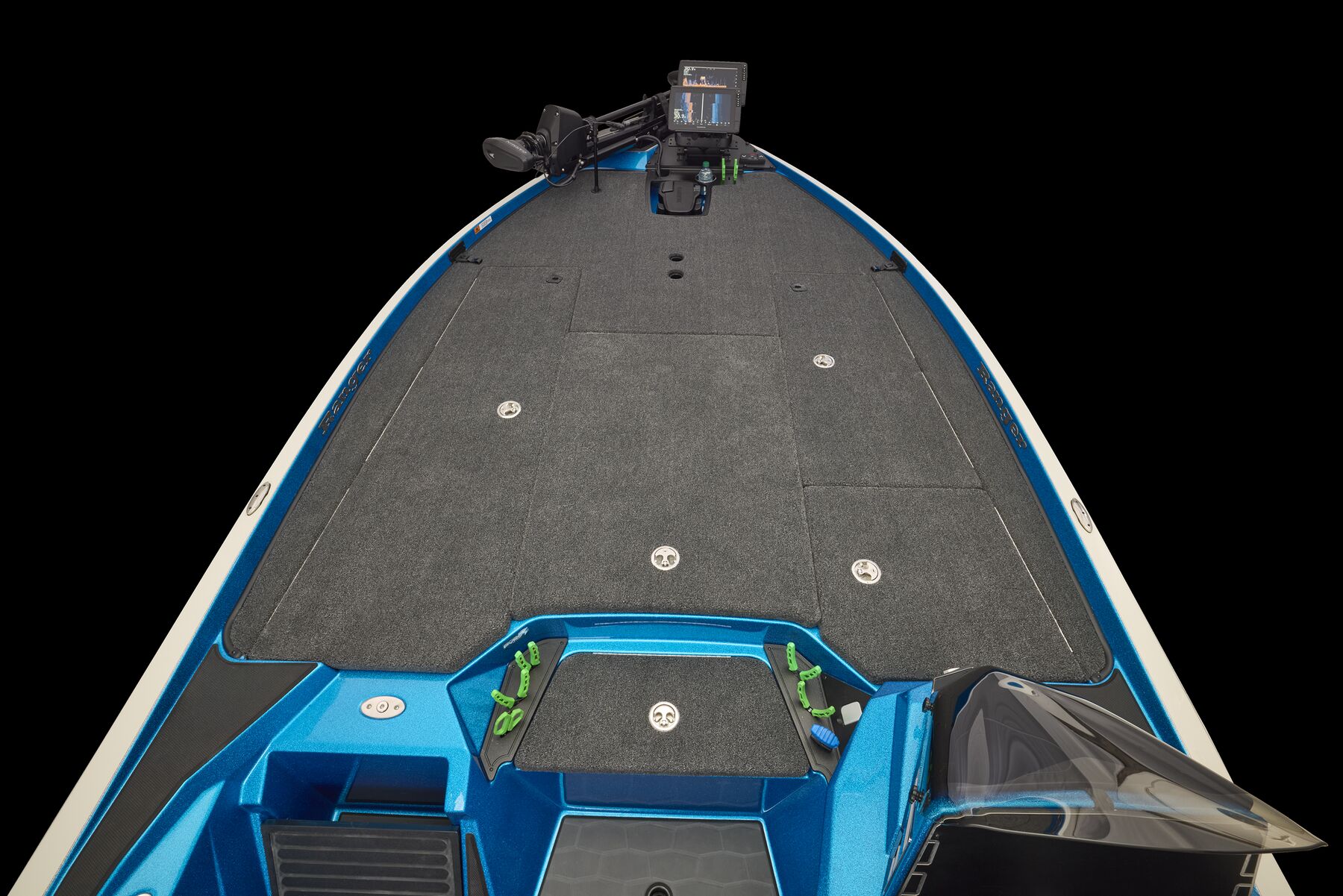

At the bow, a spacious padded casting deck gives anglers room to work efficiently, supported by the Ranger Echelon™ Rod Storage System with tiered lockers, Power Ventilation Rod Storage™, integrated tool holders, and a tournament measuring board built directly into the front deck step. A recirculating livewell with Venturi aeration and Pure Oxygen compatibility helps keep fish healthy throughout long tournament days.
Performance remains unmistakably Ranger. One-Piece-Feel Interloc Construction, a pultruded fiberglass transom, integrated setback, and proven hull design combine to deliver a smooth, confident ride in changing conditions. Premium details such as Soft Ride Seating, stainless steel compression latches, LED compartment lighting, and a custom-matched Ranger Trail® trailer complete a package engineered for serious anglers.
From first launch to final weigh-in, the Ranger Z521VS Cup-Equipped delivers the tournament-ready capability, technology integration, and legendary craftsmanship that continue to define the Ranger name.
Key Features
- Cup-Equipped™ tournament-ready electronics, trolling motor, and equipment package

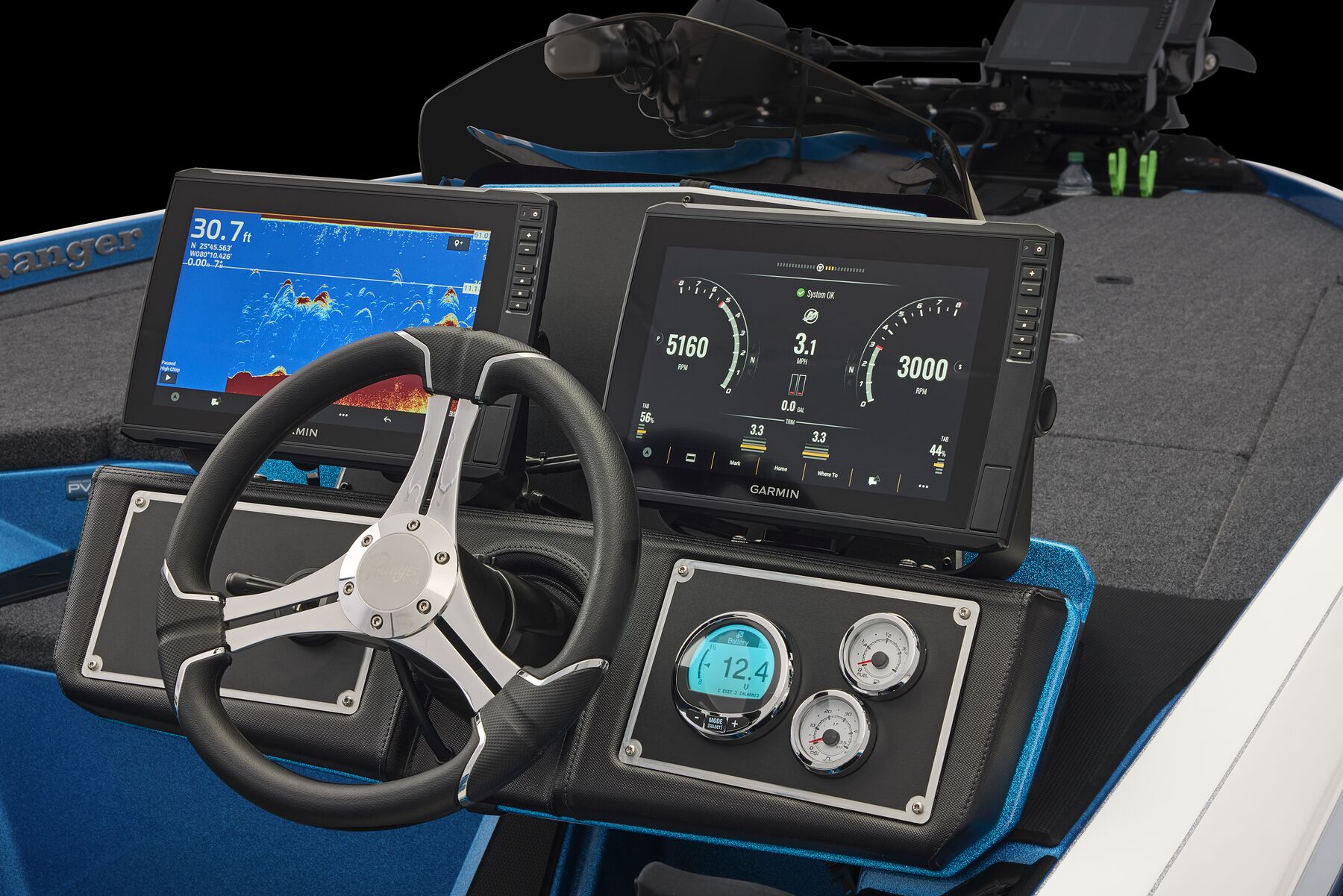

- 12” GARMIN® ECHOMAP™ or Lowrance® HDS® PRO at bow
- 12” GARMIN® ECHOMAP™ or Lowrance® HDS® PRO at console
- GARMIN® Force® Pro or Lowrance GHOST 36V trolling motor
- GARMIN® LiveScope™ Plus or Lowrance® Active Target™
- Ranger® ProCircuit™ Dedicated 6-Gauge Clean Power Electronics Harness
- Dual Pro® 15A x 4 bank charger
- Hot Foot throttle w/ slide
- Blinker Trim
- 14” Raptor III Wheels w/ matching spare
- Push-Button Solid-State Digital Switching
- Keyed Ignition
- Pultruded Fiberglass Transom
Gallery
Specifications
| Length | 6.63 m | 21' 9'' |
| Beam | 2.44 m | 96'' |
| Max. Recommended HP | 300 HP | |
| Engine Shaft Length | 50.8 cm | 20'' |
| Inside Depth | 53.34 cm | 21'' |
| Fuel Capacity | 204.39 L | 54 gal. |
| Livewell Capacity | 117.34 L | 31 gal. |
| Total Person, Motor, Gear | 861.83 kg | 1900 lbs. |
| Approximate Boat Weight | 1043.26 kg | 2300 lbs. |
| Rod Box Length - Port Bottom Shelf | 2.29 m | 7' 6'' |
| Rod Box Length - Port Middle Shelf | 8 ft. | |
| Rod Box Length - Port Top Shelf | 9 ft. | |
| Rod Box Length - Center Row 1 | 2.59 m | 8' 6'' |
| Rod Box Length - Center Row 2 | 8 ft. | |
| Rod Box Length - Starboard Top Shelf | 2.29 m | 7' 6'' |
| Rod Box Length - Starboard Bottom Shelf | 2.03 m | 6' 8'' |
| Max. Person Capacity | 5 persons | |
| Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate) | 8.51 m | 27' 11'' |
| Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate) | 7.65 m | 25' 1'' |
| Width On Trailer | 2.59 m | 102'' |
| Package Height | 2.01 m | 79'' |

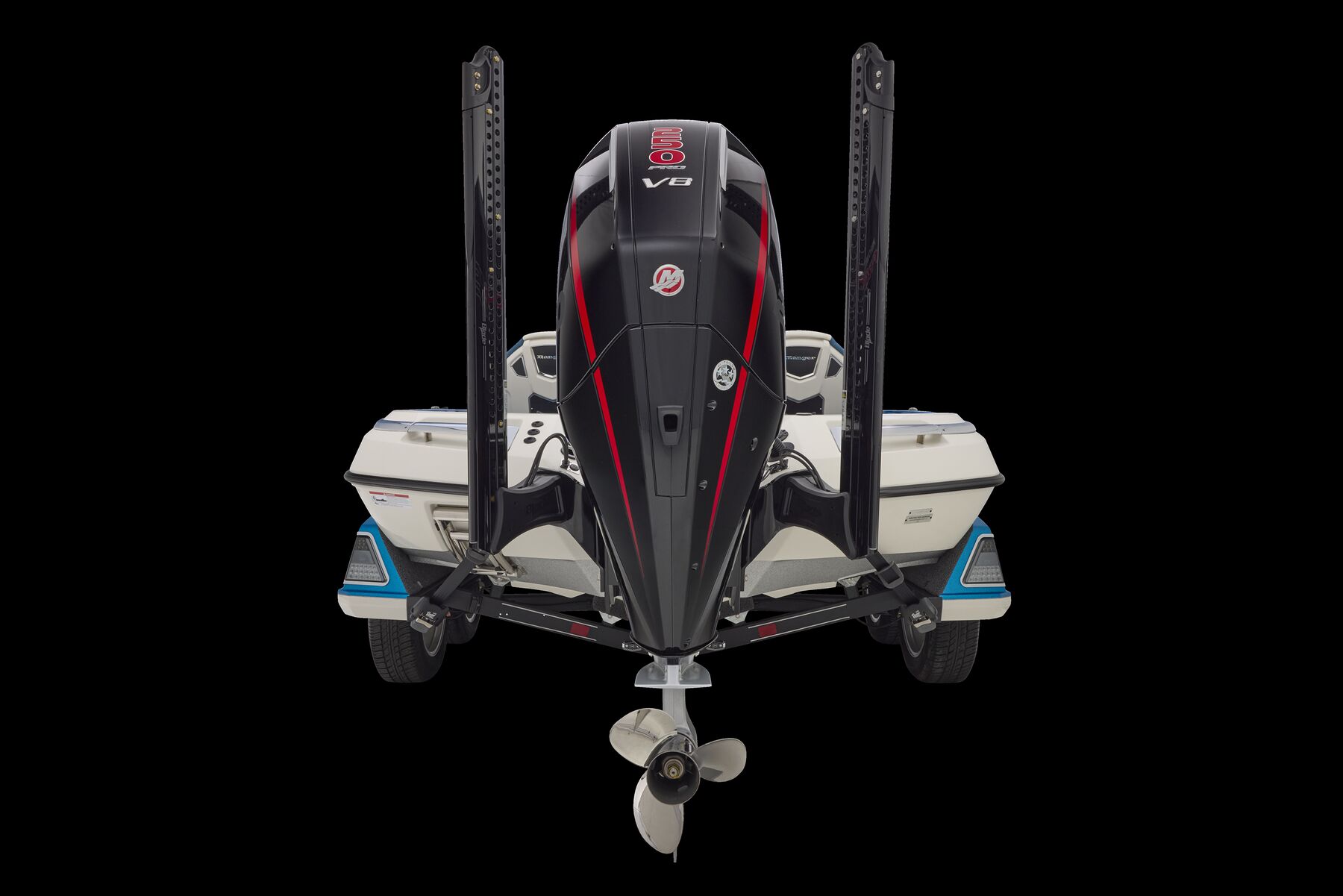

Motor Options
| AVAILABLE MOTOR | |||||
|---|---|---|---|---|---|
| Mercury® | |||||
| 250L Pro XS Torque Master |
$81995 USD
|
Select Dealer | |||
| 300L Pro XS Torque Master |
$85845 USD
|
Select Dealer | |||
| 300R LTM 1.75 Racing |
$90420 USD
|
Select Dealer | |||
| Yamaha® | |||||
| VF 250LB 4.2L VMAX SHO |
$85895 USD
|
Select Dealer | |||
Standard Features
Ranger Cup Equipped - GARMIN® Package
- Dual Pro™ on-board charger, 15A x 4 bank w/ auto-detect technology & remote charging port
- Foot Throttle w/ Slide
Ranger Cup Equipped - LOWRANCE® Package
- Lowrance® Active Target™ 2 Live Sonar
- Lowrance® Ghost 45" 36V Trolling Motor
- Dual Pro™ on-board charger, 15A x 4 bank w/ auto-detect technology & remote charging port
- Foot Throttle w/ Slide
Custom Details

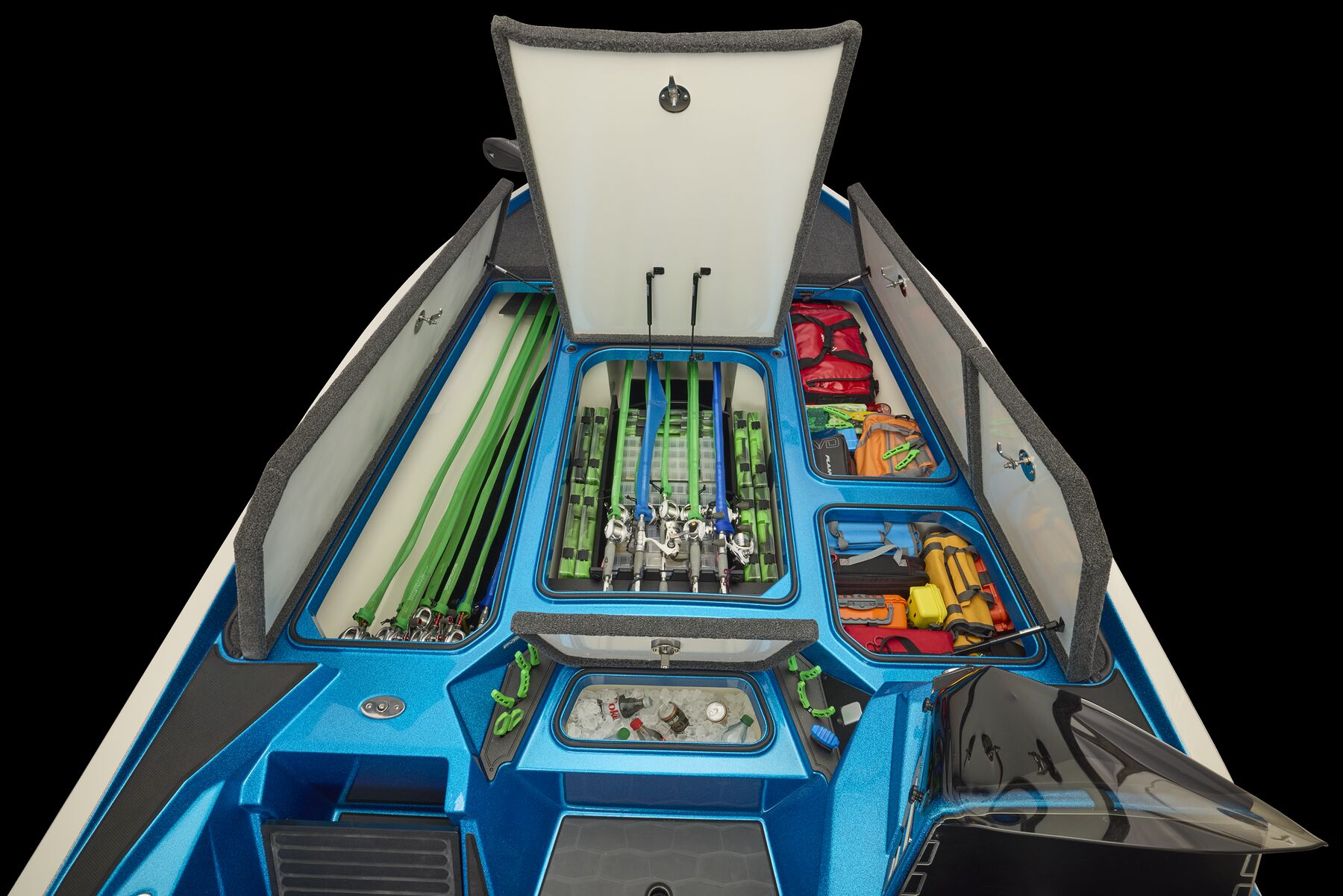

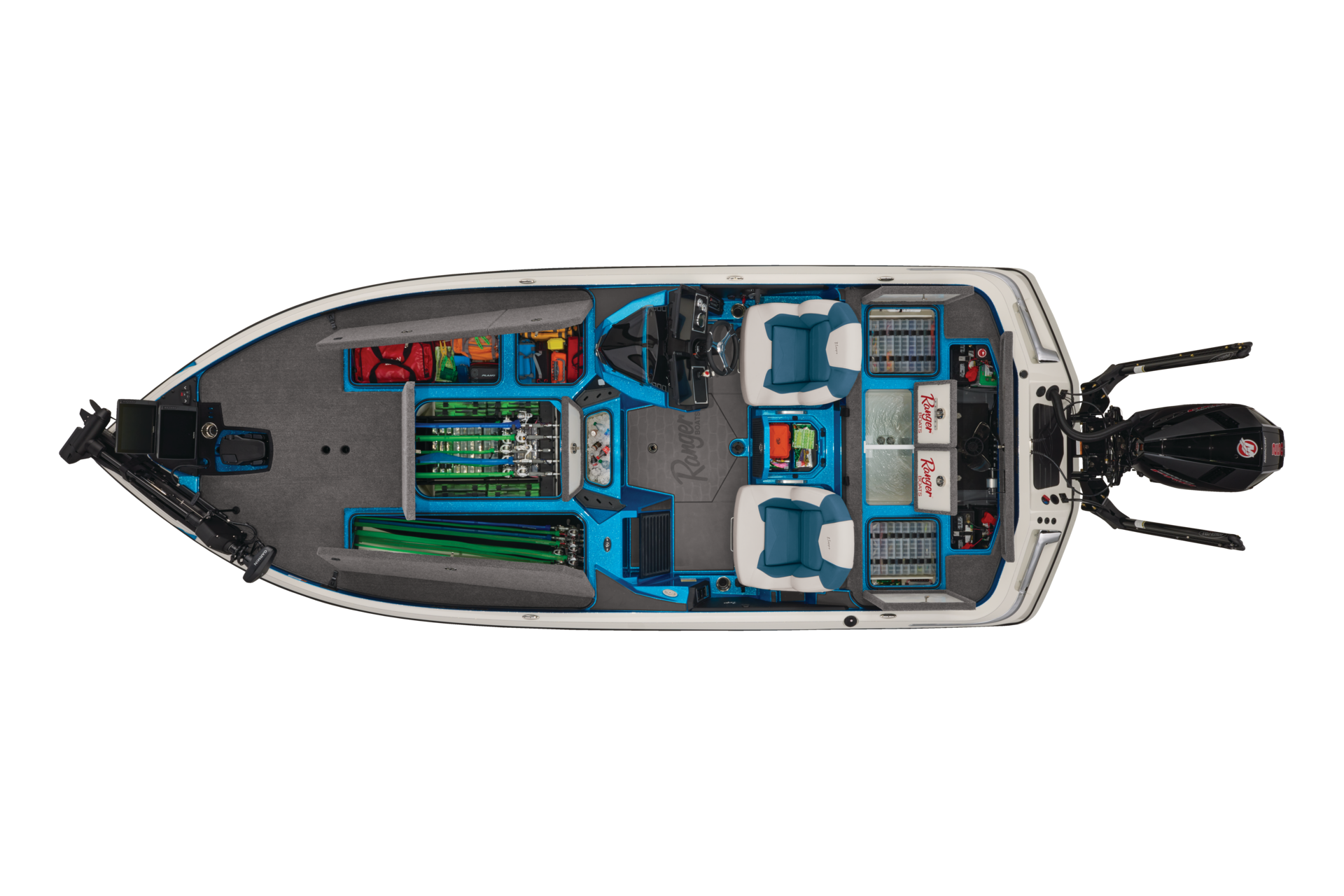

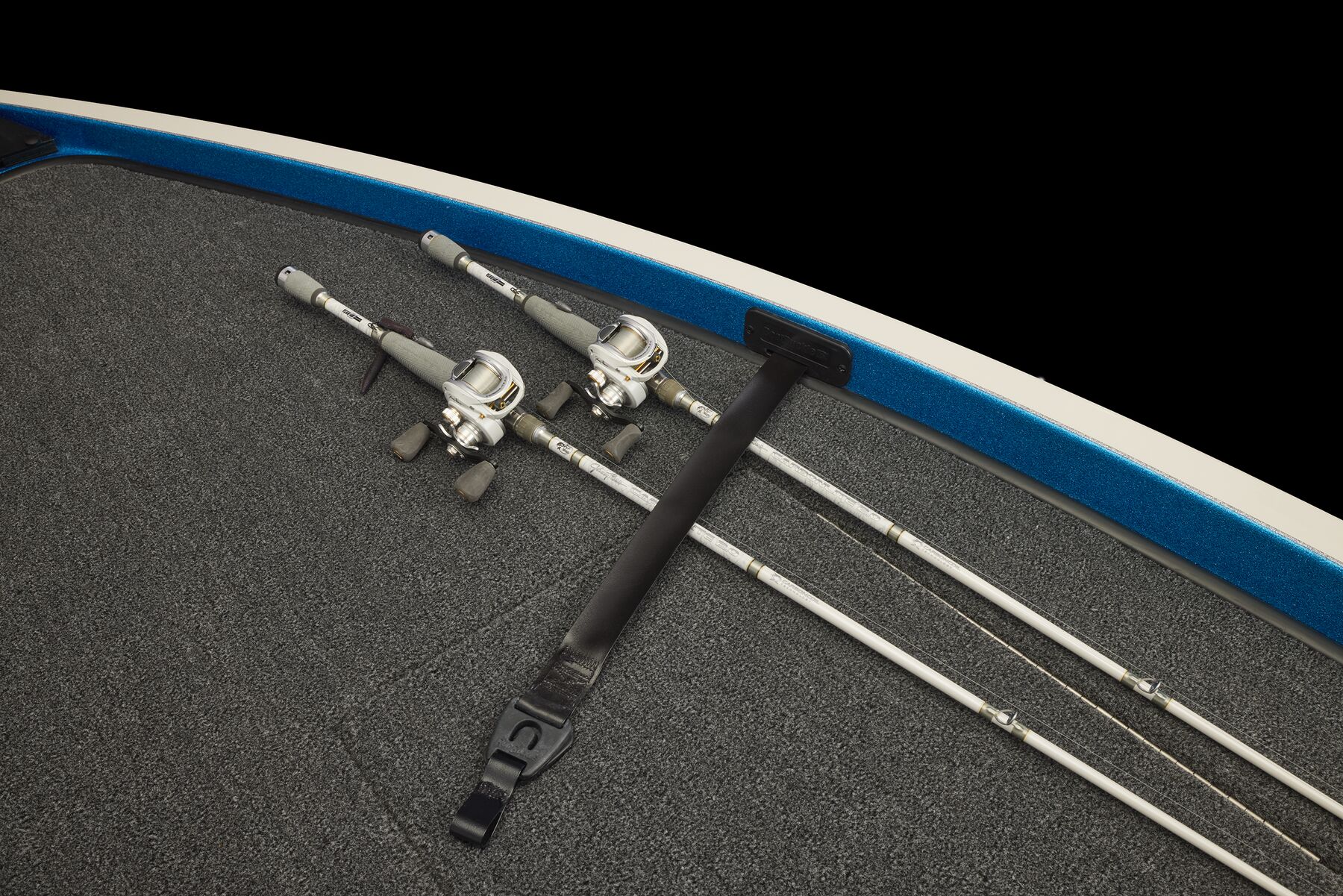

- Ranger Echelon™ Rod Storage System - 3-tiered port & 2-tiered starboard rod lockers
- Power Ventilation Rod Storage™
- Insulated 40 qt. step-up cooler
- Stainless steel compression locking latches
- Carpeted cockpit floor and compartment liner mats
- Molded-in driver / passenger footrests
Electronics
- Mercury SmartCraft MercMonitor gauge package
- Push-Button solid-state digital switching
- Keyed ignition
- Solid-state digital keypad at bow with push-button trim switches
- Ranger® ProCircuit™ dedicated 6-gauge clean power electronics harness
- Heavy Duty 6-gauge trolling motor wiring harness w/ 60A breaker
- Master Power on/off battery disconnect switch
- NOCO™ GB40 jump starter w/ on-board USB charging
- LED storage compartment lighting & LED courtesy & livewell lighting
- Integrated LED bow navigation lights & removable LED anchor light
- Lowrance® Elite FS™ 9 w/ Active Imaging™ HD at console
- On-Board NOCO® 15A x 3 Bank charger
Power/Performance
- MinnKota® Fortrex 80lb , 45" DSC 24V trolling motor
- AGM Starting battery w/ tray
- One-Piece-Feel Interloc Construction
- Pultruded Fiberglass Transom
- Integrated engine setback
- 12" manual setback plate
- Hydraulic steering

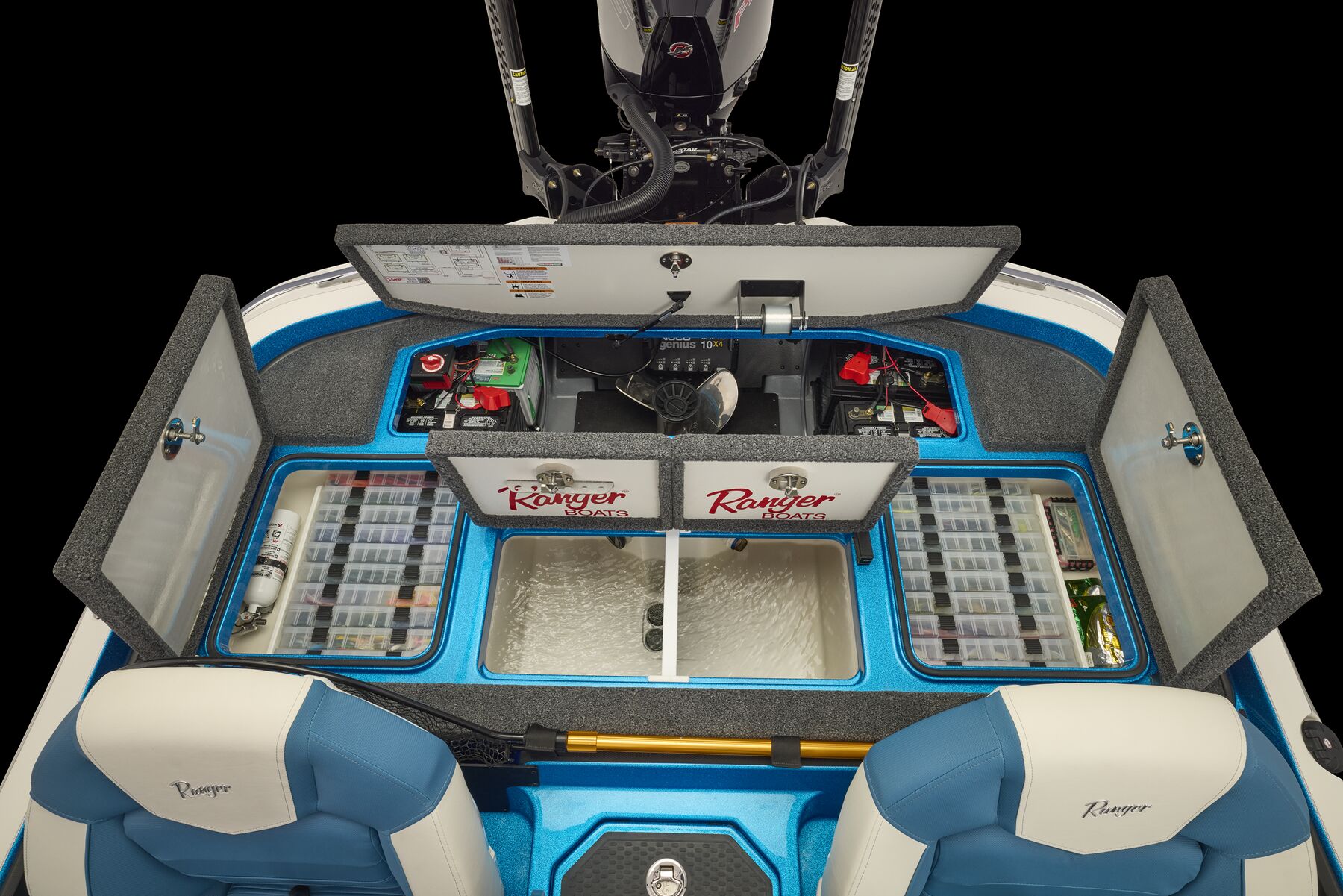

- Recirculating aerated livewell w/ removable divider
- Venturi aeration system
- Recessed trolling motor foot pedal
- High performance stainless steel prop
- Foam-filled fiberglass stringer system
Safety/Comfort

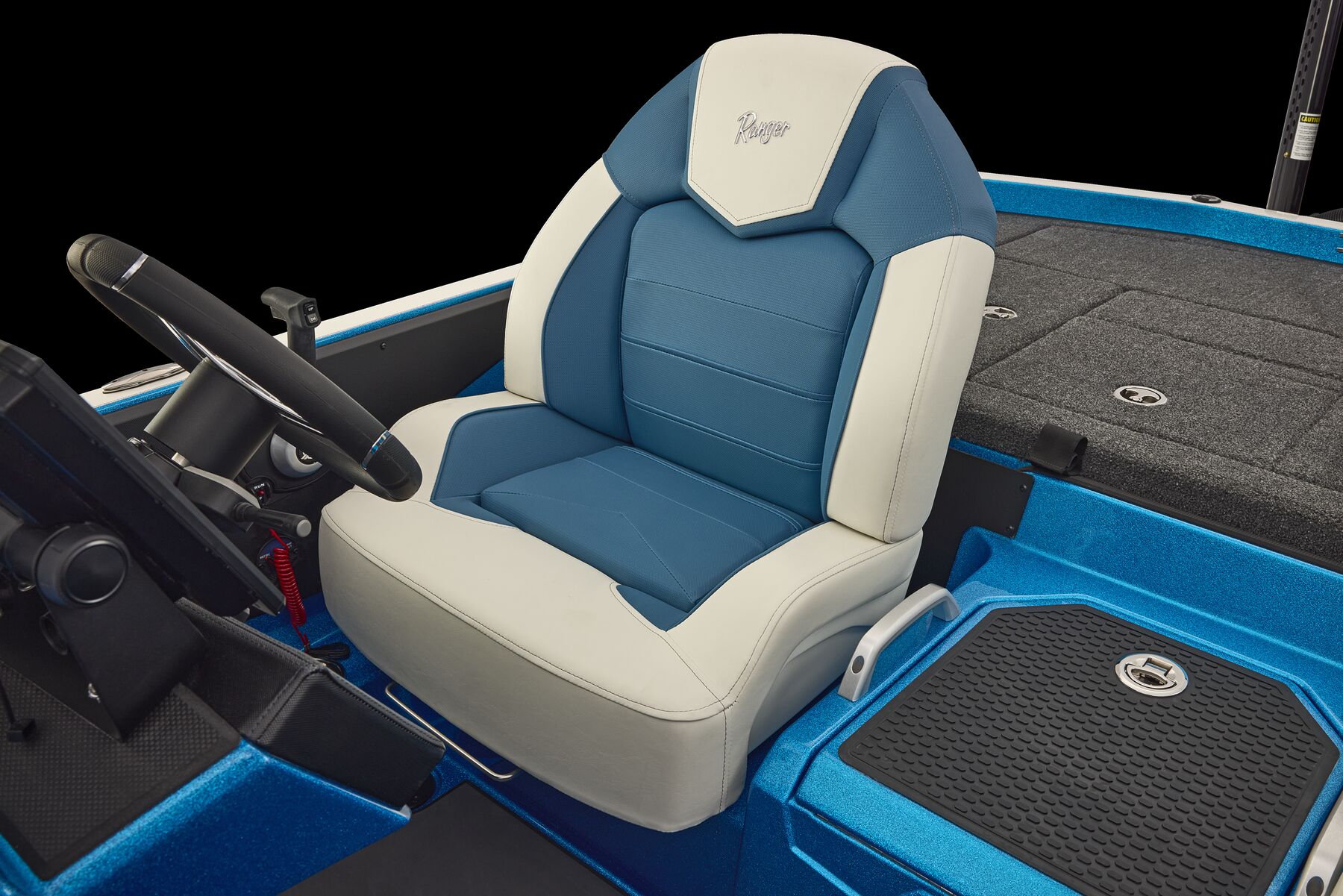

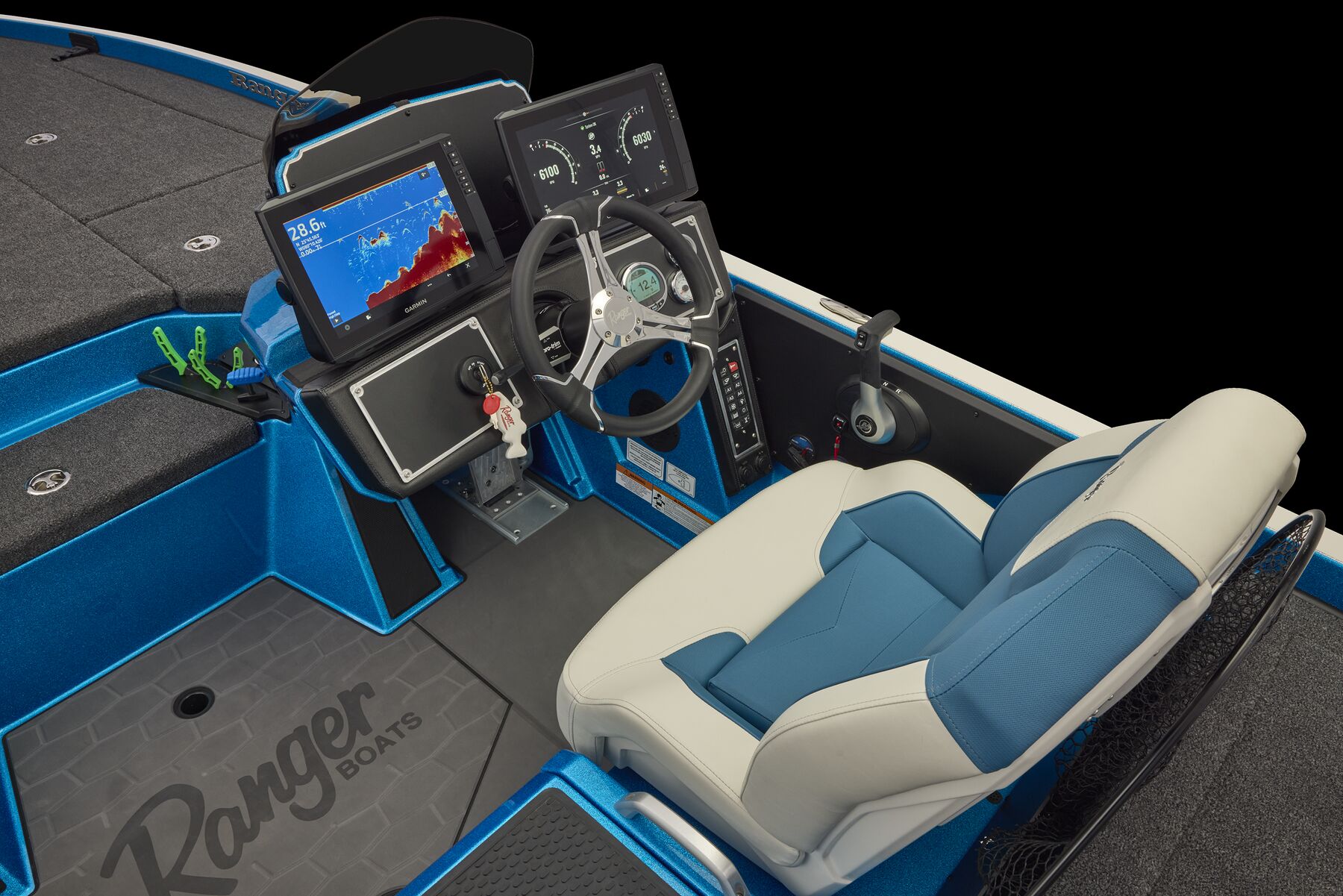

- Custom-fitted premium marine upholstery (2) Soft Ride Seating (SRS) bucket seats, (2) bike seats with Pro Pole
- Upright Level Flotation exceeding all USCG & NMMA standards
- Padded front deck
- Fire extinguisher & horn
- Stainless steel seat bases
- Pop-up tie cleats
- Integrated grab handles
- Rite Track Keel®
- Automatic & manual bilge pumps
- Integrated re-boarding ladder

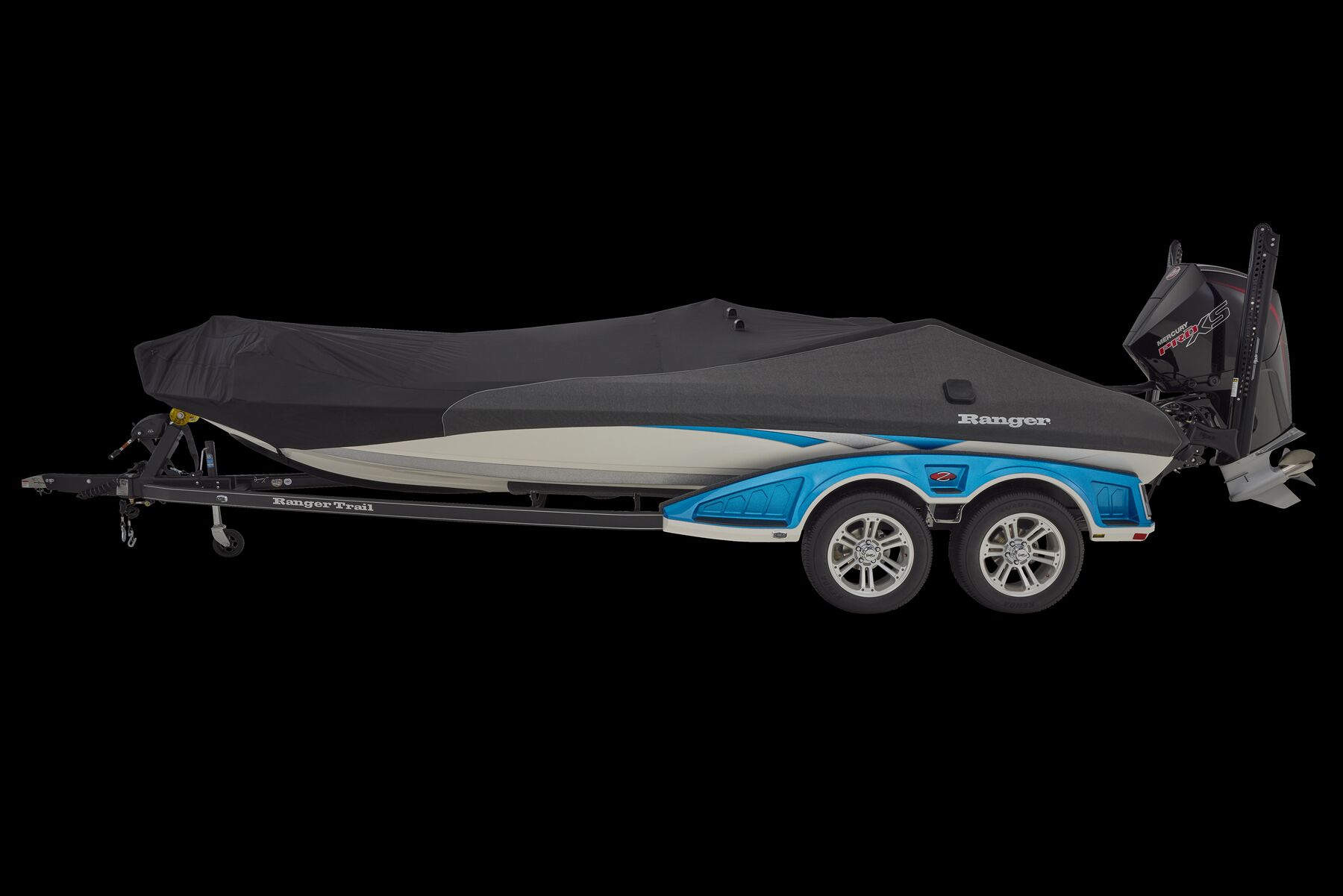

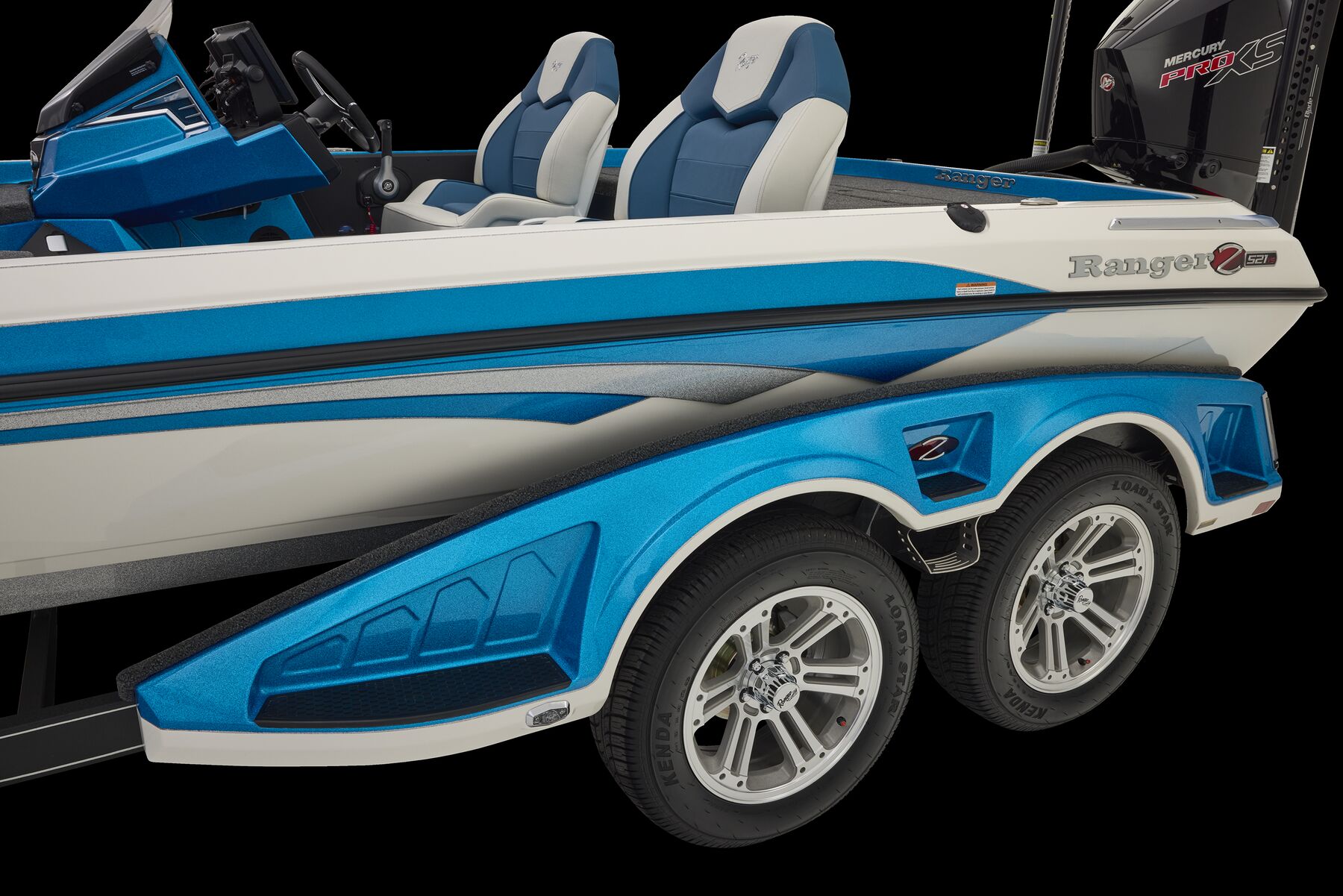

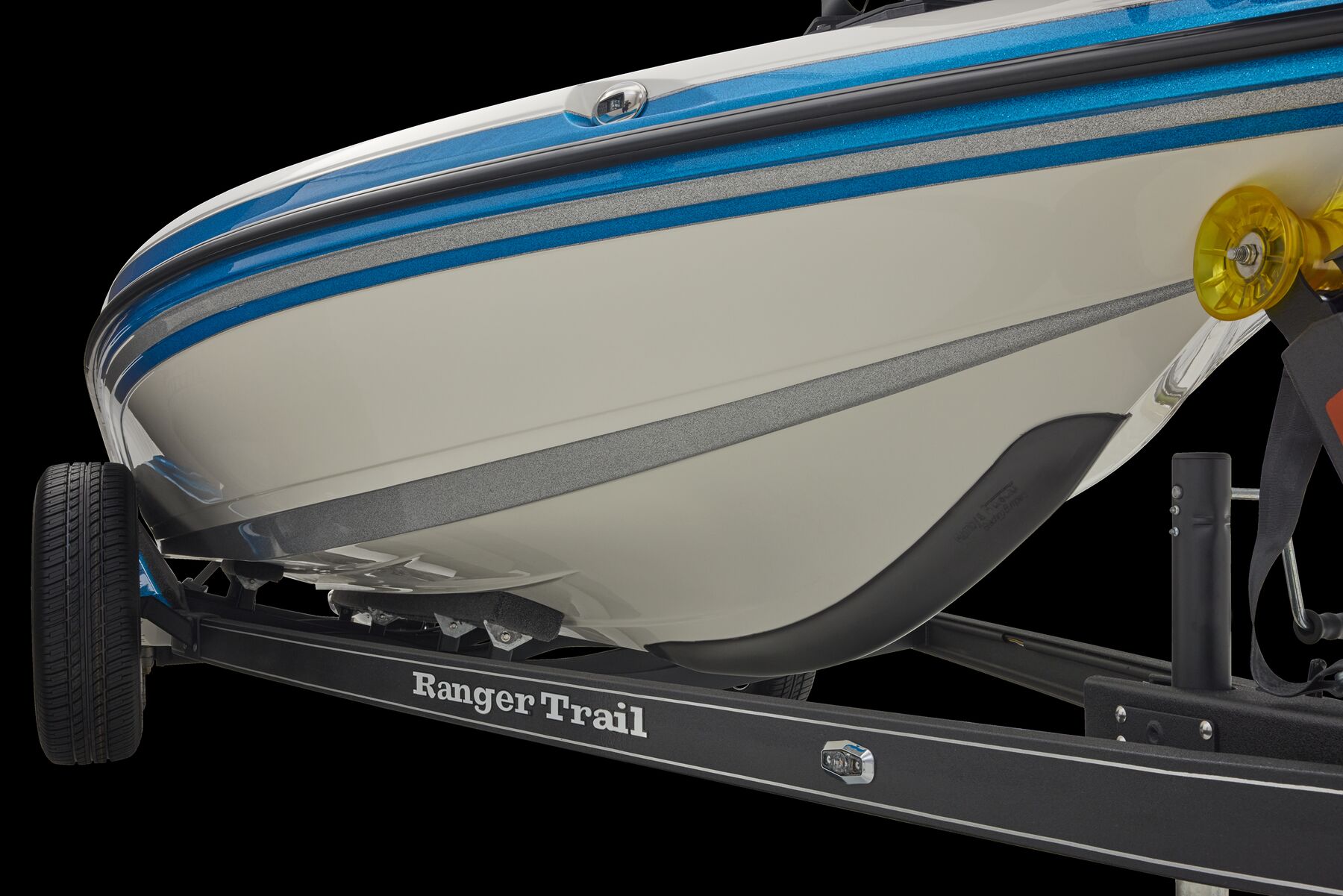

Trailer Features
- Ranger® Boats Road Armor Equipped® trailer protectant coating

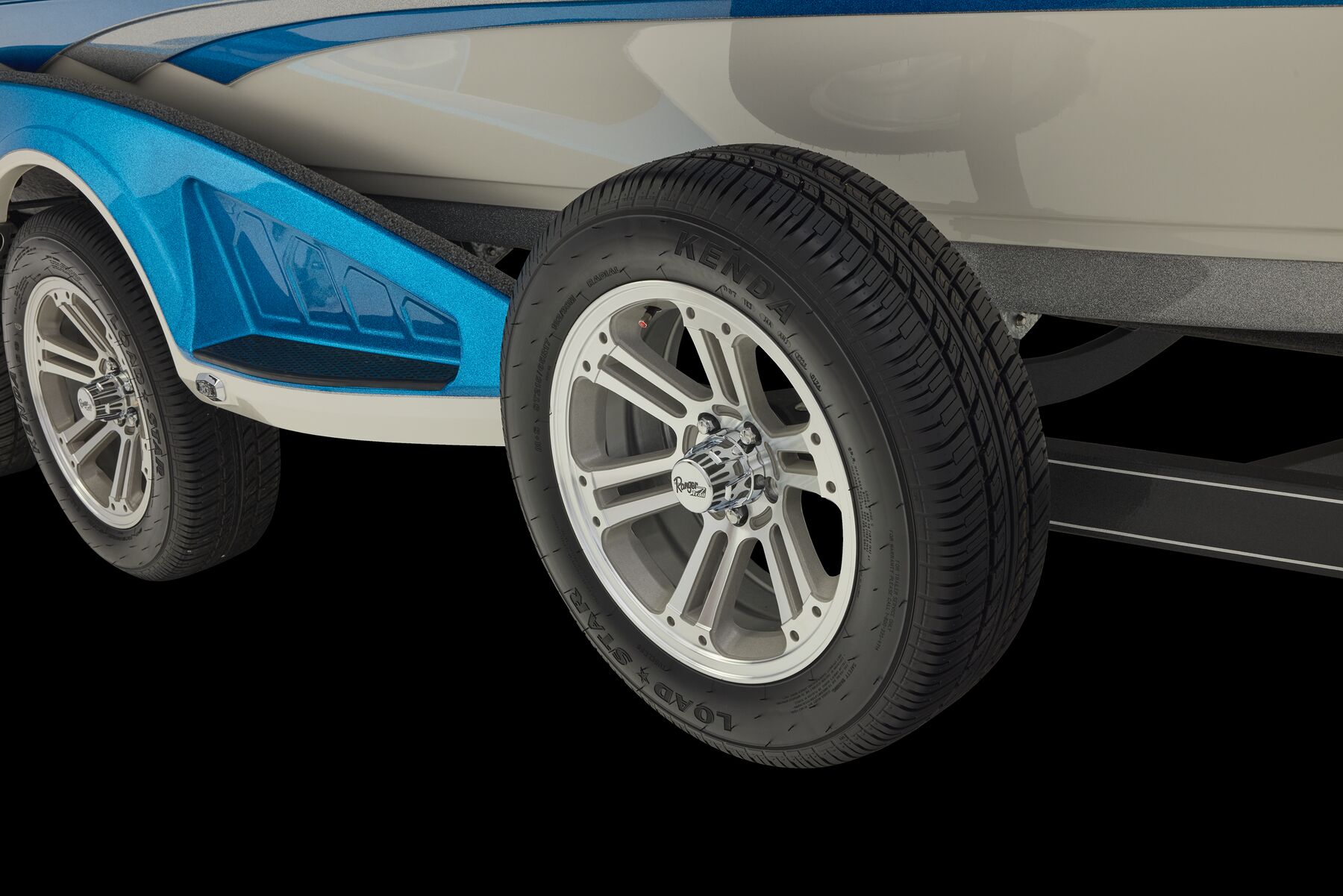

- NEW 14" machined/painted Raptor III wheels w/ matching spare
- Ranger Trail® Vault® Hub lubrication system
- Fiberglass fenders w/ step pads
- Hydraulic surge disc brakes
- Swing-away tongue
- Integrated center-swing jack finished in black powdercoat
- Stainless steel ratcheting tie-downs
- LED lighting
- LED back-up lights
- NMMA®/NATM certified
