Home / Fiberglass / Deep V / Fisherman Series
2027

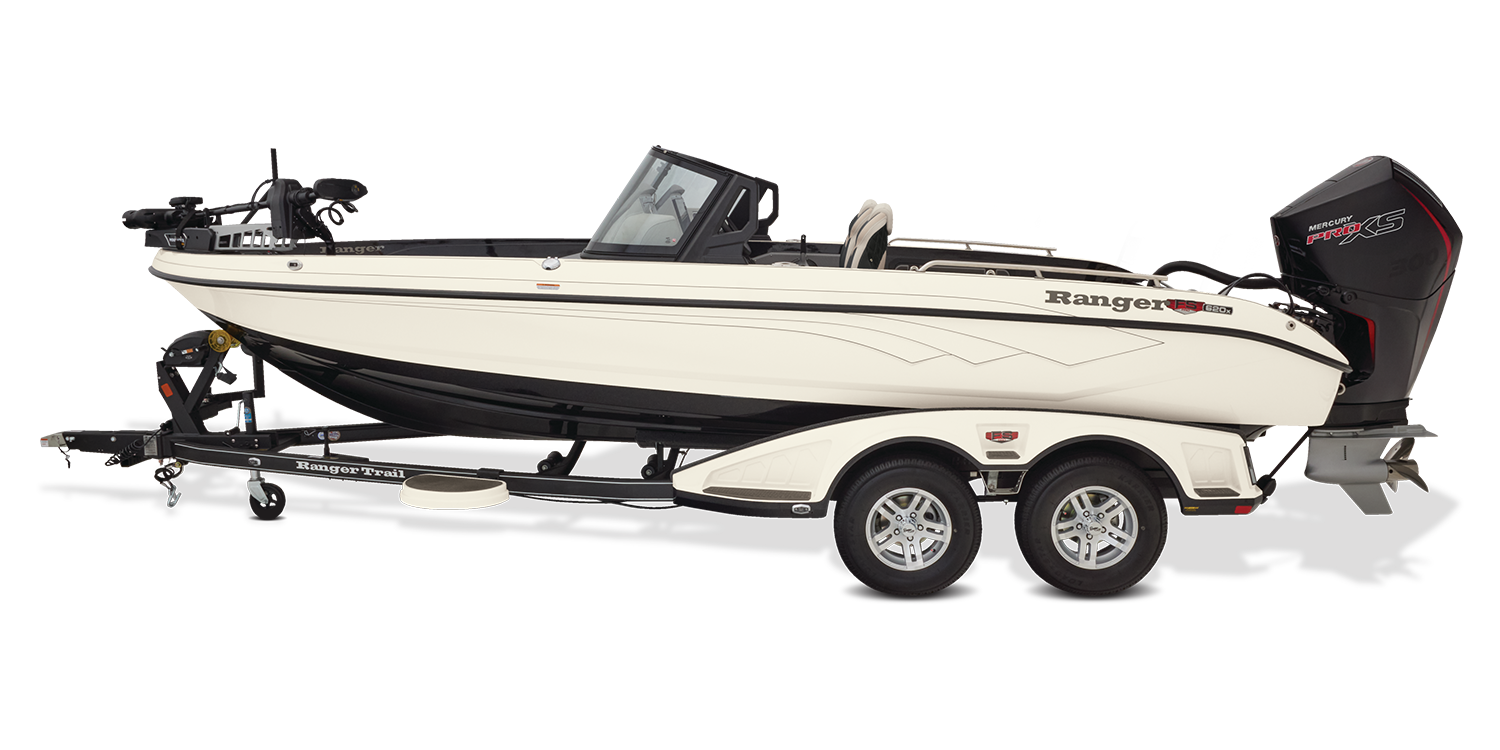

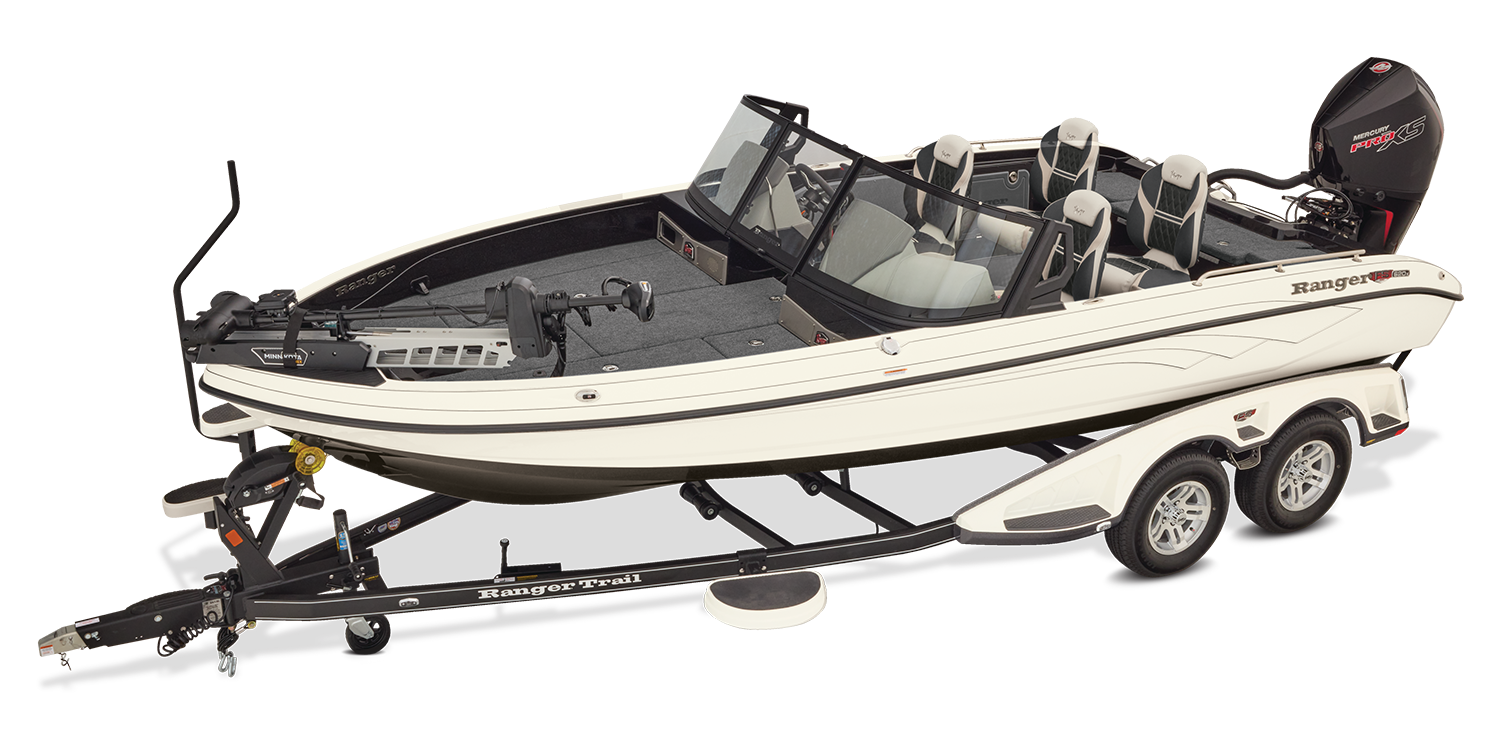

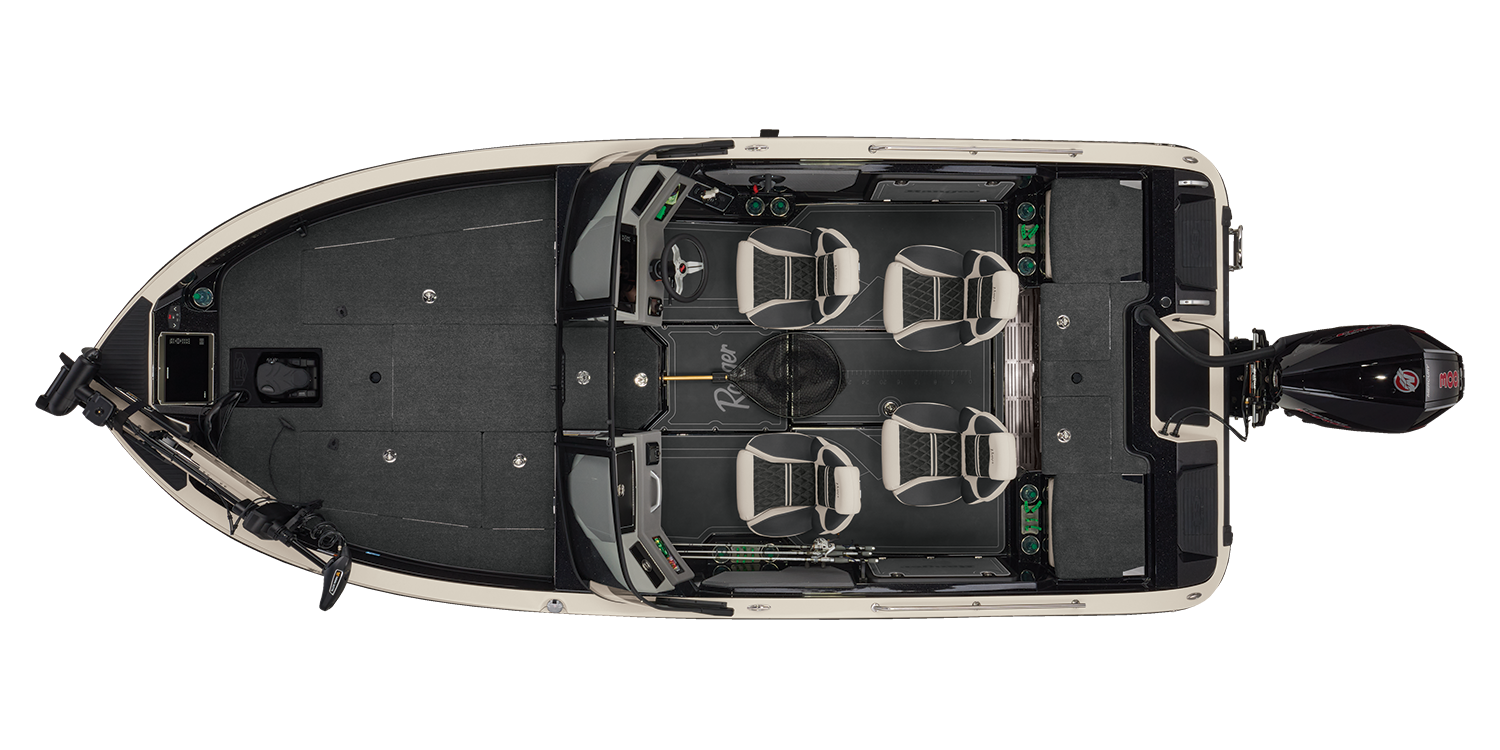

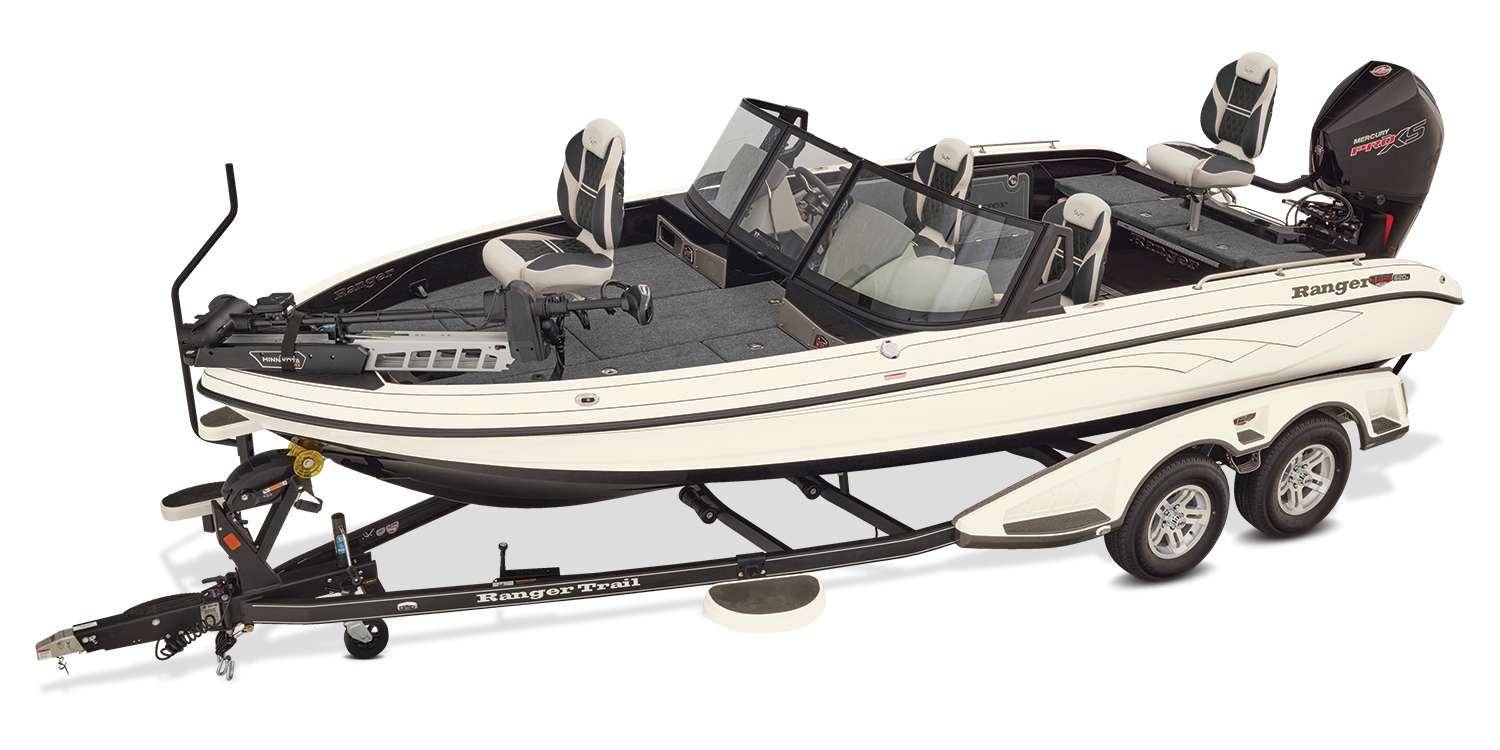

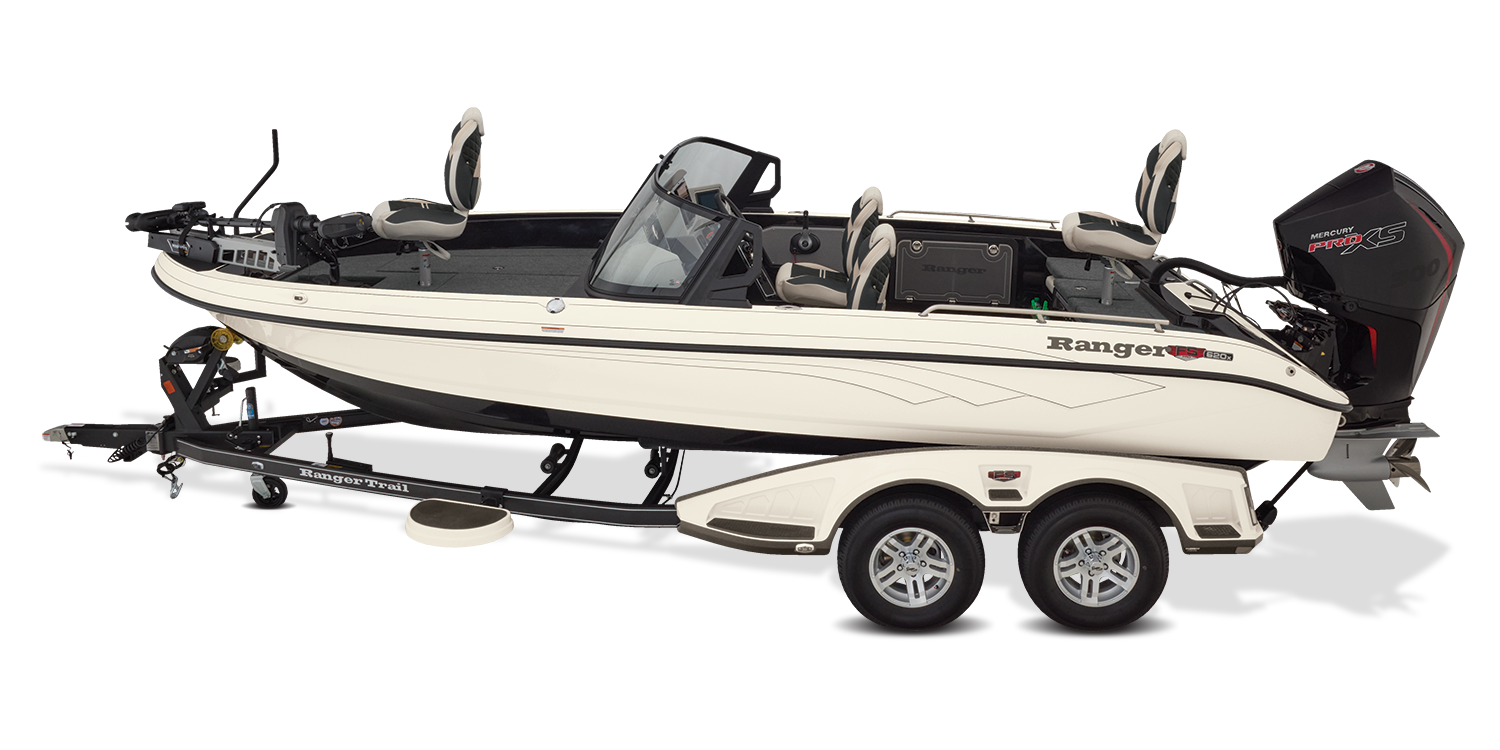

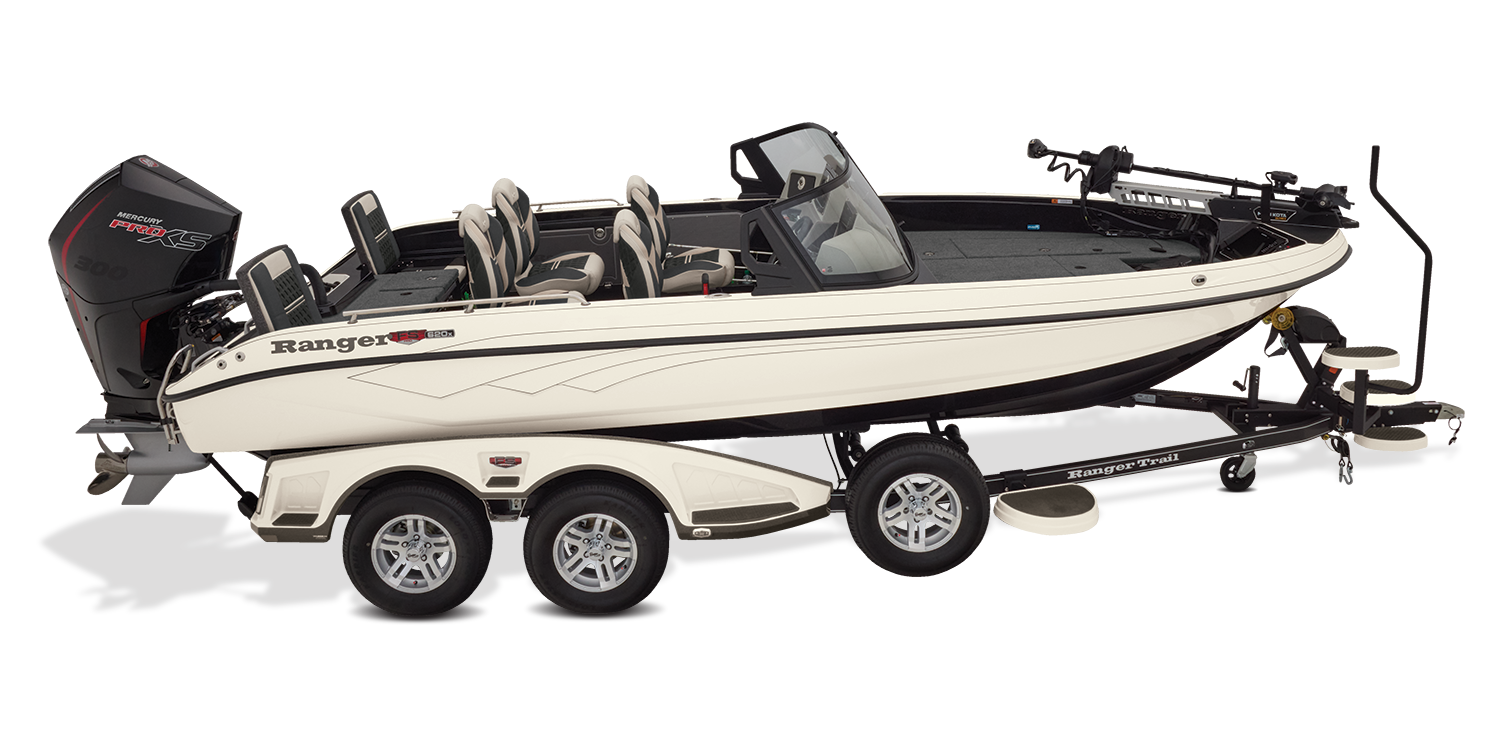

620xFS PRO
w/ 250 XL Pro XS FourStroke Mercury®

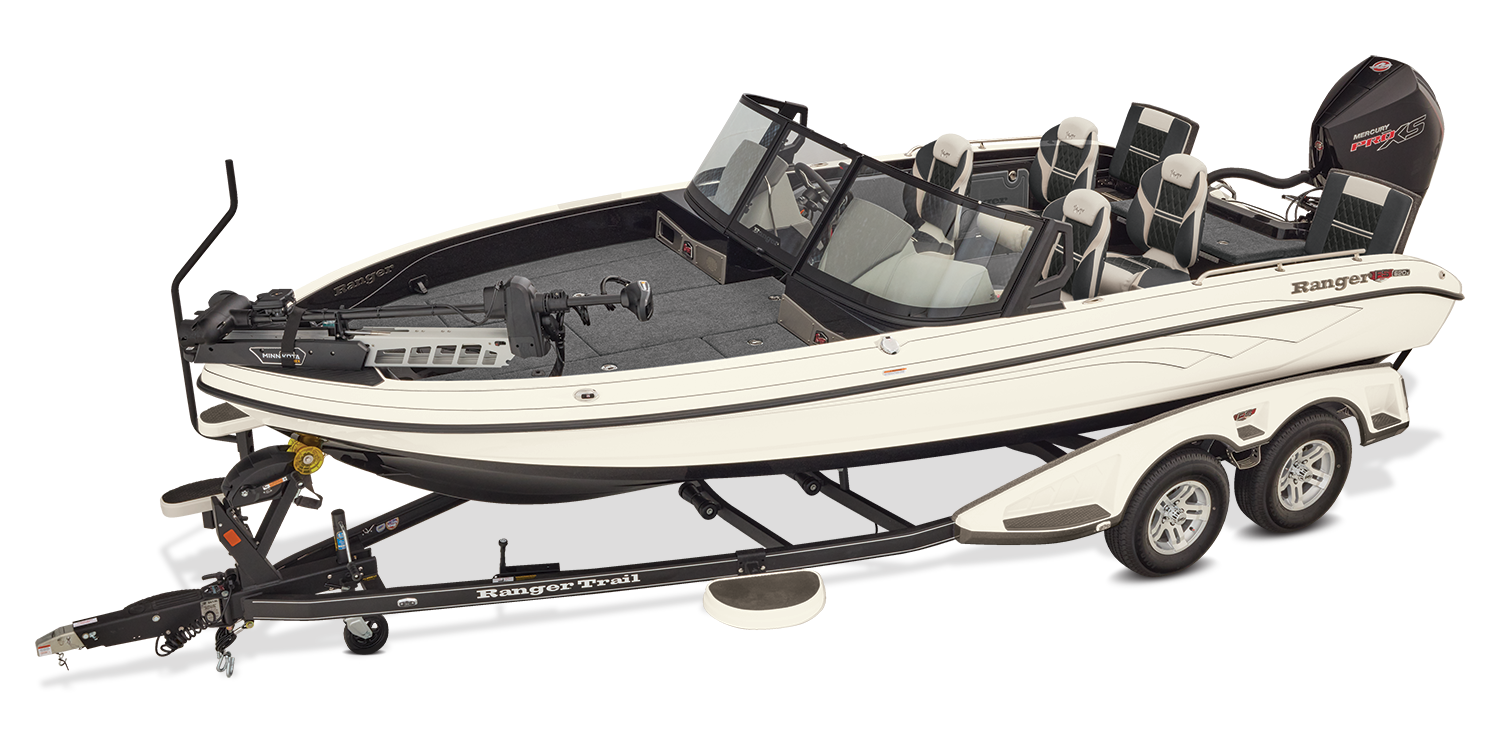

Boat, Motor, & Trailer
| View Price w/ Prep & Freight: | Select Dealer |
|
PRICED TO BE YOURS®
|
$103995
USD
|
All-New Innovation. Legendary Deep V Performance
The Ranger® 620xFS Pro combines next-generation innovation with the versatility that has made the Fish & Sport platform an industry favorite. Whether chasing walleyes, trolling open water, or creating family memories, the 620xFS Pro delivers confidence, comfort, and capability in equal measure.

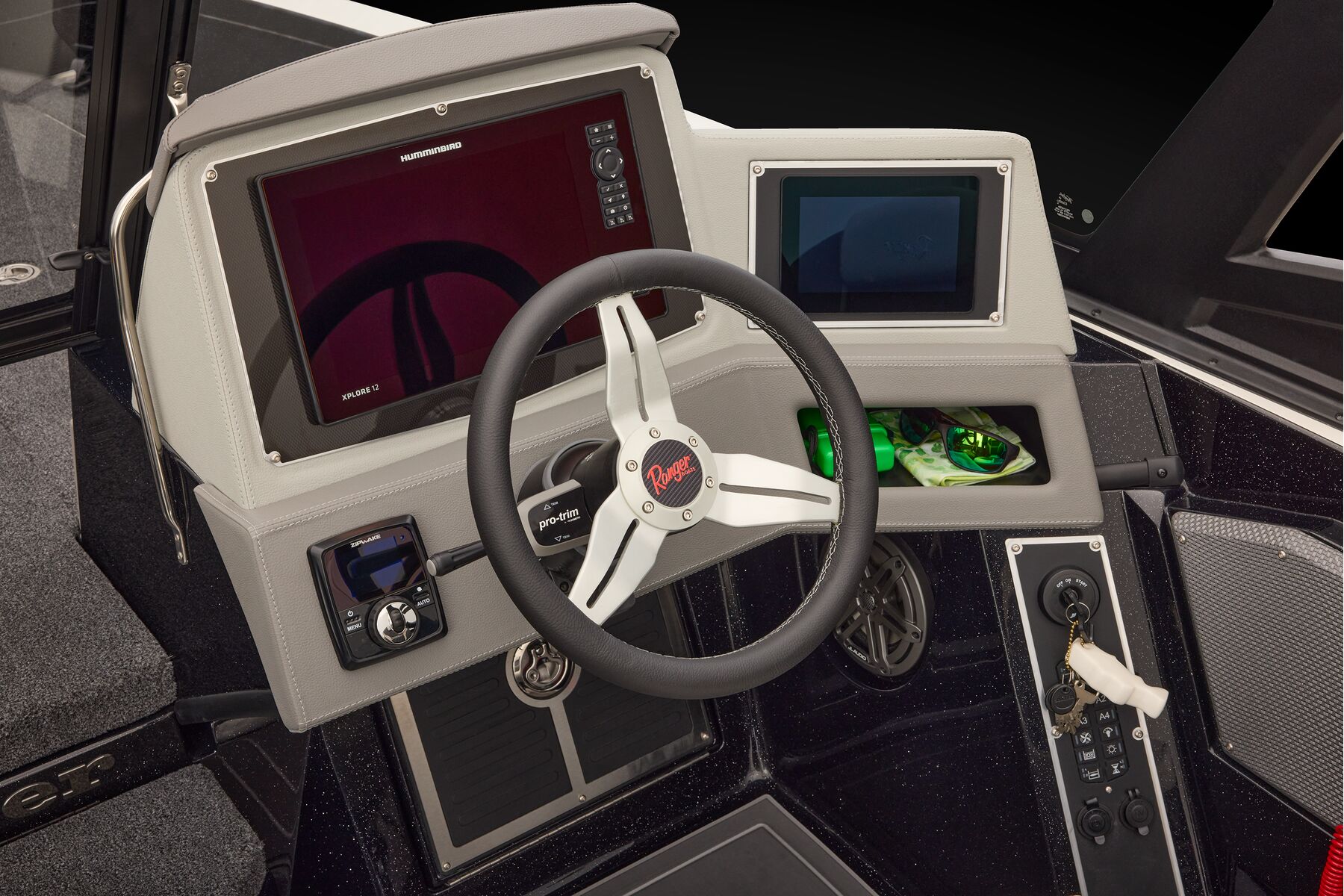

A fully redesigned helm puts advanced technology at your fingertips, while clean-power electronics integration and wireless bow controls simplify every aspect of operation. Premium features like Power Ventilation Rod Storage™, wireless phone charging, and Ranger's One-Piece-Feel™ construction ensure every trip is more productive, comfortable, and enjoyable. From serious fishing to weekend adventures, the 620xFS Pro is built to perform.
Key Features
- Built To Be Yours™ – Available with a wide array of custom-matched trolling motors, electronics, and accessories.

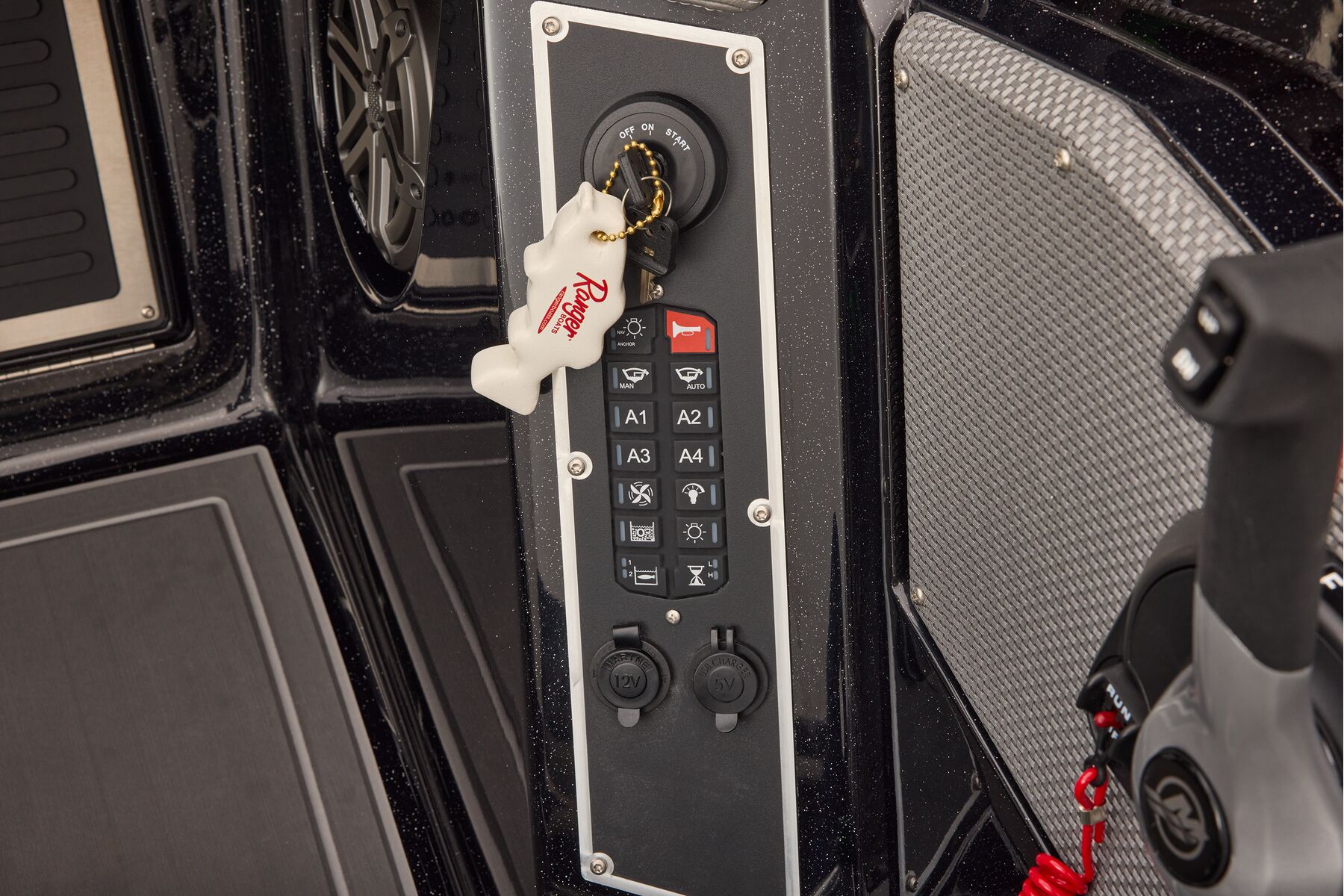

- FORGE™ Heads-up & Control touchscreen displays w/12-Button solid-state keypad
- Keyless Push-to-Start ignition
- ProCircuit™ dedicated 6-gauge electronics clean-power harness
- Smart battery control with remote on/off switch

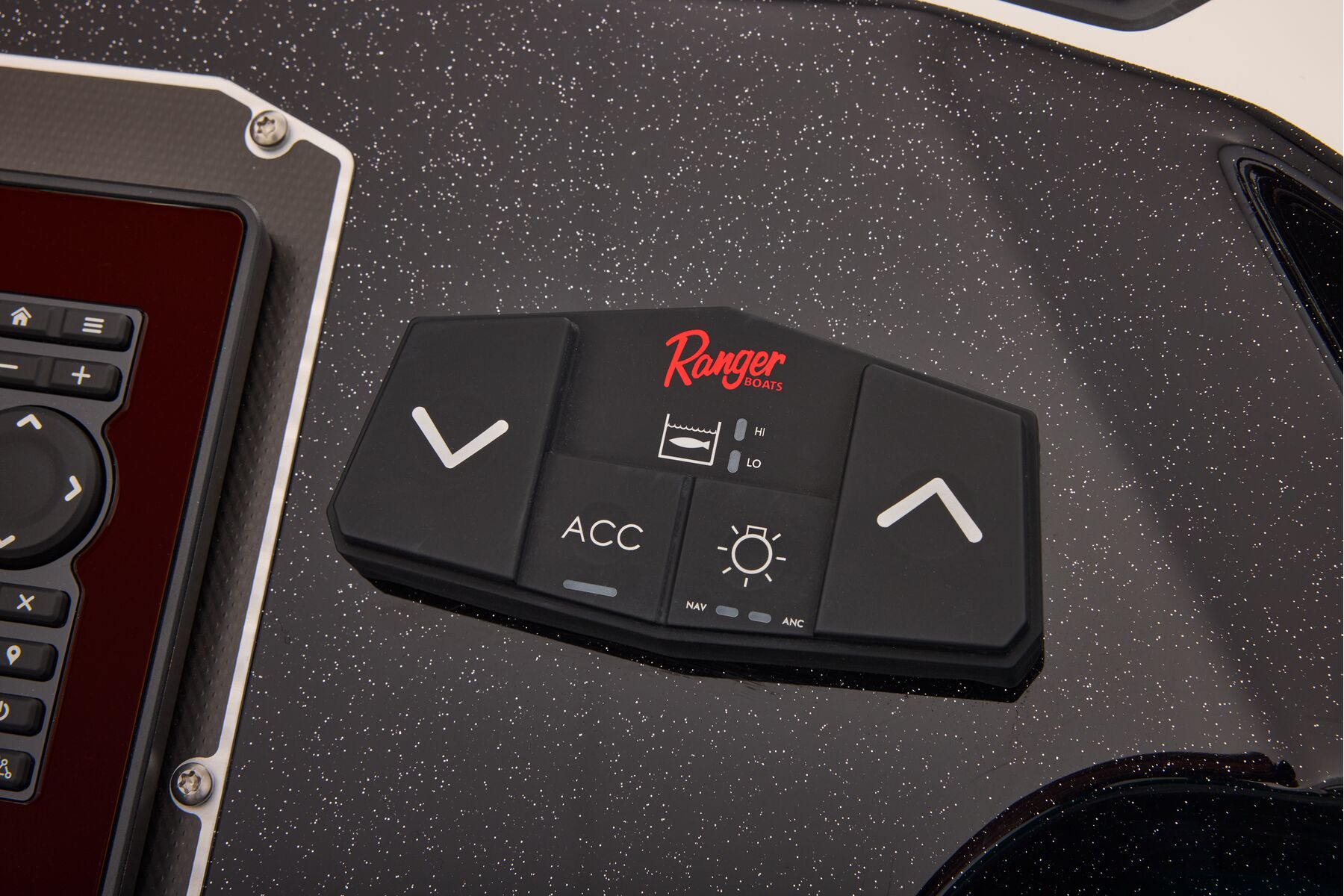

- Wireless bow keypad with double-tap shallow-water & holeshot modes

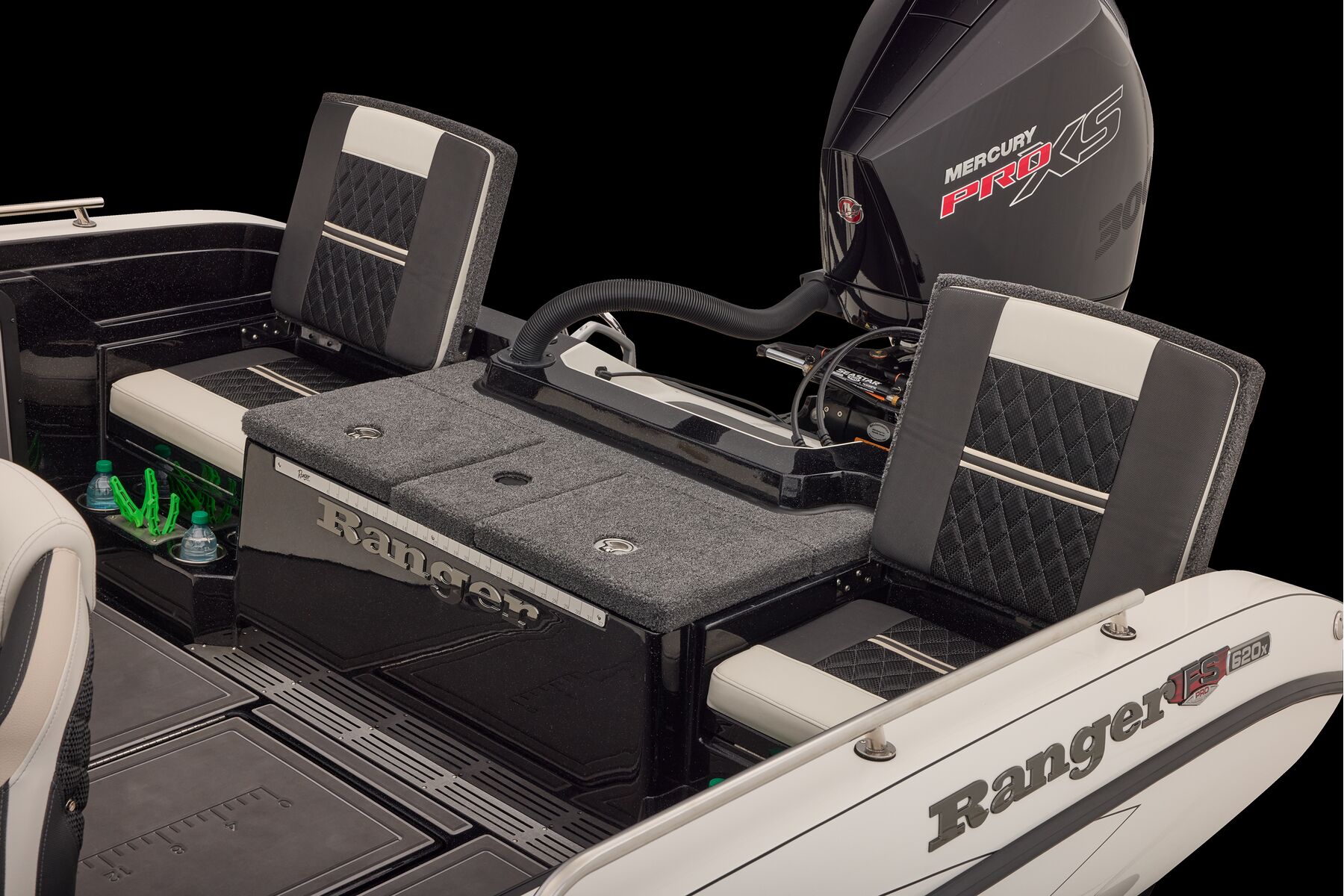

- Integrated aft jump seats
- 14” Raptor III machined/painted aluminum wheels
Gallery
Specifications
| Length | 6.27 m | 20' 7'' |
| Beam | 2.59 m | 102'' |
| Max. Recommended HP | 300 HP | |
| Engine Shaft Length | 63.5 cm | 25'' |
| Inside Depth | 62.23 cm | 24.5'' |
| Fuel Capacity | 215.75 L | 57 gal. |
| Livewell Capacity | 105.98 L | 28 gal. |
| Baitwell Capacity | 26.5 L | 7 gal. |
| Total Person, Motor, Gear | 975.22 kg | 2150 lbs. |
| Approximate Boat Weight | 1088.62 kg | 2400 lbs. |
| Rod Box Length - Center Row 1 | 2.59 m | 8' 6'' |
| Rod Box Length - Center Row 2 | 2.44 m | 8' |
| Max. Person Capacity | 7 persons | |
| Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate) | 7.7 m | 25' 3'' |
| Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate) | 7.09 m | 23' 3'' |
| Width On Trailer | 2.59 m | 102'' |
Motor Options
| AVAILABLE MOTOR | |||||
|---|---|---|---|---|---|
| Mercury® | |||||
| 250 XL Pro XS FourStroke |
$103995 USD
|
Select Dealer | |||
| 250 XL Pro XS FourStroke DTS |
$106035 USD
|
Select Dealer | |||
| 300 XL FourStroke |
$105465 USD
|
Select Dealer | |||
| 300 XL Pro XS FourStroke |
$107265 USD
|
Select Dealer | |||
| 300 XL Pro XS FourStroke DTS |
$109395 USD
|
Select Dealer | |||
| Mercury® Verado® | |||||
| 250 XL |
$107455 USD
|
Select Dealer | |||
| 300 XL |
$109295 USD
|
Select Dealer | |||
Standard Features
Custom Details

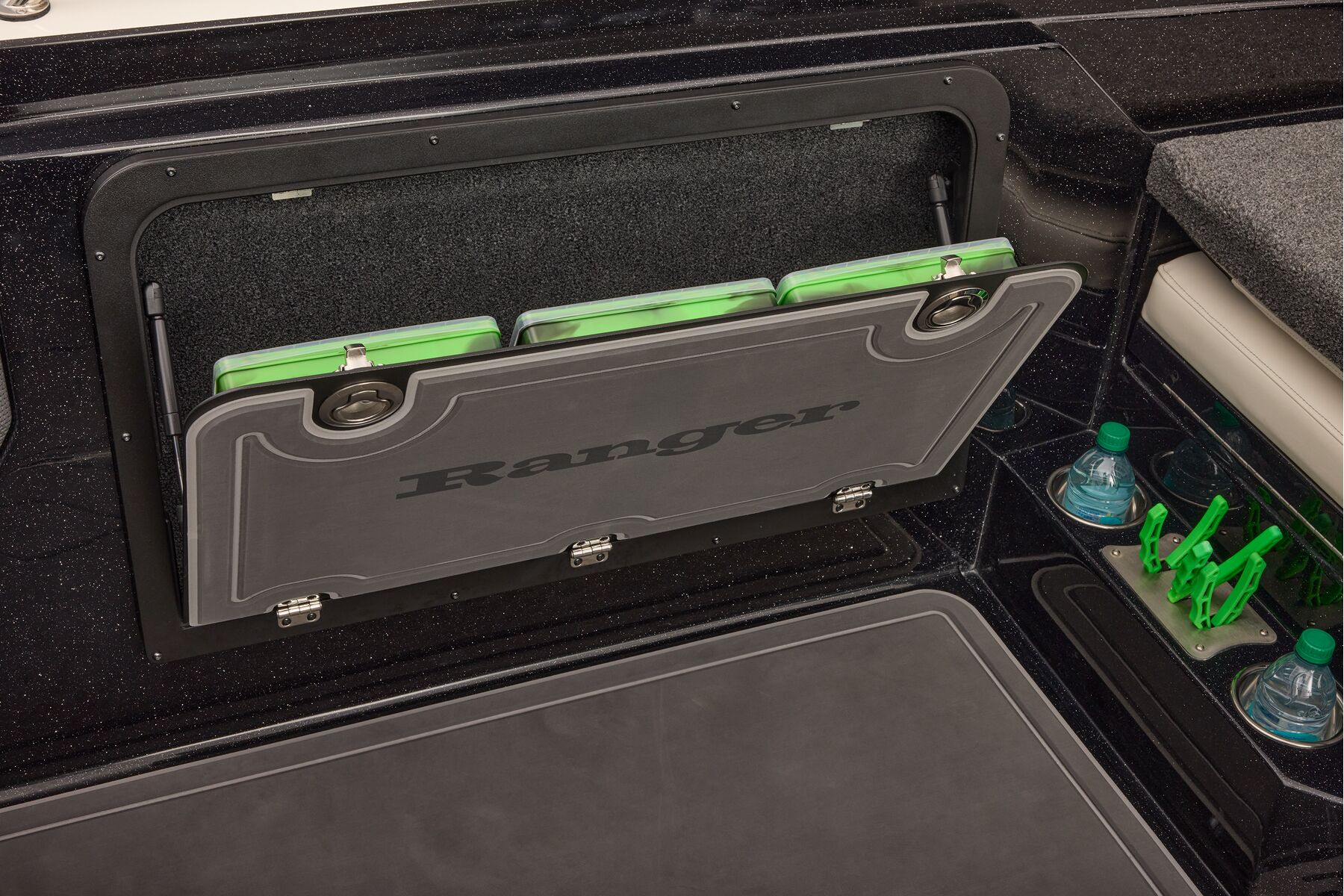

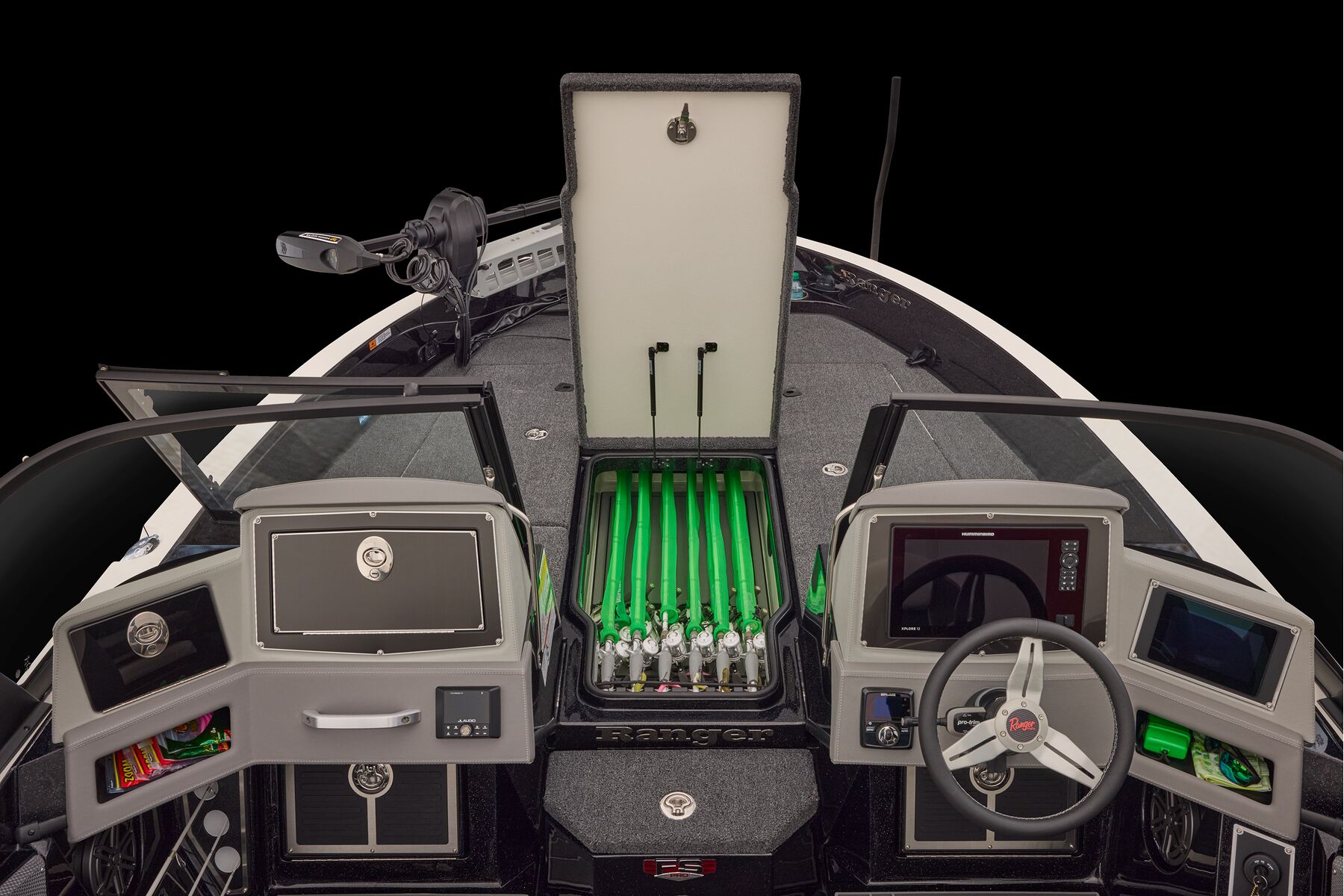

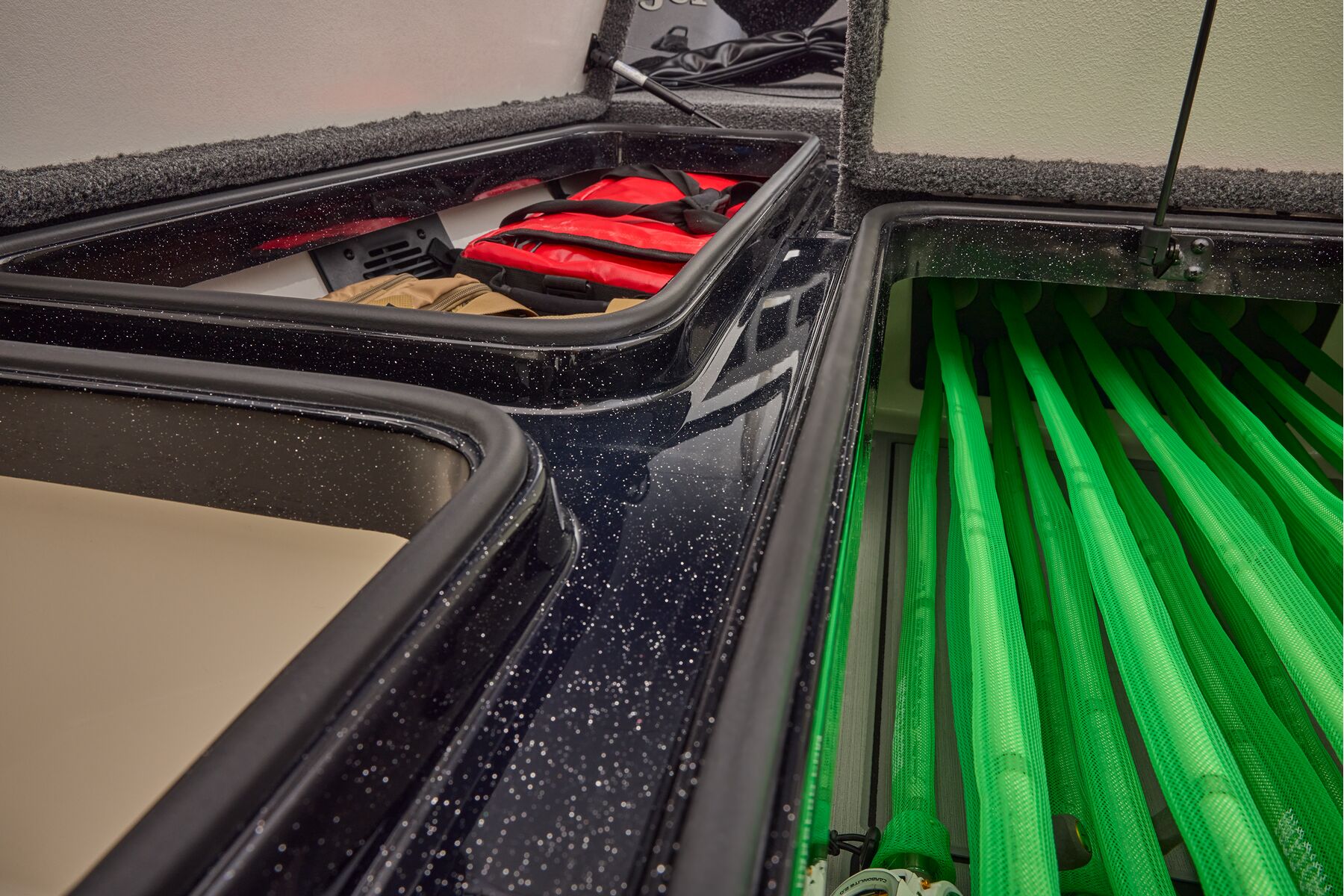

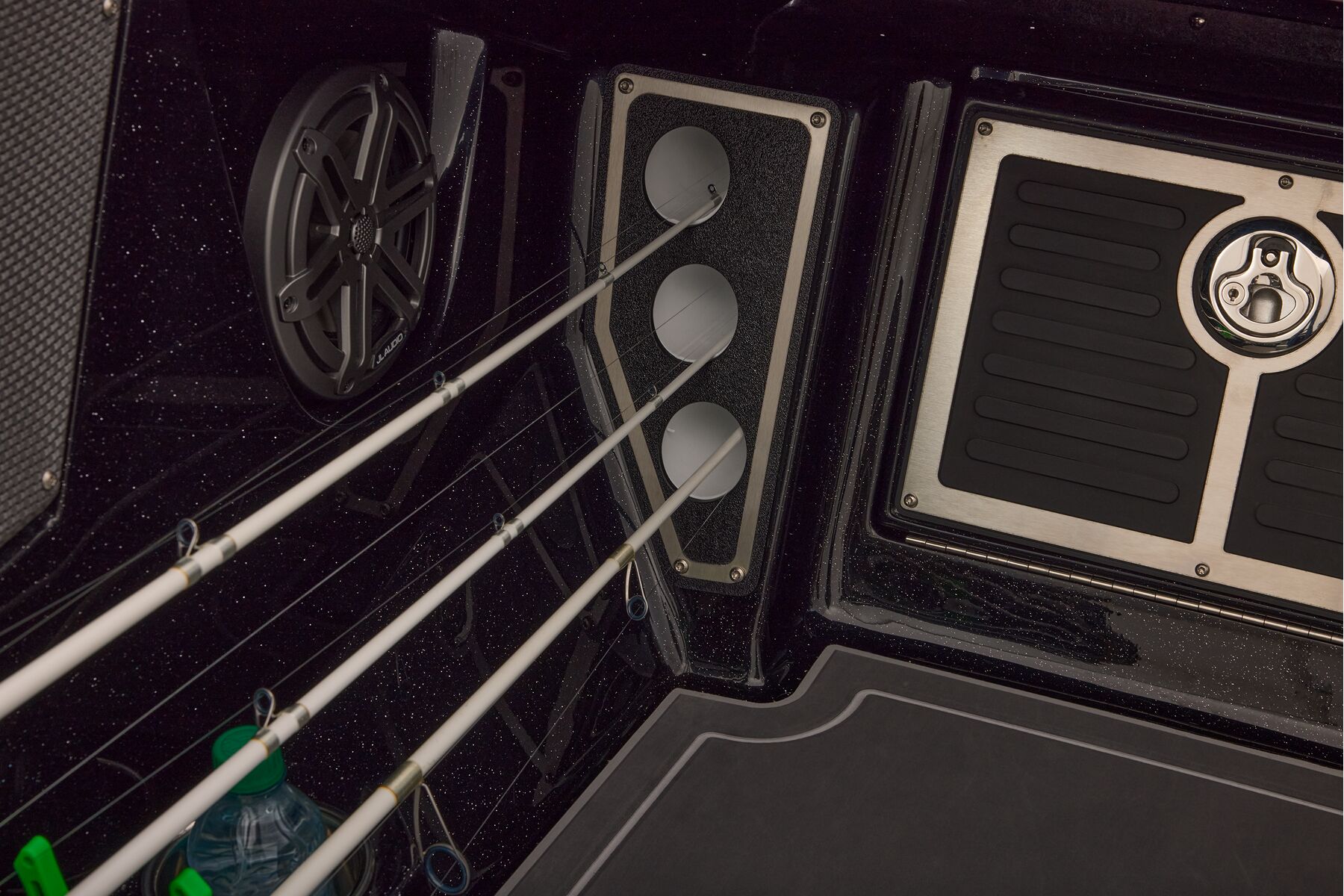

- Power Ventilation Rod Storage™
- Hamby's keel protector
- Soft-touch skid-resistant cockpit floor
- Under-console storage shelves - port and starboard behind driver console footrest

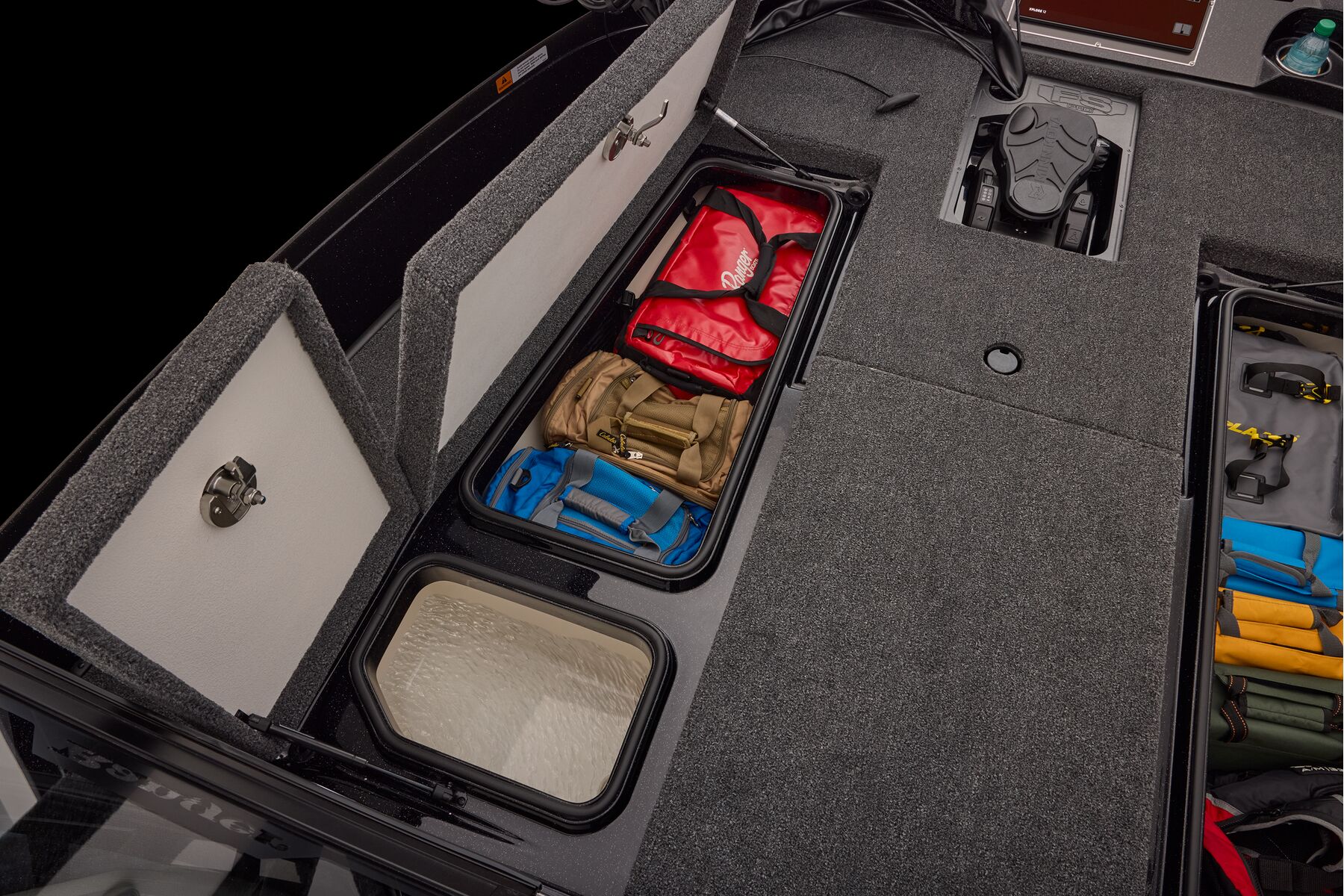

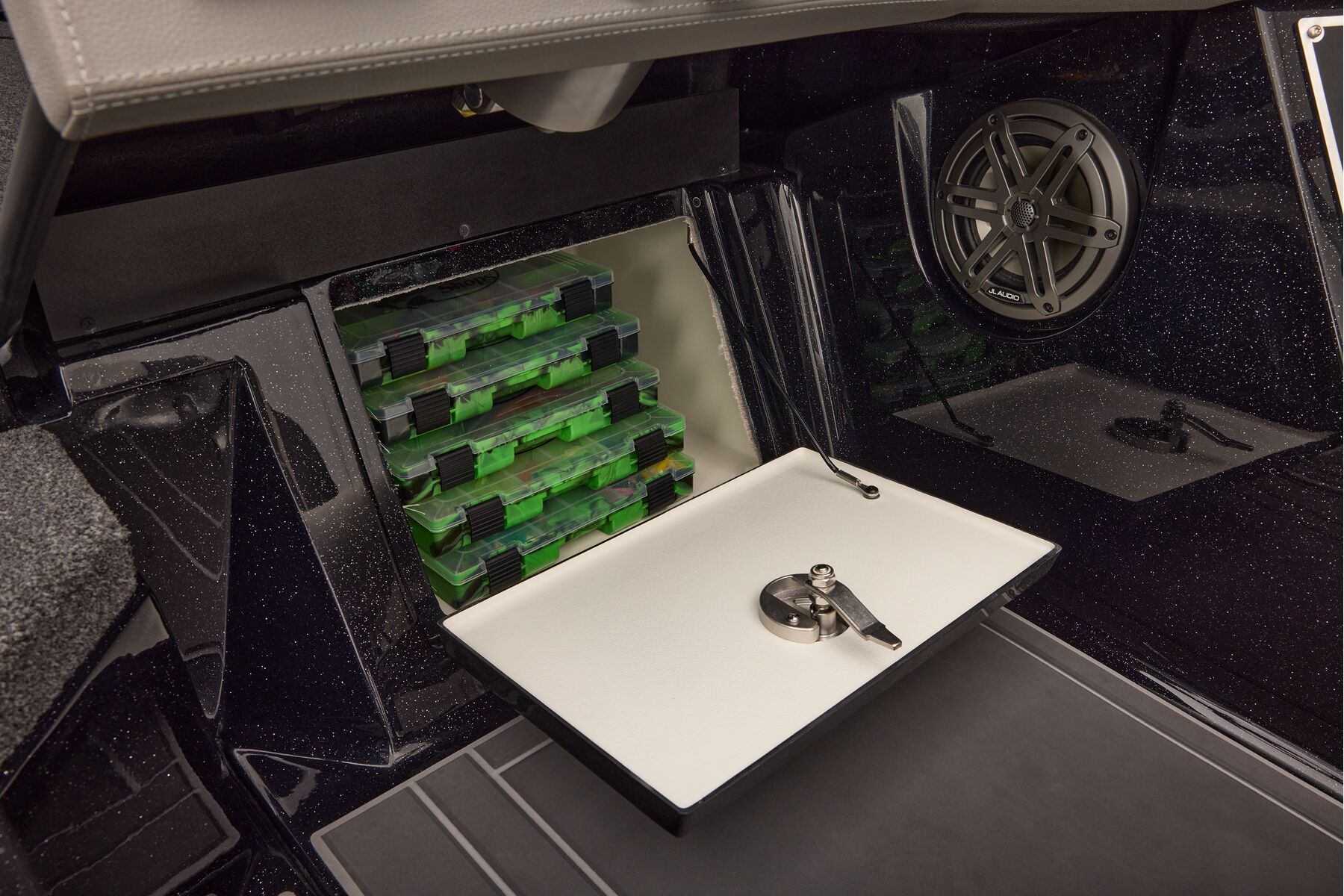

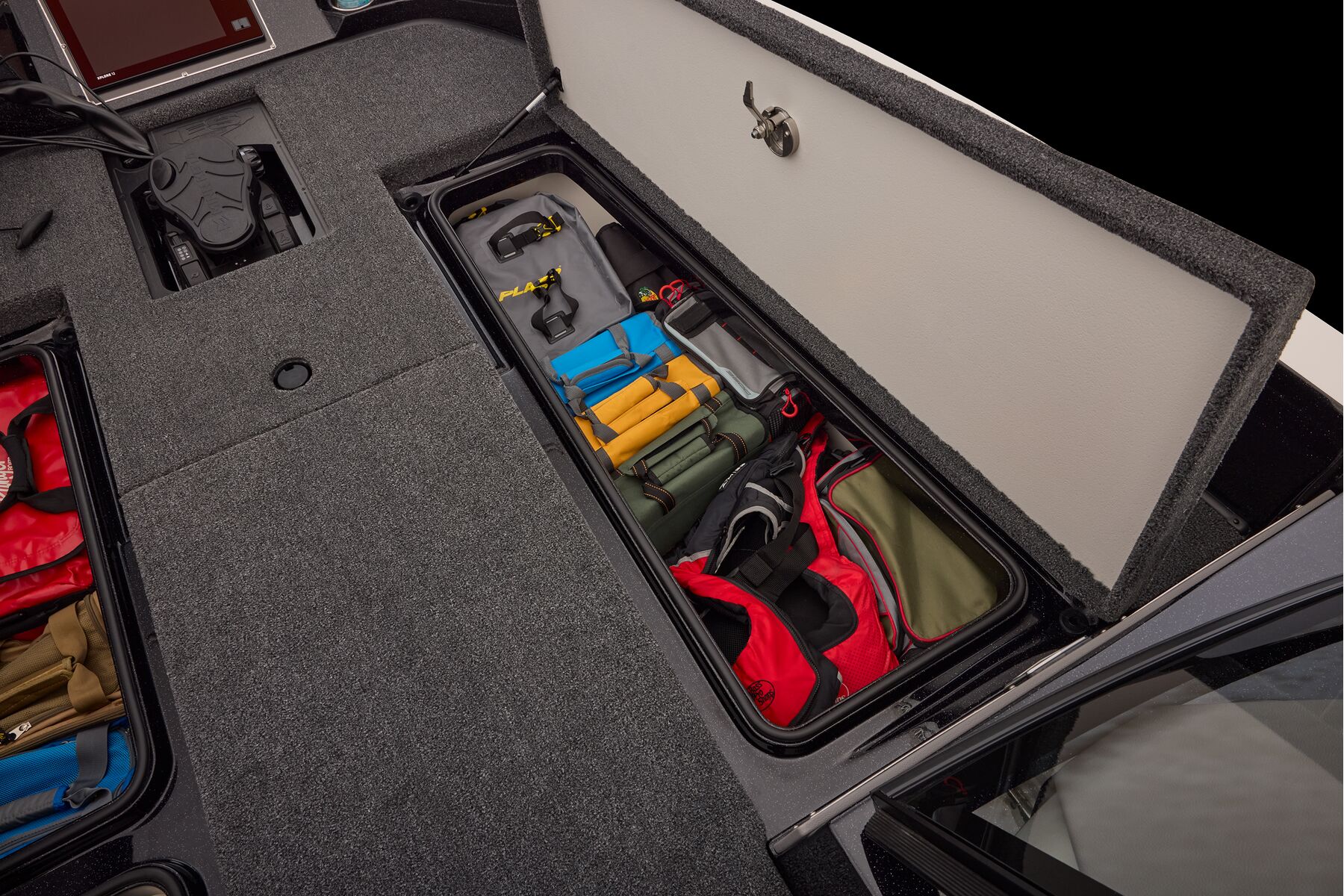

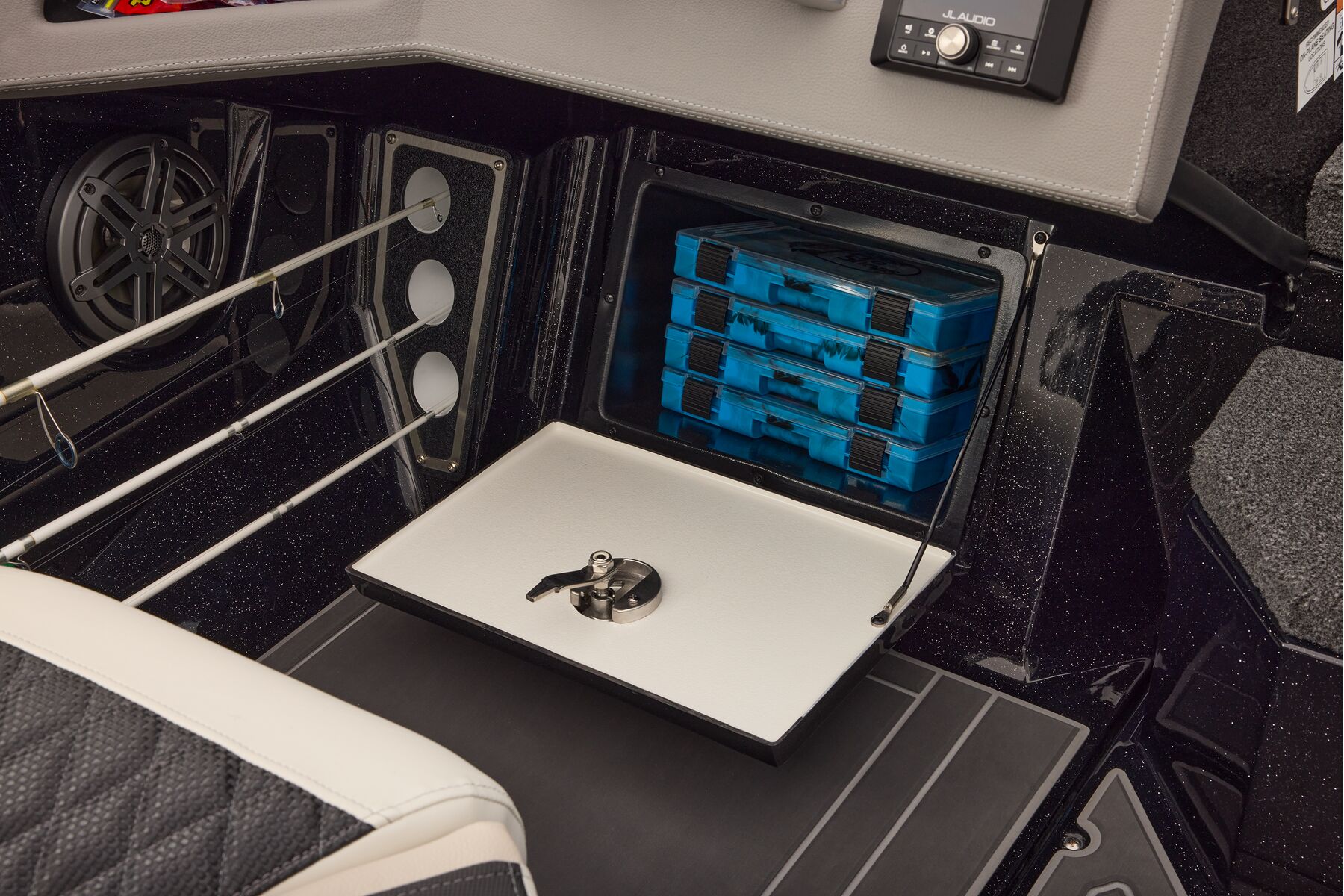

- Lockable storage compartments
- Gas spring lid assists
- Insulated cooler w/ gelcoat liner & drain
- Integrated stainless steel cup holders
- Stainless steel rear 44" grab rails

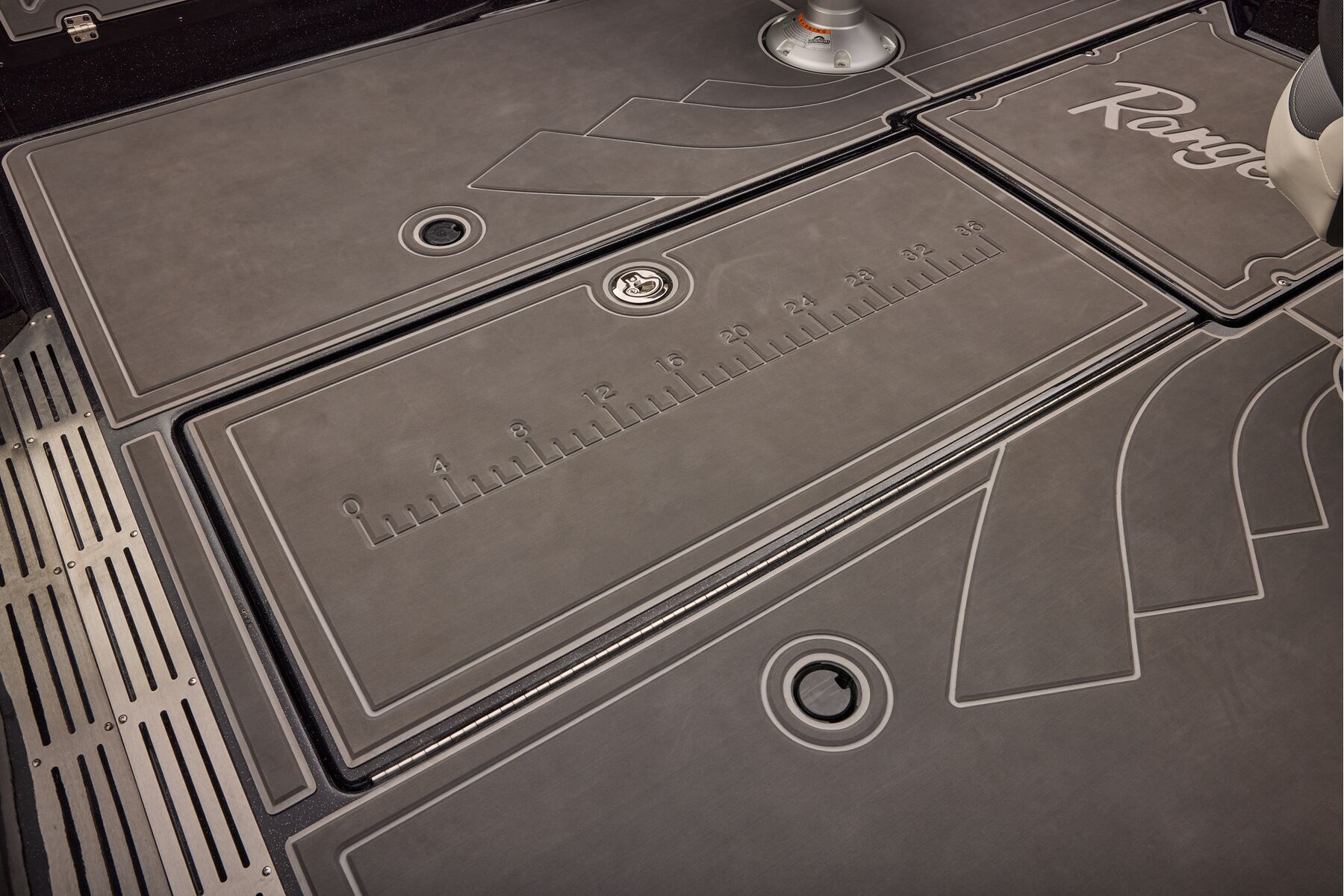

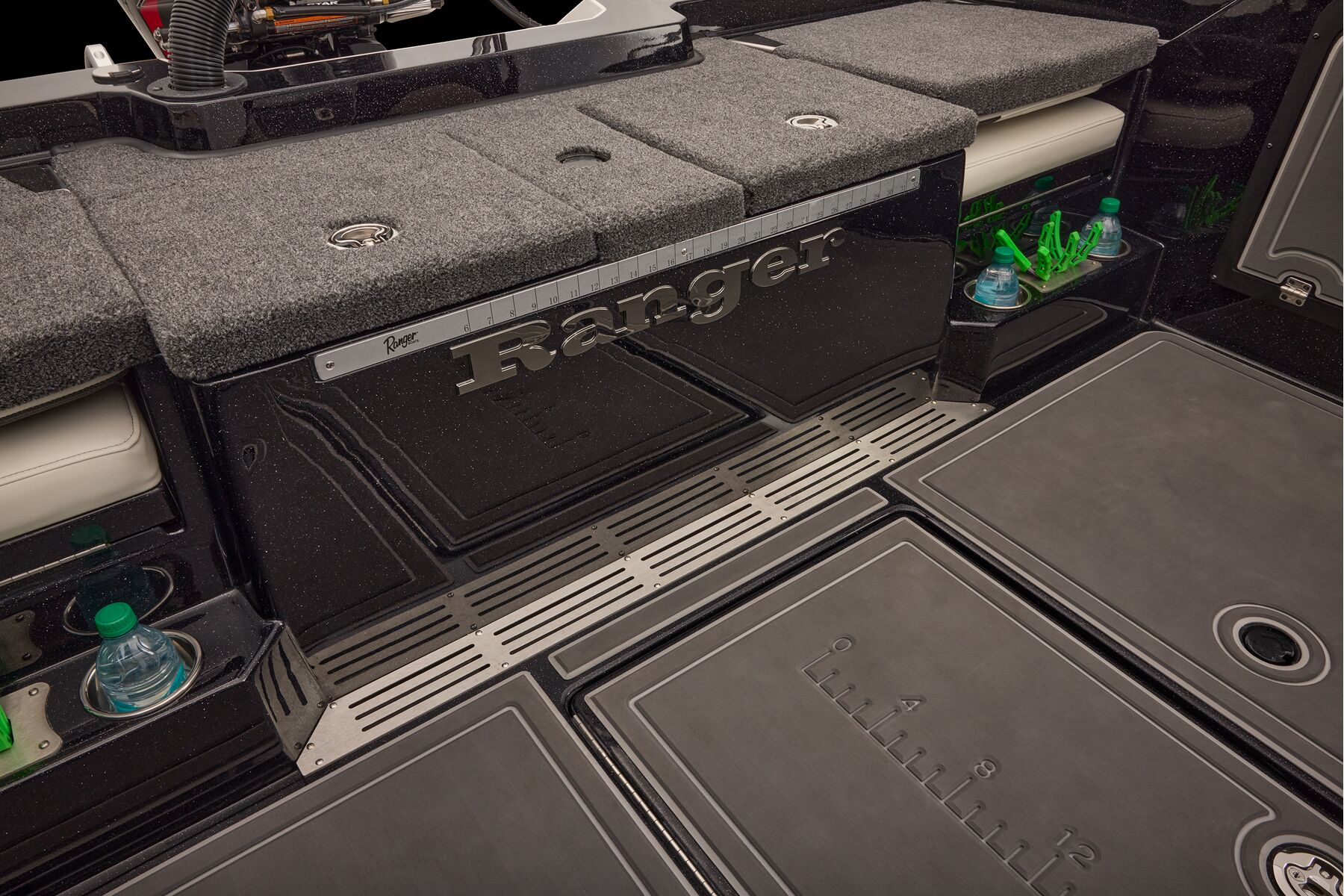

- Ranger® tournament measuring board

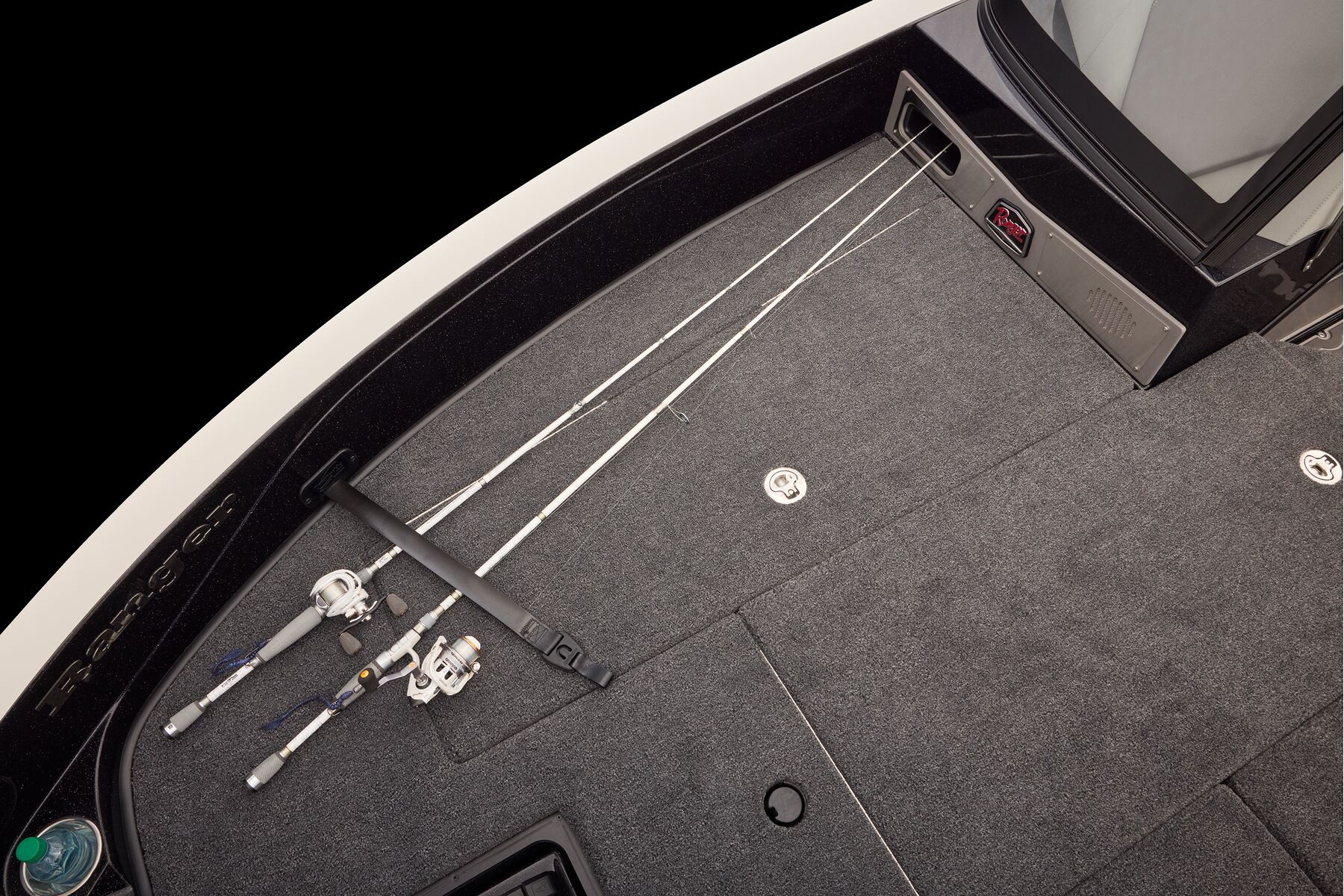

- Retractable bow rod buckles

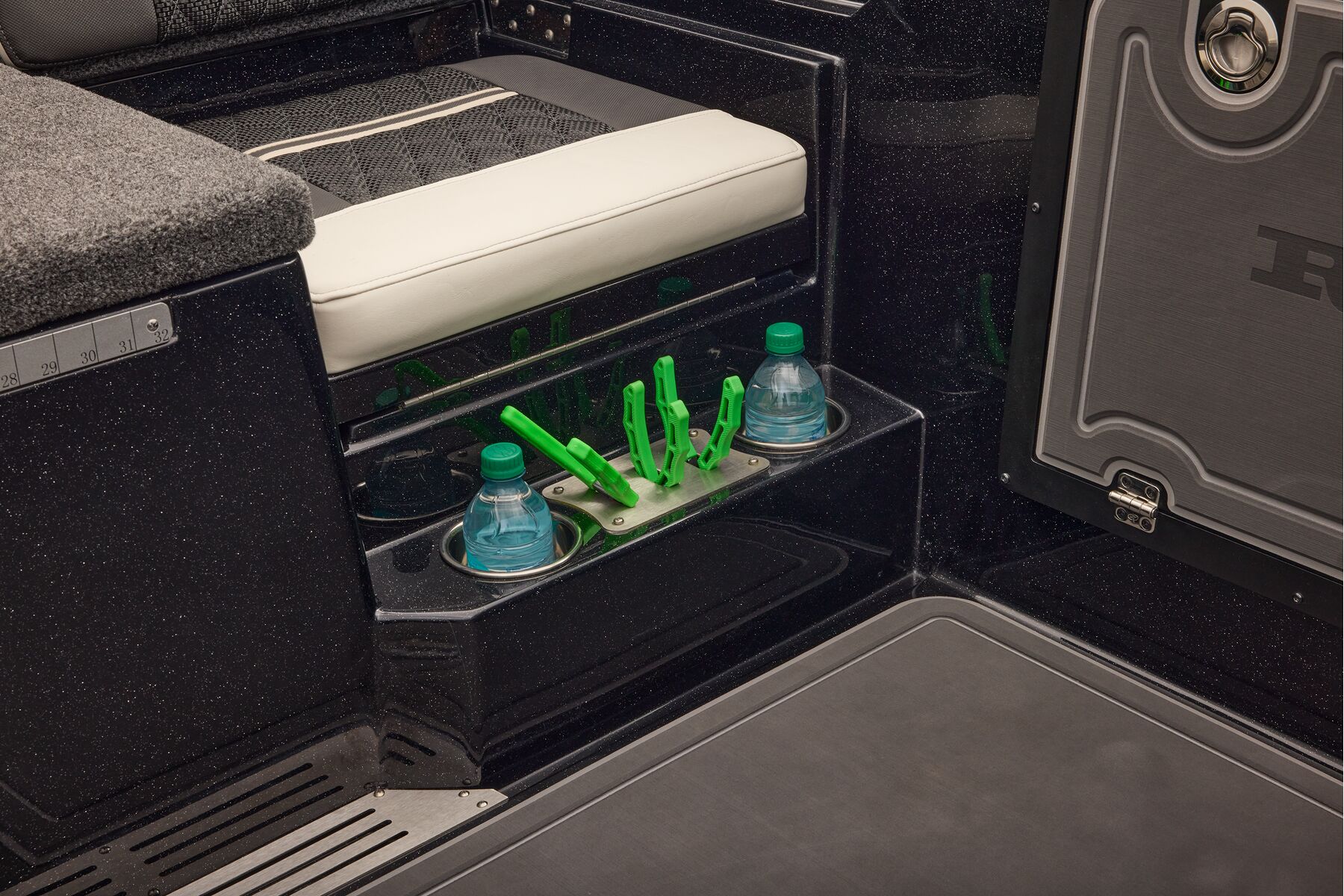

- Tool holders - (1) Bow, (1) cockpit, (2) rear
- (2) Deck-mounted stern rod holders

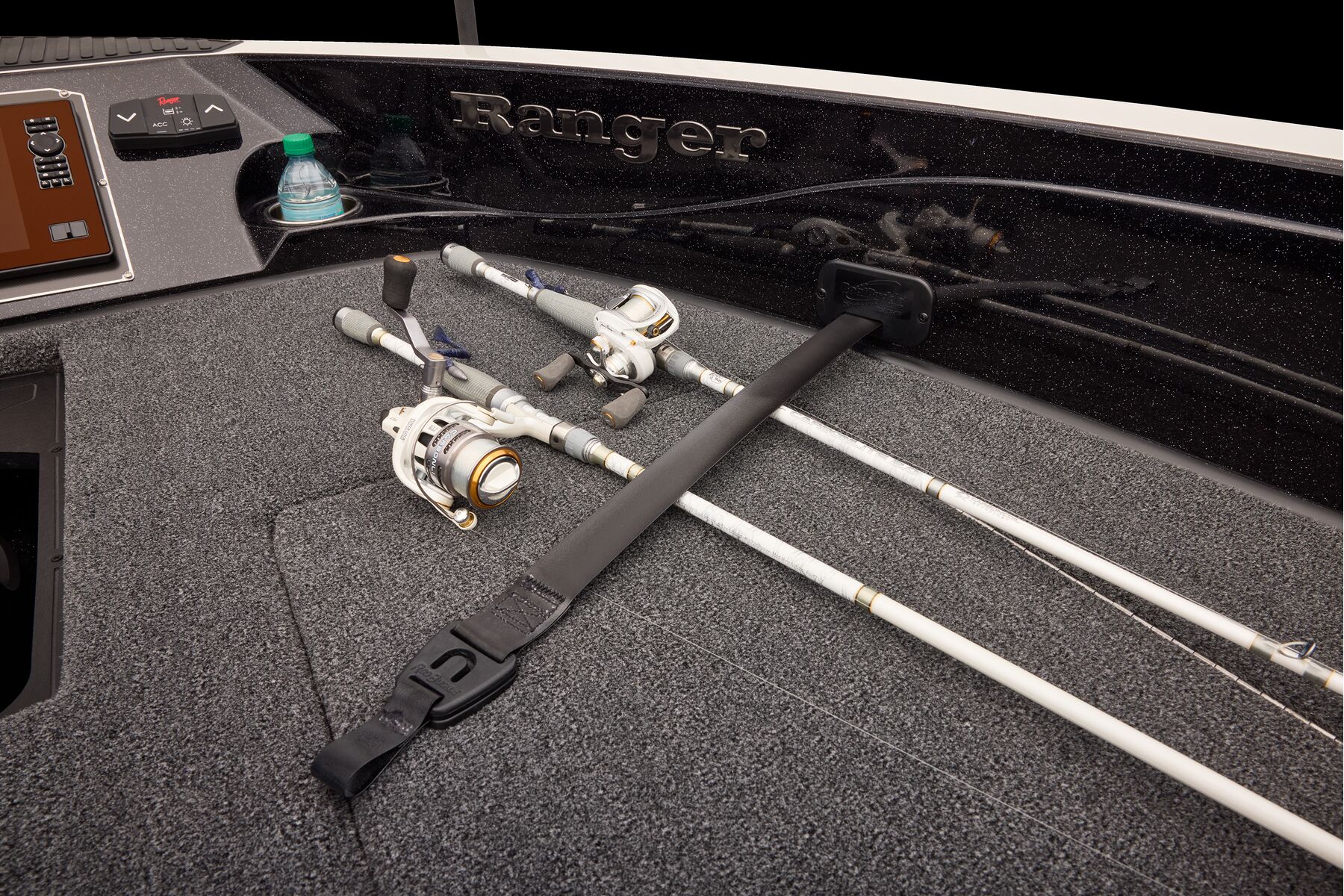

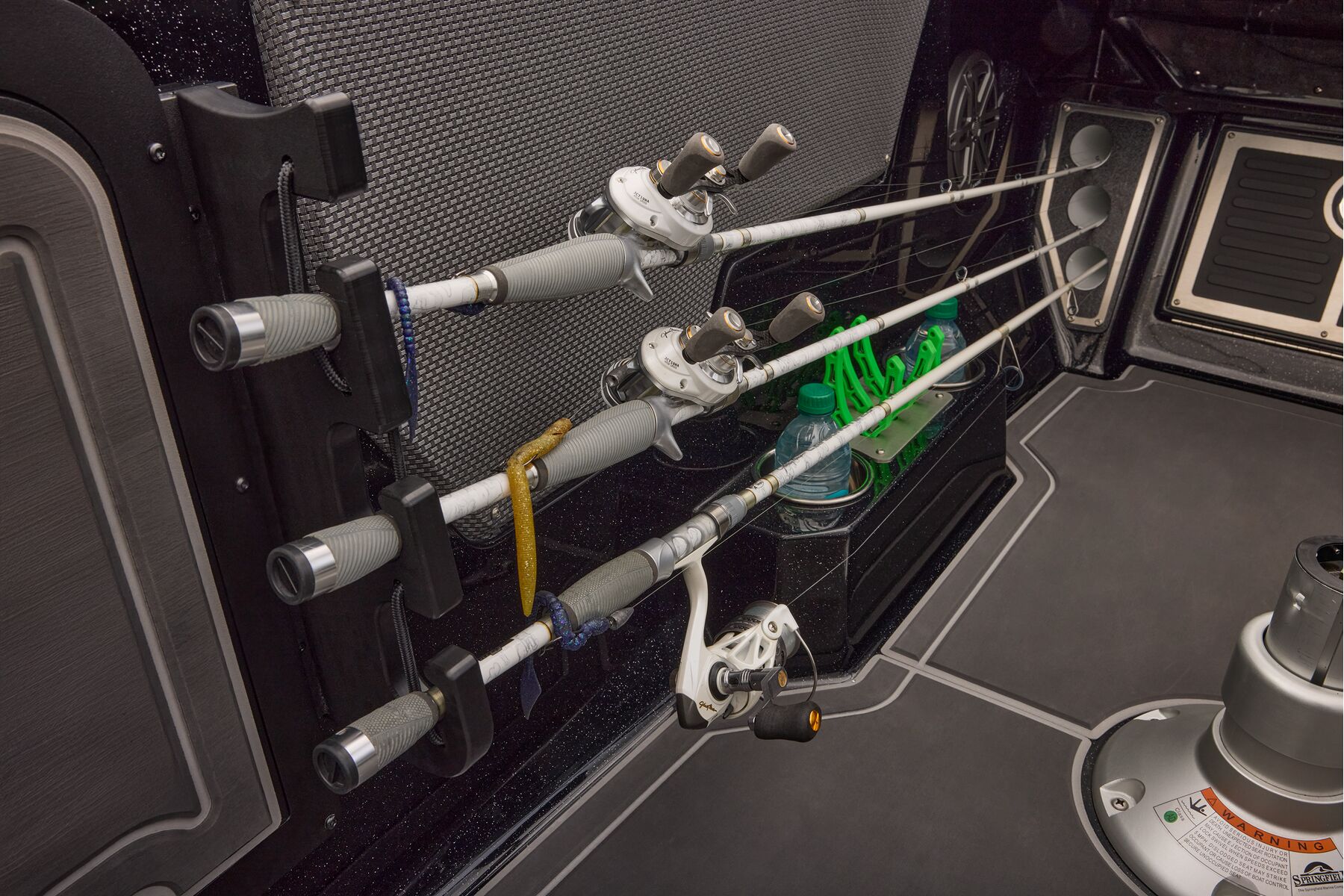

- Runnin' rod rack w/ holder
- Remote drain plug
- Under-console 5 gal. bucket storage on port side
Power/Performance
- Pultruded Fiberglass Transom
- AGM Starting battery w/ tray
- Tilt hydraulic steering

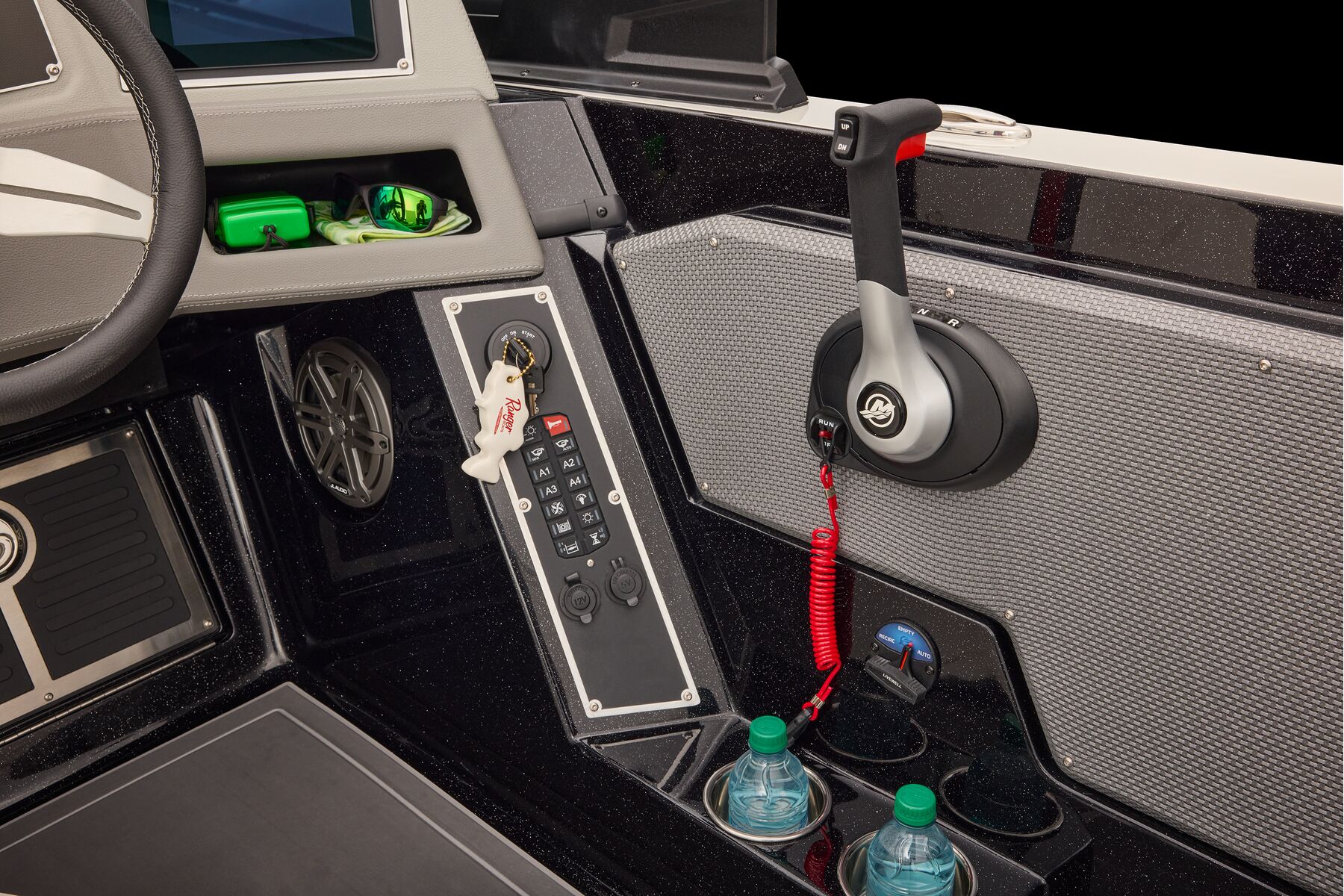

- Flush-mounted remote throttle control
- Foam-filled fiberglass stringers
- One-Piece-Feel™ Interloc Construction

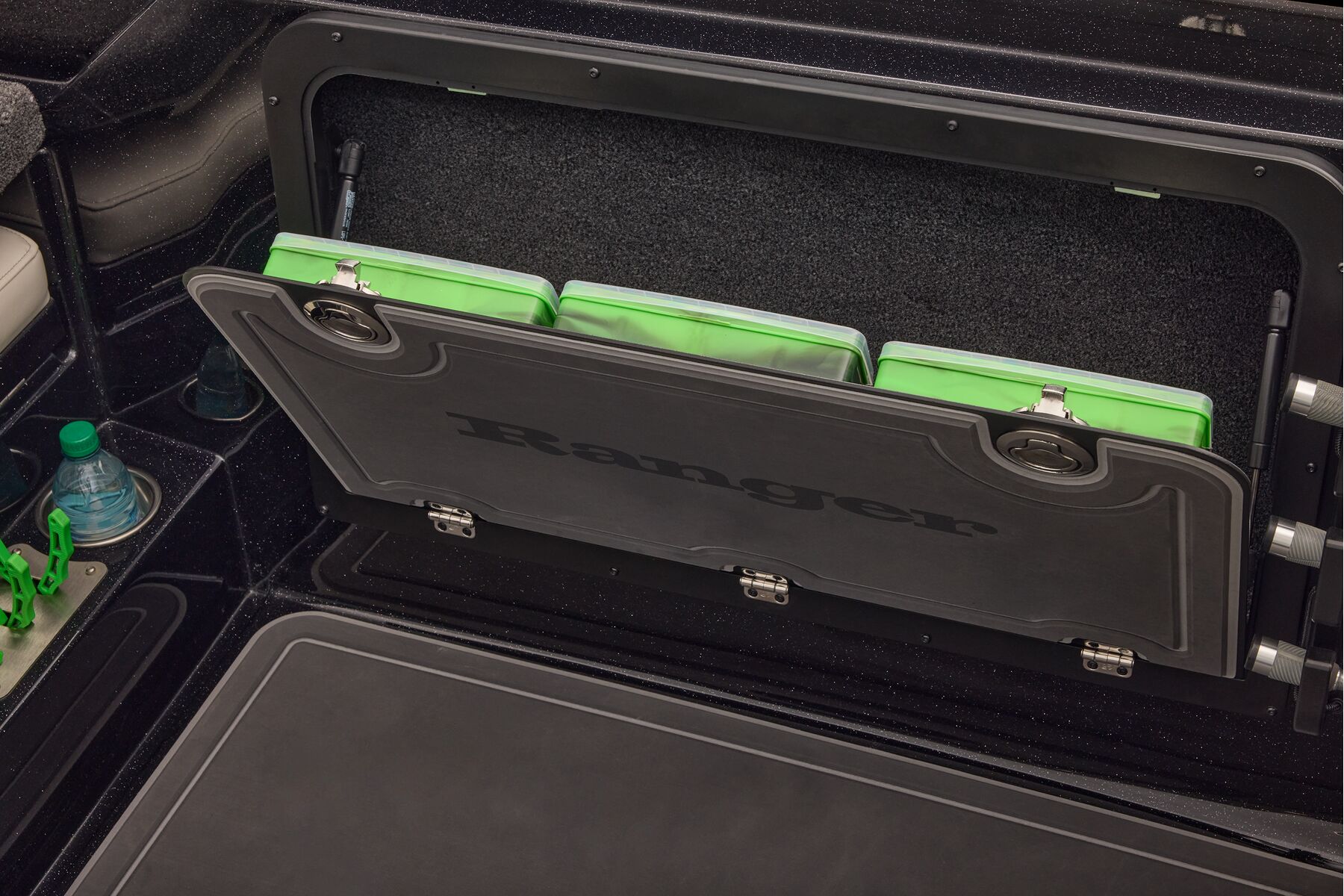

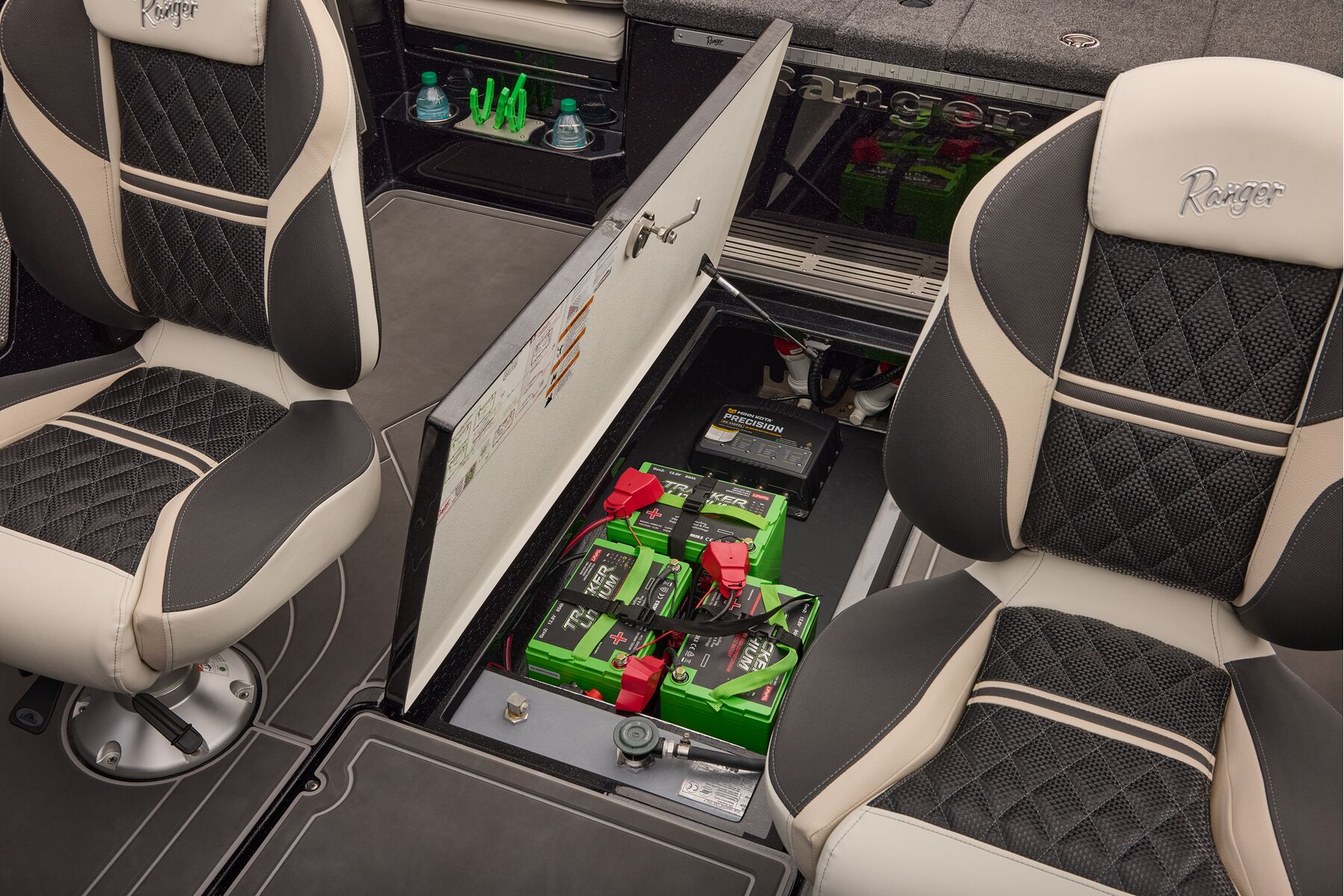

- One-piece stringer system w/ centralized batteries
- High-performance steering wheel

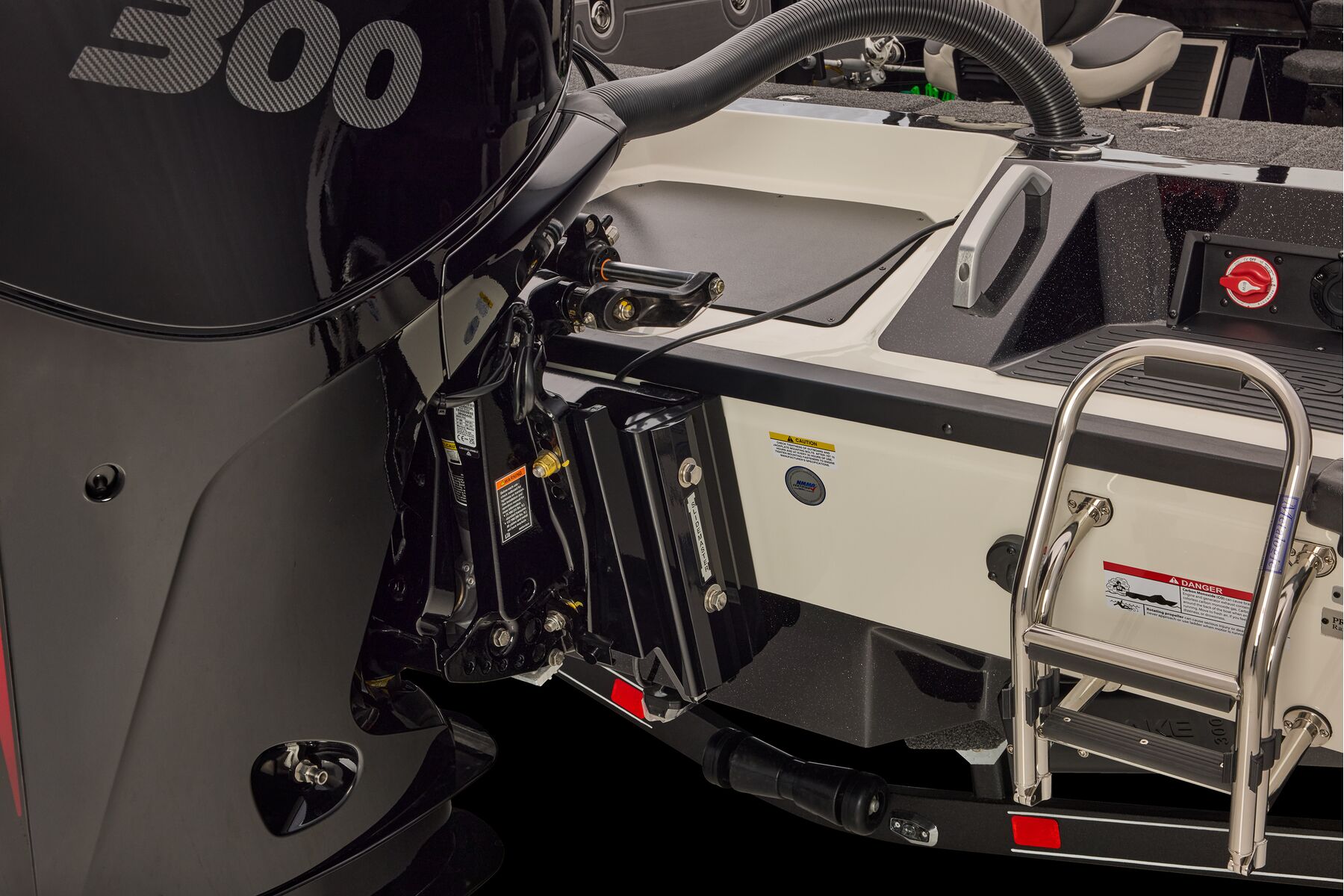

- Manual setback plate

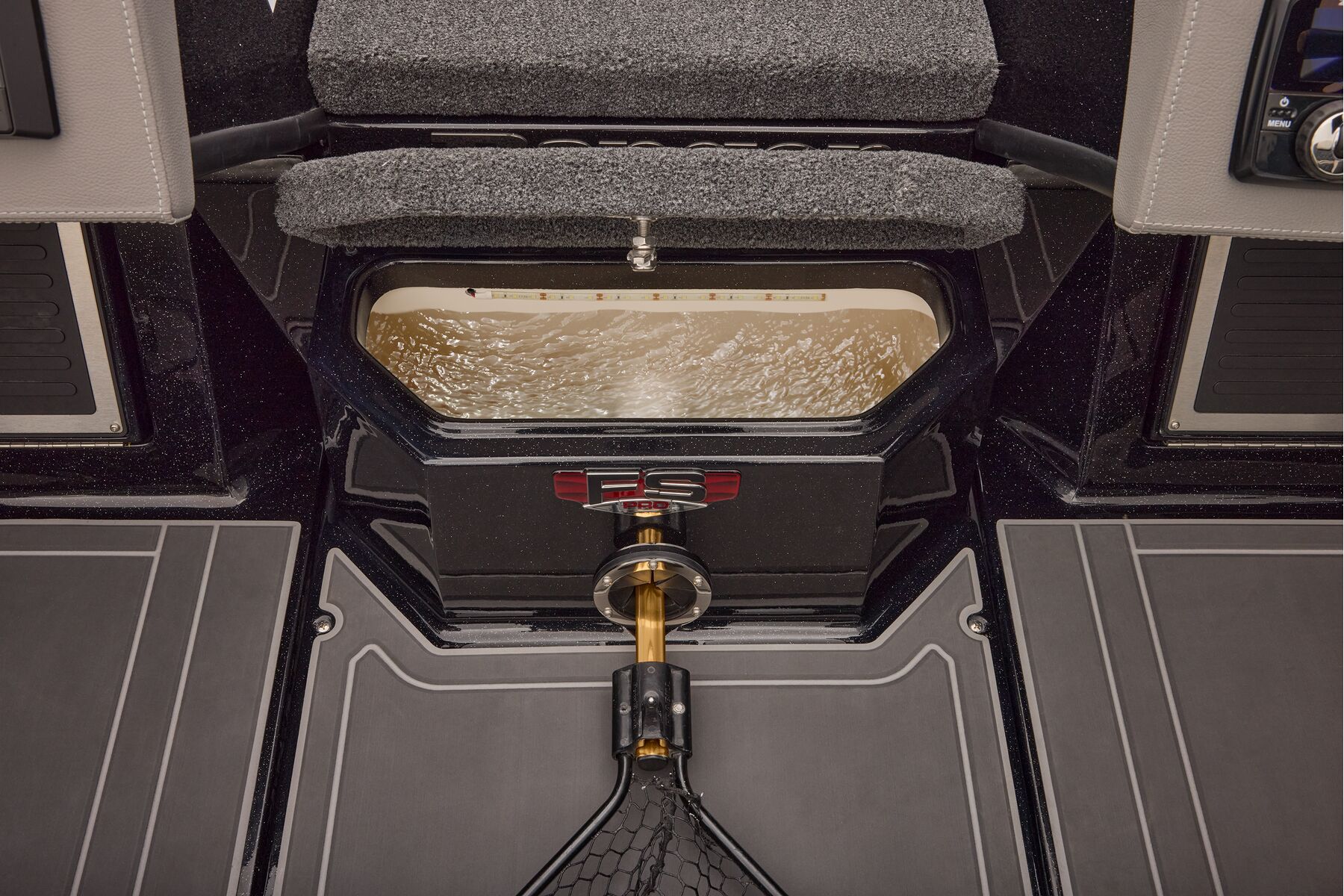

- Recirculating aerated livewell and baitwell w/ filter screens, automatic timers and livewell pump-out
- High-performance stainless steel prop
Safety/Comfort
- Upright Level Flotation exceeding all USCG & NMMA standards

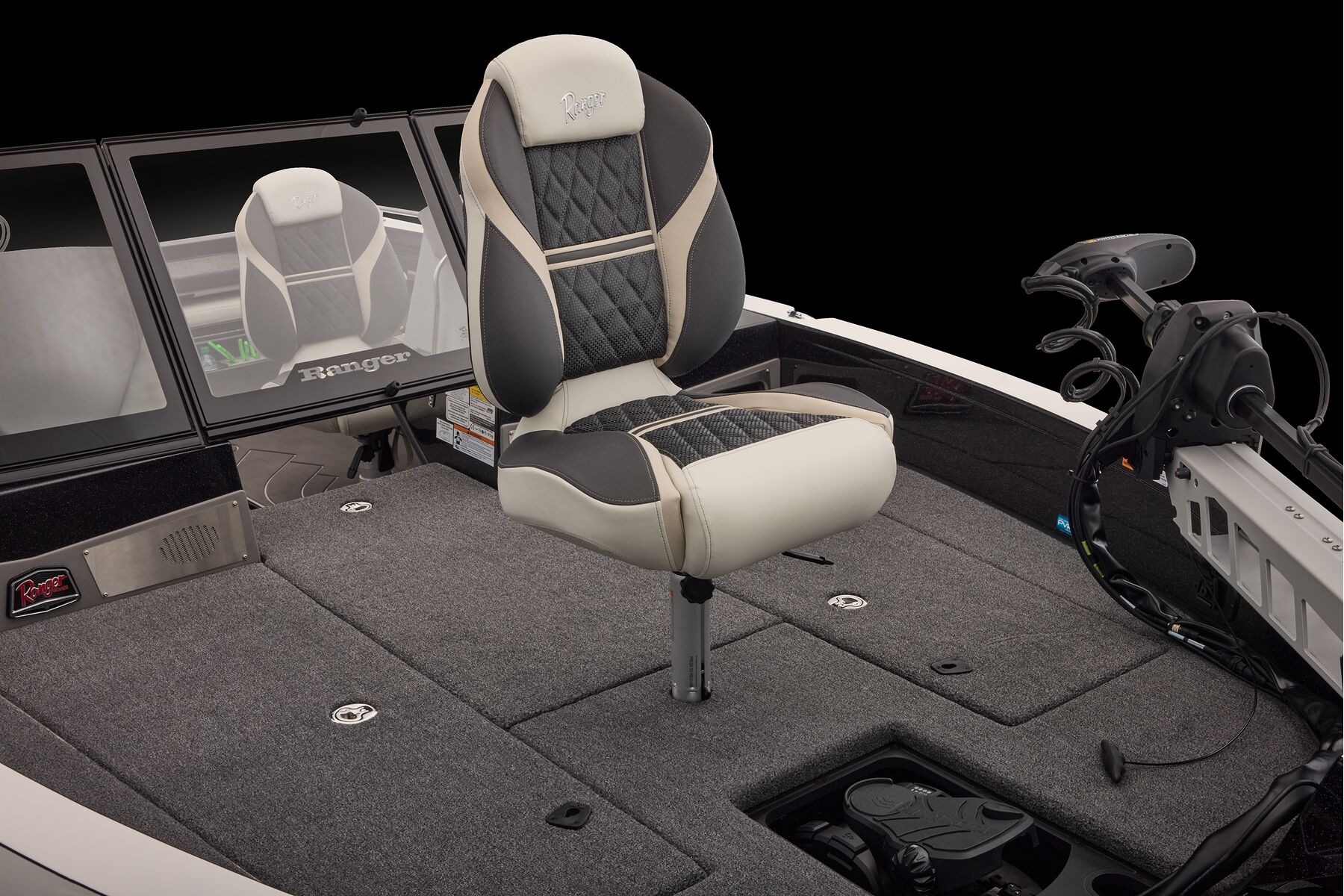

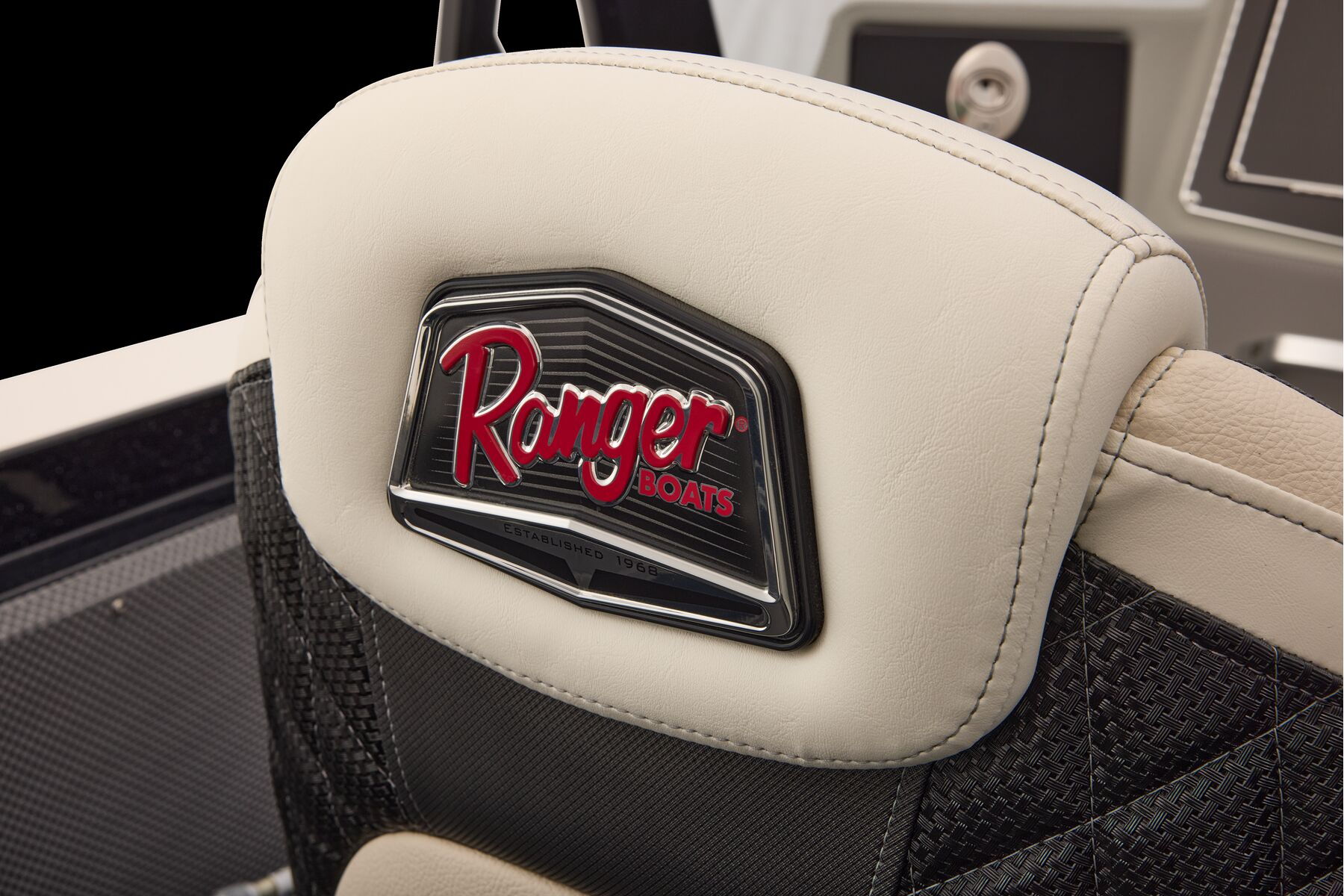

- Custom fitted premium marine upholstery - (2) driver/passenger tall-back Soft Ride Seating (SRS) fold-downs w/ (2) adjustable slides and (2) soft-ride bell pedestals and (2) SRS fold-downs w/ power pedestals
- Fire extinguisher & horn

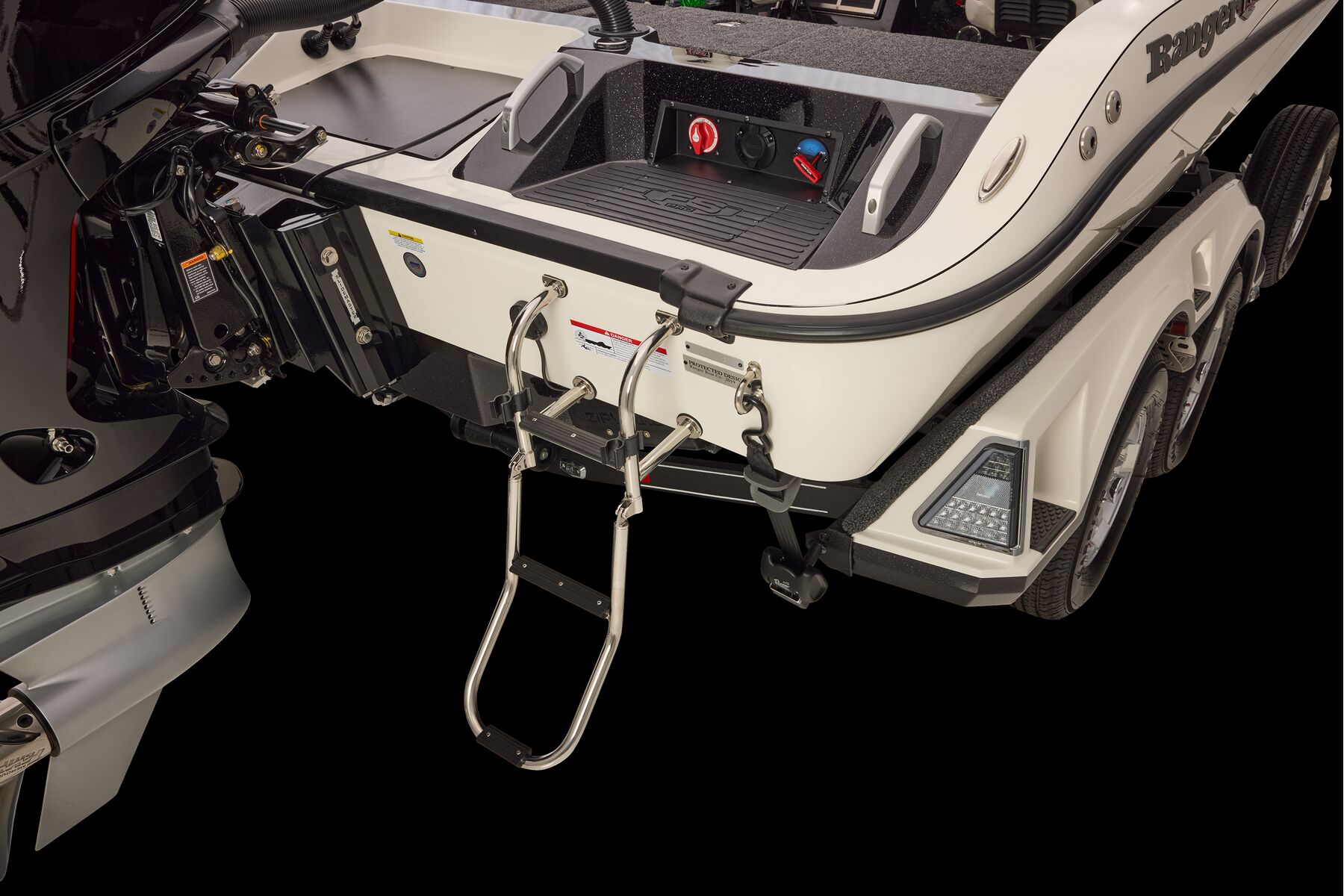

- Boarding ladder

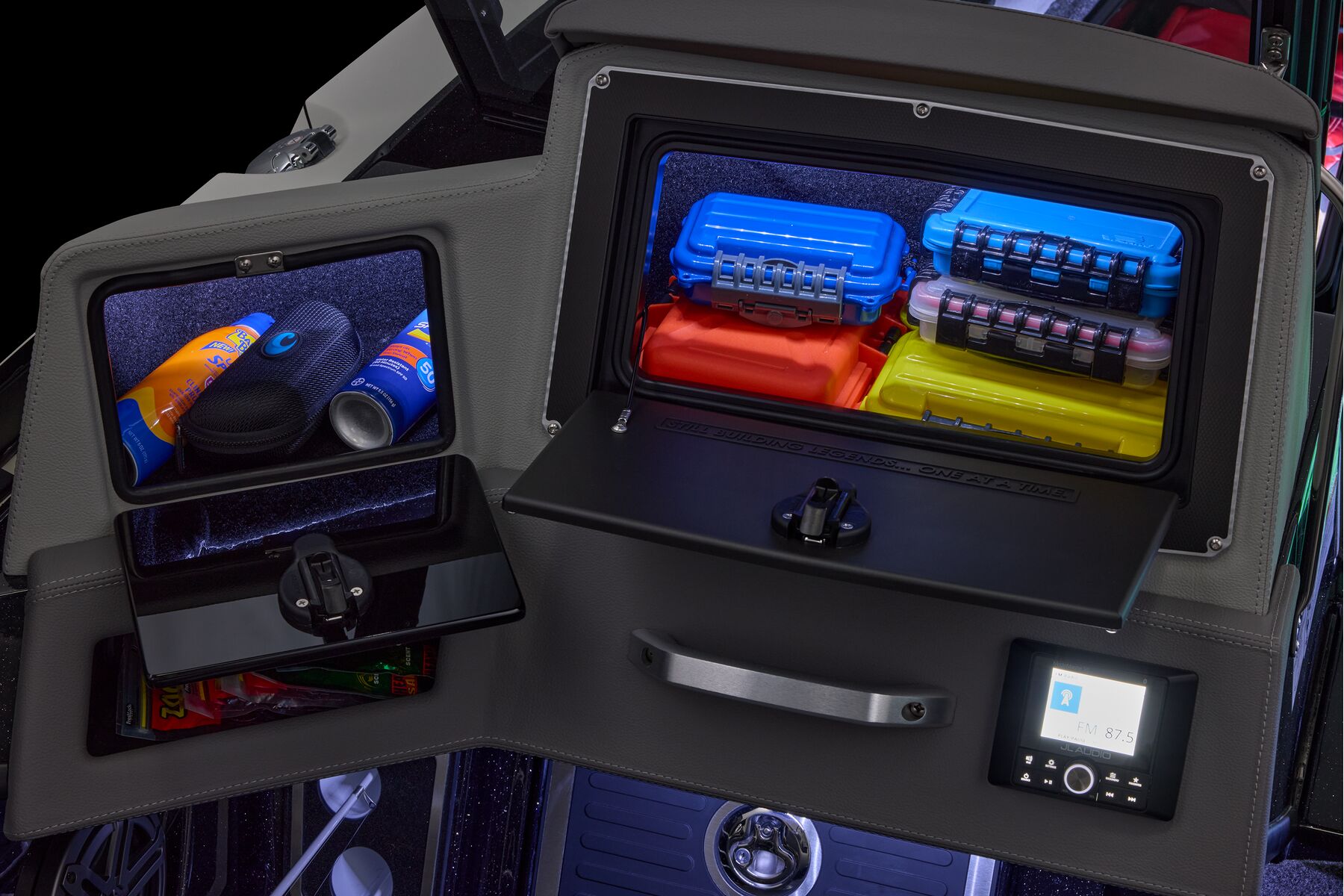

- Passenger Glove Box
- Rite Track Keel®
- NEW Front deck step
- Integrated front deck step-up cooler
- Skid-resistant molded rubber step pad on bow
- Automatic and manual bilge pumps

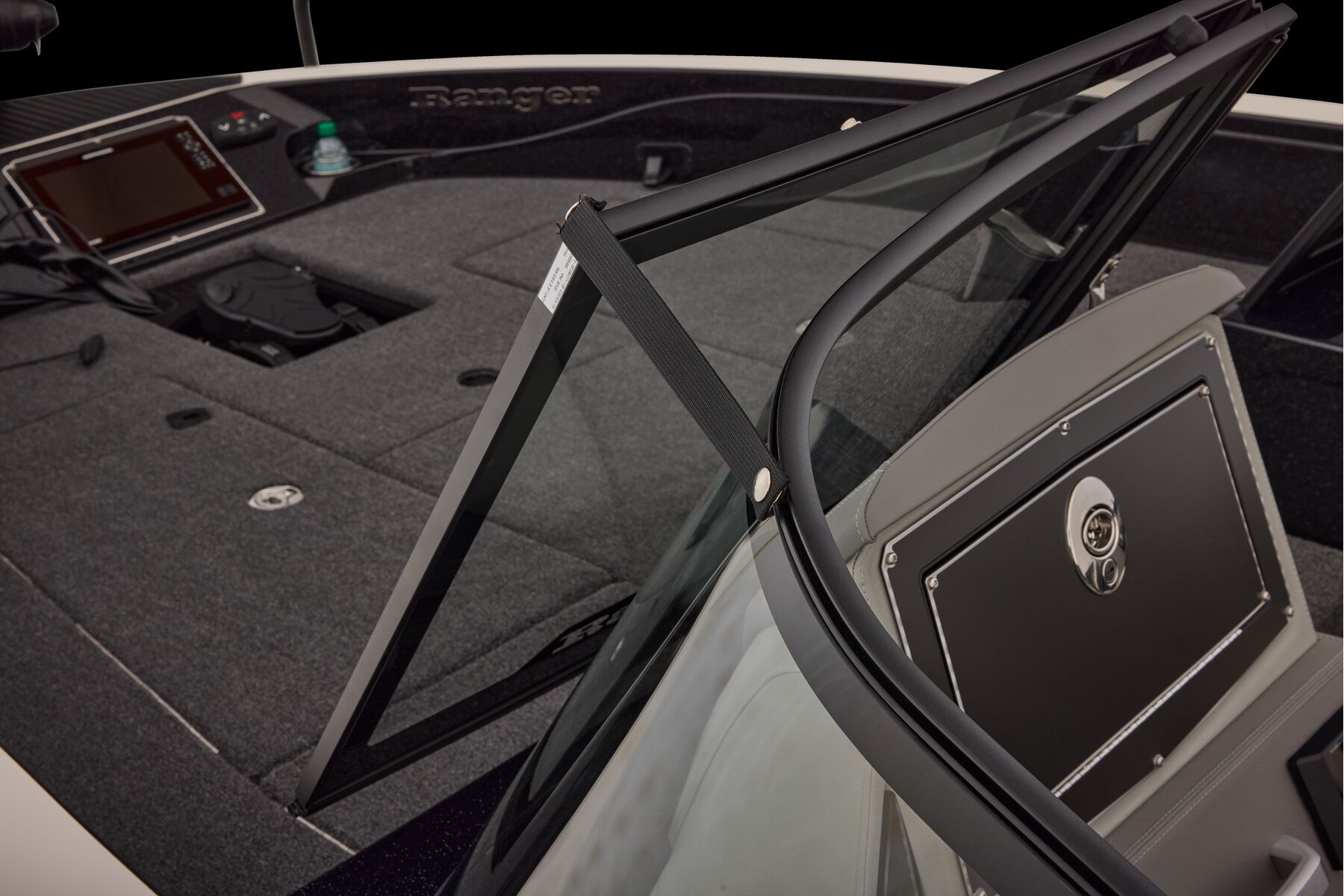

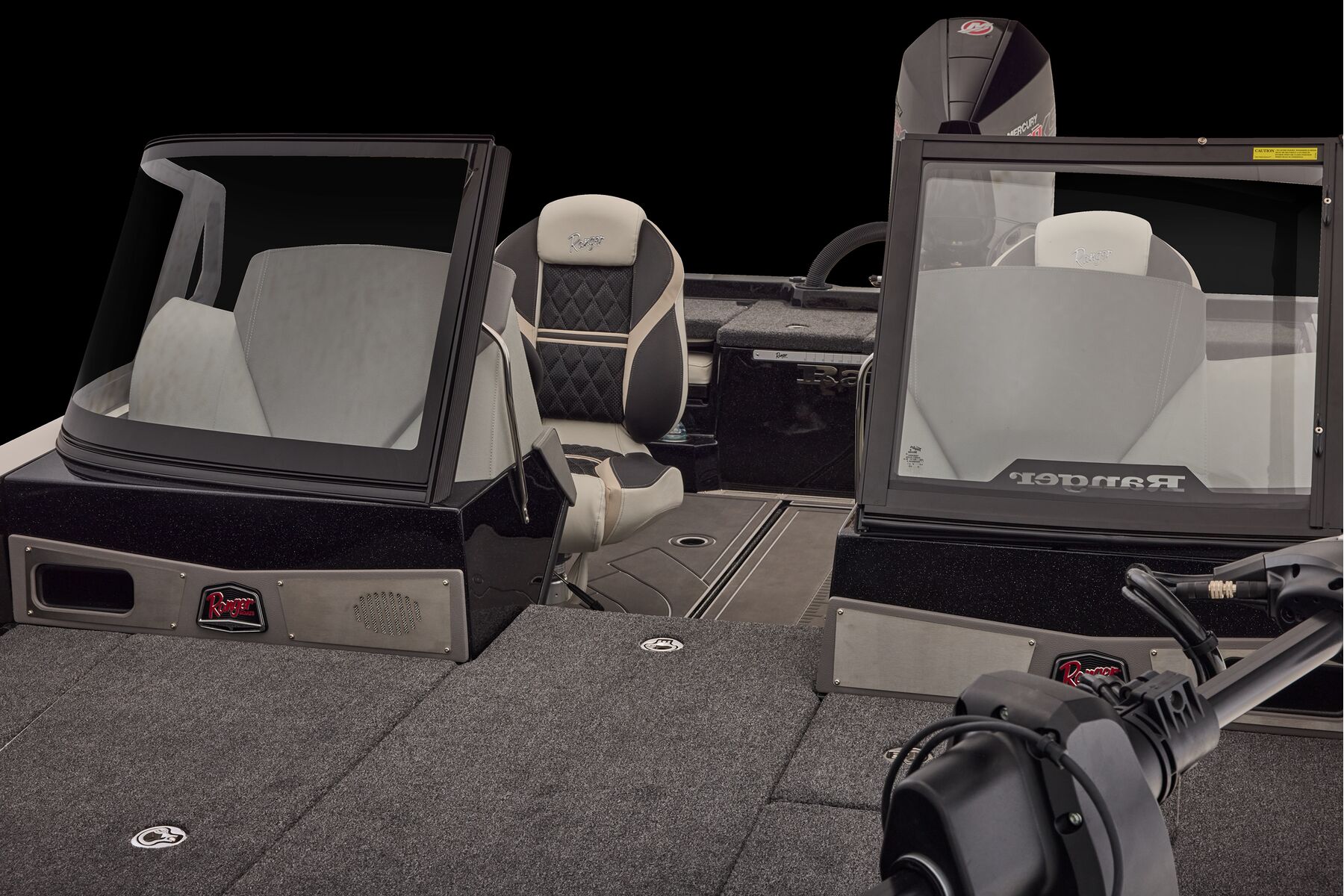

- Plexi windshield(s)
- Integrated grab handles

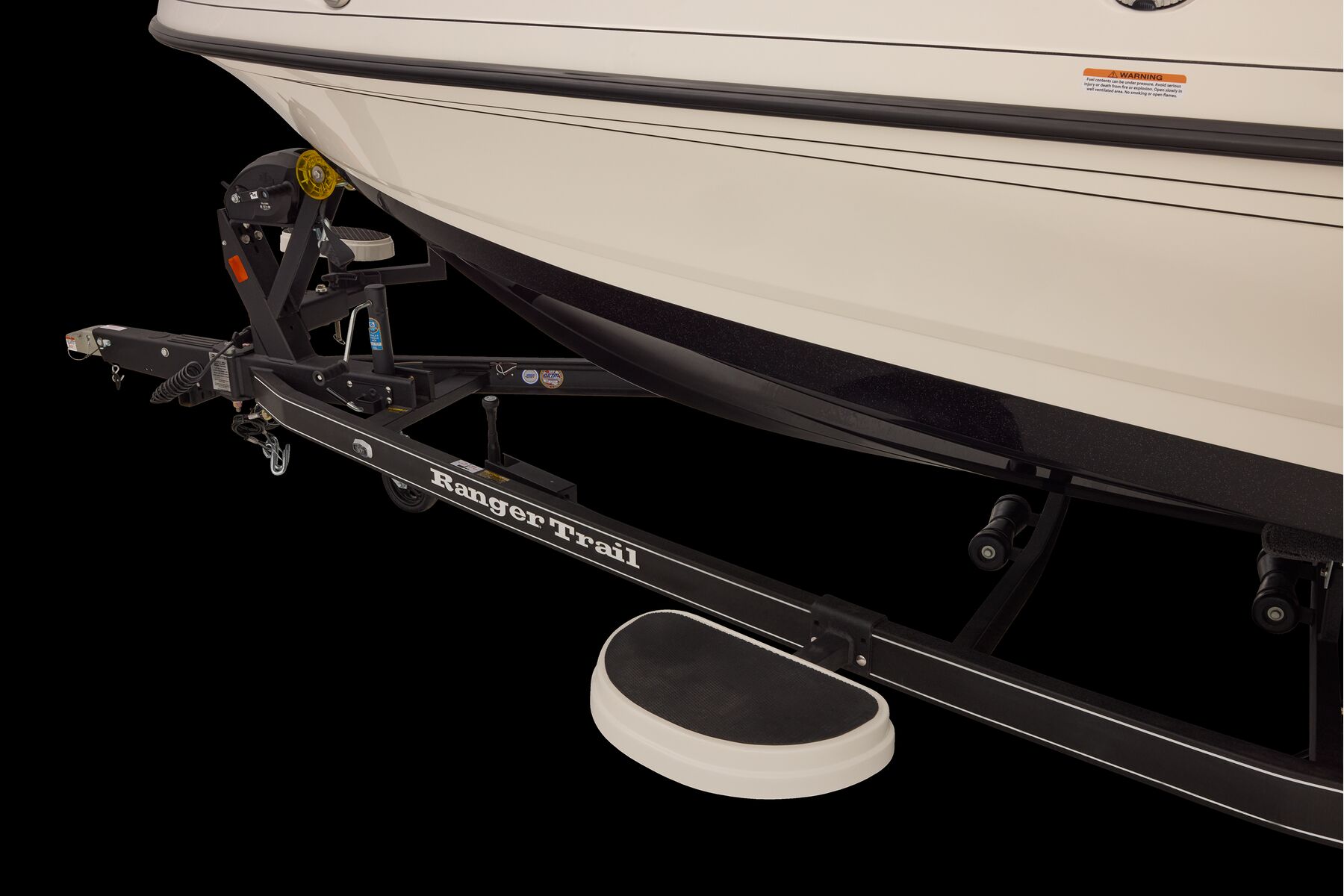

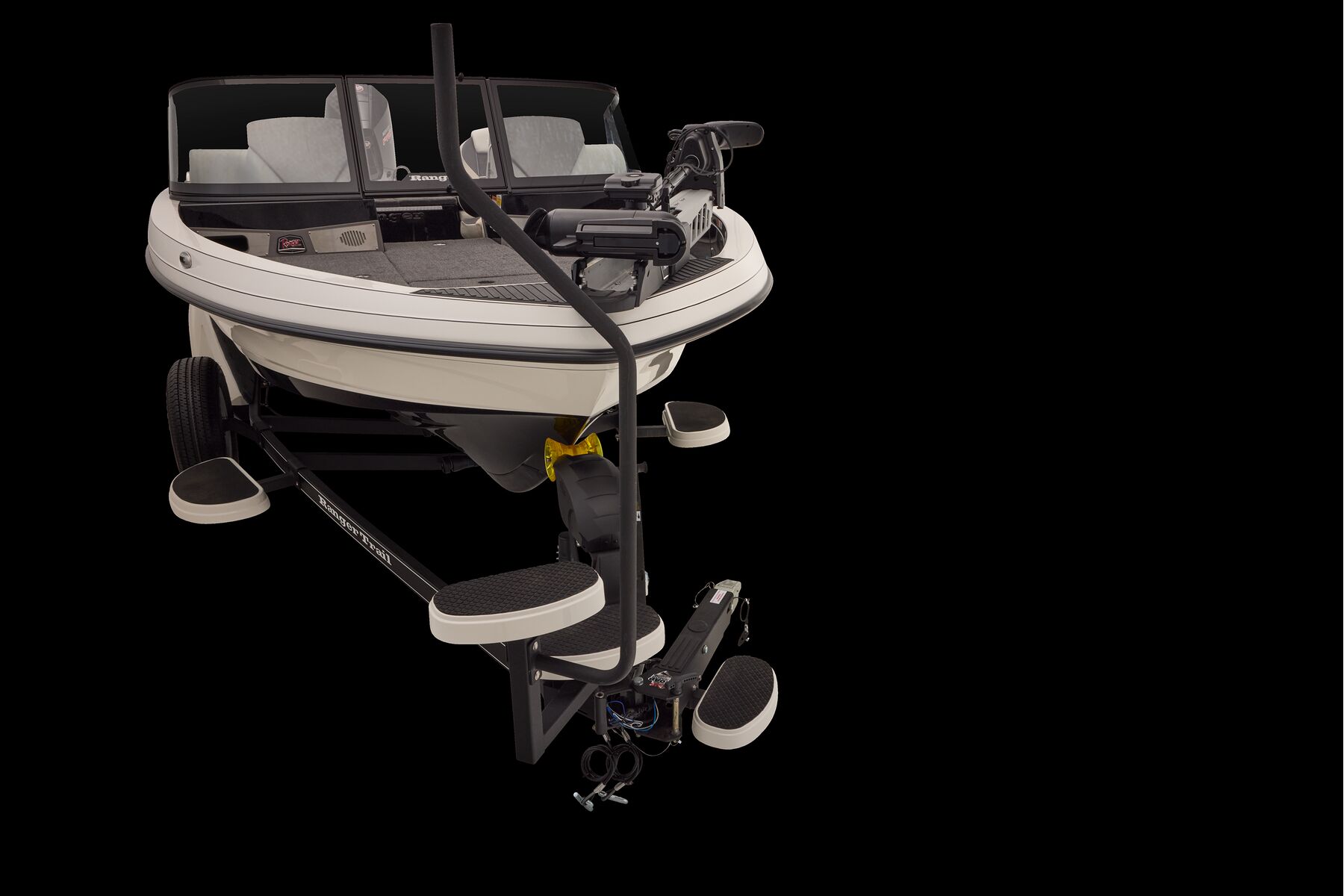

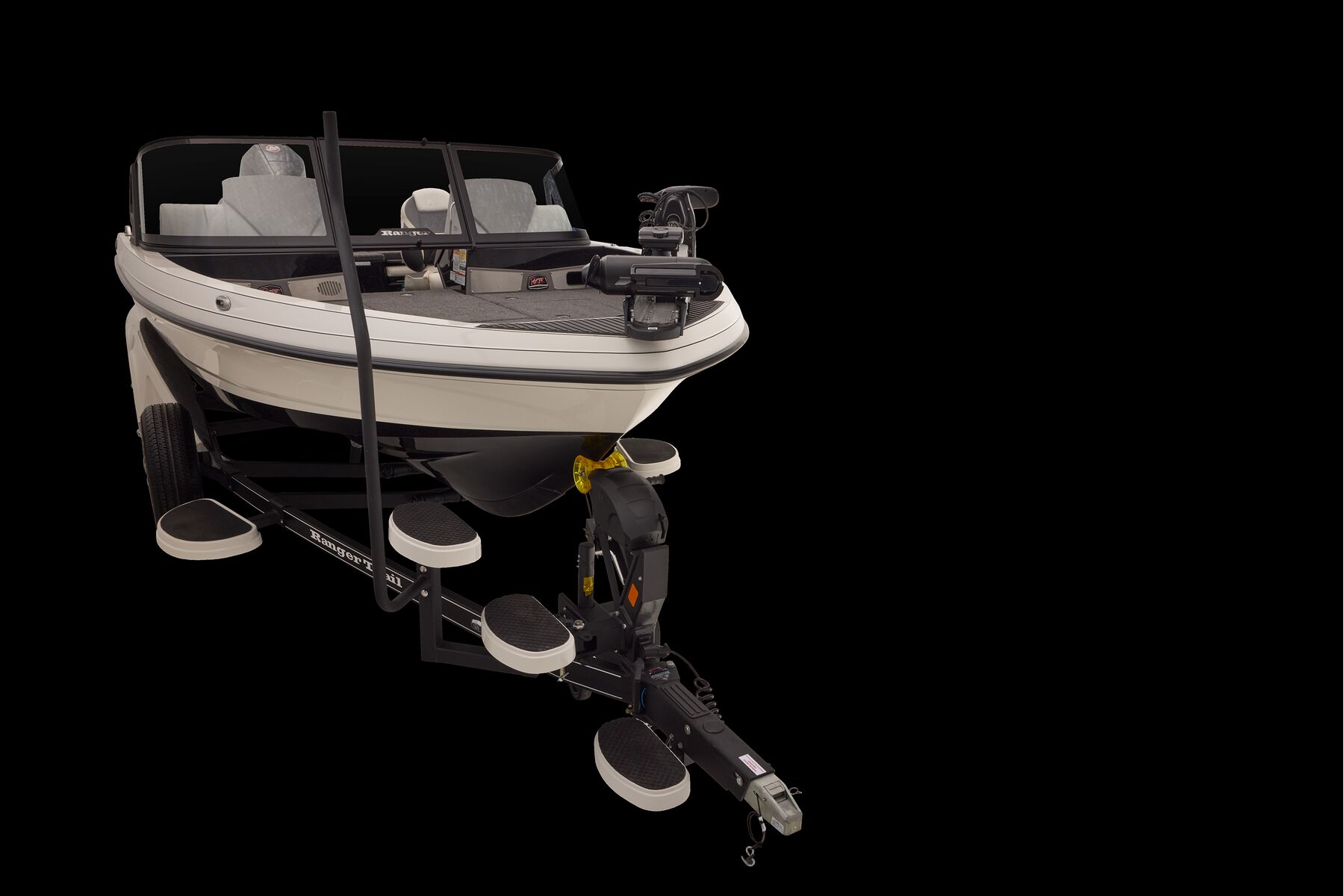

Trailer Features
- Ranger Trail® tandem axle trailer w/ torsion axles and c-channel frame
- Ranger® Road Armor Equipped® trailer protectant coating
- 14" Raptor III wheels w/ matching spare
- Ranger Trail® Vault® Hub lubrication system

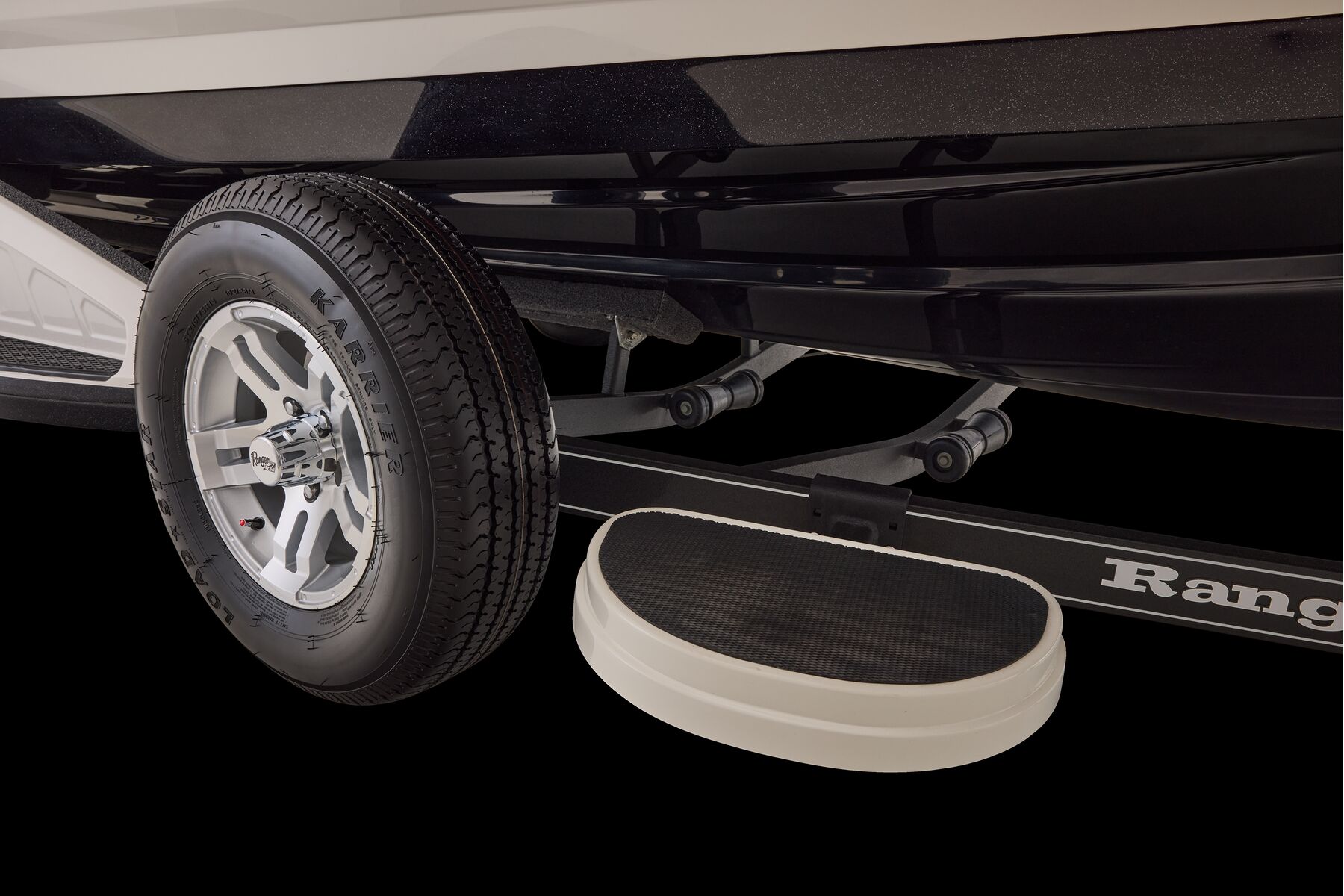

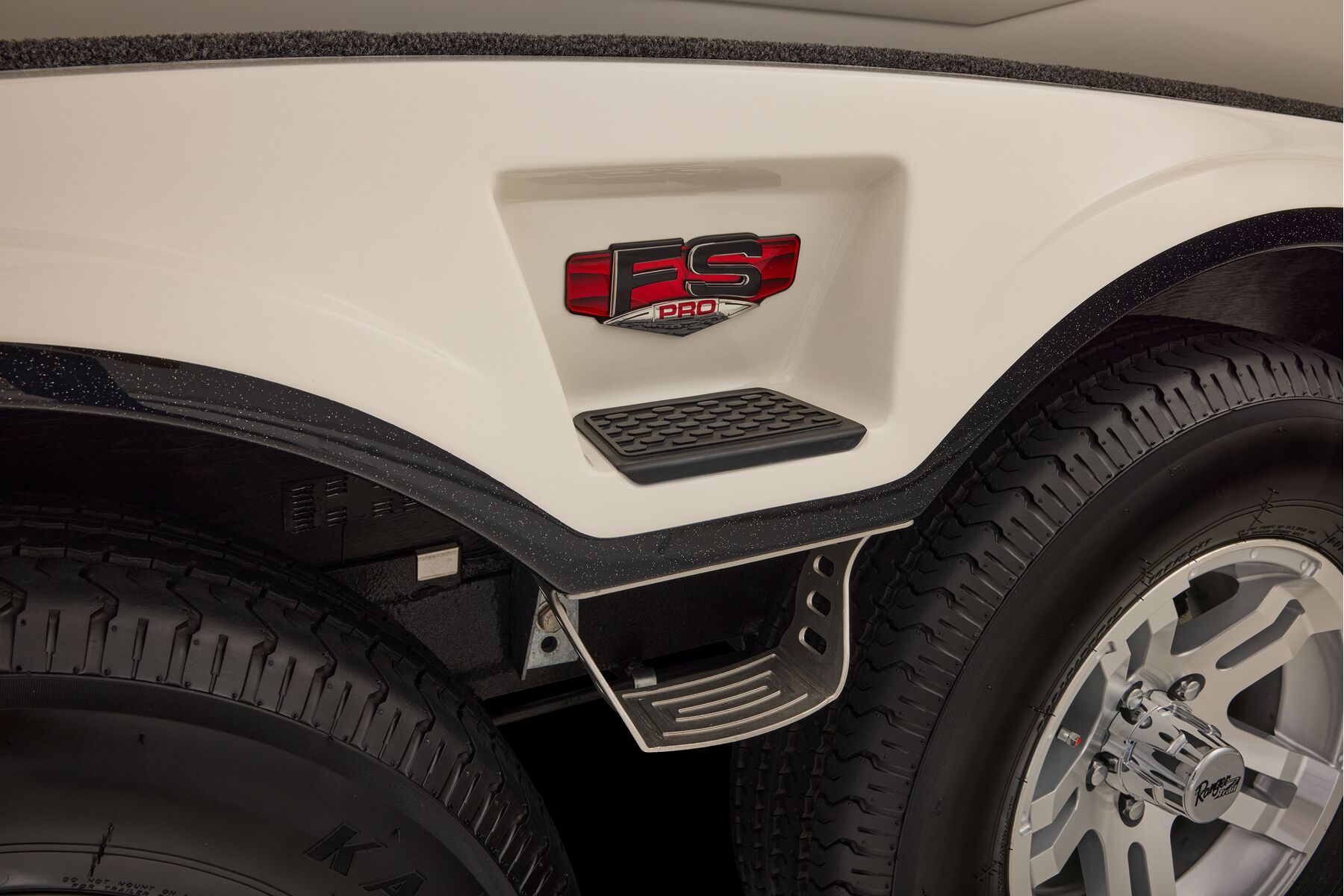

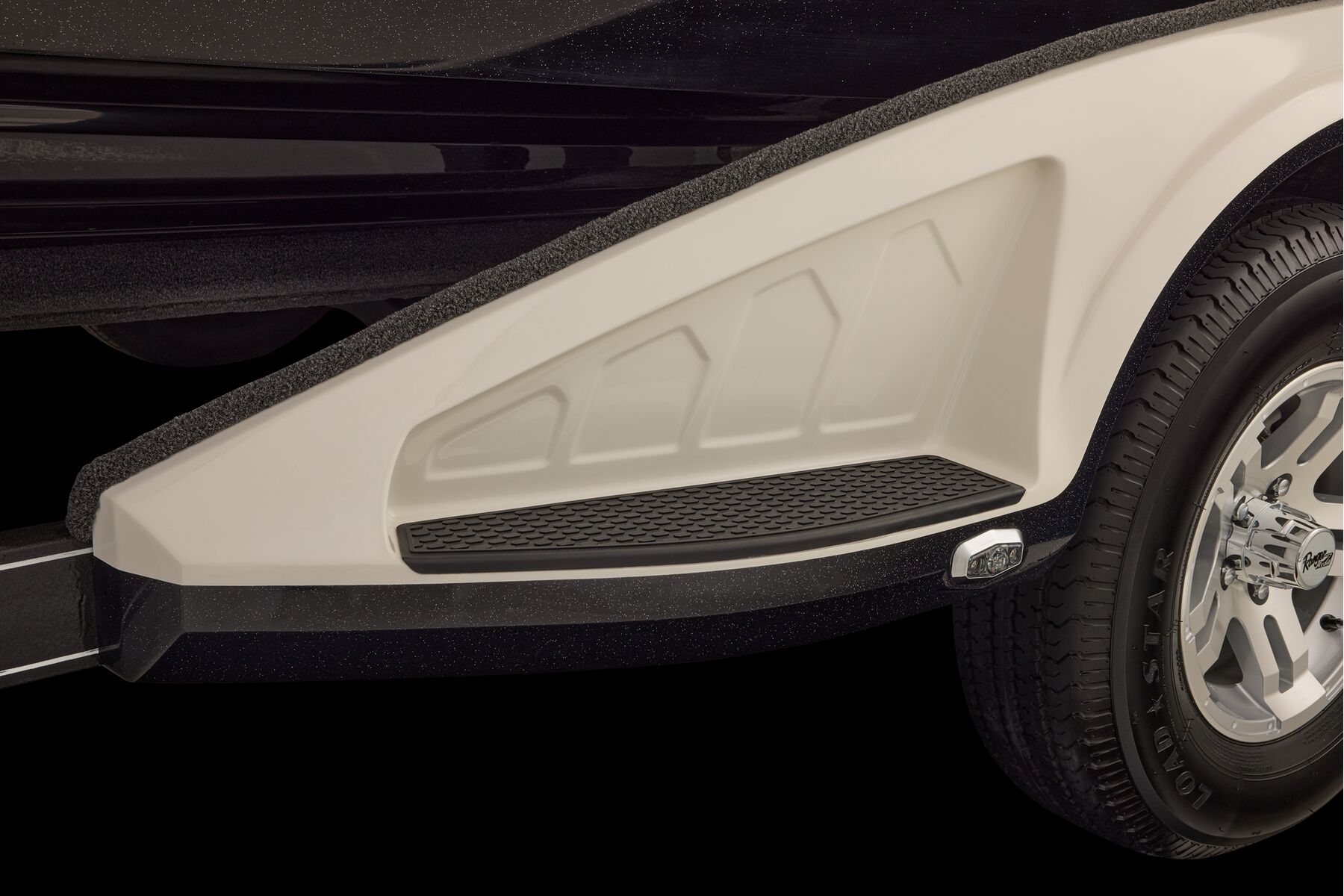

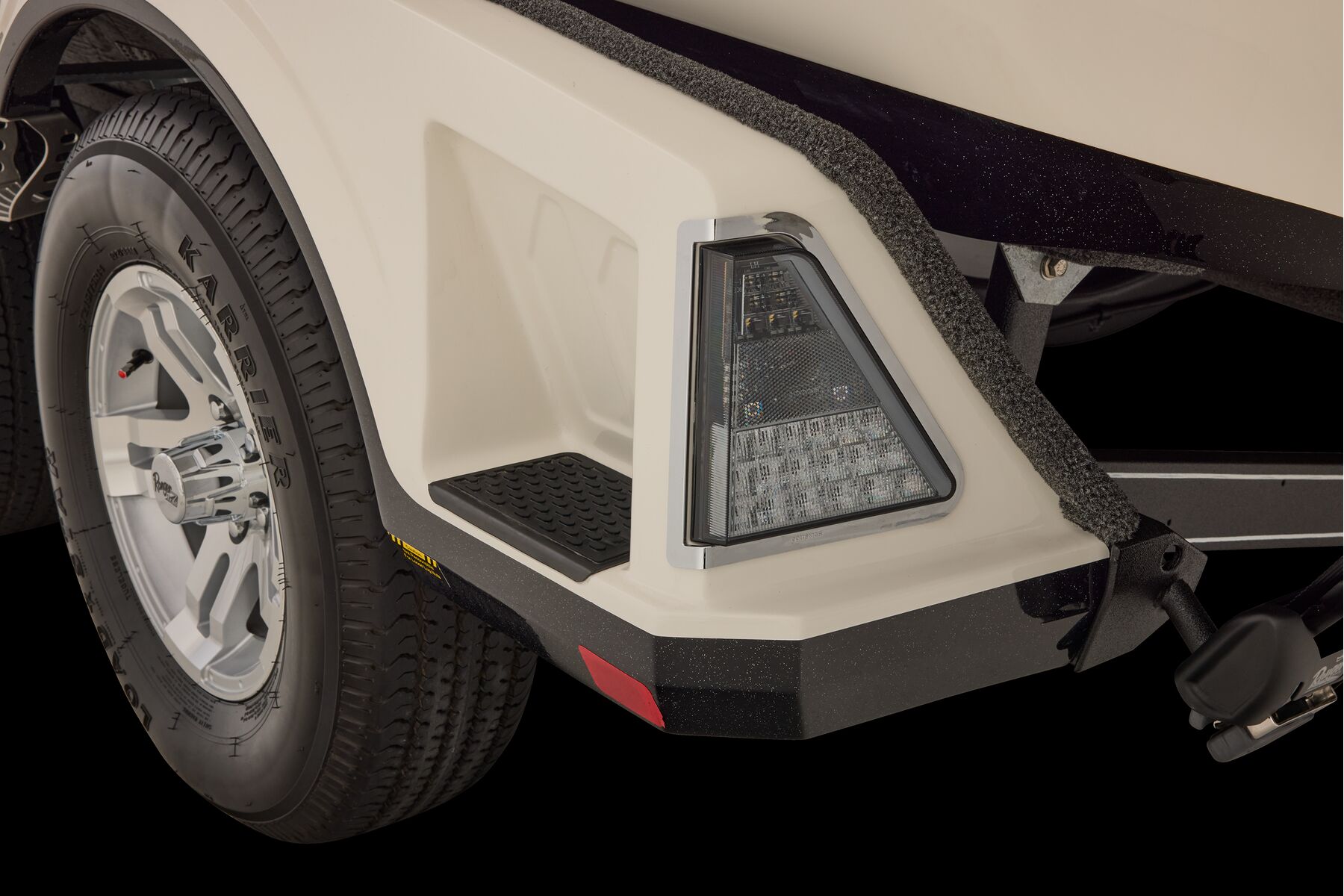

- Fiberglass fenders w/ step pads
- Hydraulic surge disc brakes
- Swing-away tongue
- Integrated center-swing jack finished in black powdercoat
- LED lighting
- Stainless steel ratcheting tie-downs
- NMMA®/NATM certified
Electronics

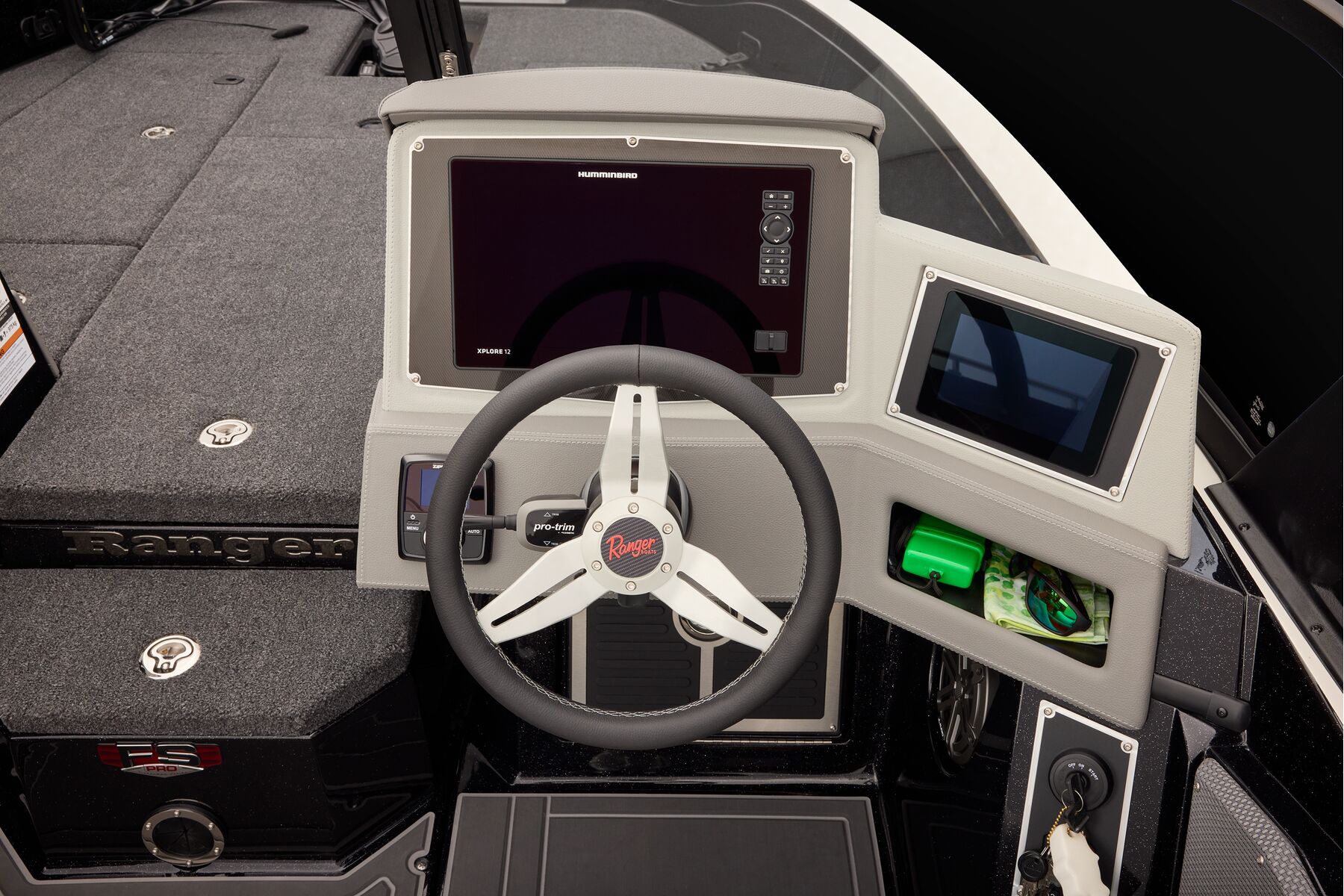

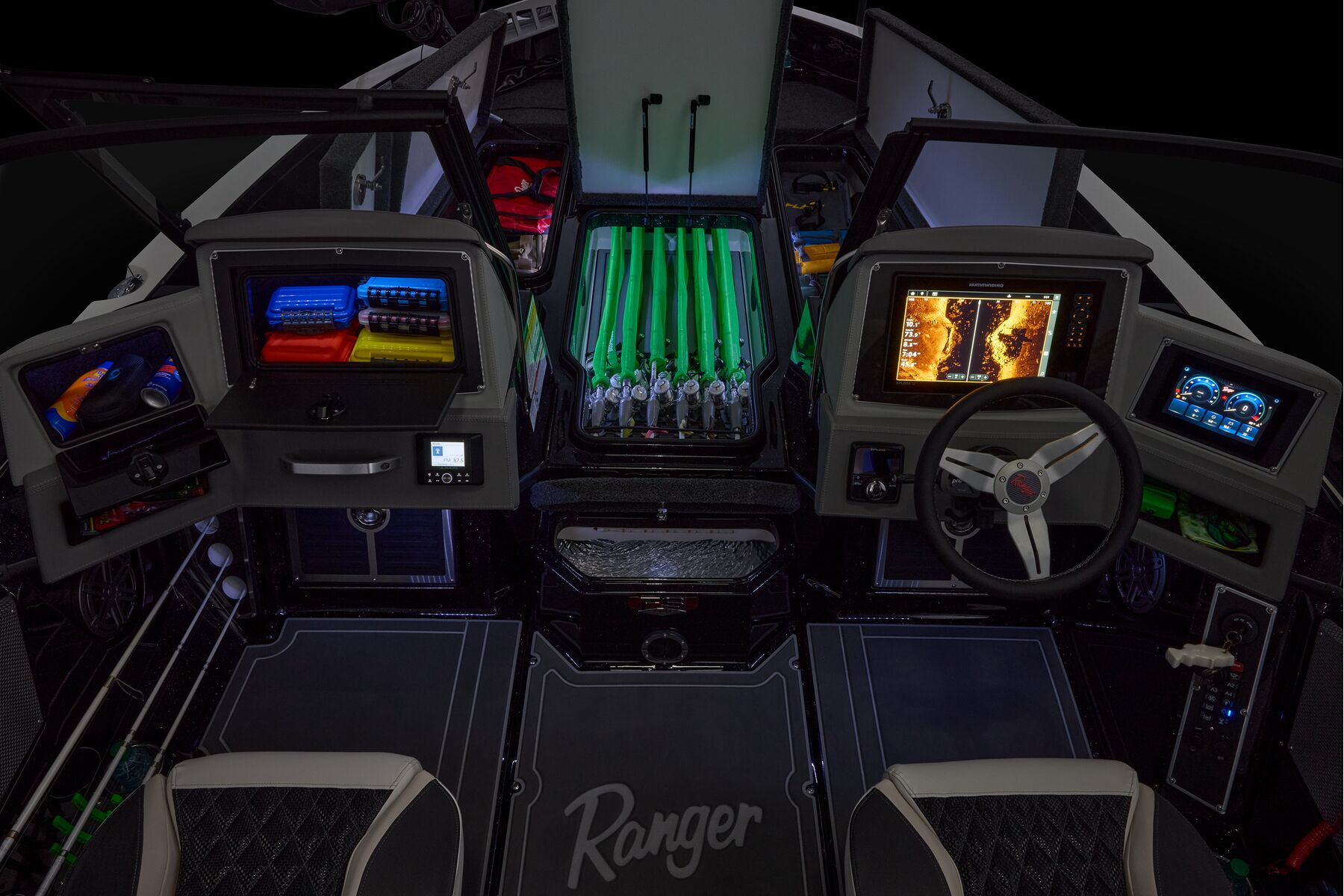

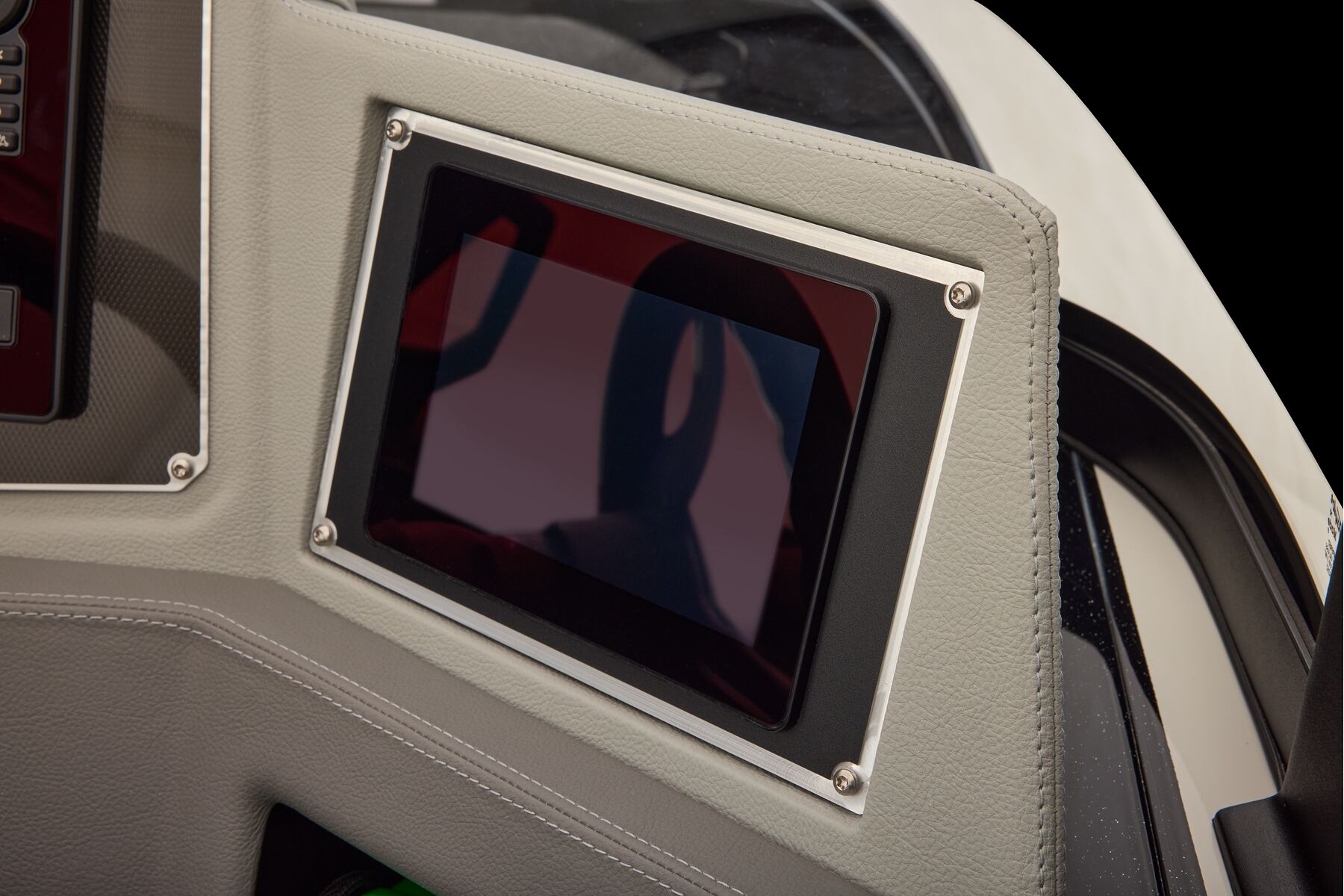

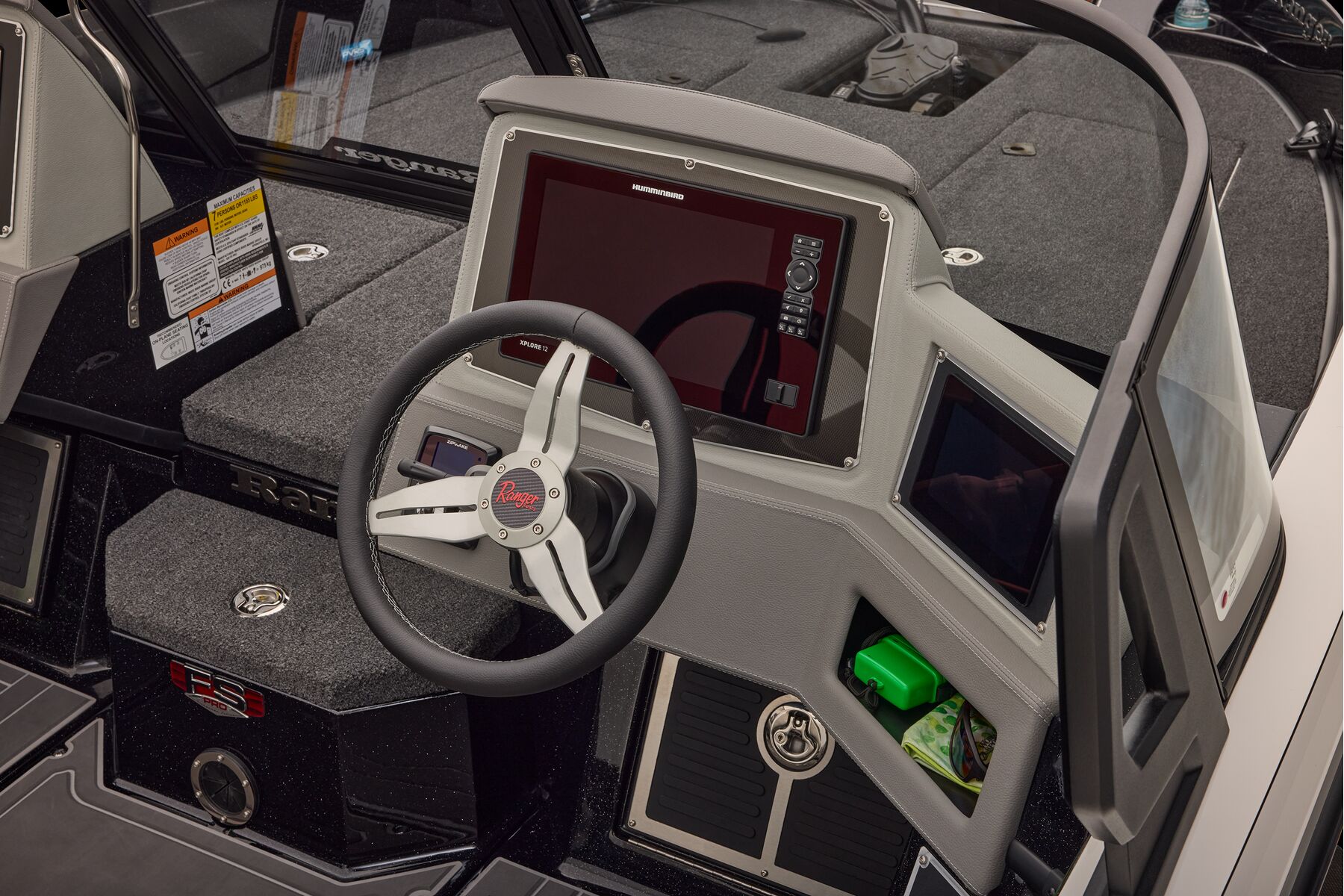

- Ranger FORGE™ Heads-Up & Control touchscreen displays, keyless push-to-start, & 12-button solid state keypad
- ProCircuit™ dedicated 6GA electronics clean power harness
- Wireless bow keypad with double-tap shallow-water & holeshot modes
- Solid-state digital keypad at bow with push-button trim switches
- Wireless phone charging station at helm
- LED storage compartment lighting & LED courtesy & livewell lighting
- Integrated LED bow navigation lights & removable LED anchor light

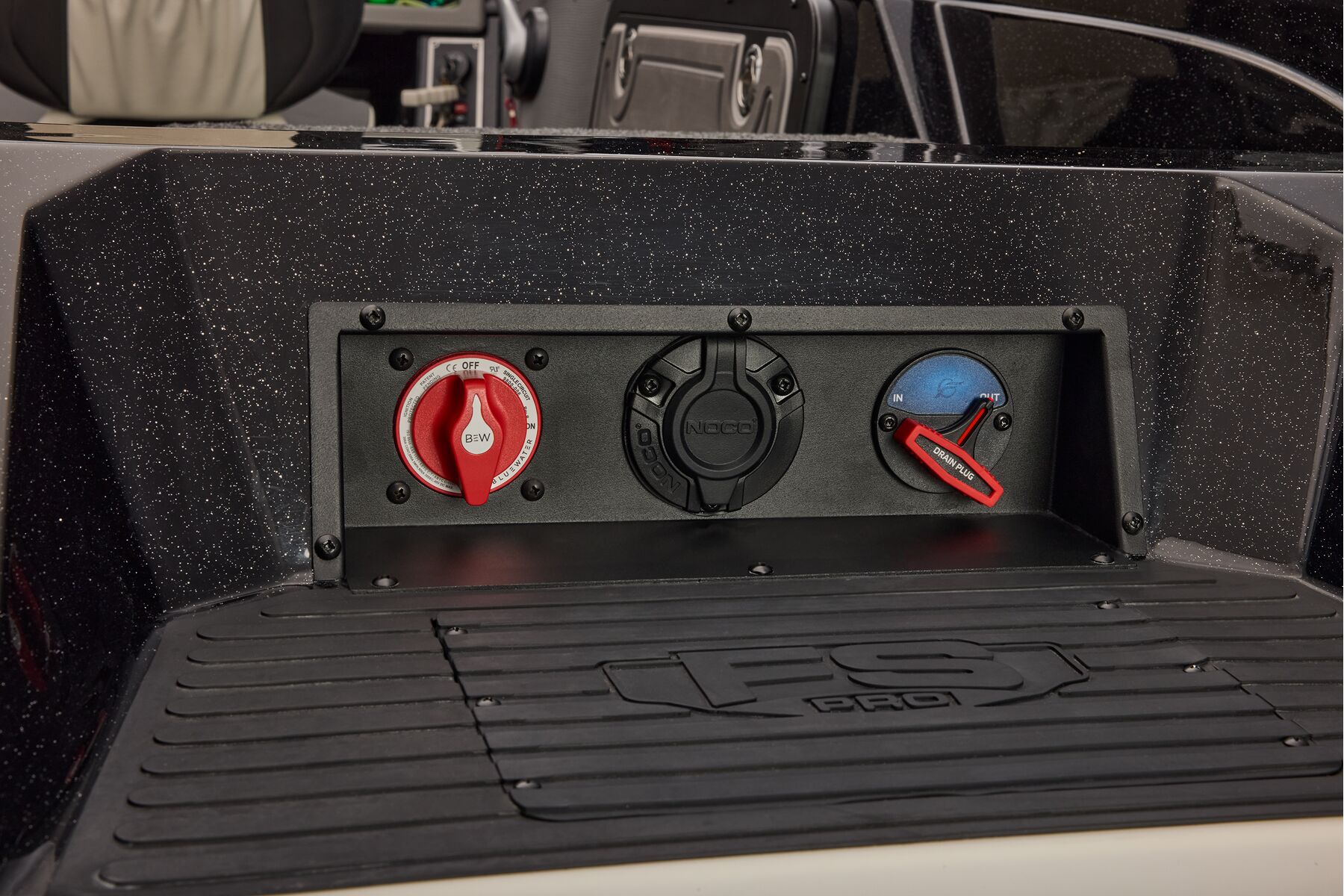

- Master Power on/off battery disconnect switch
- On-board Dual Pro® charger, 15 x 4, auto-detect lithium capable
- Integrated LED bow navigation and removable stern lights

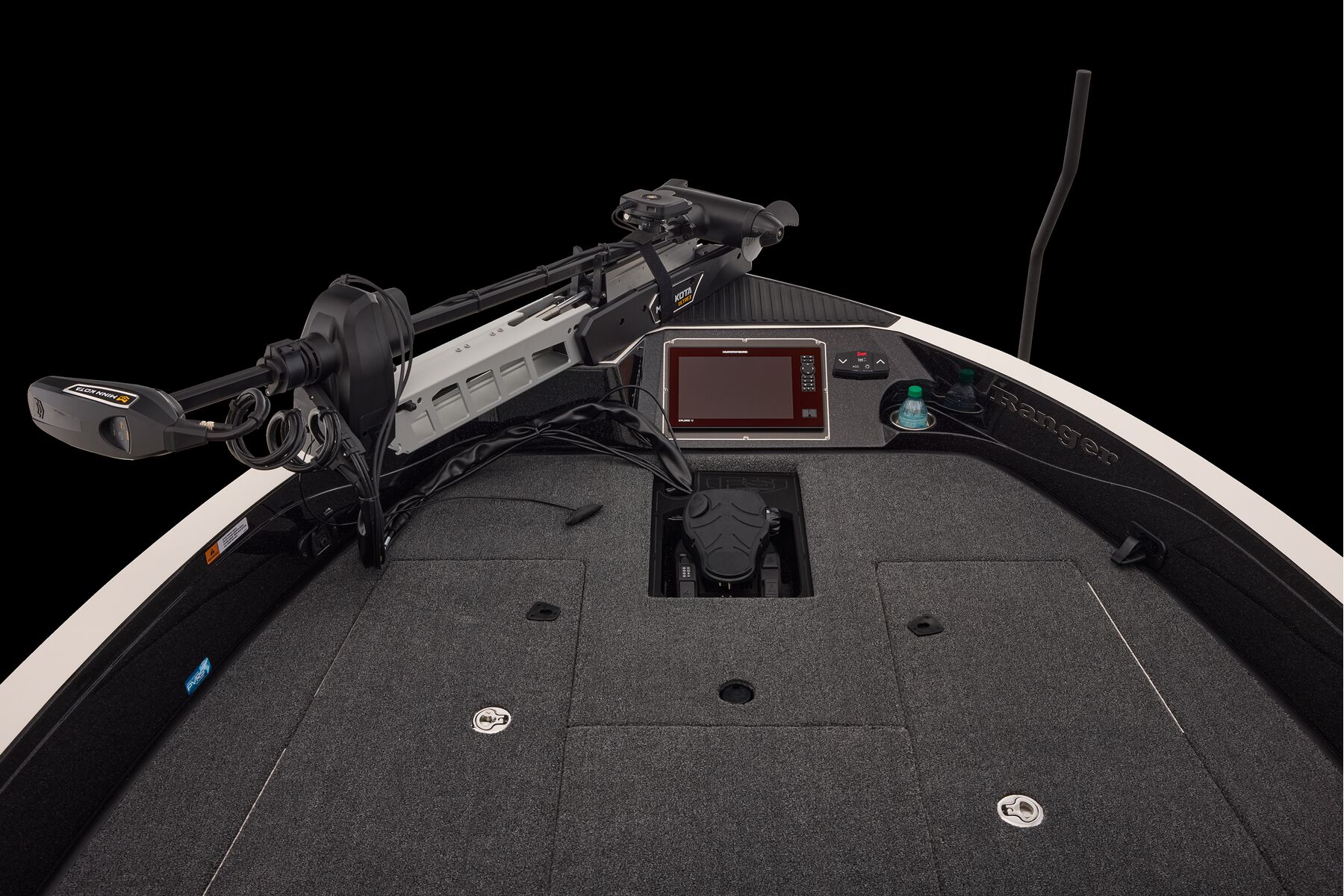

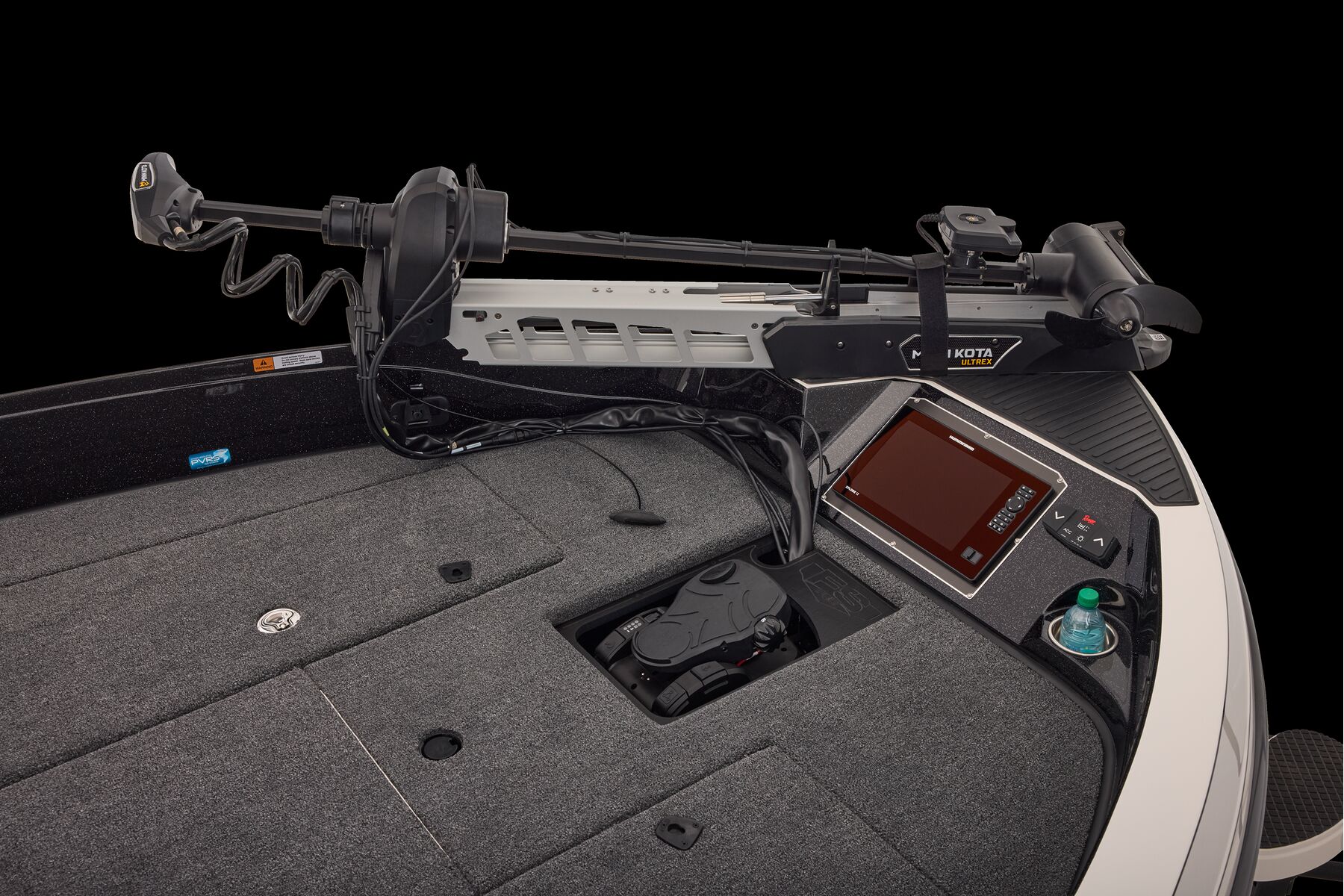

- Minn Kota® Terrova 112lb / DSC / 60" / 36V trolling motor

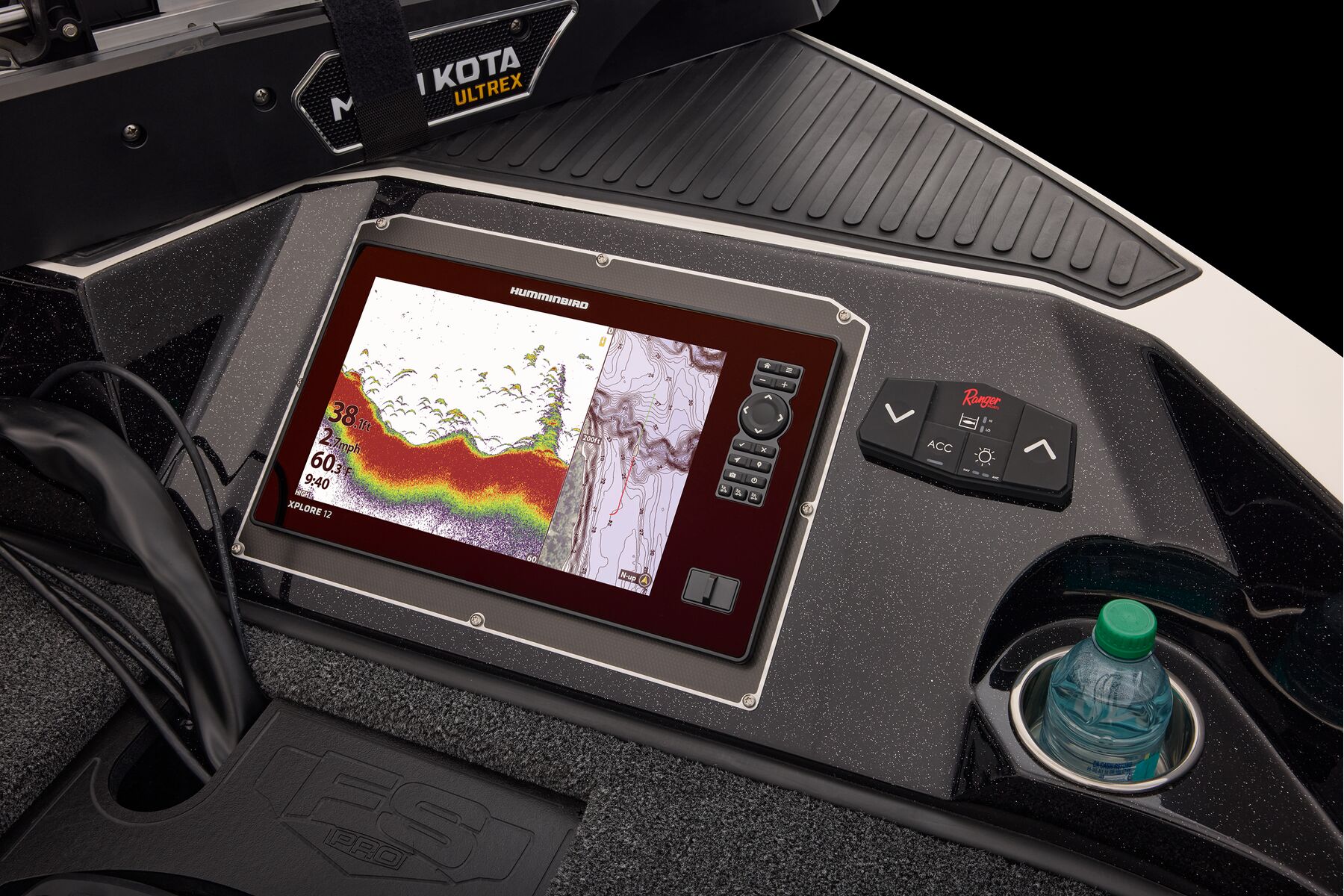

- Lowrance® Elite FS™ 9 at bow
- Lowrance® Elite FS™ 9 w/ Active Imaging™ HD at console
- 12V power receptacle with USB
- Additional manual key switch
- NOCO™ GB40 jump starter w/ on-board USB charging
