2027

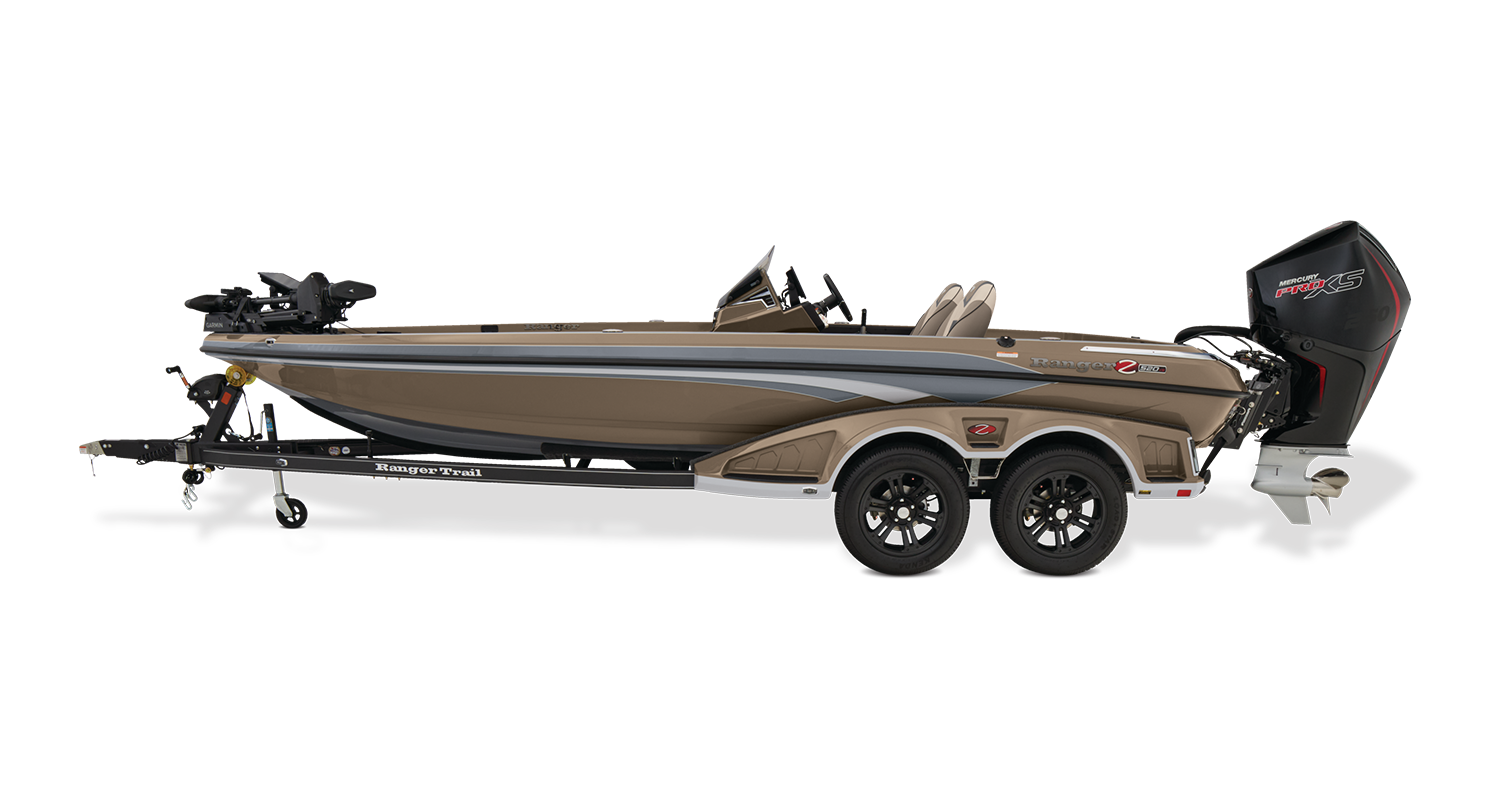

Z520VS Cup-Equipped
w/ 250L Pro XS Torque Master Mercury®
Boat, Motor, & Trailer
| View Price w/ Prep & Freight: | Select Dealer |
|
PRICED TO BE YOURS®
|
$79995
USD
|
Standard with your choice of tournament proven technology
or
Your Competitive Edge Comes Standard
The Ranger® Z520VS Cup-Equipped is built for anglers who demand tournament-ready performance, advanced electronics integration, and the confidence that comes with legendary Ranger craftsmanship. Measuring 20'11" with a wide 96" beam, the Z520VS Cup-Equipped delivers the speed, stability, and fishability that serious competitors rely on day after day.

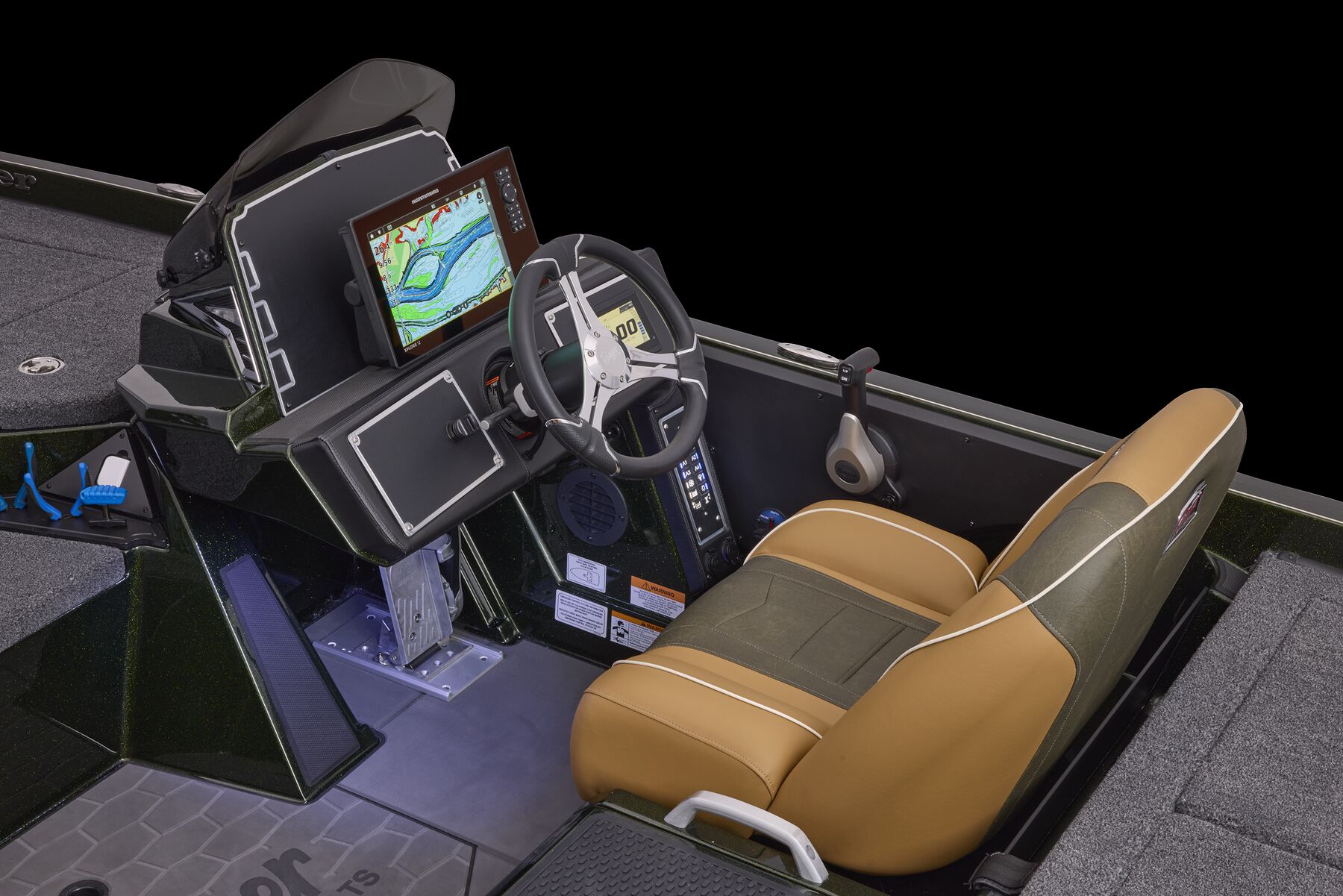

Purpose-built around modern sonar and electronics systems, the Z520VS Cup-Equipped puts industry-leading technology at your fingertips with your choice of Lowrance® or Garmin® Cup Packages. The Ranger® ProCircuit™ dedicated 6-gauge clean power electronics harness supplies clean, dependable power throughout the boat, while push-button solid-state digital switching simplifies system management and keeps critical functions within easy reach.

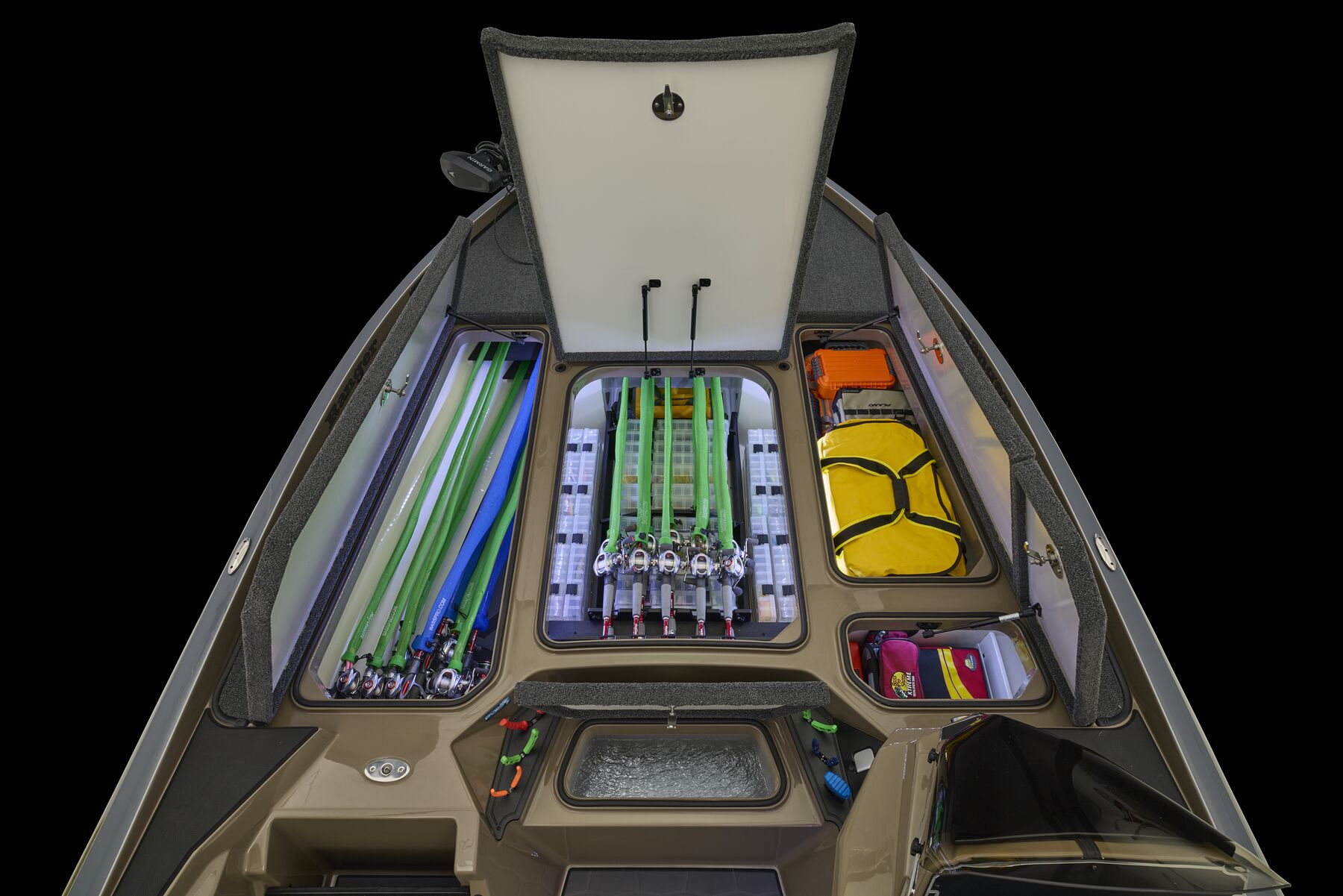

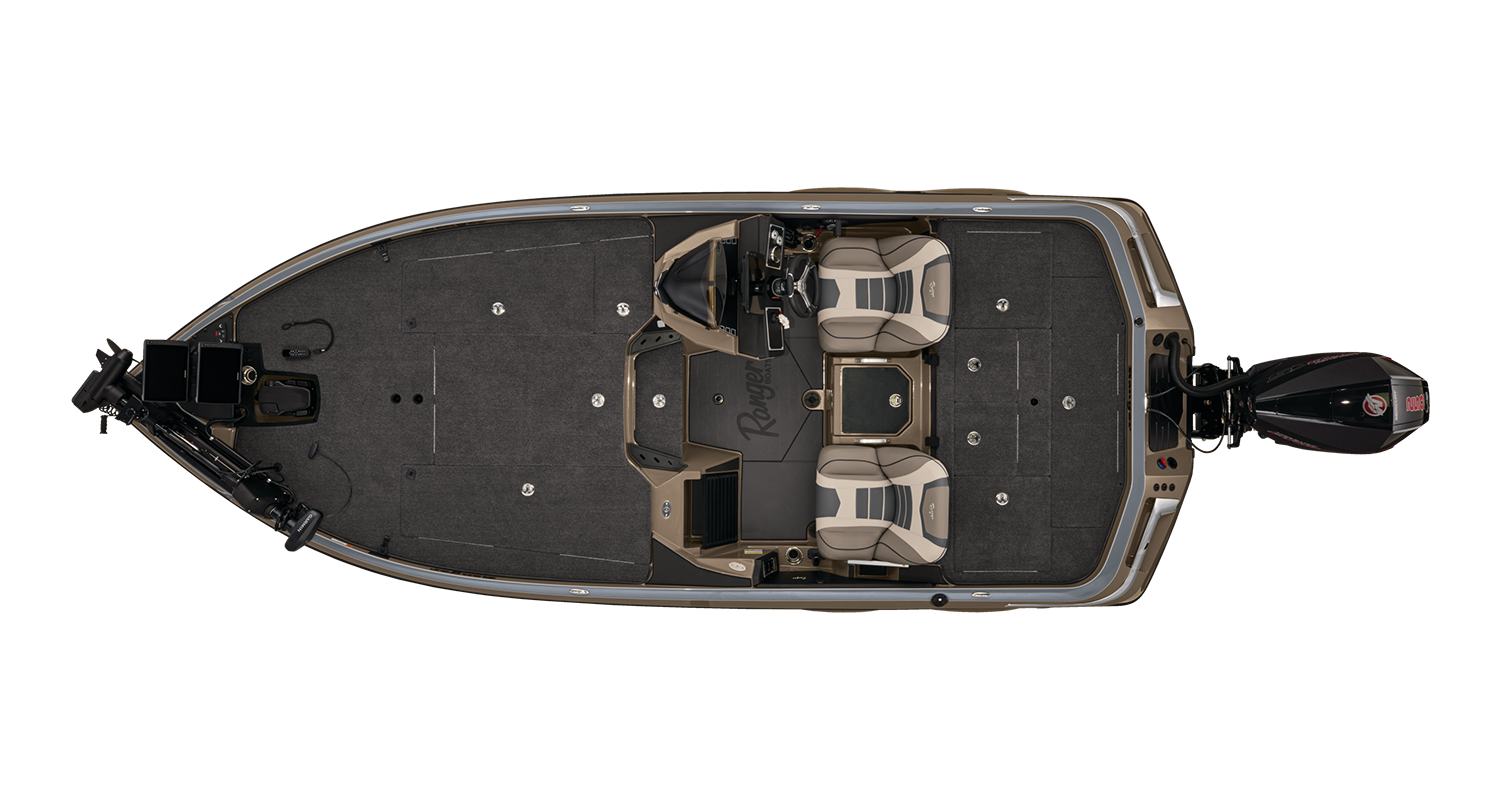

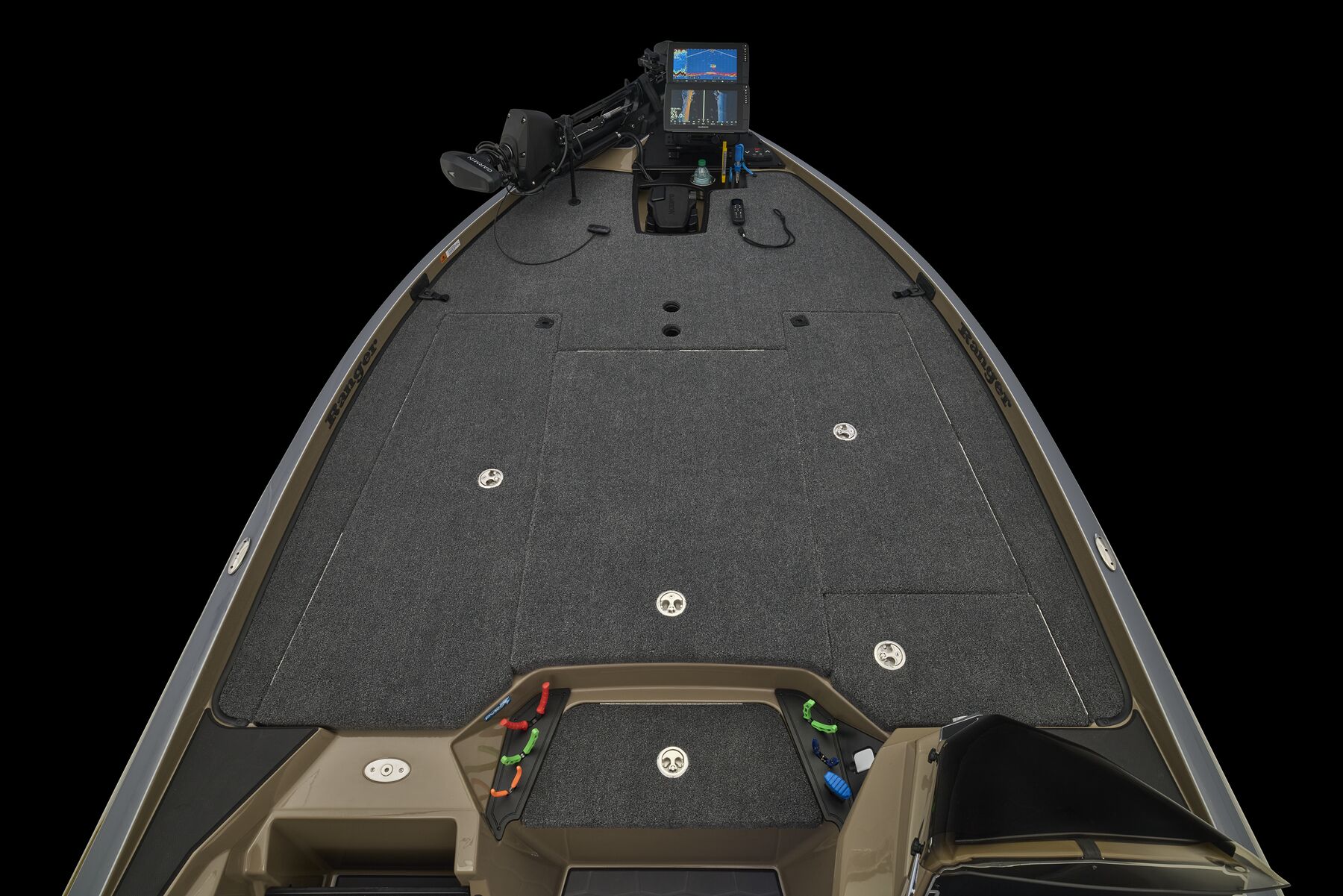

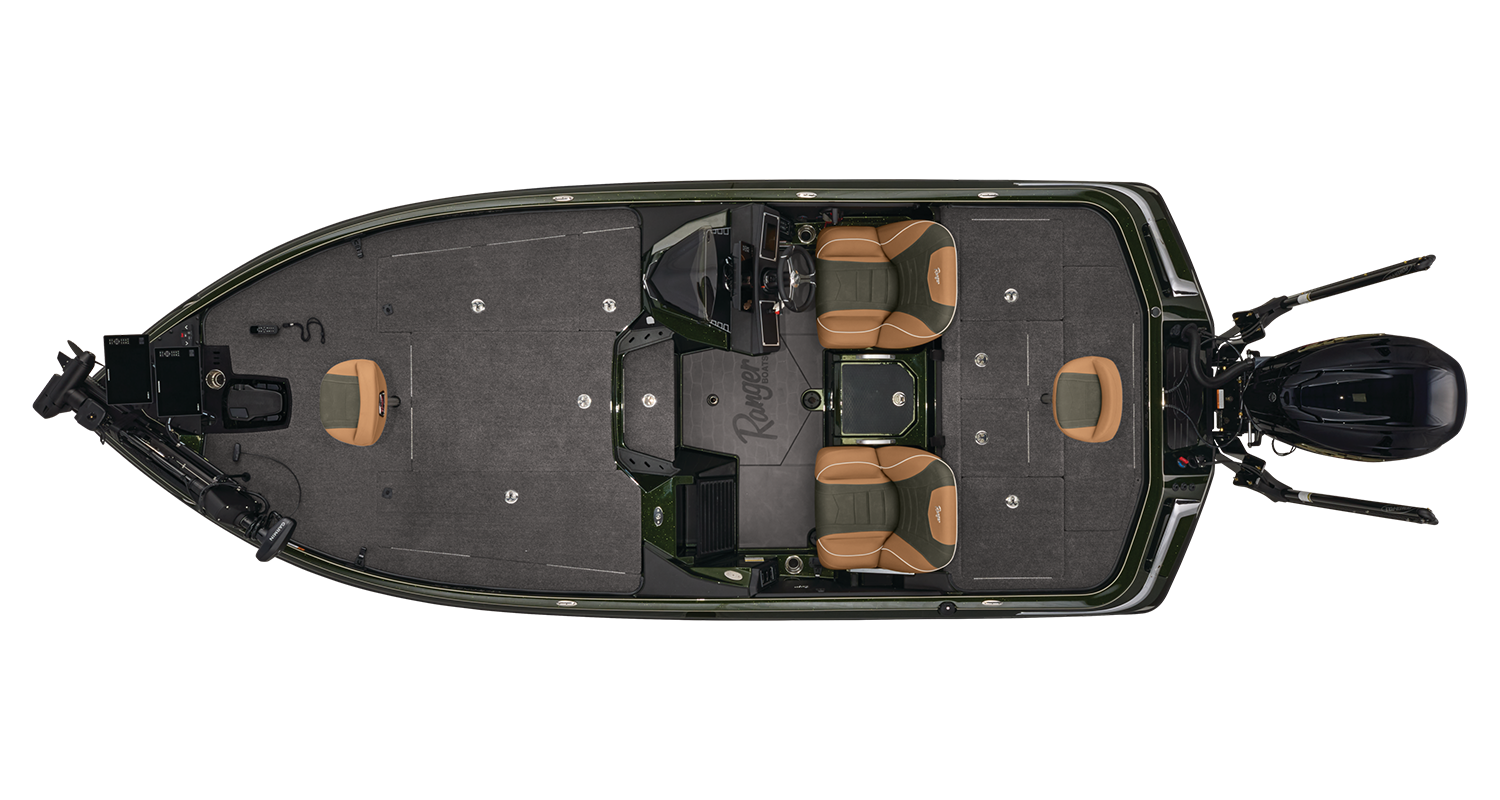

The spacious front casting deck is designed for efficiency, featuring integrated tool holders, a tournament measuring board, and the Ranger Echelon™ Rod Storage System with tiered rod lockers and Power Ventilation Rod Storage™. A recirculating livewell with Venturi aeration helps protect your catch throughout long tournament days, while thoughtful details such as Soft Ride Seating, stainless steel compression latches, and LED compartment lighting elevate comfort and convenience on the water.

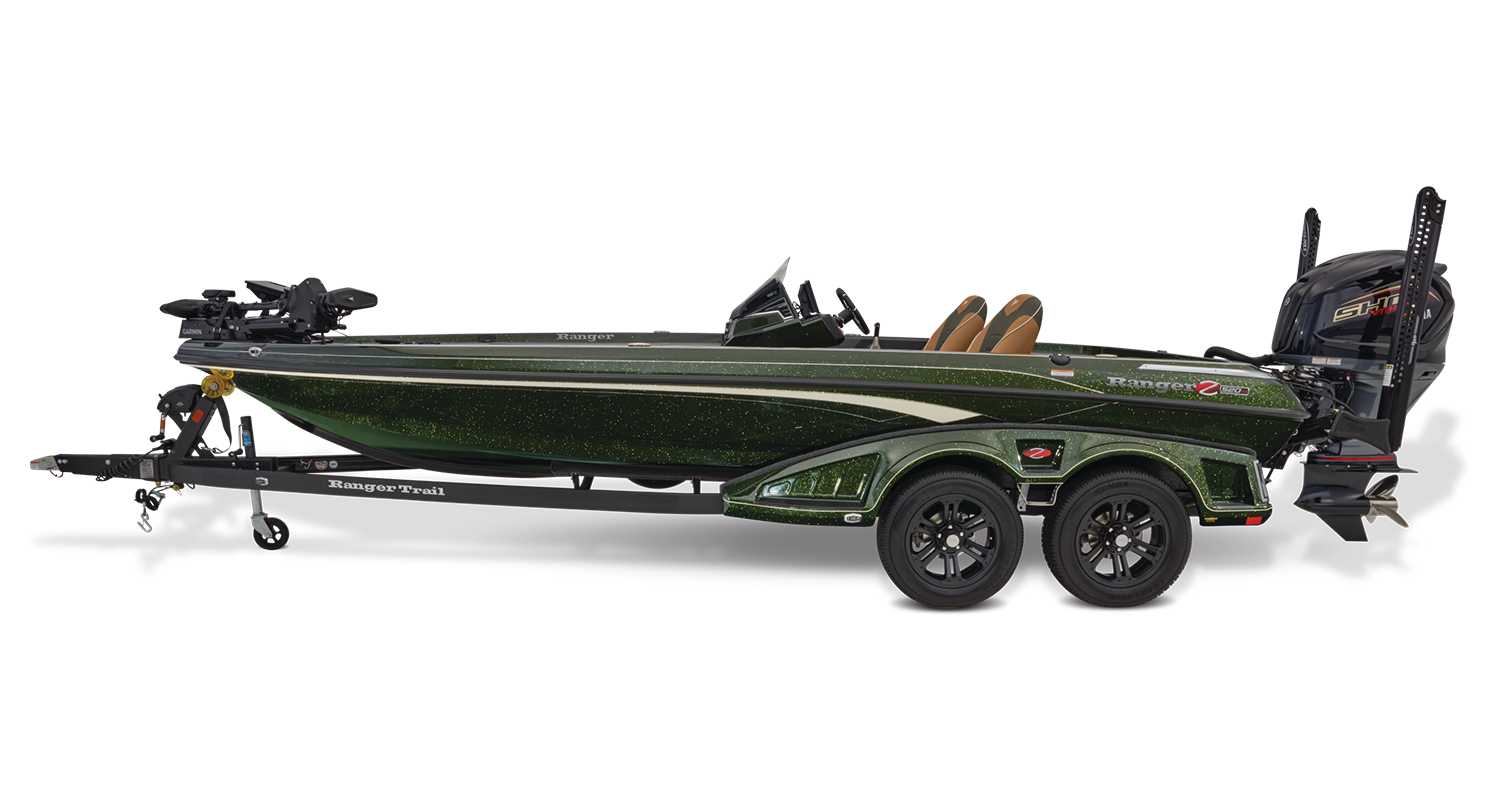

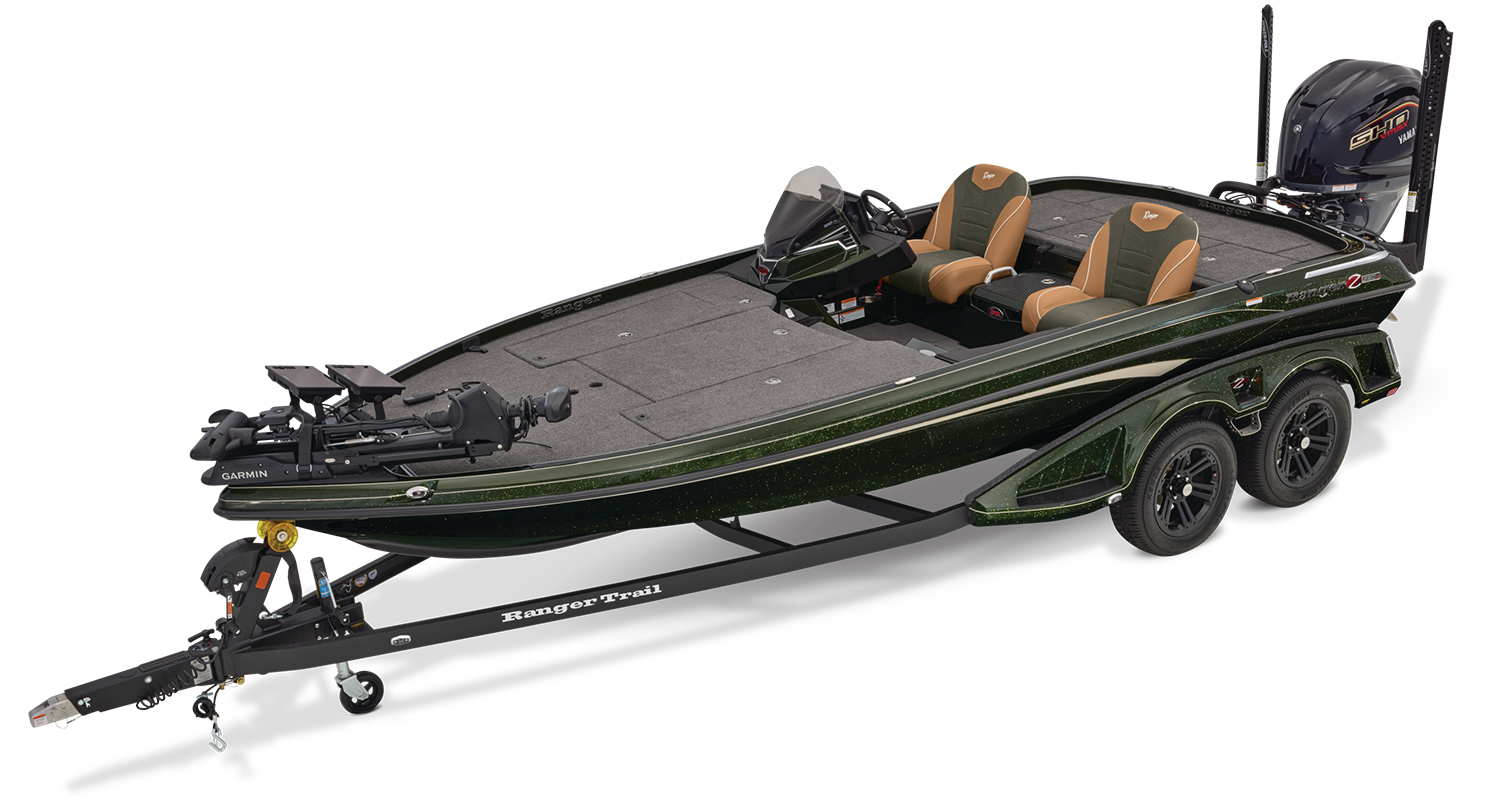

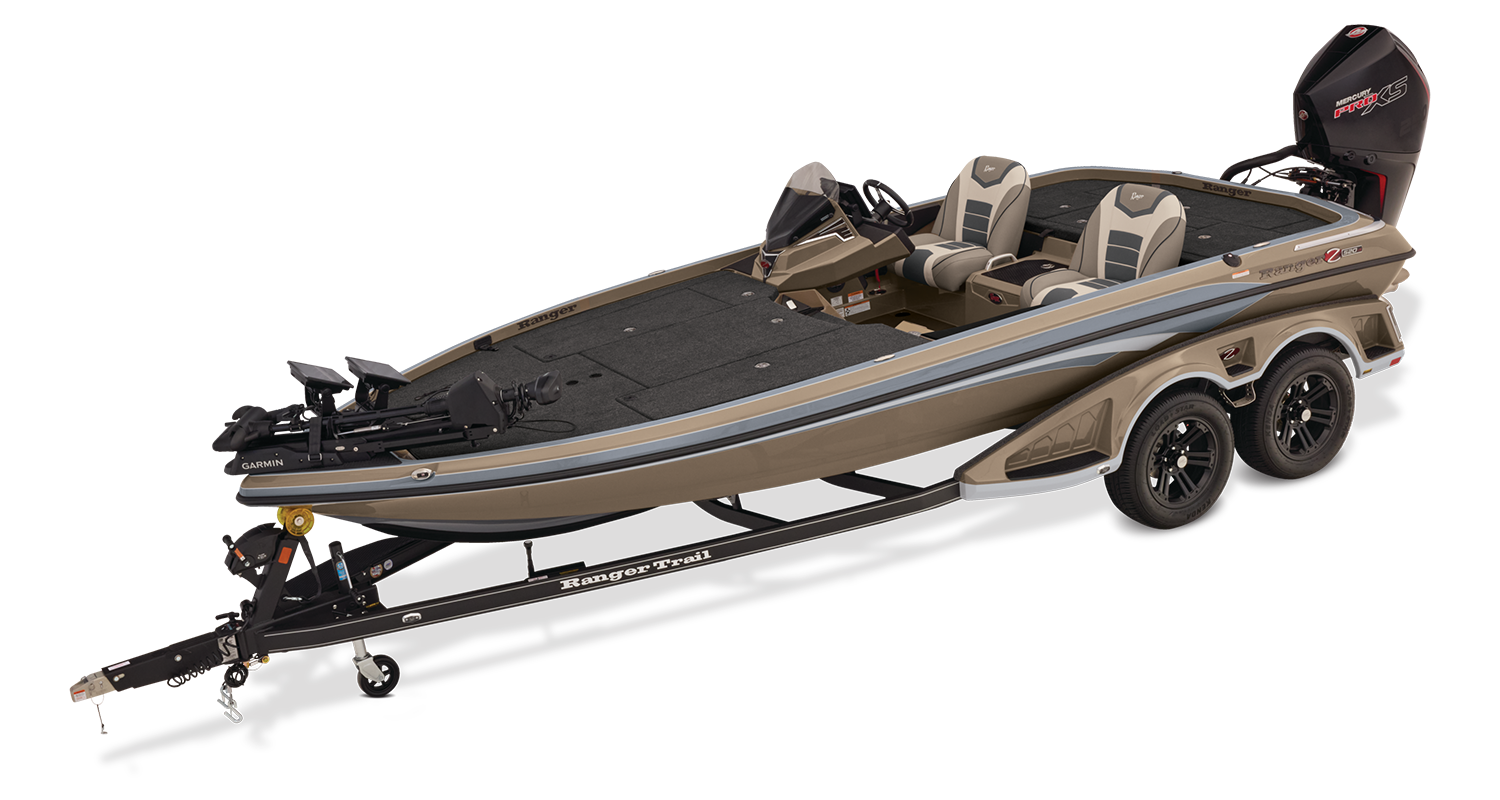

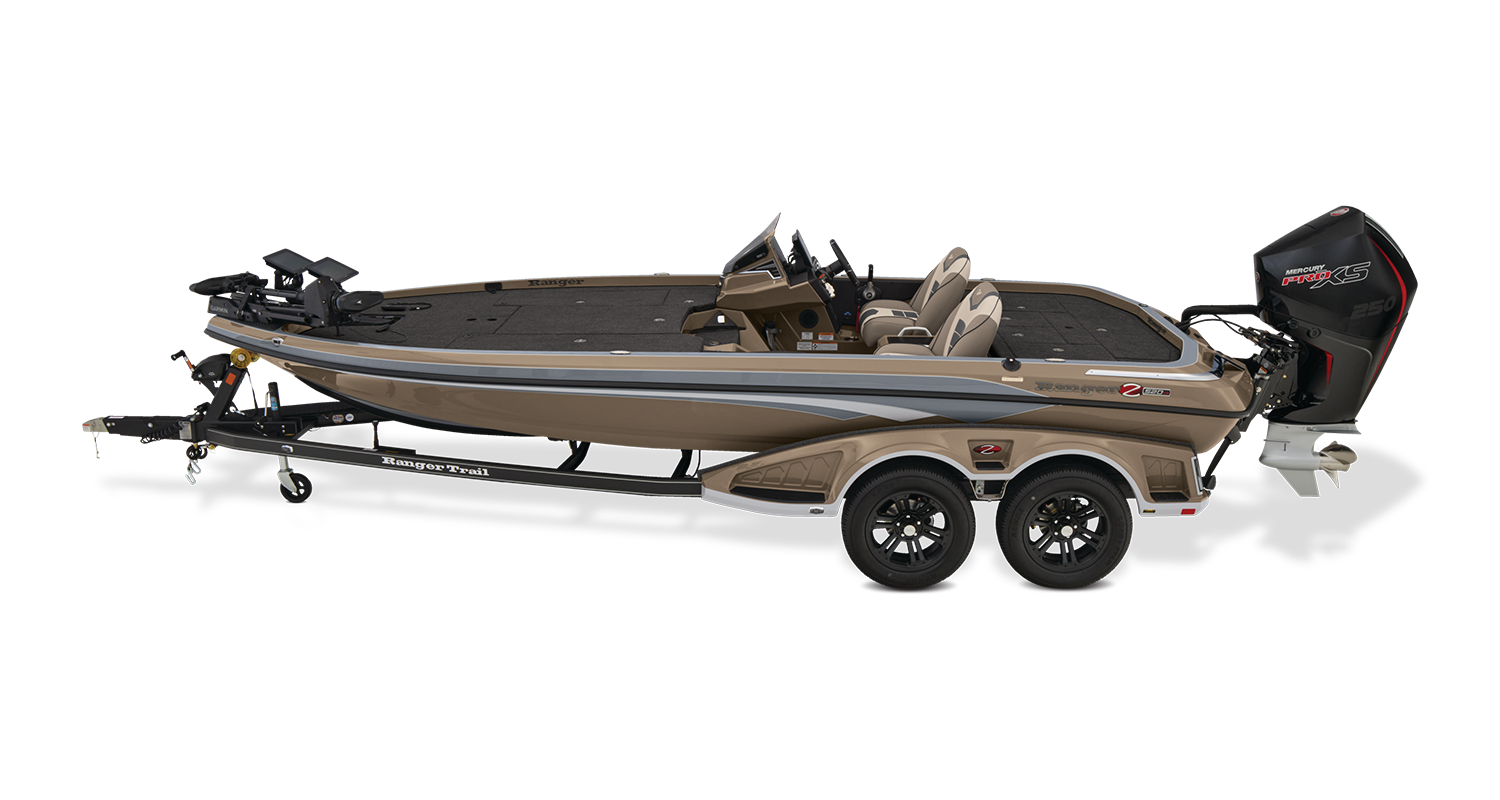

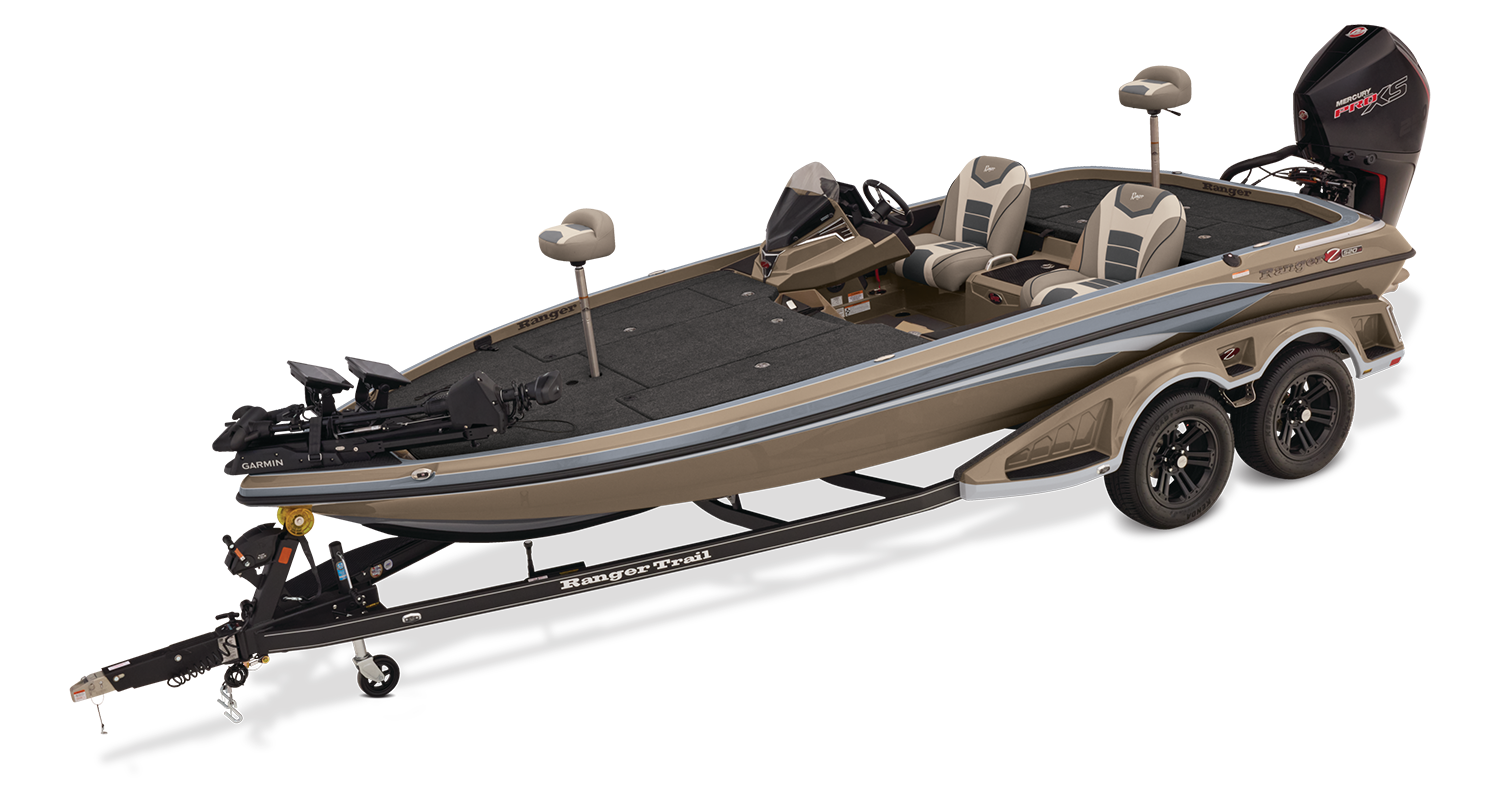

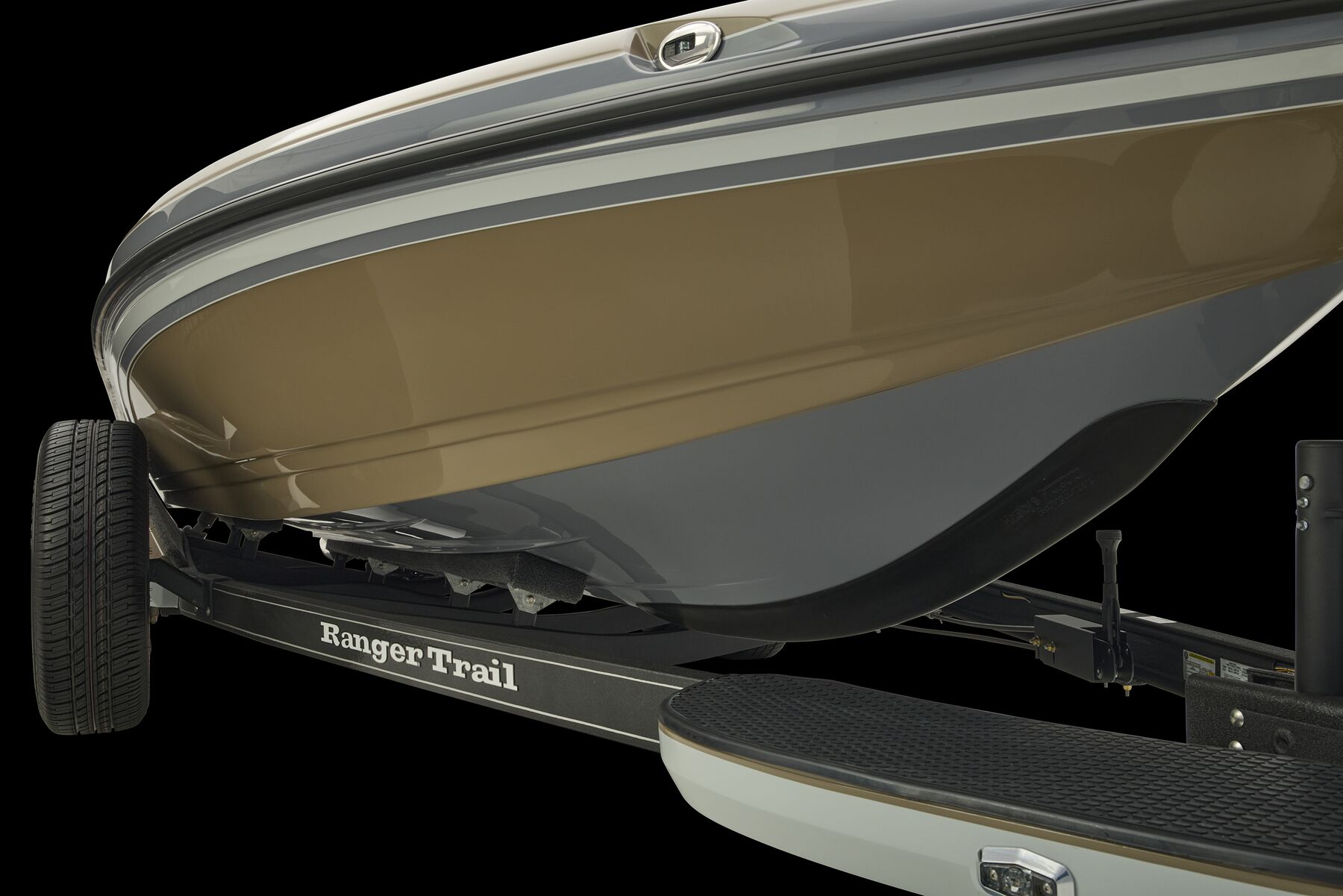

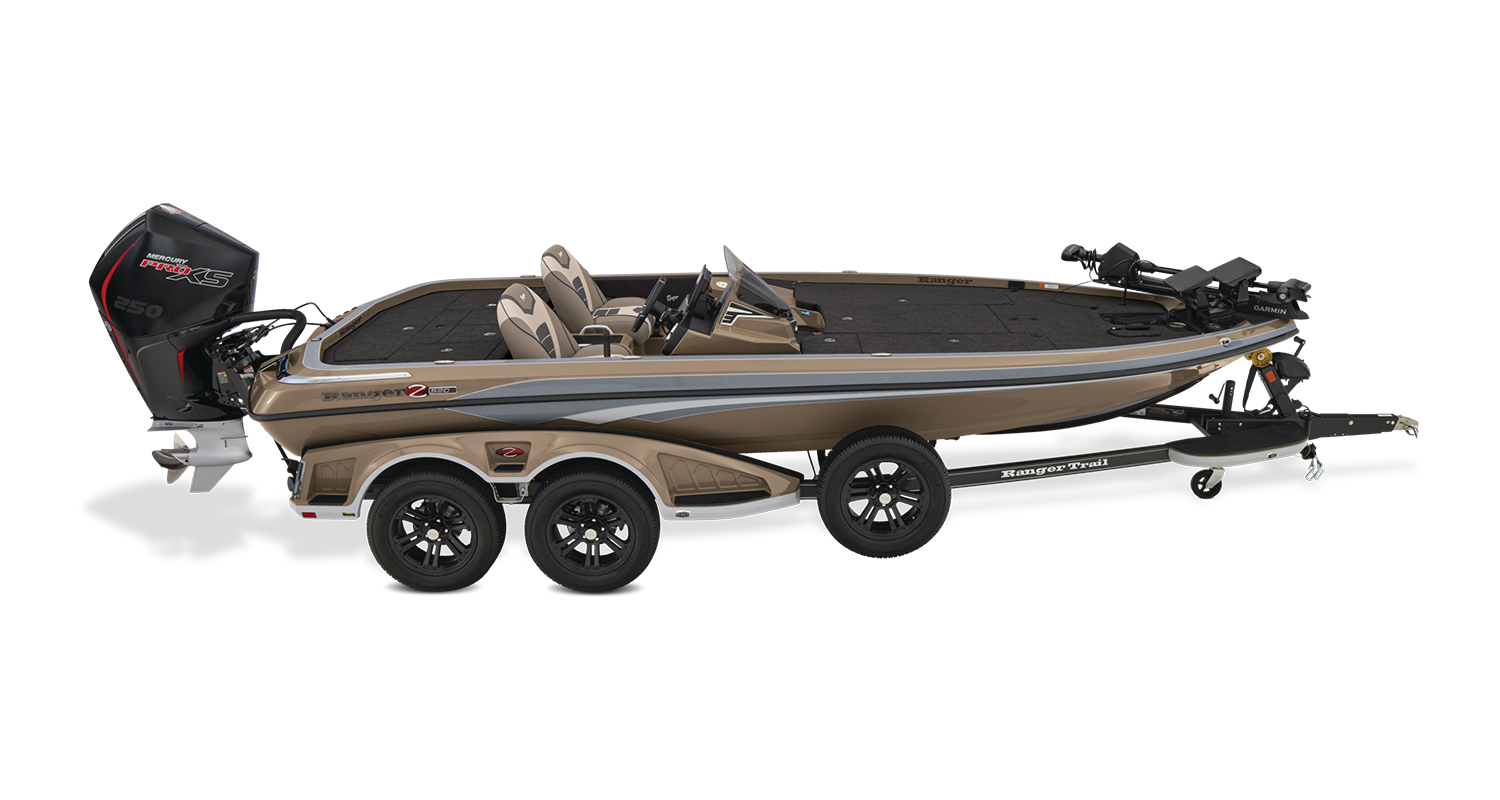

Beneath it all, One-Piece-Feel Interloc Construction, a pultruded fiberglass transom, and integrated setback work together to deliver the smooth ride, responsive handling, and durability that have defined Ranger performance for generations. Finished with a custom-matched Ranger Trail® trailer featuring Road Armor Equipped® protection, the Z520VS Cup-Equipped arrives ready for the road, the ramp, and the competition.
From blast-off to weigh-in, the Ranger Z520VS Cup-Equipped is engineered to help anglers fish harder, move faster, and compete with confidence.
Key Features
- Cup-Equipped™ tournament-ready electronics, trolling motor, and equipment package

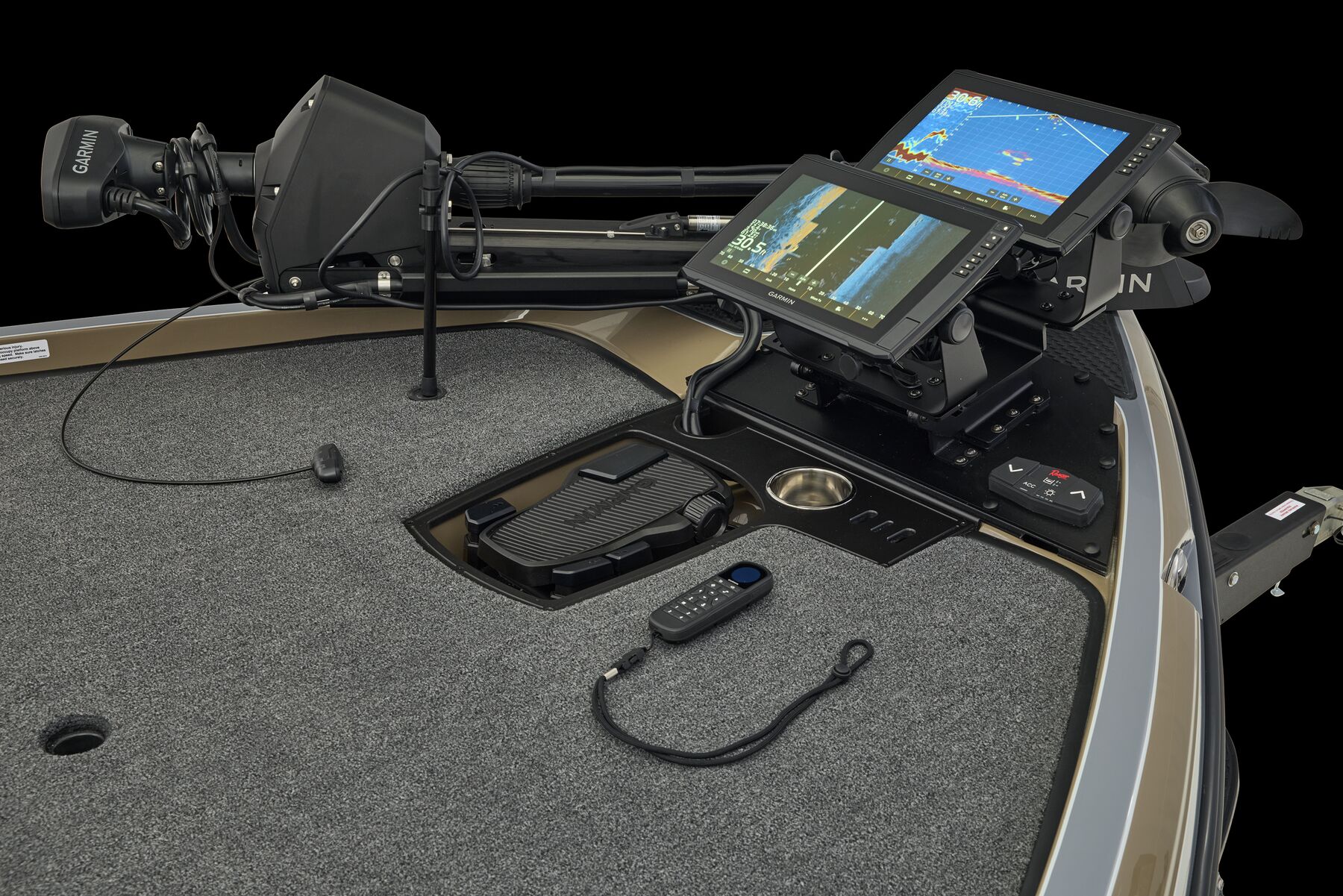

- 12” GARMIN® ECHOMAP™ or Lowrance® HDS® PRO at bow

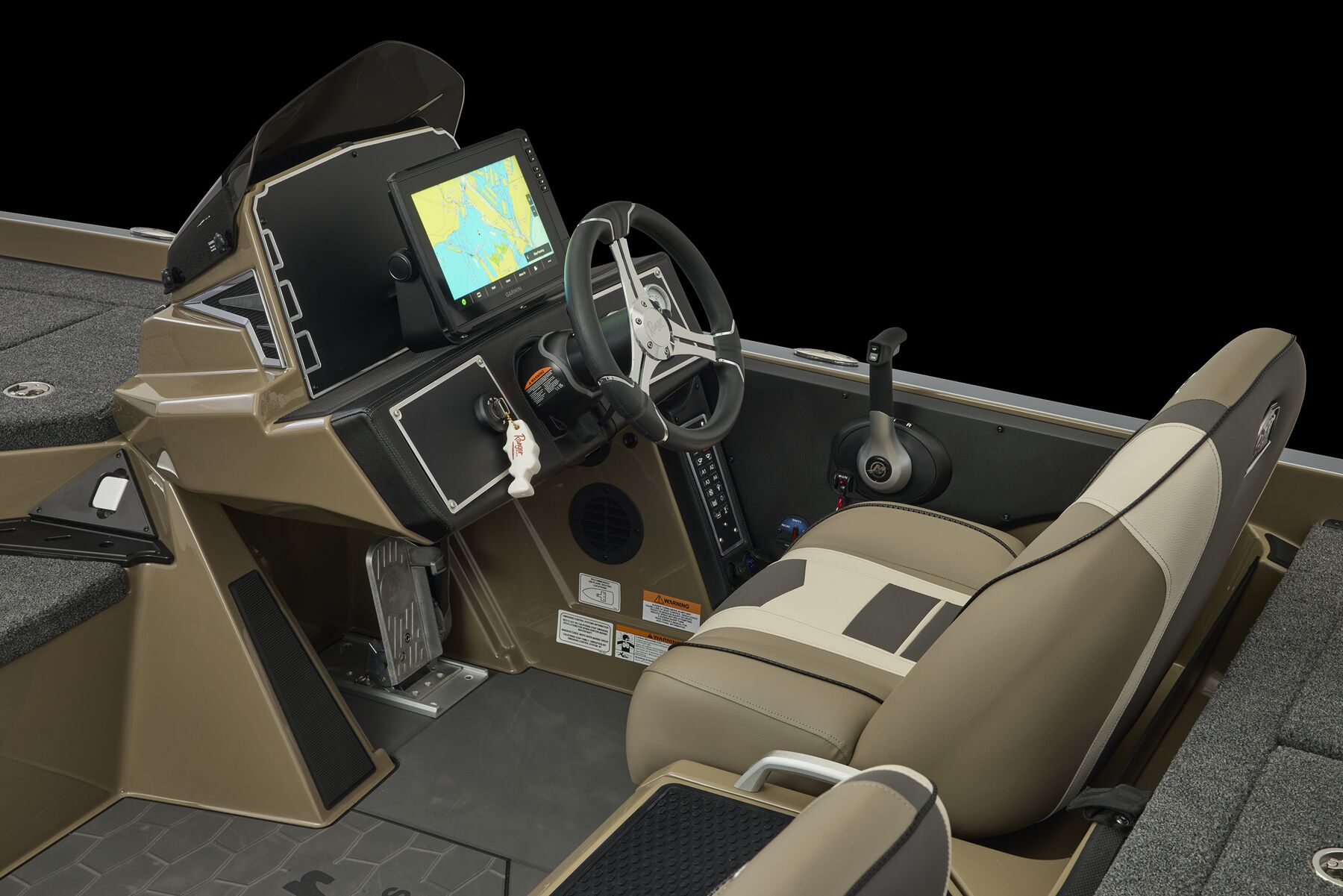

- 12” GARMIN® ECHOMAP™ or Lowrance® HDS® PRO at console
- GARMIN® Force® Pro or Lowrance GHOST 36V trolling motor
- GARMIN® LiveScope™ Plus or Lowrance® Active Target™
- Ranger® ProCircuit™ Dedicated 6-Gauge Clean Power Electronics Harness
- Dual Pro® 15A x 4 bank charger
- Hot Foot throttle w/ slide
- Blinker Trim
- 14” Raptor III Wheels w/ matching spare
- Push-Button Solid-State Digital Switching
- Keyed Ignition
- Pultruded Fiberglass Transom
Gallery
Specifications
| Length | 6.38 m | 20' 11'' |
| Beam | 2.44 m | 96'' |
| Max. Recommended HP | 250 HP | |
| Engine Shaft Length | 50.8 cm | 20'' |
| Inside Depth | 55.88 cm | 22'' |
| Fuel Capacity | 204.39 L | 54 gal. |
| Livewell Capacity | 117.34 L | 31 gal. |
| Total Person, Motor, Gear | 748.43 kg | 1650 lbs. |
| Approximate Boat Weight | 839.15 kg | 1850 lbs. |
| Rod Box Length - Port | 2.44 m | 8' |
| Rod Box Length - Center Row 1 | 2.44 m | 8' |
| Rod Box Length - Center Row 2 | 2.29 m | 7' 6'' |
| Max. Person Capacity | 4 persons | |
| Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate) | 8.25 m | 27' 1'' |
| Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate) | 7.62 m | 25' |
| Width On Trailer | 2.59 m | 102'' |
Motor Options
| AVAILABLE MOTOR | |||||
|---|---|---|---|---|---|
| Mercury® | |||||

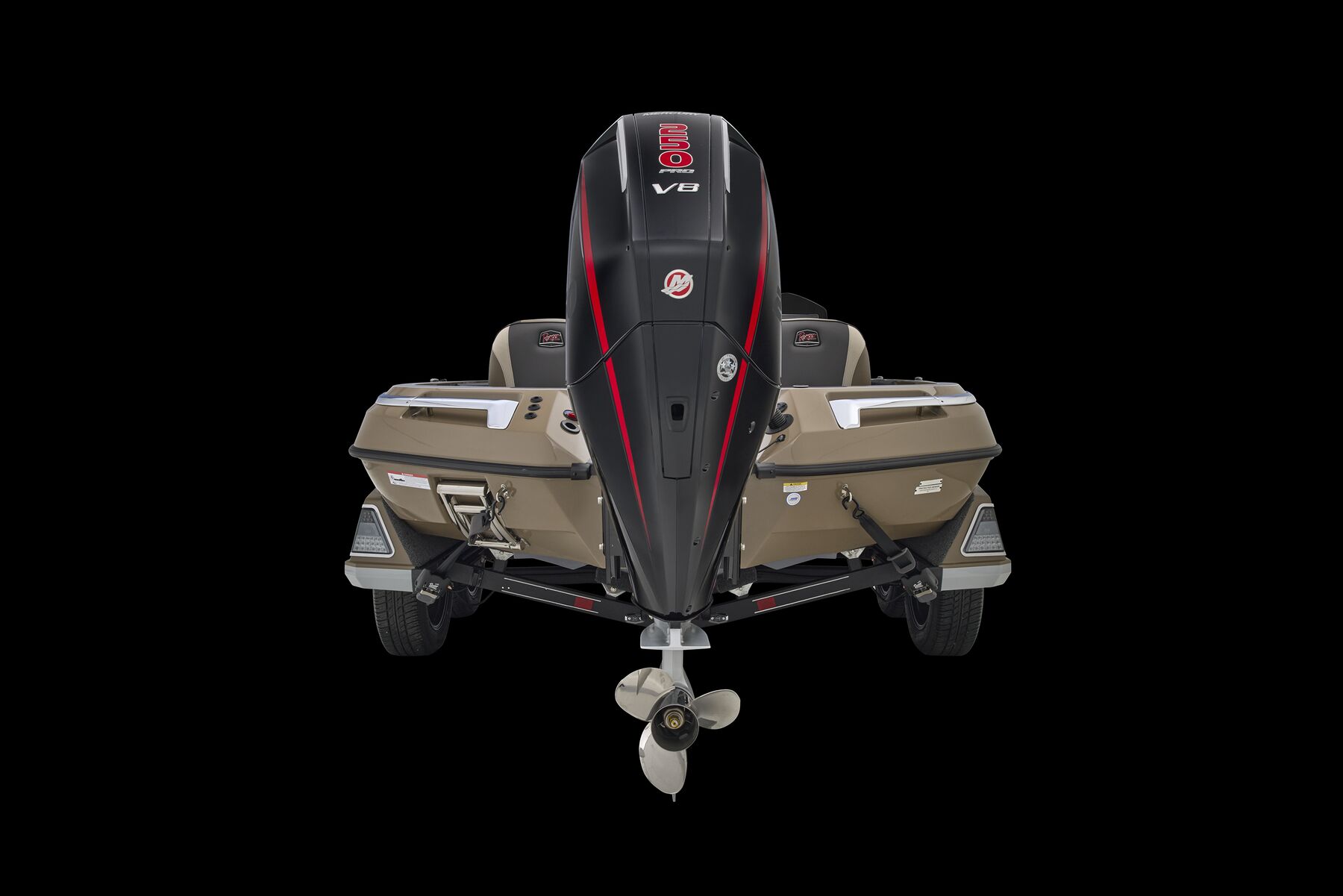

| 250L Pro XS Torque Master |
$79995 USD
|
Select Dealer | |||
| Yamaha® | |||||

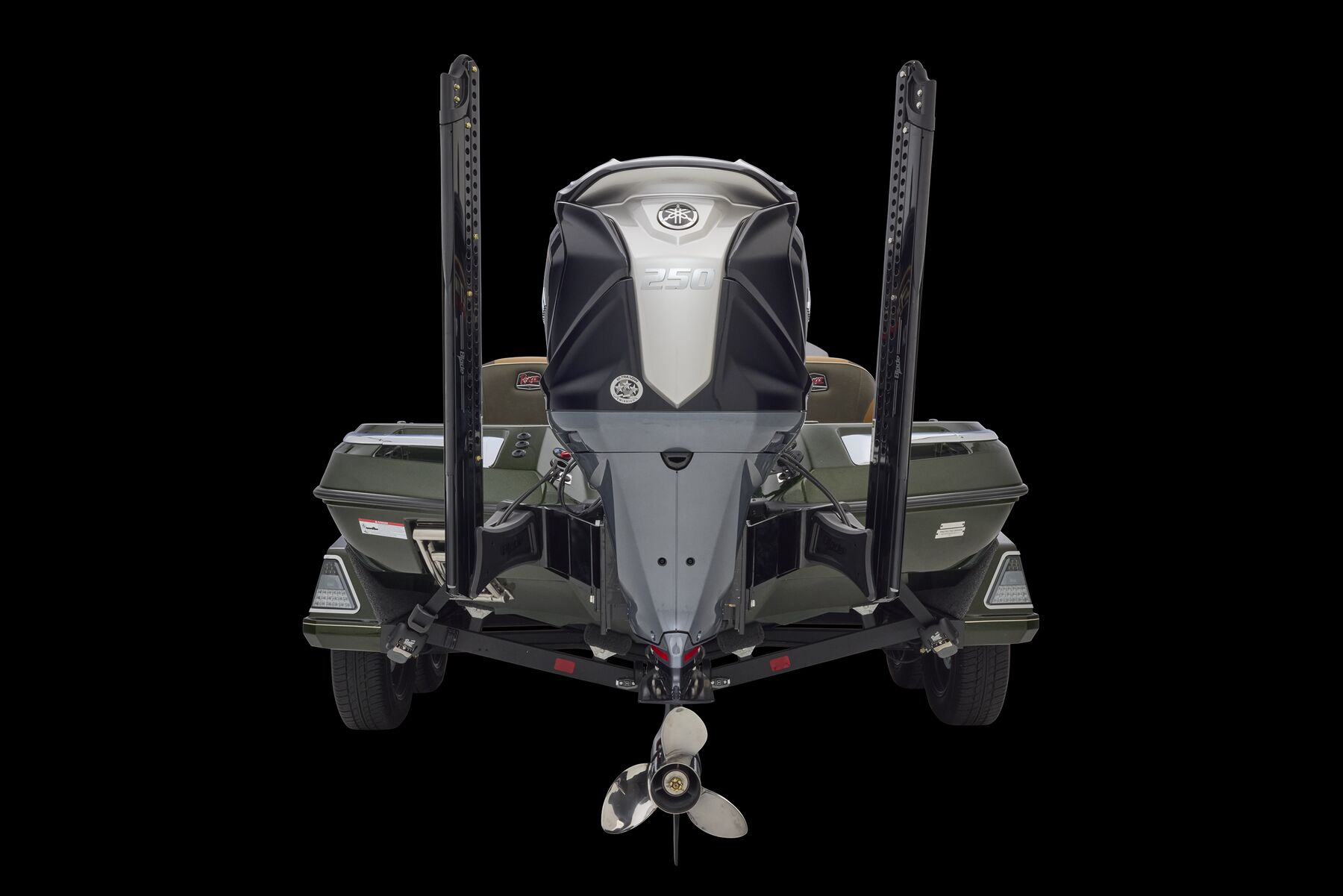

| VF 250LB 4.2L VMAX SHO |
$83995 USD
|
Select Dealer | |||
Standard Features
Ranger Cup Equipped - GARMIN® Package
- Garmin® ECHOMAP™ Ultra 2 126sv w/GT36UHD & GT8HW-IH at console

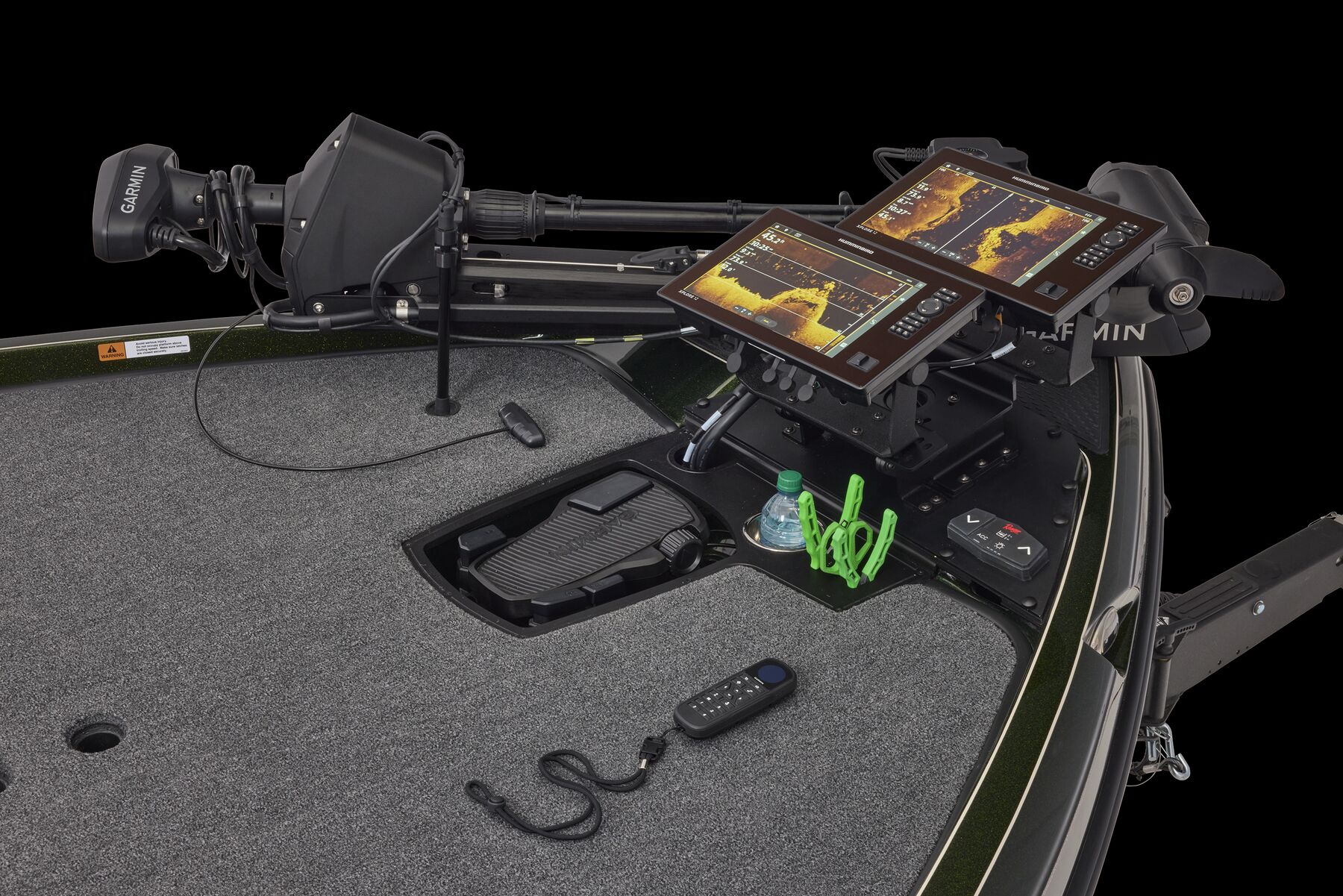

- Garmin® ECHOMAP™ Ultra 2 126sv w/LiveScope™Plus at bow
- Garmin® Force® Pro 50" / 36V trolling motor
- Dual Pro™ on-board charger, 15A x 4 bank w/ auto-detect technology & remote charging port
- Foot Throttle w/ Slide
Ranger Cup Equipped - LOWRANCE® Package
- Lowrance® Active Target™ 2 Live Sonar
- Lowrance® Ghost 45" 36V Trolling Motor
- Dual Pro™ on-board charger, 15A x 4 bank w/ auto-detect technology & remote charging port
- Foot Throttle w/ Slide
Custom Details

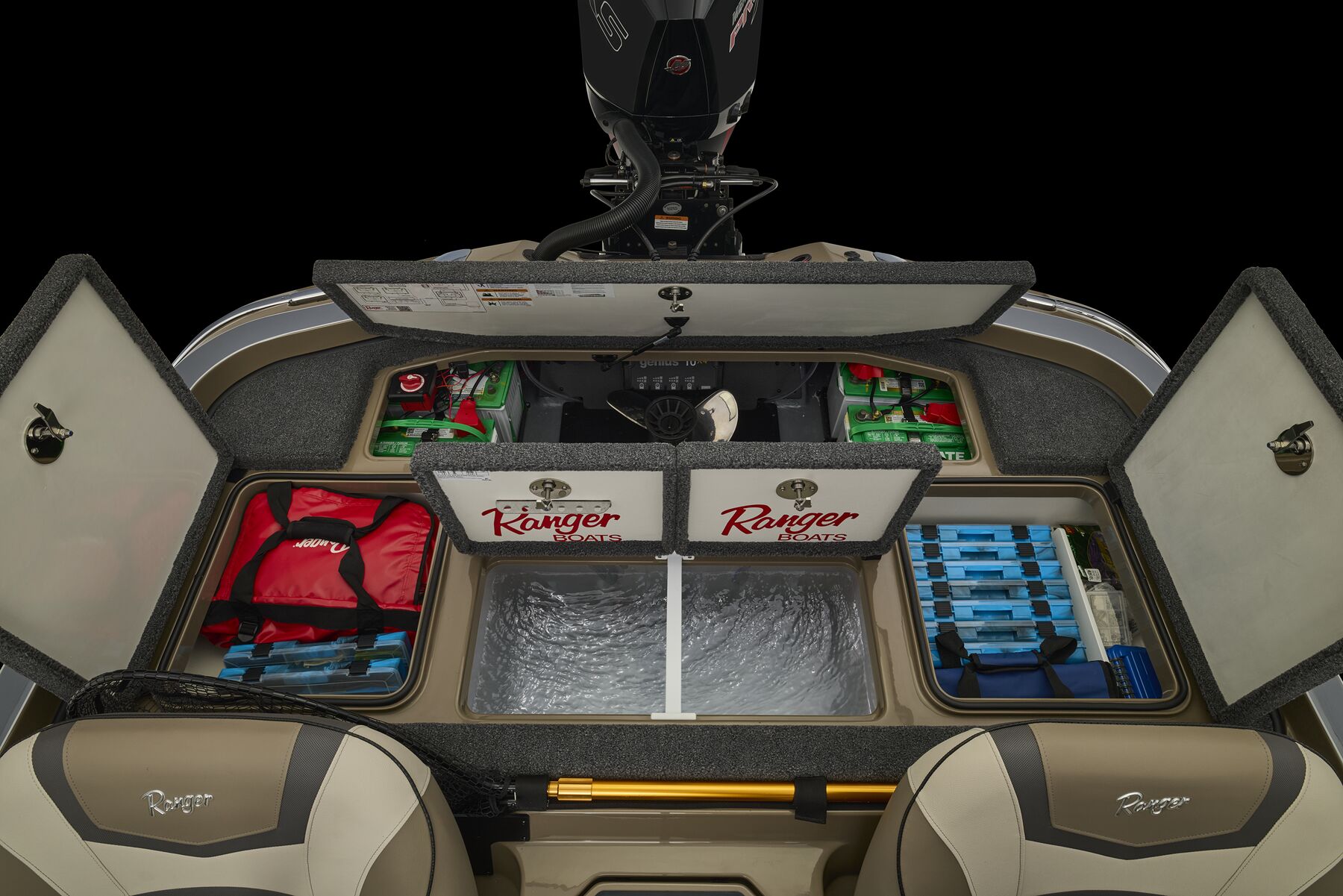

- Ranger Echelon™ Rod Storage System - 3-tiered port & 2-tiered starboard rod lockers
- Power Ventilation Rod Storage™
- Insulated 40 qt. step-up cooler
- Stainless steel compression locking latches
- Carpeted cockpit floor and compartment liner mats
- Ranger® tournament measuring board integrated at front deck step

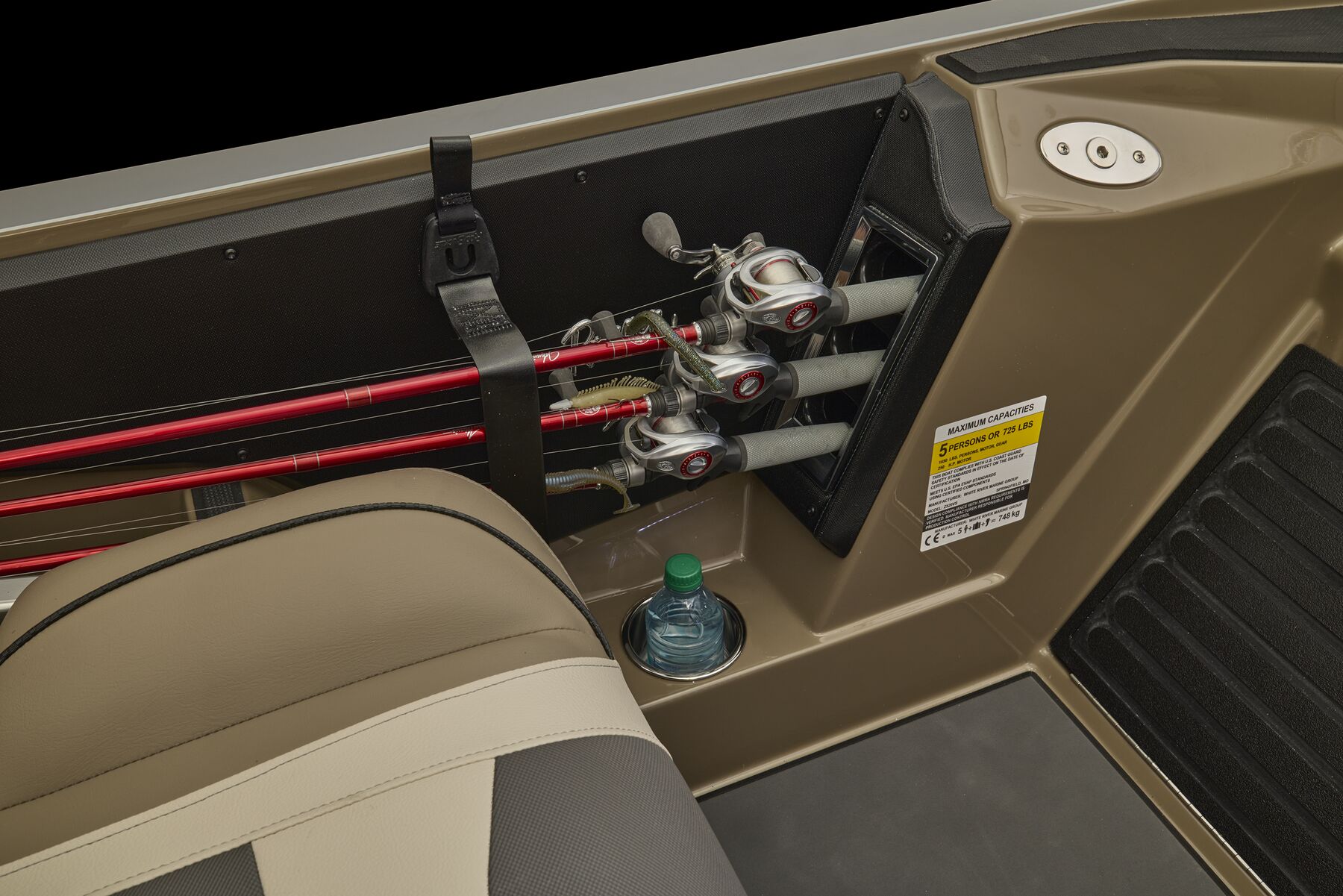

- Runnin' rod rack w/ retractable strap
- Remote drain plug
- Tool holders at bow and front deck step
- Molded-in driver / passenger footrests
- Integrated stainless steel cup holders
Electronics
- Dual Pro 15A x 4 Bank onboard charger
- Mercury SmartCraft MercMonitor gauge package
- Push-Button solid-state digital switching
- Keyed ignition
- Solid-state digital keypad at bow with push-button trim switches
- Ranger® ProCircuit™ dedicated 6-gauge clean power electronics harness
- Heavy Duty 6-gauge trolling motor wiring harness w/ 60A breaker
- Master Power on/off battery disconnect switch
- NOCO™ GB40 jump starter w/ on-board USB charging
- LED storage compartment lighting & LED courtesy & livewell lighting
- Integrated LED bow navigation lights & removable LED anchor light
Power/Performance
- Garmin® Force® Pro 50" / 36V trolling motor
- AGM Starting battery w/ tray
- One-Piece-Feel Interloc Construction
- Pultruded Fiberglass Transom
- Integrated engine setback
- 10" manual setback plate
- Hydraulic steering

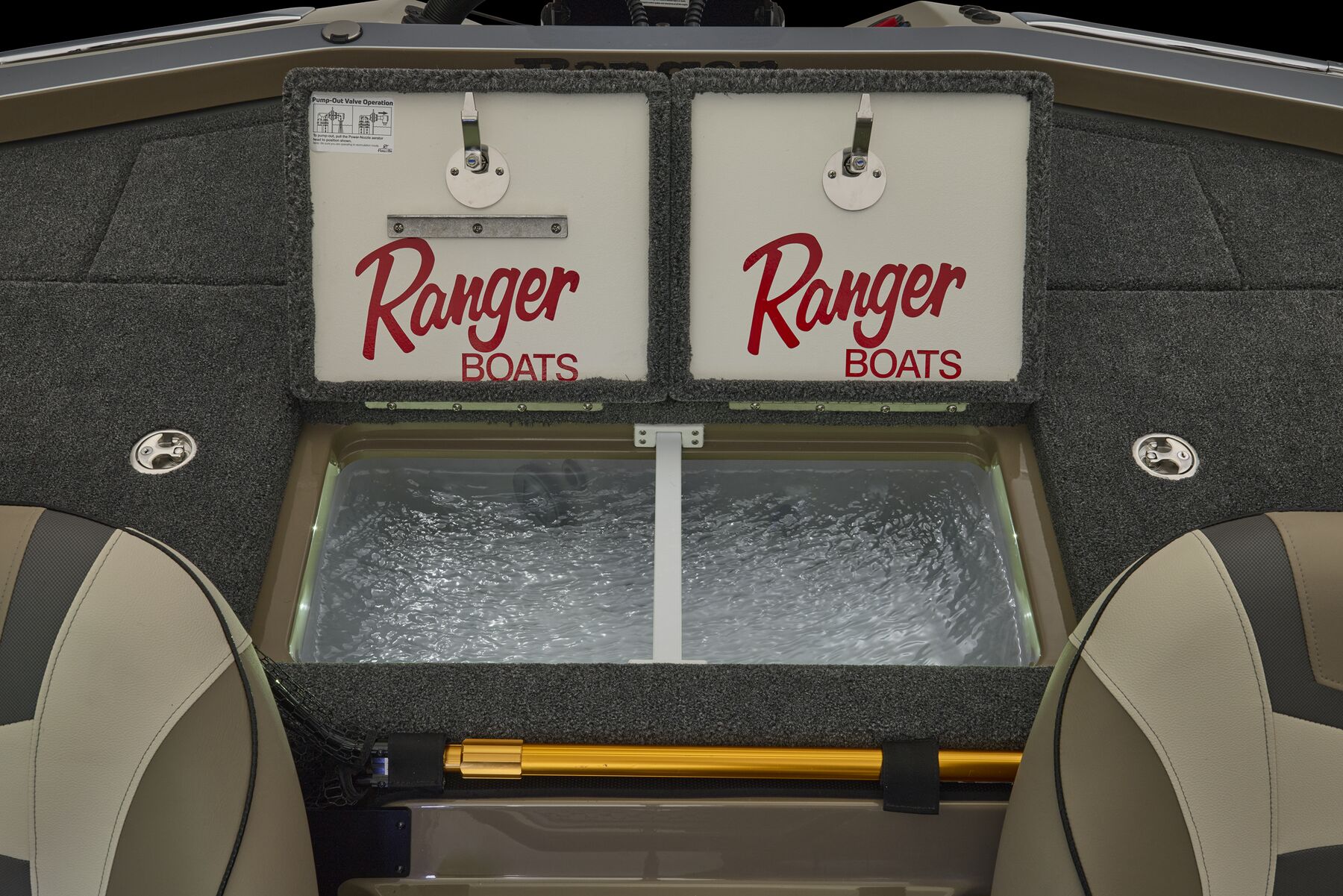

- Recirculating aerated livewell w/ removable divider
- Venturi aeration system
- Recessed trolling motor foot pedal
- High performance stainless steel prop
- Foam-filled fiberglass stringer system
Safety/Comfort

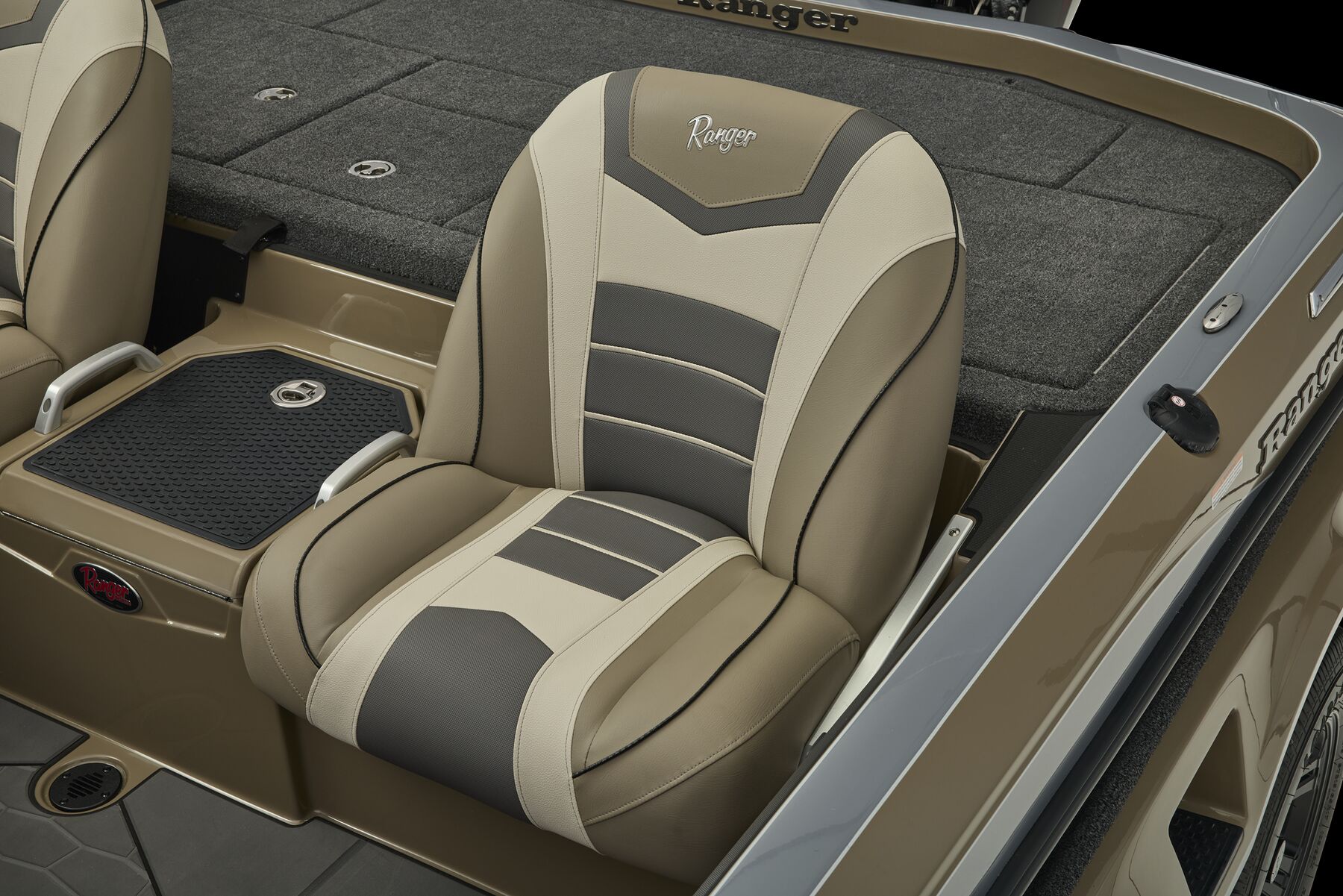

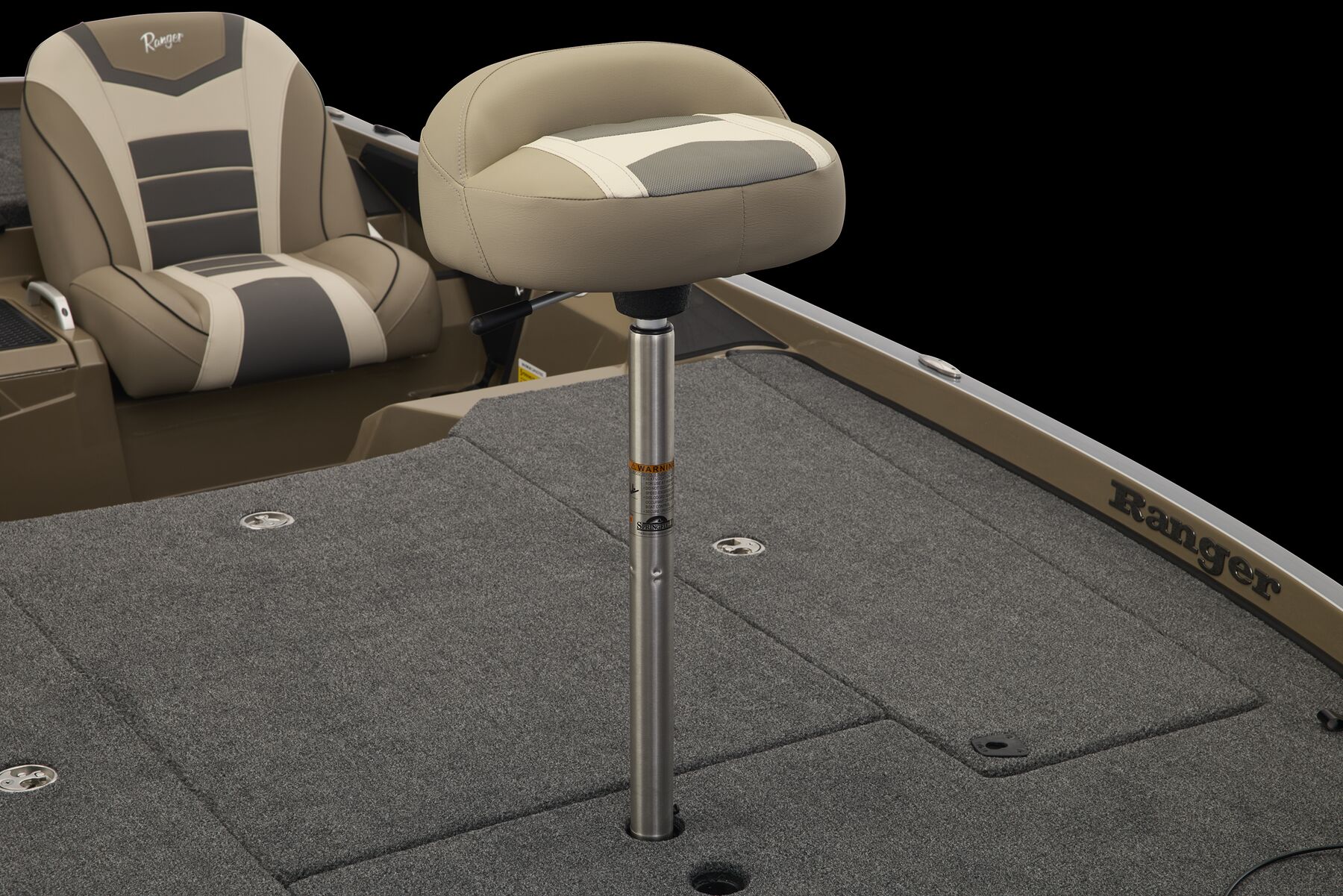

- Custom-fitted premium marine upholstery (2) Soft Ride Seating (SRS) bucket seats, (2) bike seats with Pro Pole
- Upright Level Flotation exceeding all USCG & NMMA standards
- Padded front deck
- Fire extinguisher & horn
- Stainless steel seat bases
- Pop-up tie cleats
- Integrated grab handles
- Rite Track Keel®
- Automatic & manual bilge pumps
- Integrated re-boarding ladder

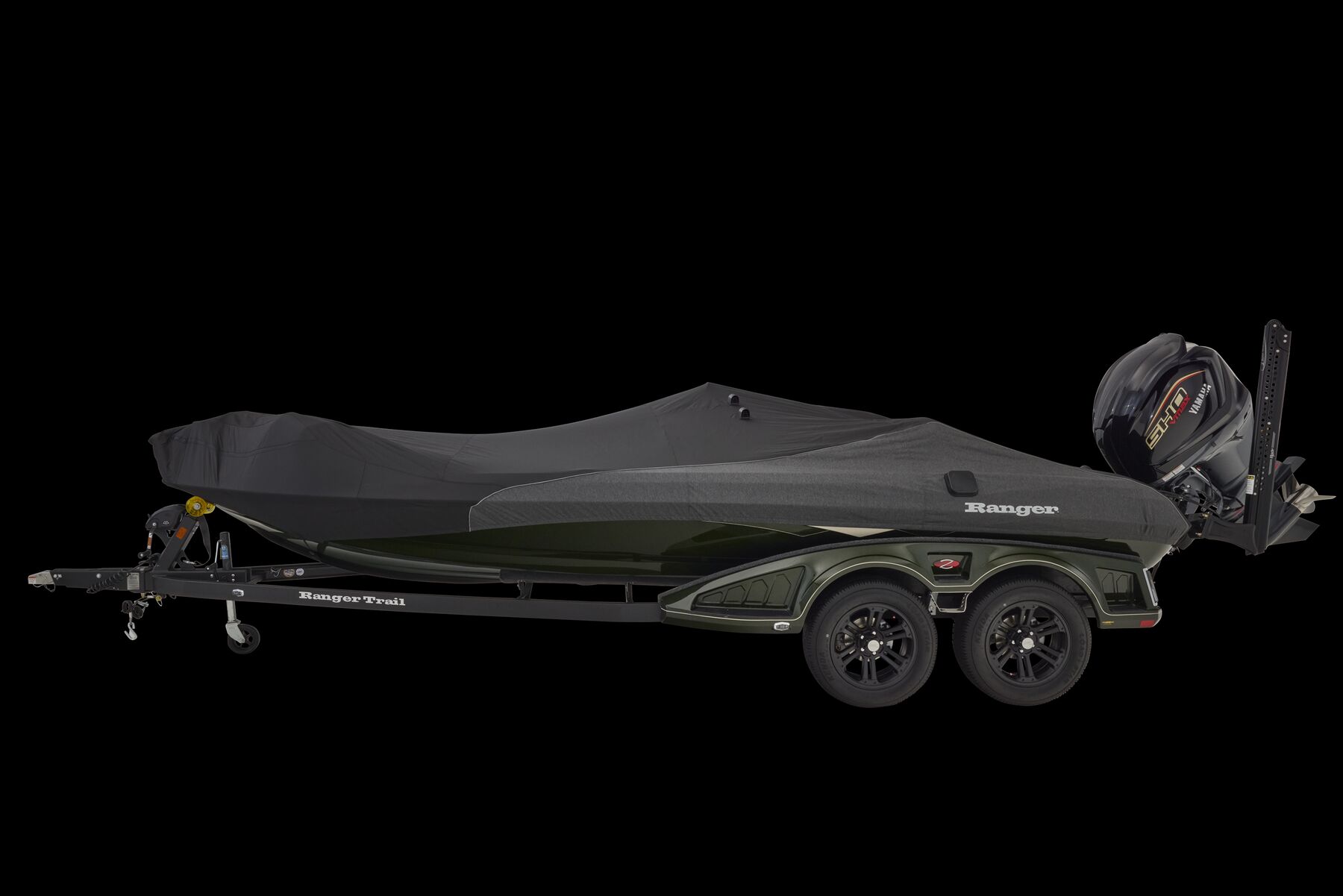

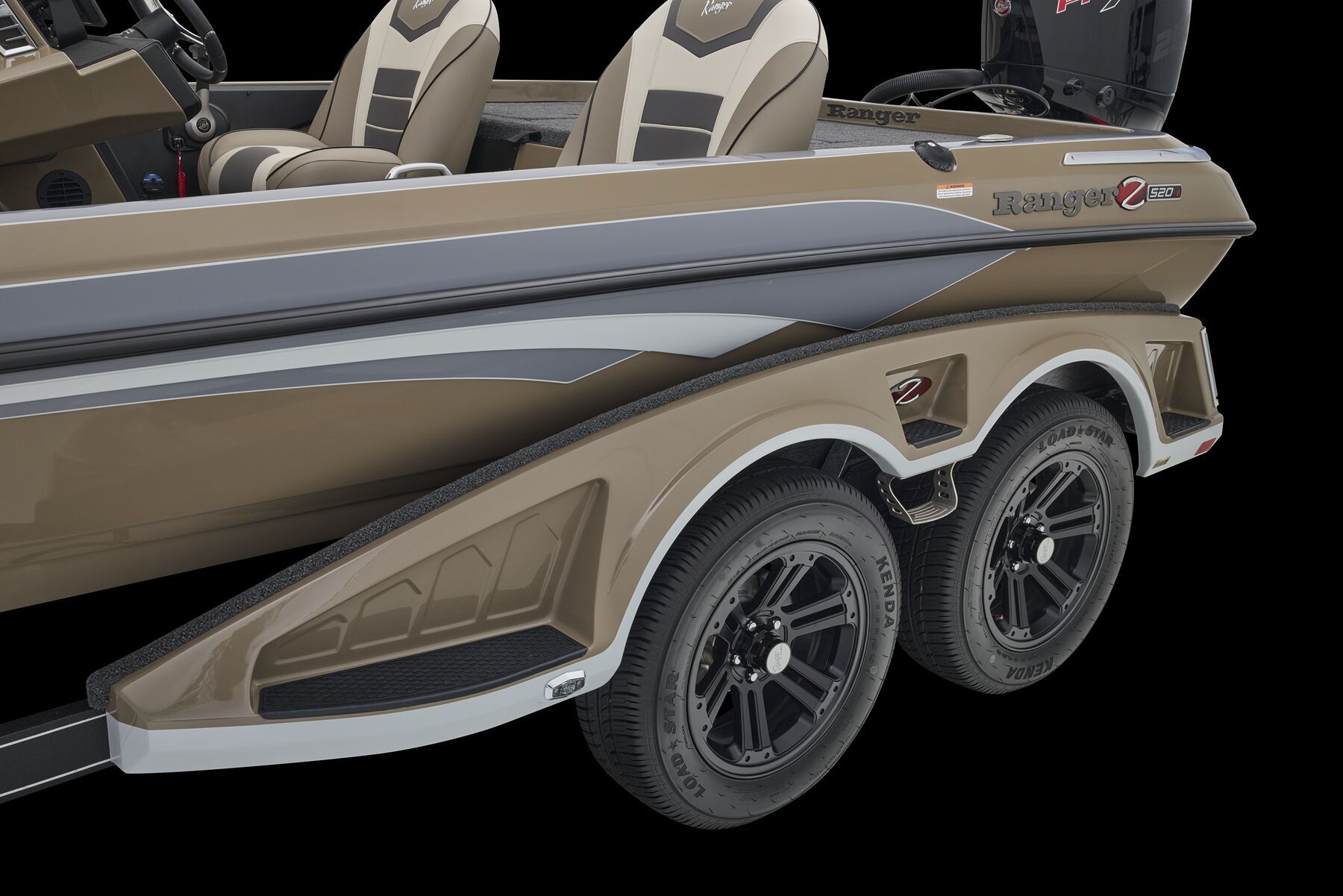

Trailer Features
- Ranger® Boats Road Armor Equipped® trailer protectant coating

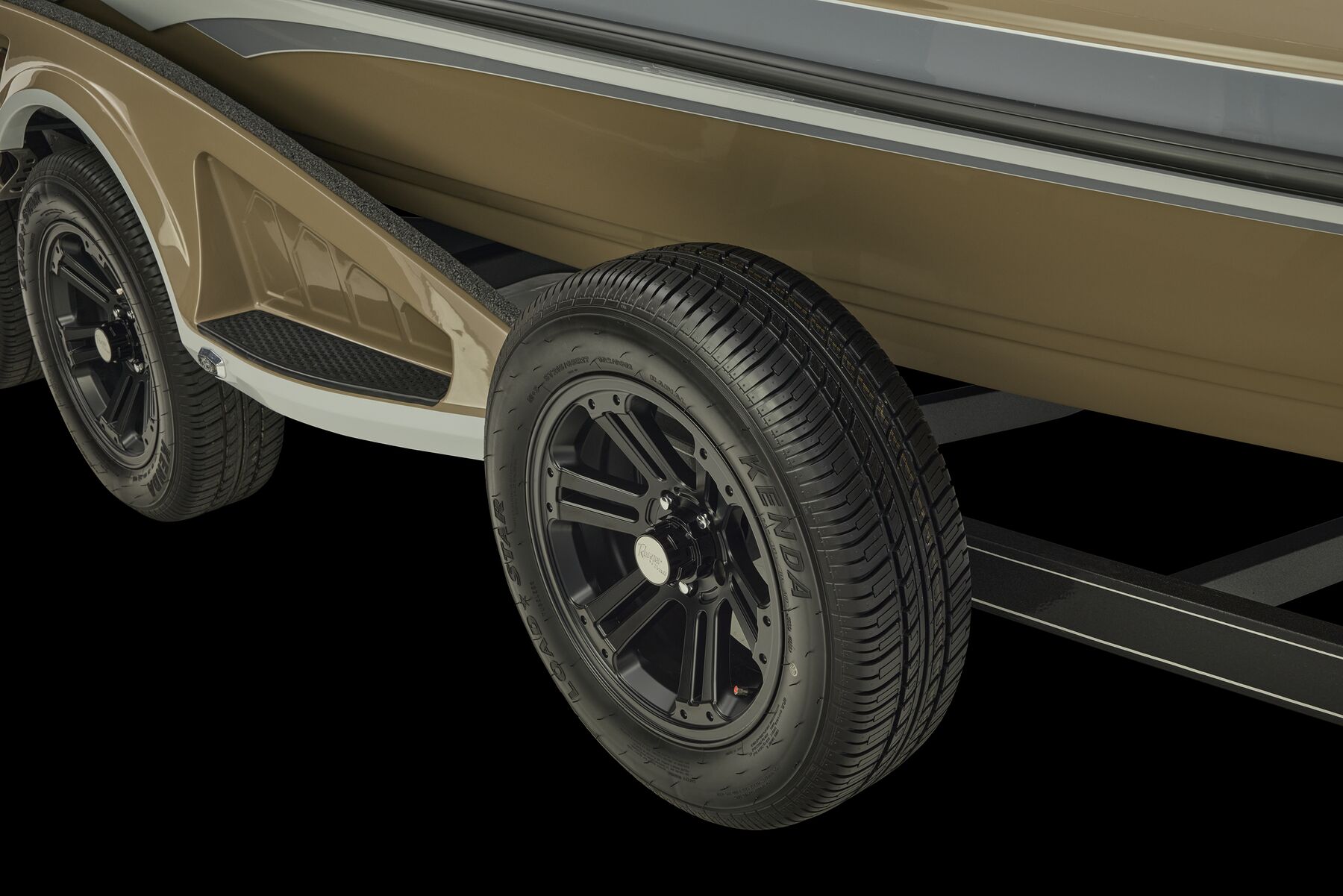

- NEW 14" machined/painted Raptor III wheels w/ matching spare
- Ranger Trail® Vault® Hub lubrication system
- Fiberglass fenders w/ step pads
- Hydraulic surge disc brakes
- Swing-away tongue
- Integrated center-swing jack finished in black powdercoat
- Stainless steel ratcheting tie-downs
- LED lighting
- LED back-up lights
- NMMA®/NATM certified
