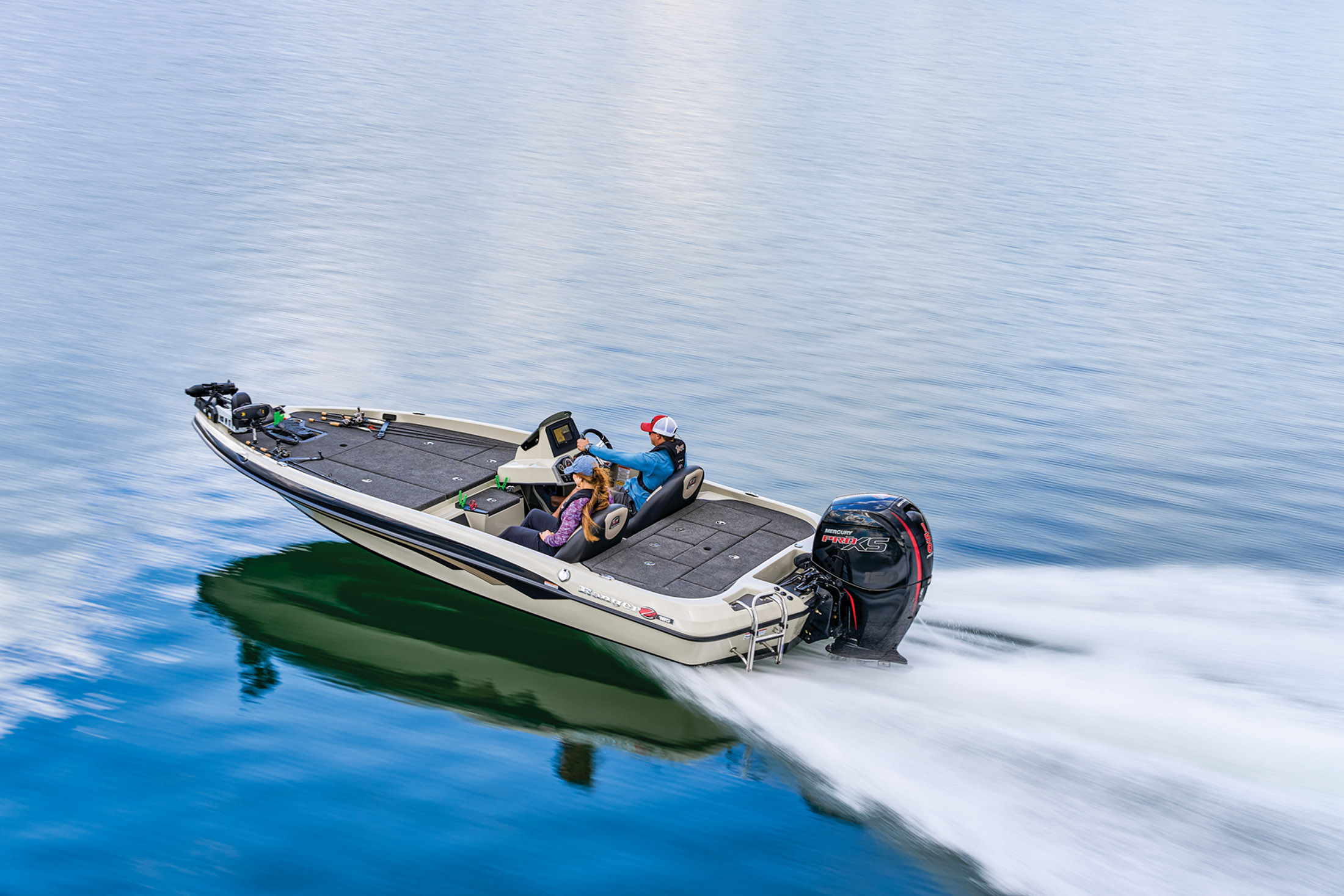

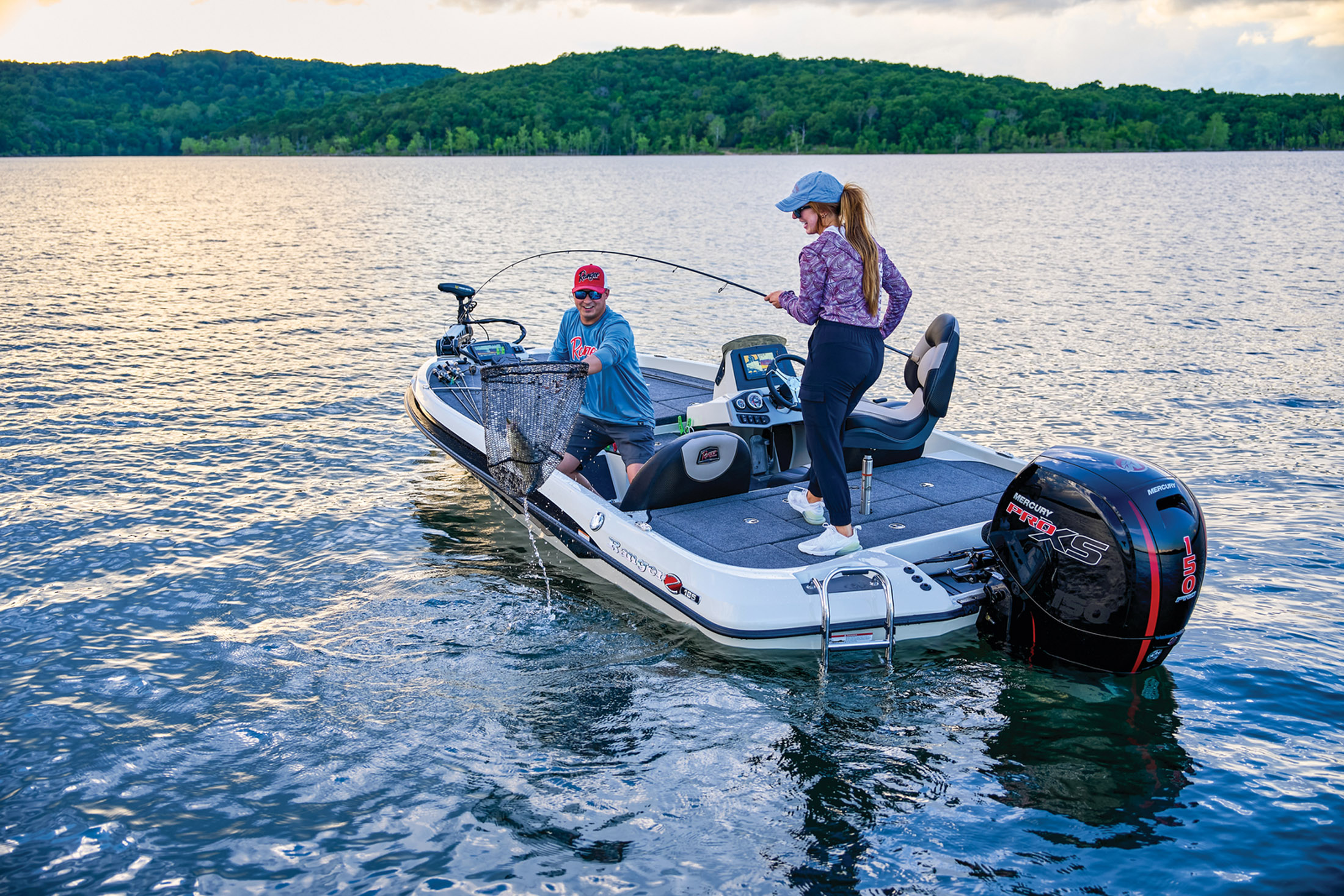

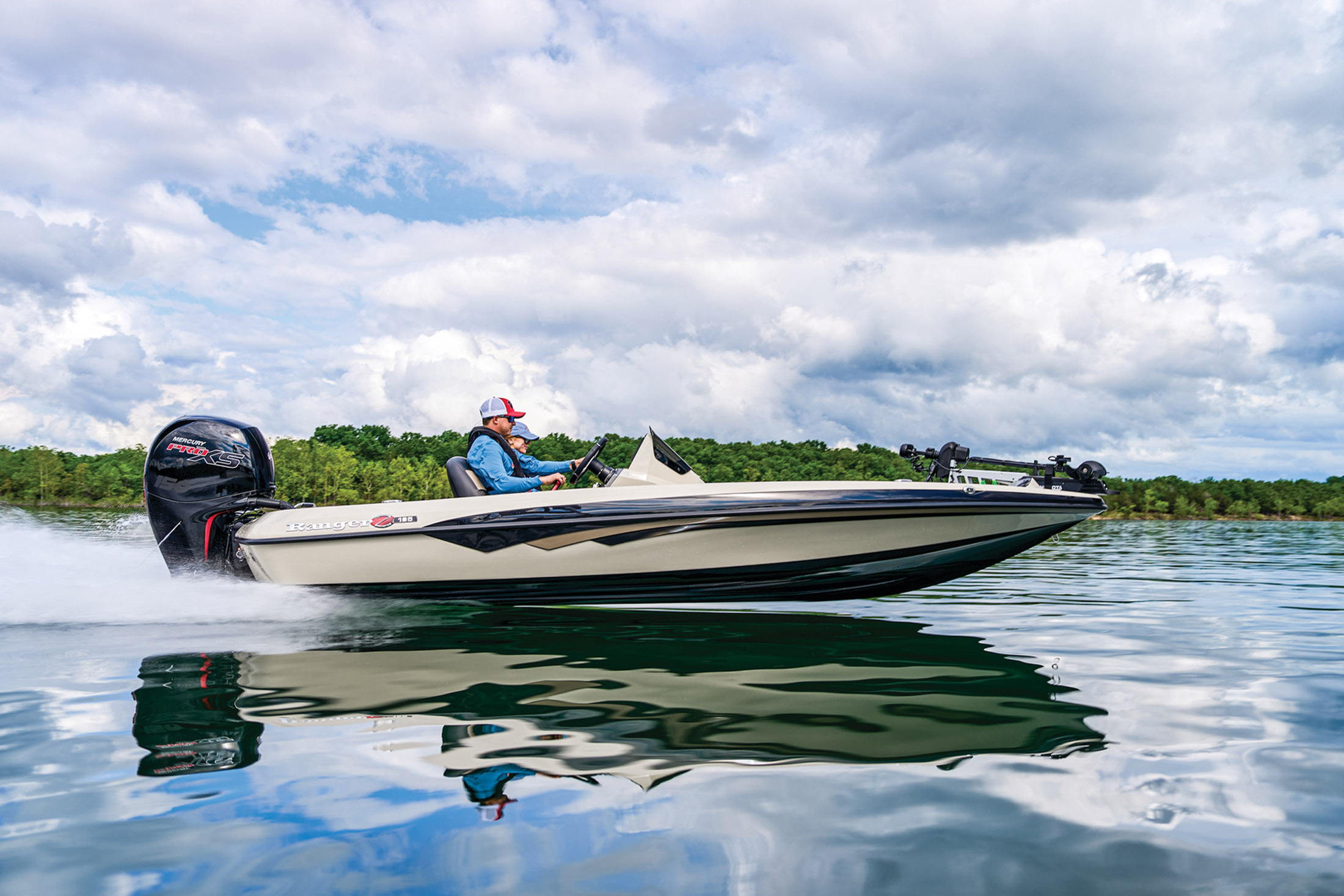

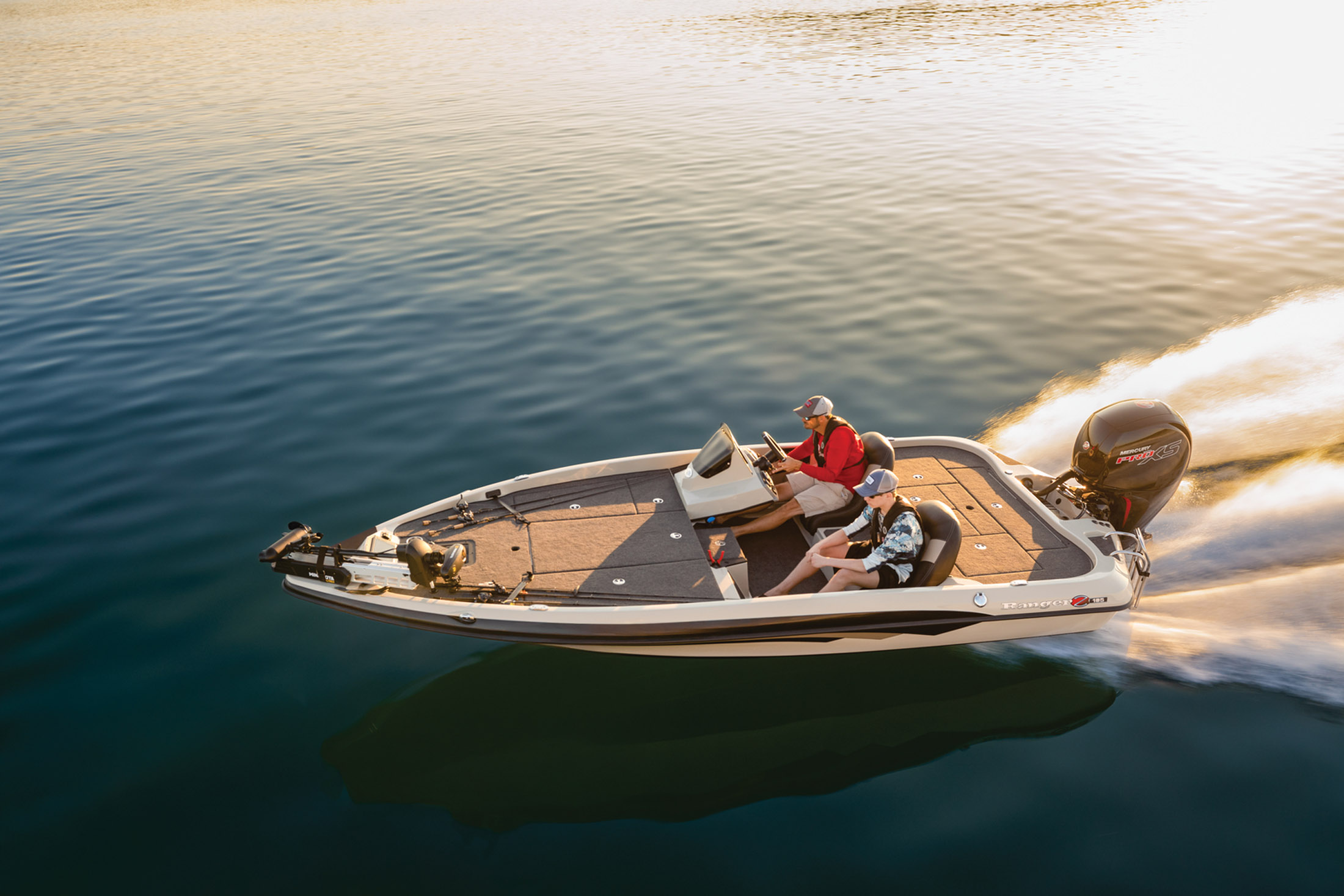

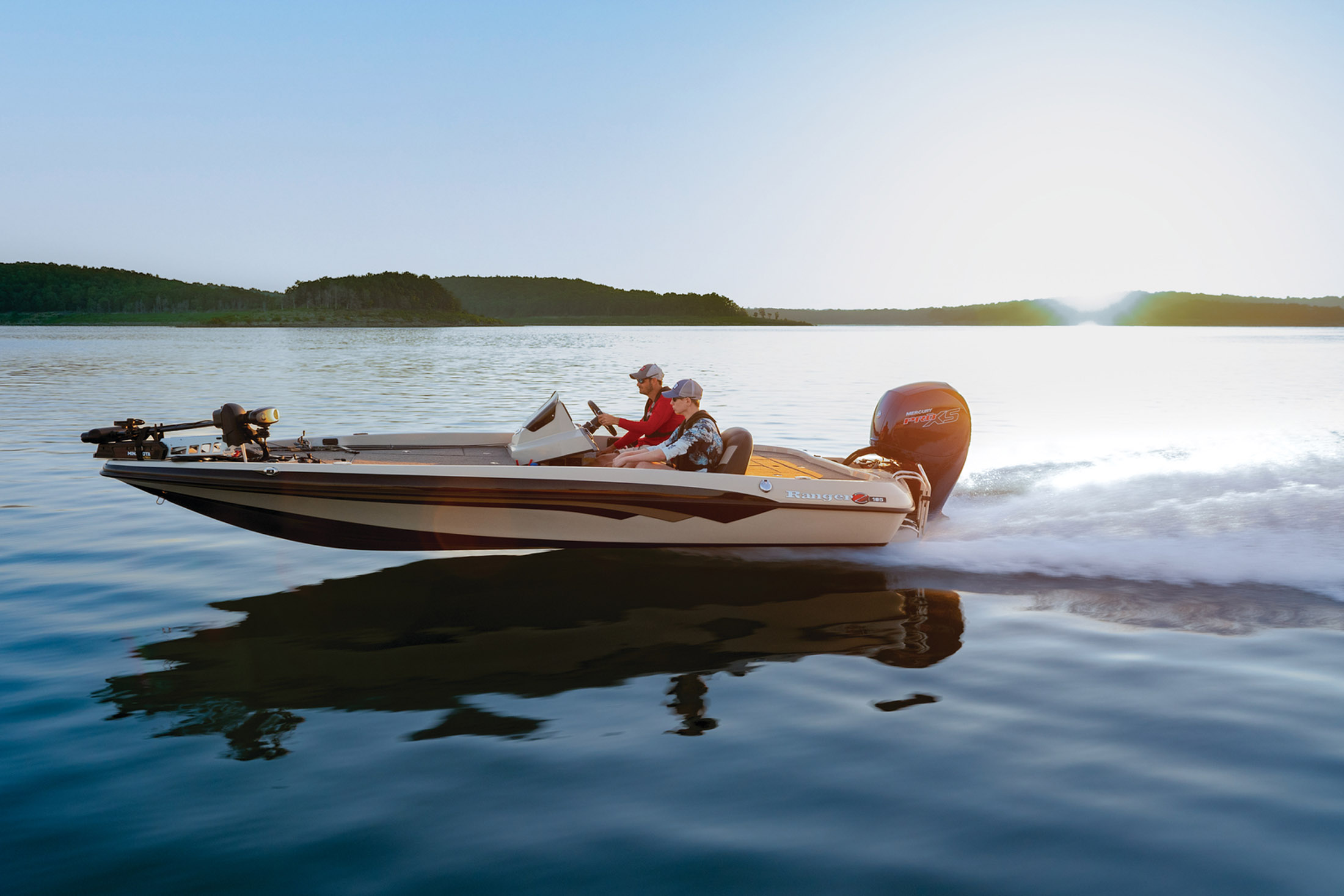

Z185

W/ Mercury® 150 L FourStroke
priced to be yours $34,495

Z185

W/ Mercury® 150 L FourStroke
priced to be yours $34,495
Fits in your budget...and in your garage

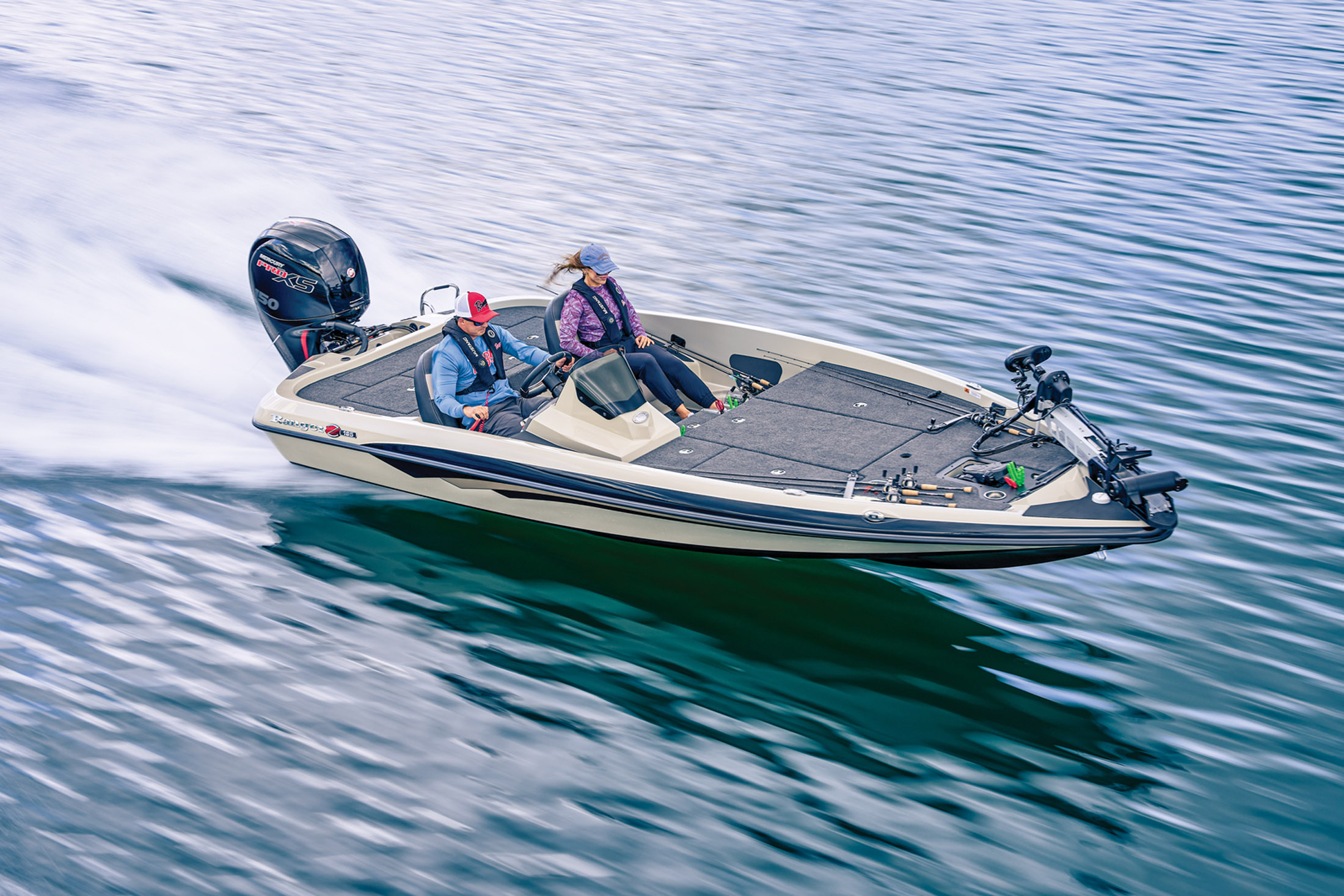

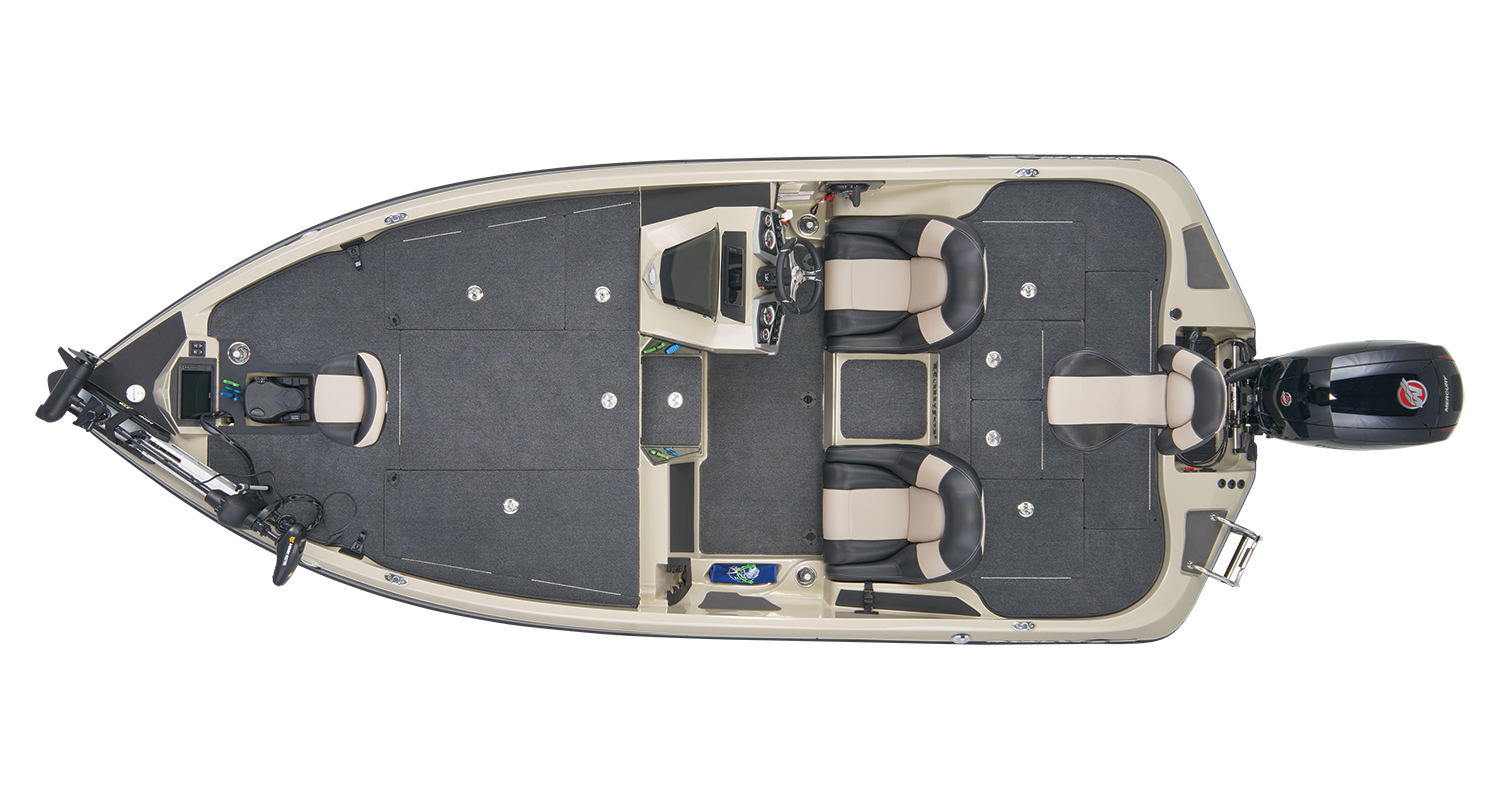

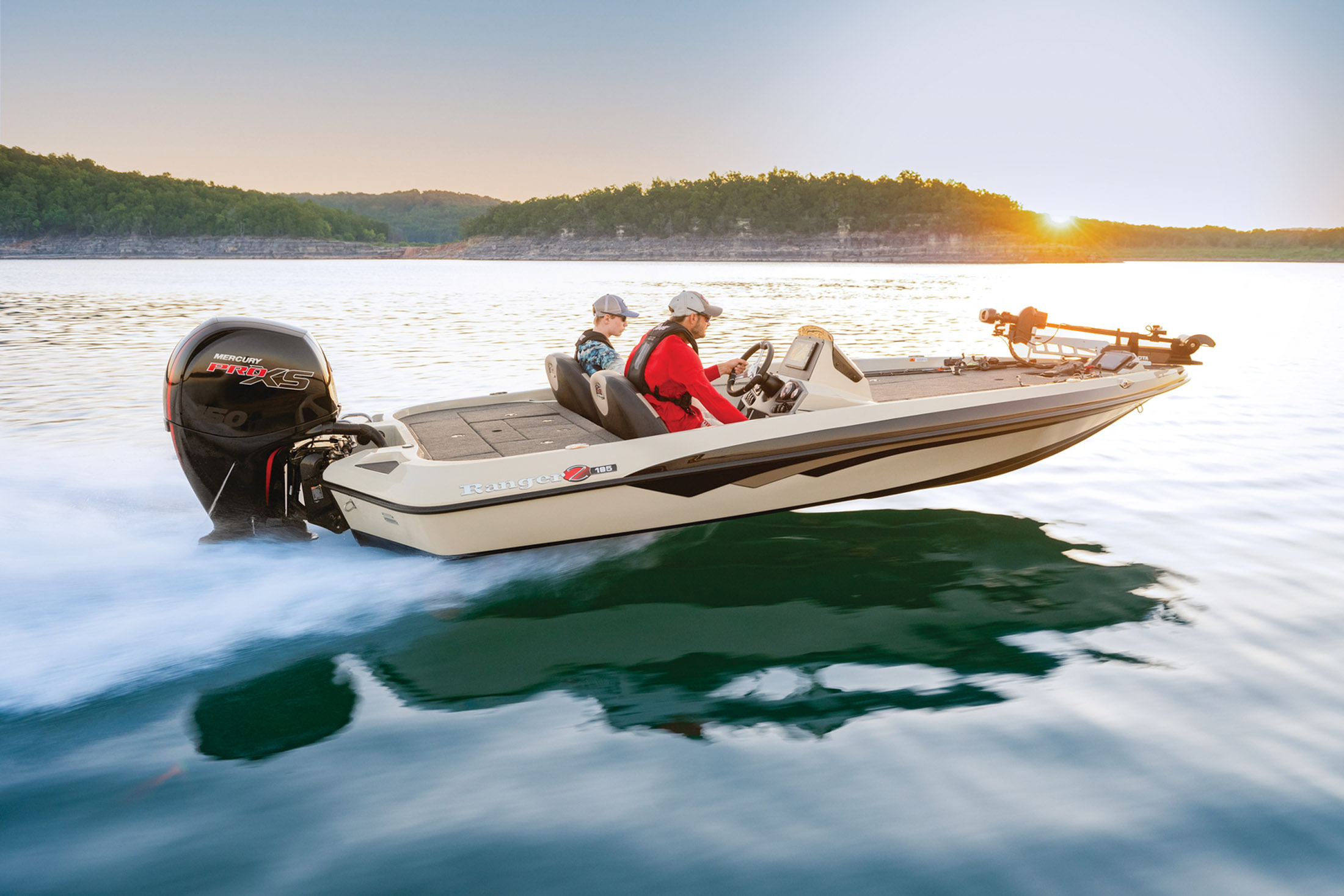

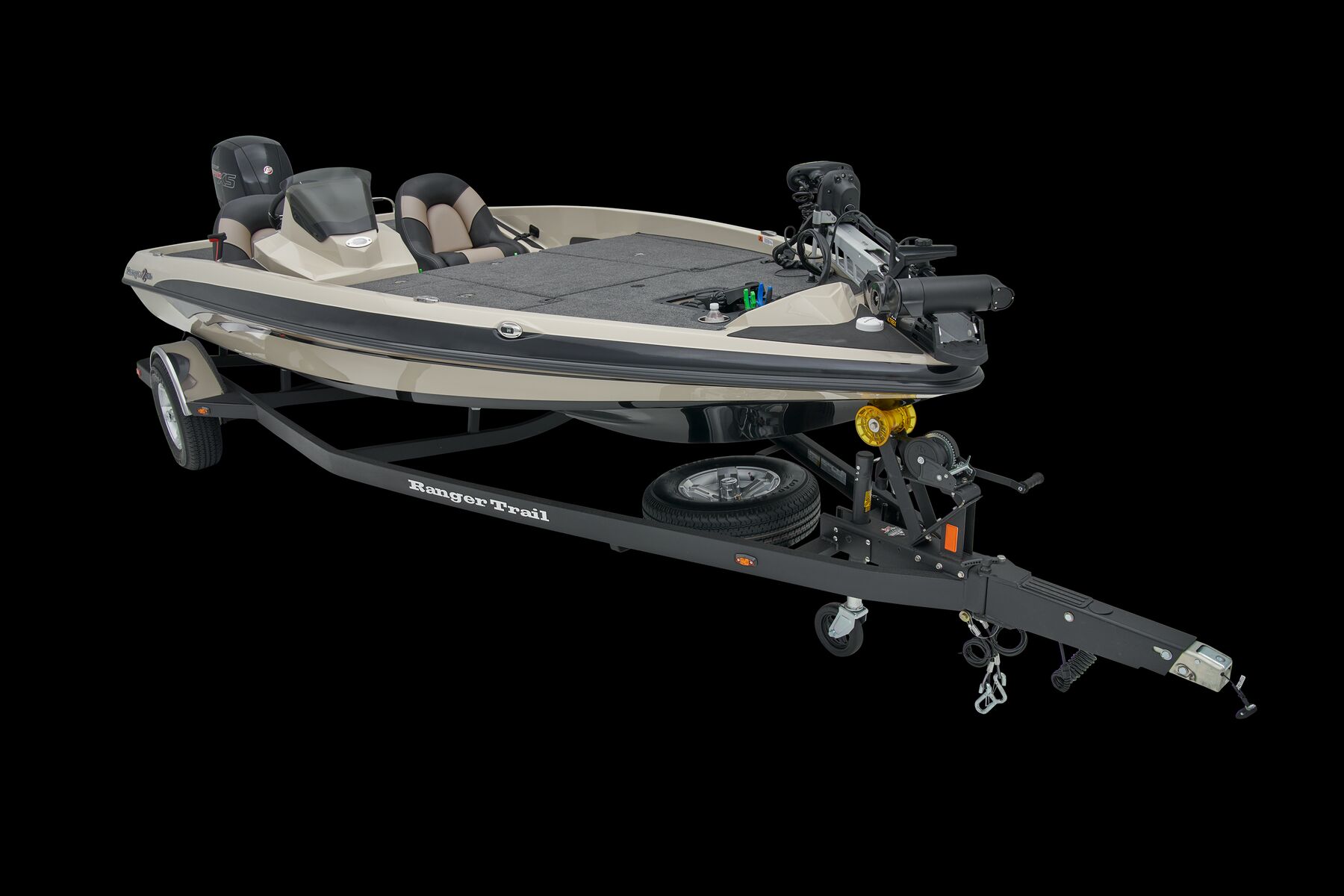

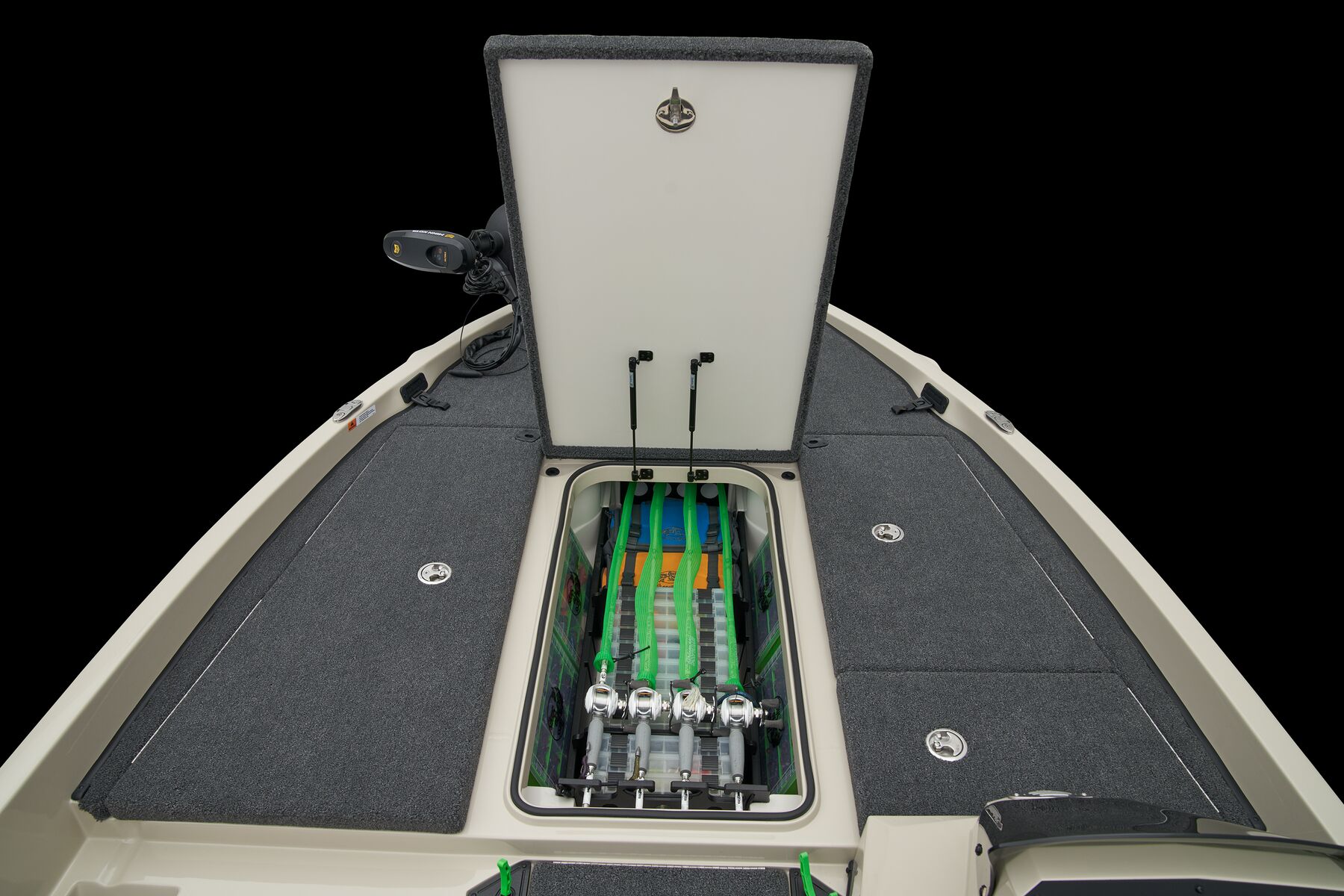

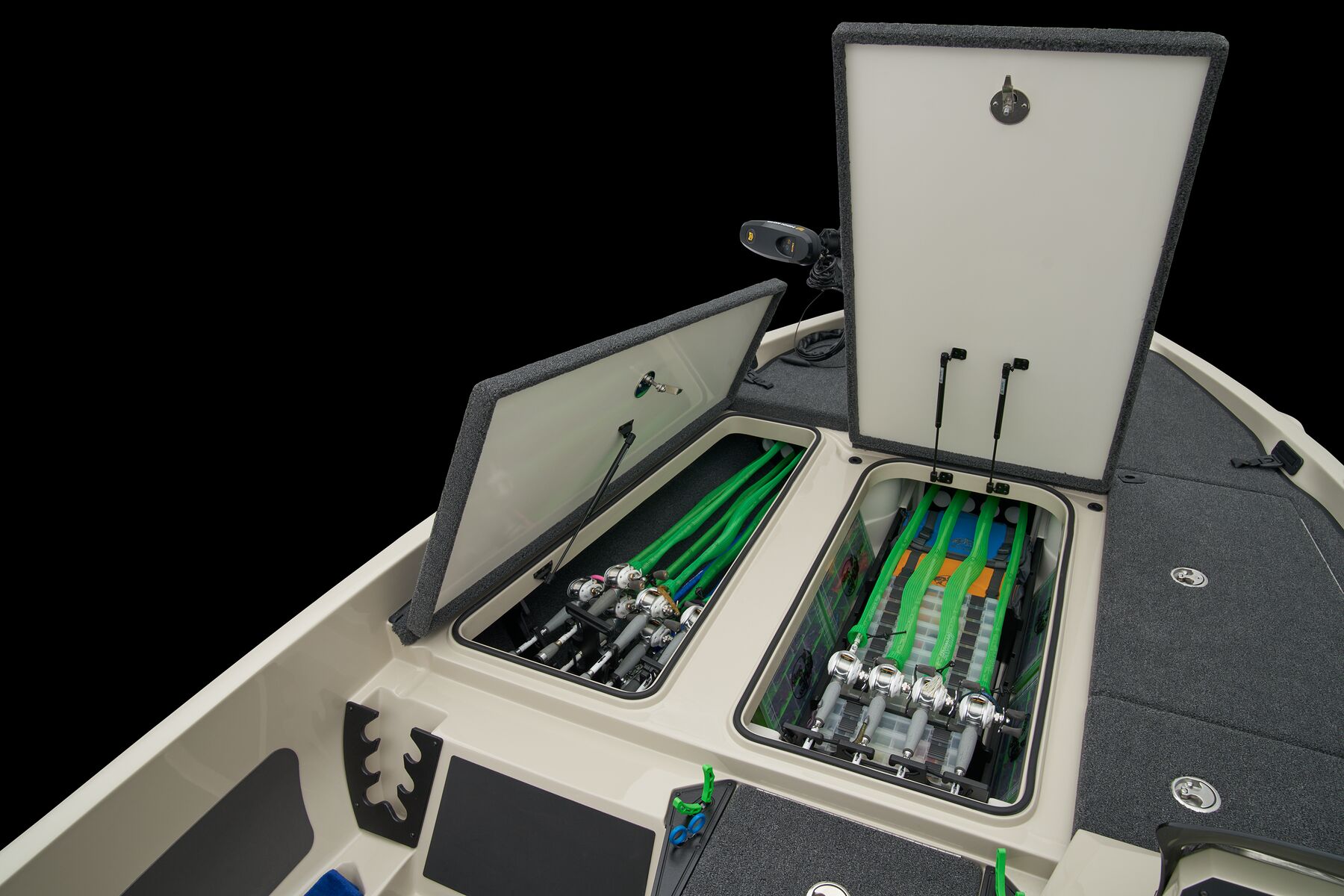

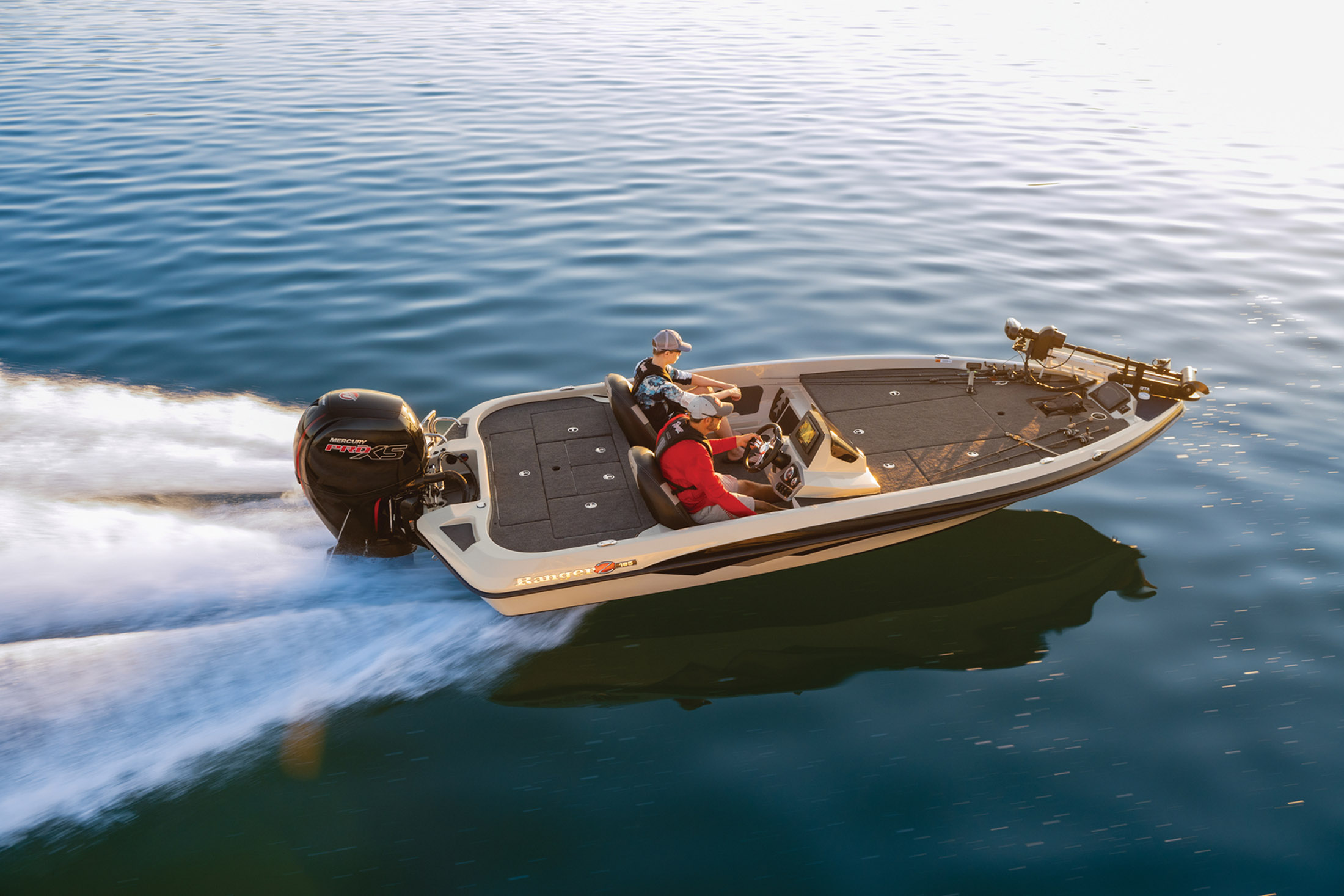

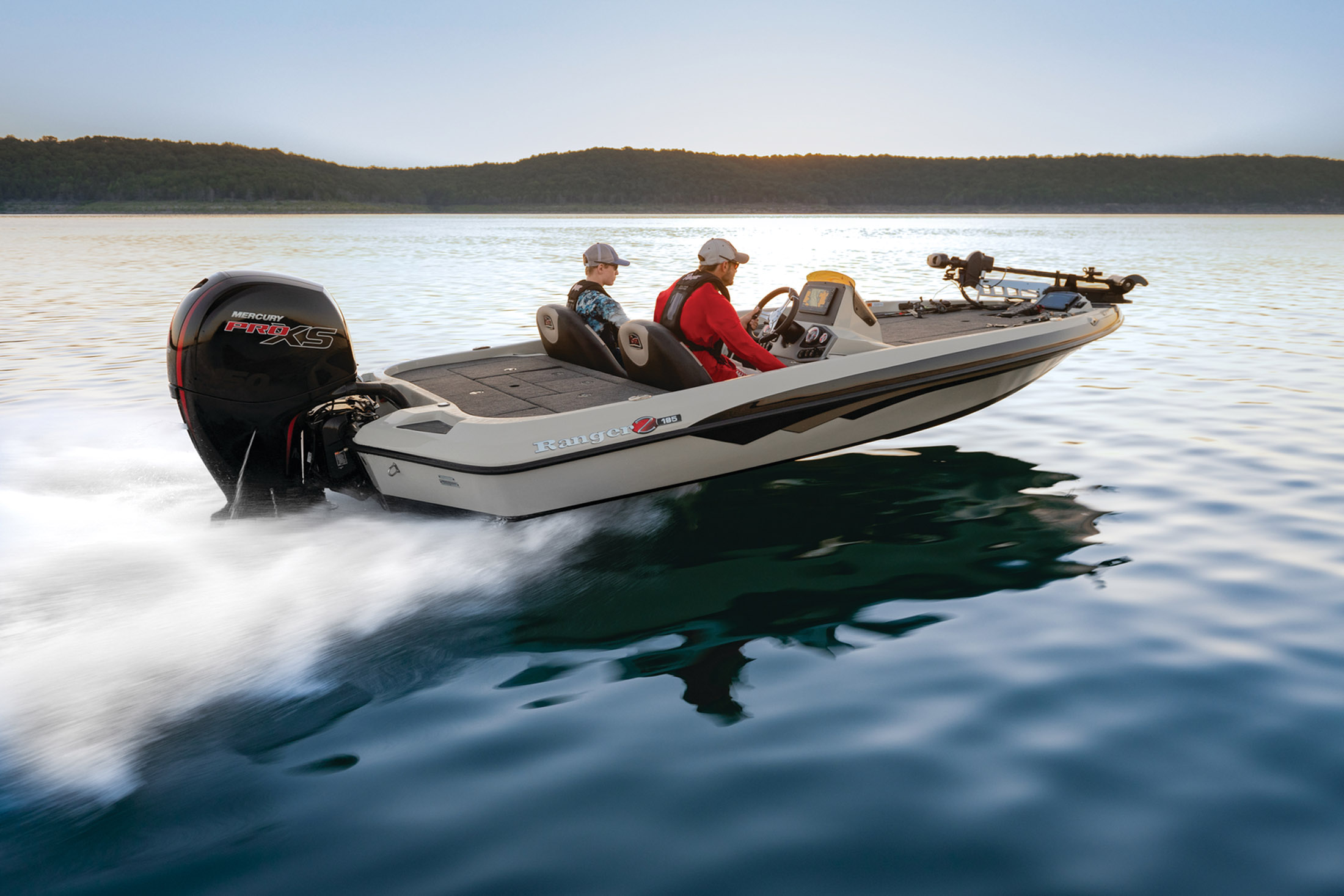

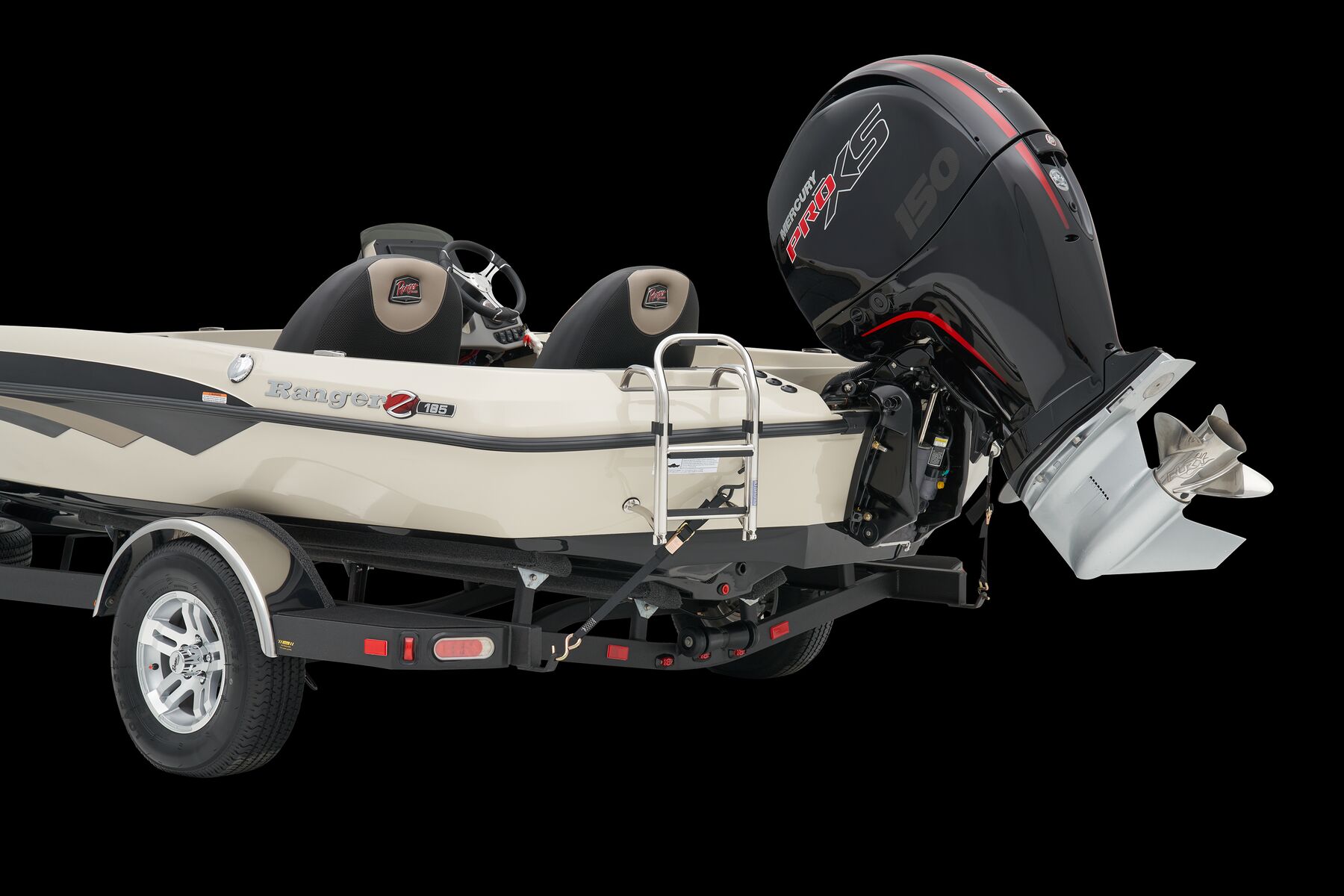

Measuring 18 feet, 8 inches, the tournament-inspired Ranger® Z185 offers premium fiberglass performance at an incredible value. Rated for 150 horsepower, the Z185 can be rigged with a wide range of factory-installed outboard brands. Ideally sized, the Z185 is a perfect fit for smaller tow vehicles and most garages. The 96-inch beam provides exceptional stability and plenty of deck space, which creates a multitude of lockable storage options including a center rod locker that accepts rods up to 8 feet in length. Available in single and dual console configurations, the budget-minded Z185 comes standard with a Minn Kota® trolling motor, Lowrance® electronics, on-board charger and a recirculating, aerated livewell. Additional features like a built-in, insulated cooler, gas spring lid assists, compression lid locks and integrated L.E.D. navigation lights further separate the new Z185 from the competition. Complemented by a Road Armor Equipped® Ranger Trail® trailer, this design is priced and equipped to hit the water running!

Key Features
  • Huge advantages in a small size
  • Power of Choice™ with three outboard brands available
  • Ultra-stable platform
  • Rite-Track Keel® delivers maximum control
  • Integrated tool and cup holders

Hull Length 18'8"
Beam 96"
Overall Beam w/ Rubrail 97.5"
Max. recommended HP (HP) 150
Engine Shaft Length 20"
Inside Depth 20"
Fuel capacity (gal.) 33
Livewell Capacity (gal.) 23
Total Person, Motor, Gear (lbs.) 1265

Approximate Boat Weight (lbs.) 1575
Total Persons (persons) 4
Rod Box Length - Port 7'6"
Rod Box Length - Center 8'0"
Max. person capacity (persons) 4
Trailer GVWR (lbs.) 3725
Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate) 23'0"
Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate) 20'10"
Width On Trailer 101"
Power/Performance
  • Foam-Filled Fiberglass Stringer System
  • Available w/ a wide range of precision matched outboards

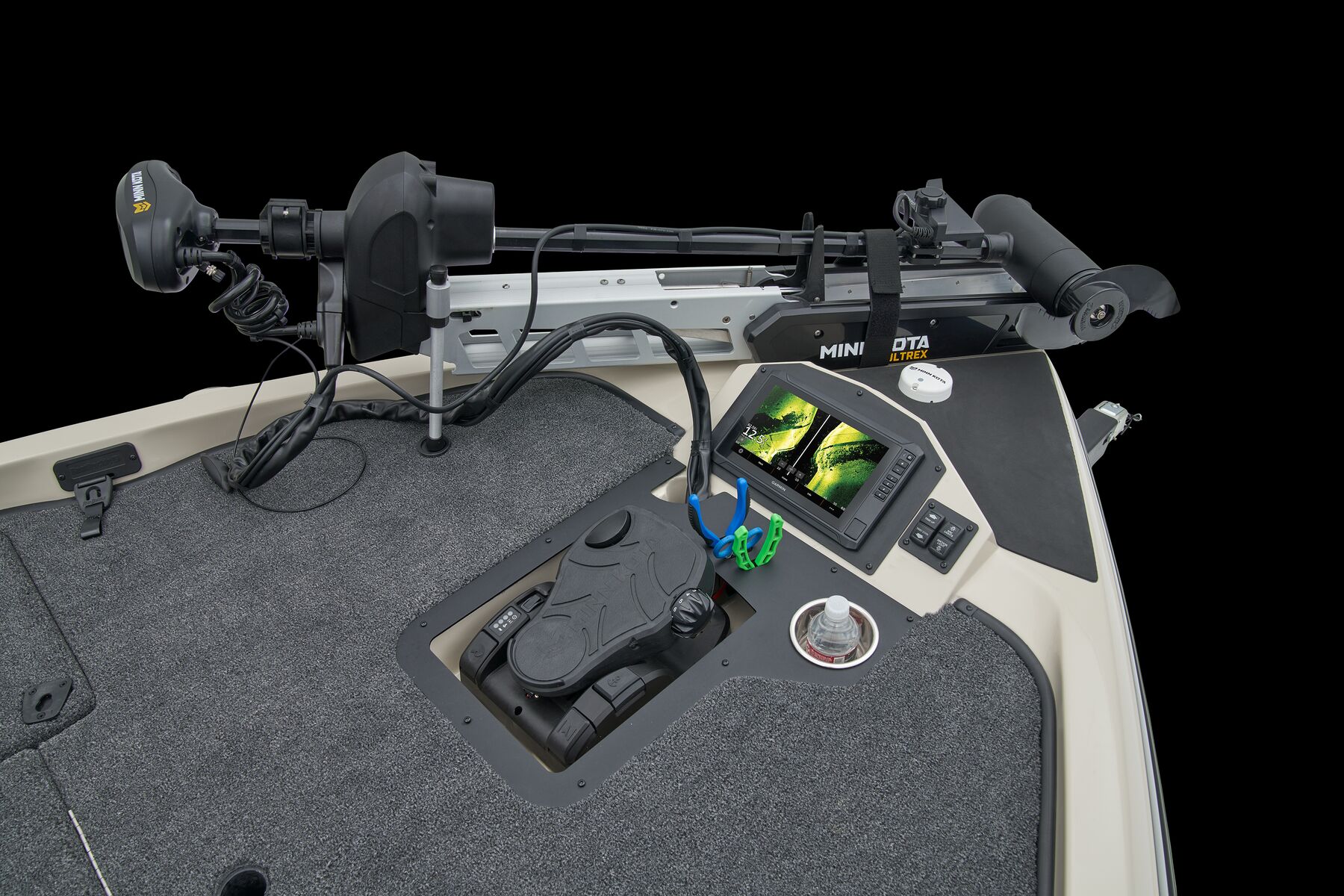

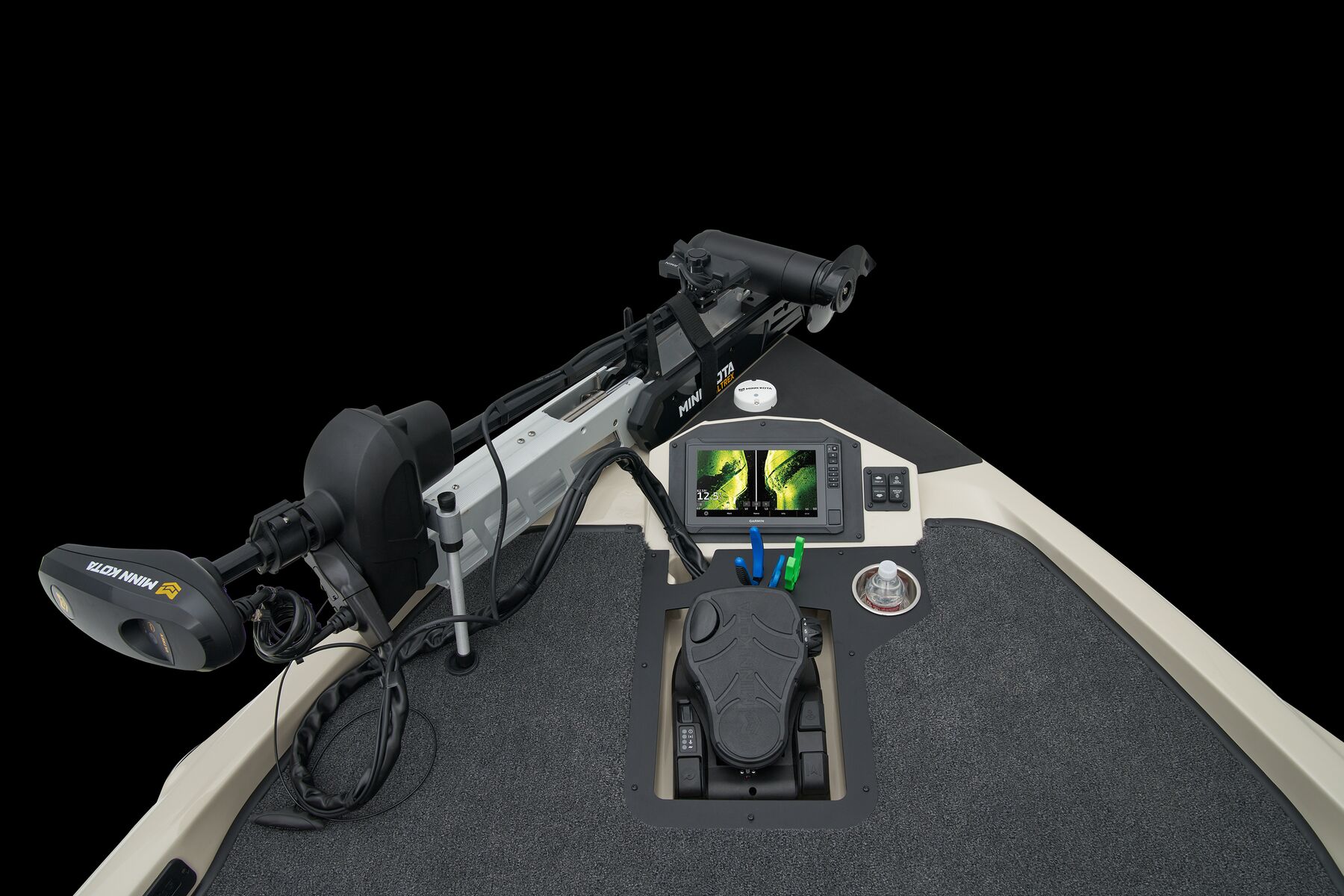

  • Minn Kota® Edge 70 24V trolling motor

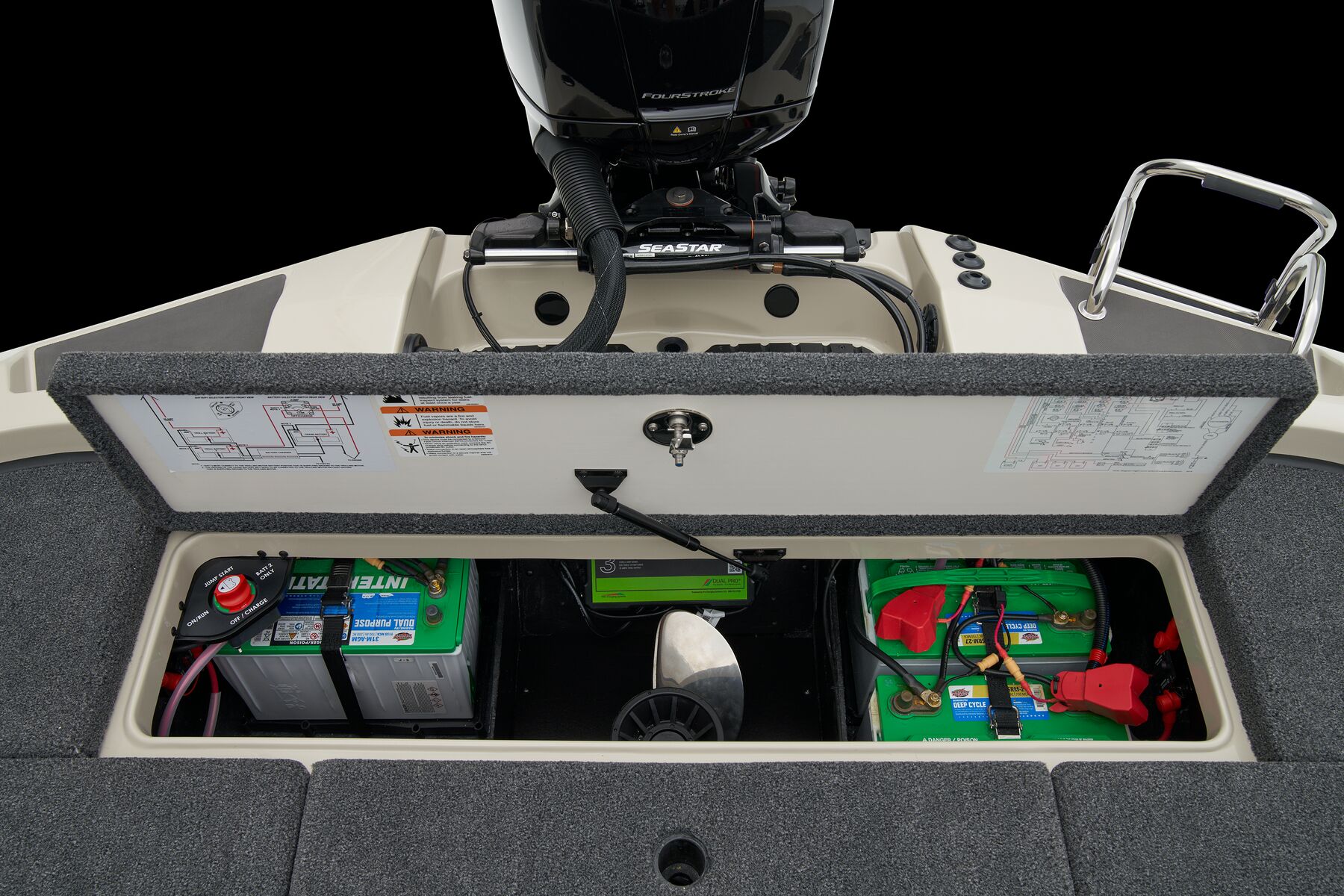

  • Cranking battery w/ holder
  • Stainless Steel Prop
  • Power trim

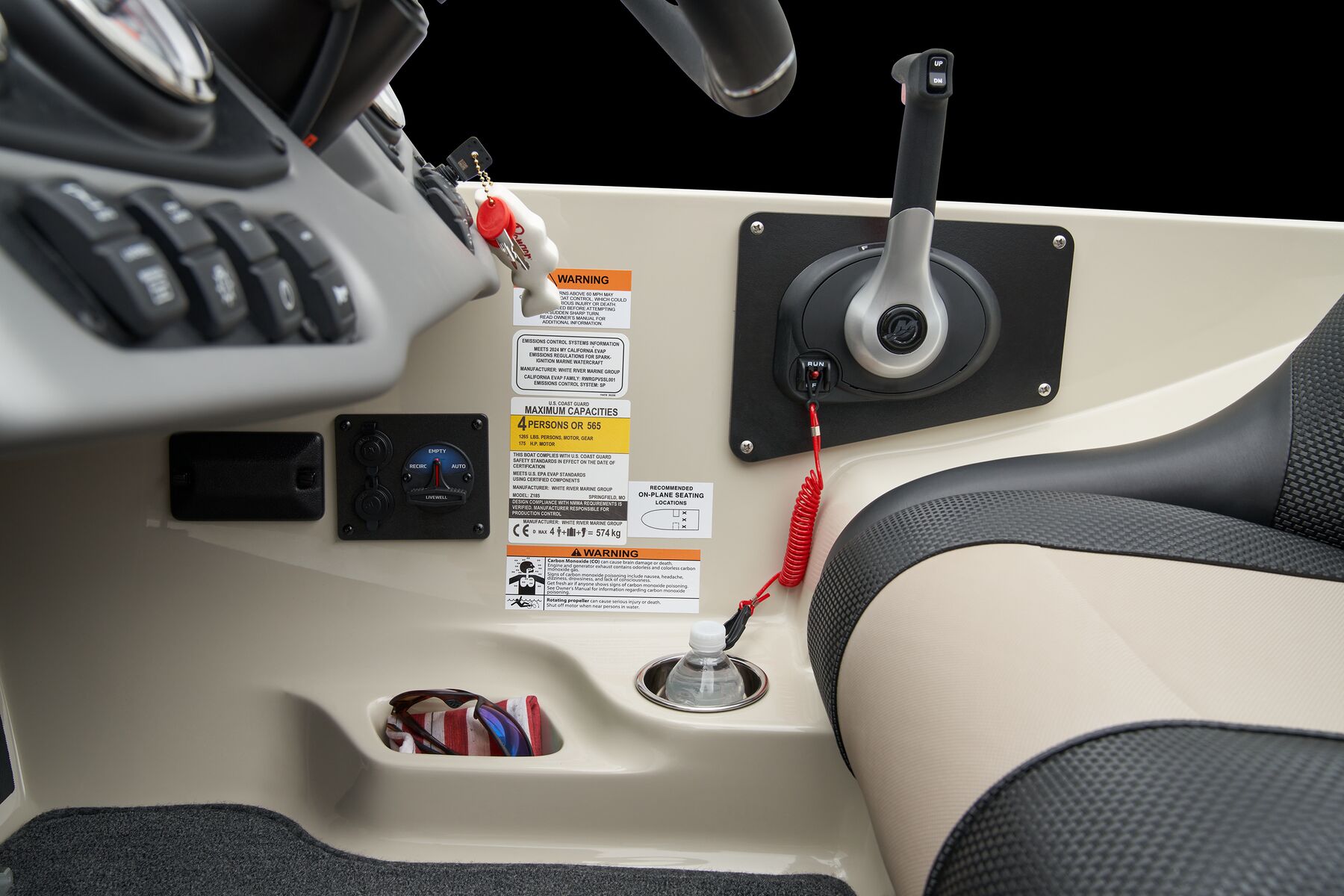

  • Flush-mounted throttle control
  • Pultruded fiberglass transom
  • High performance steering wheel

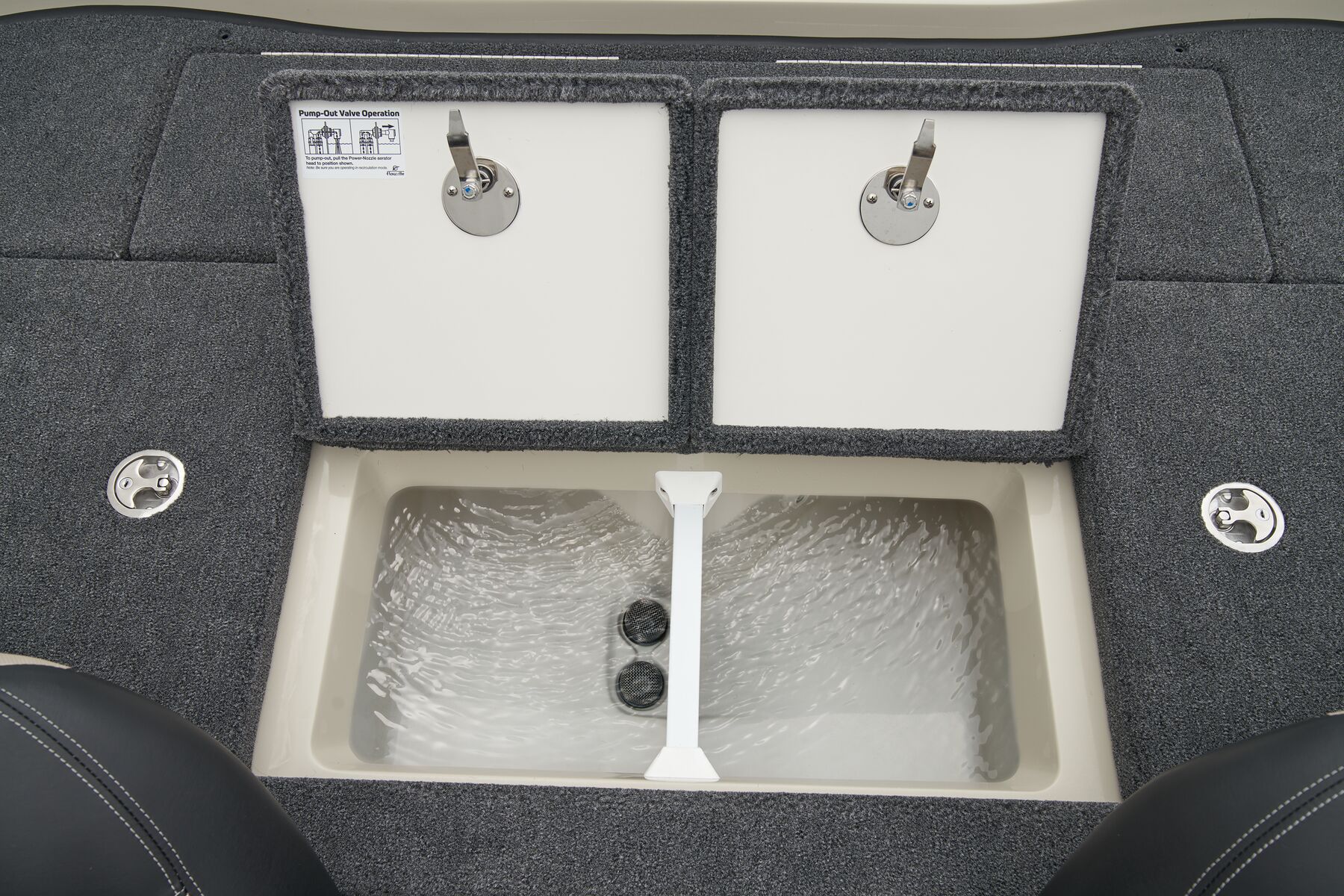

  • Recirculating aerated livewell w/ removable divider, filter screens, automatic timer
  • Integrated engine setback
  • Teleflex Sea Star Pro® hydraulic steering (may vary w/ engine model & setback plate)

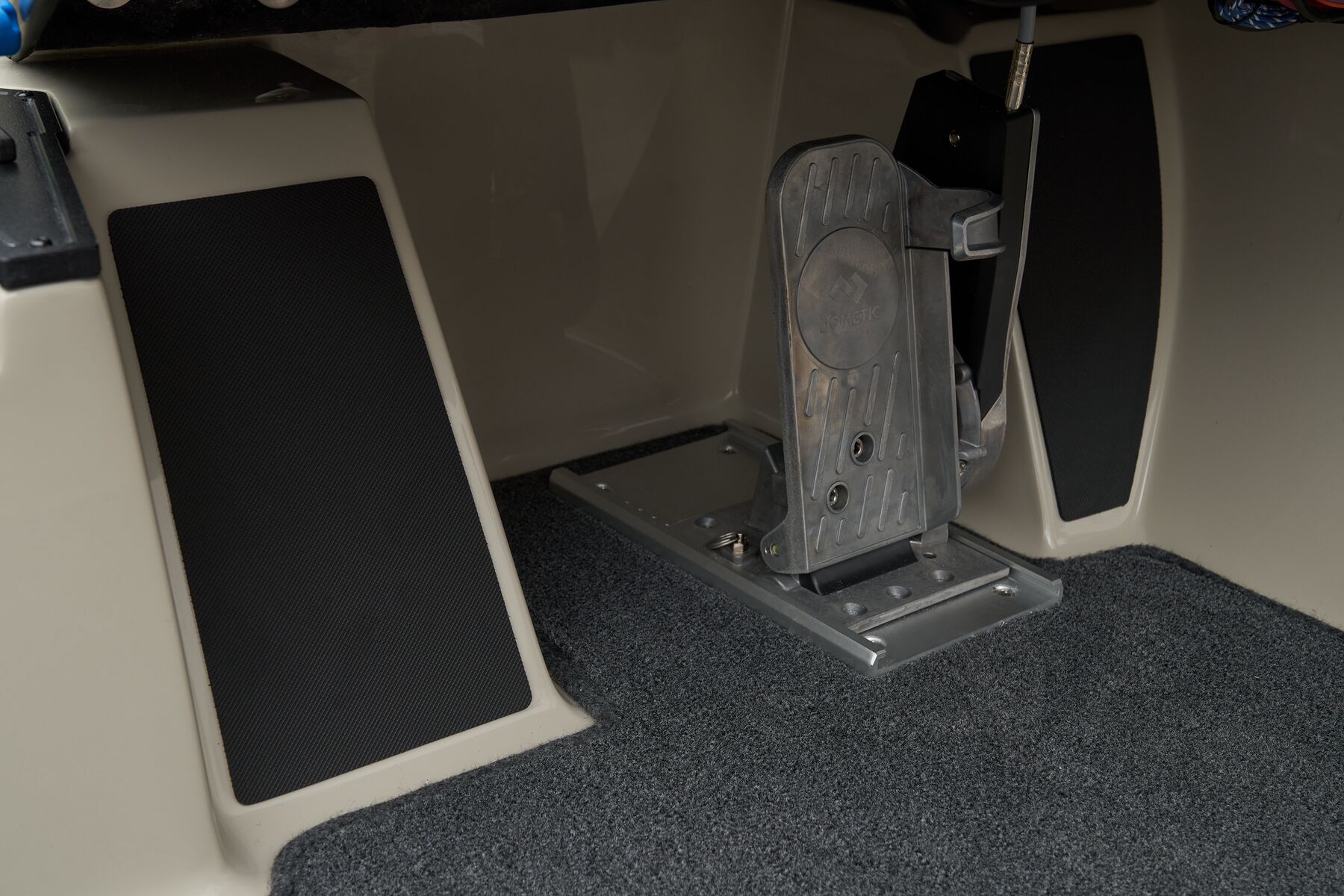

  • Recessed trolling motor foot pedal
  • Electrical system disconnect / jumper switch

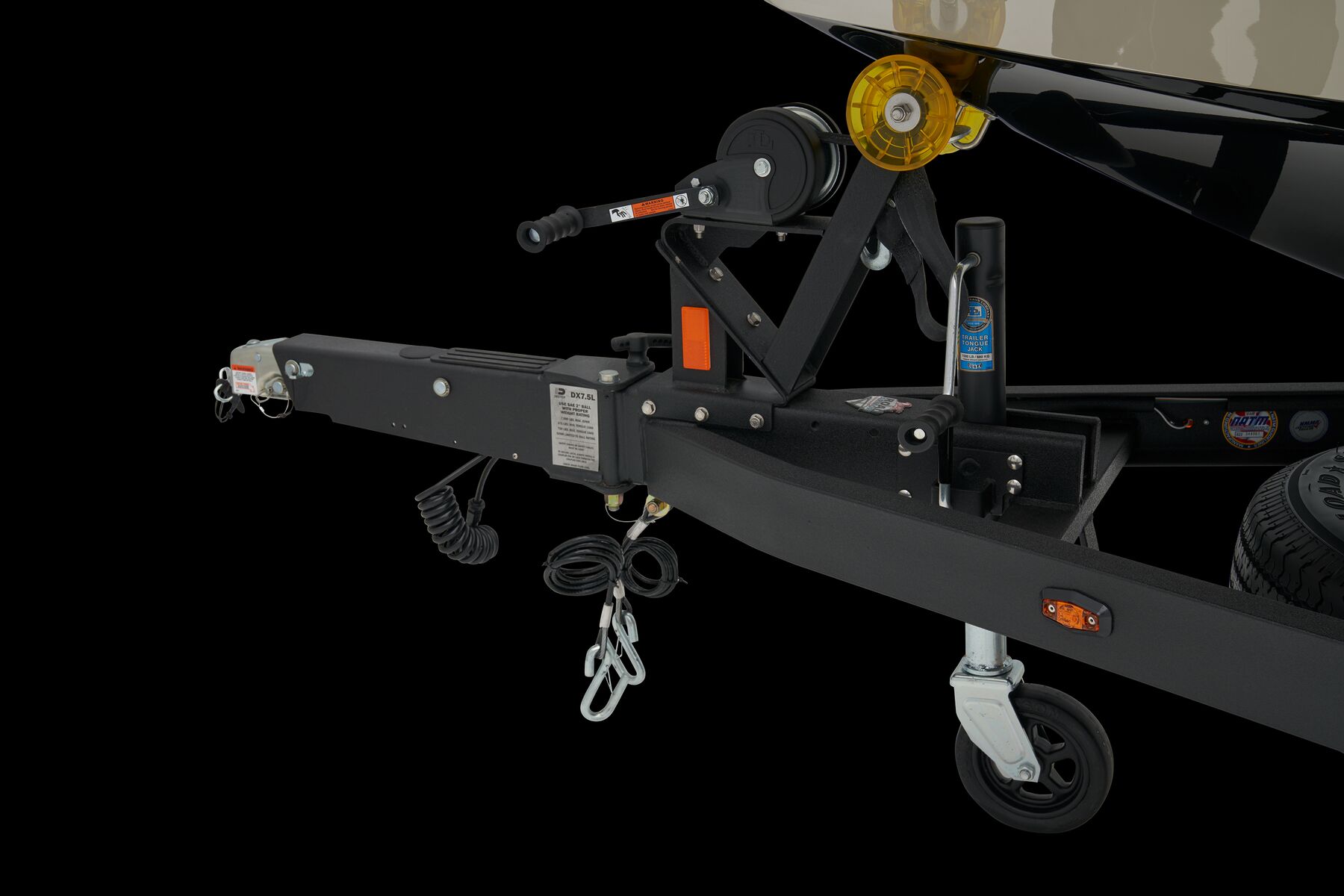

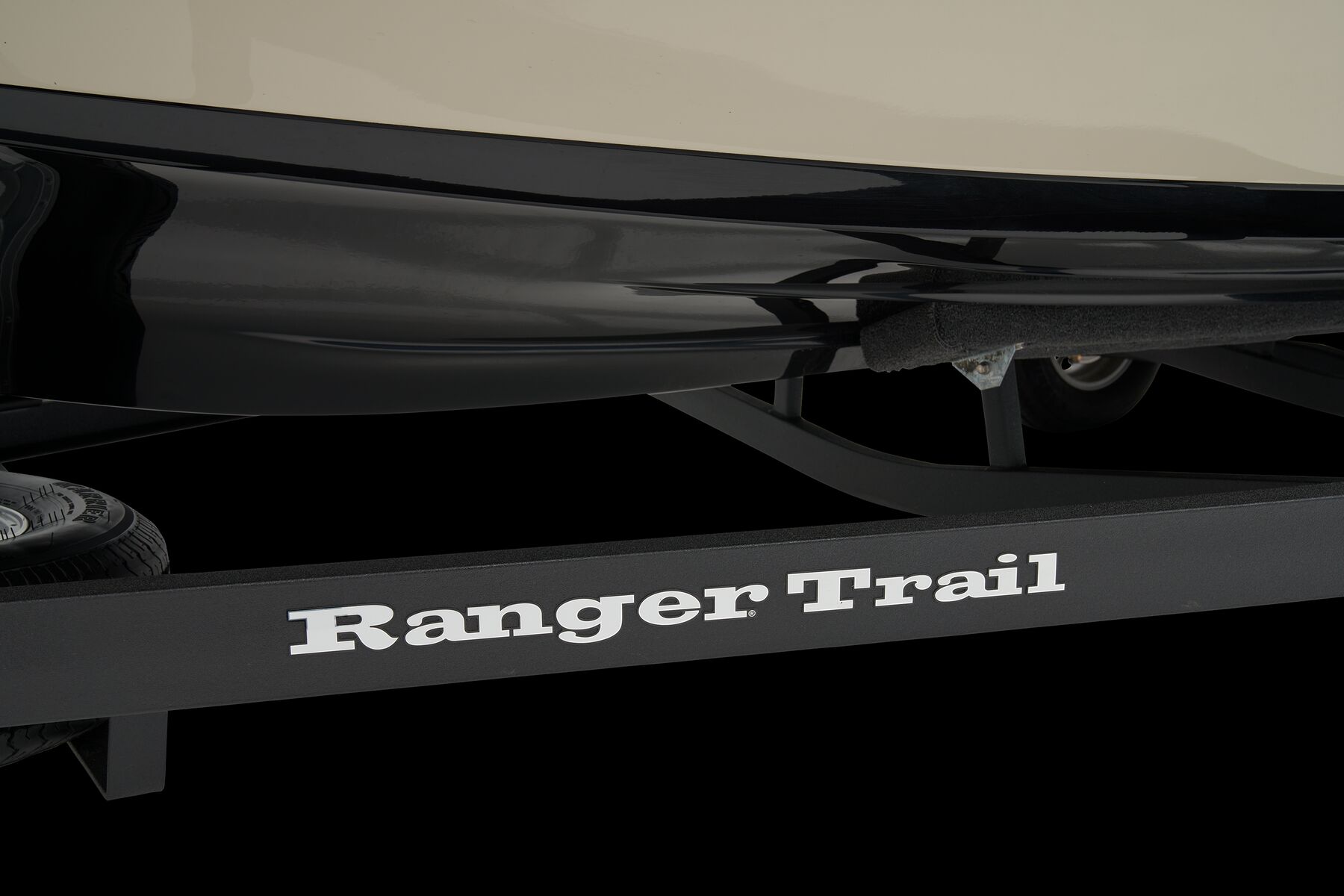

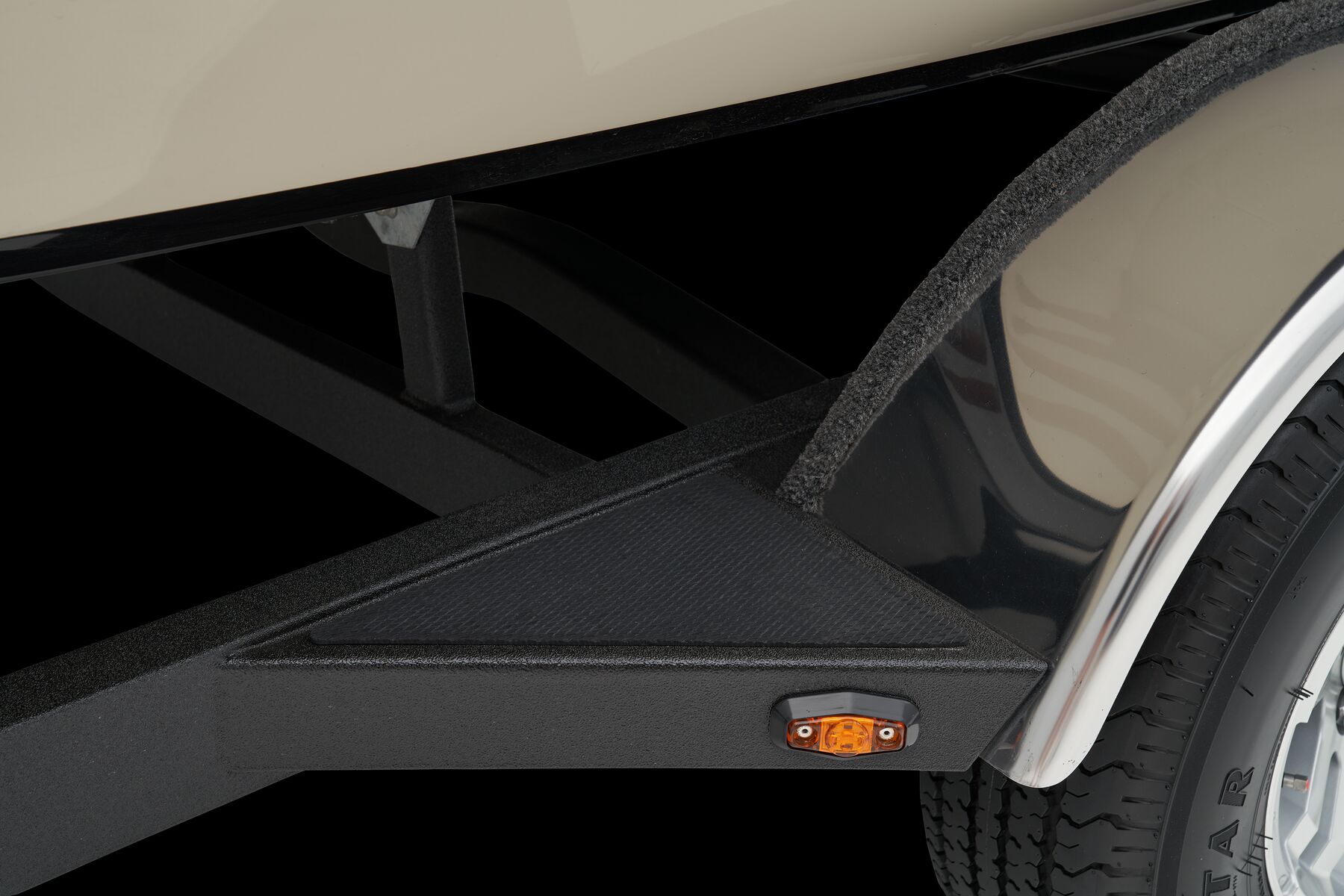

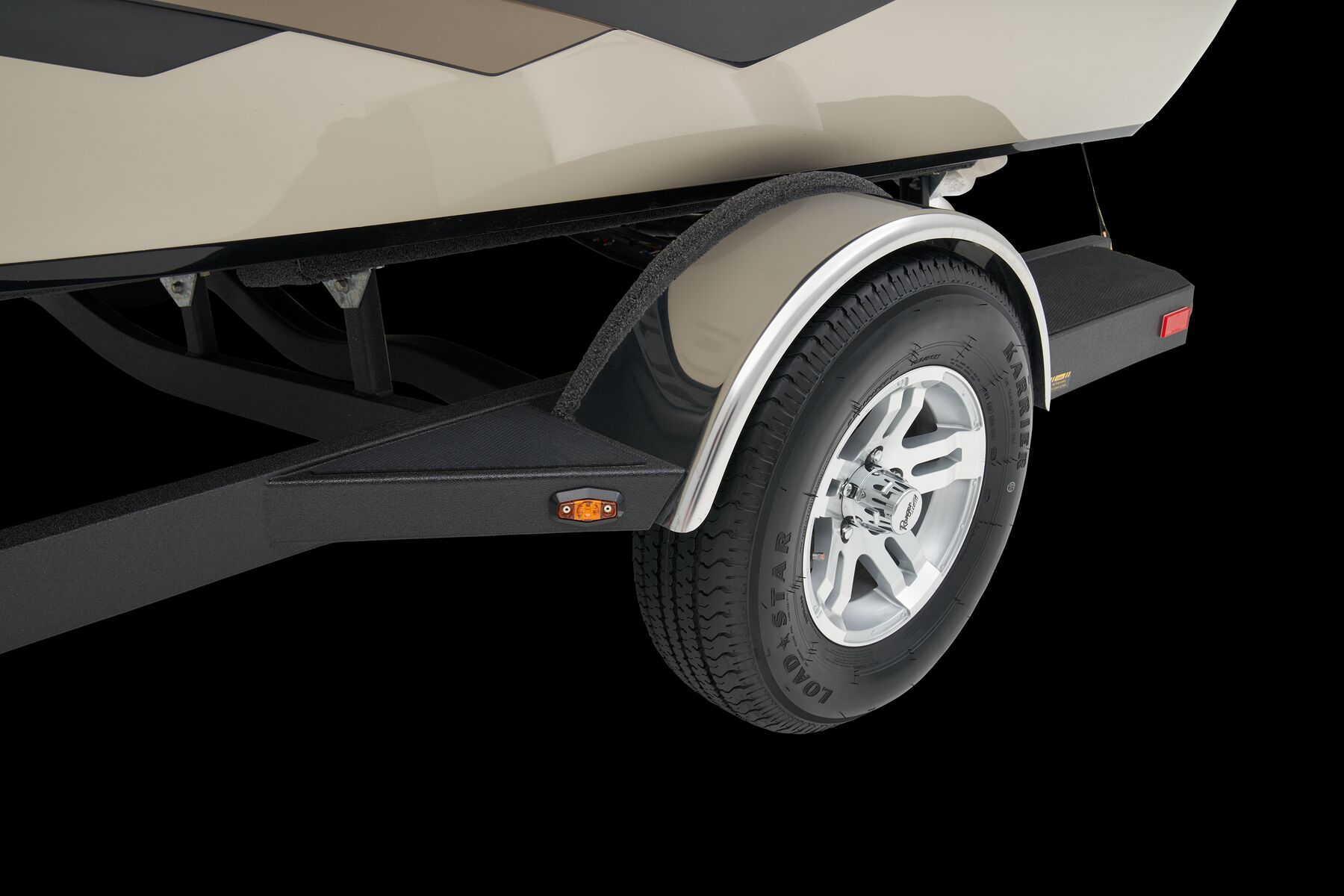

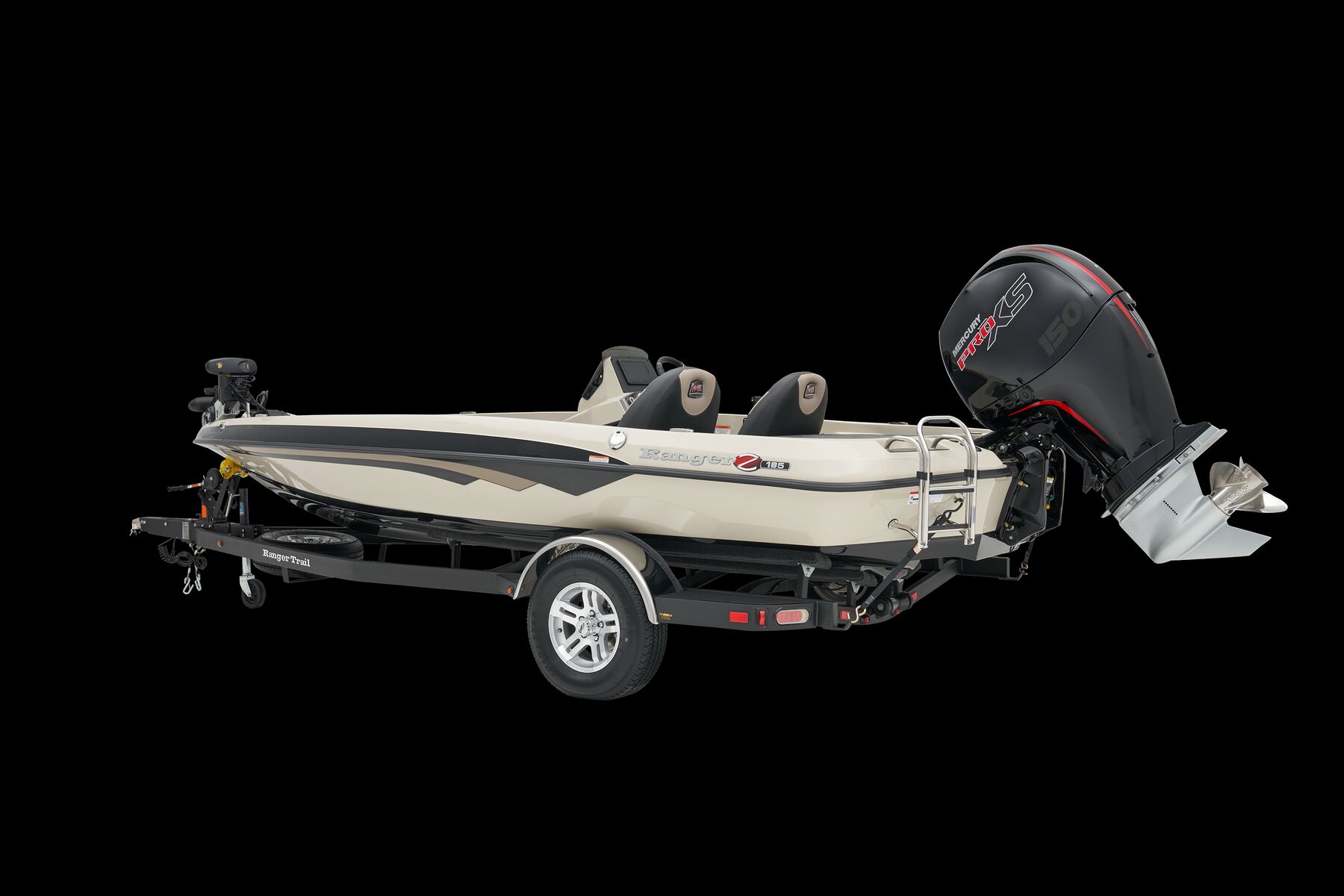

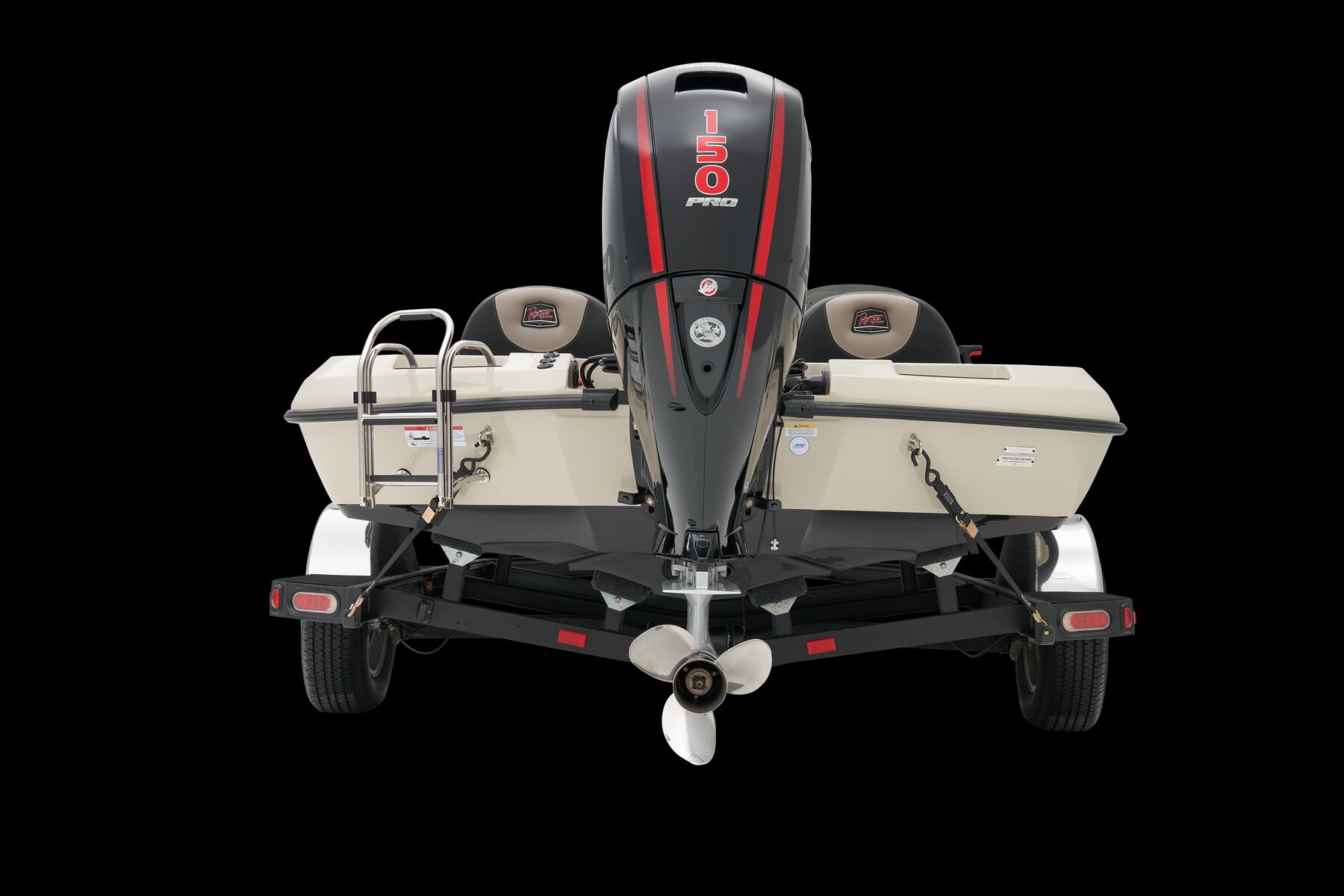

Trailer Features
  • Stainless Steel Fenders
  • Swing-away tongue
  • Center swing jack
  • Hydraulic surge disc brakes- single axle w/ brakes
  • Ranger Trail® Cool Hub® lubrication system

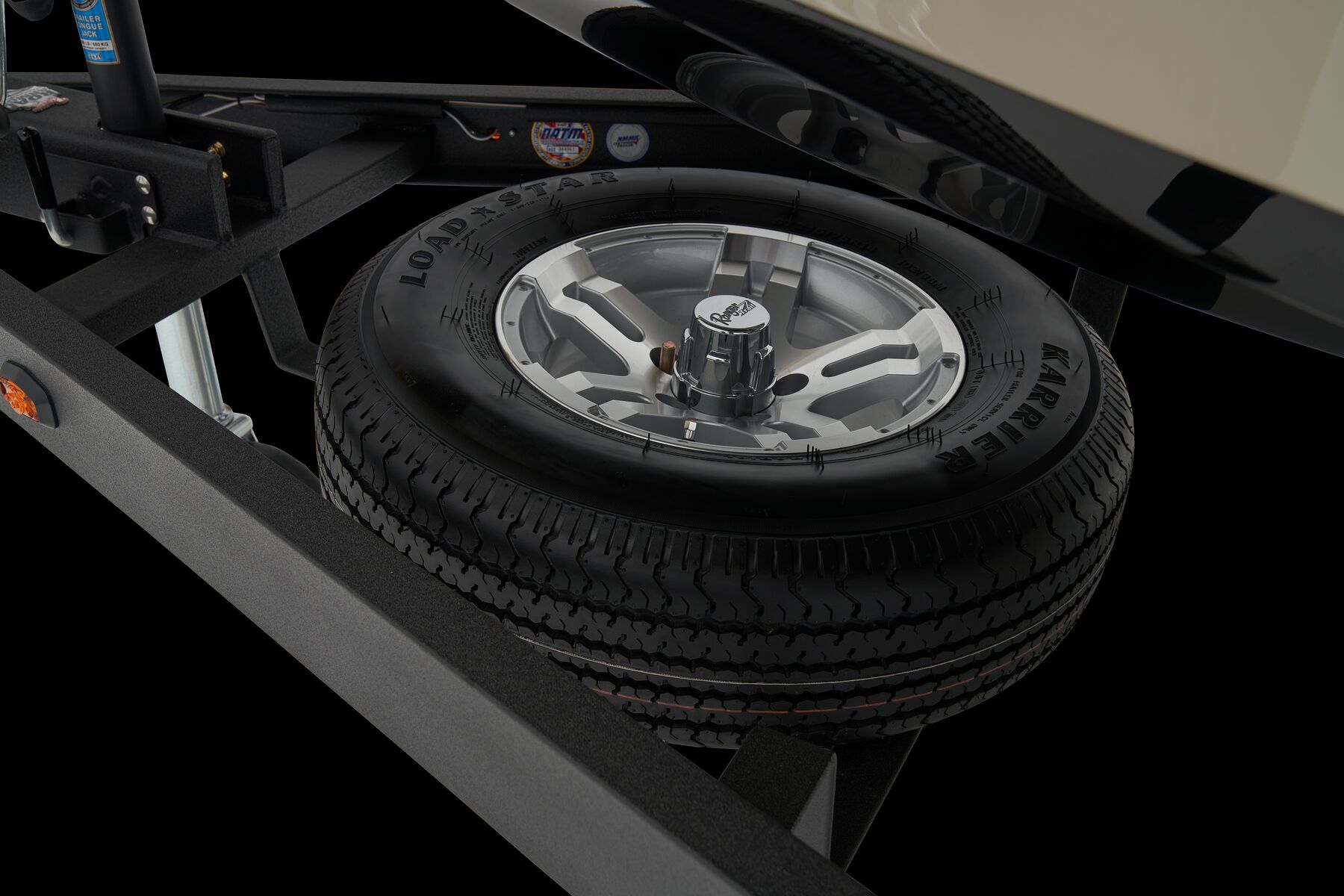

  • Aluminum wheels w/ matching spare tire & wheel
  • Ranger® Boats Road Armor Equipped® trailer protectant
  • Torsion axles
  • LED lighting
  • NMMA®/NATM certified
Electronics

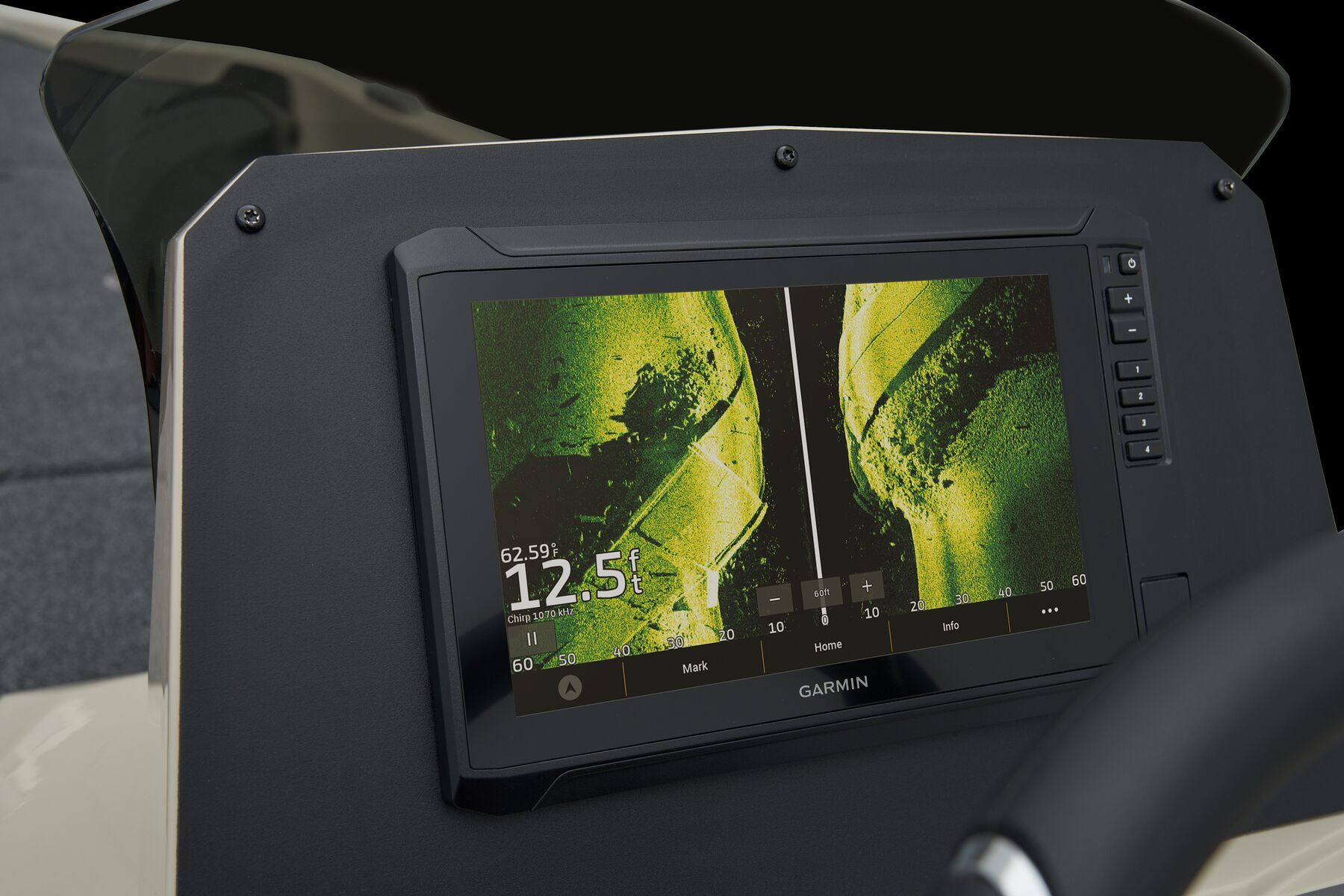

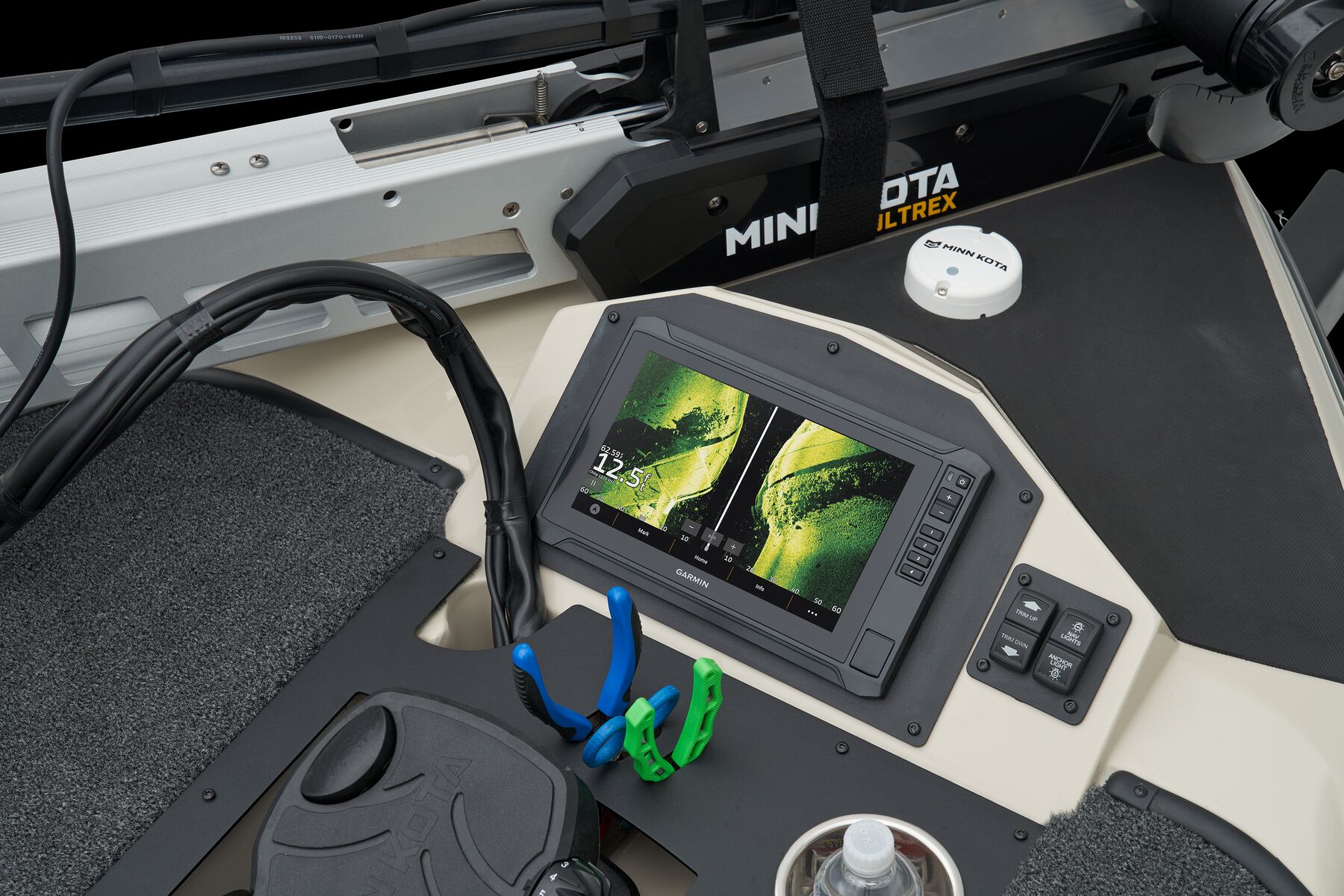

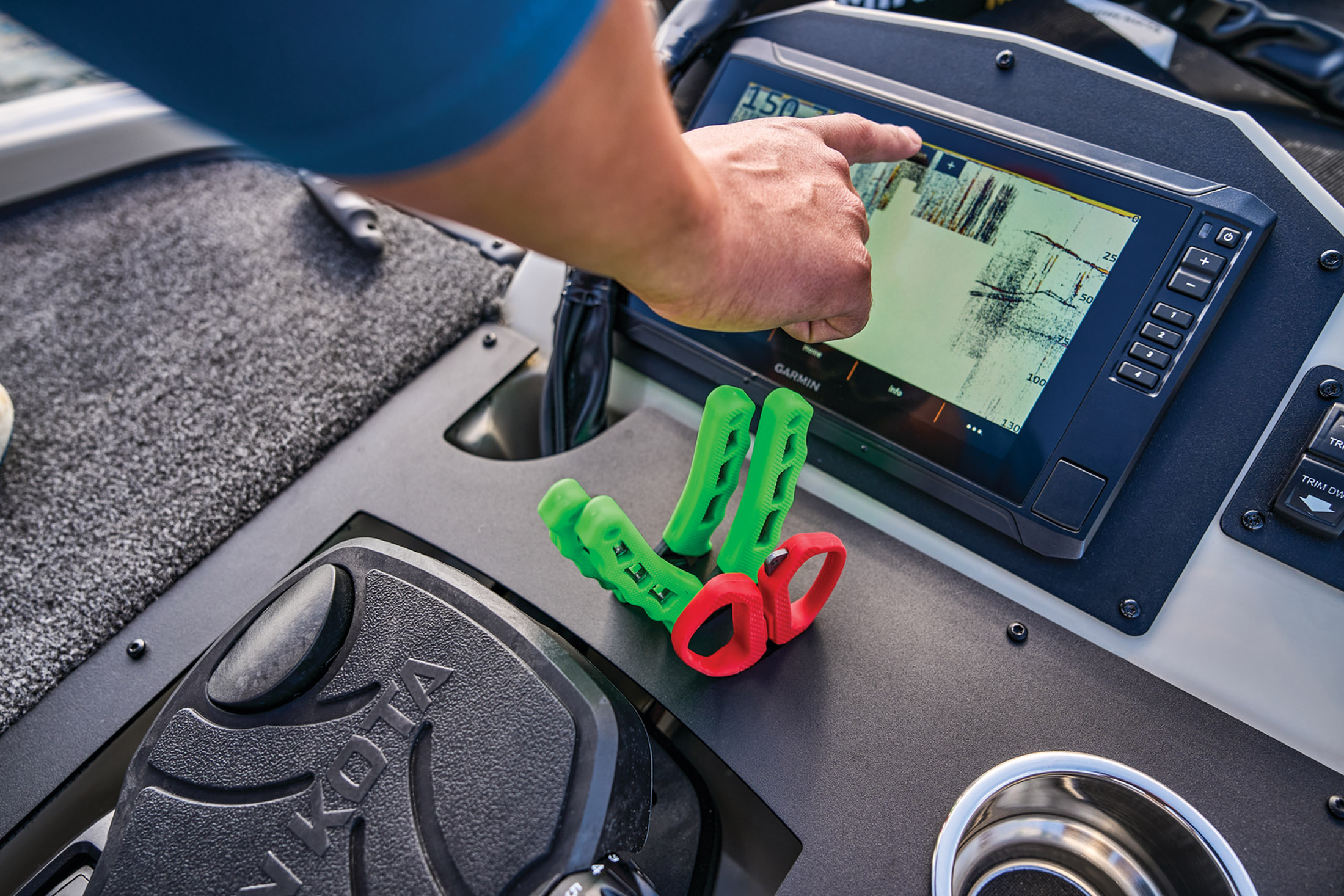

  • Lowrance® HOOK2-5 @ console
  • On-Board Dual Pro™ charger, 6x3

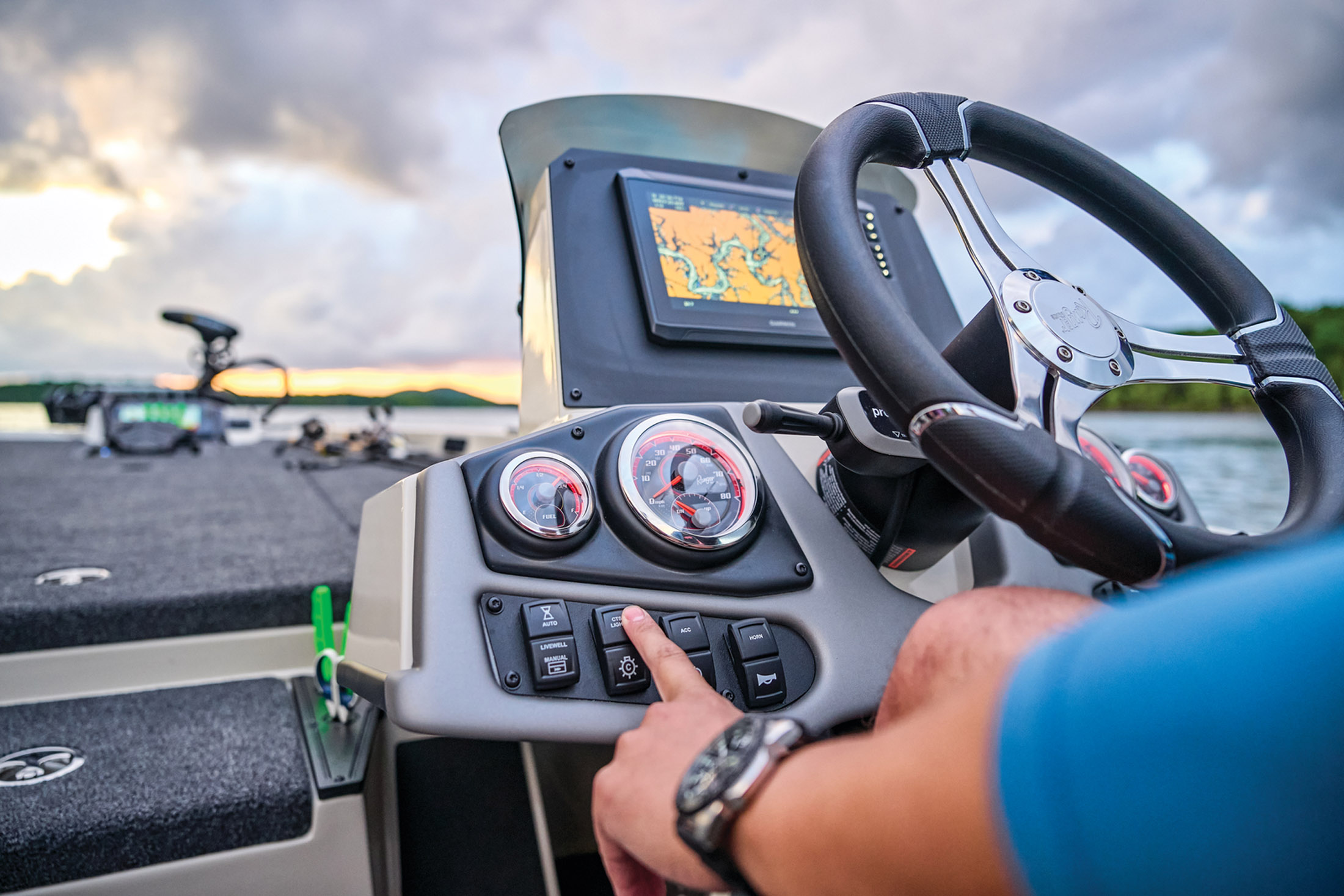

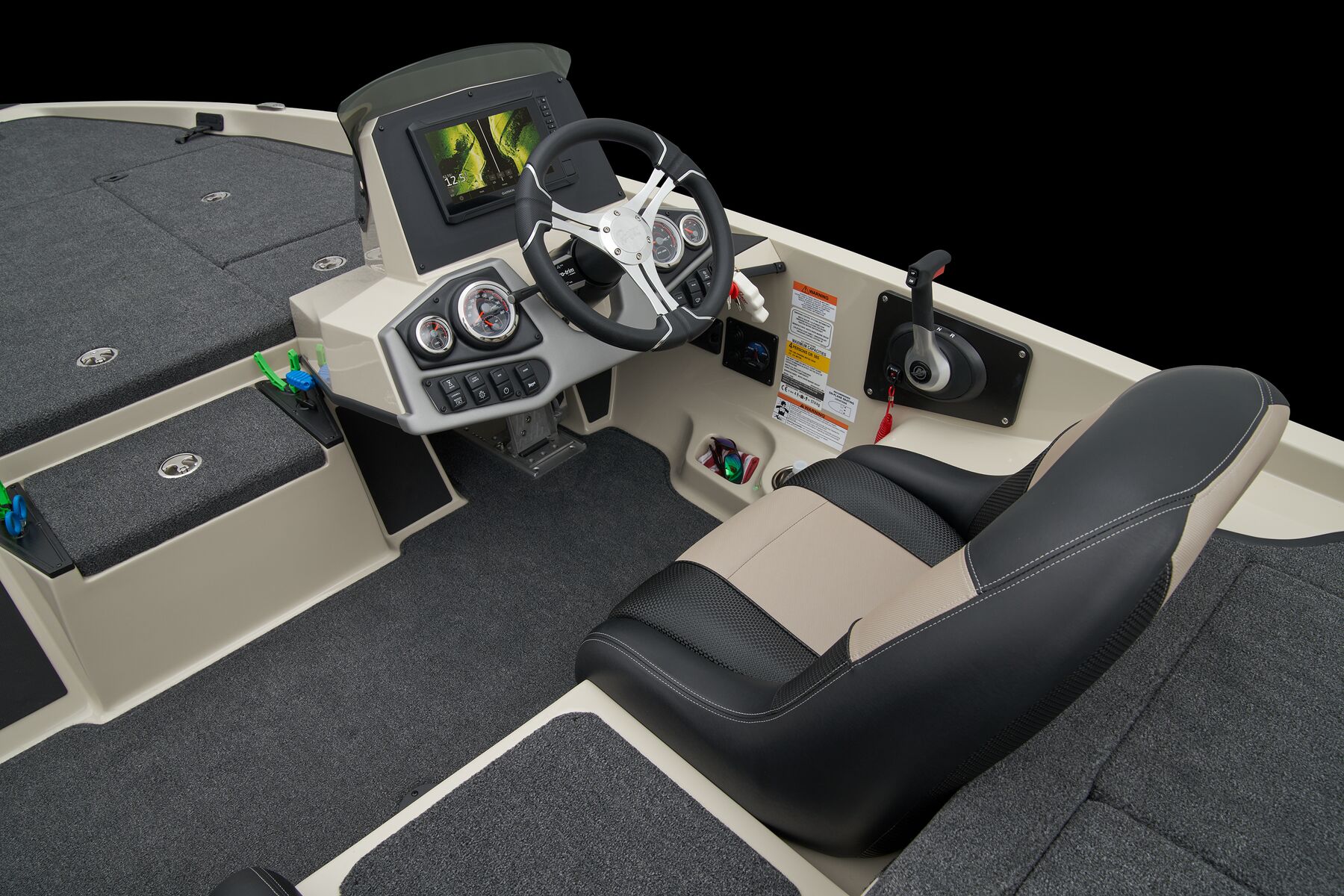

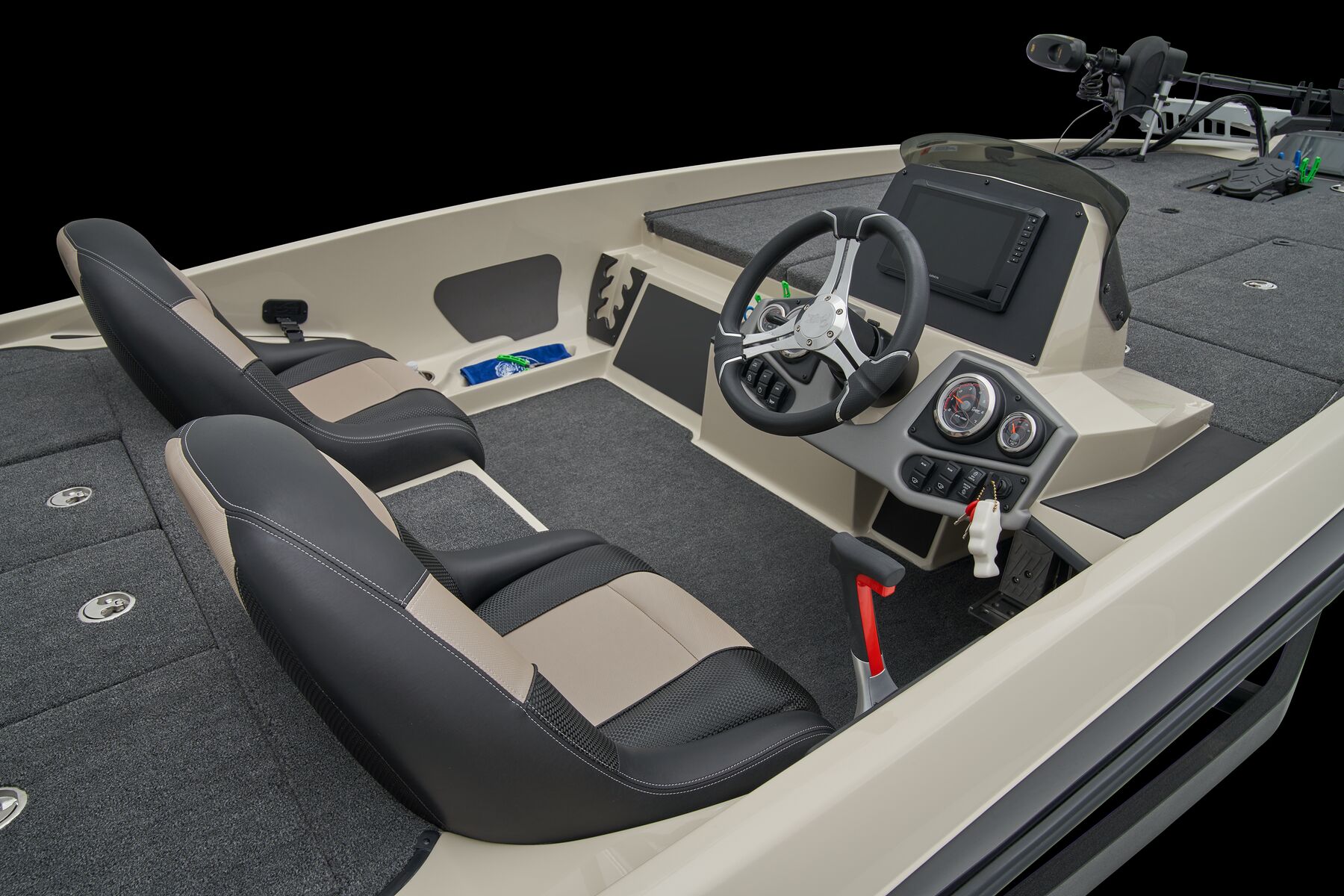

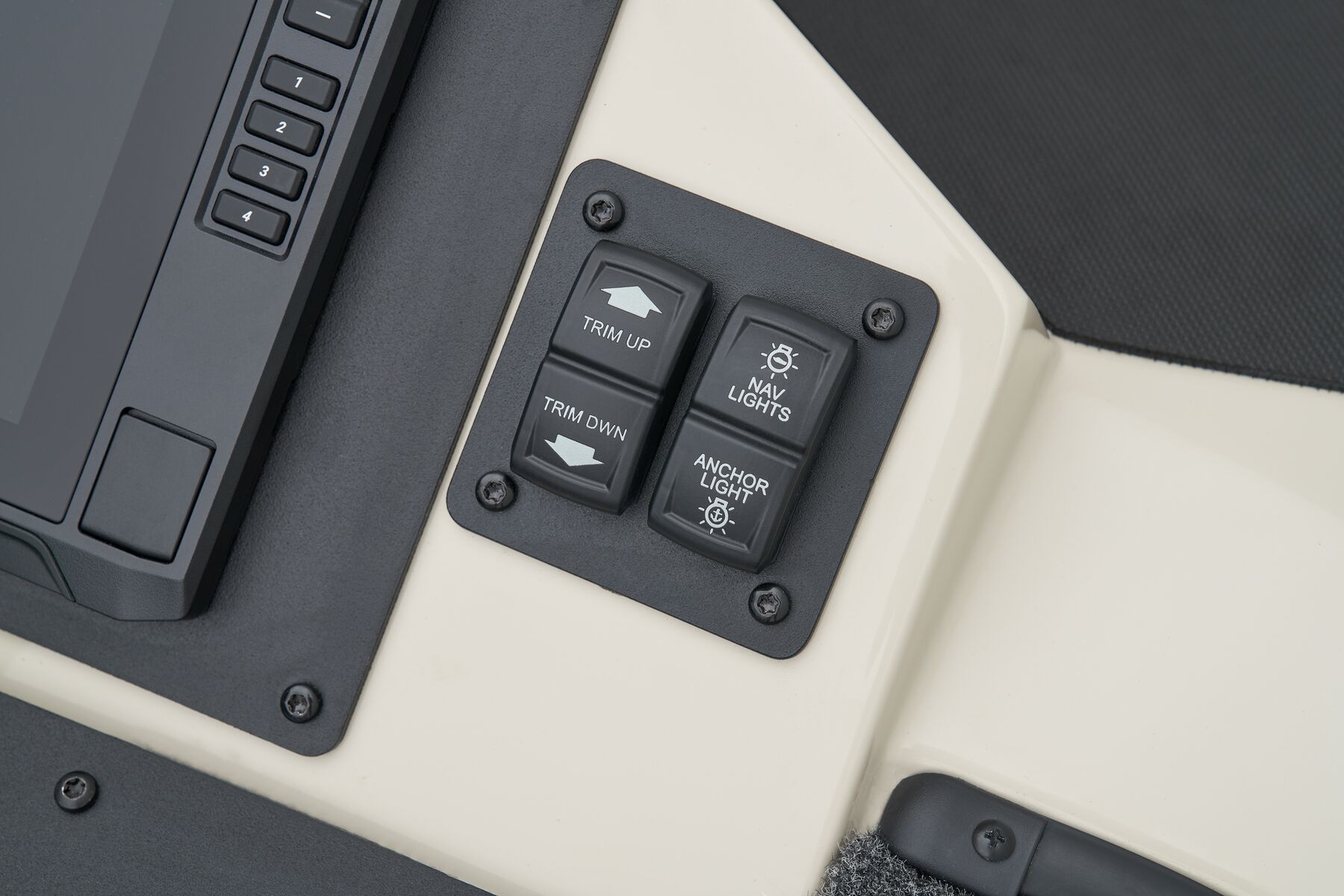

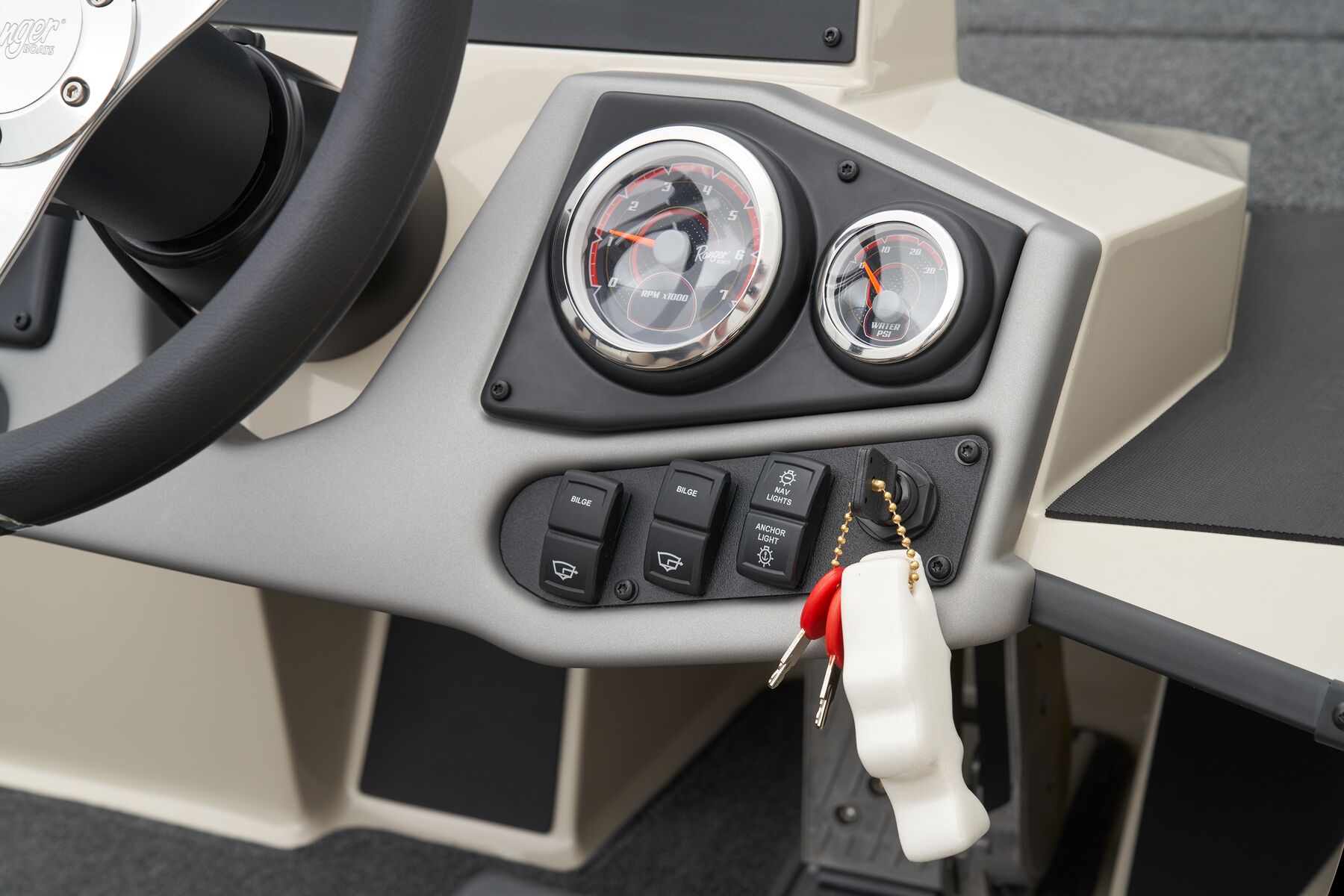

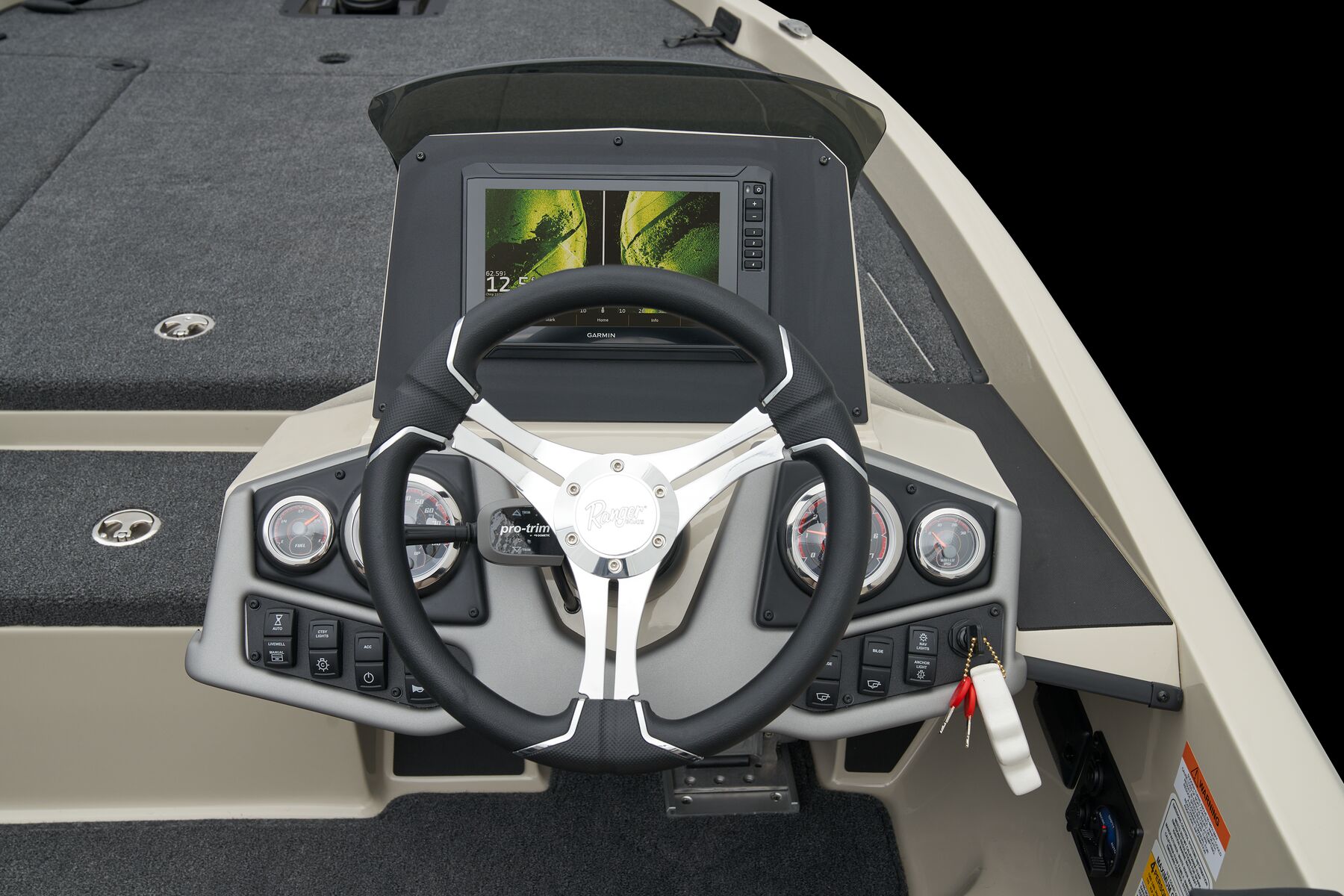

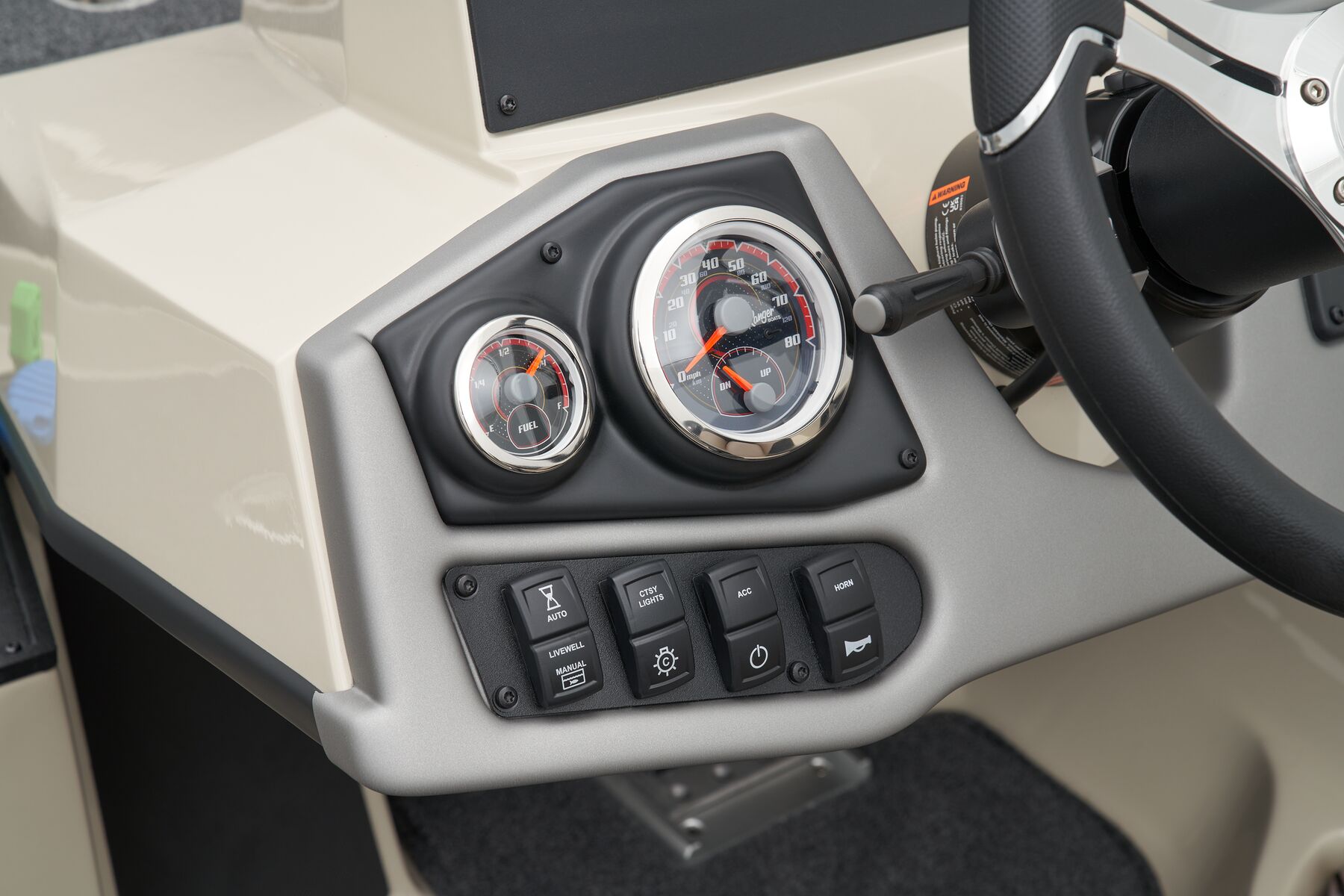

  • Console panel w/ switches & gauges: speedometer, tach, fuel, trim, water pressure
  • Bow panel w/ switches
  • Wiring harness w/ master breaker
  • Heavy duty 6-gauge trolling motor wiring w/ 60 amp breaker
  • LED navigation lights w/ built-in bow lights
  • 12V DC power receptacle
  • Courtesy light(s) @ console(s)
Safety/Comfort
  • Bilge pump (1) automatic (1) manual

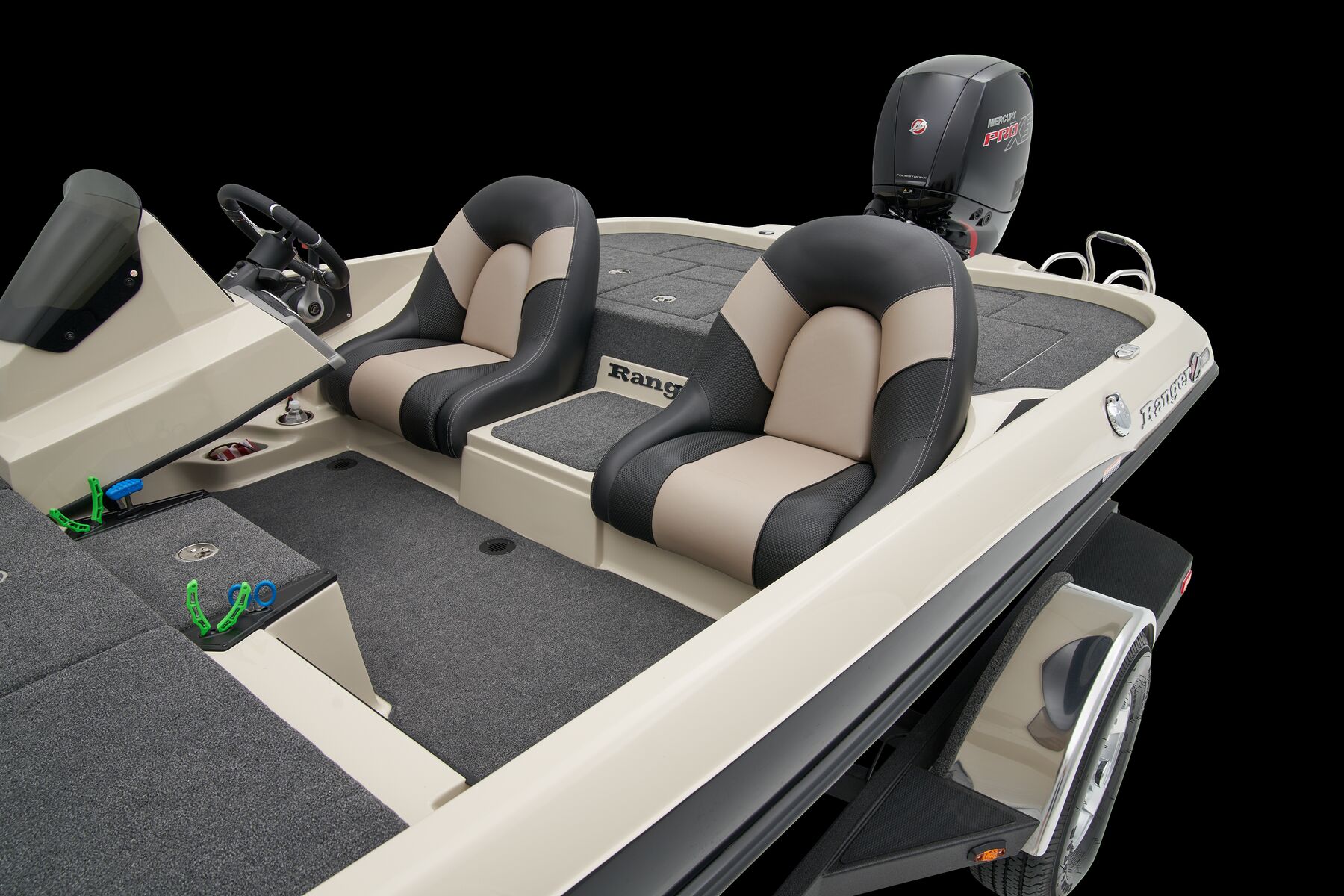

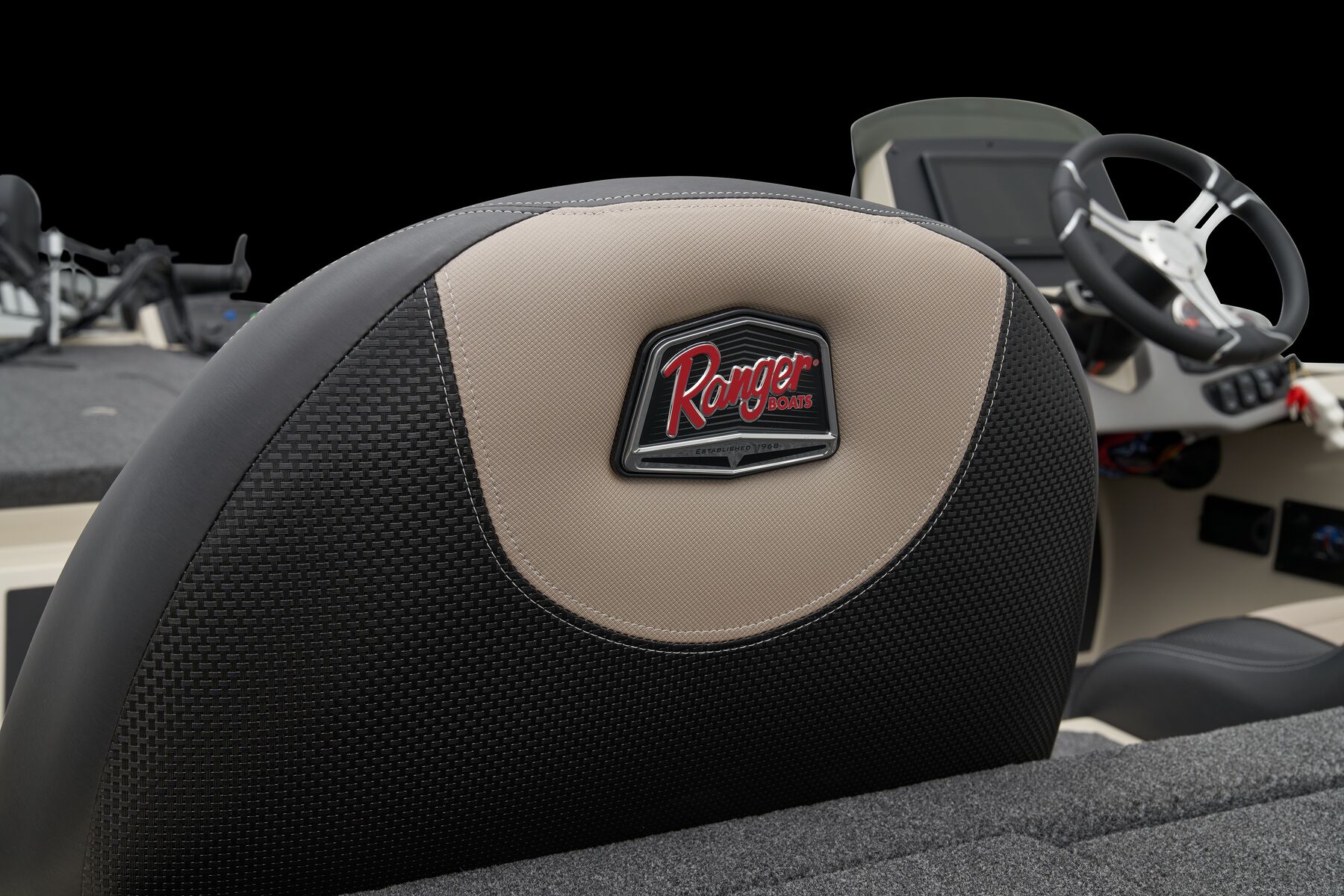

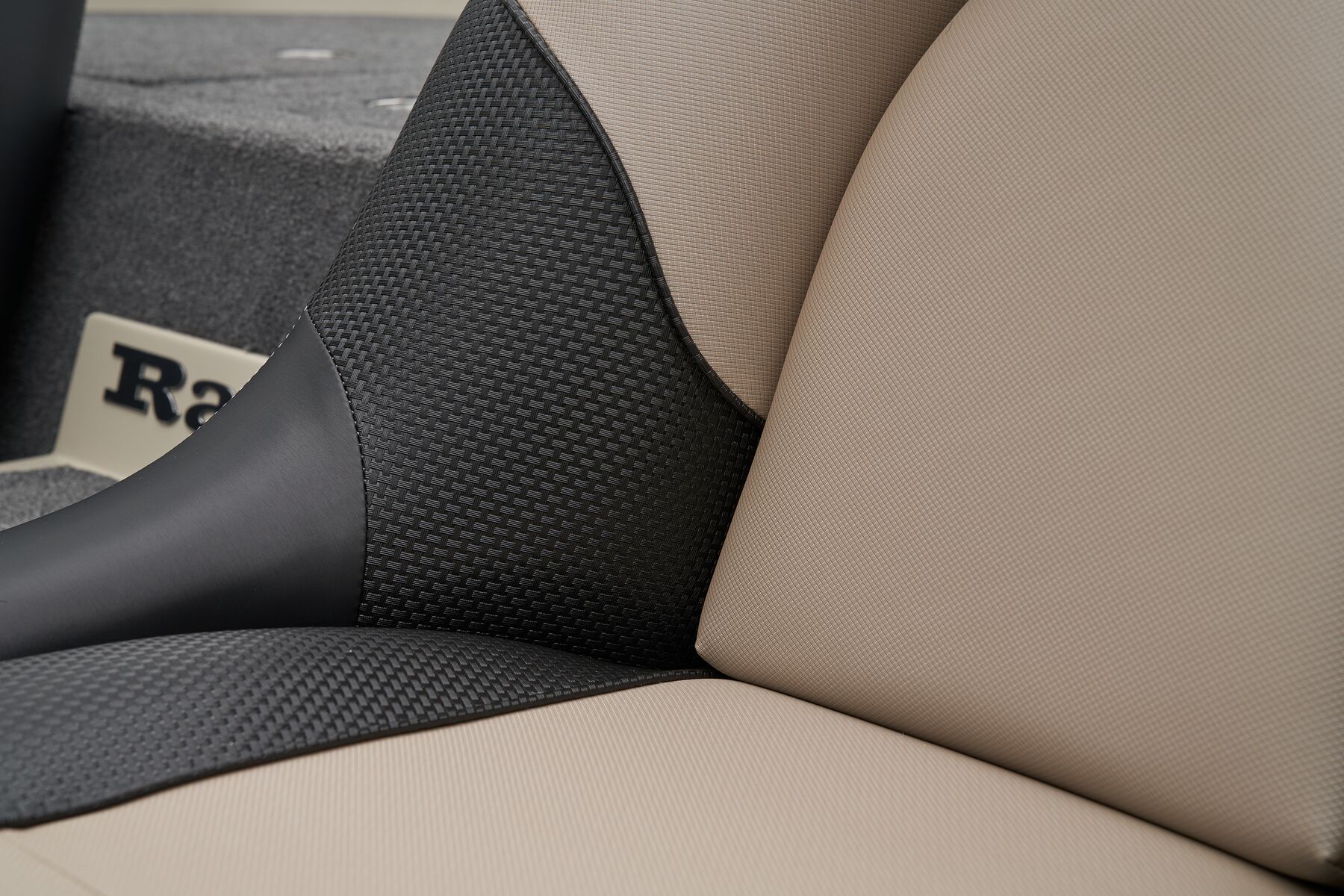

  • (2) SRS Bucket Seats, (1) Bike Seat with Pro Pole, (1) SRS Fold-Down with power pedestal

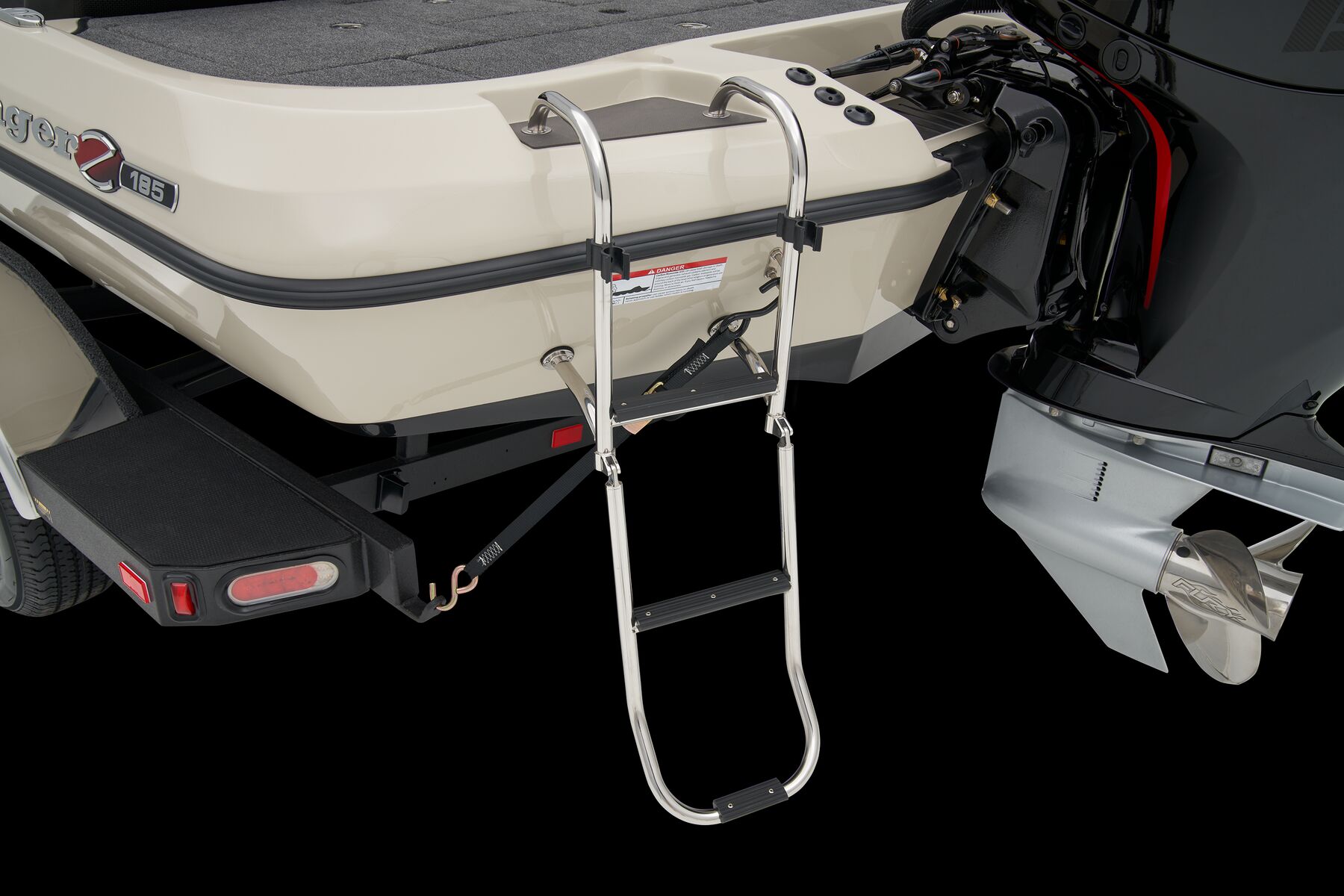

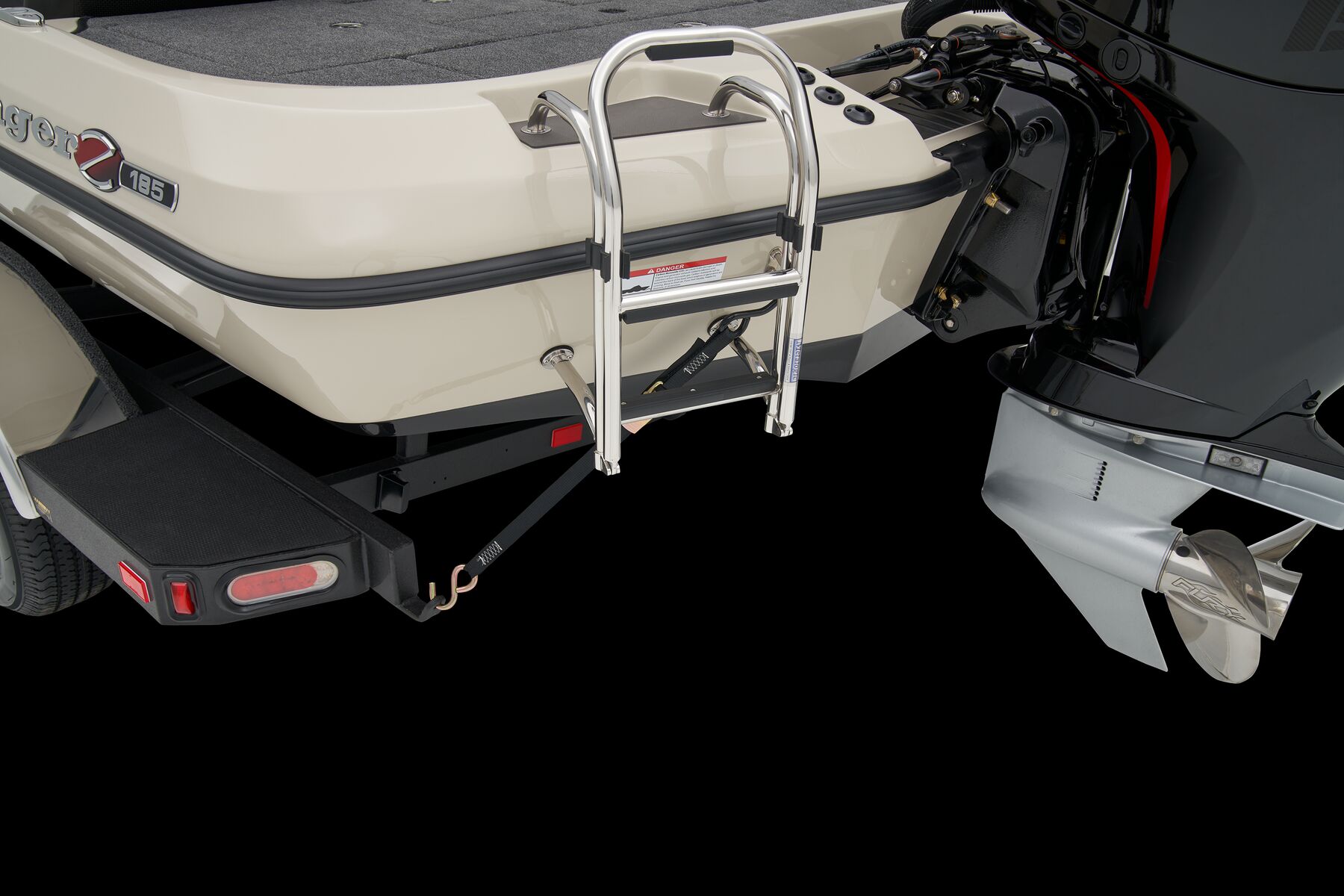

  • Boarding ladder
  • NMMA® certified
  • Upright, level flotation
  • Fire extinguisher & horn
  • Stainless steel bow / stern eyes

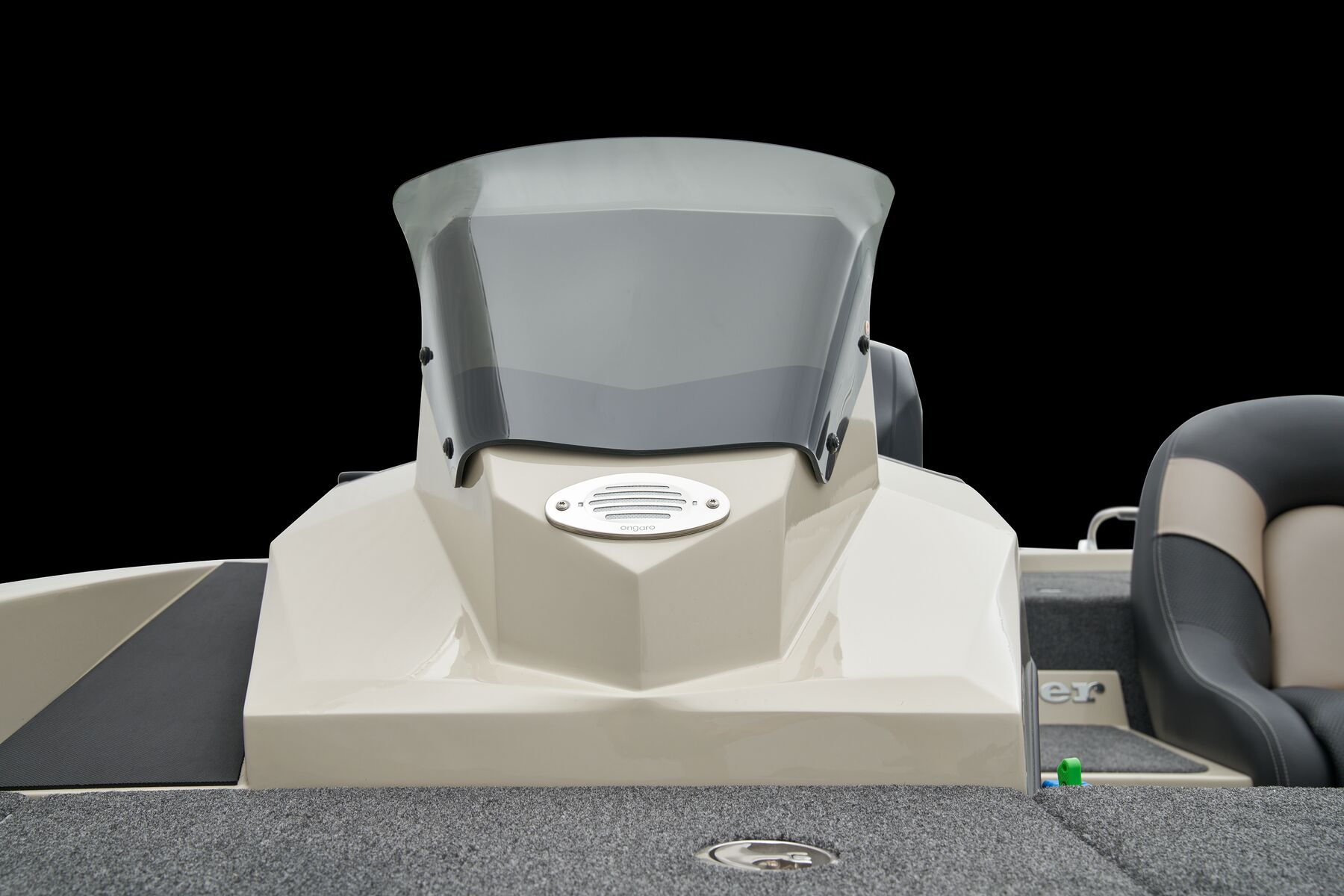

  • Tinted windshield

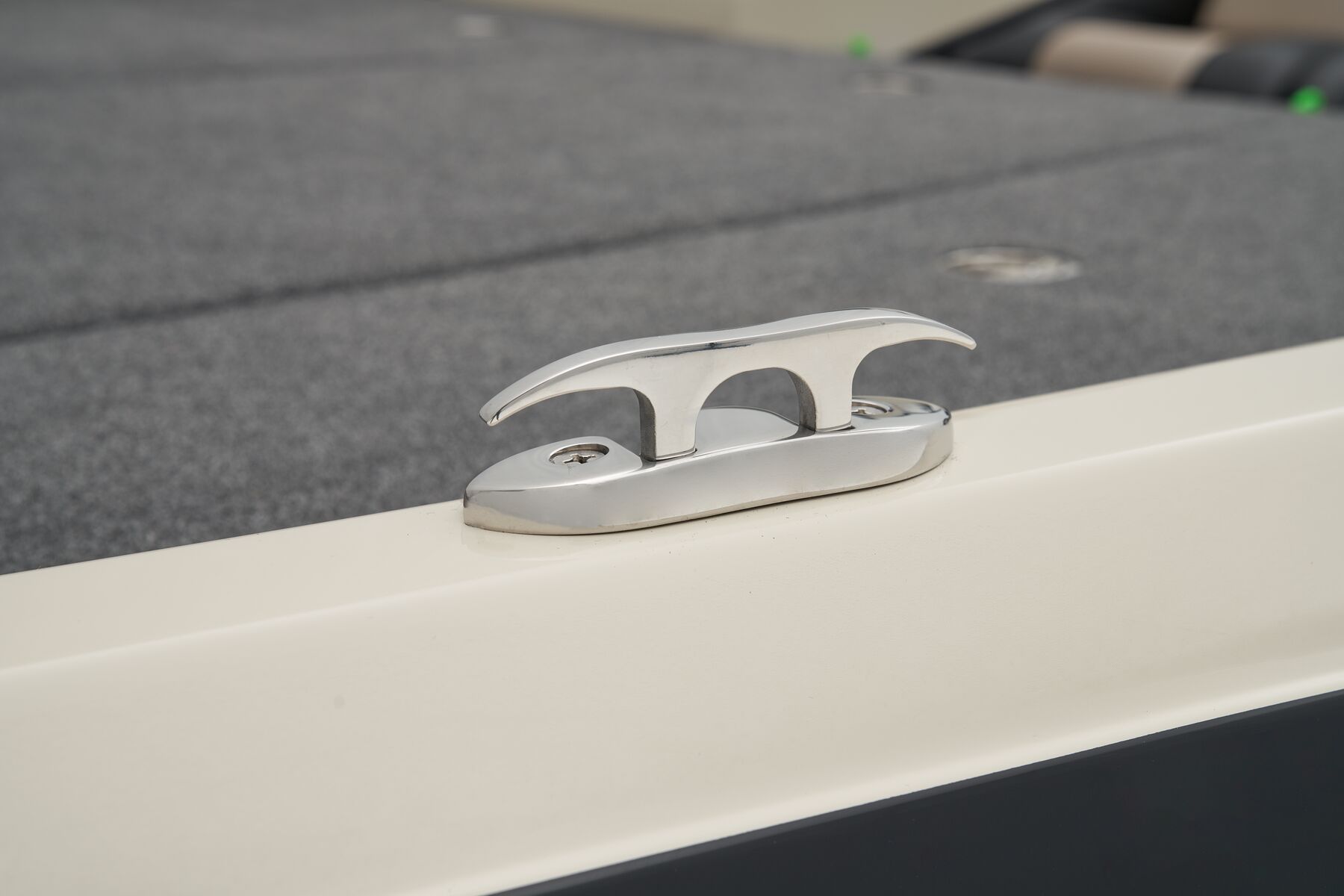

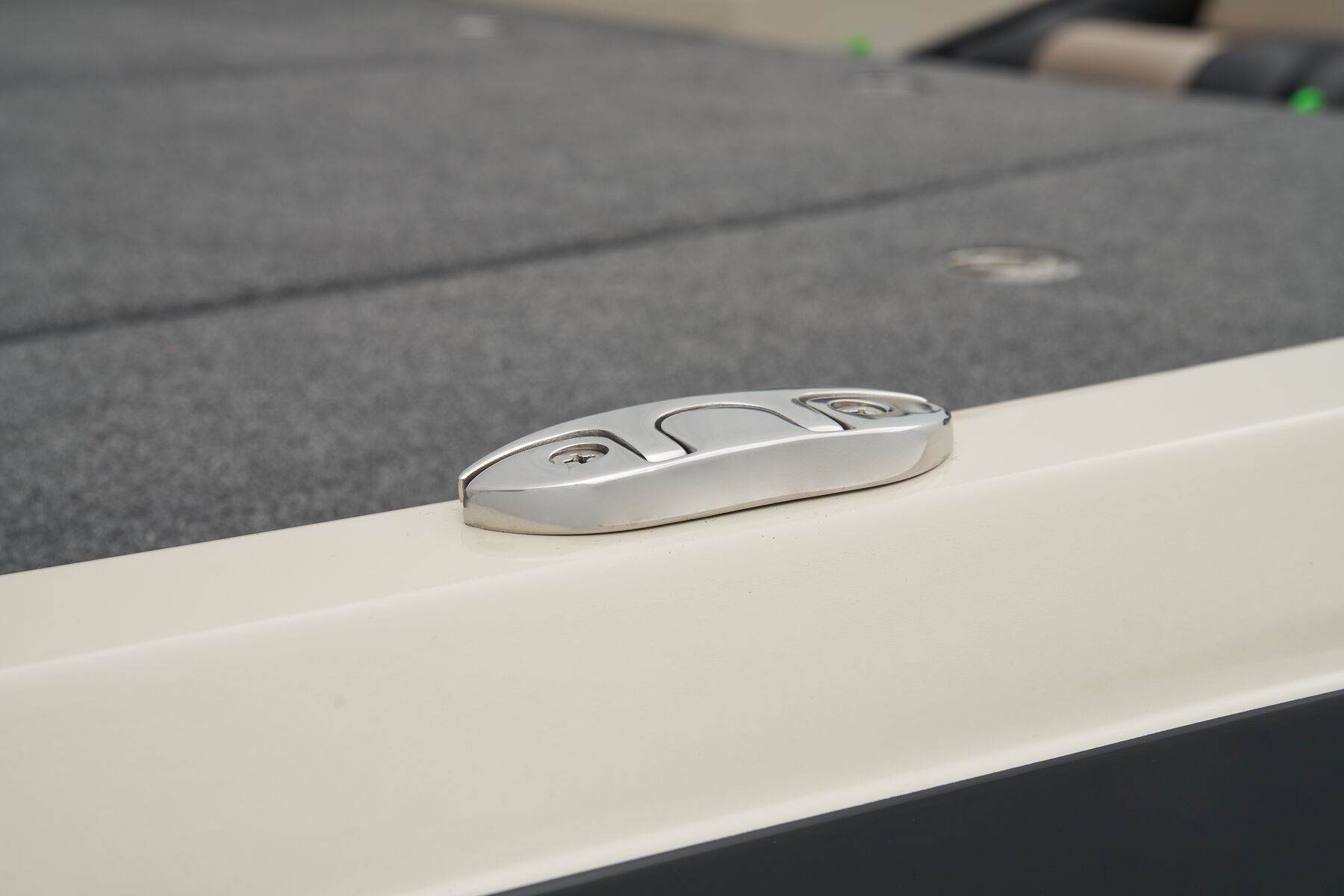

  • Stainless steel tie cleats
  • Passenger assist handles
  • Skid-resistant material on bow
Custom Details
  • Ranger® tournament measuring board

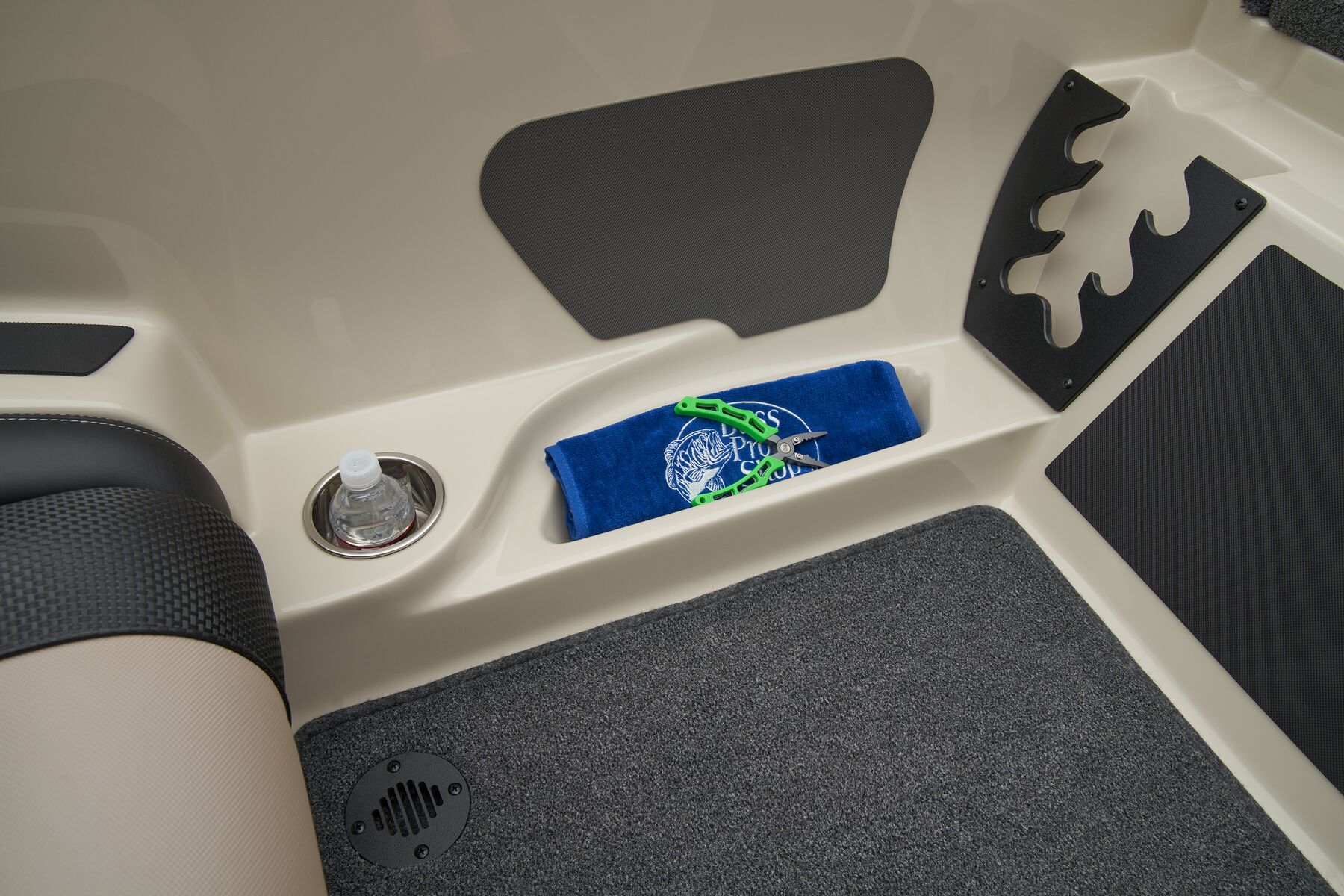

  • Integrated Drink Holders

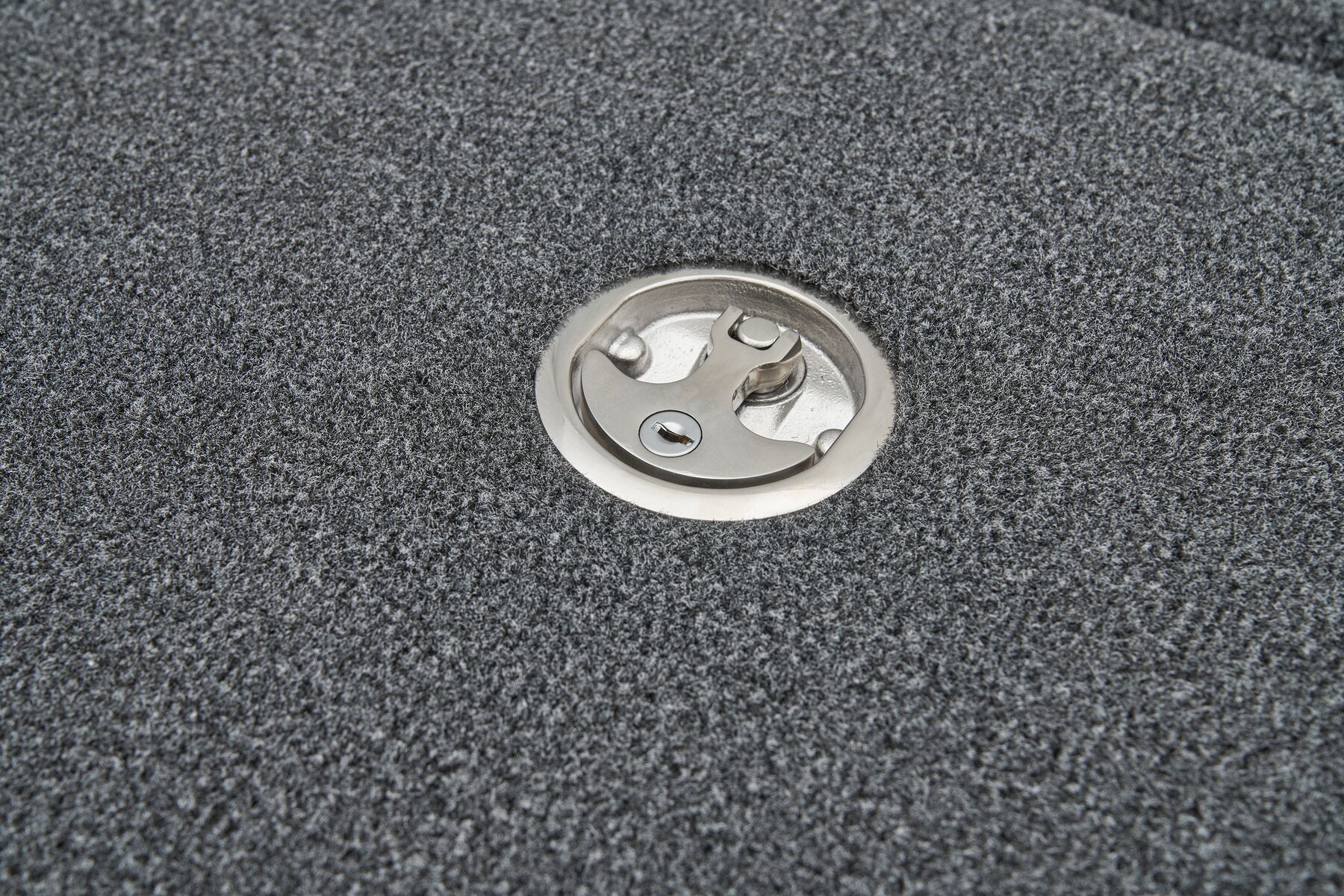

  • Stainless steel compression lid locks

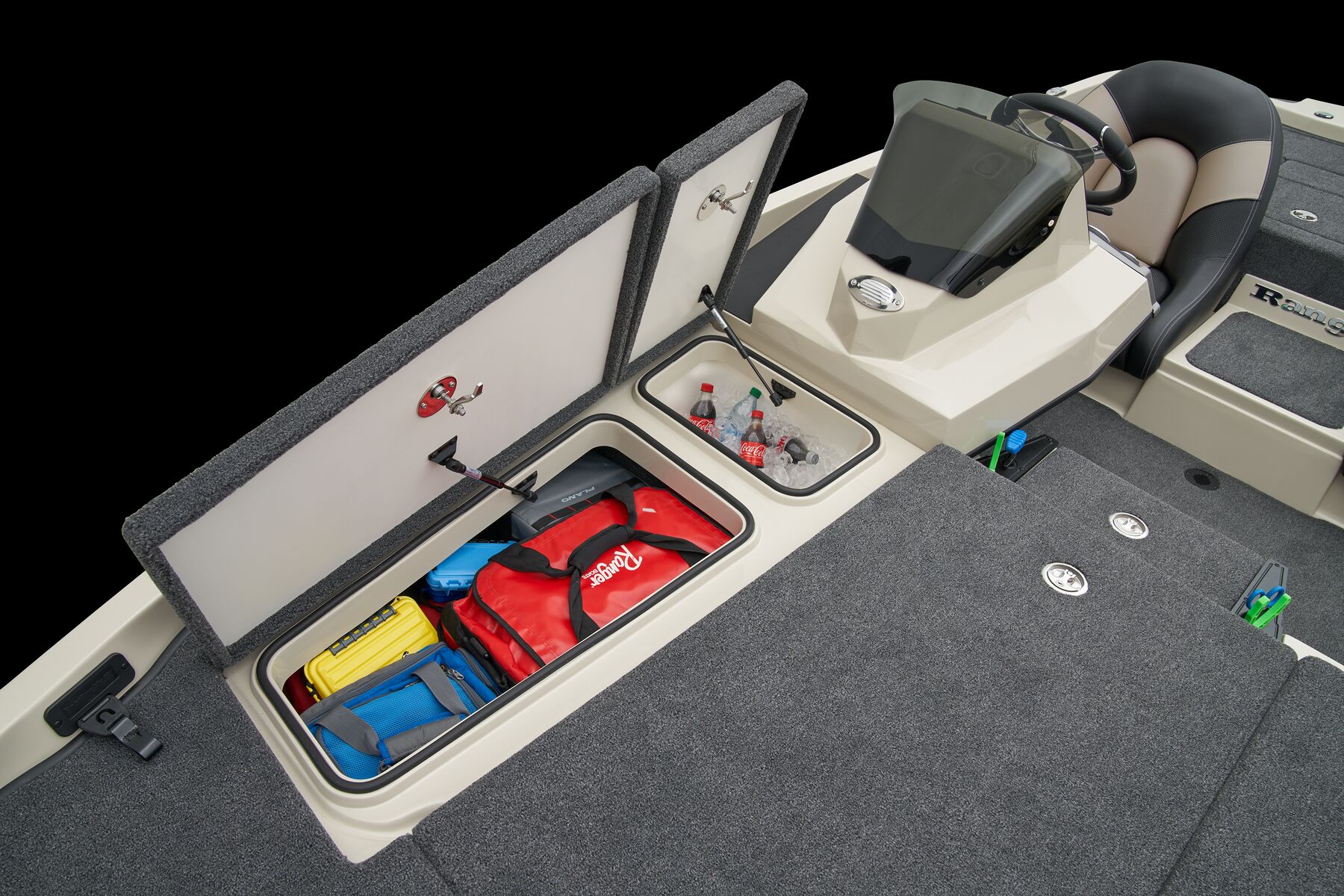

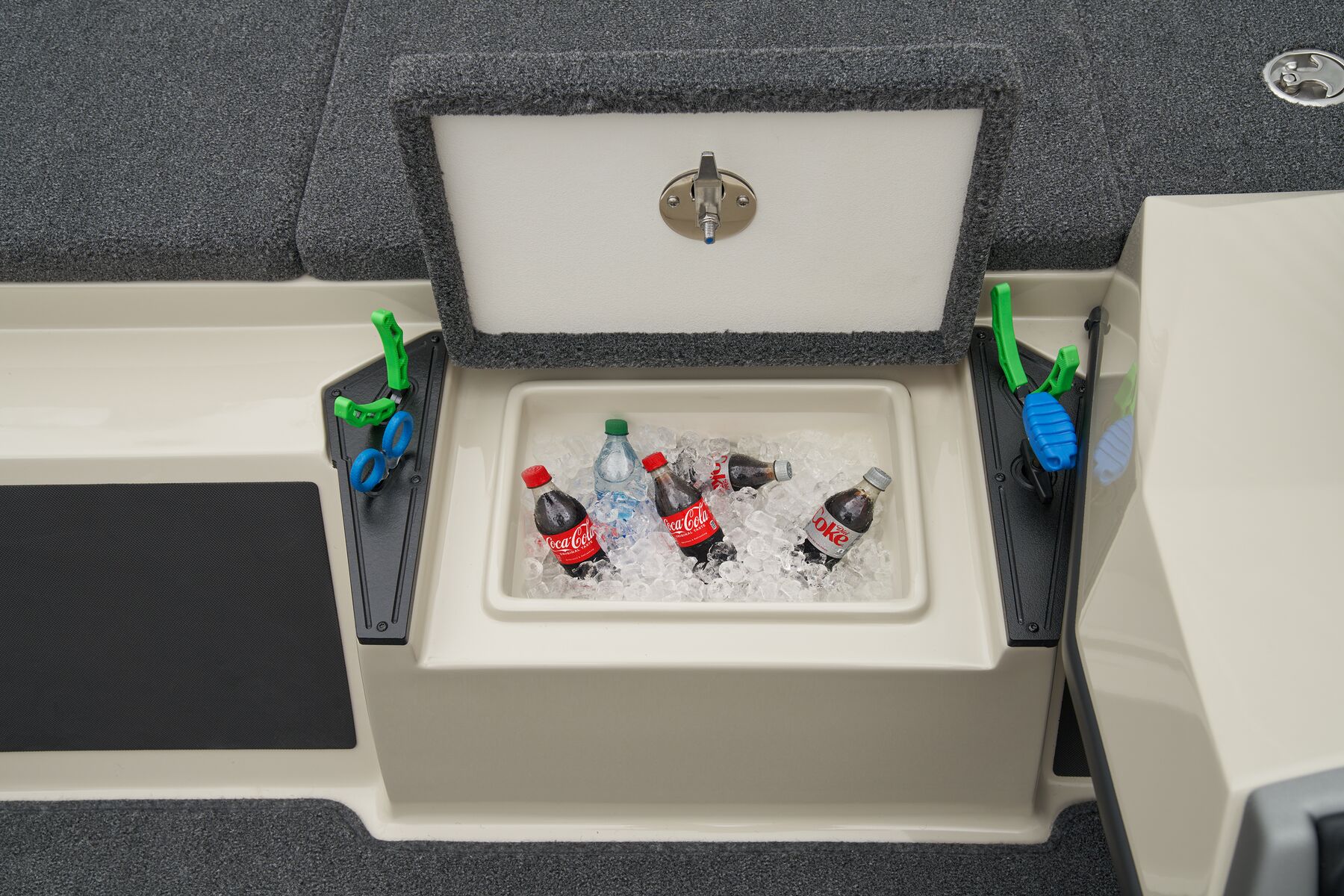

  • Insulated cooler w/ gelcoat liner & drain

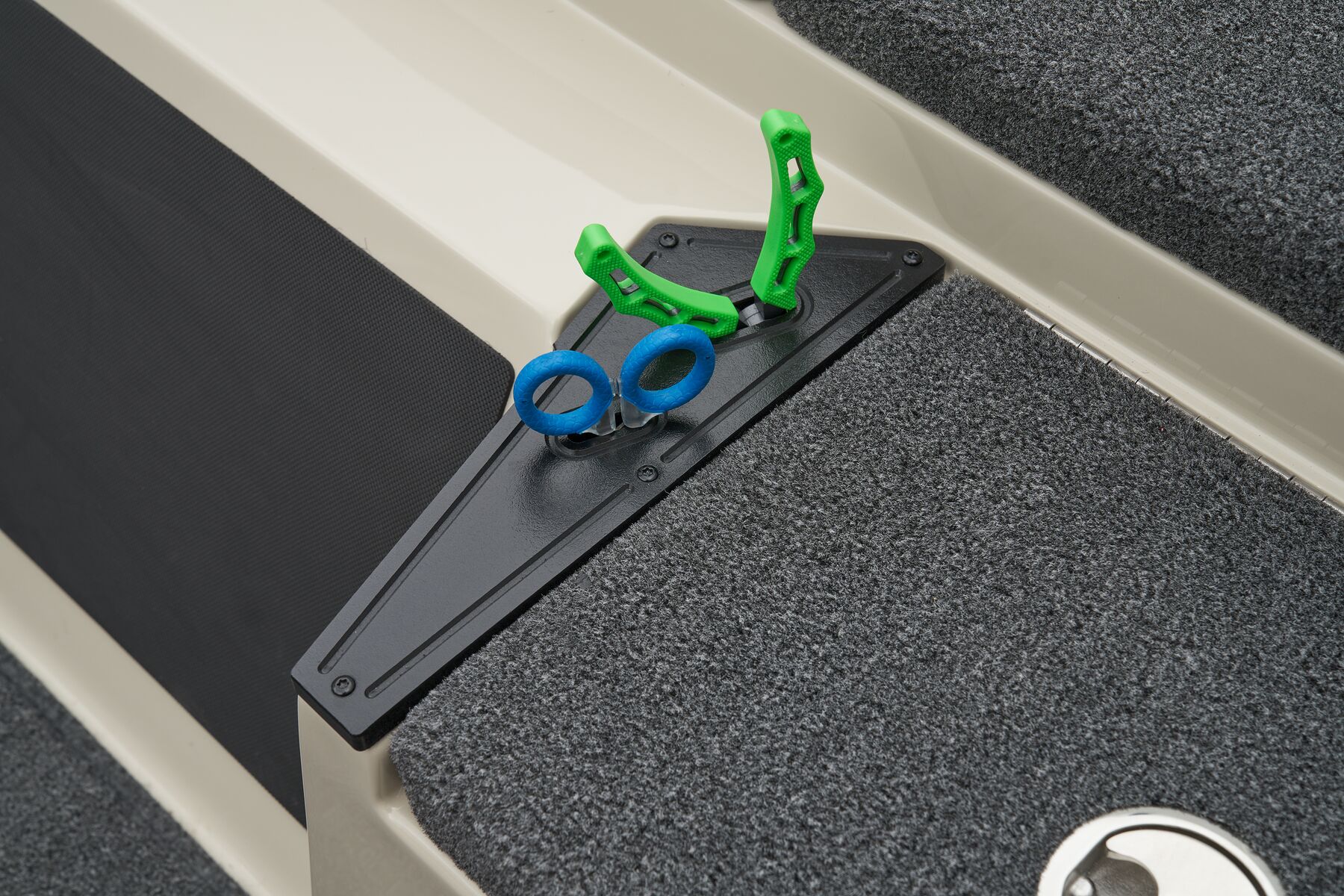

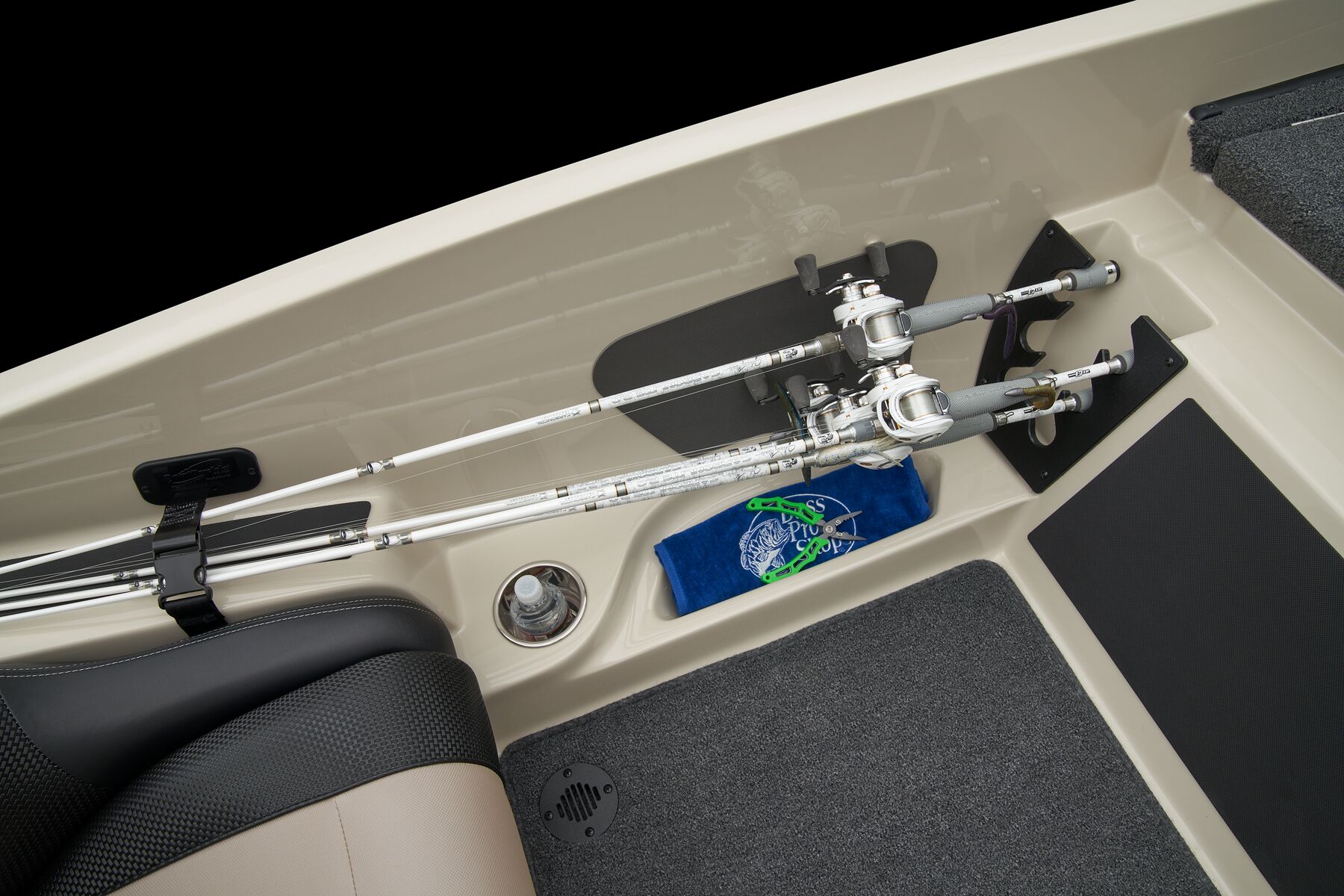

  • Runnin' rod rack w/ strap

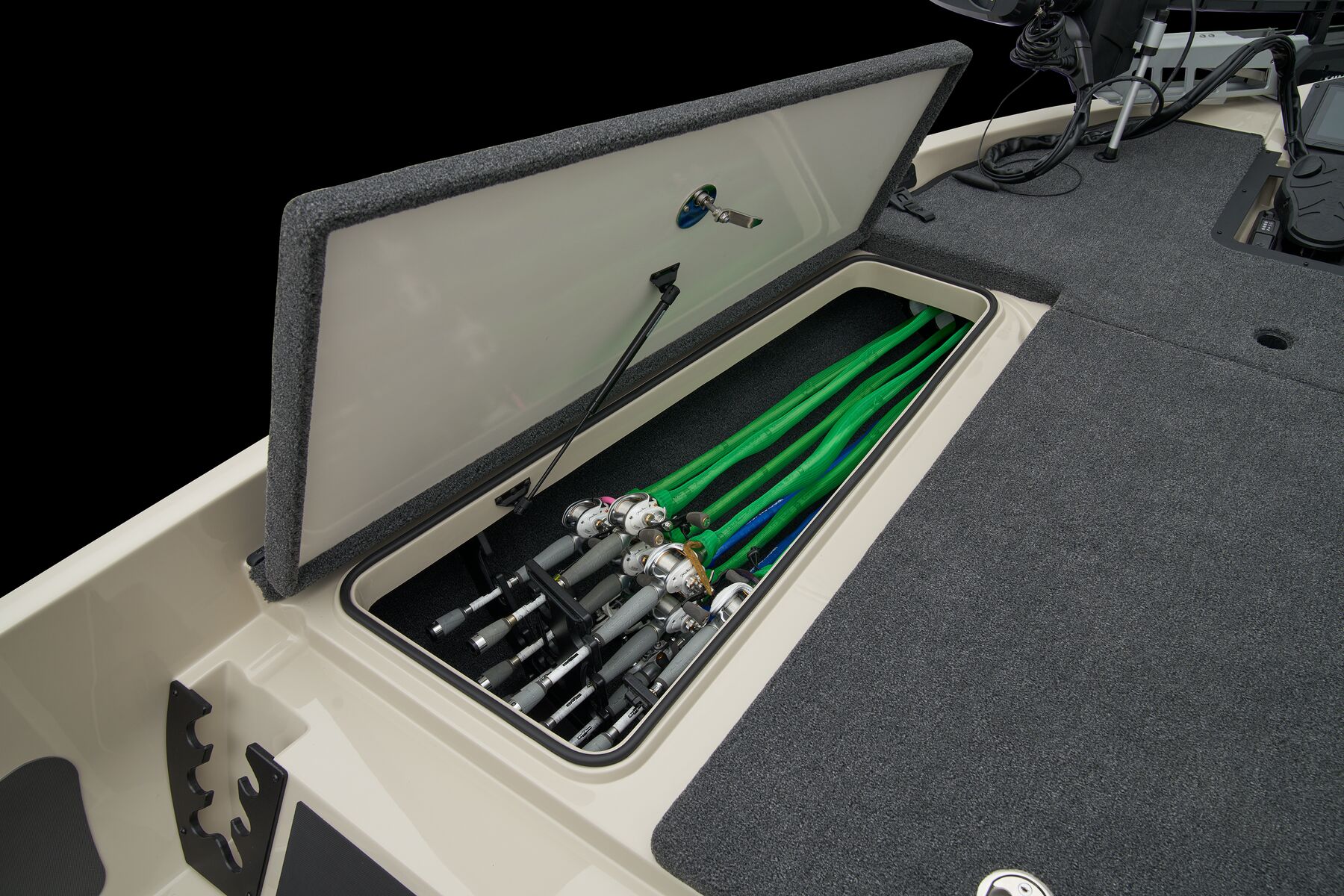

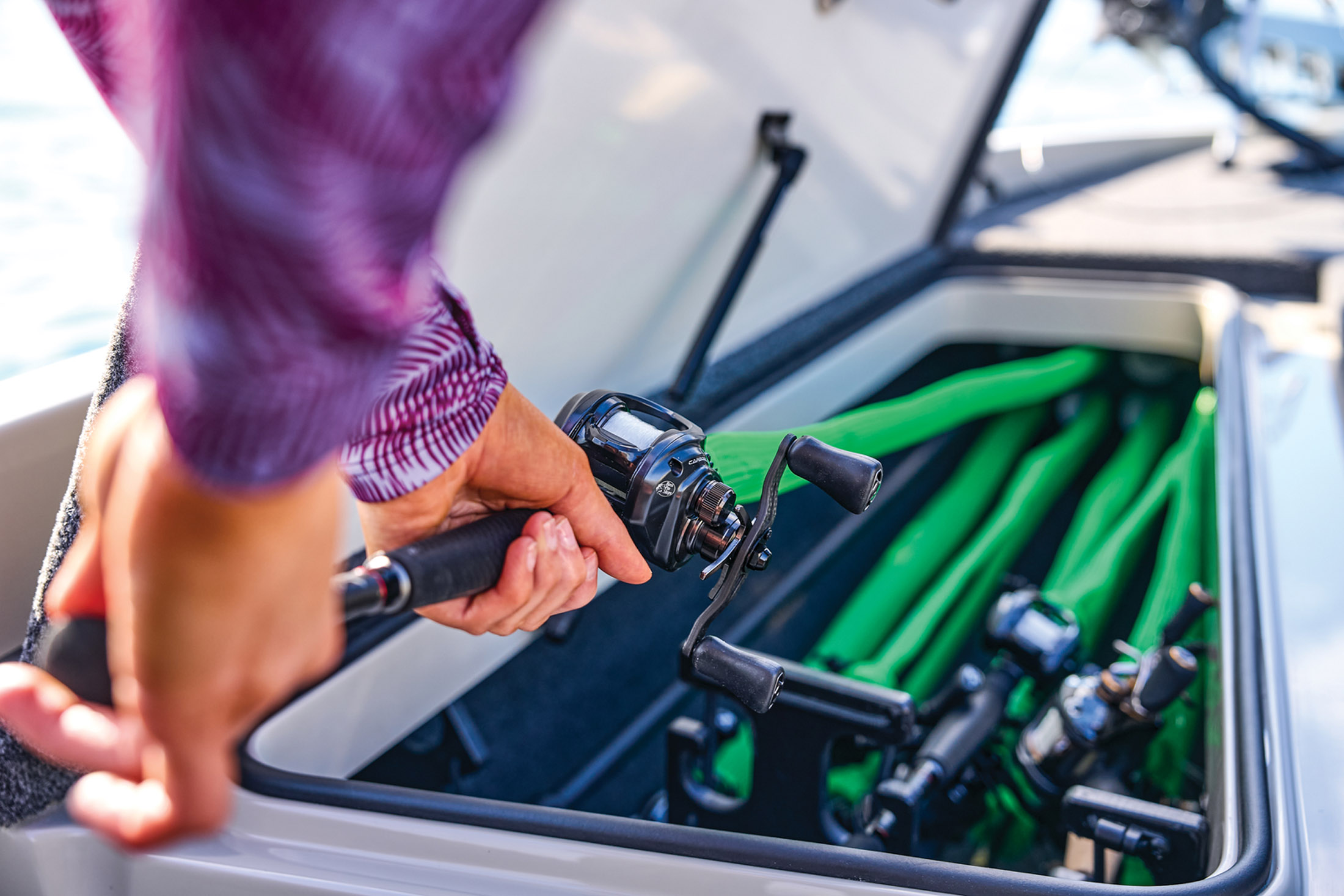

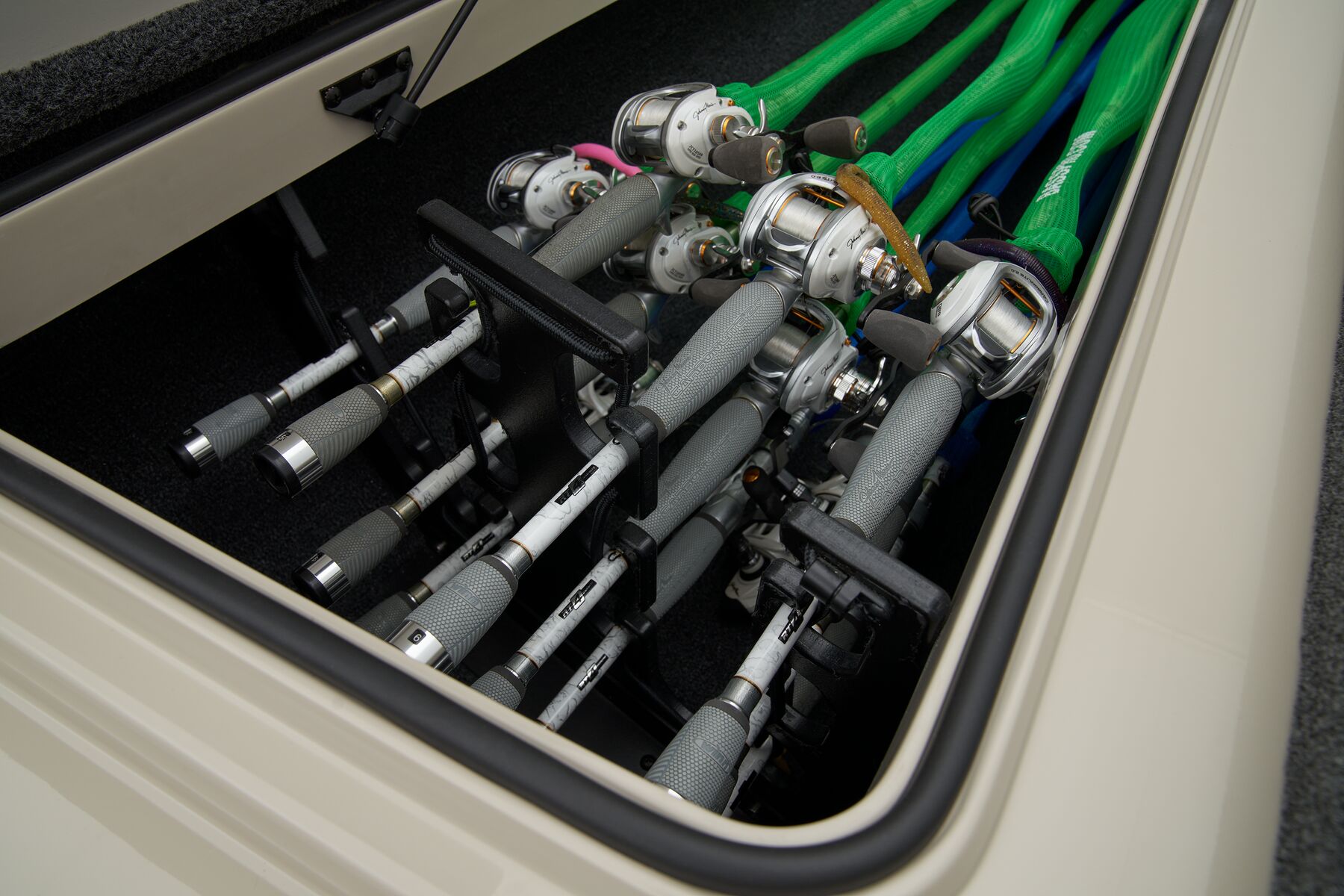

  • Rod storage w/ organizer

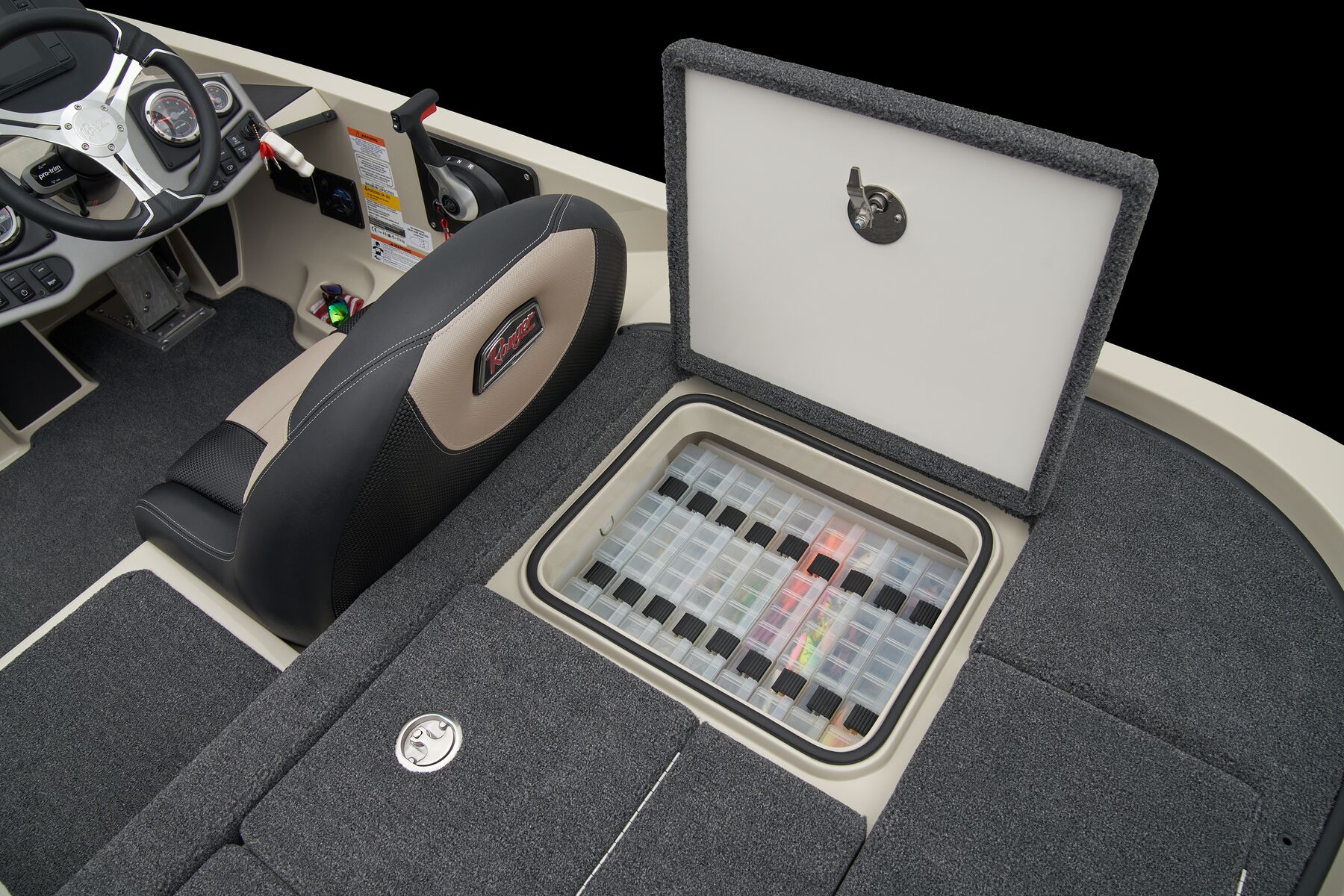

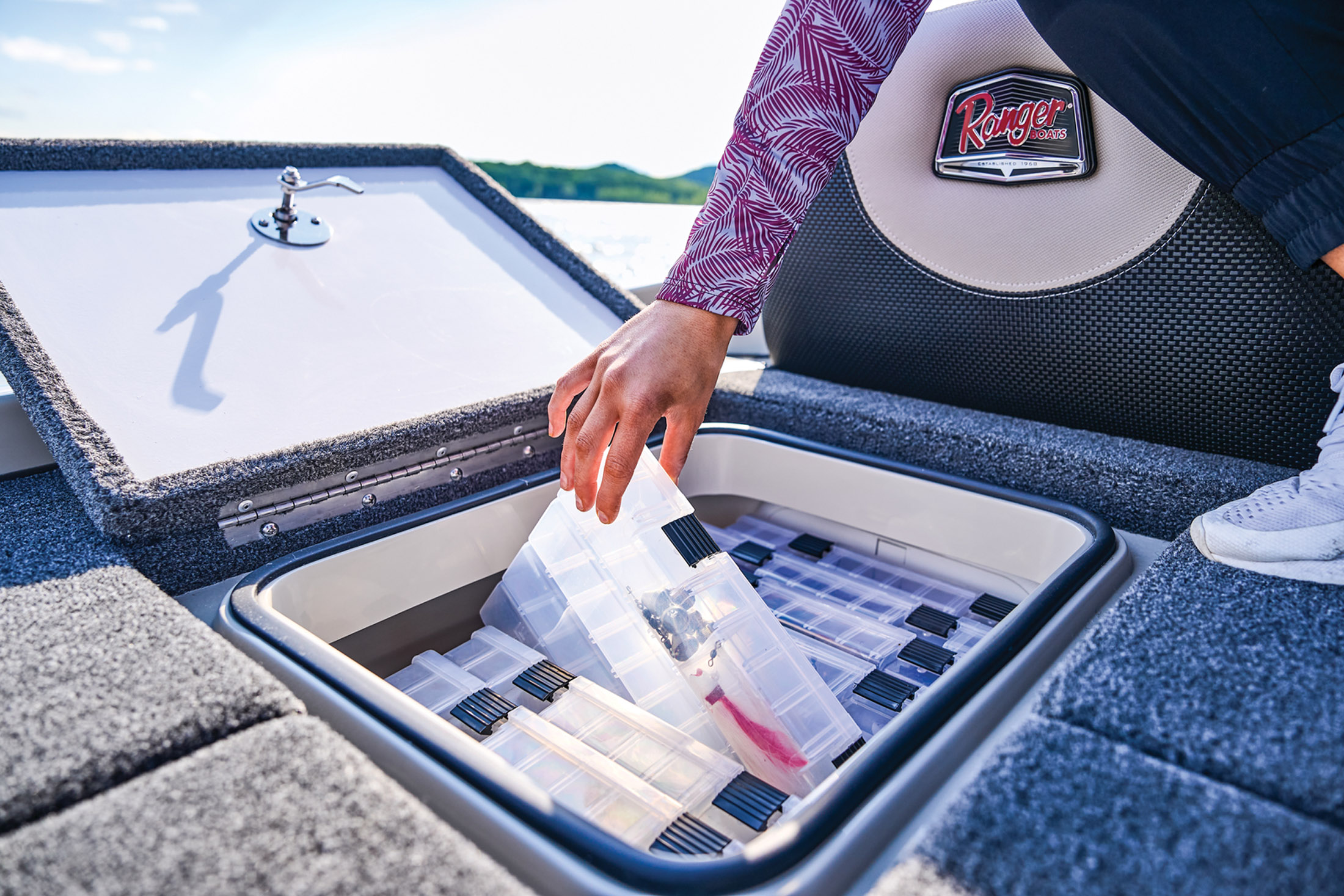

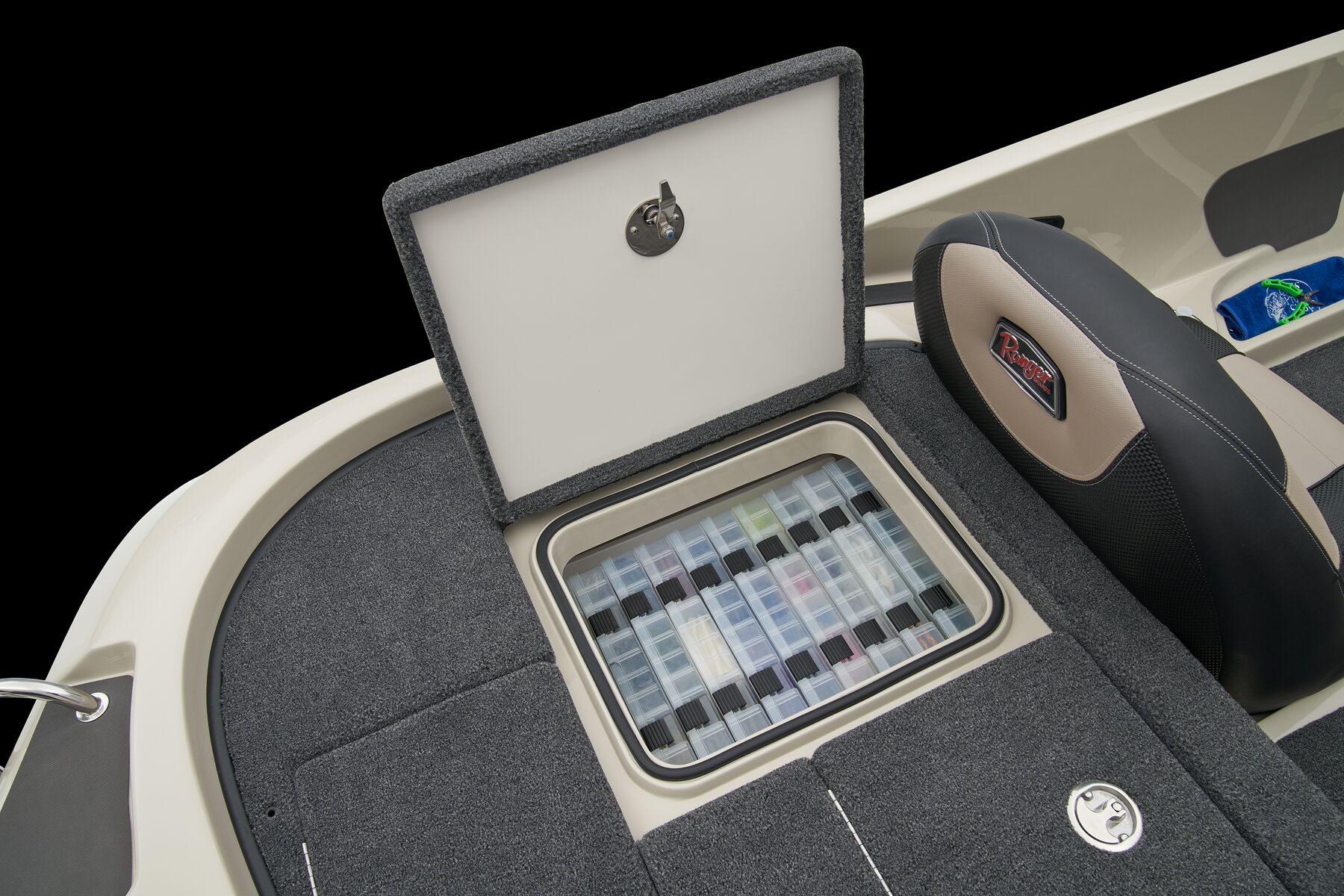

  • Integrated tackle organizer

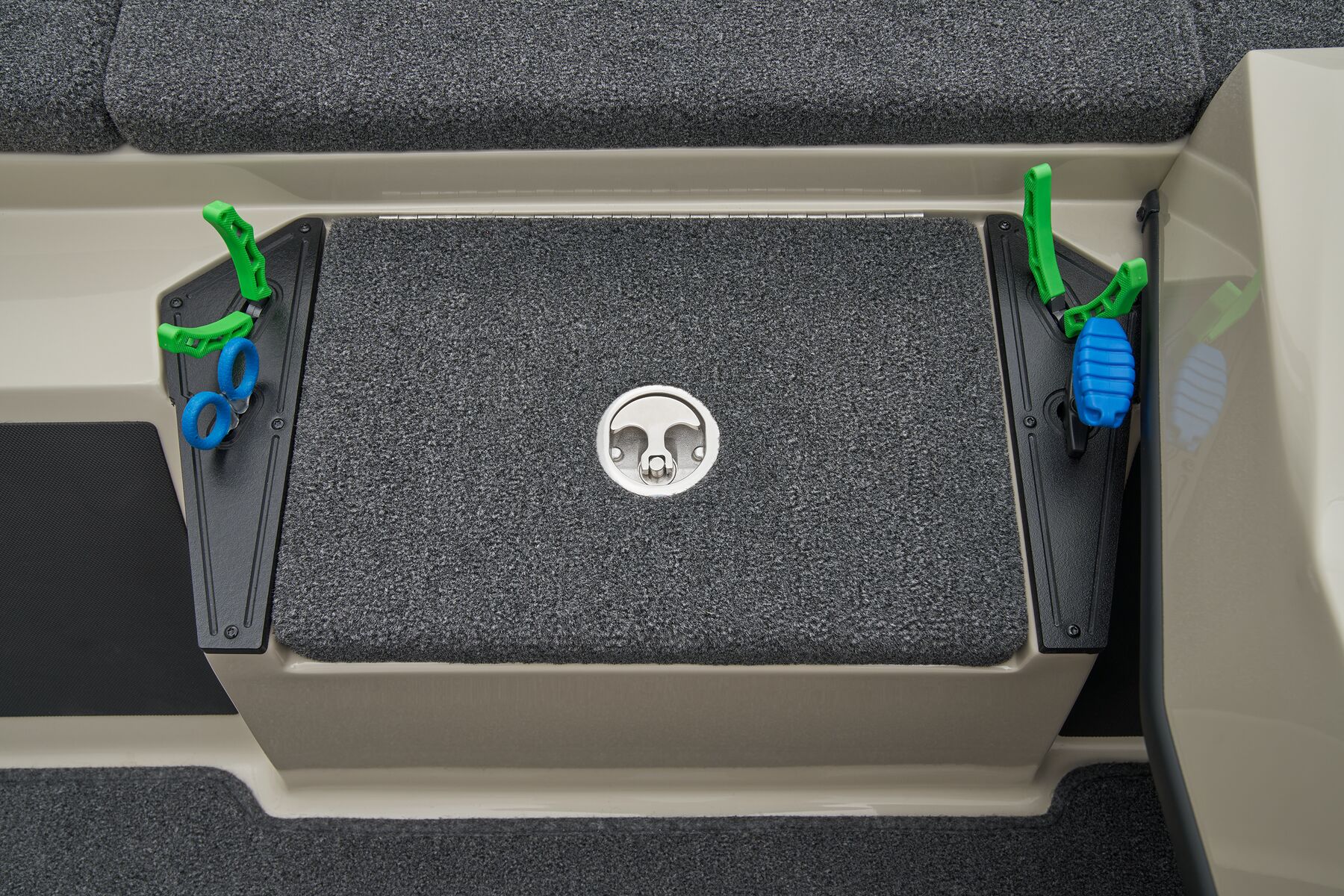

  • Lockable storage compartments
  • Stainless steel seat bases

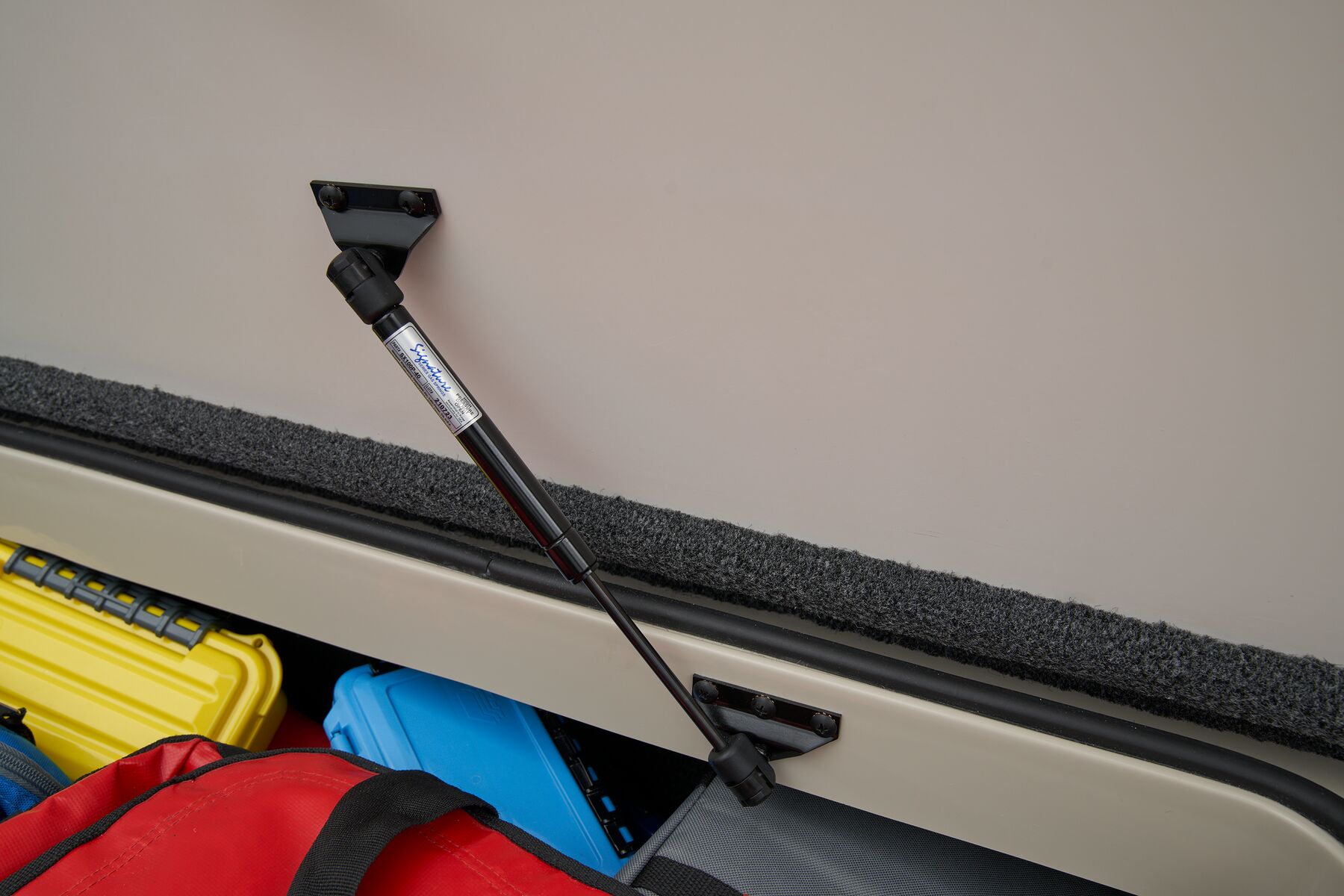

  • Gas spring lid assists
  • Carpet trim
  • Molded-in driver/ passenger footrests
