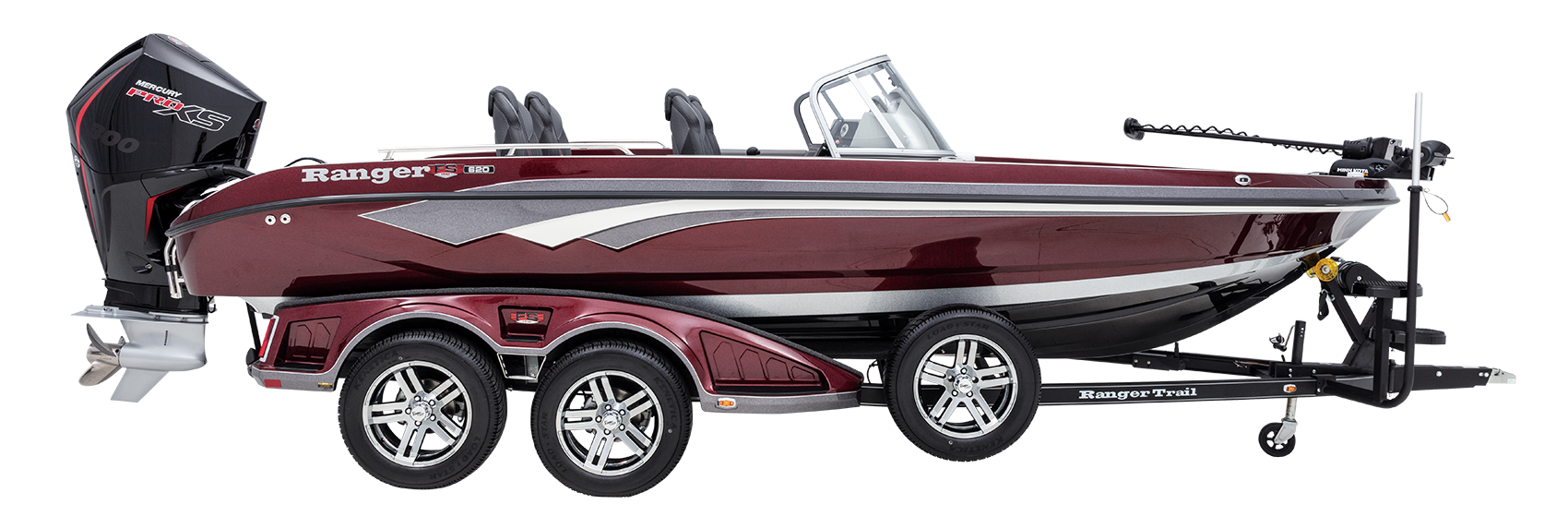

620FS Pro

w/ 250 XL Pro XS FourStroke Mercury®
Boat, Motor, & Trailer
View Price w/ Prep & Freight:

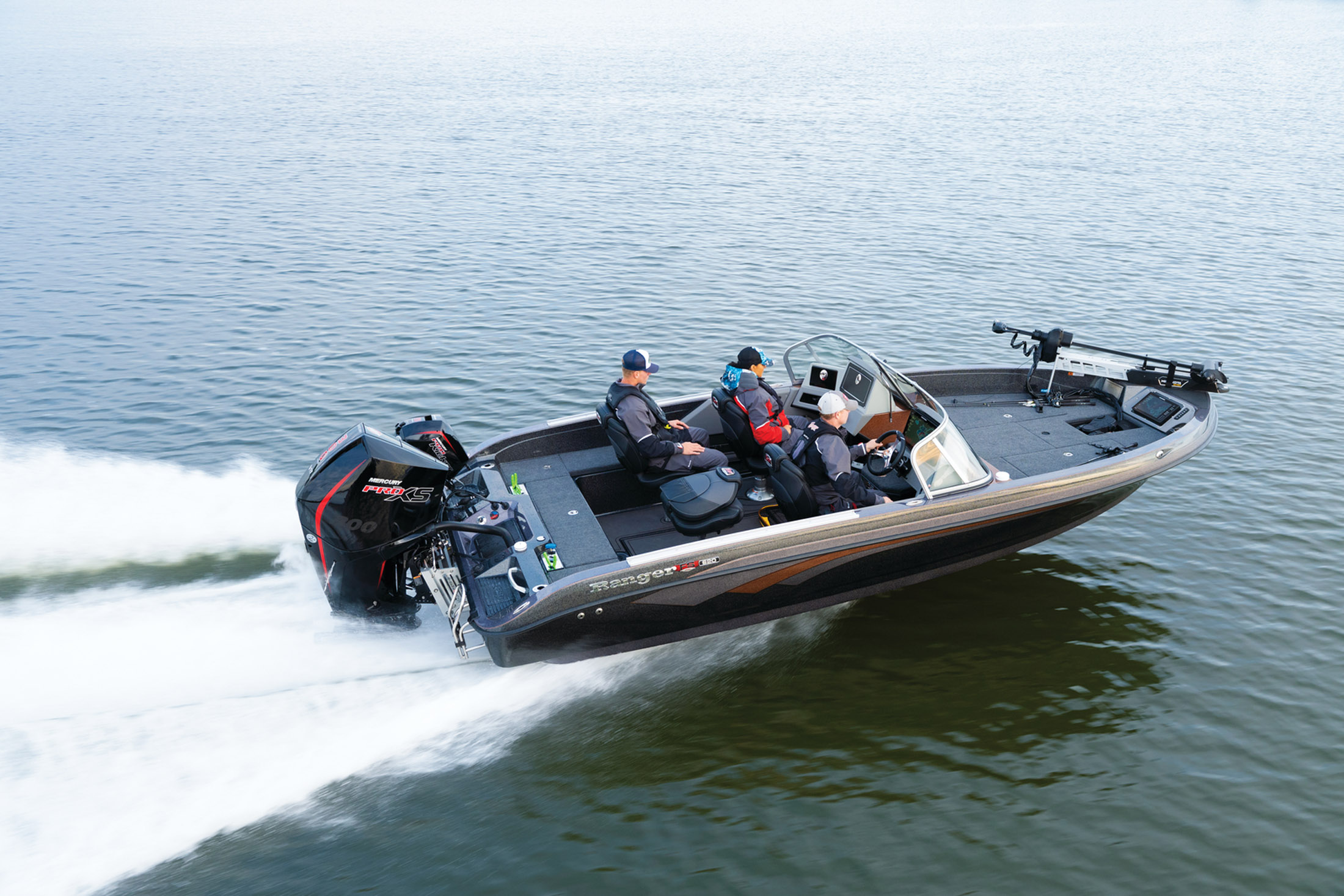

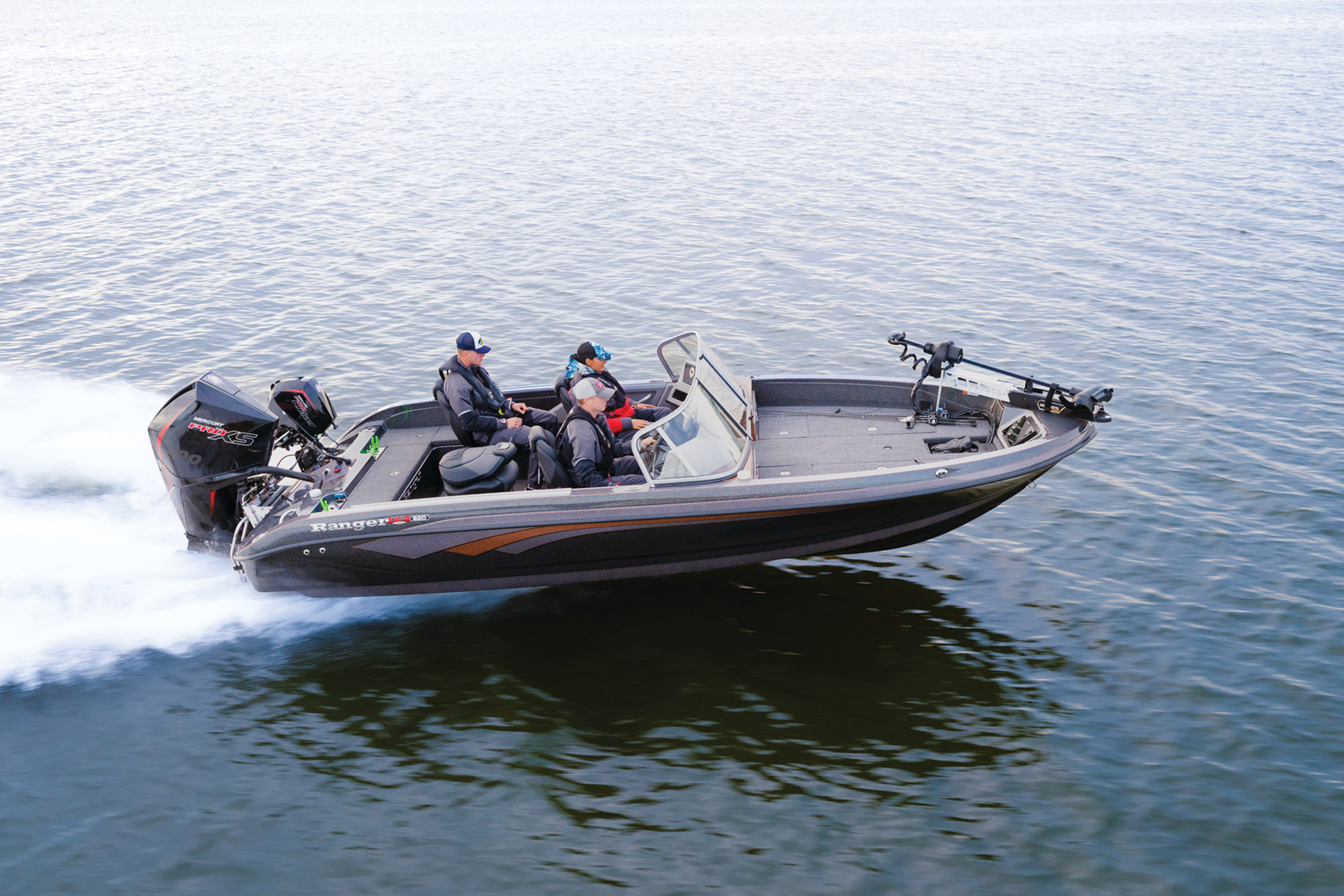

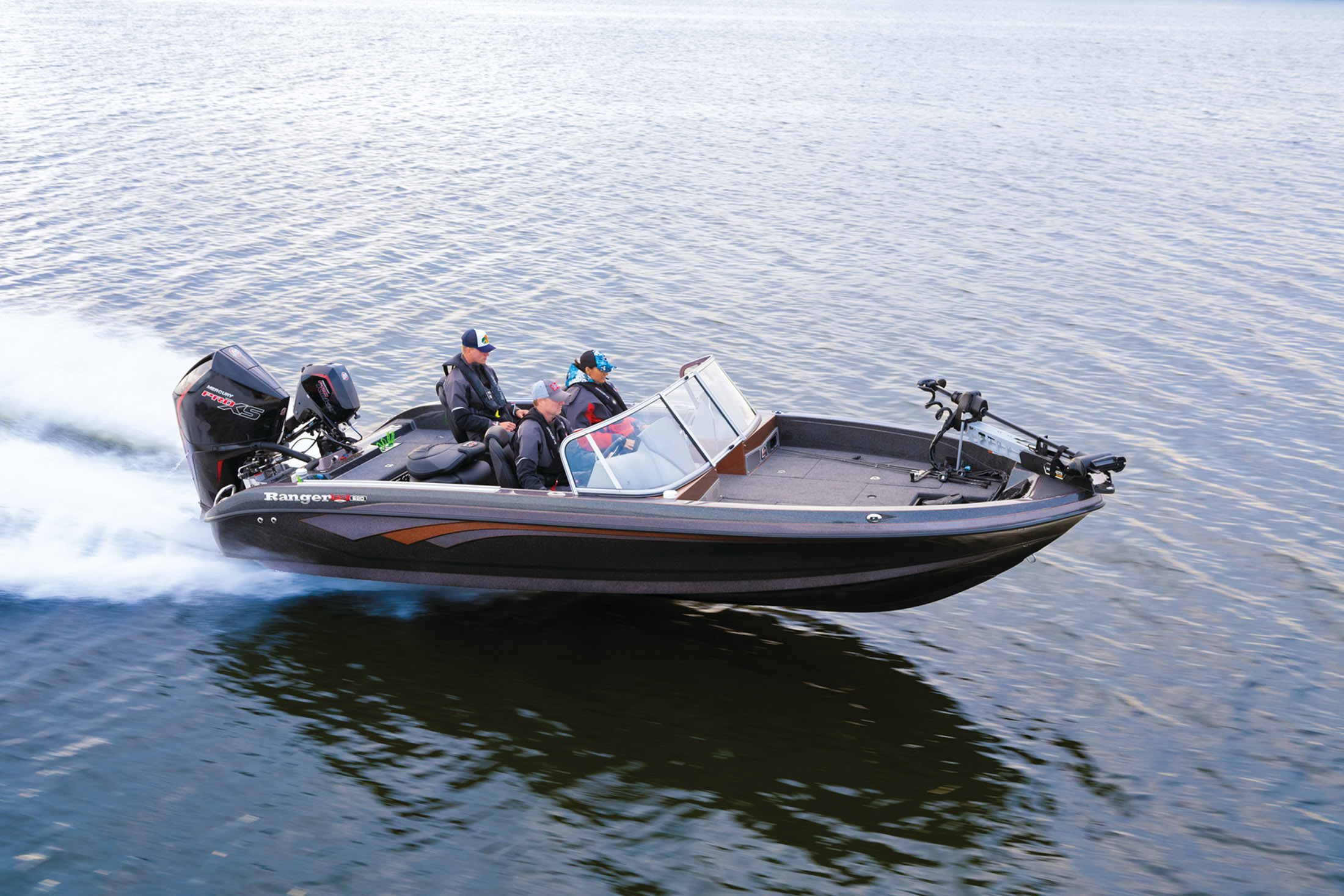

Handcrafted to offer more fishability and performance in a 20-foot Deep V, the Ranger® 620FS PRO carries brute strength with refined comfort and a brilliant layout that is the perfect platform for casting or trolling.

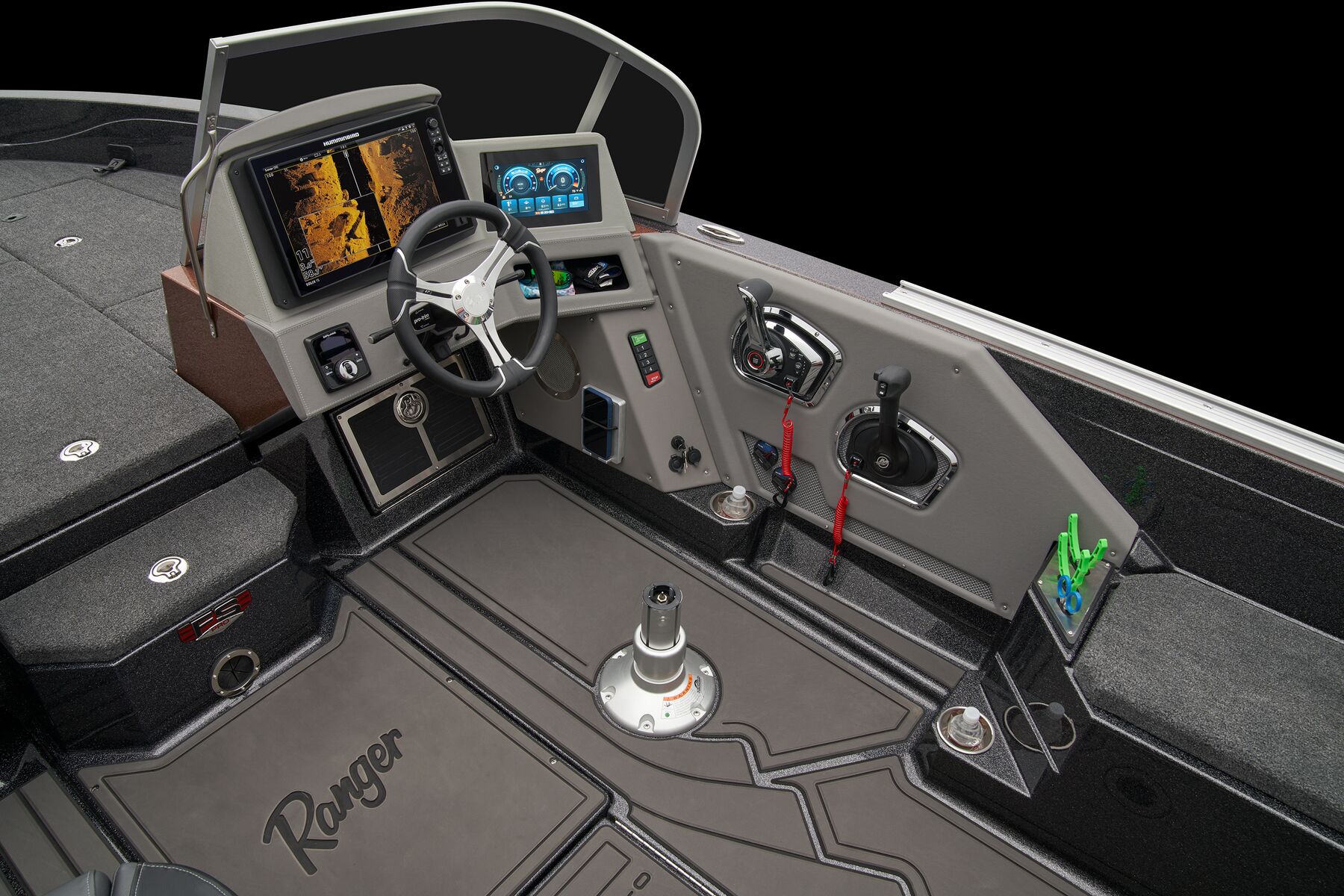

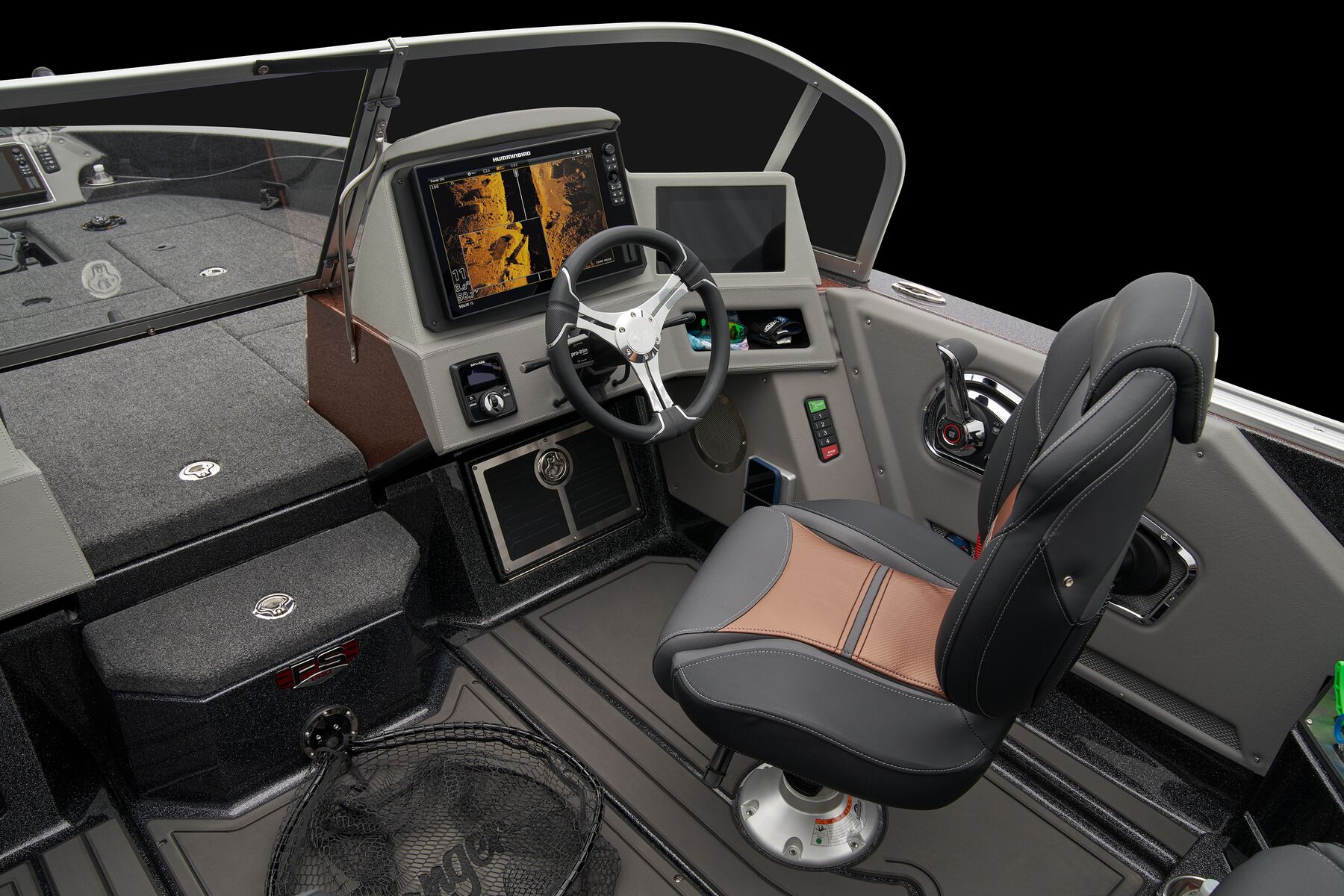

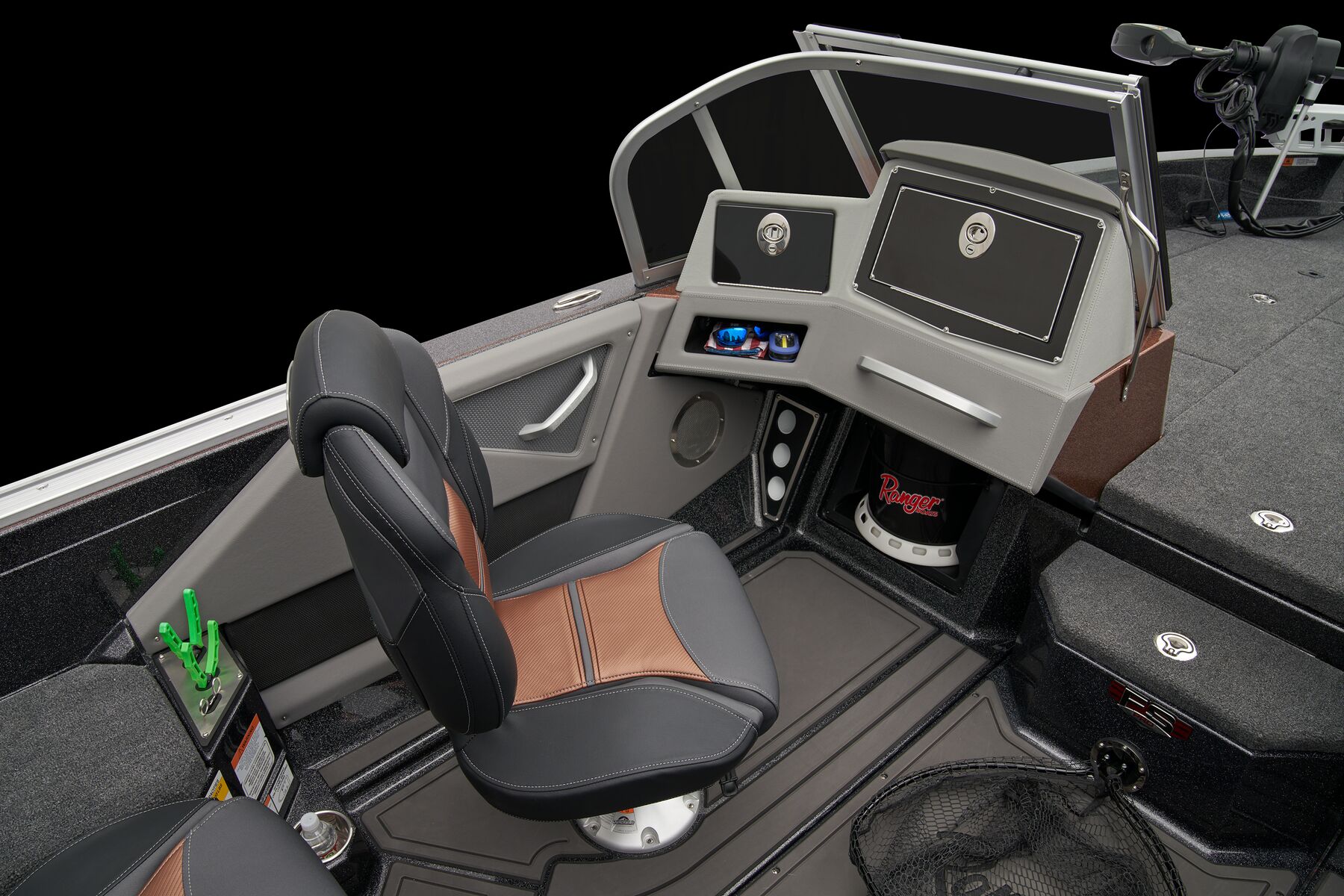

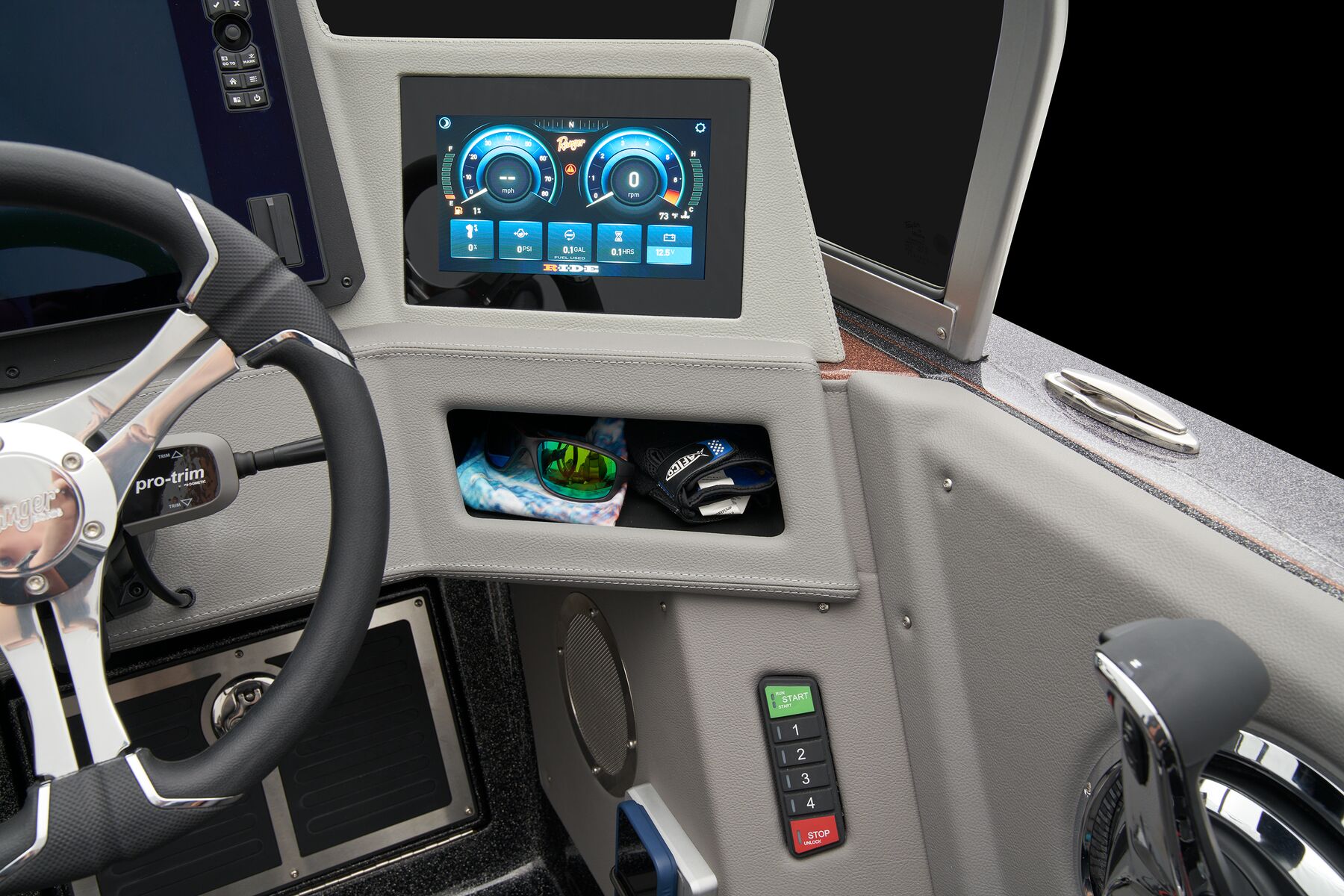

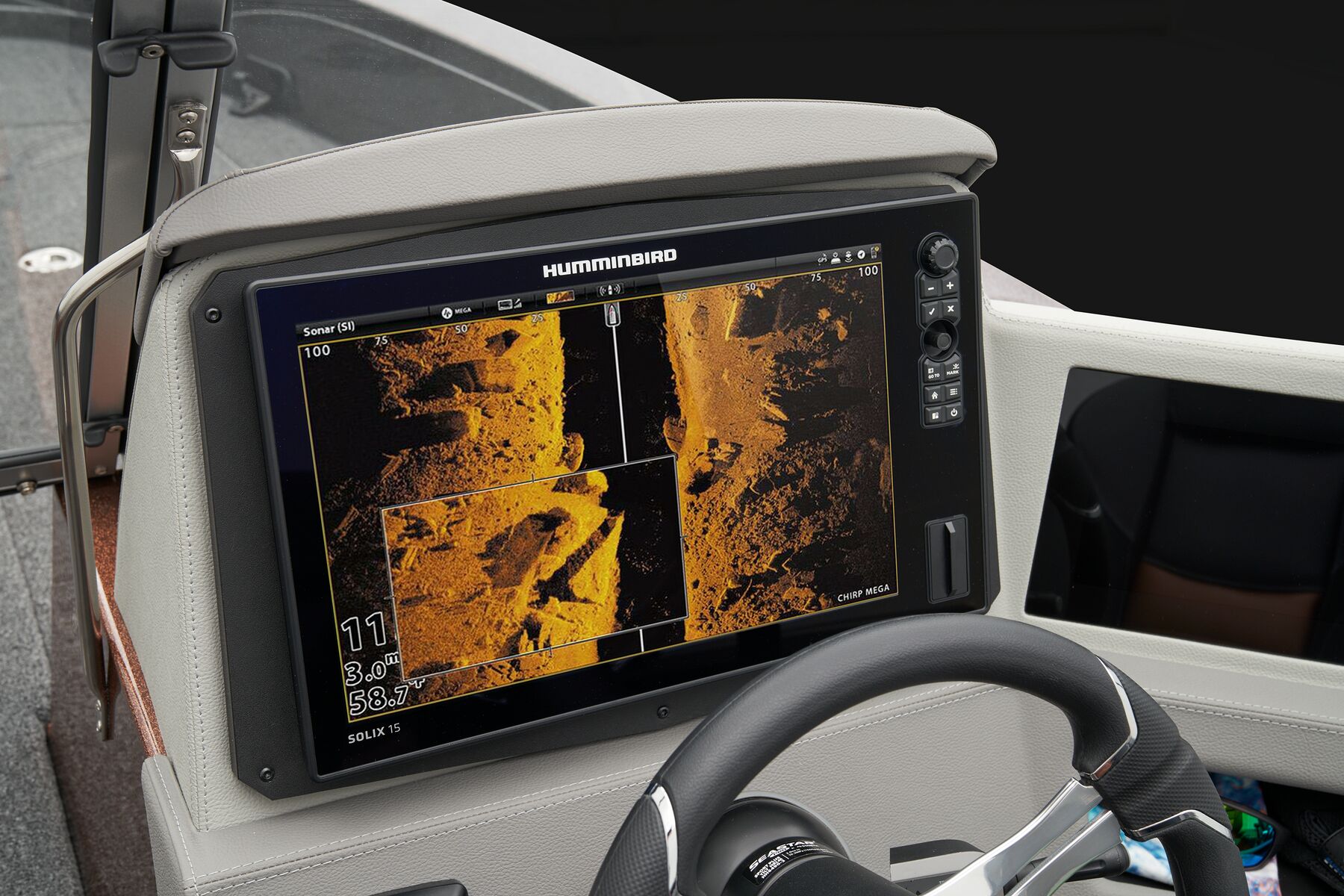

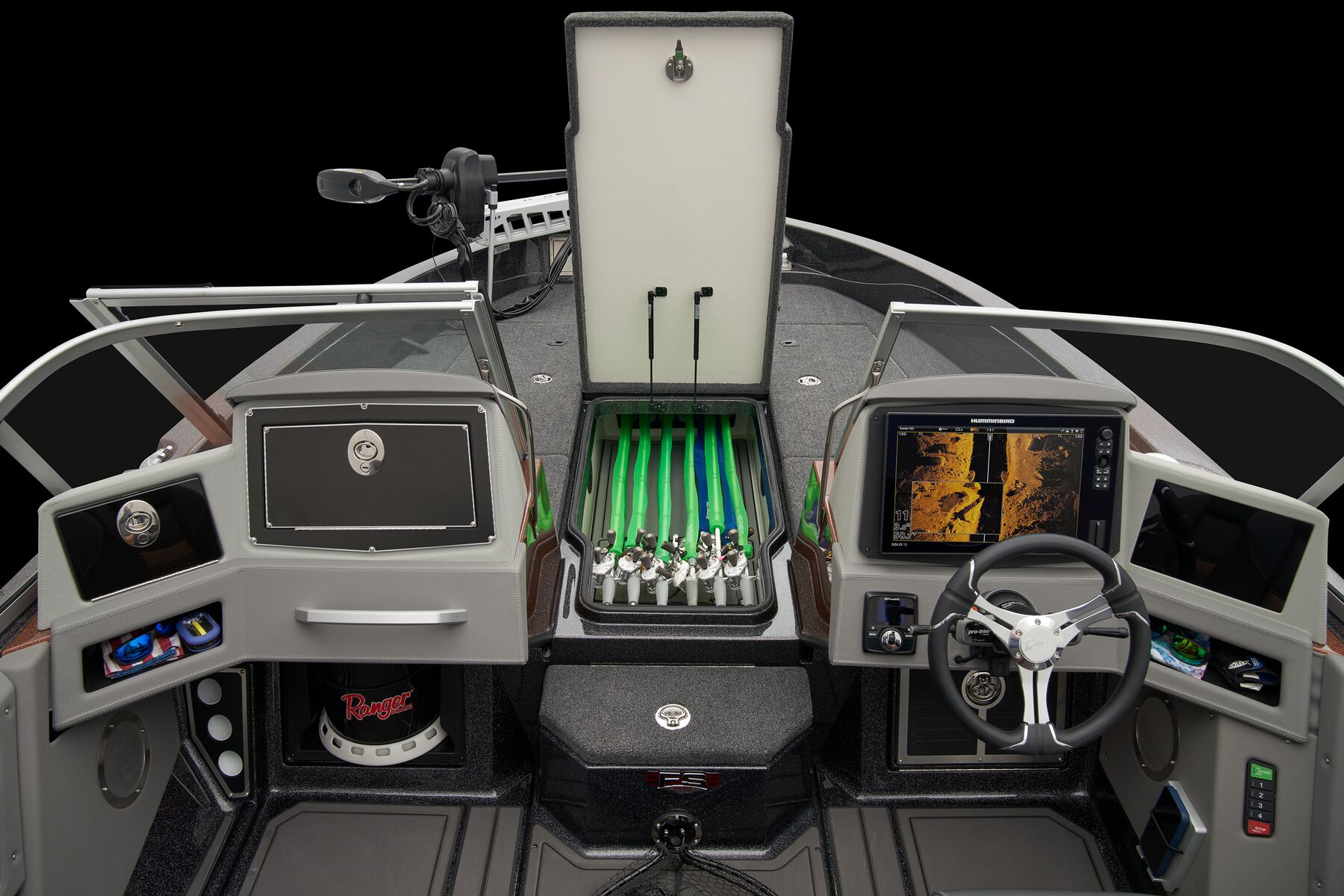

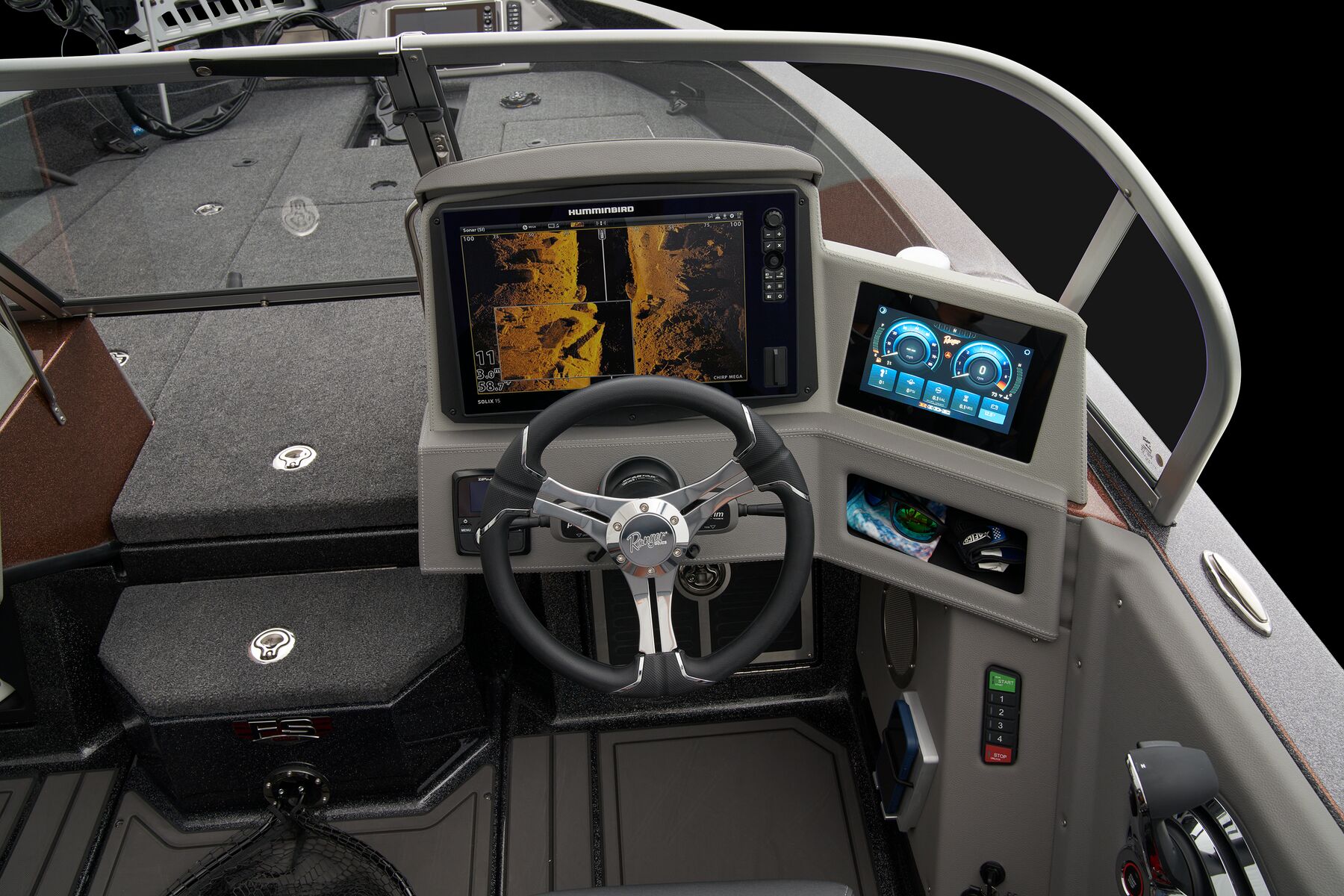

At the helm resides the Ranger RIDE system, and from this 9” touchscreen you can control every critical aspect of your boat from livewells, stereo, lighting, Zipwake™ trim tabs, security and more as well as monitor your outboard in real-time. Consoles provide more storage and convenience with dual glove boxes on the passenger side, while the driver’s can flush-mount a screen up to 16” right where you want it—front and center. The phone management stations provide wireless mobile charging capability as well as USB and 12V outlets.

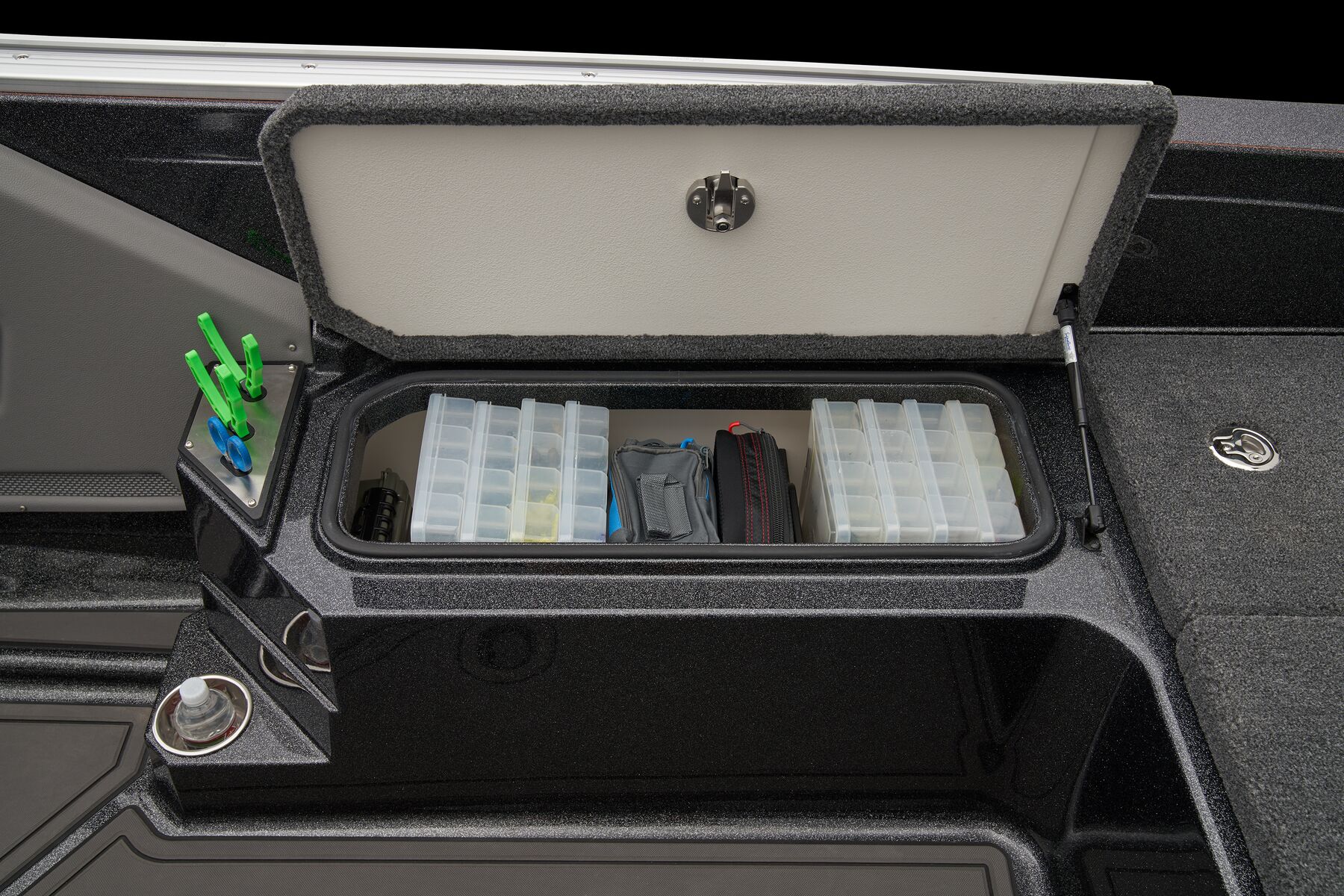

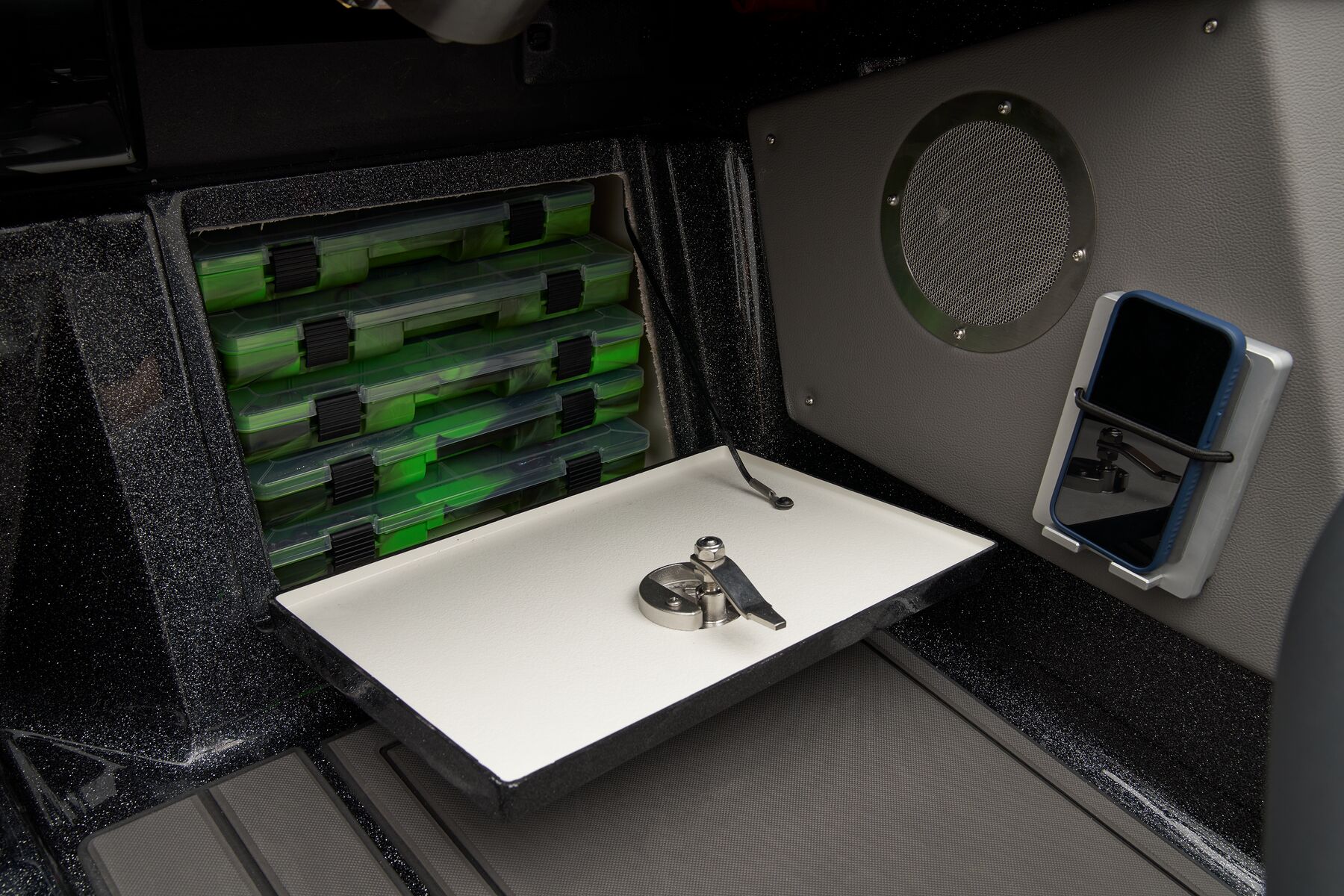

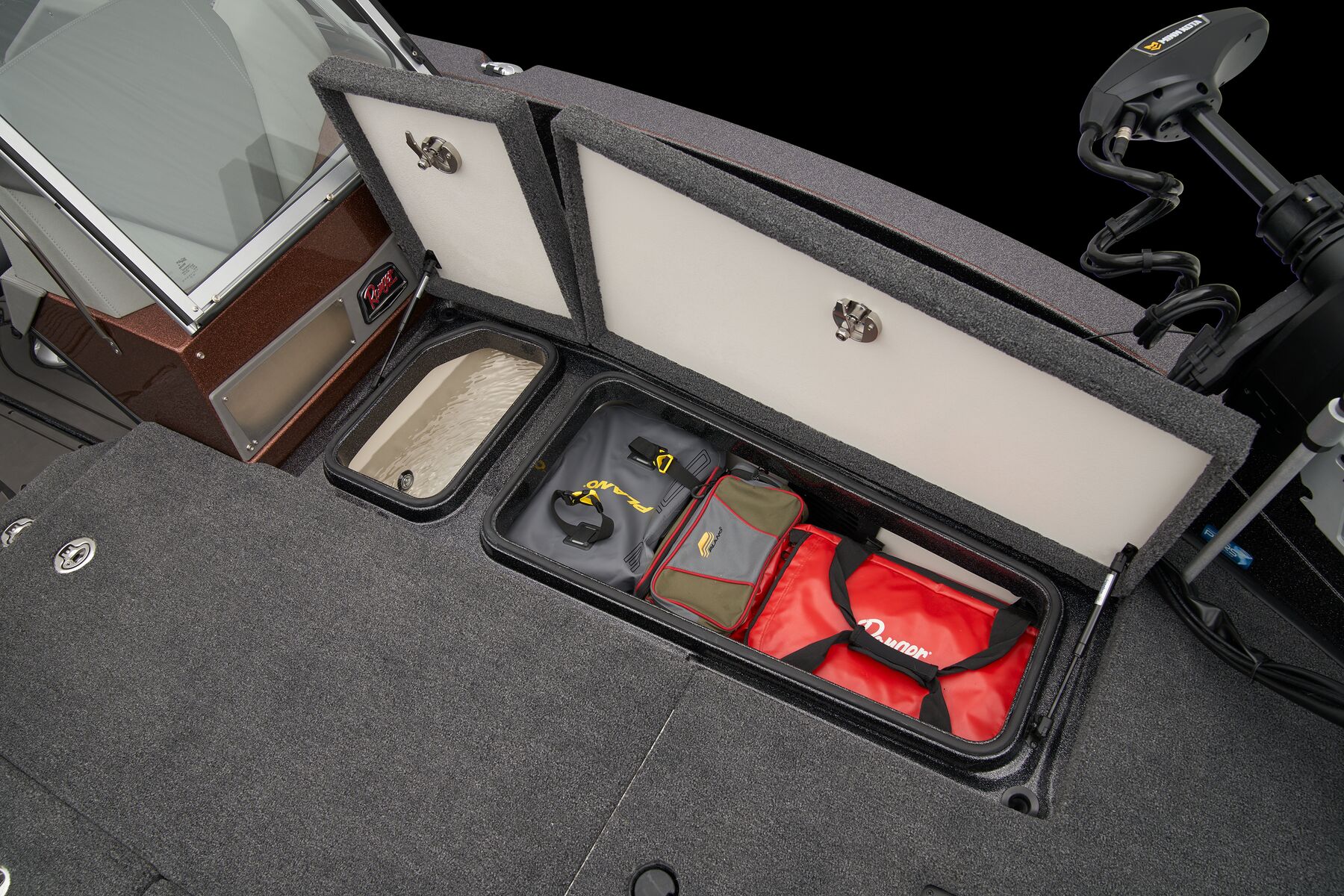

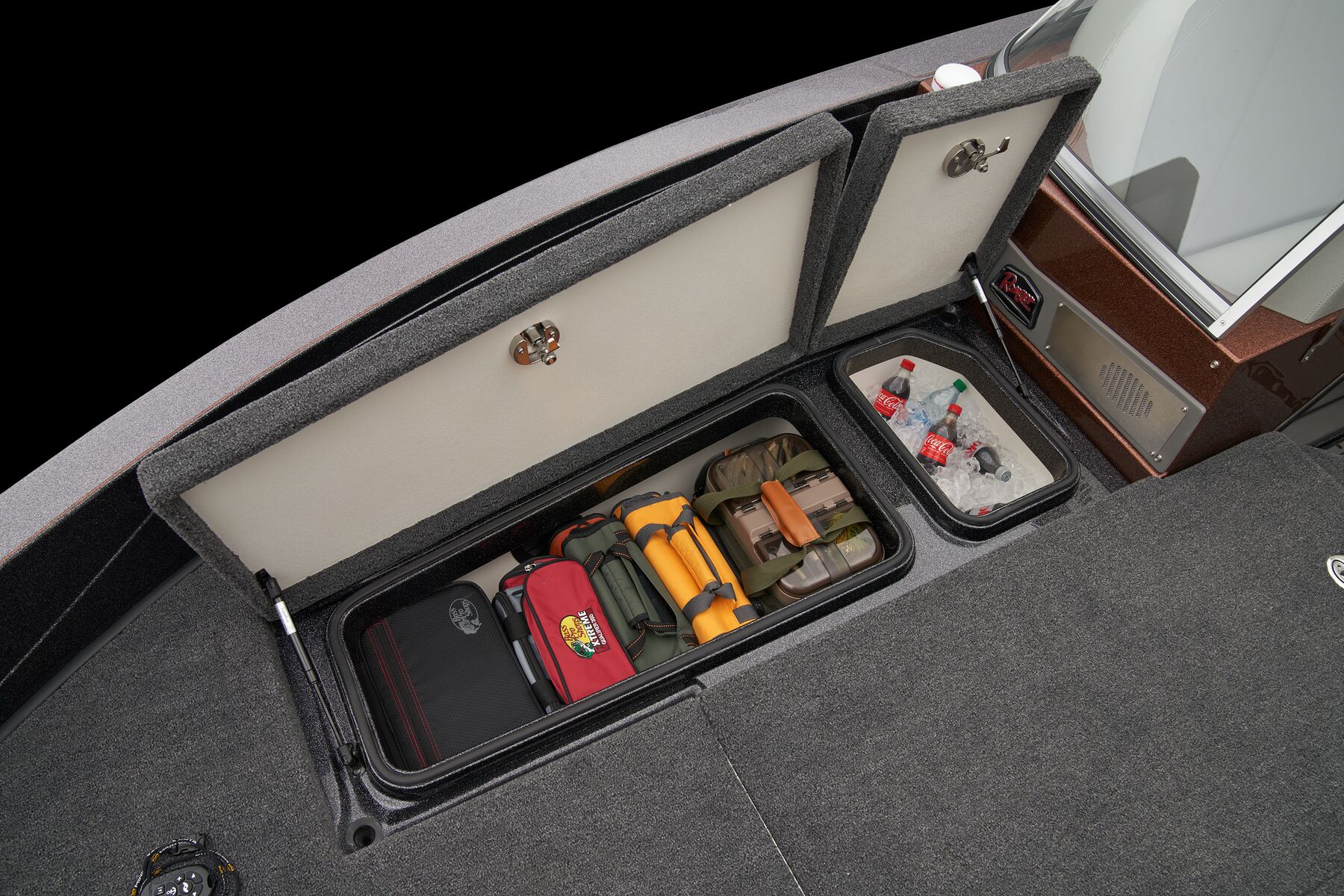

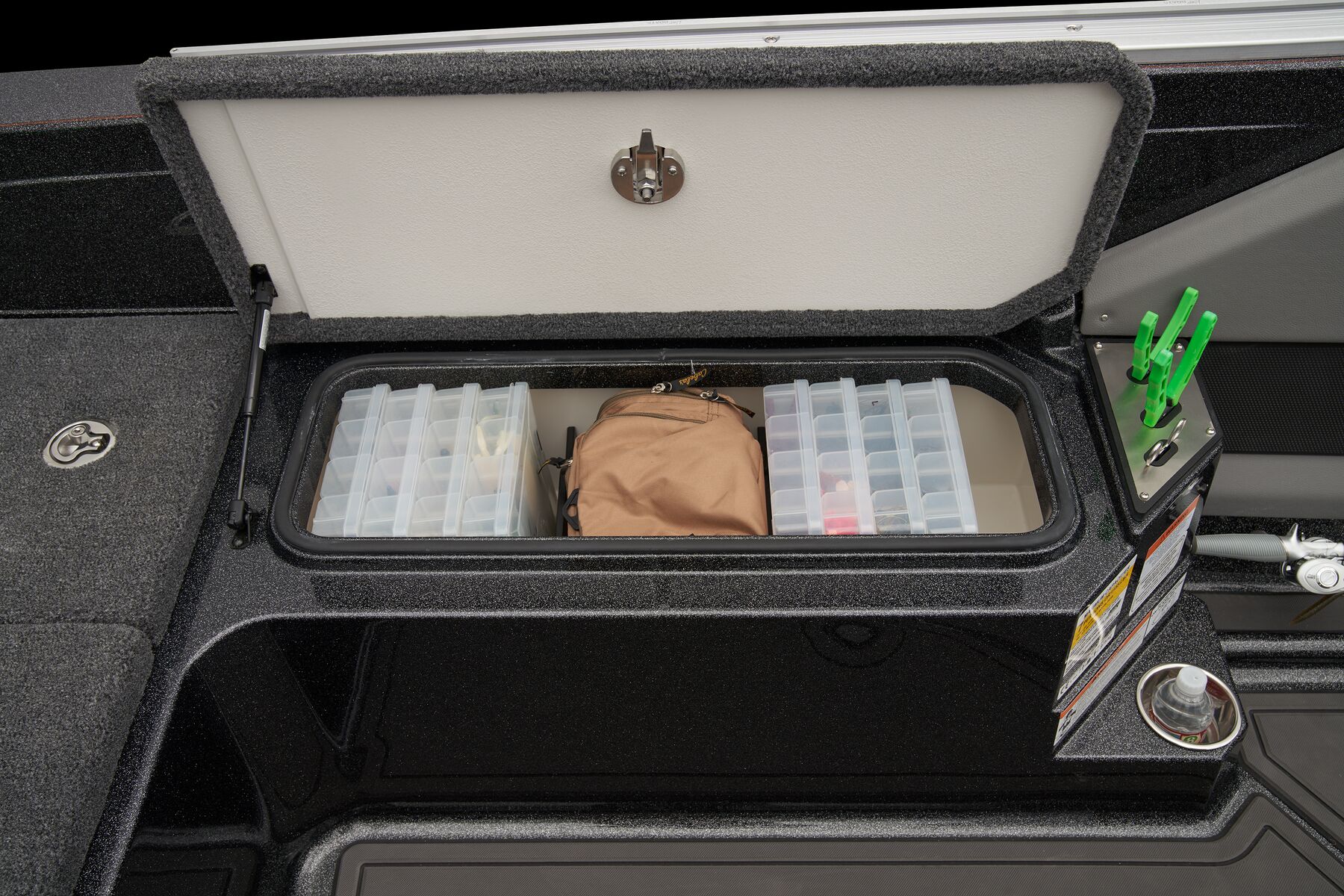

Complementing the wealth of features are time-honored and perfected Ranger build protocols and quality, from our upright and level flotation, pultruded transom, and world of foam flotation. Plus, enlarged cockpit storage boxes holds scores of vertically oriented tackle boxes for more space than ever.

Key Features

  • Upholstered brow with accent stitching wraps the driver's console and reduces glare on electronics

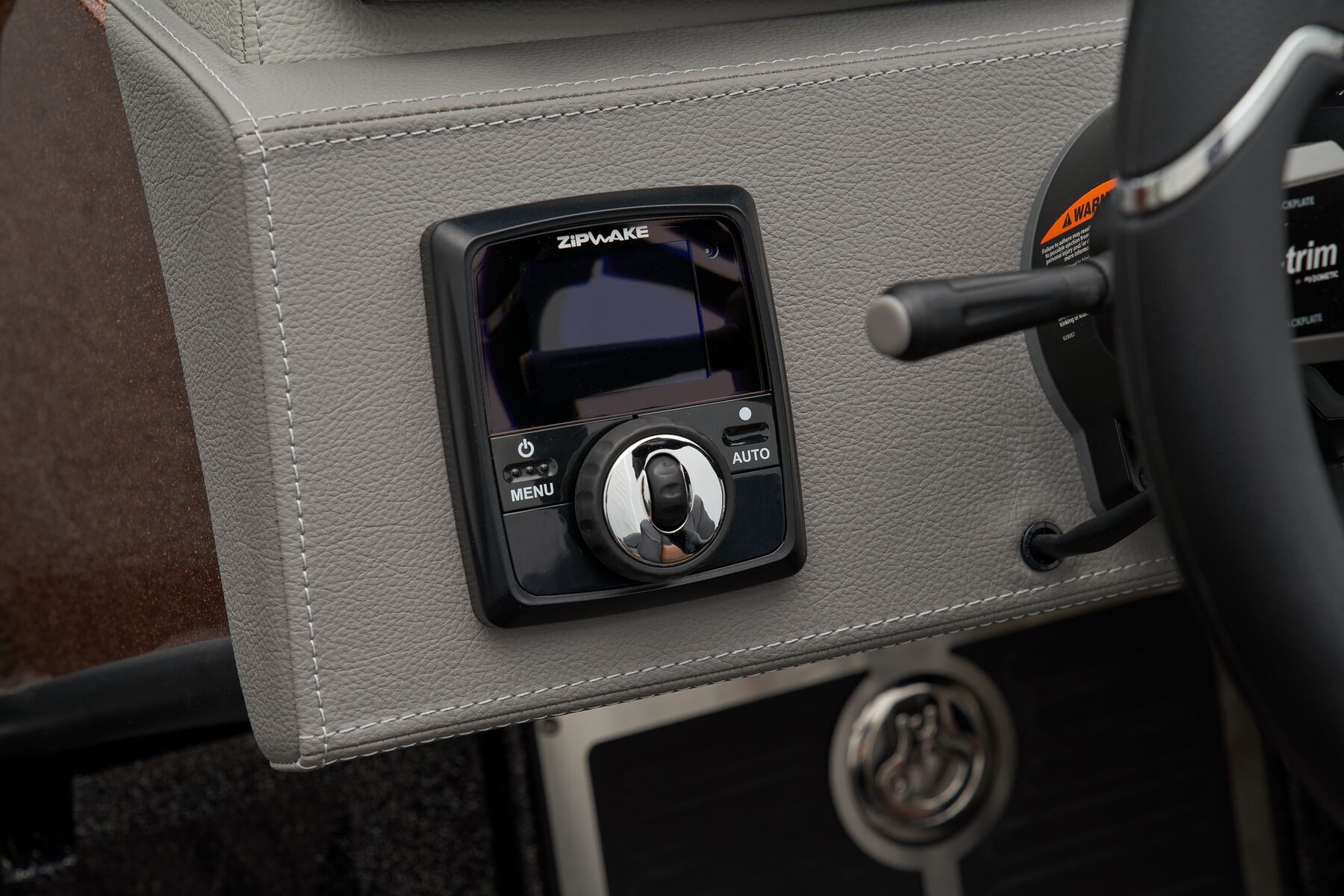

  • Integrated Zipwake™ trim tab slots
  • Concealed LED cockpit lighting
  • Drained, fully finished and gelcoated boxes throughout
  • Trolling motor foot pedal recess storage



Length 6.27 m 20' 7''
Beam 2.59 m 102''
Max. Recommended HP 300 HP
Engine Shaft Length 63.5 cm 25''
Inside Depth 62.23 cm 24.5''
Fuel Capacity 193.04 L 51 gal.
Livewell Capacity 105.98 L 28 gal.
Baitwell Capacity 26.5 L 7 gal.
Total Person, Motor, Gear 975.22 kg 2150 lbs.
Approximate Boat Weight 1088.62 kg 2400 lbs.
Rod Box Length - Center Row 1 2.59 m 8' 6''
Rod Box Length - Center Row 2 2.44 m 8'
Max. Person Capacity 7 persons
Trailer GVWR 2630.84 kg 5800 lbs.
Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate) 7.7 m 25' 3''
Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate) 7.09 m 23' 3''
Width On Trailer 2.59 m 102''

Motor Options

250 XL Pro XS FourStroke
Select Dealer
250 XL Pro XS FourStroke DTS
Select Dealer
300 XL FourStroke
Select Dealer
300 XL Pro XS FourStroke
Select Dealer
300 XL Pro XS FourStroke DTS
Select Dealer
Mercury® Verado®
250 XL
Select Dealer
300 XL
Select Dealer

Standard Features

Custom Details
  • Patented Power Ventilation Rod Storage™
  • Hamby's keel protector
  • Soft-touch skid-resistant cockpit floor

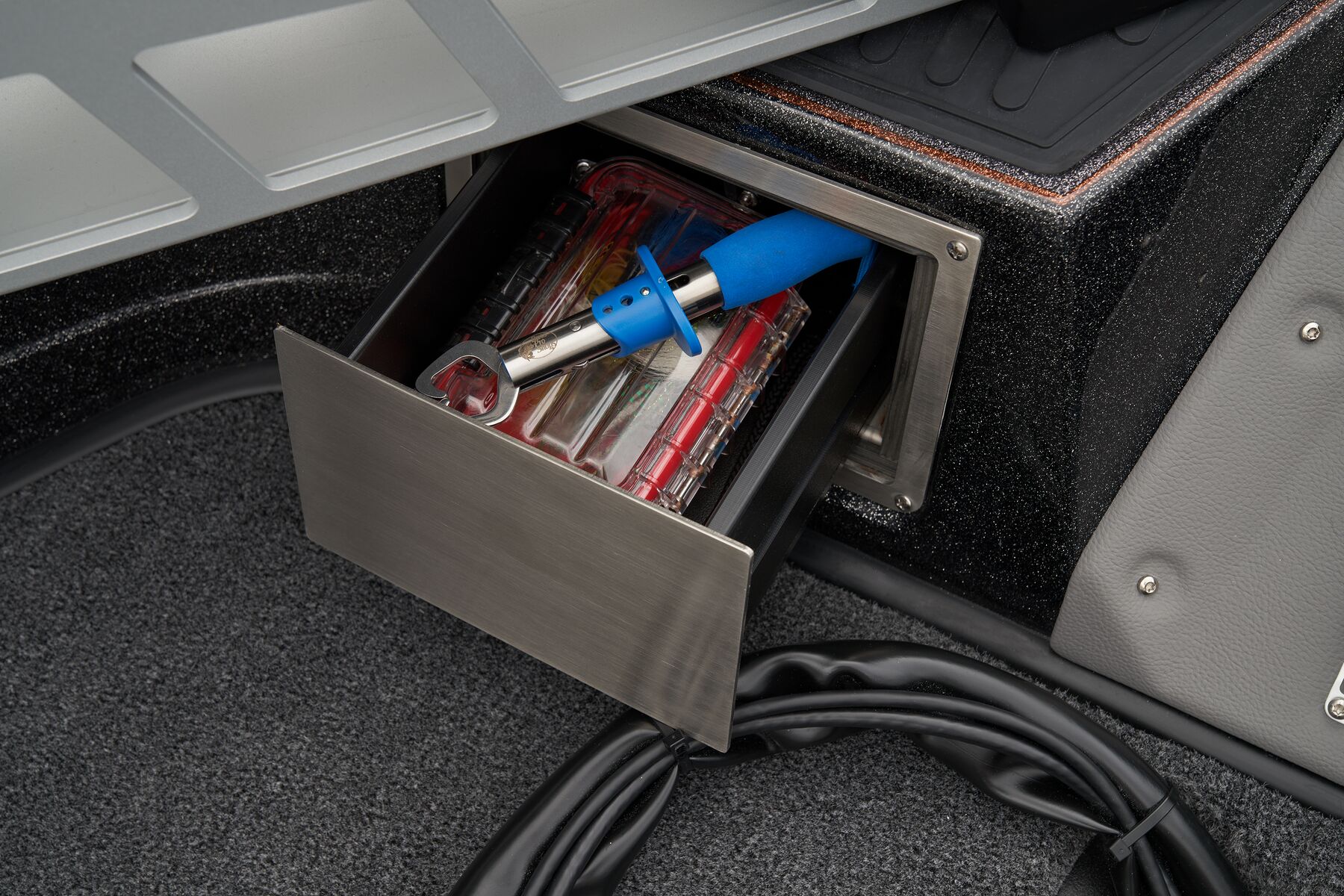

  • Under-console storage shelves - port and starboard behind driver console footrest

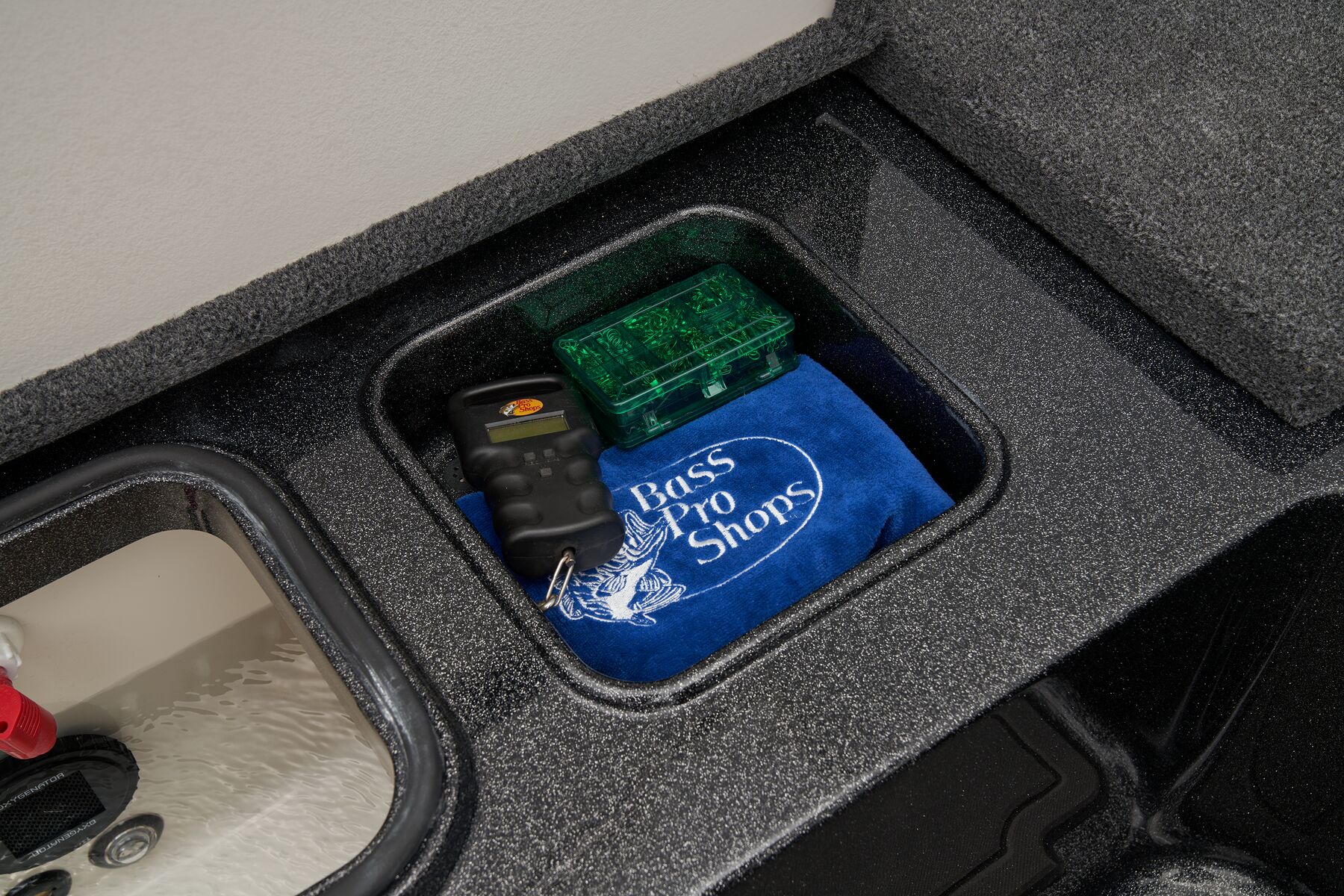

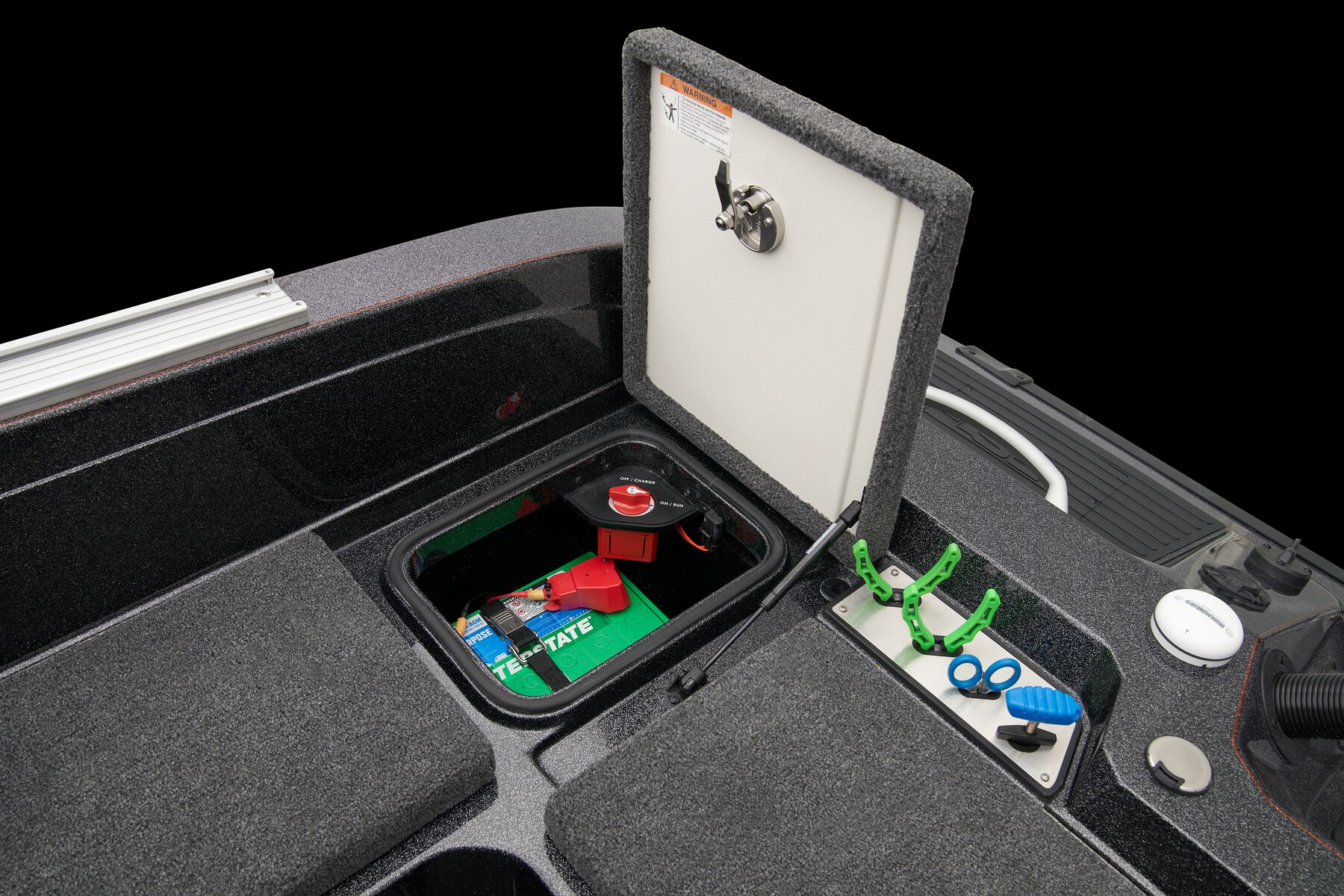

  • Lockable storage compartments
  • Gas spring lid assists

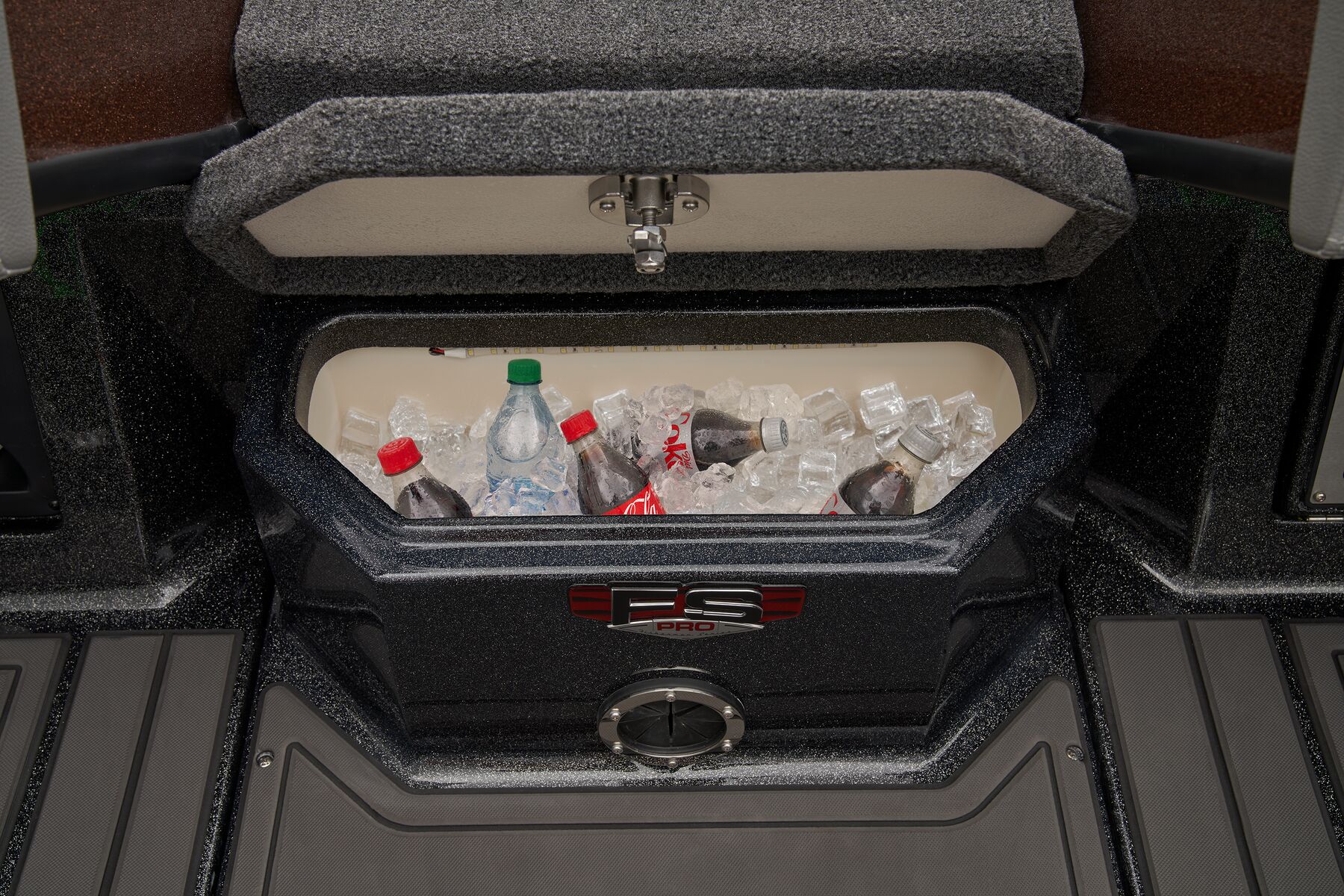

  • Insulated cooler w/ gelcoat liner & drain
  • Integrated stainless steel cup holders
  • 44" stainless steel stern grab rails

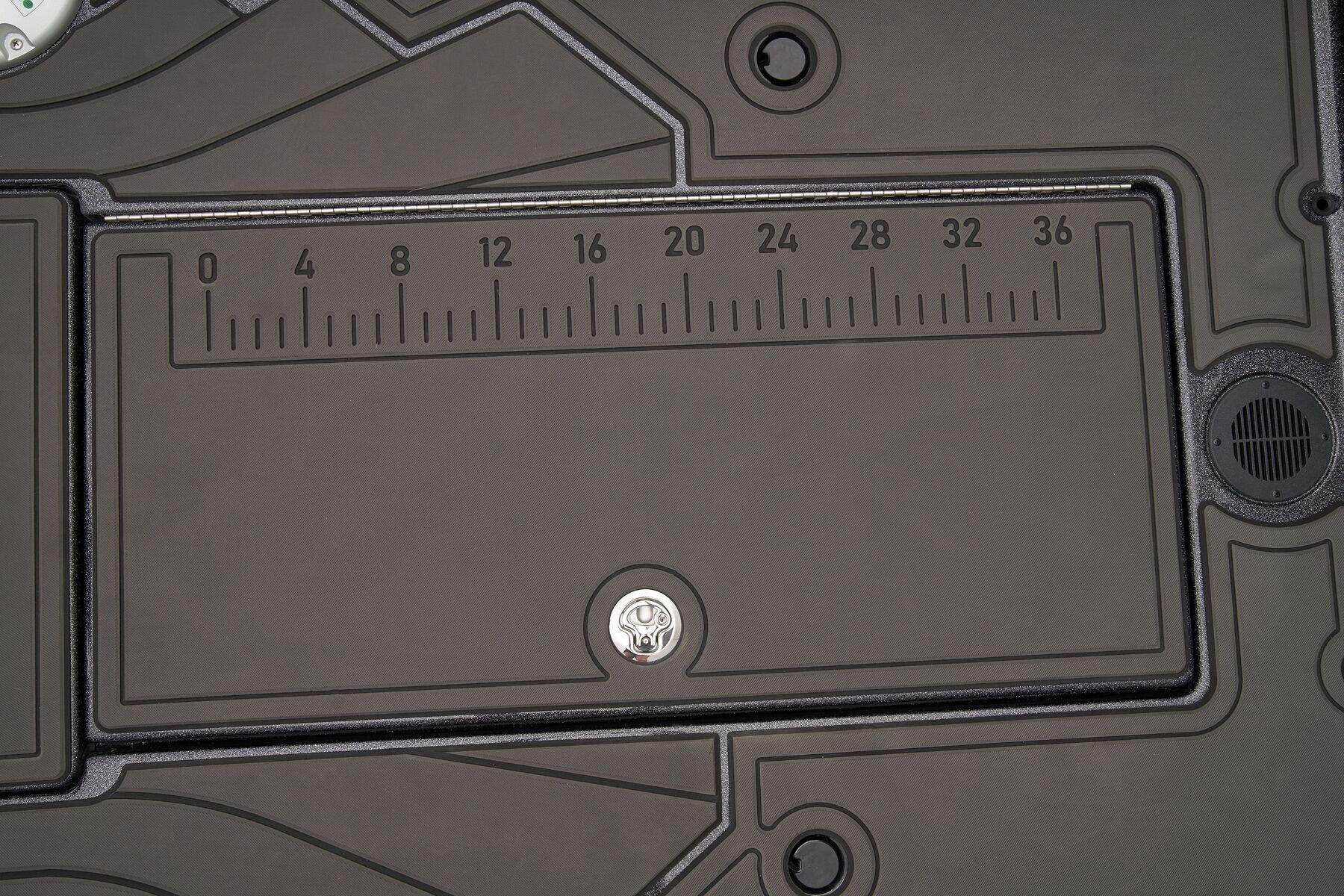

  • Ranger® tournament measuring board
  • Retractable bow rod buckles

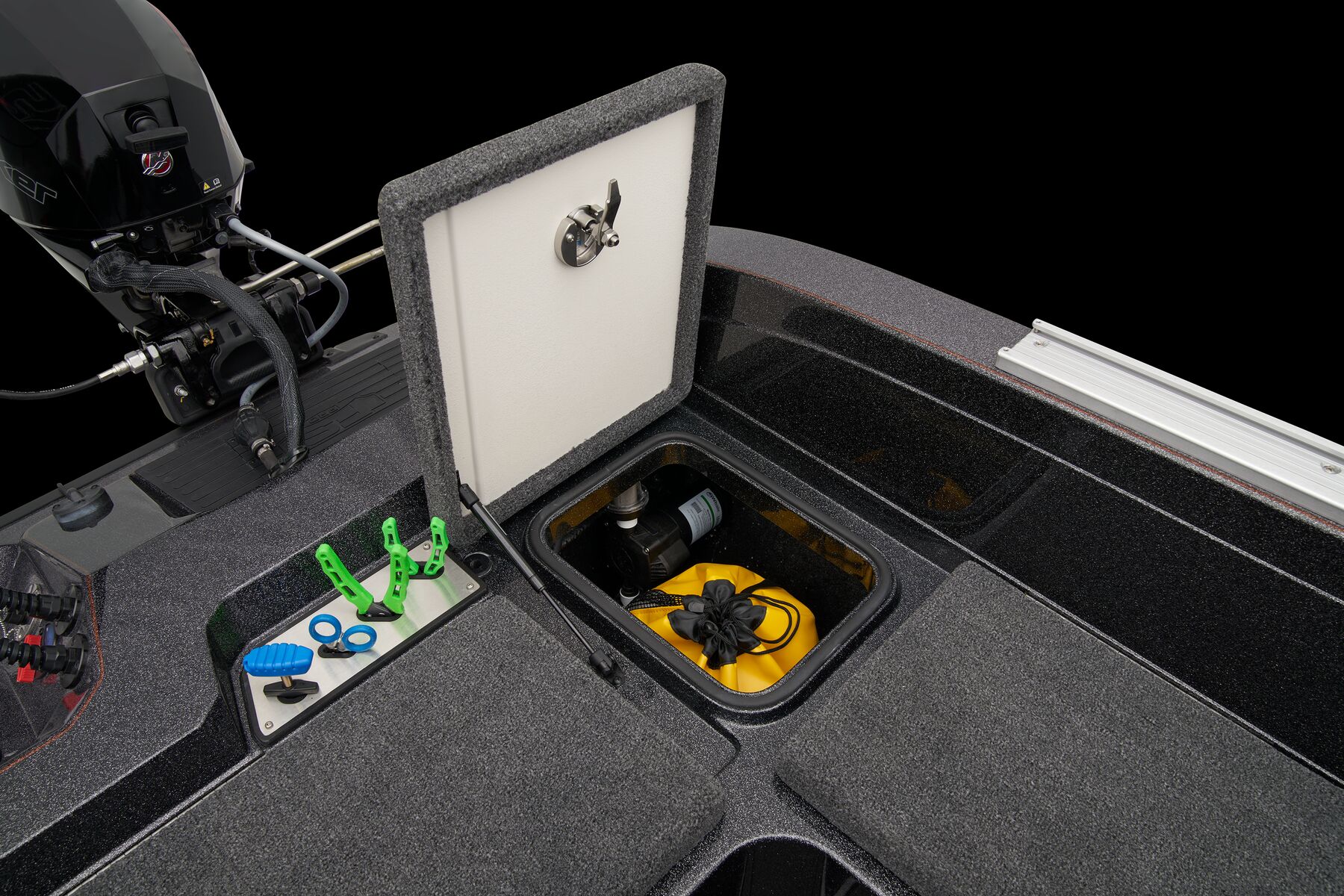

  • Tool holders - (1) Bow, (1) cockpit, (2) rear

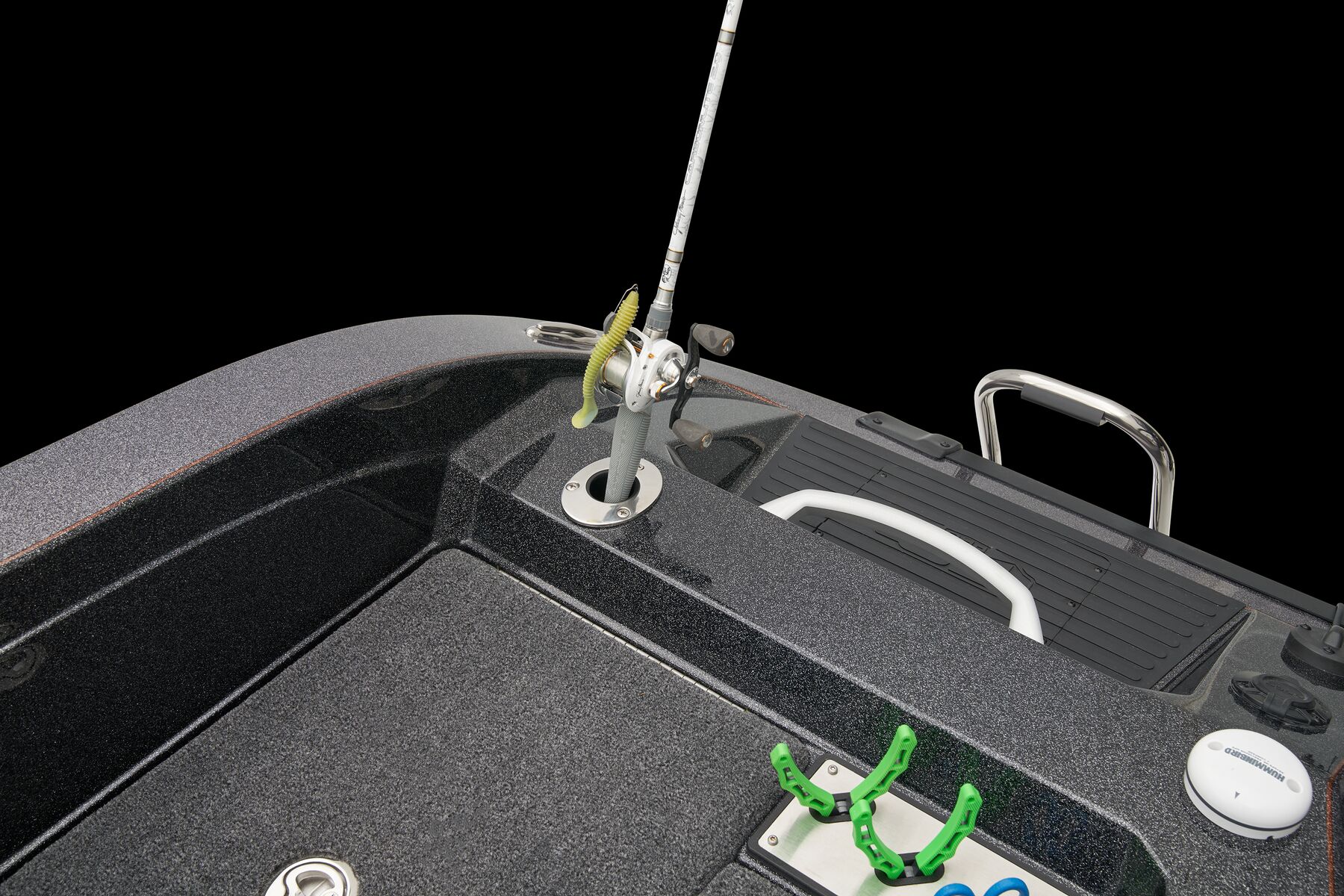

  • (2) Deck-mounted stern rod holders

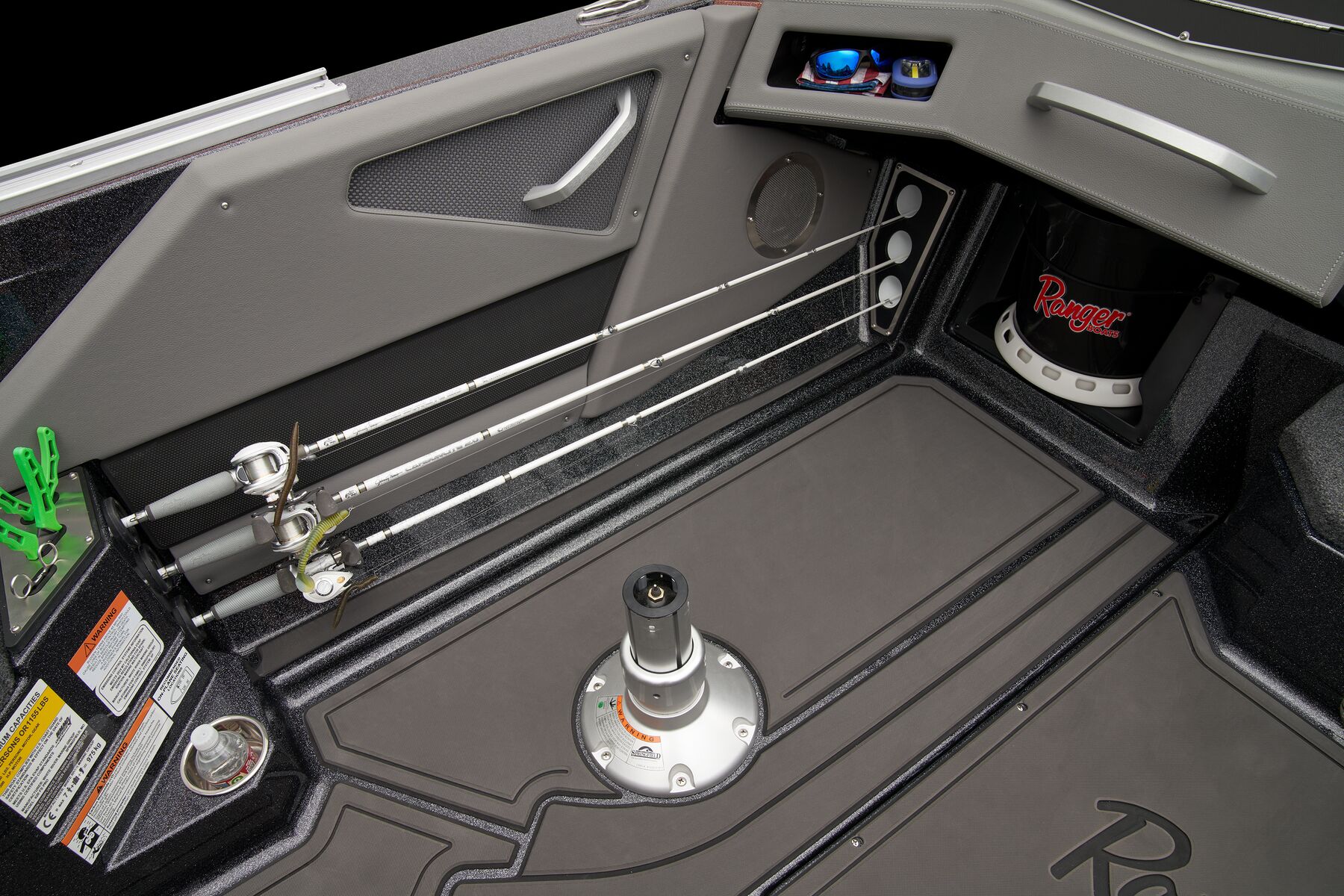

  • Runnin' rod rack w/ holder
  • Remote drain plug
  • Under-console 5 gal. bucket storage on port side
  • Storage under driver console, behind footrest
  • 12V DC power receptacle with USB
  • Rear charger receptacle
  • Heavy-duty 6-gauge trolling motor wiring w/ 60 amp breaker
  • LED courtesy light(s)
  • LED cockpit, compartment and livewell light package
  • LED folding stern light
  • Bow panel w/ digital switching
  • Console panel w/ Ranger® R-I-D-E System (Ranger Intelligent Display Engine), integrating full-boat control and monitoring via 9" touchscreen

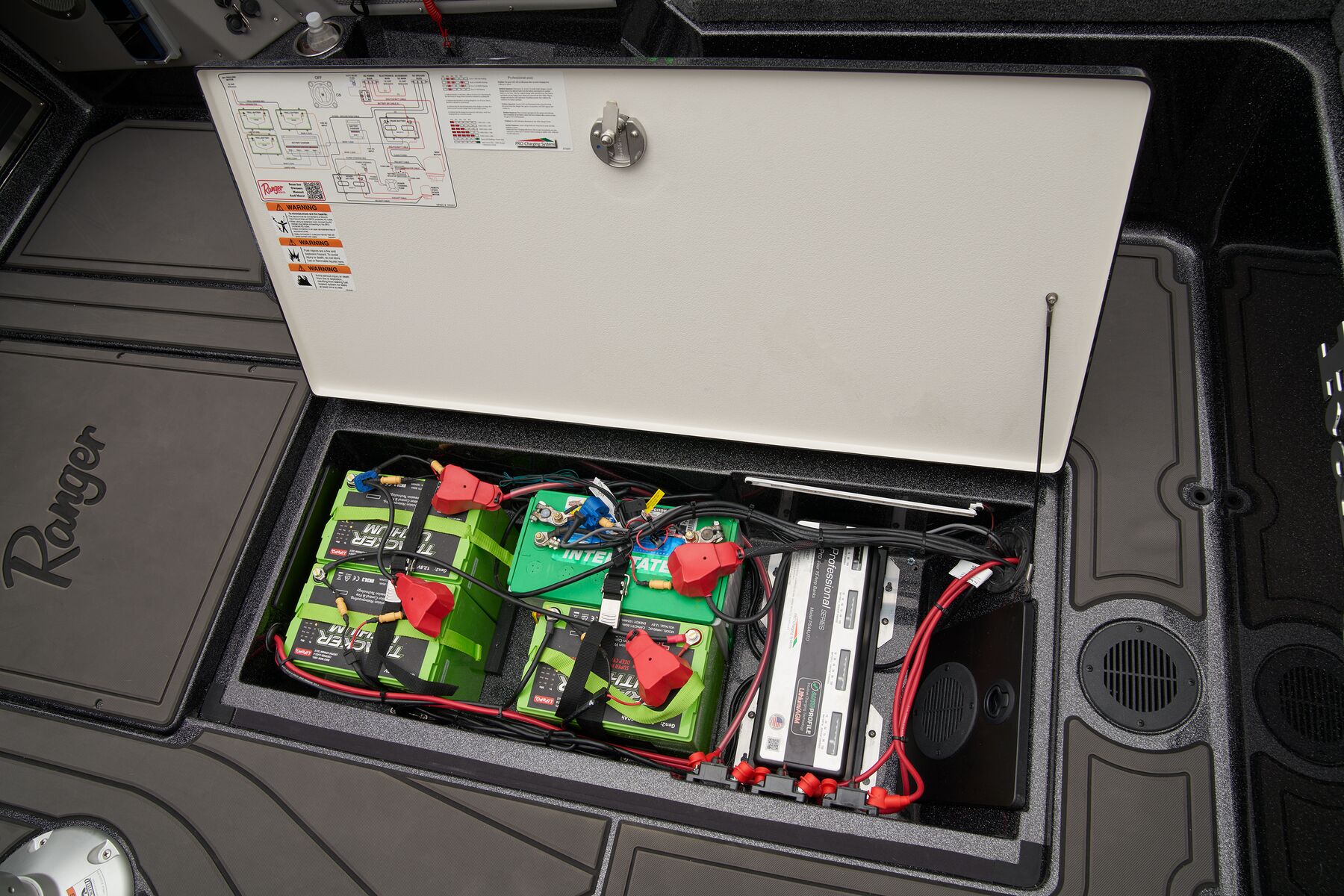

  • On-board Dual Pro® charger, 15 x 4, auto detect lithium capable
  • Integrated LED bow navigation and removable stern lights
  • Lowrance® ELTE-9FS @ bow
  • Lowrance® ELITE-9FS w/ Active Imaging @ console
  • Additional manual key switch
  • 30A master breaker
  • Custom fitted premium marine upholstery - (2) driver/passenger tall-back Soft Ride Seating (SRS) fold-downs w/ (2) adjustable slides and (2) soft-ride bell pedestals and (2) SRS fold-downs w/ power pedestals
  • Fire extinguisher & horn

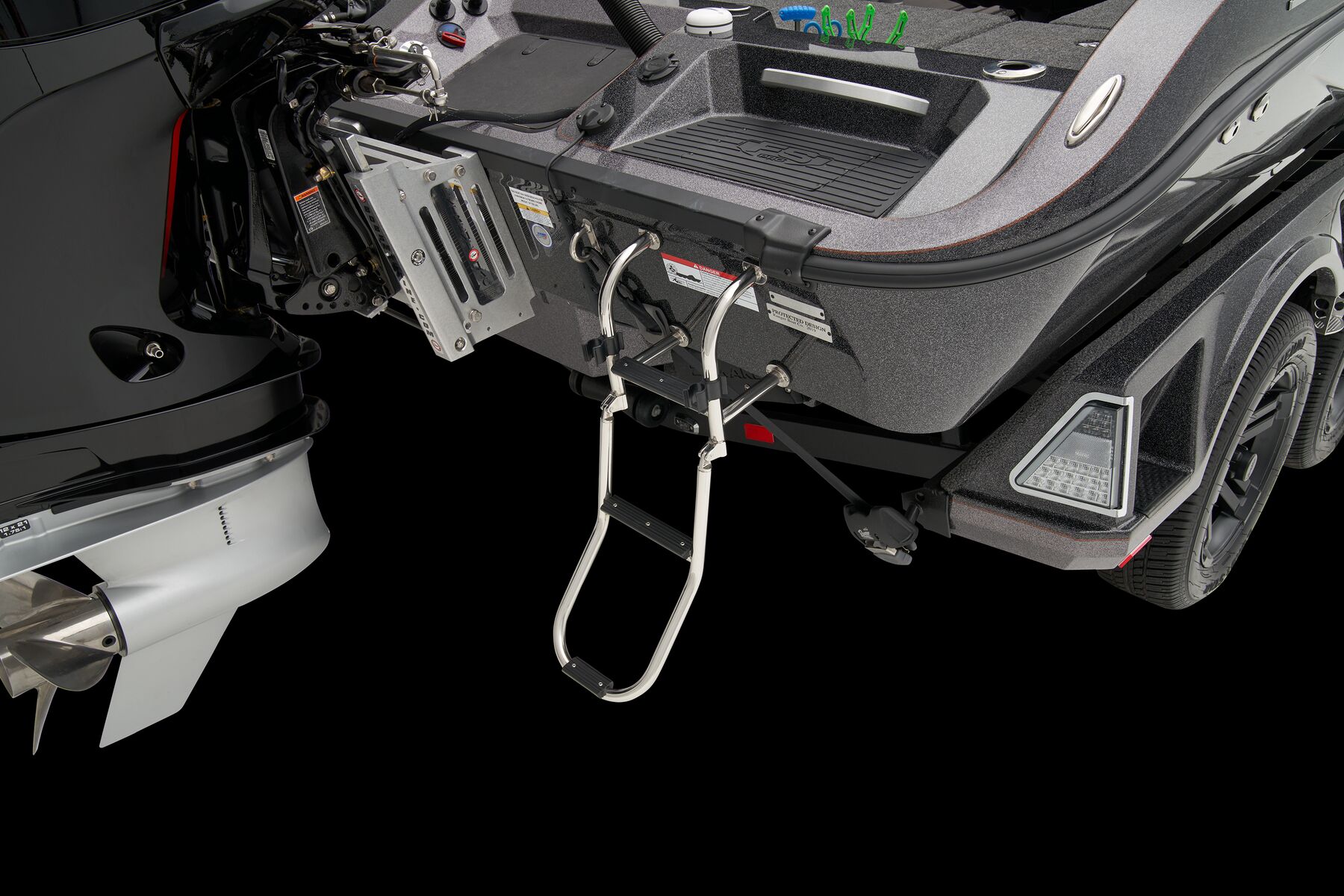

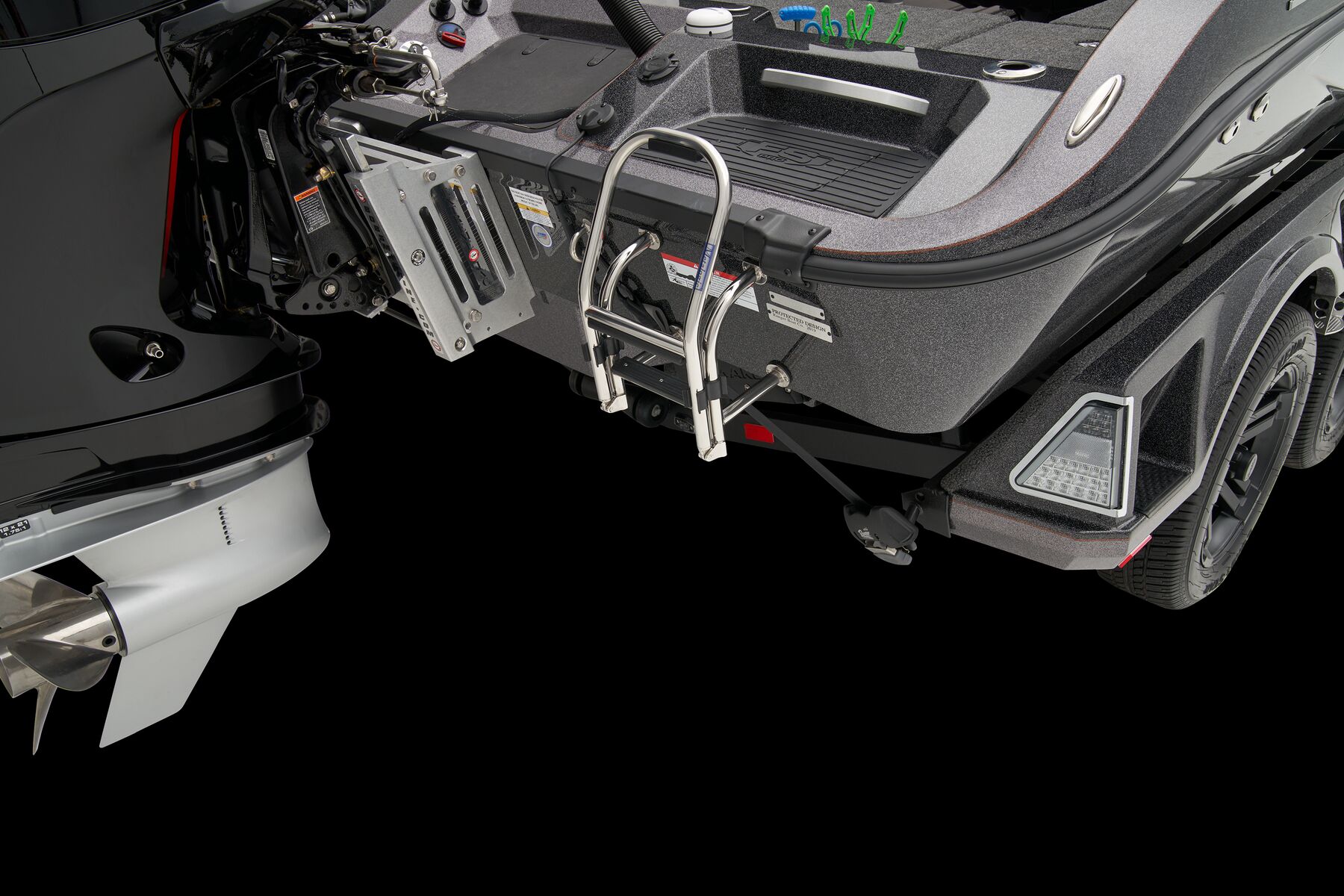

  • Boarding ladder
  • Passenger glove box (dual console only)
  • Step up to front deck
  • Skid-resistant material on bow
  • Plexi windshield(s)
  • Upright, level flotation

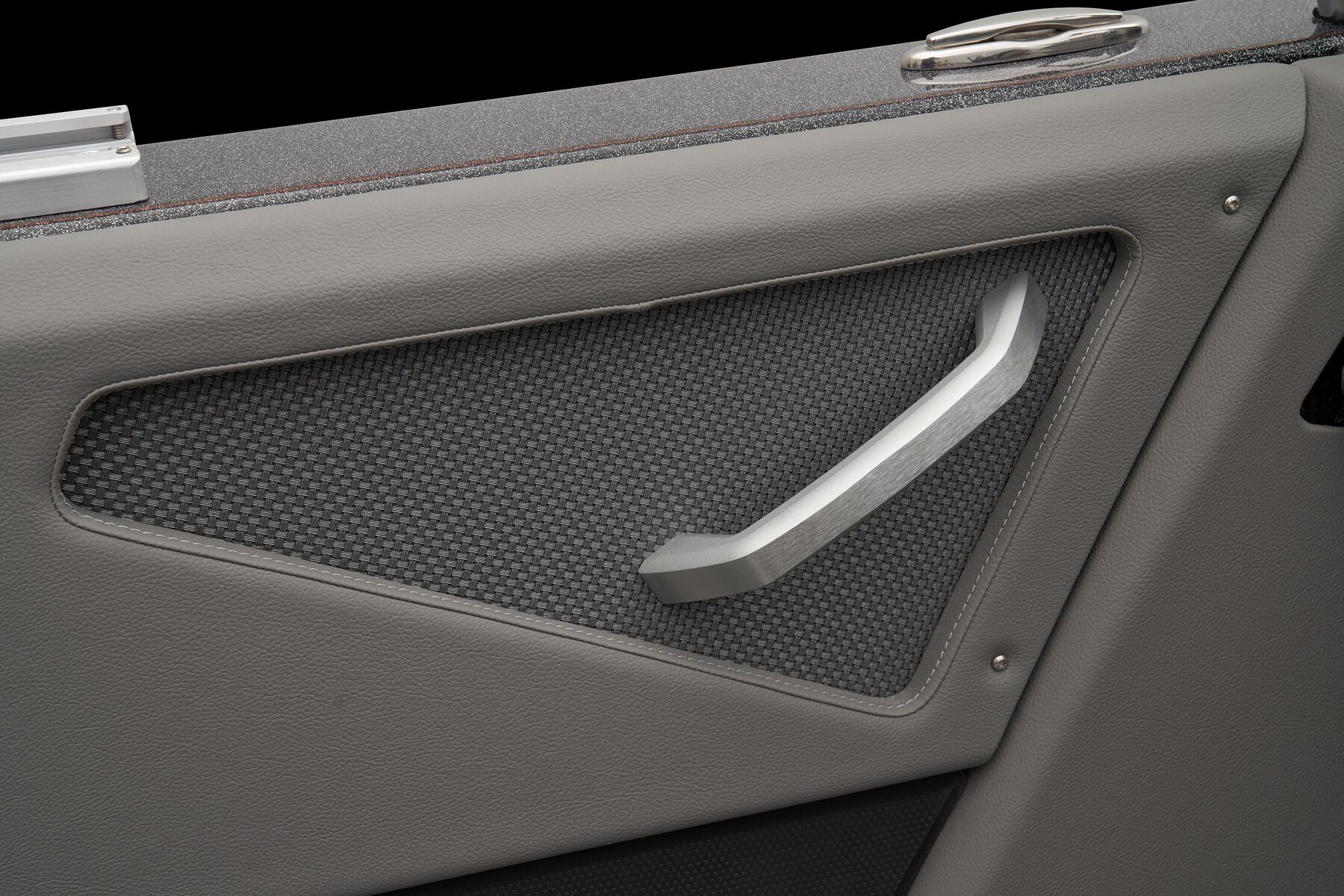

  • Integrated grab handles
  • Electrical system disconnect on/off switch
  • NOCO™ GB40 jump starter

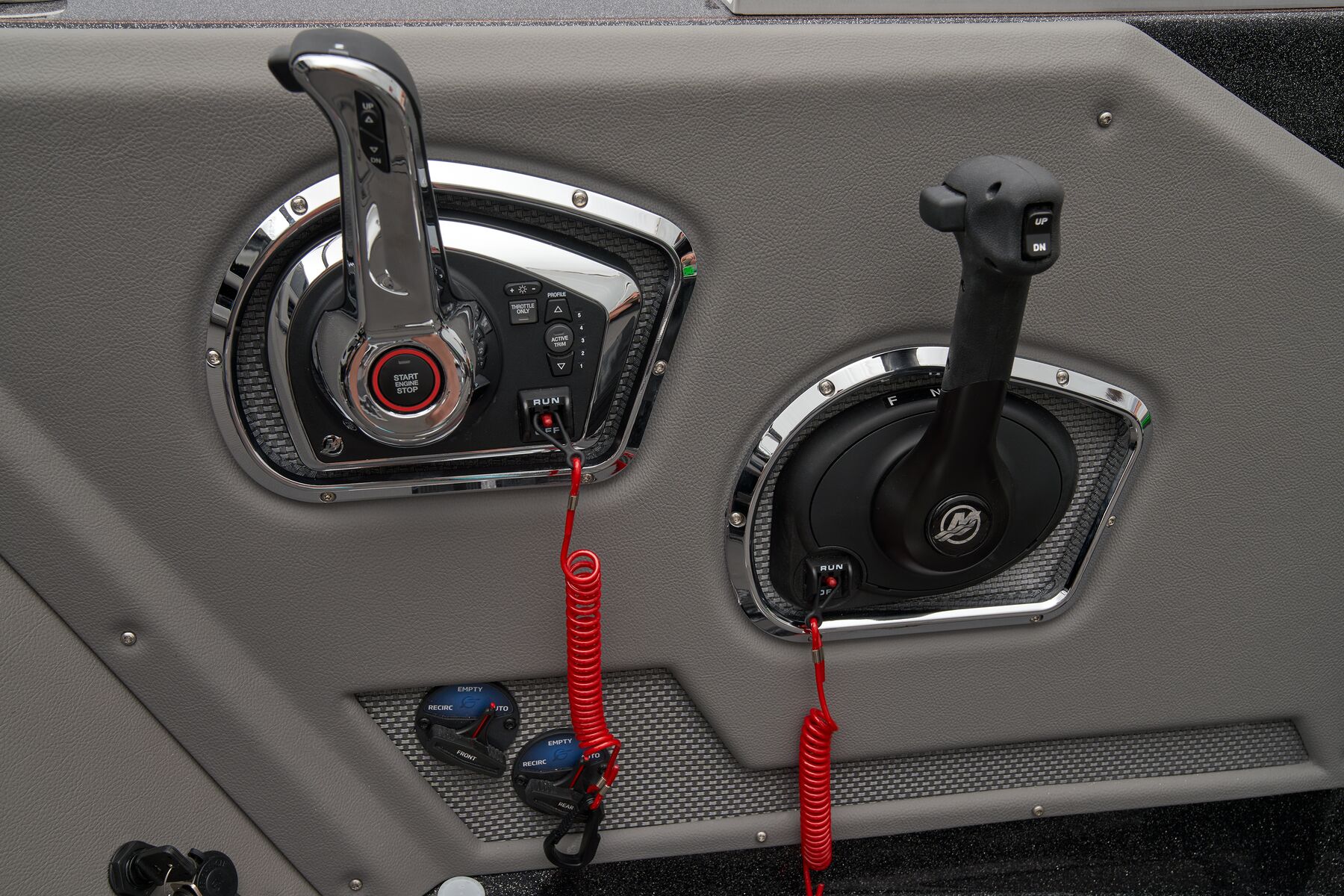

  • Flush-mounted remote throttle control
  • Foam-filled fiberglass stringers
  • High performance stainless steel prop
  • High performance steering wheel

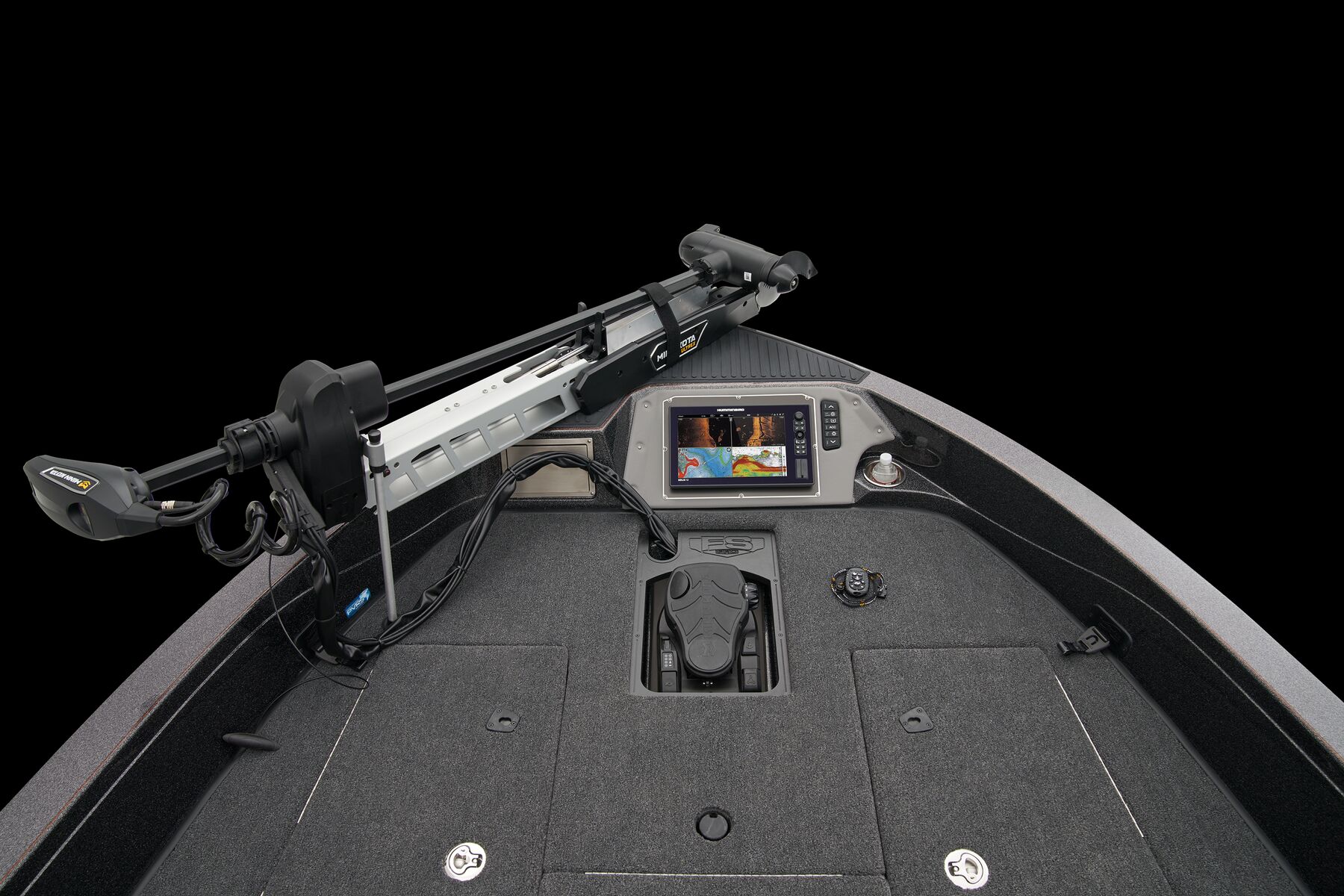

  • Minn Kota® Terrova 112 / DSC / 60"/ 36V trolling motor

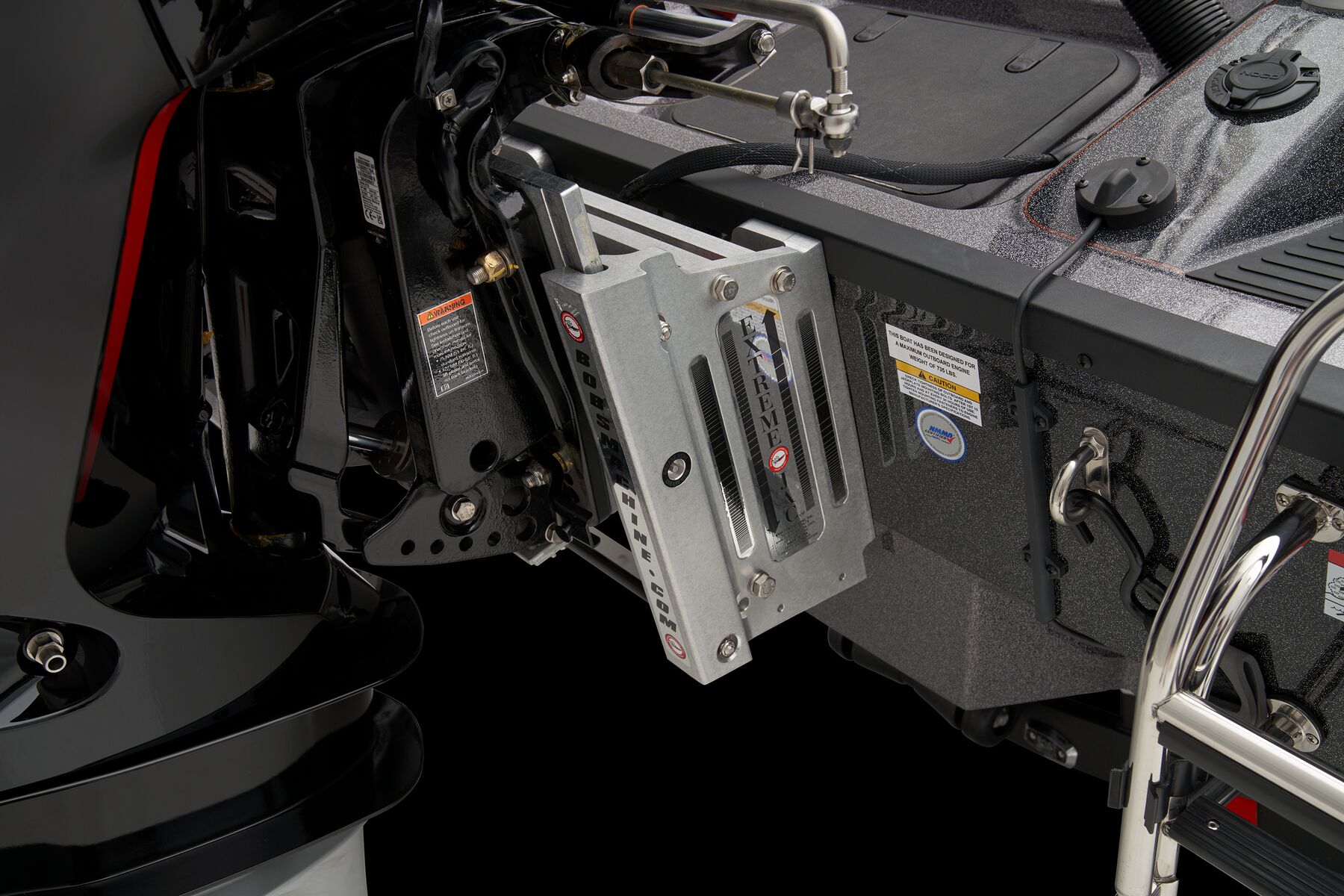

  • Manual setback plate
  • Pultruded fiberglass transom

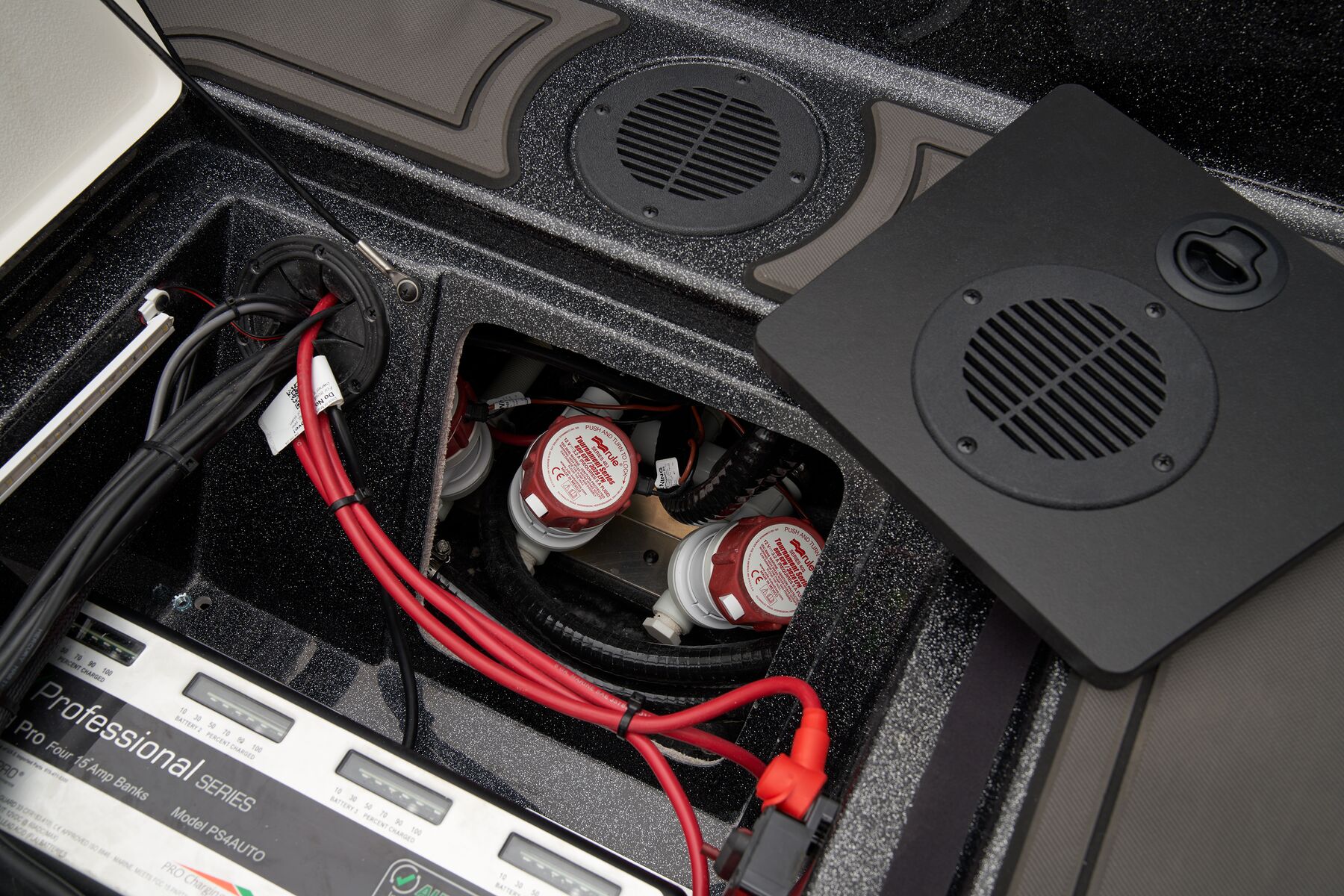

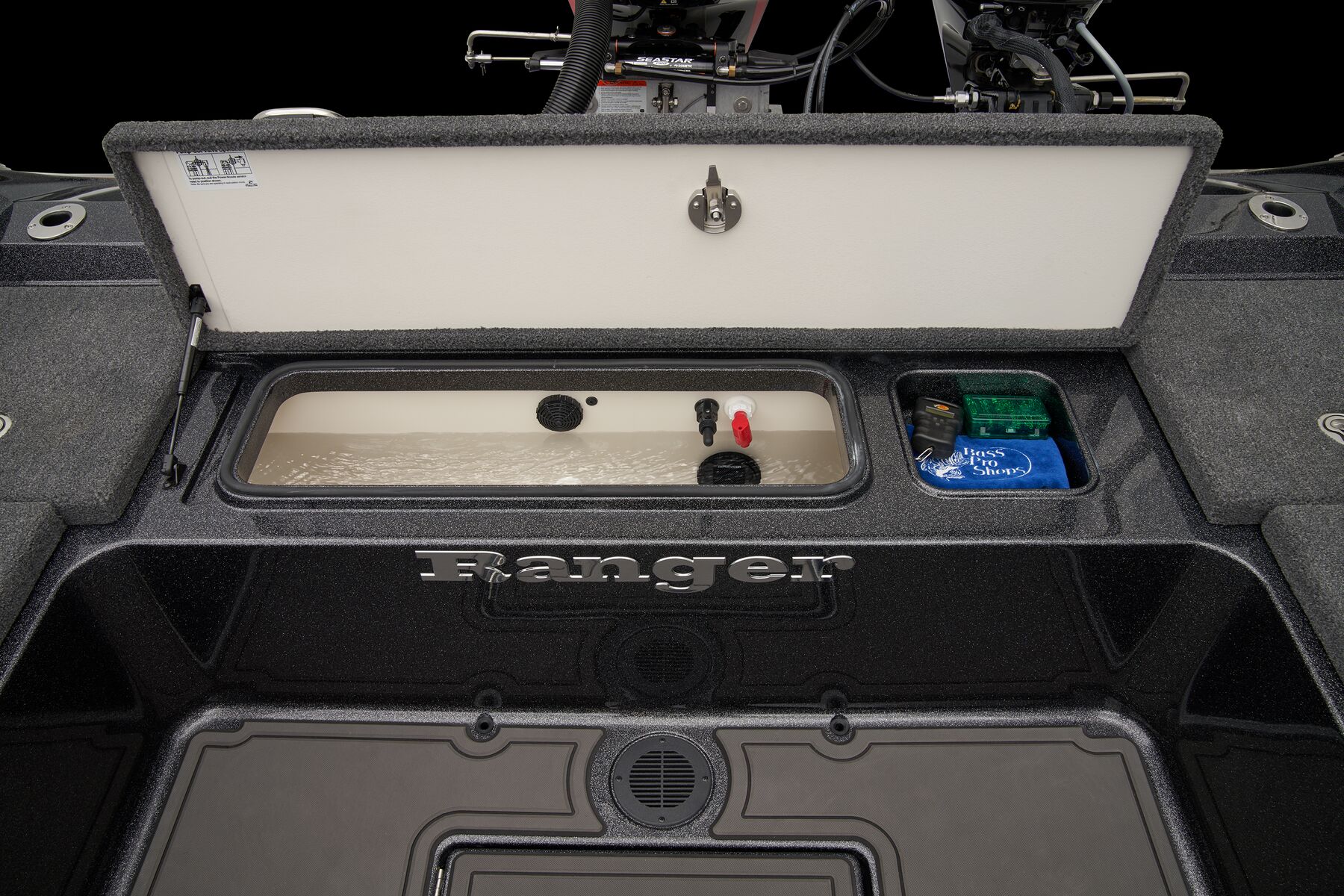

  • Recirculating aerated livewell and baitwell w/ filter screens, automatic timers and livewell pump-out

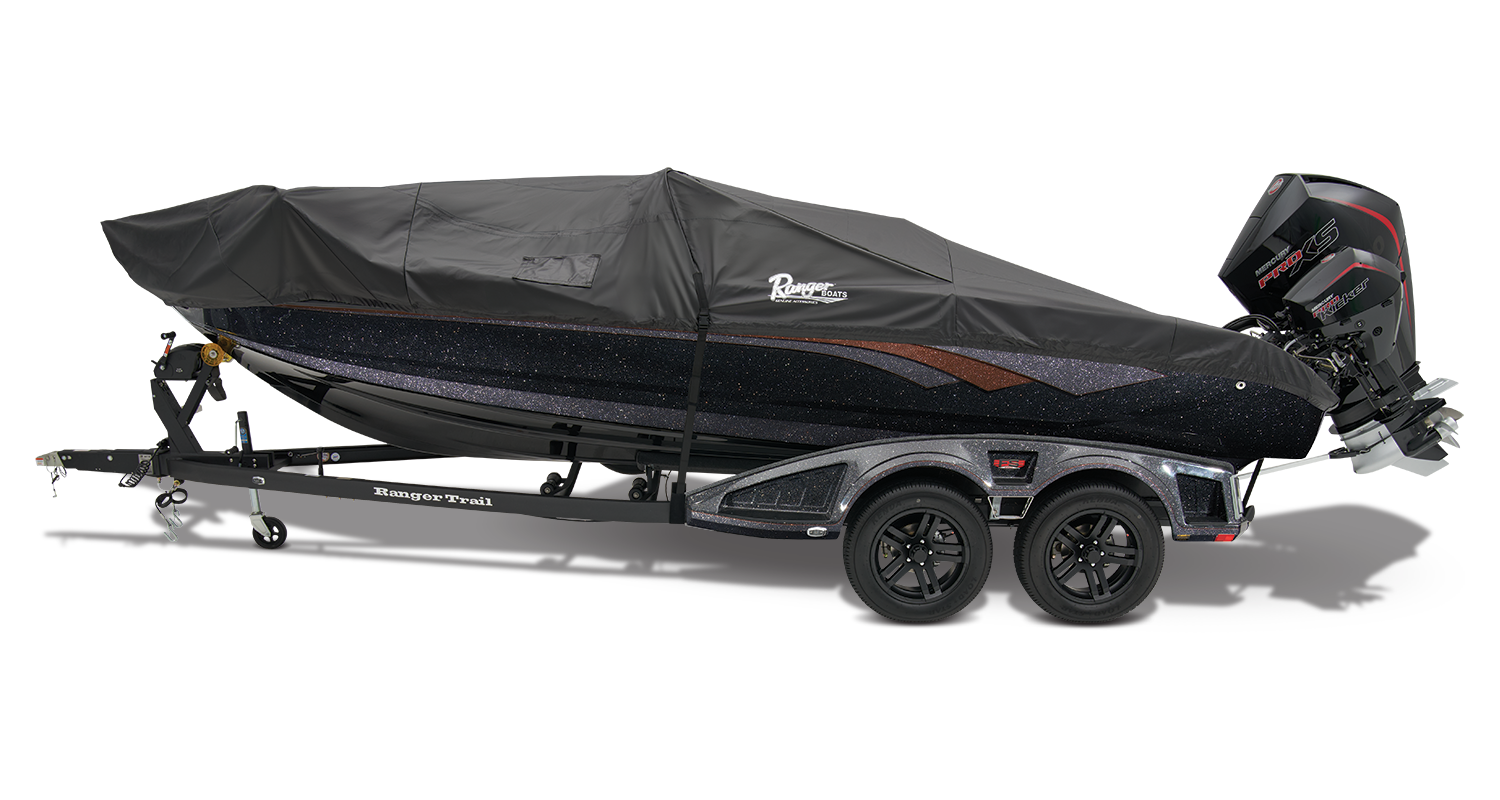

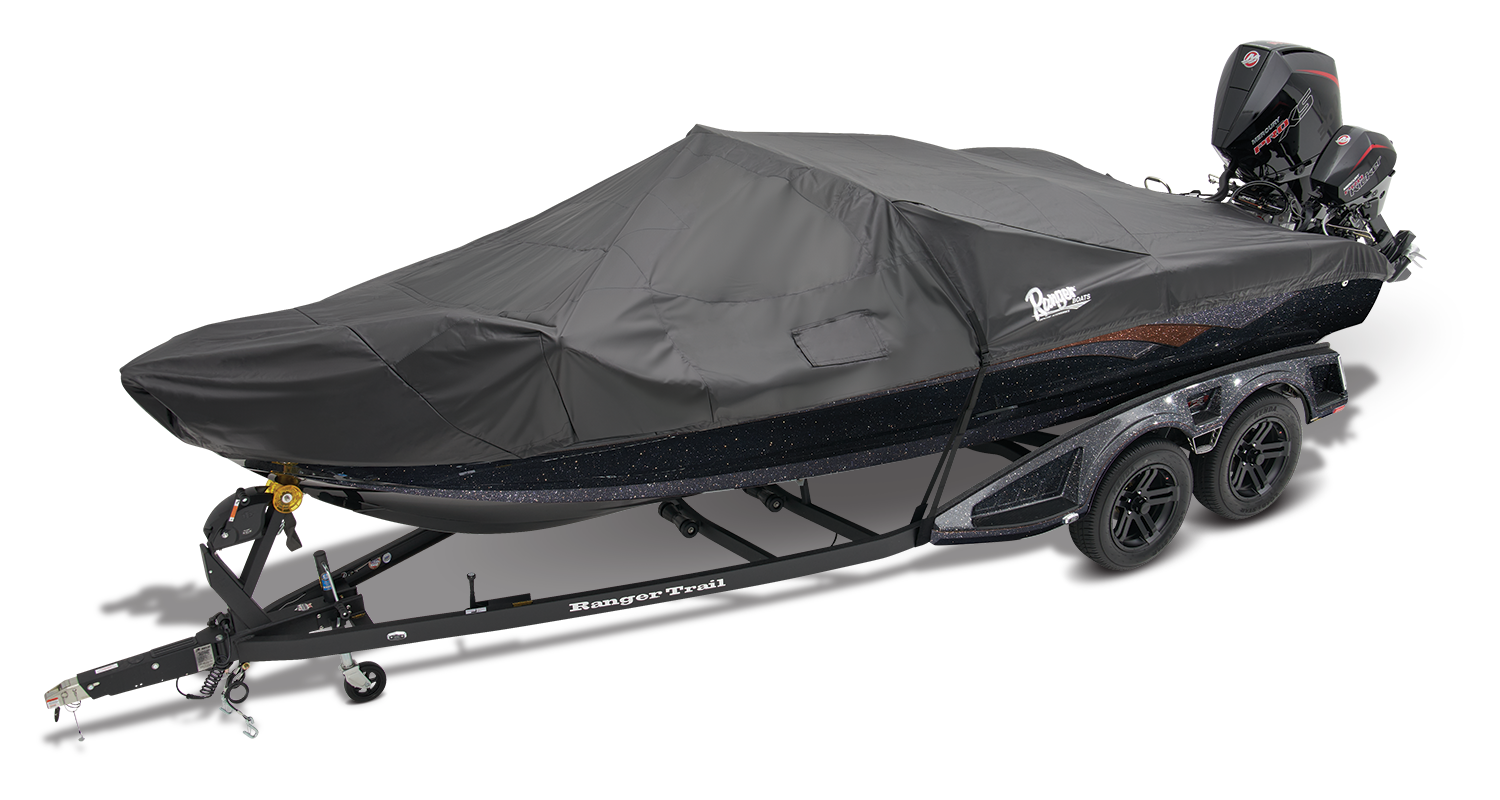

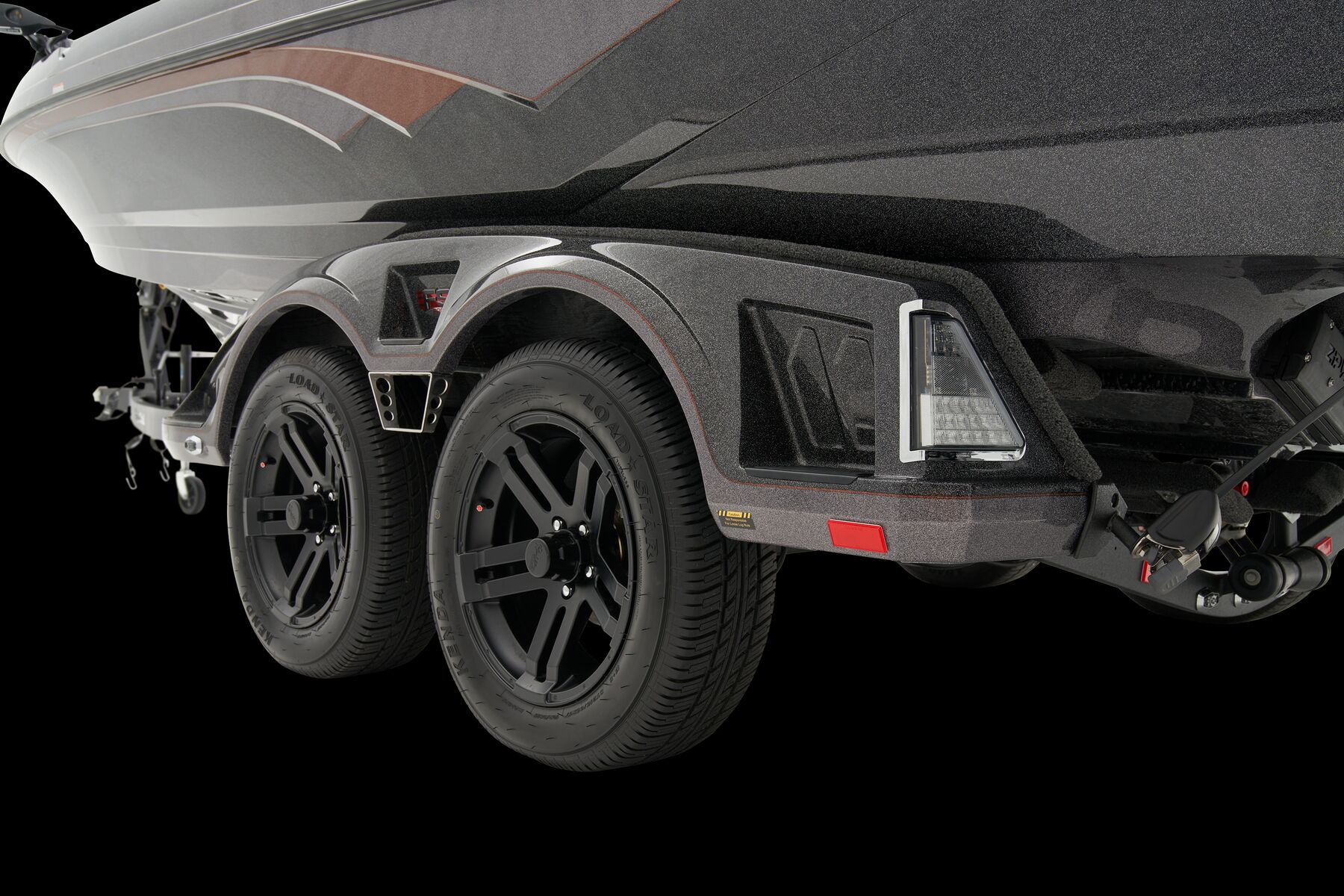

Trailer Features
  • Tandem axle trailer
  • Aluminum wheels w/ matching spare tire & wheel
  • Stainless steel ratchet trailer tie-downs
  • Center-swing jack (black powder coated)
  • Swing-away tongue
  • Hydraulic surge disc brakes
  • LED lighting

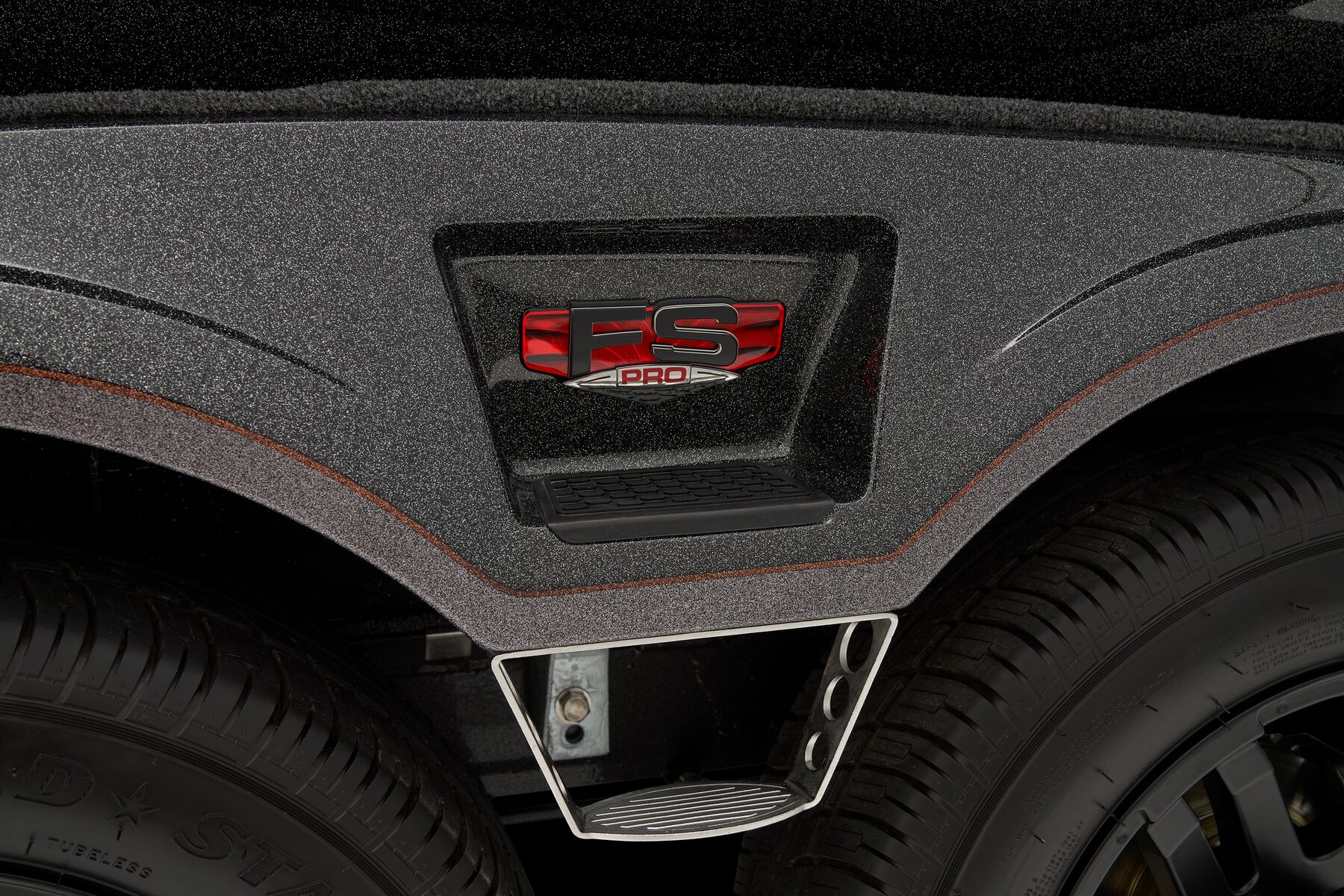

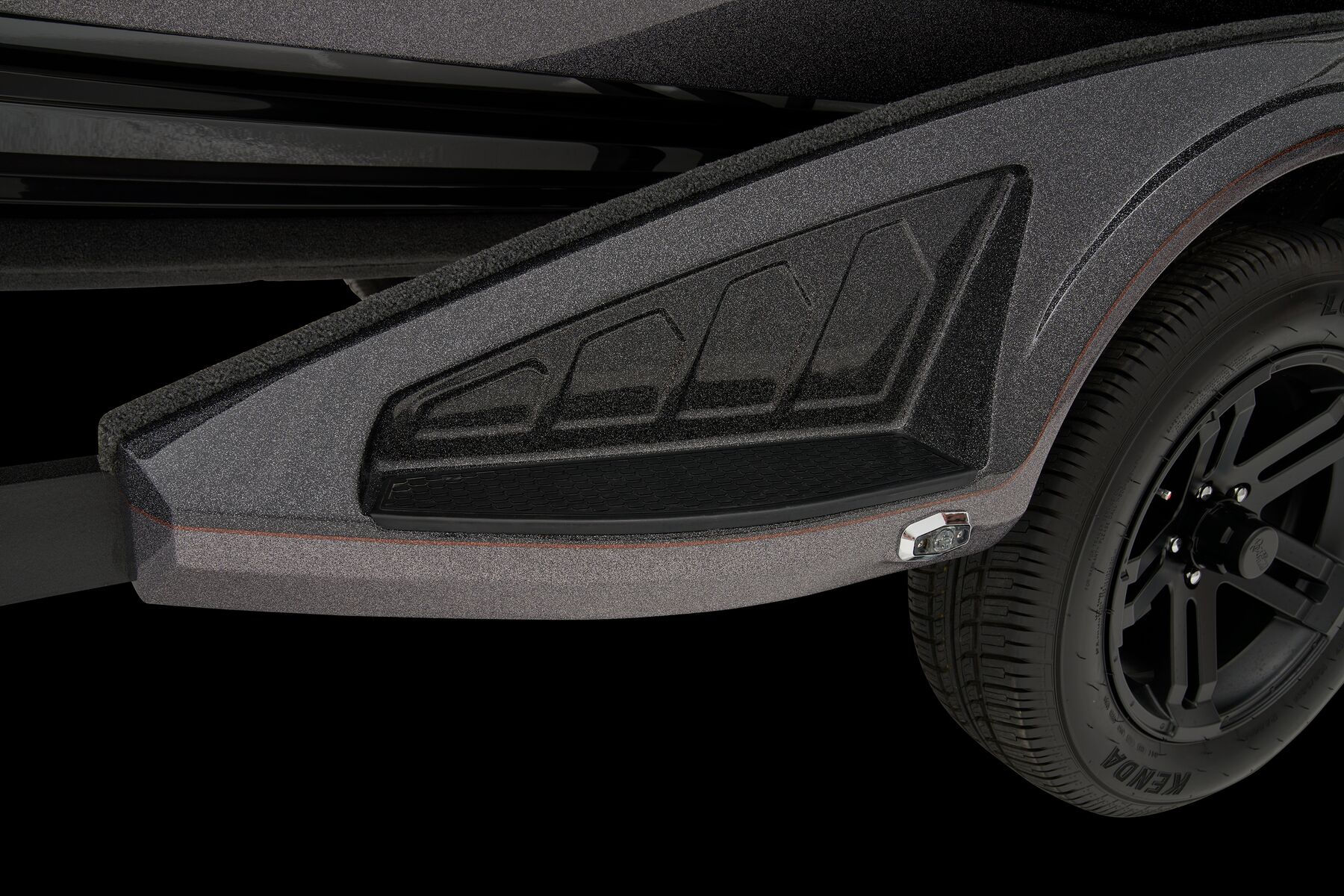

  • Matching fiberglass fenders
  • Ranger Trail® Vault® Hub lubrication system
  • NMMA®/NATM certified
  • Torsion axles



Photos may show optional equipment. Previous model year images shown.
