2027

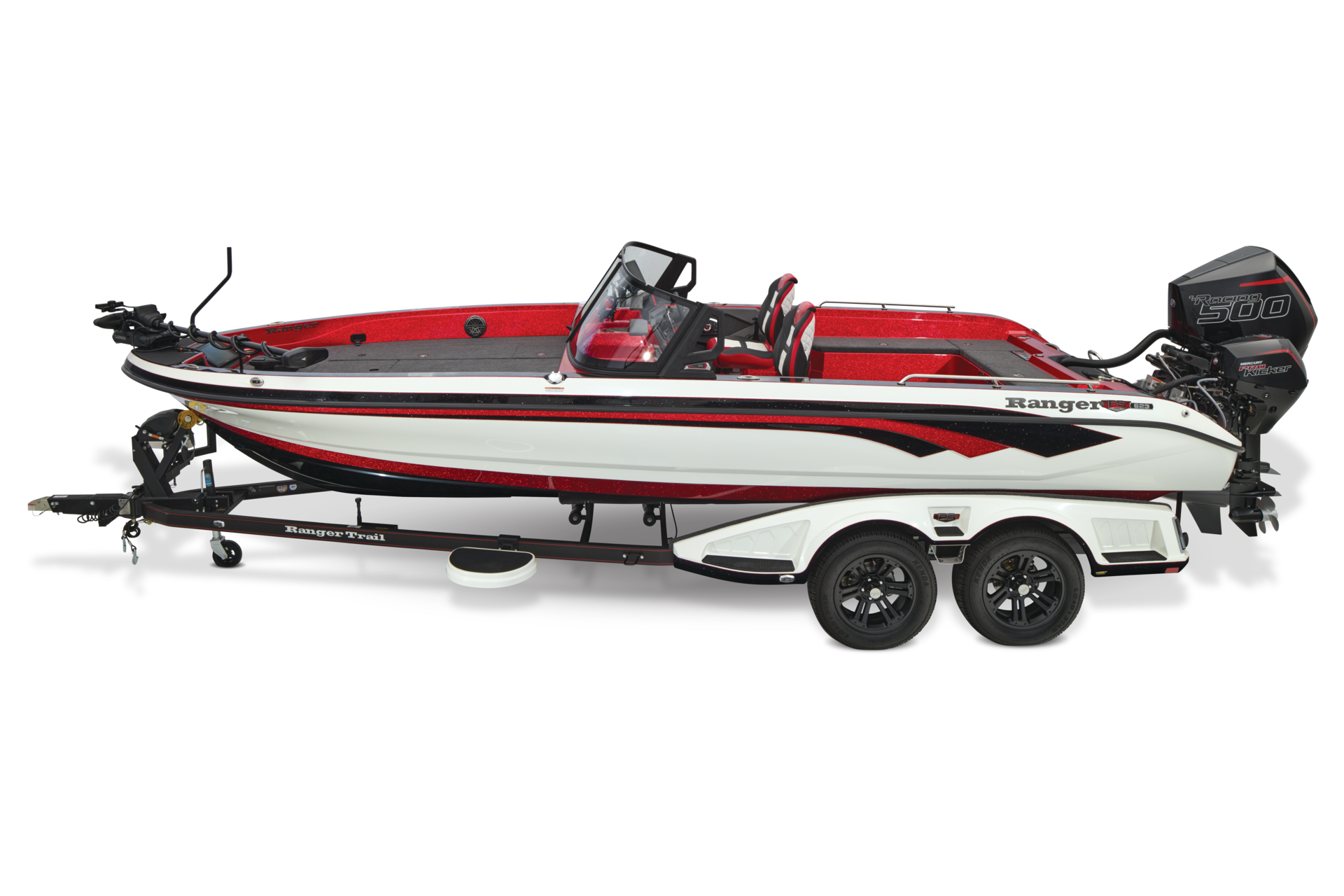

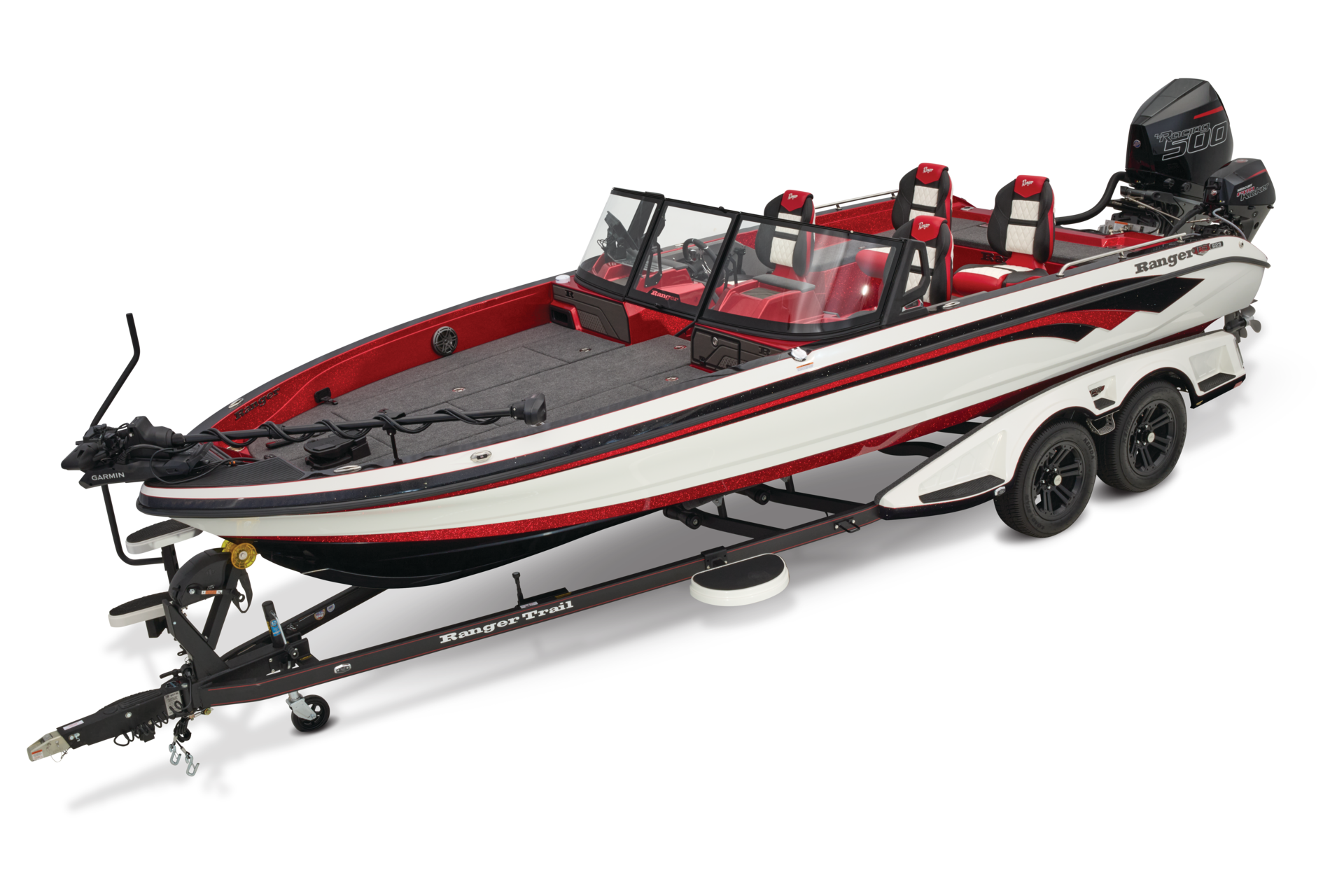

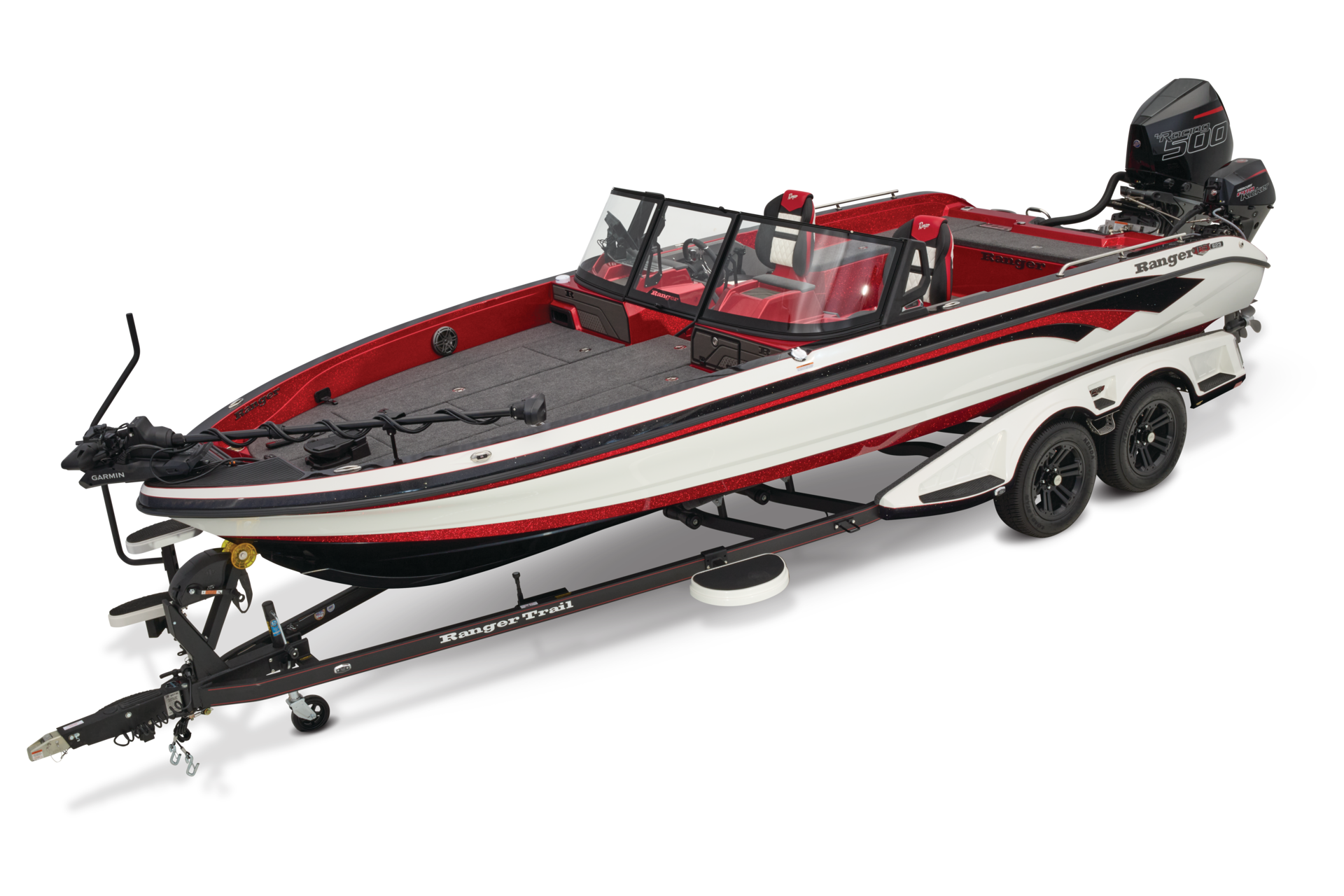

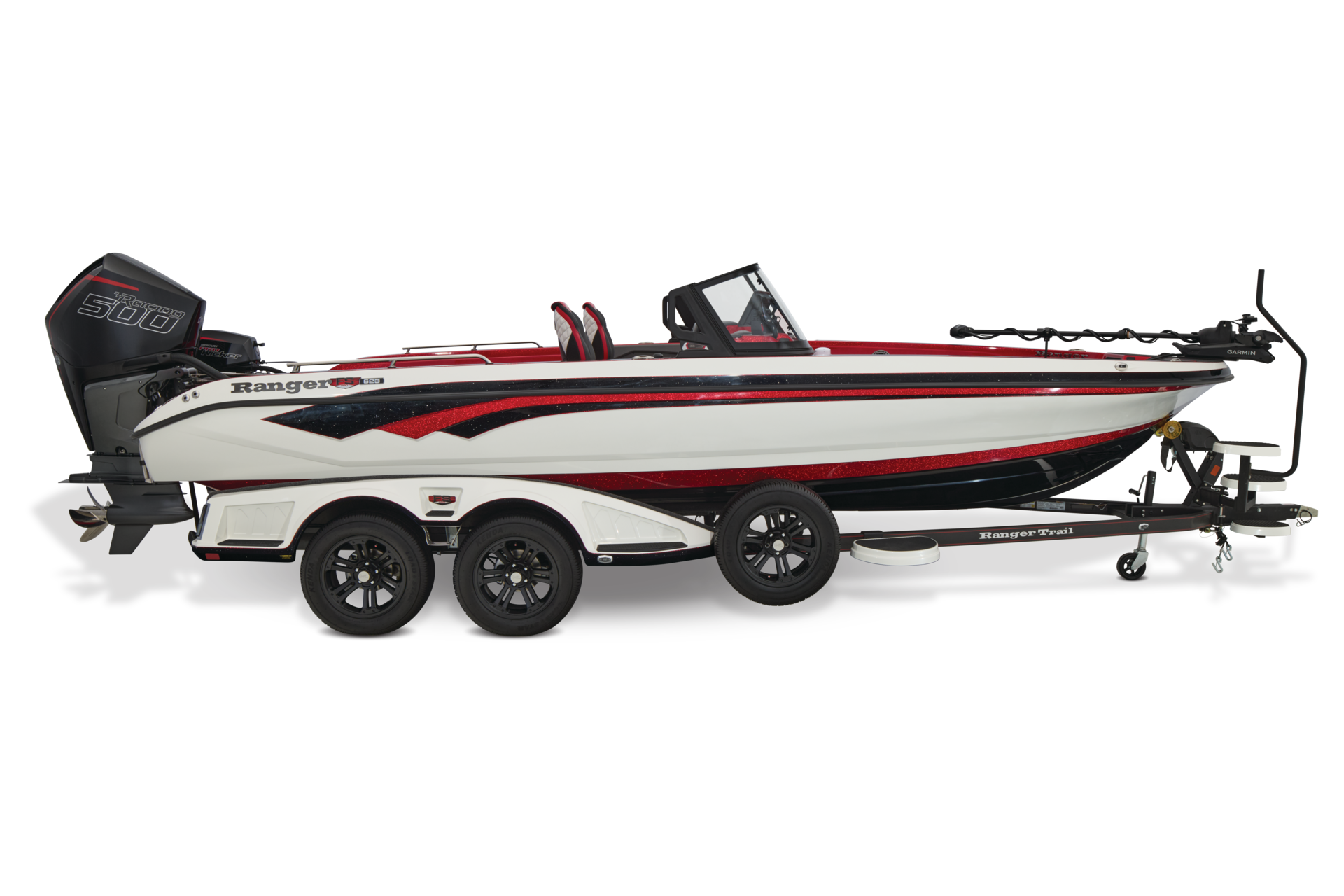

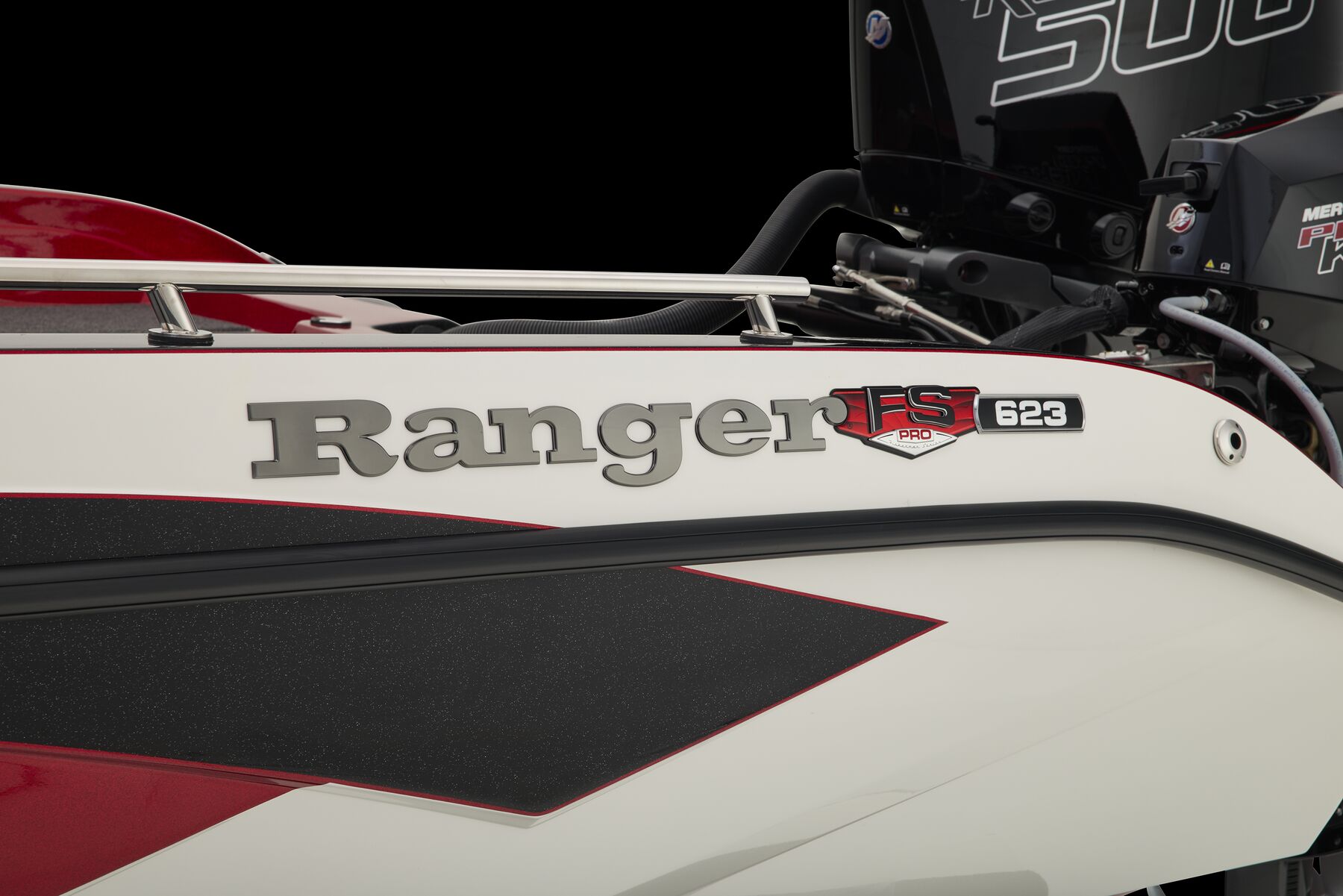

623FS PRO
w/ 500R Verado Racing 4.6L V8 Mercury® Verado®

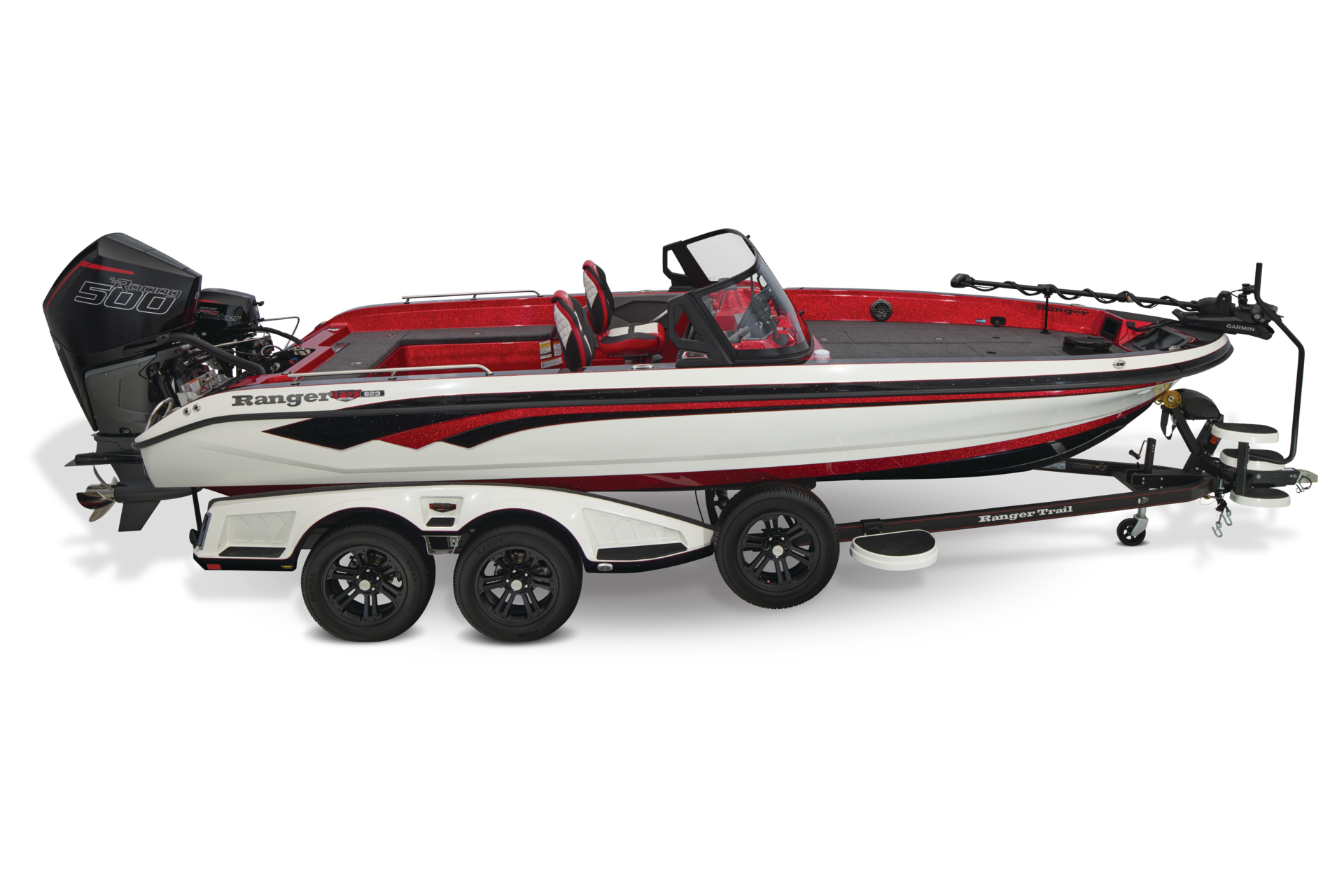

Boat, Motor, & Trailer
| View Price w/ Prep & Freight: | Select Dealer |
|
PRICED TO BE YOURS®
|
$169995
USD
|
THE BIGGEST WATER DEMANDS THE BEST
Built for anglers who venture farther and demand more, the Ranger® 623FS Pro delivers up to 500 HP and represents the ultimate expression of Deep-V capability. Combining unmatched size, advanced technology integration, and legendary Ranger craftsmanship, the 623FS Pro is engineered to excel in the most demanding conditions.
From massive storage and expansive fishing space to premium electronics capability and exceptional rough-water confidence, every inch of the 623FS Pro is purpose-built to help anglers’ fish harder, run farther, and stay out longer. When the conditions are toughest, the Ranger 623FS Pro is built to rise above them.
Key Features
- Built To Be Yours™ – Available with a wide array of custom-matched trolling motors, electronics, and accessories.
- 500HP rating
- FORGE™ Heads-up & Control touchscreen displays w/12-Button solid-state keypad
- Keyless Push-to-Start ignition
- ProCircuit™ dedicated 6-gauge electronics clean-power harness

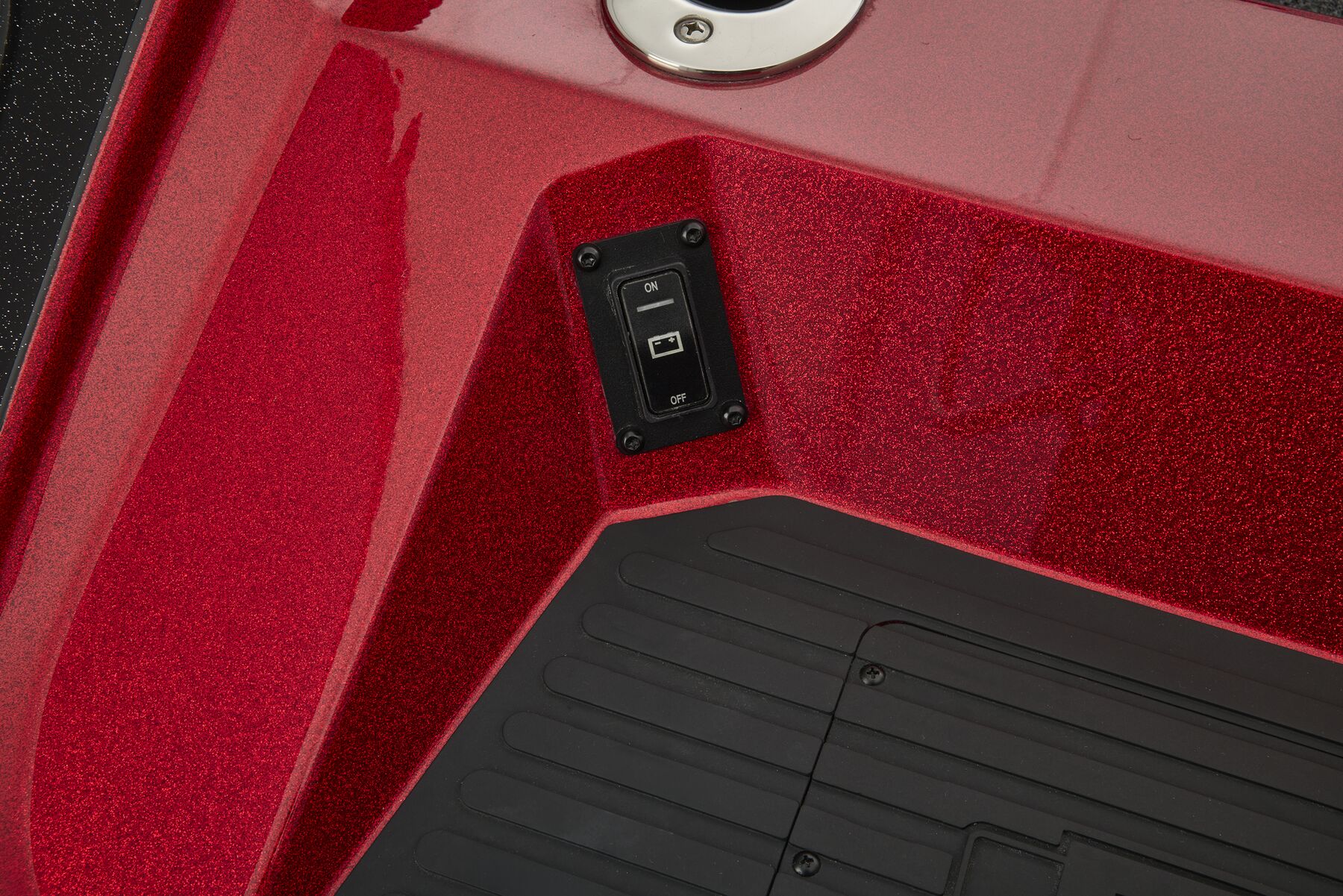

- Smart battery control with remote on/off switch
- Wireless bow keypad with double-tap shallow-water & holeshot modes
- 14” Raptor III machined/painted aluminum wheels

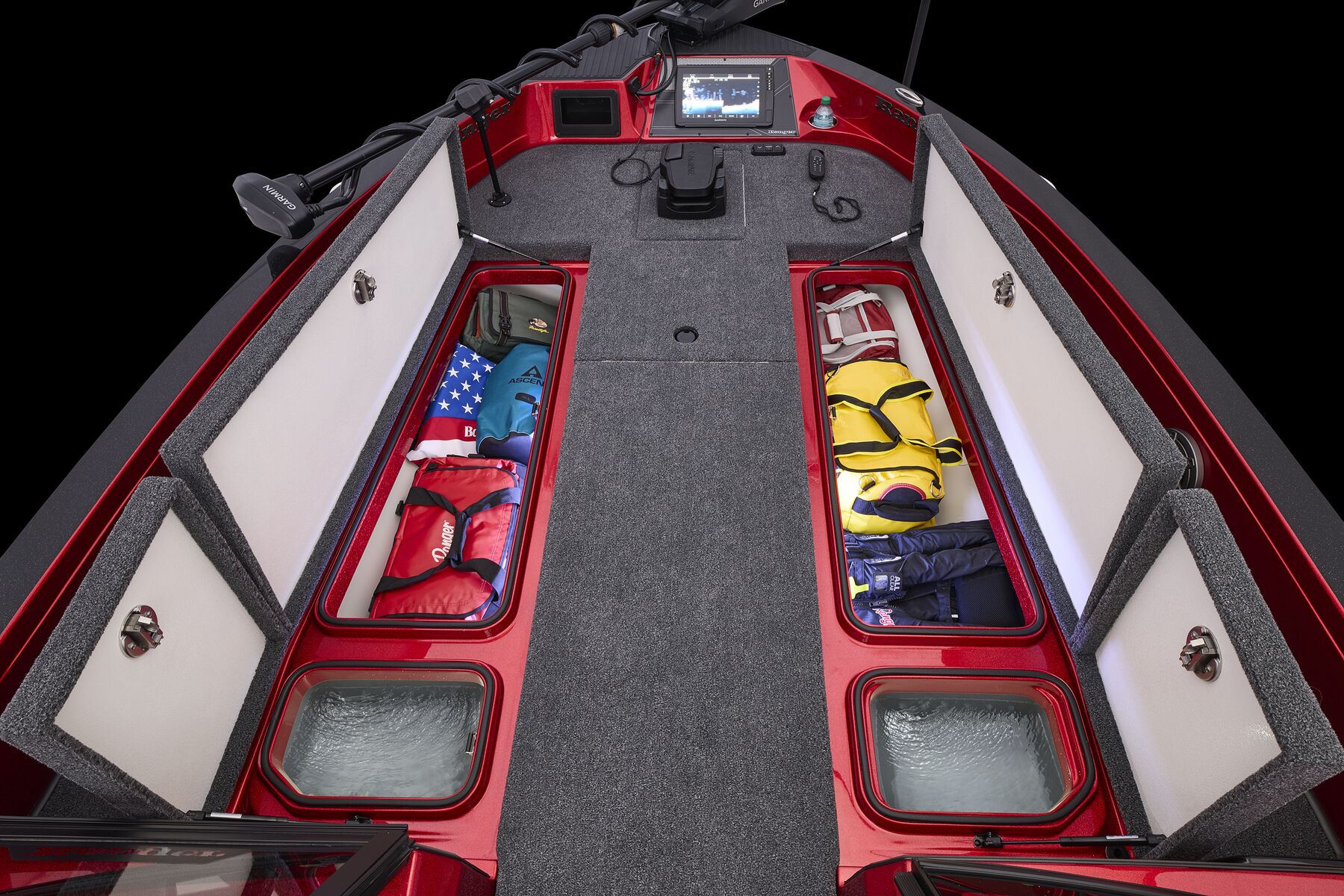

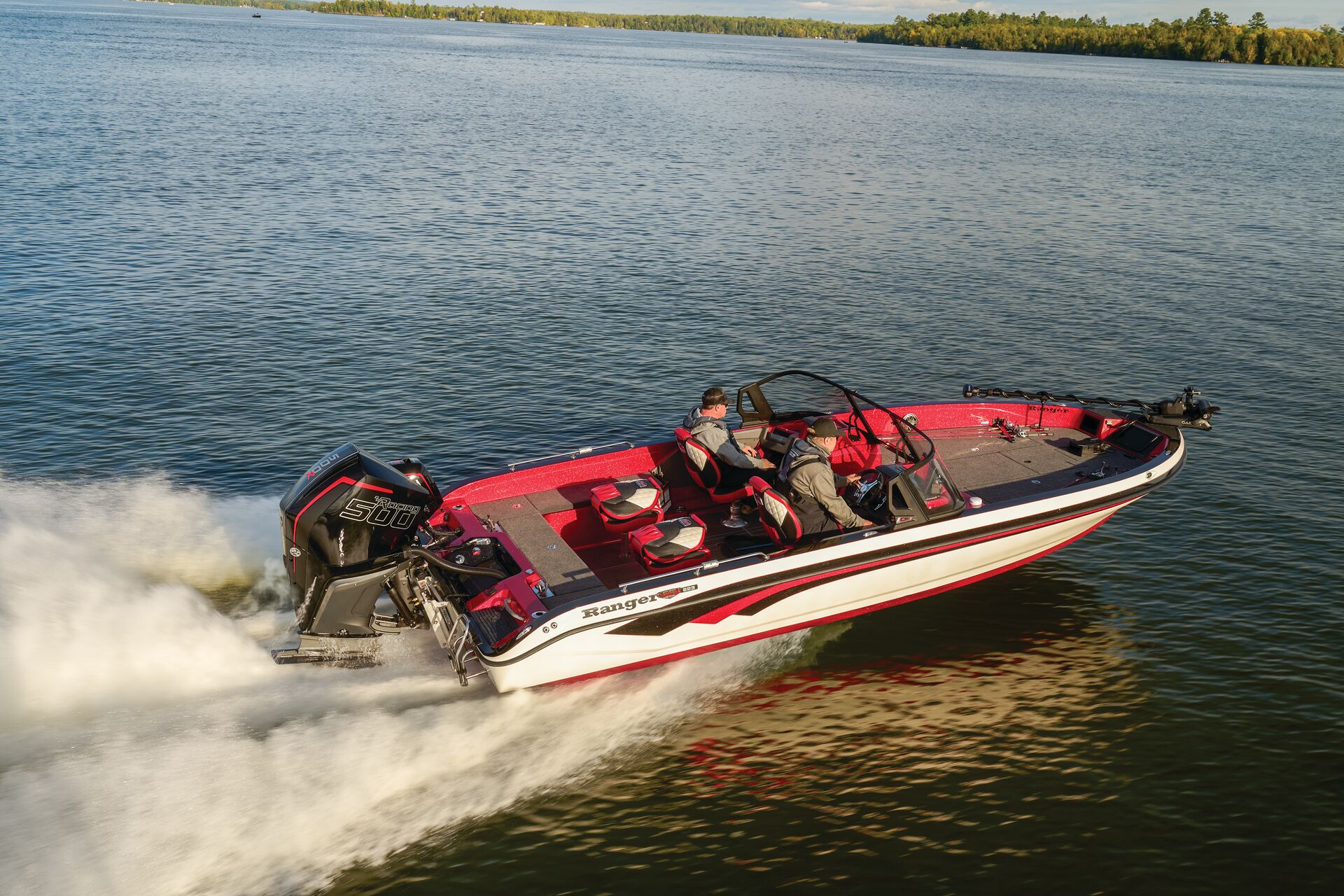

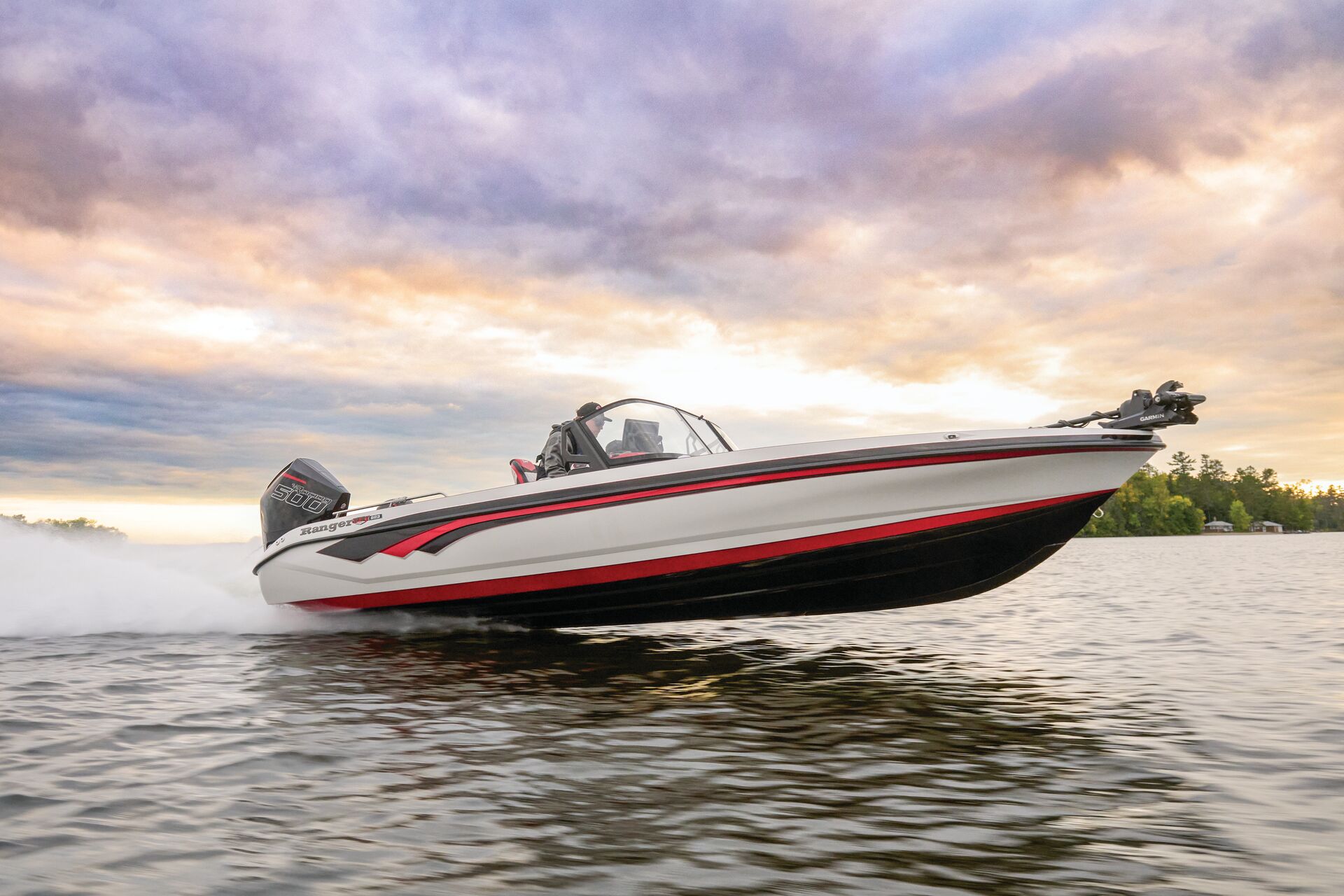

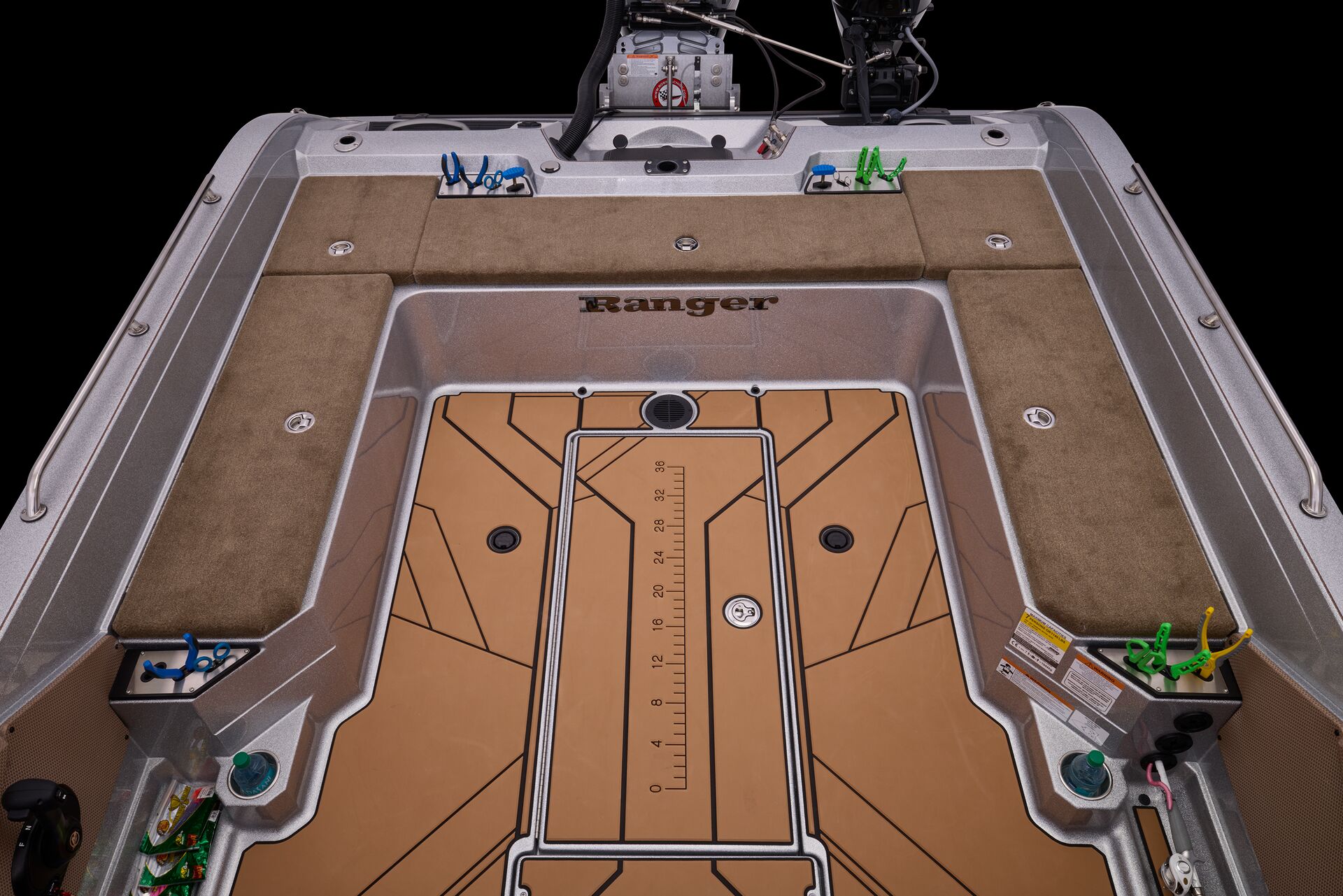

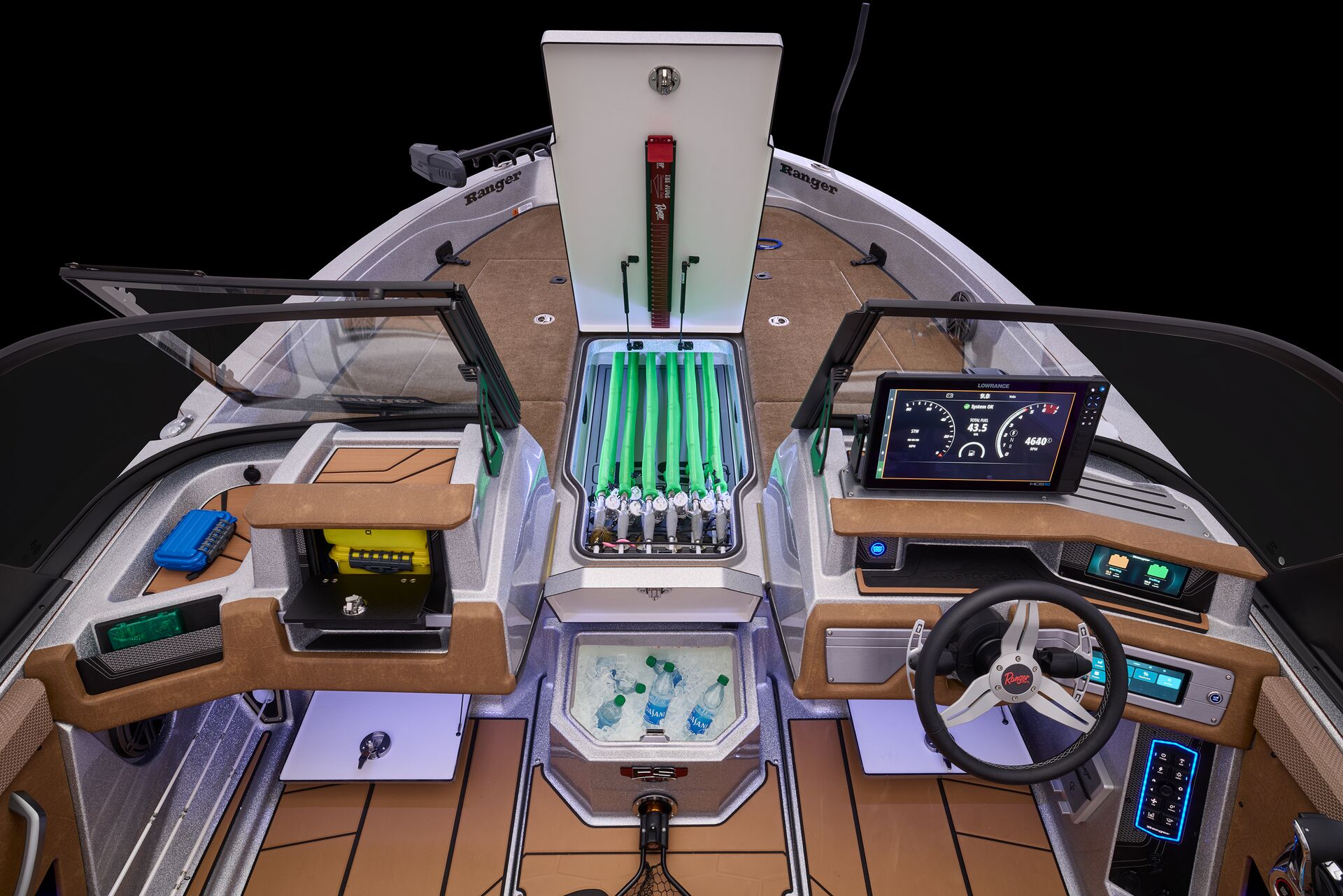

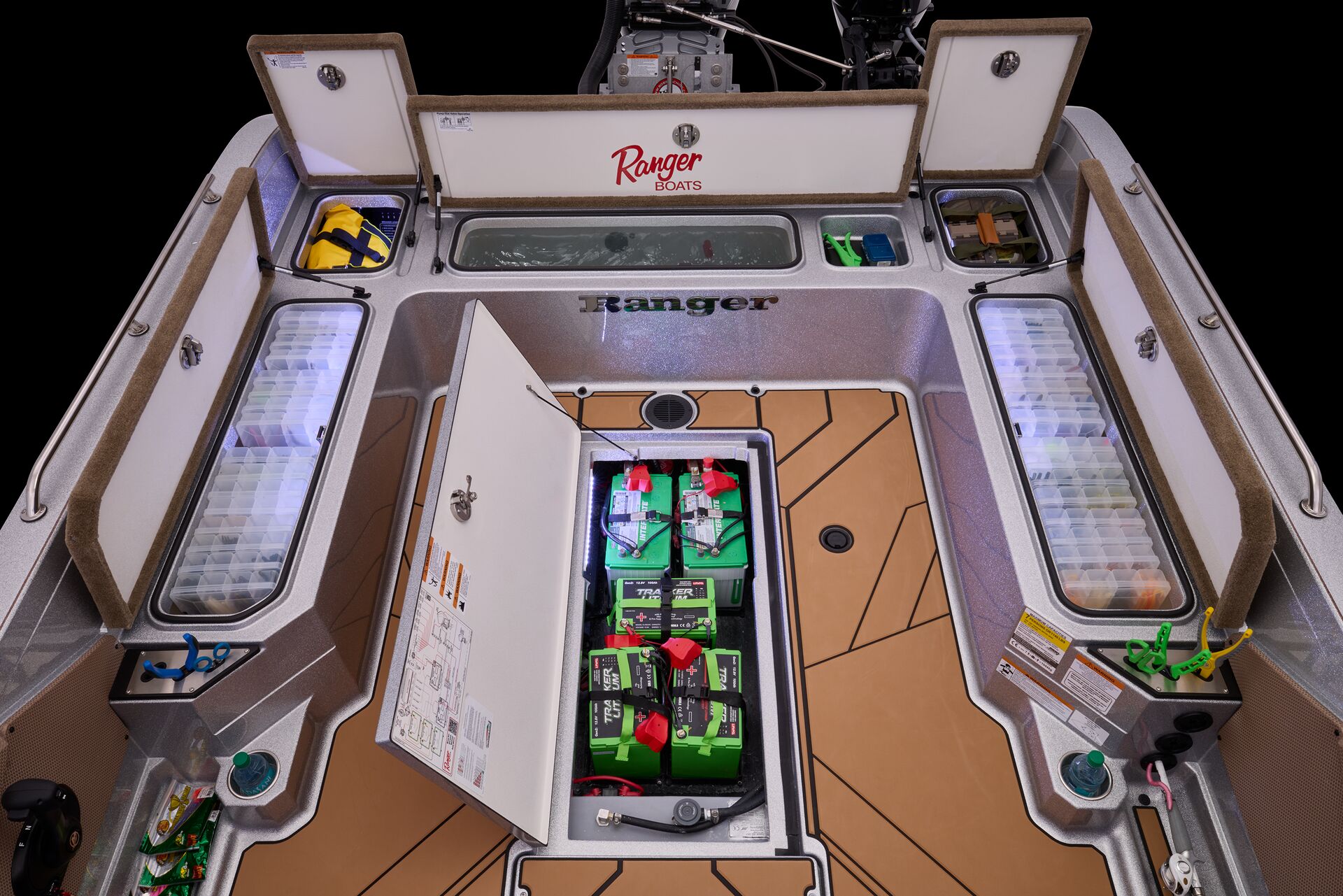

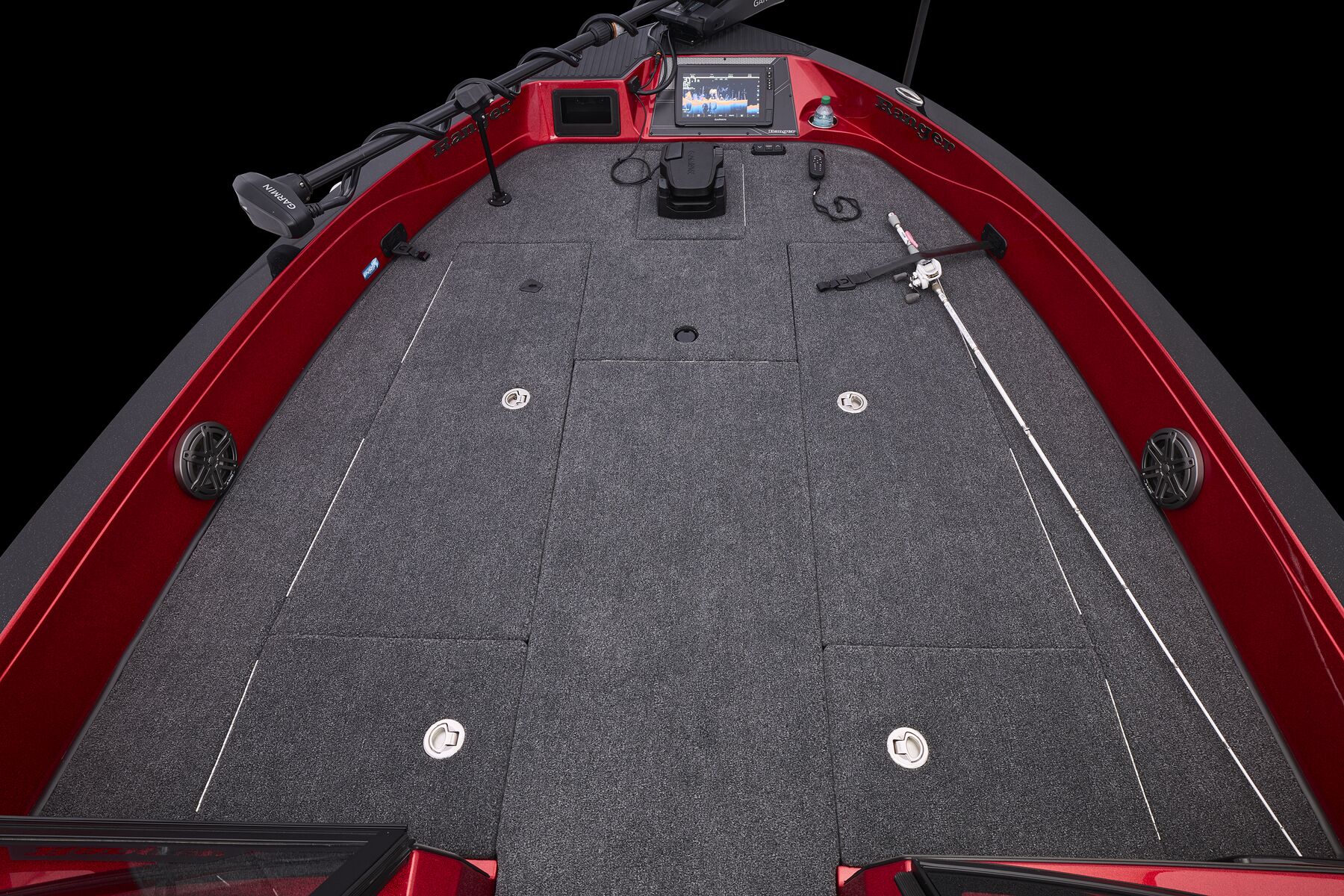

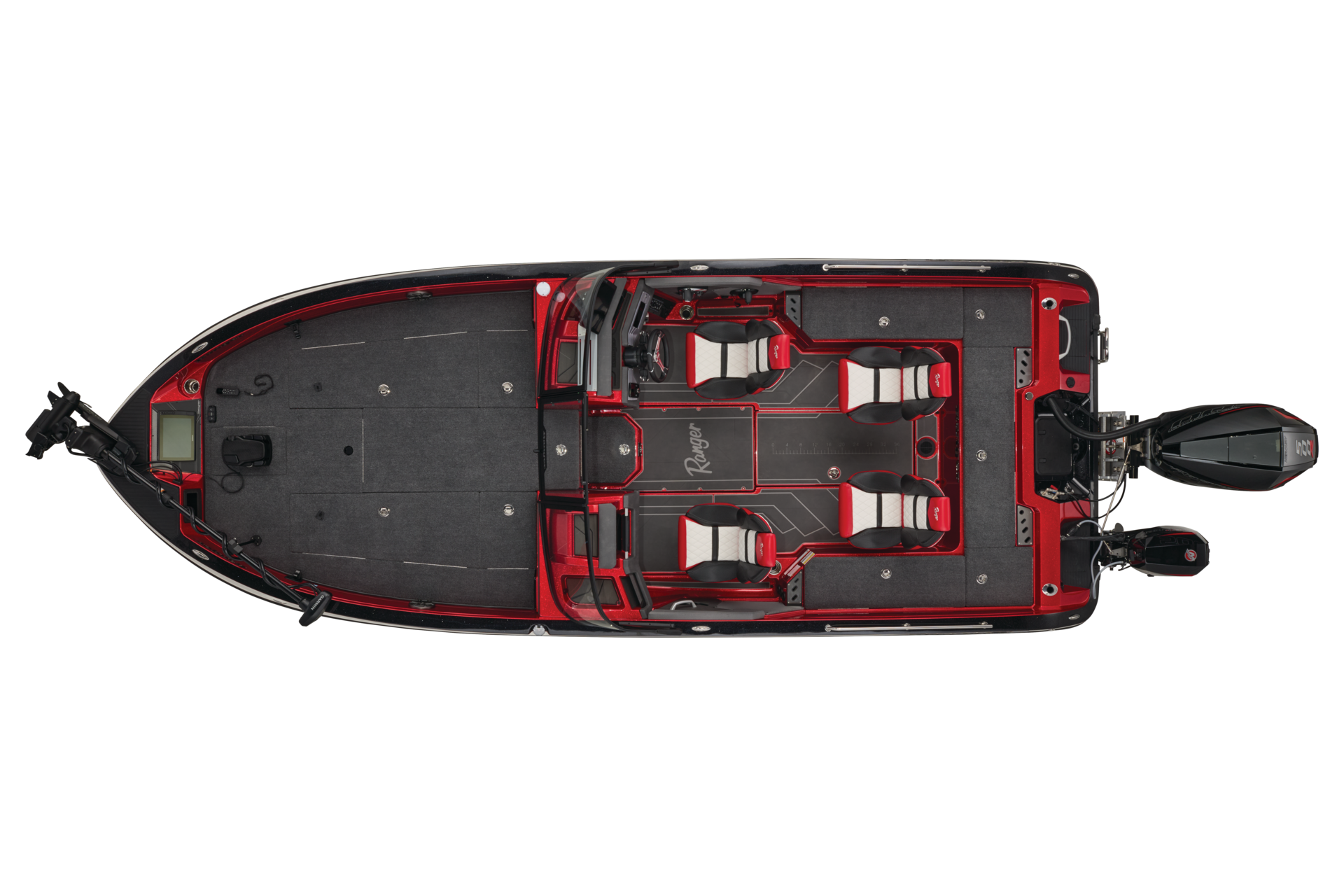

Gallery

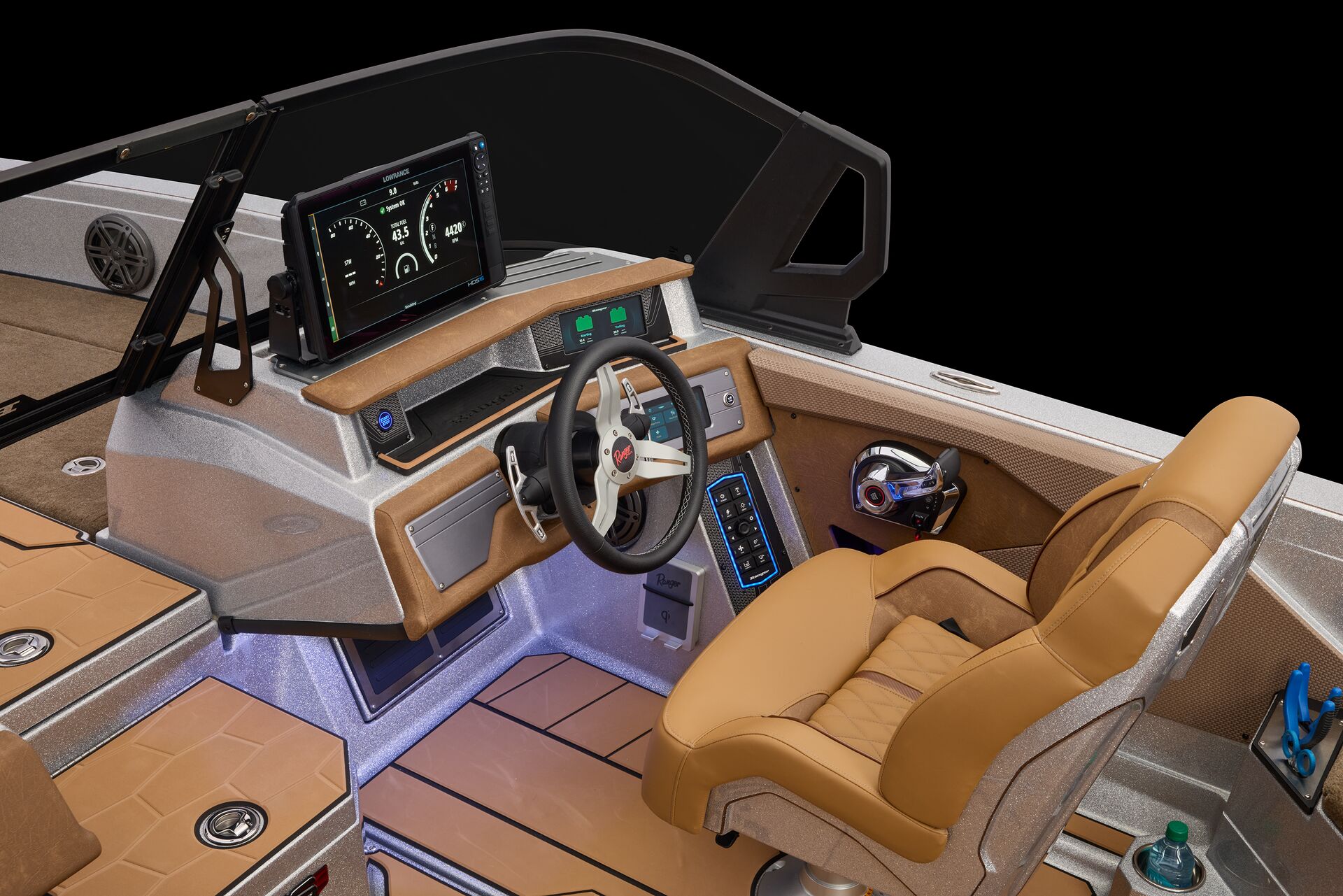

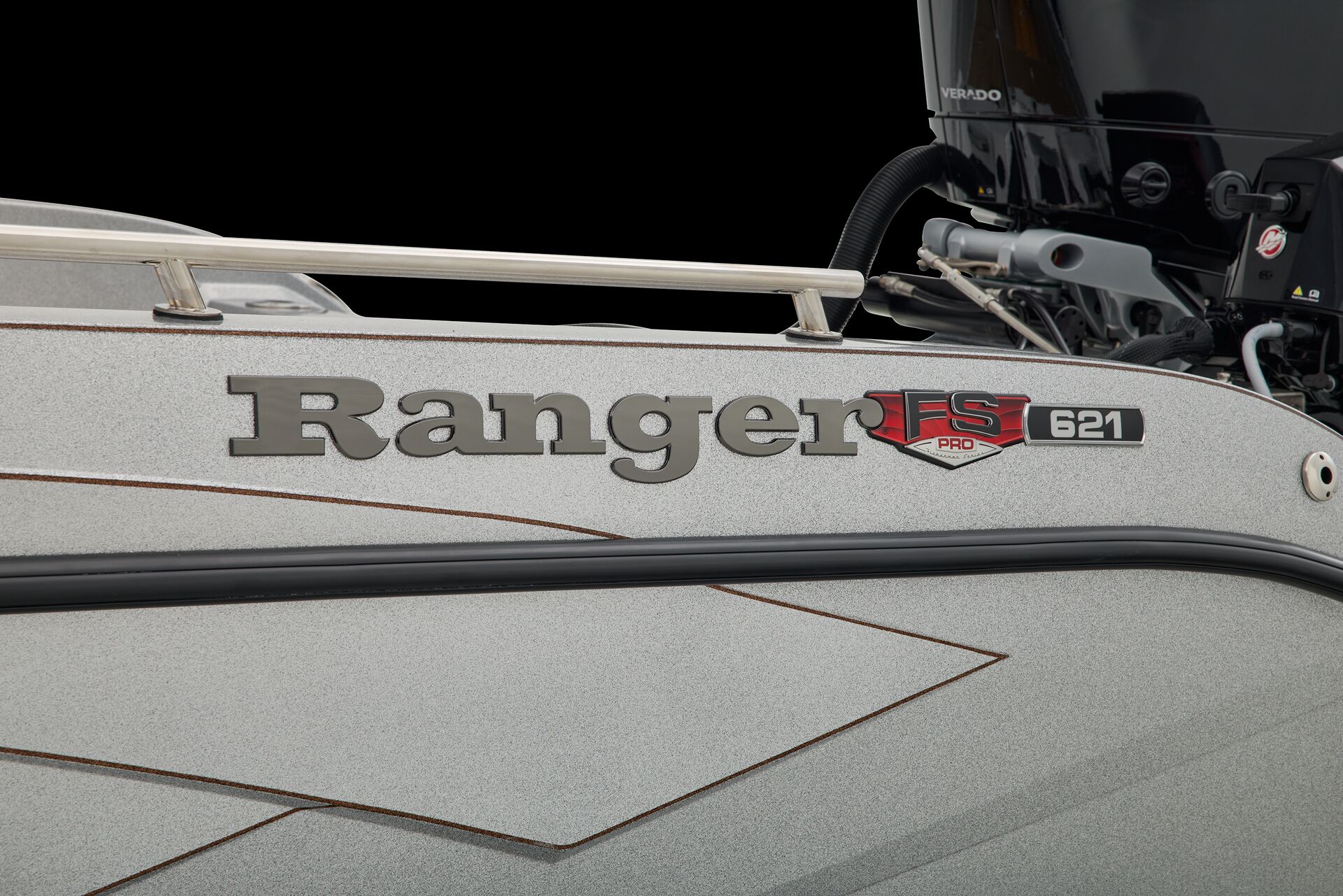

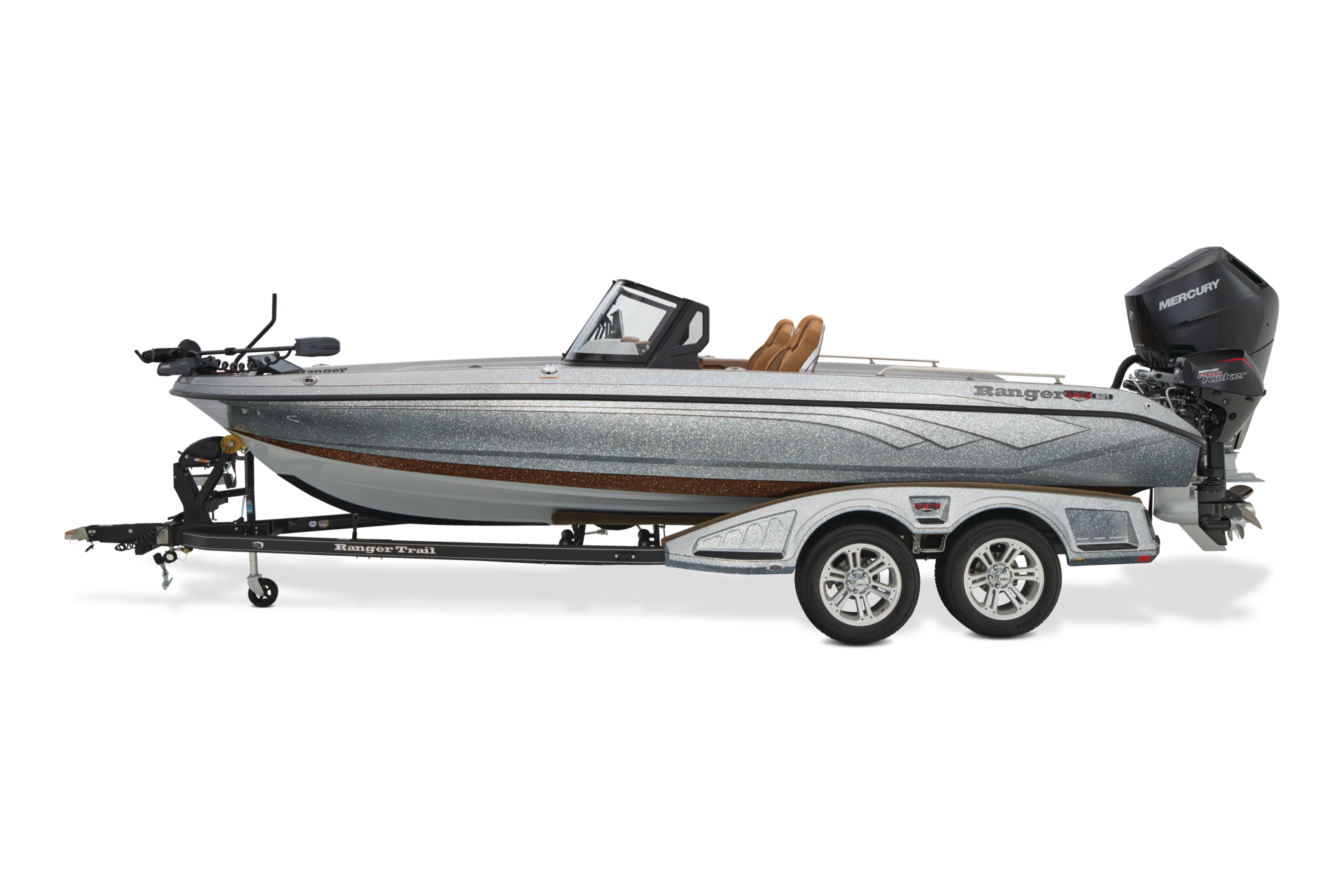

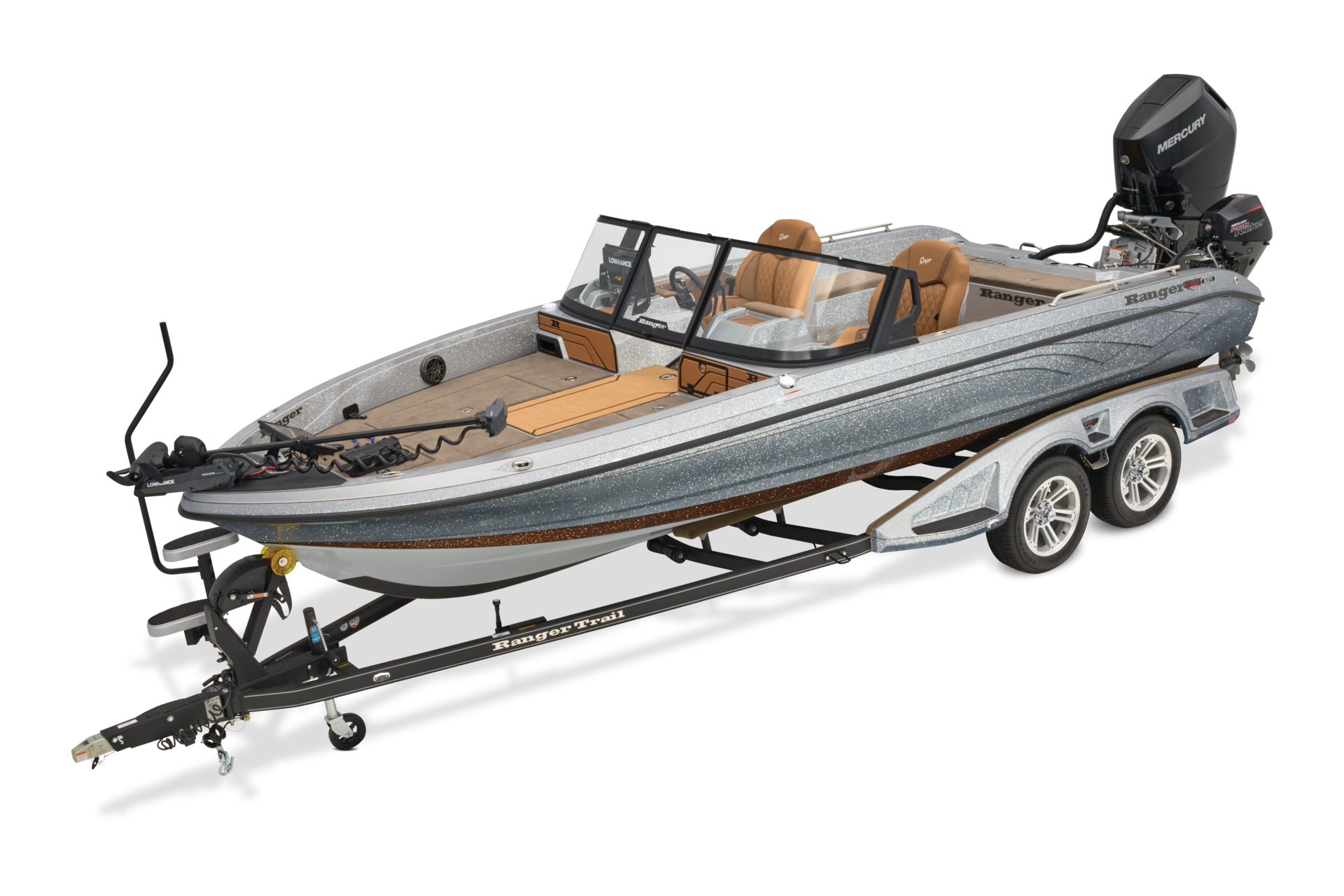

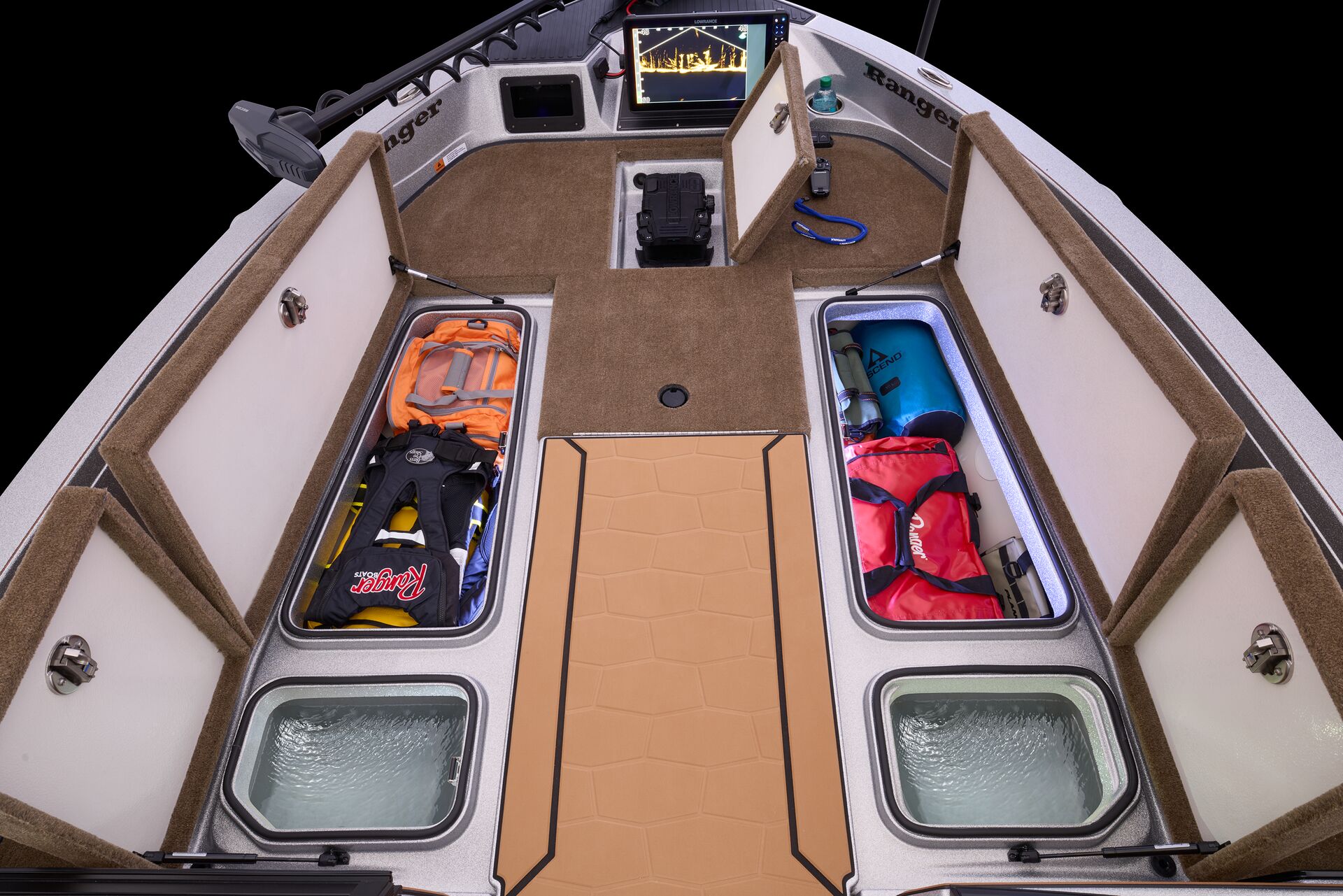

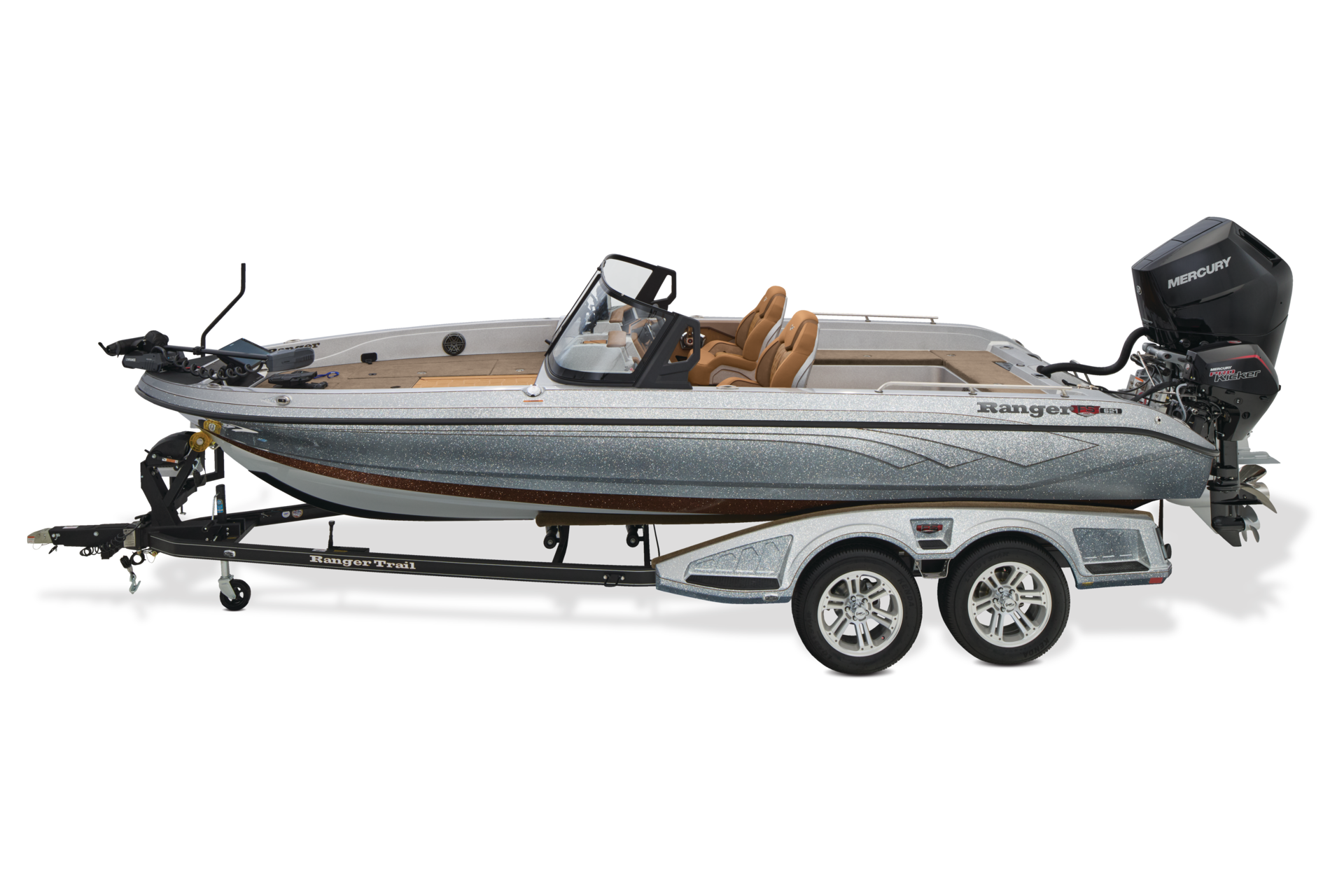

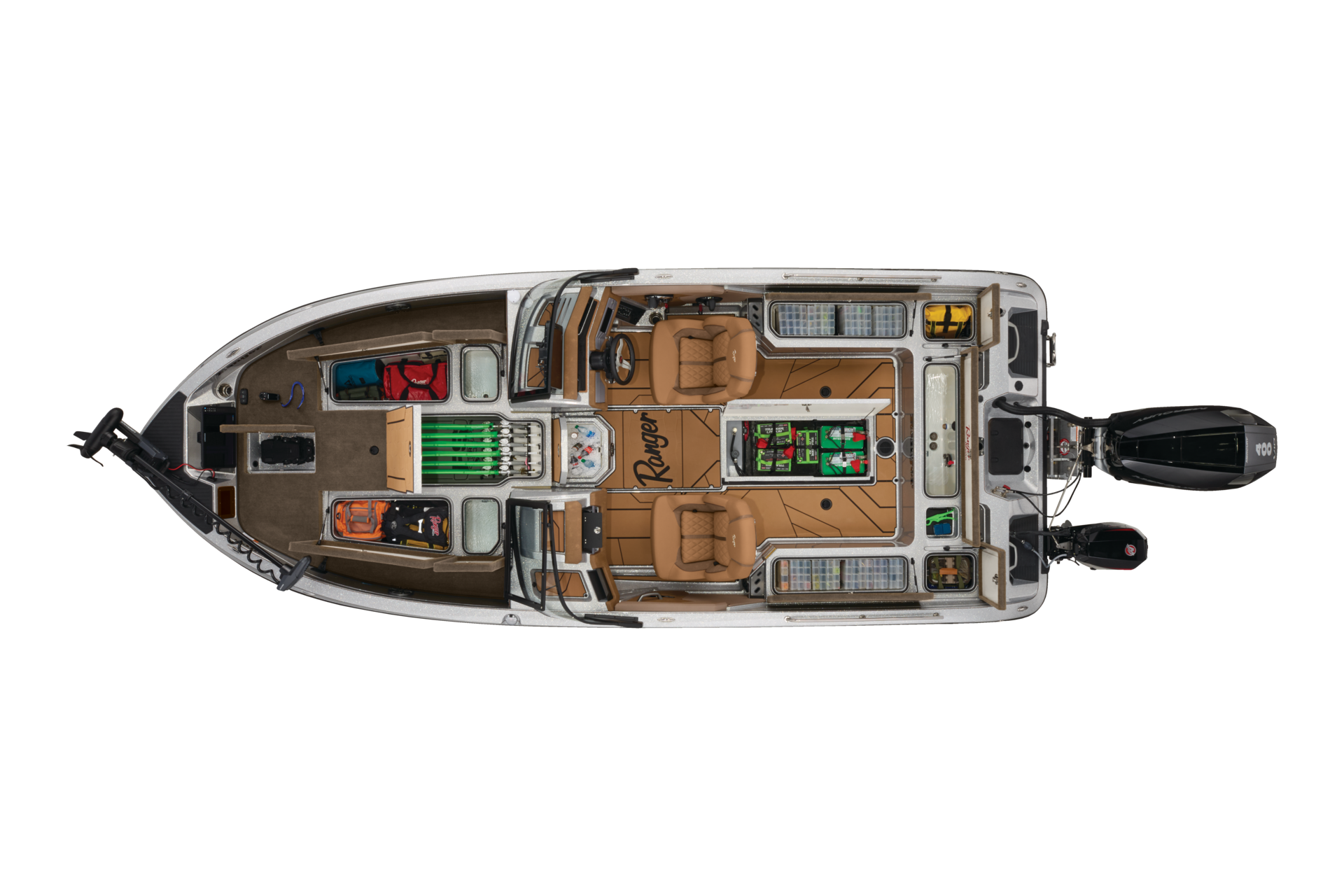

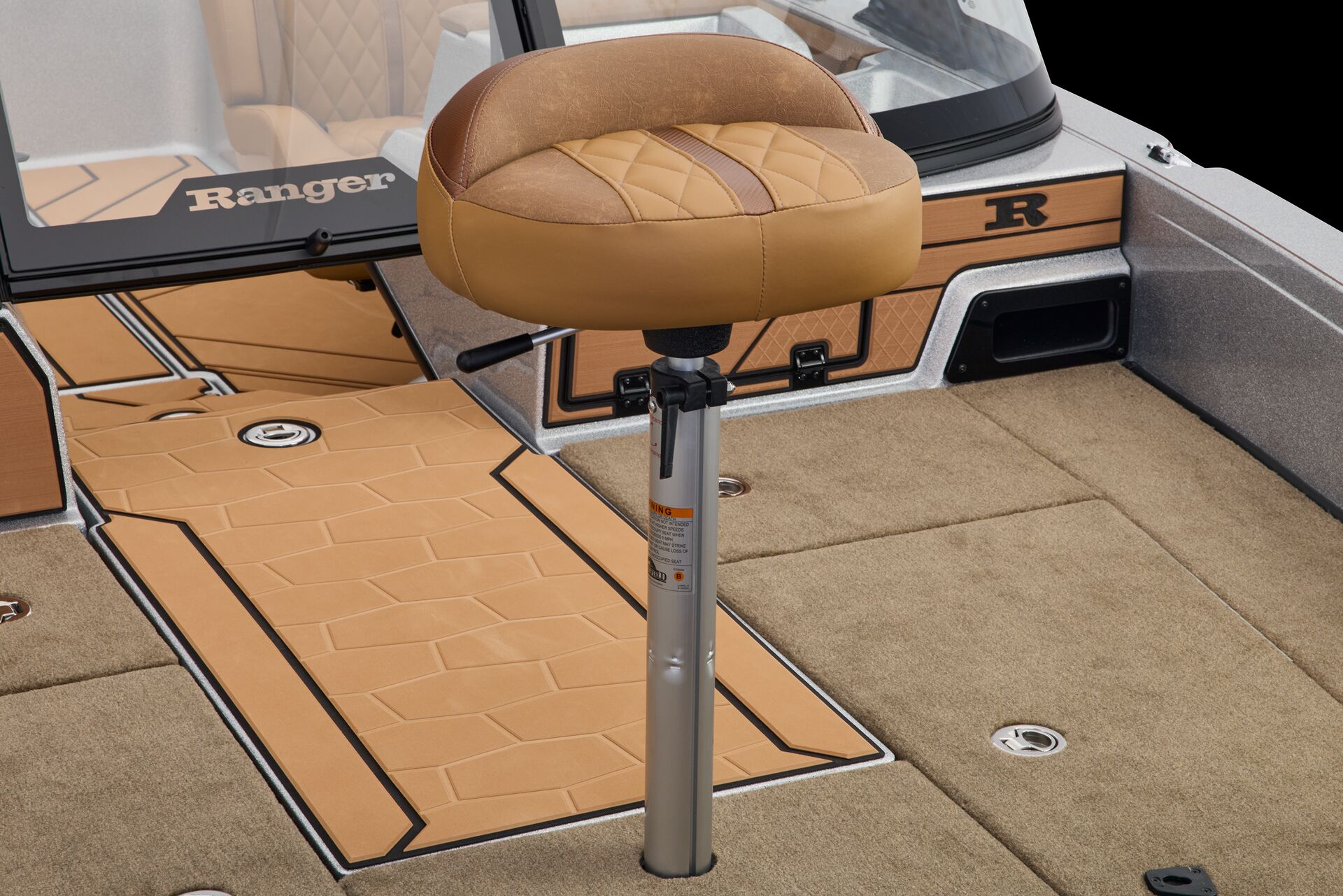

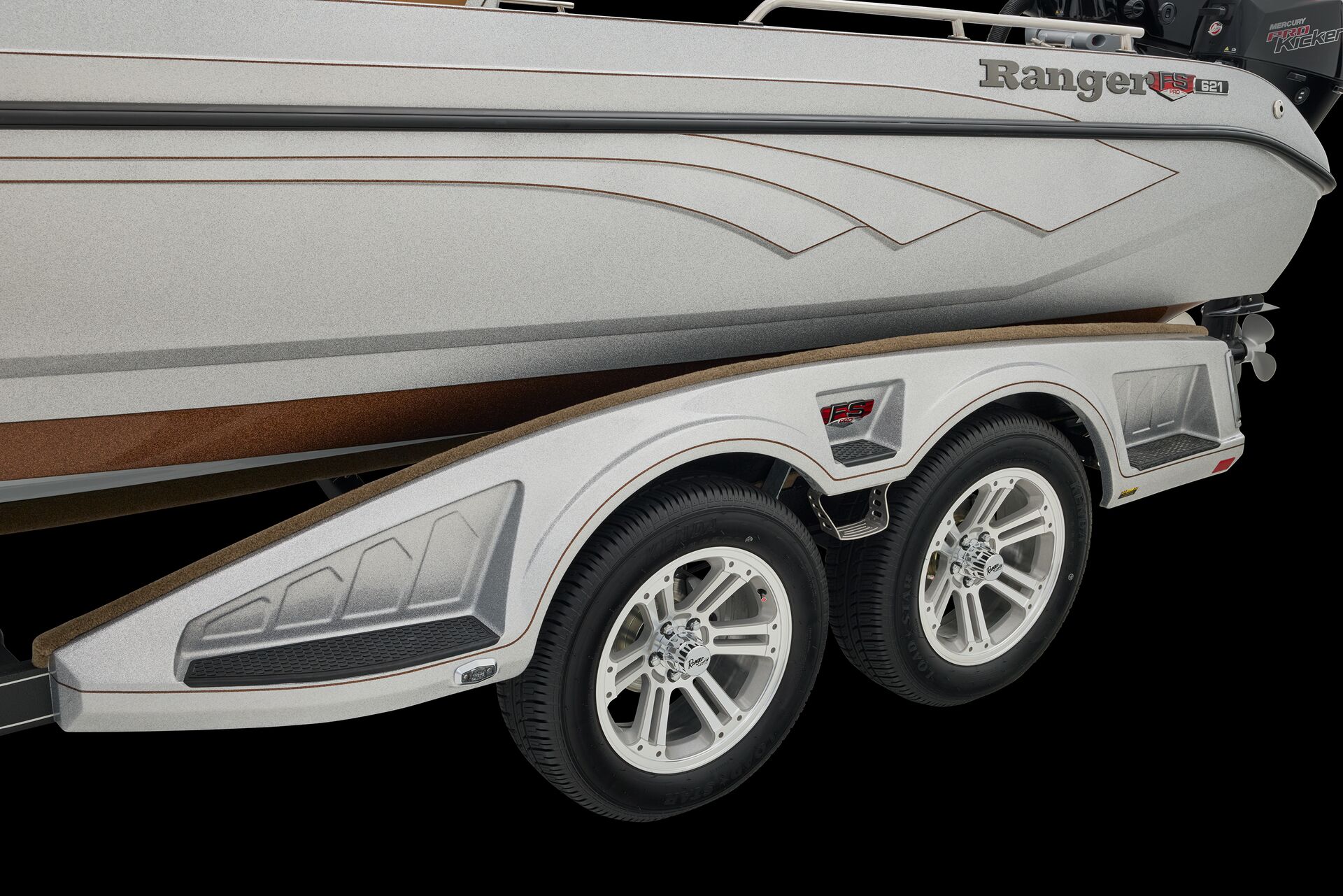

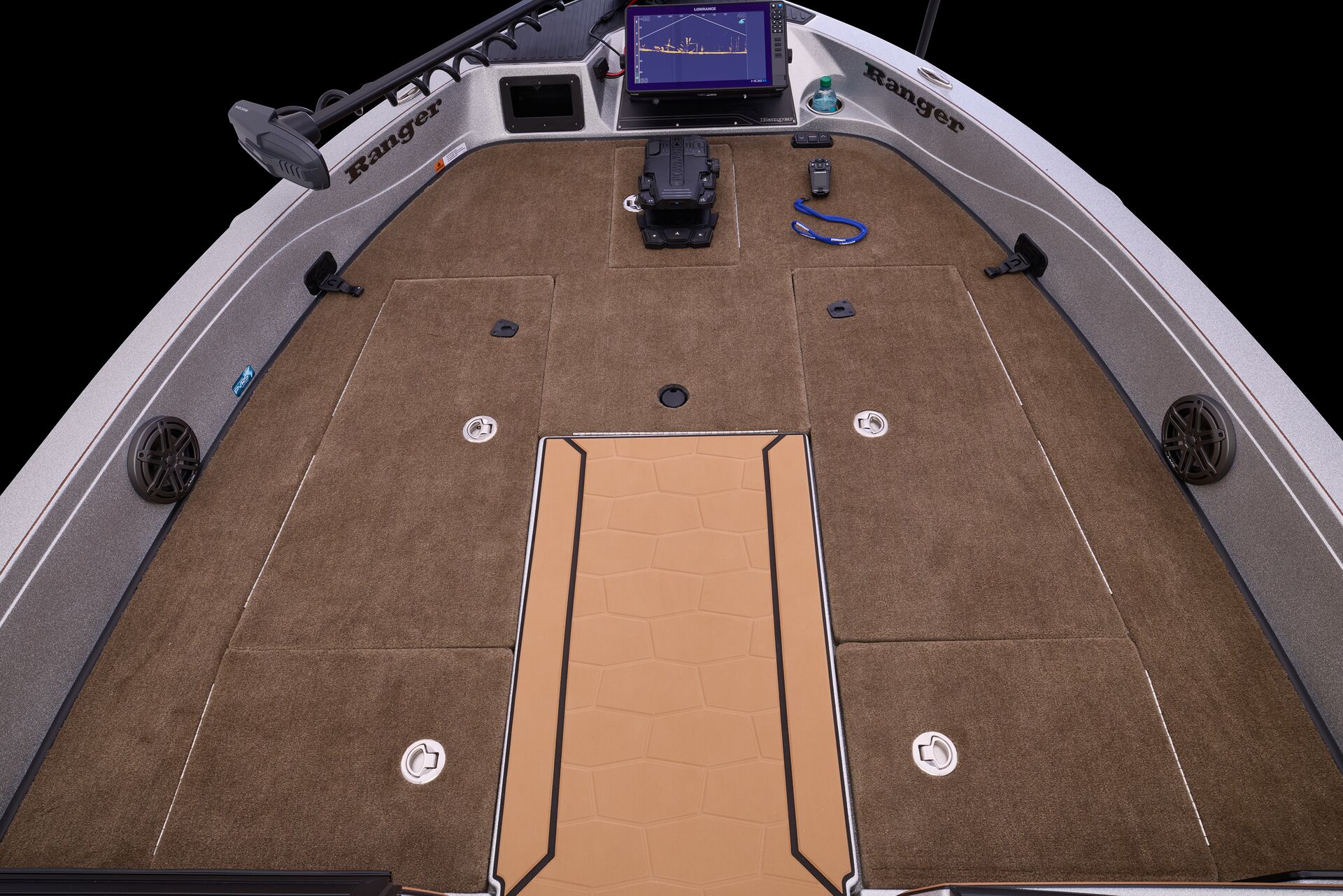

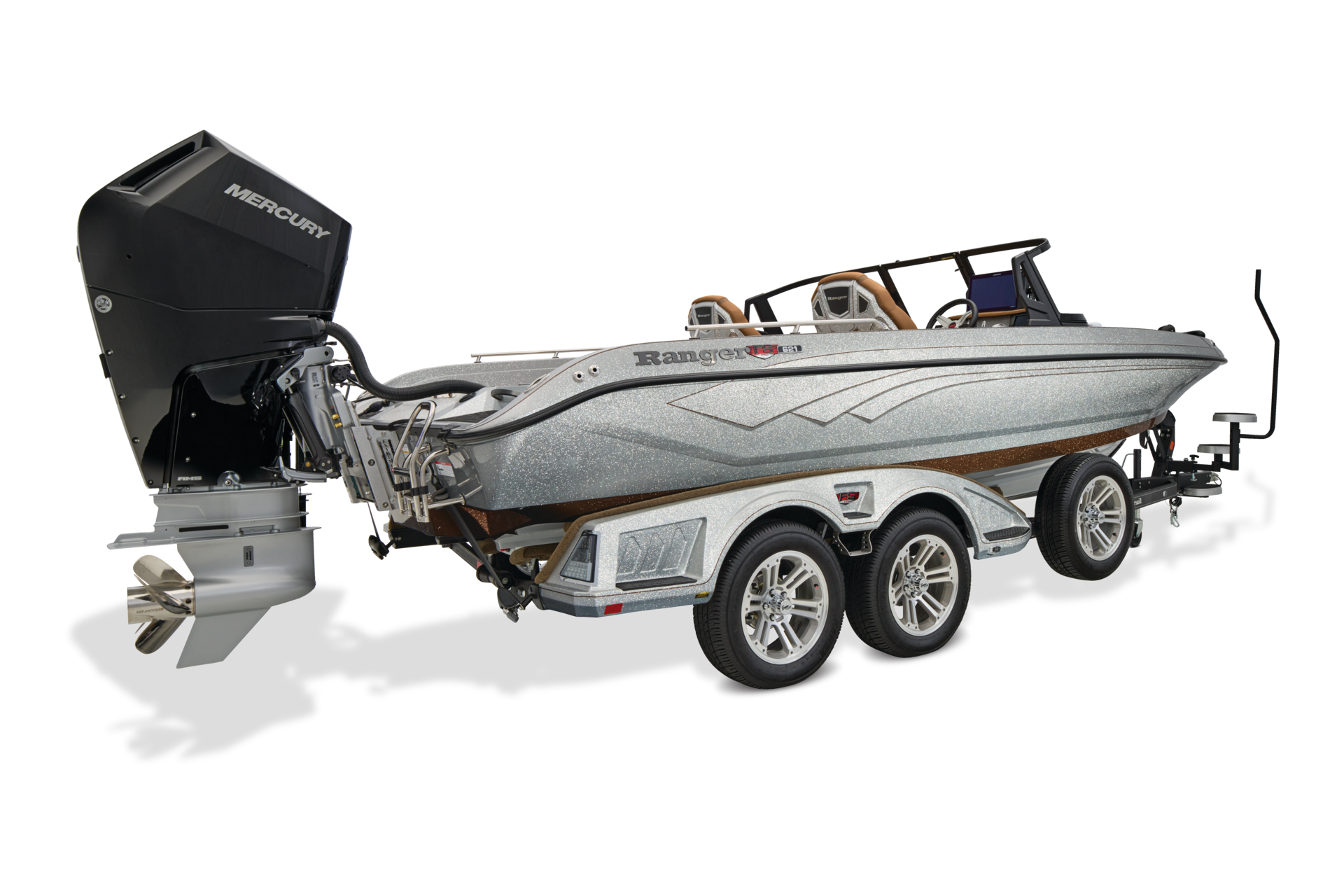

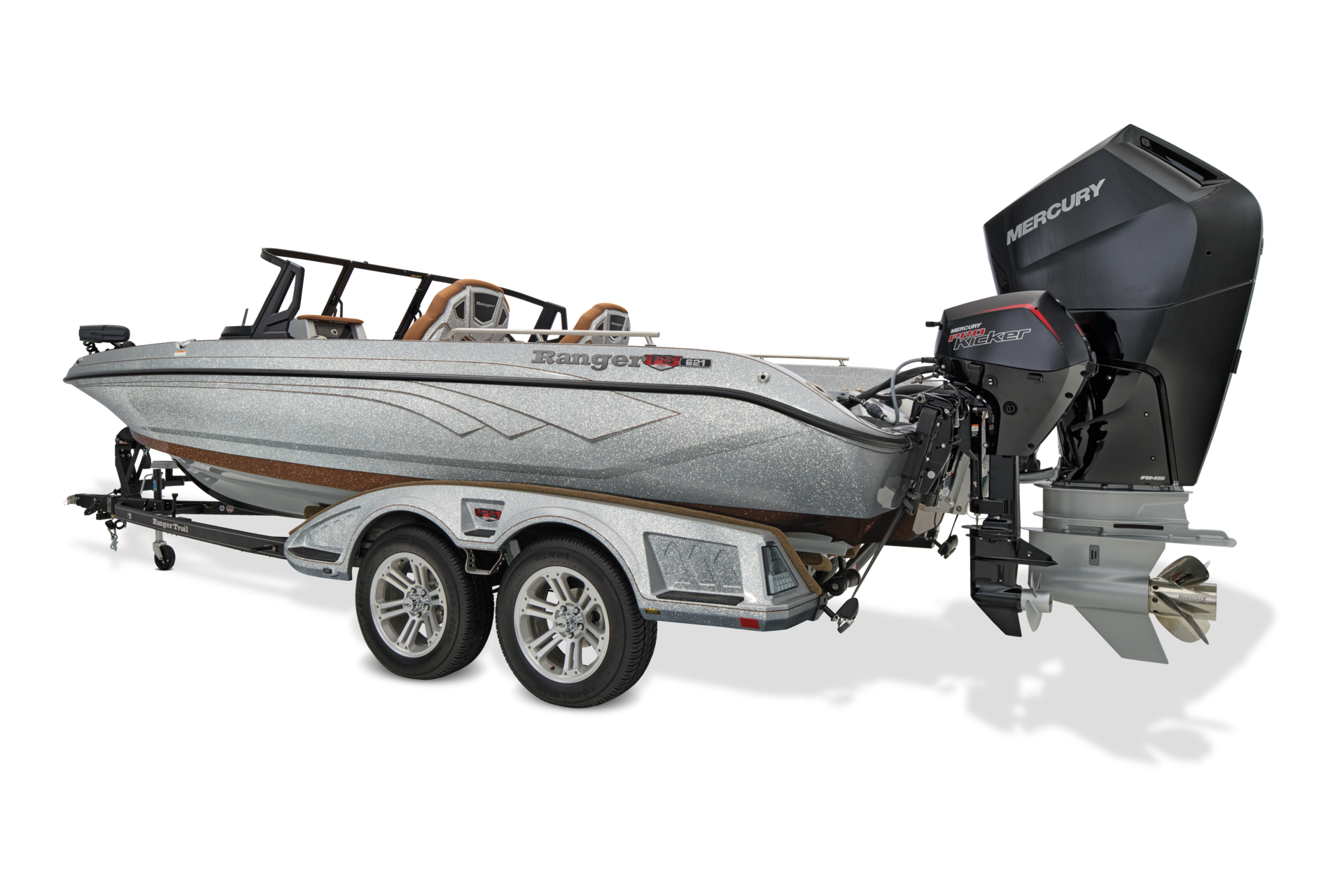

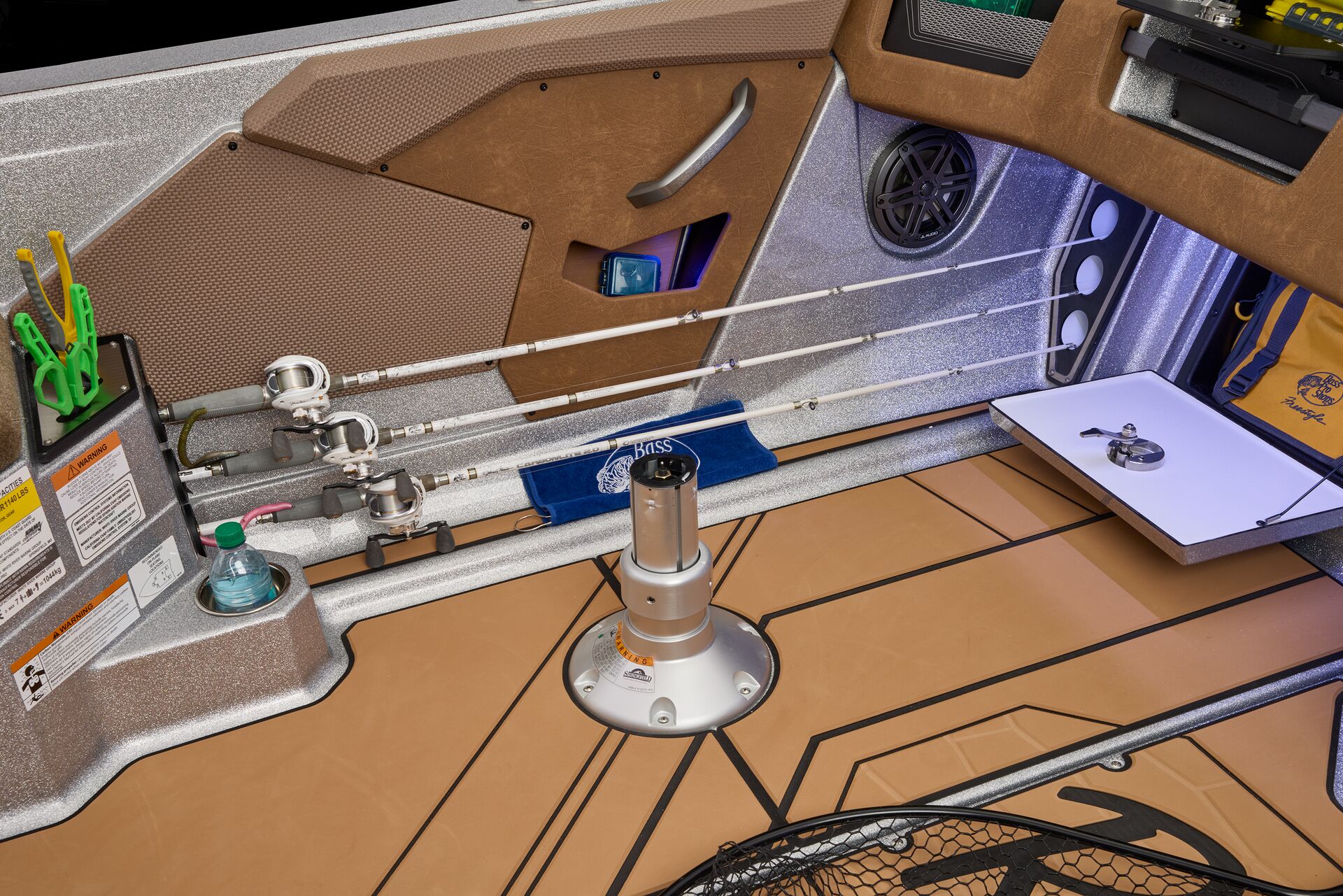

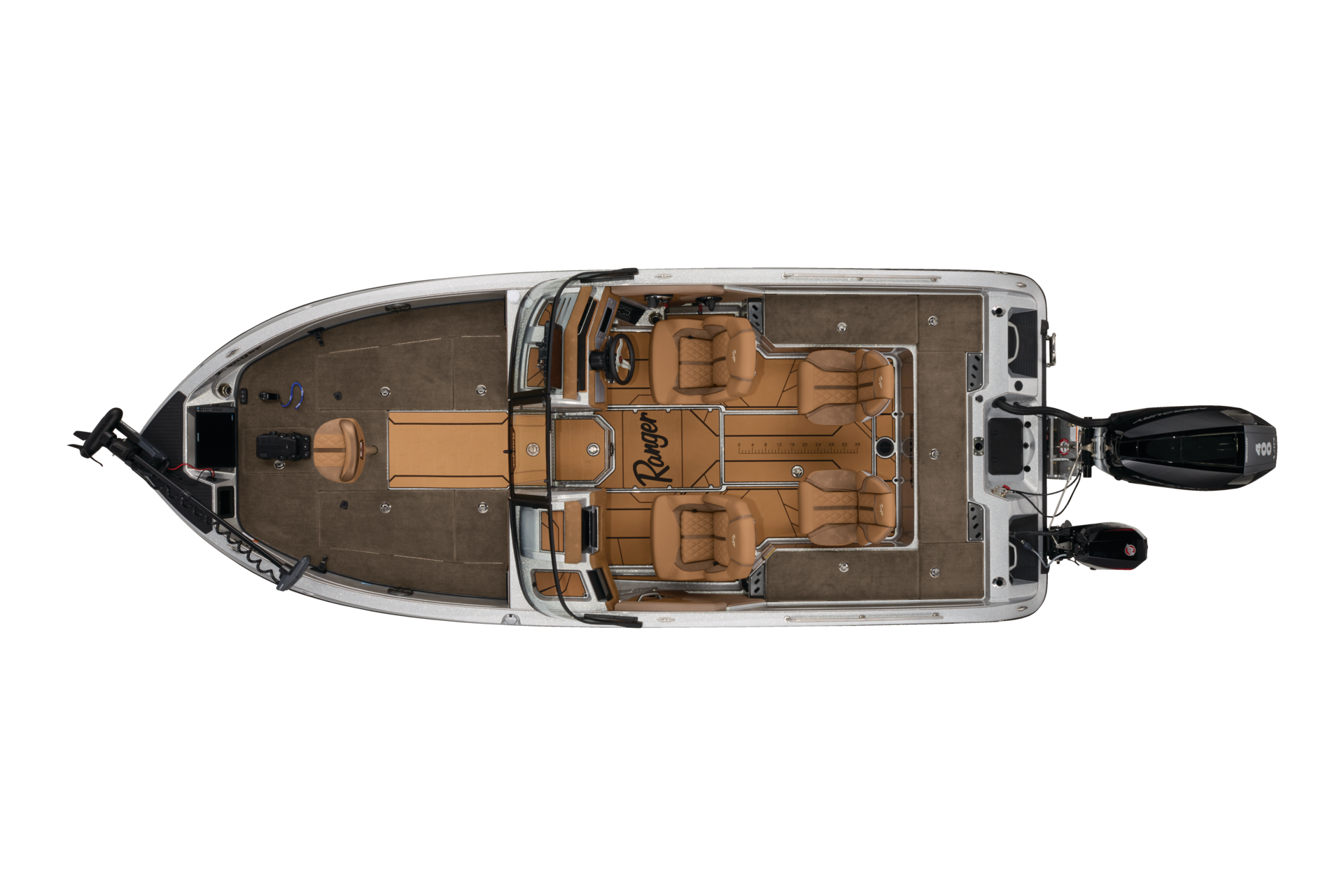

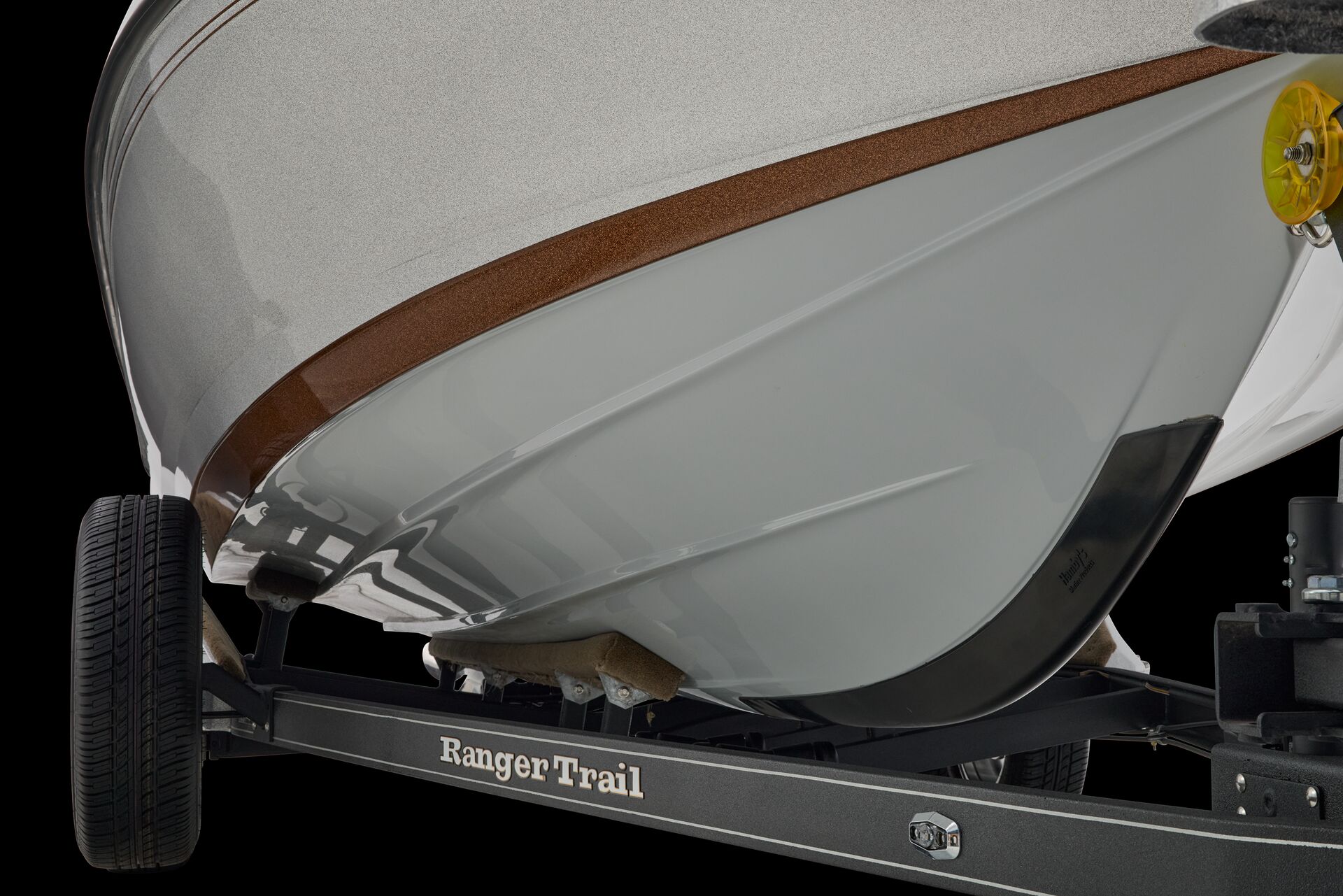

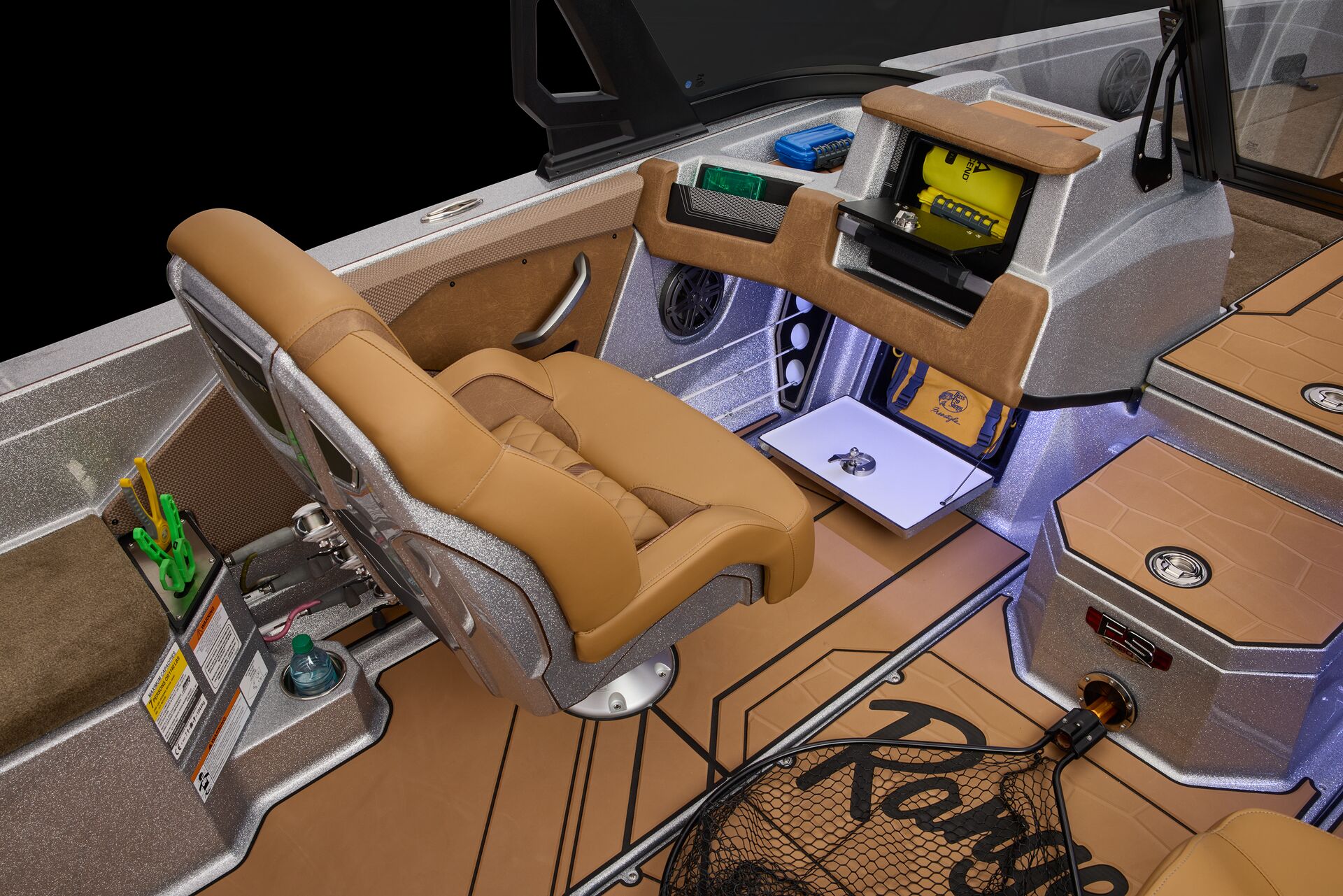

*621FS Pro images shown for Ultra Package representation
Specifications
| Length | 6.96 m | 22' 10'' |
| Beam | 2.59 m | 102'' |
| Max. Recommended HP | 500 HP | |
| Engine Shaft Length | 63.5 cm | 25'' |
| Inside Depth | 62.23 cm | 24.5'' |
| Fuel Capacity | 272.52 L | 72 gal. |
| Livewell Capacity | 105.98 L | 28 gal. |
| Baitwell Capacity | 26.5 L | 7 gal. |
| Total Person, Motor, Gear | 1088.62 kg | 2400 lbs. |
| Approximate Boat Weight | 1202.02 kg | 2650 lbs. |
| Rod Box Length - Center Row 1 | 2.74 m | 9' |
| Rod Box Length - Center Row 2 | 2.59 m | 8' 6'' |
| Max. Person Capacity | 7 persons | |
| Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate) | 8.61 m | 28' 3'' |
| Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate) | 7.95 m | 26' 1'' |
| Width On Trailer | 2.59 m | 102'' |
Motor Options
| AVAILABLE MOTOR | |||||
|---|---|---|---|---|---|
| Mercury® Verado® | |||||

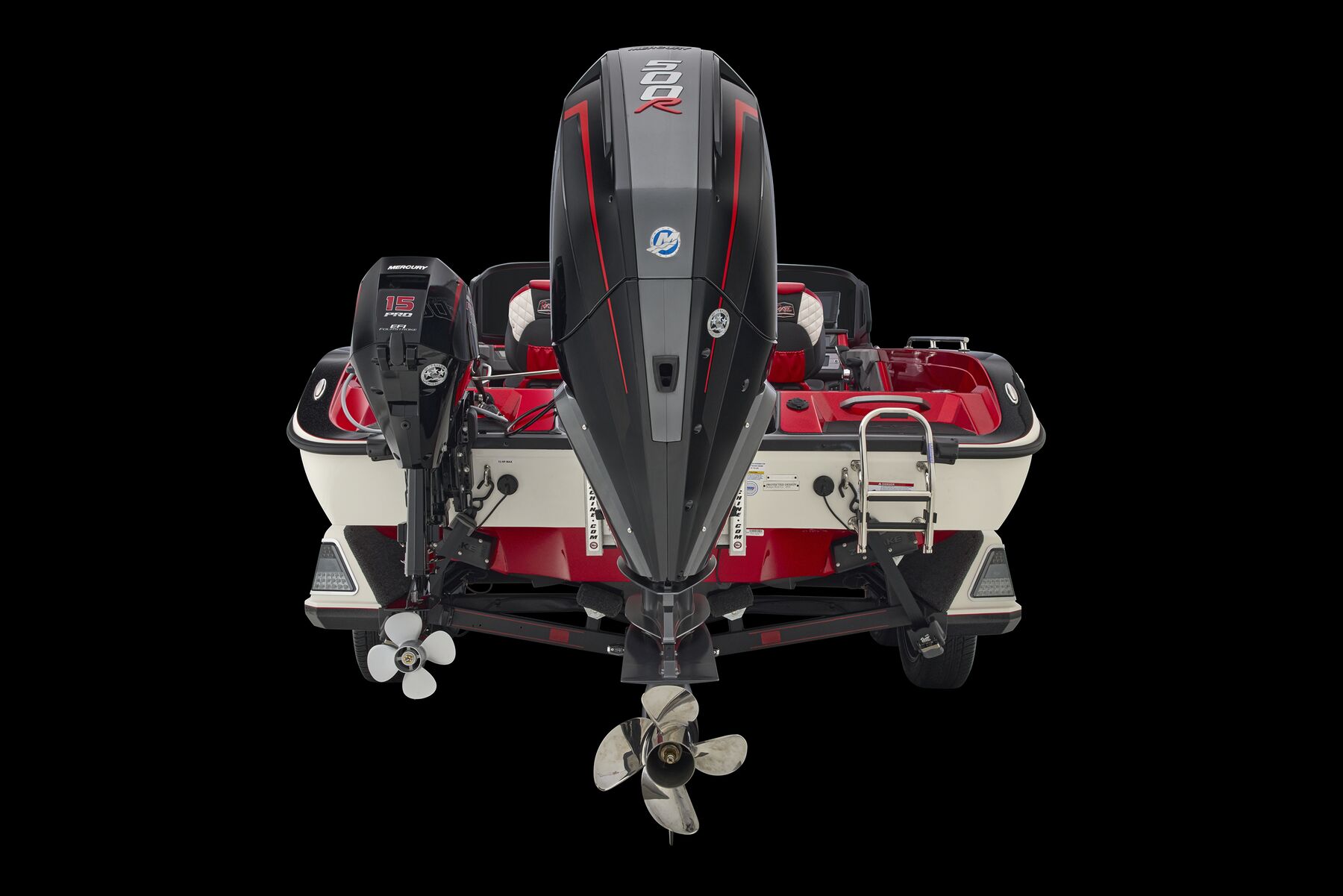

| 500R Verado Racing 4.6L V8 |
$169995 USD
|
Select Dealer | |||
| 500R Verado Racing 4.6L V8 Cold Fusion |
$172995 USD
|
Select Dealer | |||
Standard Features
Custom Details

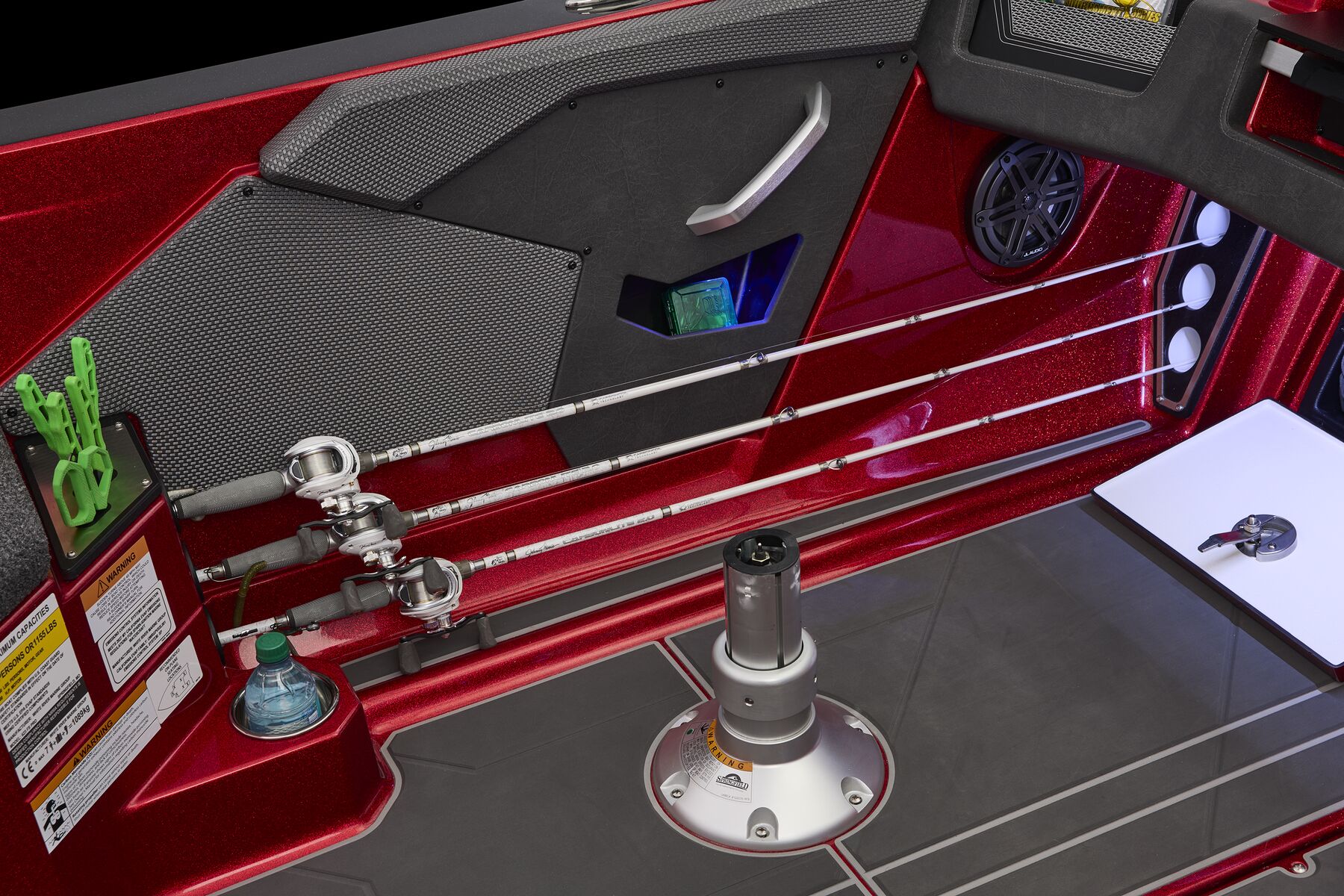

- Power Ventilation Rod Storage™

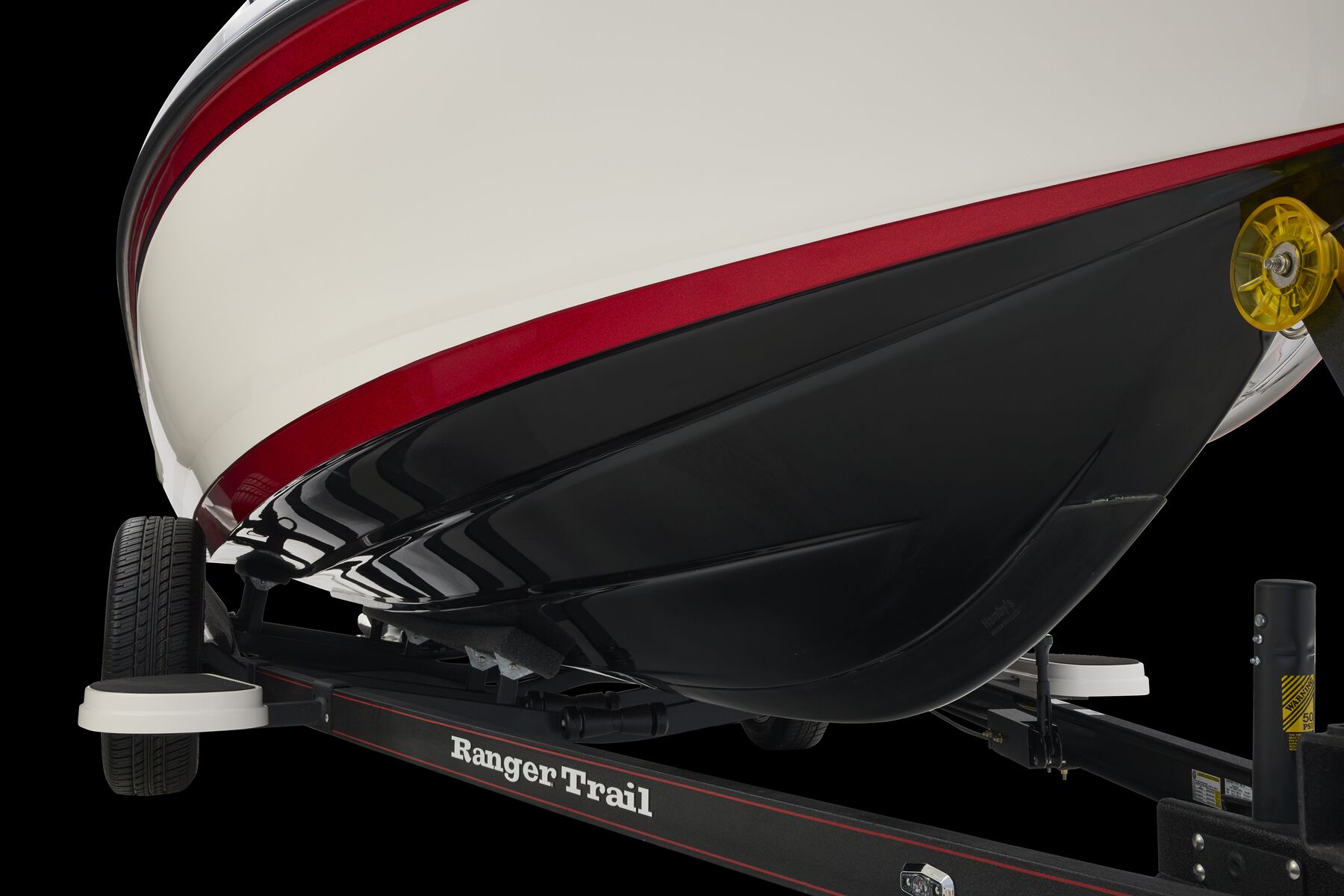

- Hamby's keel protector
- Soft-touch skid-resistant traction pad cockpit floor

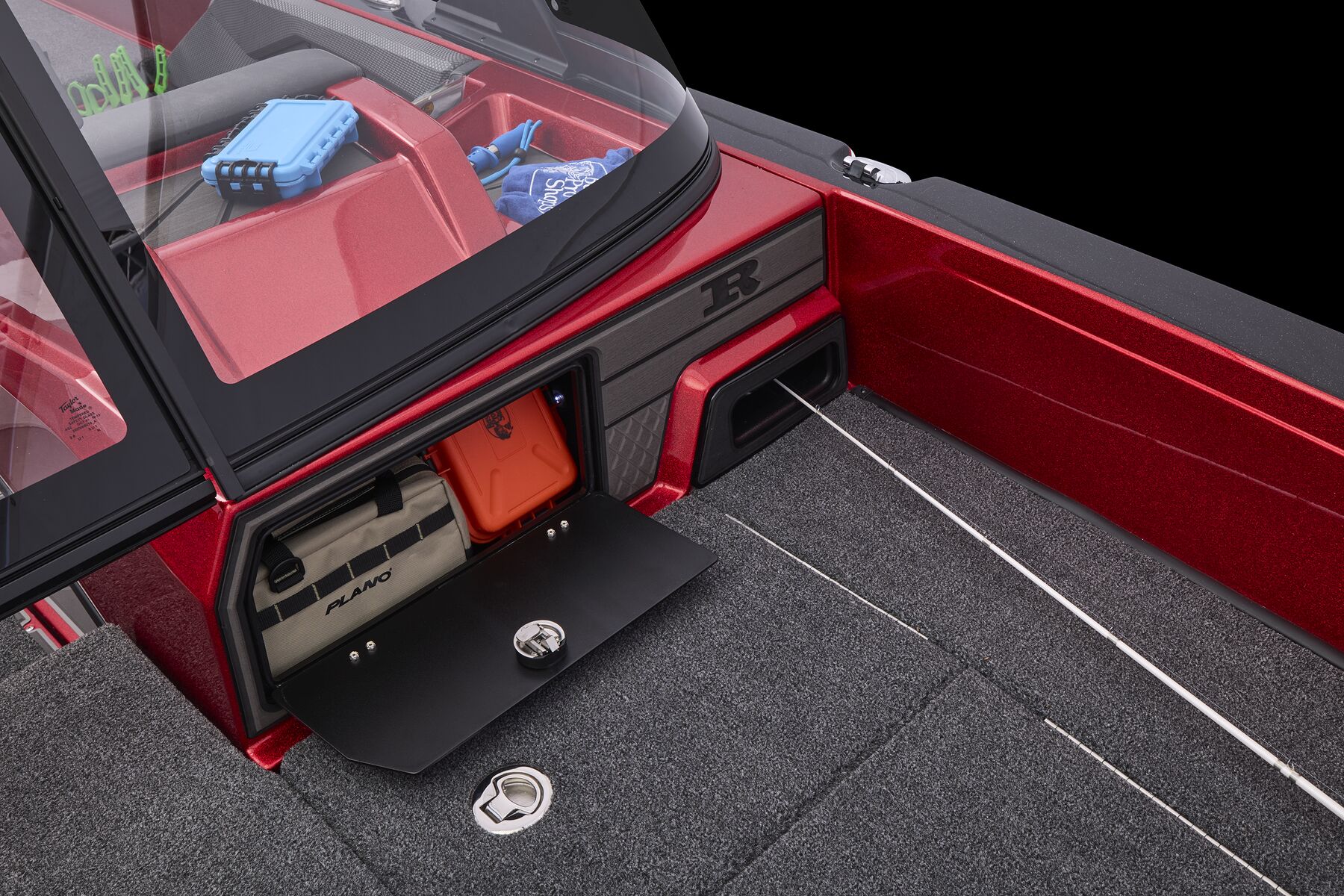

- Under-console storage shelves - port and starboard behind driver console footrest
- Lockable storage compartments
- Gas spring lid assists
- Insulated cooler w/ gelcoat liner & drain
- Integrated stainless steel cup holders
- Stainless steel rear 44" grab rails
- Ranger® tournament measuring board

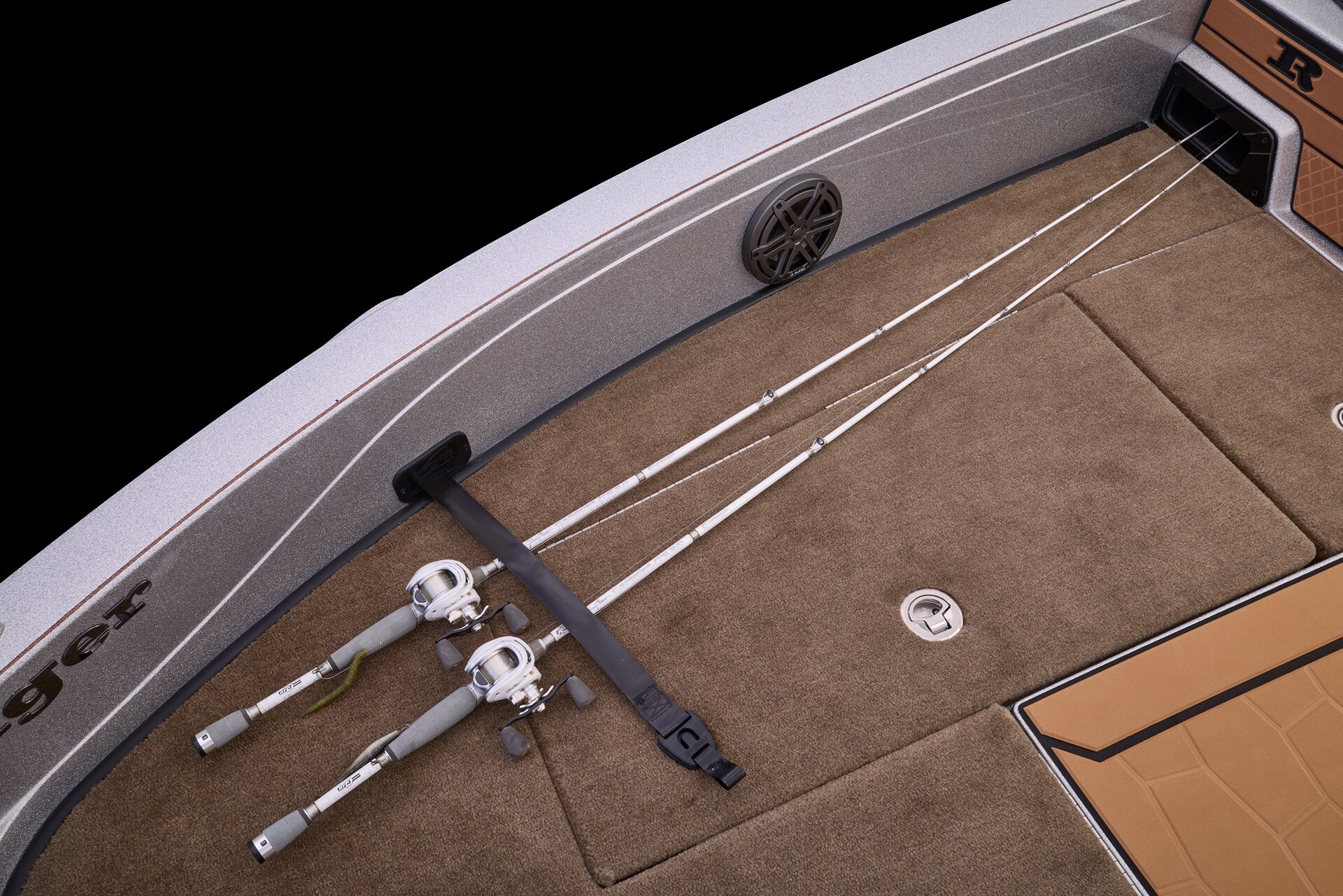

- Retractable bow rod buckles
- Tool holders - (1) Bow, (1) cockpit, (2) rear
- (2) Deck-mounted stern rod holders
- Runnin' rod rack w/ holder
- Remote drain plug
- Under-console 5 gal. bucket storage on port side
Power/Performance
- Pultruded Fiberglass Transom

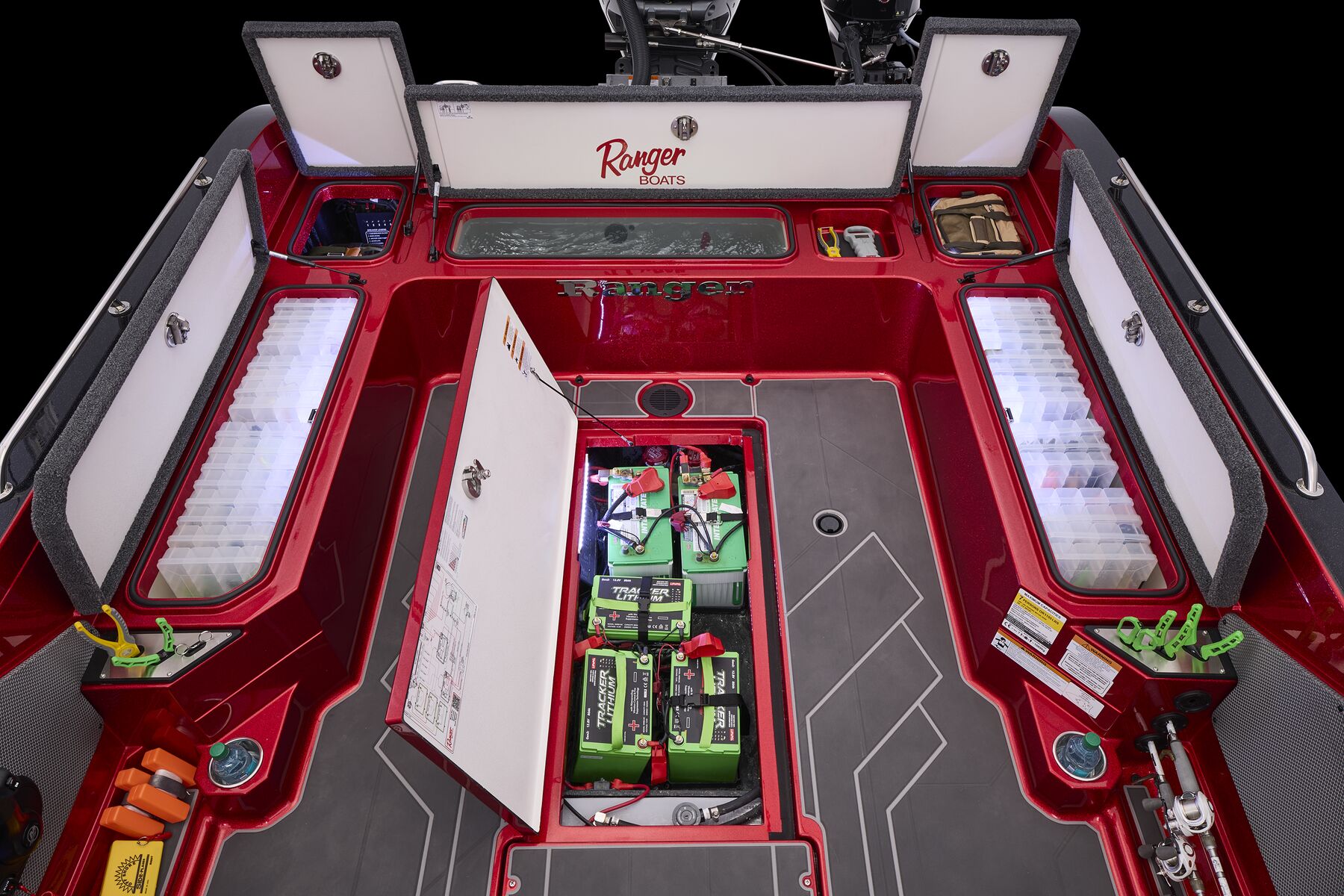

- AGM Starting battery w/ tray

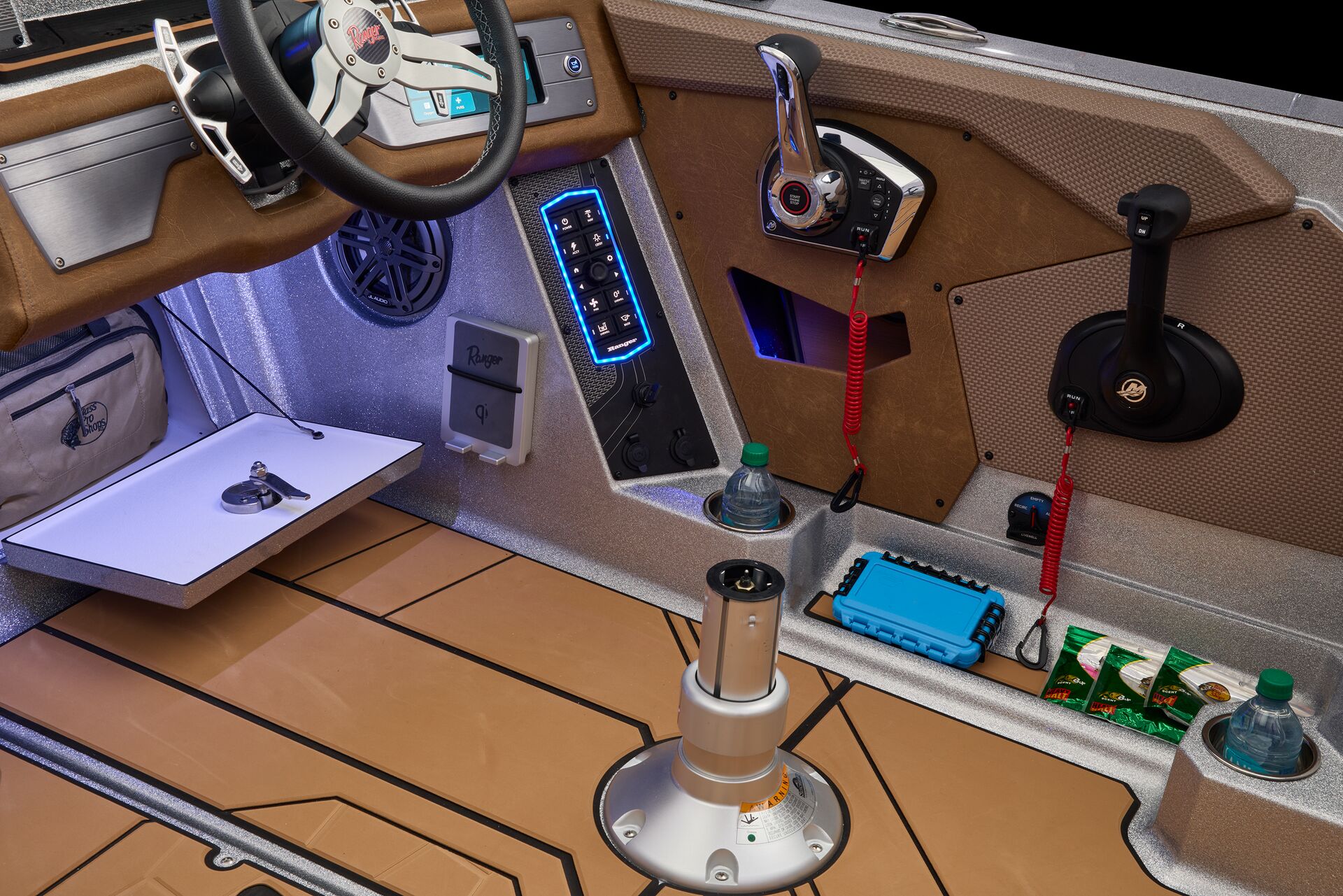

- Flush-mounted remote throttle control
- Foam-filled fiberglass stringers
- One-Piece-Feel™ Interloc Construction
- High-performance steering wheel
- Manual setback plate
- Recirculating aerated livewell and baitwell w/ filter screens, automatic timers and livewell pump-out
- High-performance stainless steel prop
Safety/Comfort
- Upright Level Flotation exceeding all USCG & NMMA standards

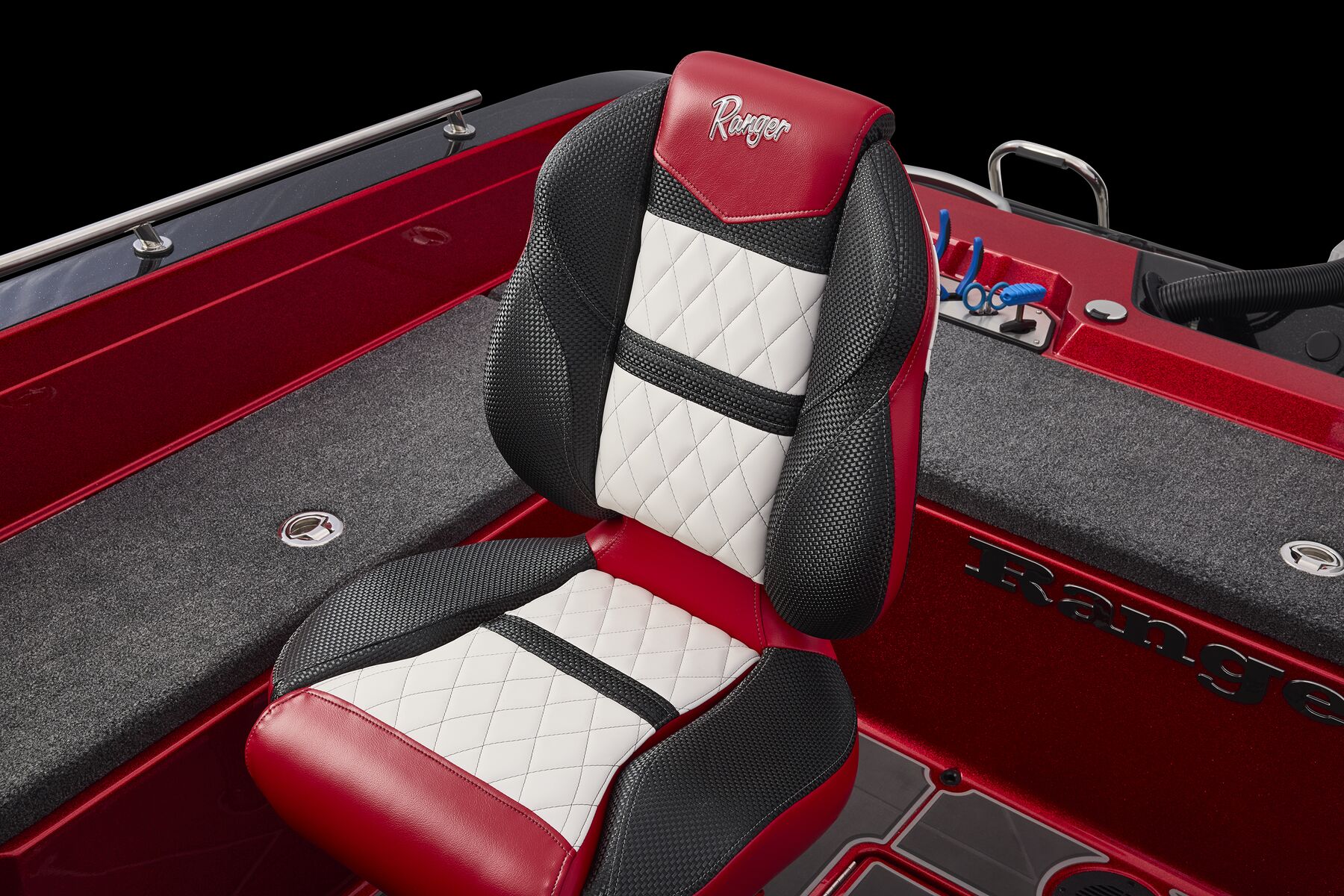

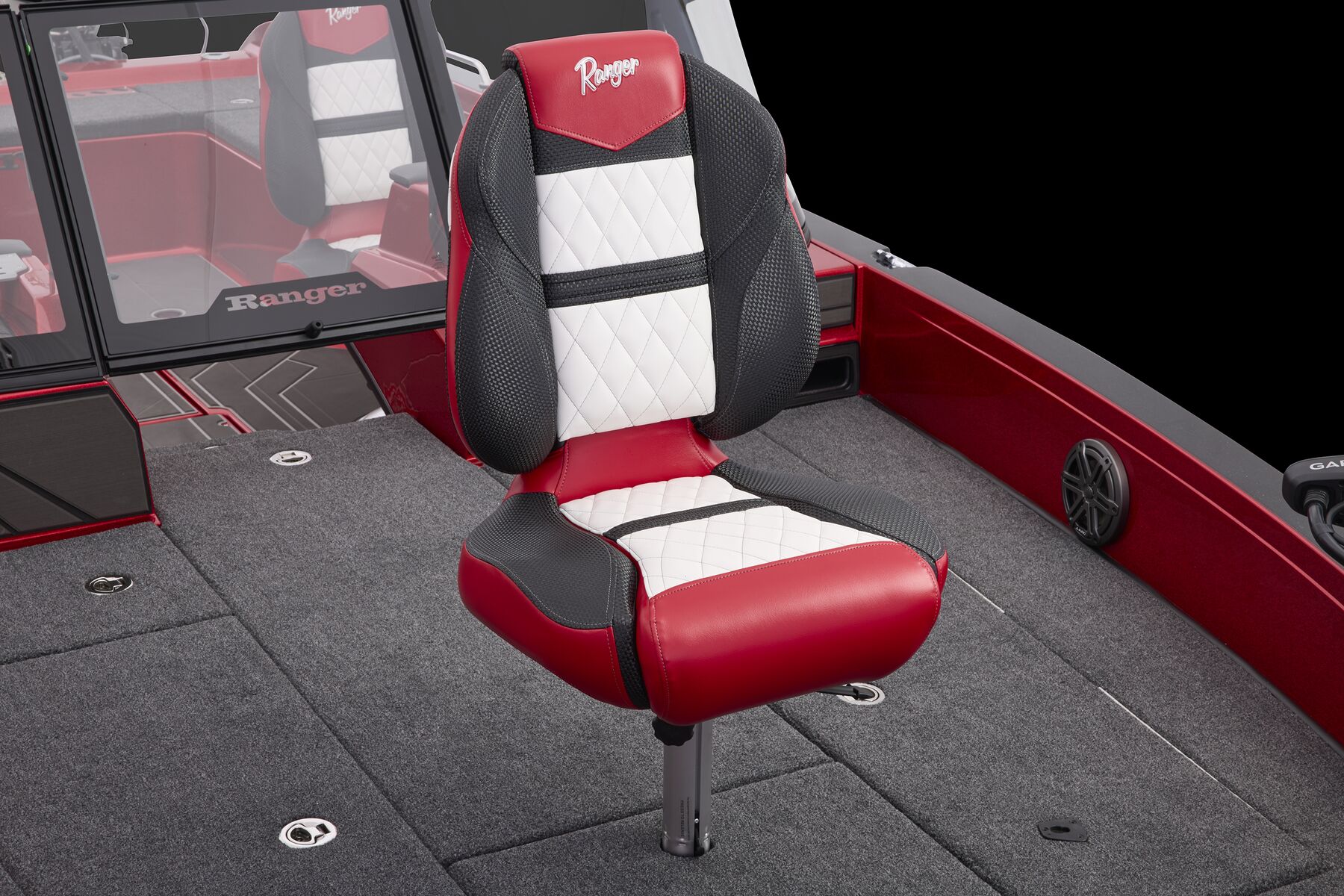

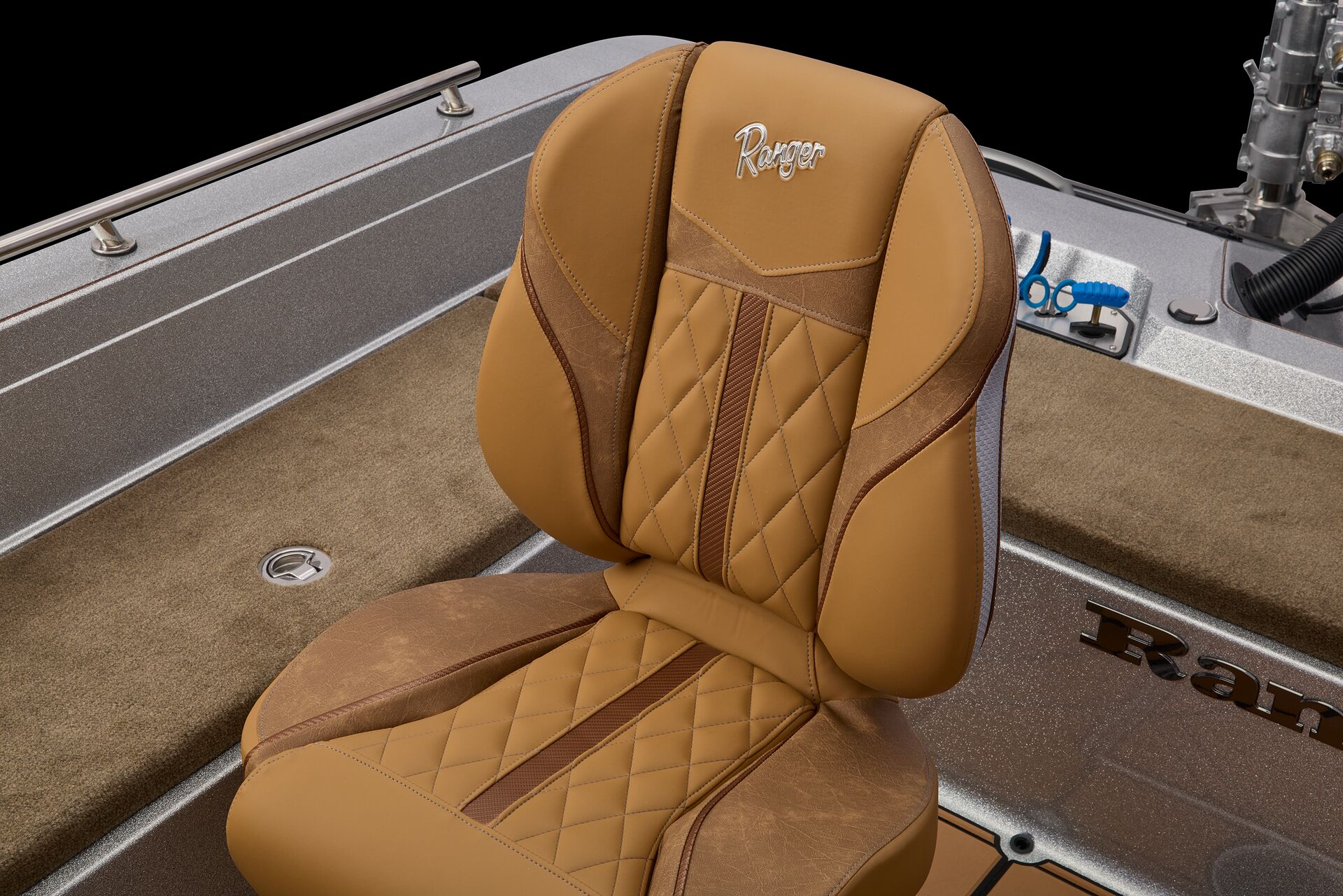

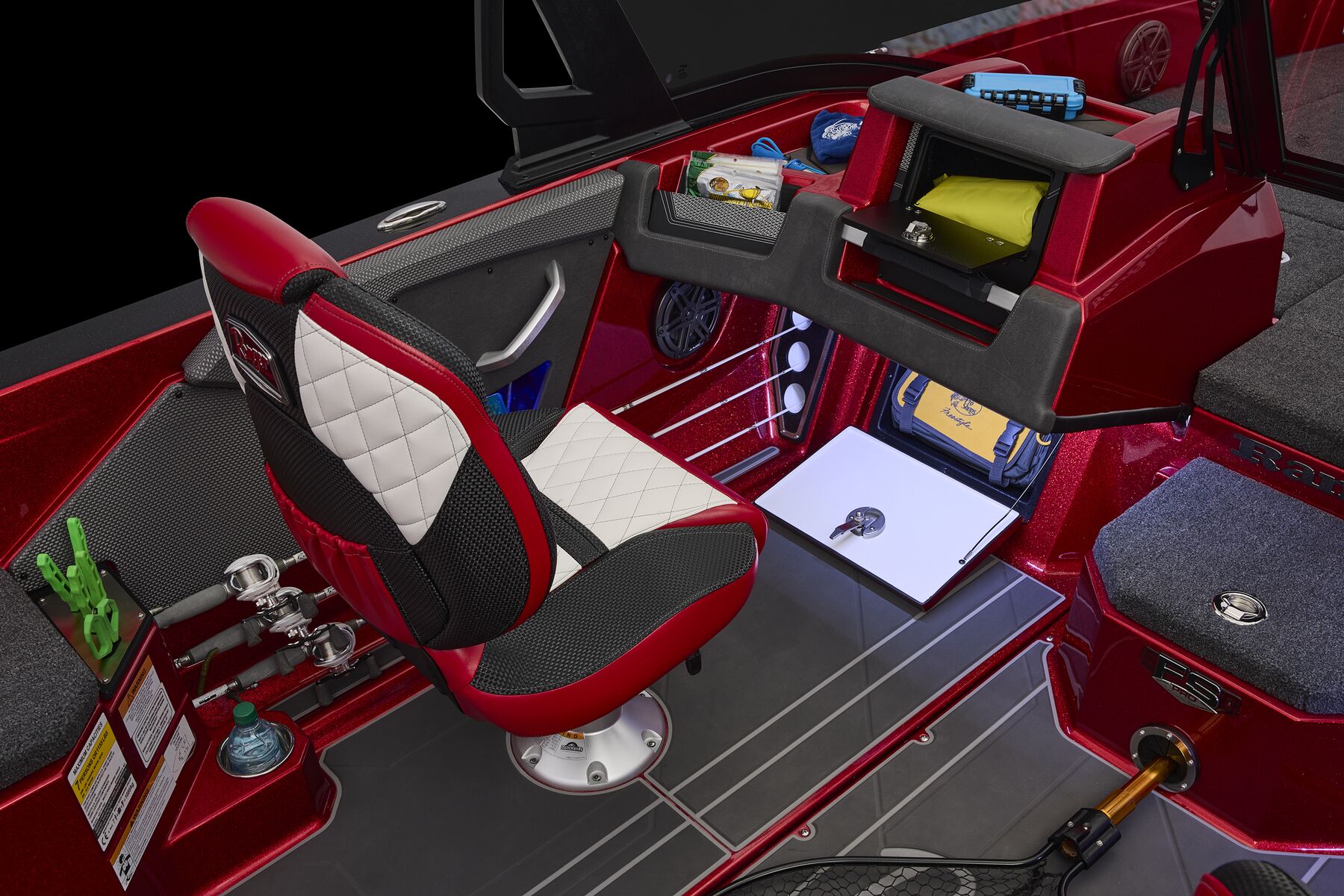

- Custom fitted premium marine upholstery - (2) driver/passenger tall-back Soft Ride Seating (SRS) fold-downs w/ (2) adjustable slides and (2) soft-ride bell pedestals and (2) SRS fold-downs w/ power pedestals
- Fire extinguisher & horn
- Boarding ladder
- Passenger Glove Box
- Rite Track Keel®
- Integrated front deck step-up cooler
- Skid-resistant molded rubber step pad on bow
- Automatic and manual bilge pumps
- Plexi windshield(s)
- Integrated grab handles
Trailer Features
- Ranger Trail® tandem axle trailer w/ torsion axles and c-channel frame
- Ranger® Road Armor Equipped® trailer protectant coating

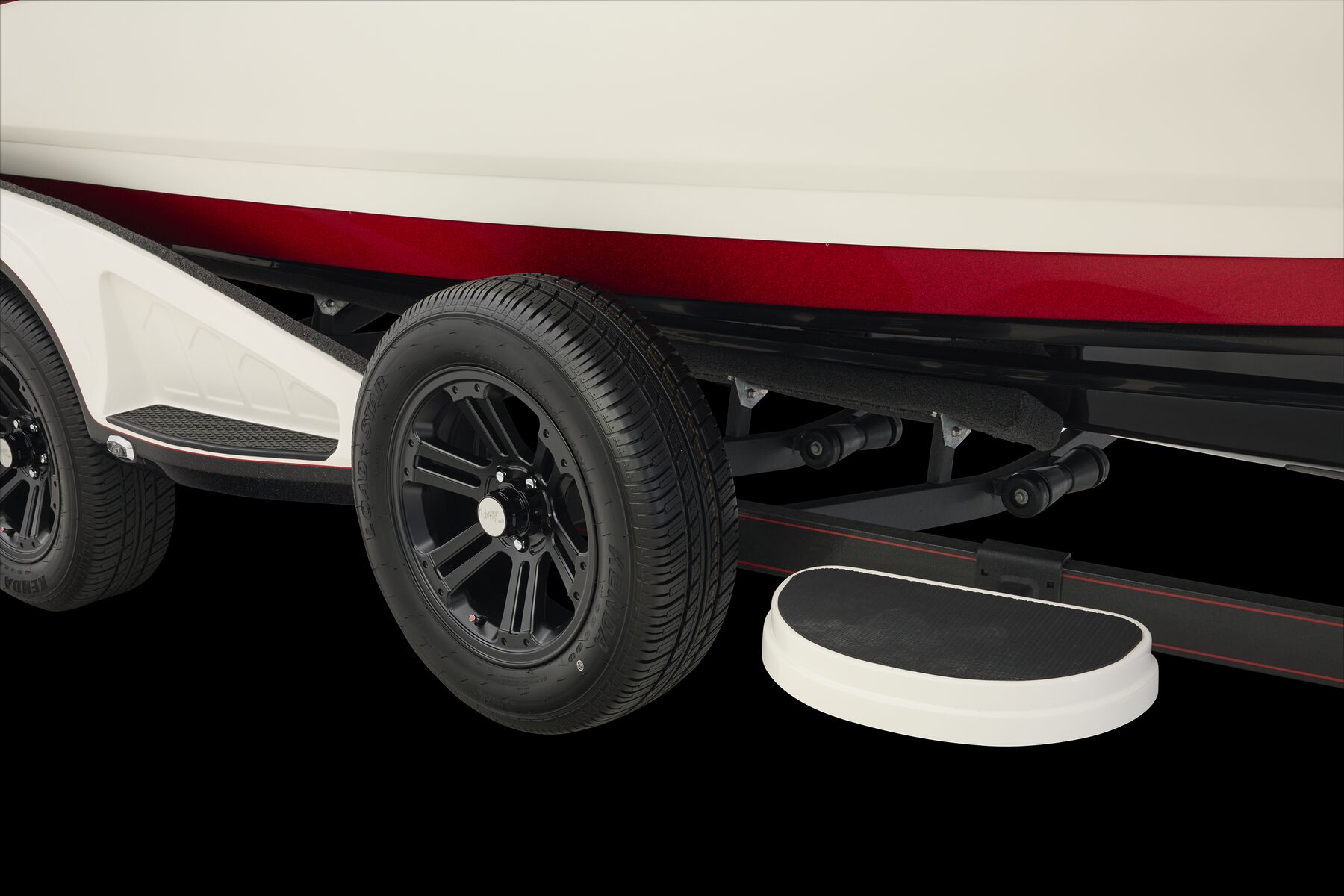

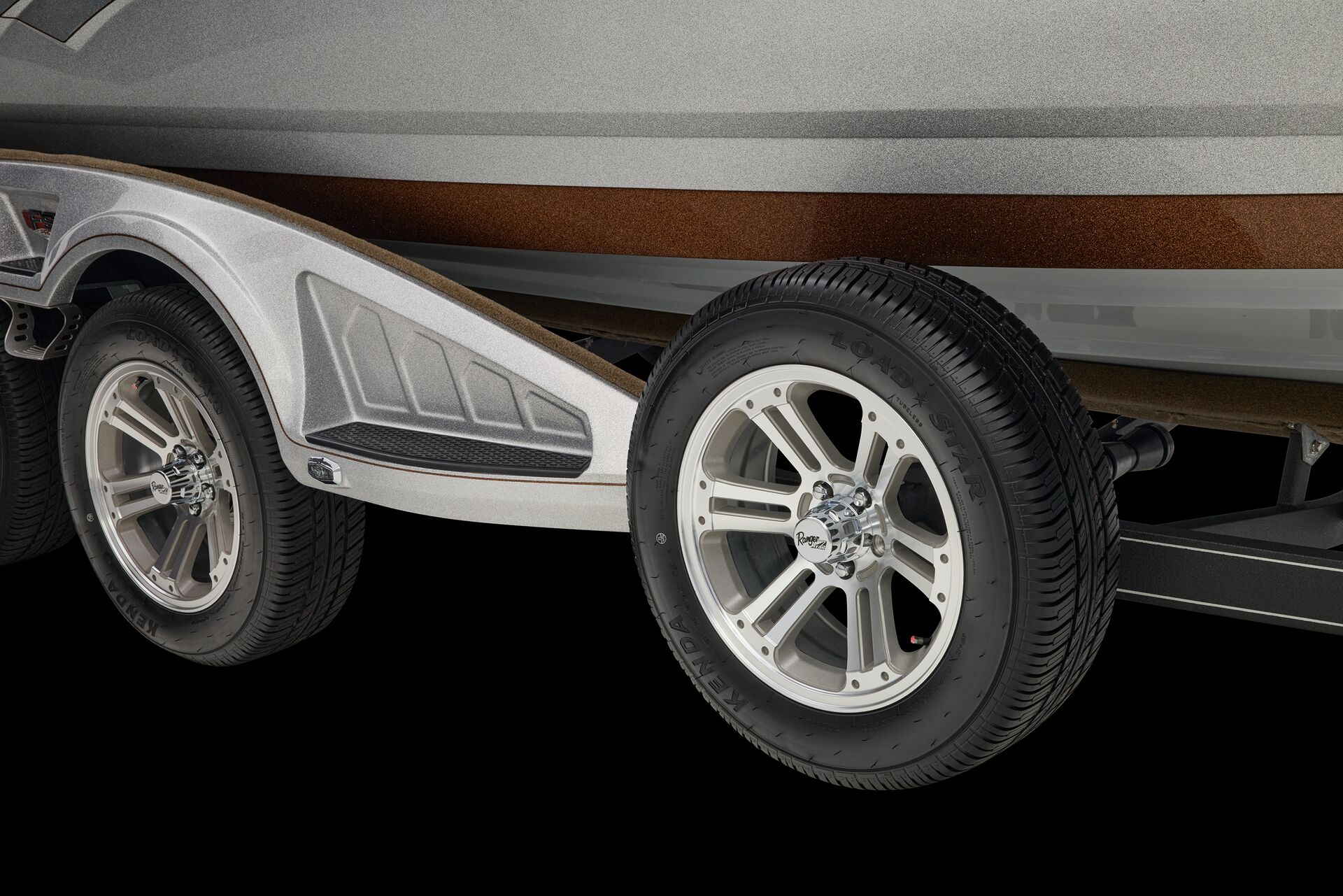

- 14" Raptor III wheels w/ matching spare
- Ranger Trail® Vault® Hub lubrication system

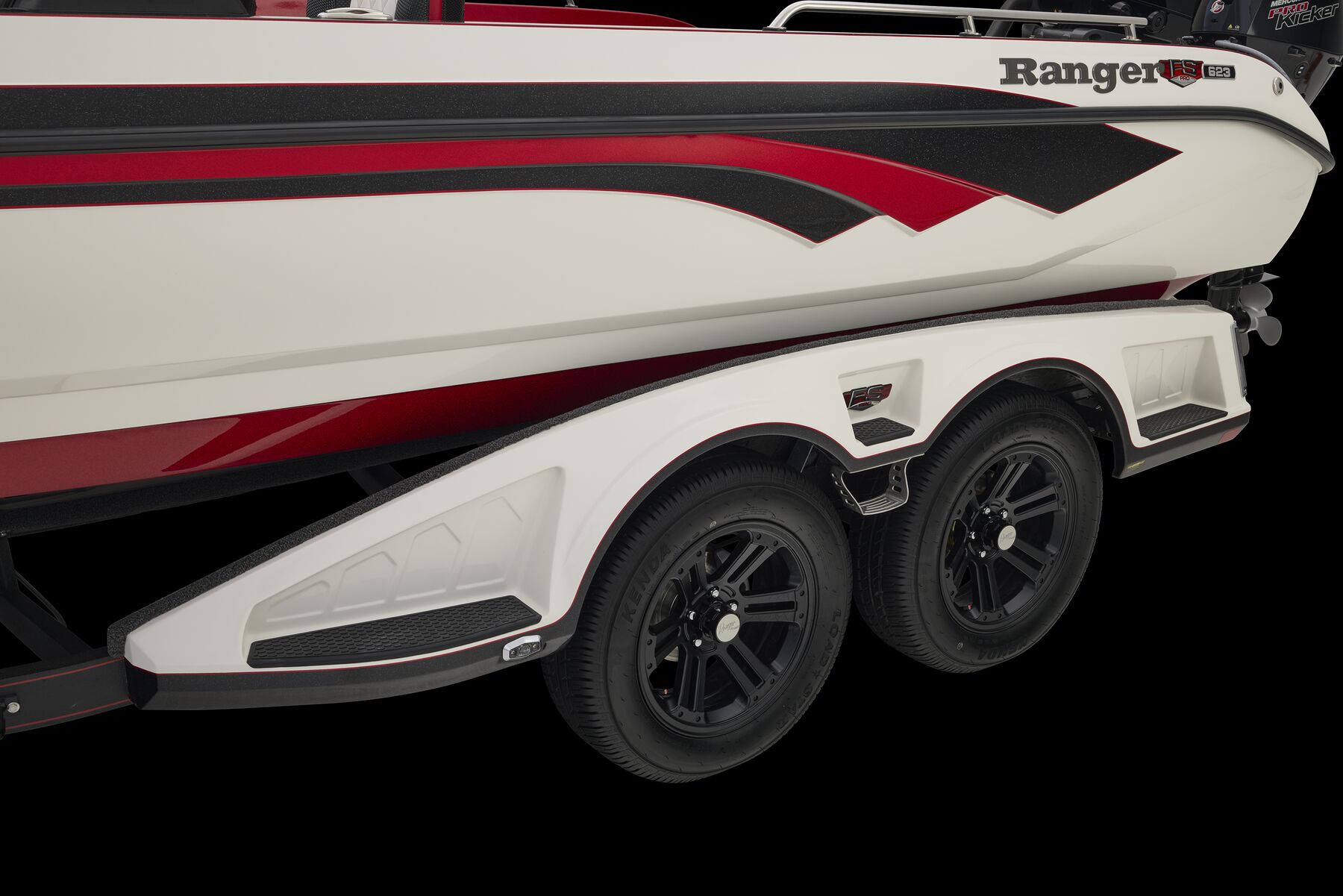

- Fiberglass fenders w/ step pads
- Hydraulic surge disc brakes
- Swing-away tongue
- Integrated center-swing jack finished in black powdercoat
- LED lighting
- Stainless steel ratcheting tie-downs
- NMMA®/NATM certified
Electronics

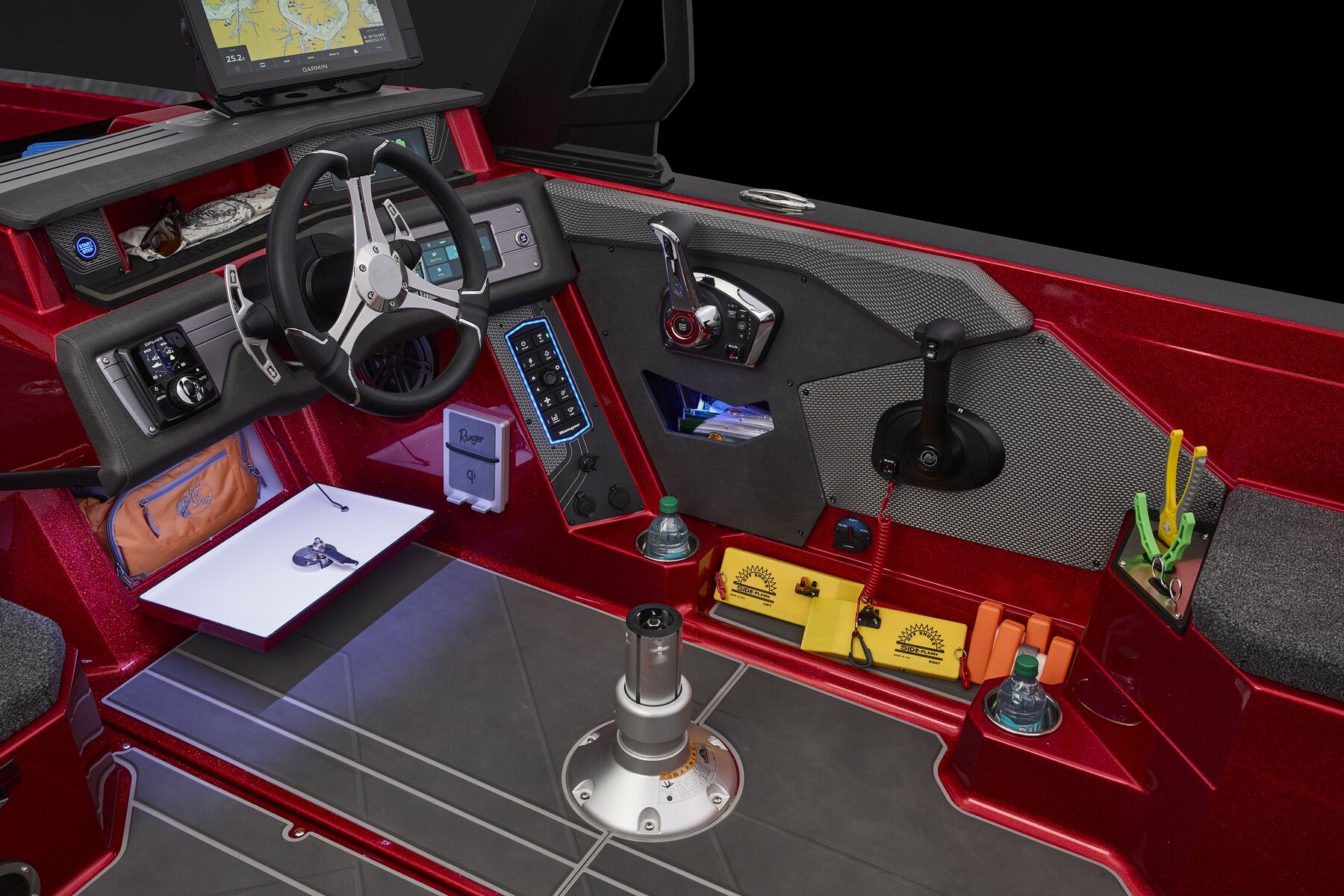

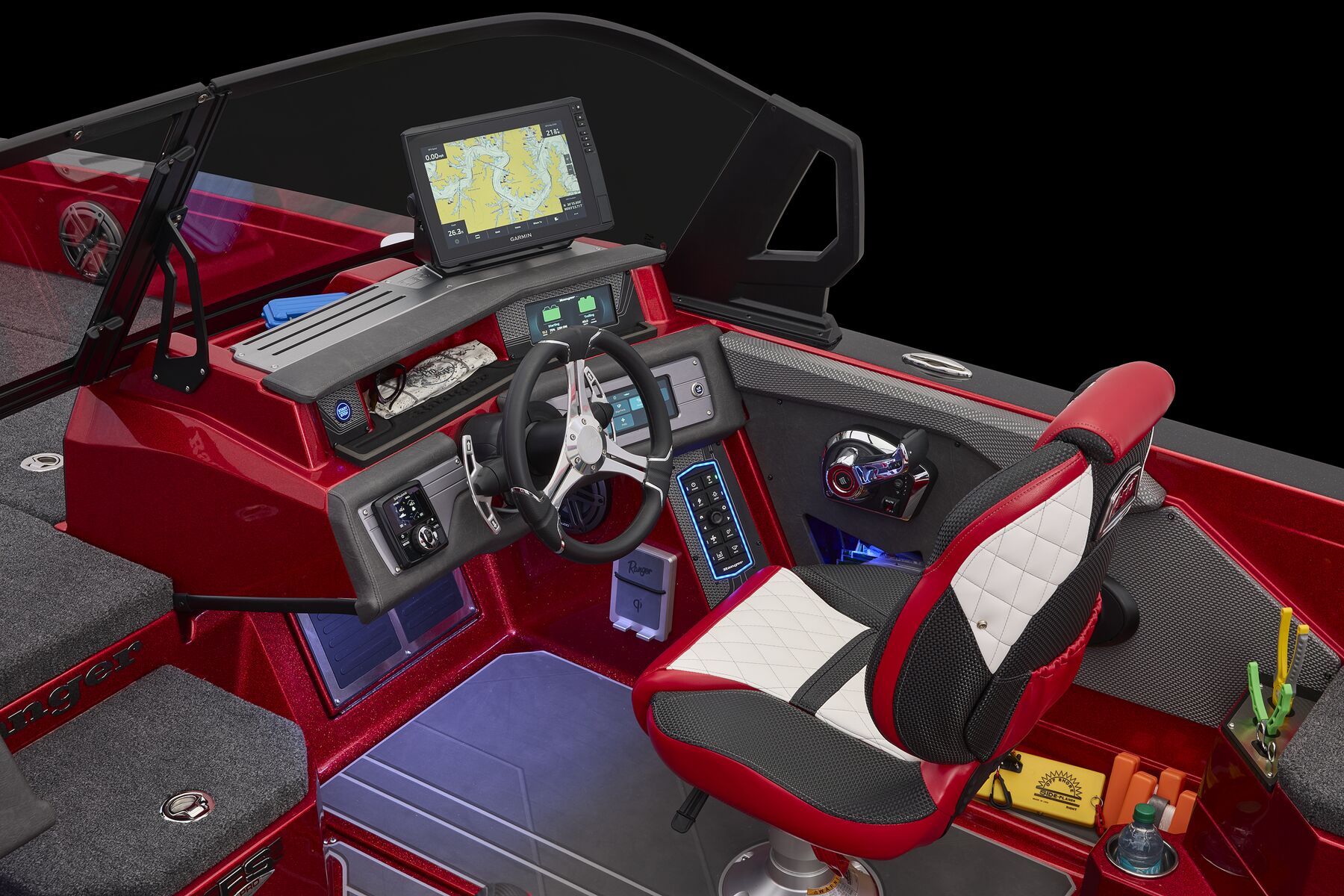

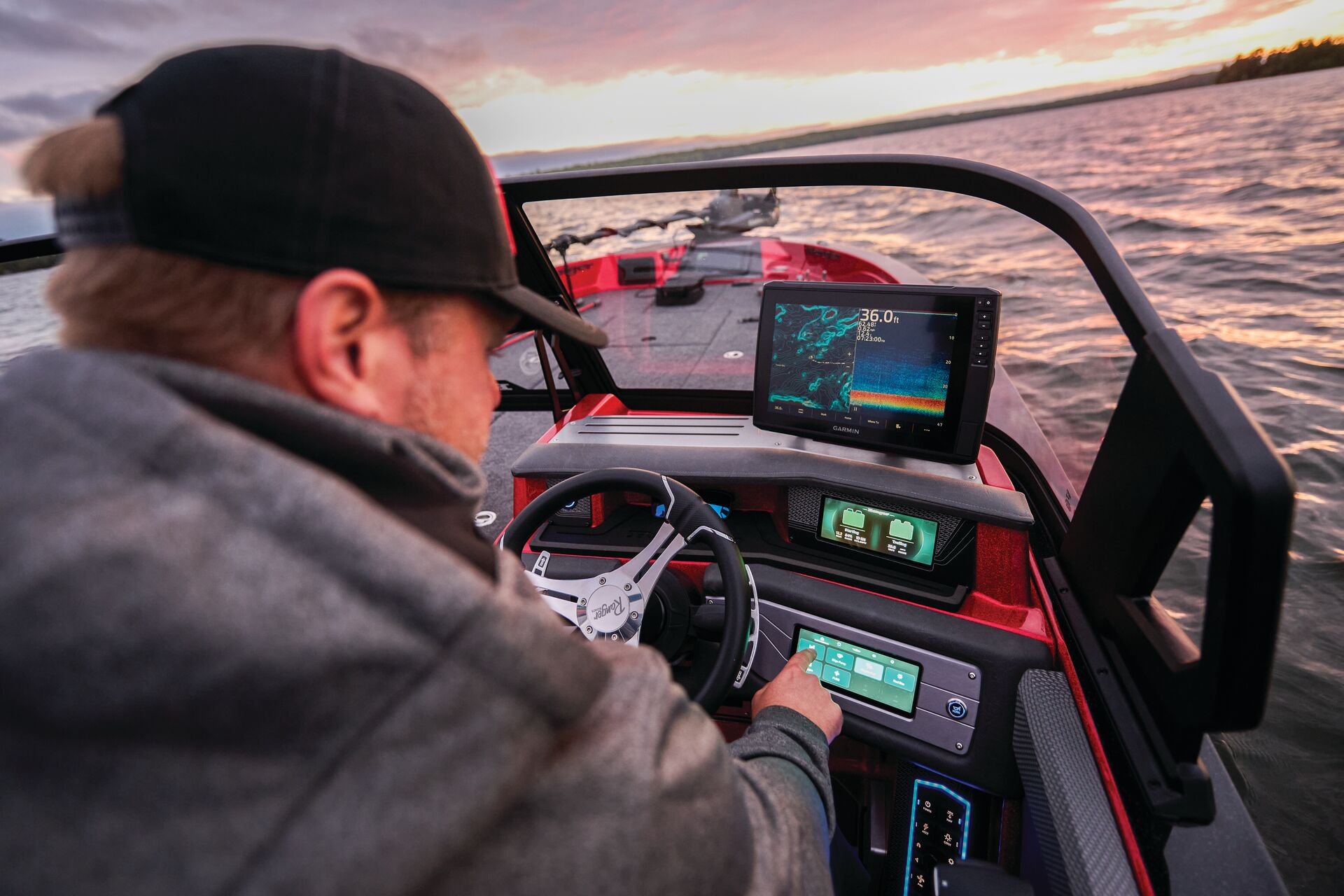

- Ranger FORGE™ Heads-Up & Control touchscreen displays, keyless push-to-start, & 12-button solid state keypad
- ProCircuit™ dedicated 6GA electronics clean power harness
- Wireless bow keypad with double-tap shallow-water & holeshot modes
- Solid-state digital keypad at bow with push-button trim switches
- Wireless phone charging station at helm
- LED storage compartment lighting & LED courtesy & livewell lighting
- Integrated LED bow navigation lights & removable LED anchor light

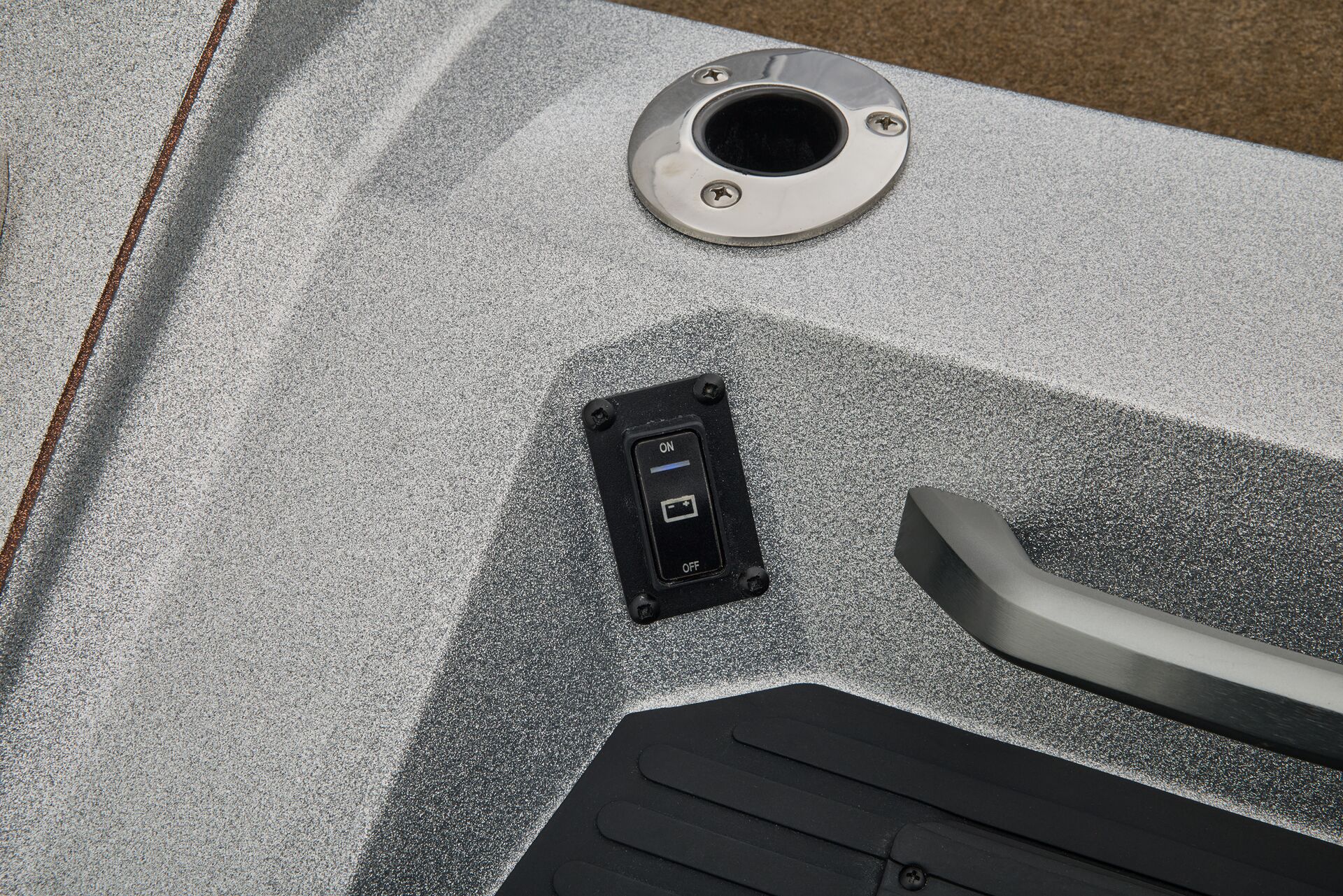

- Master Power on/off battery disconnect switch
- On-board Dual Pro® charger, 15 x 4, auto-detect lithium capable
- Integrated LED bow navigation and removable stern lights

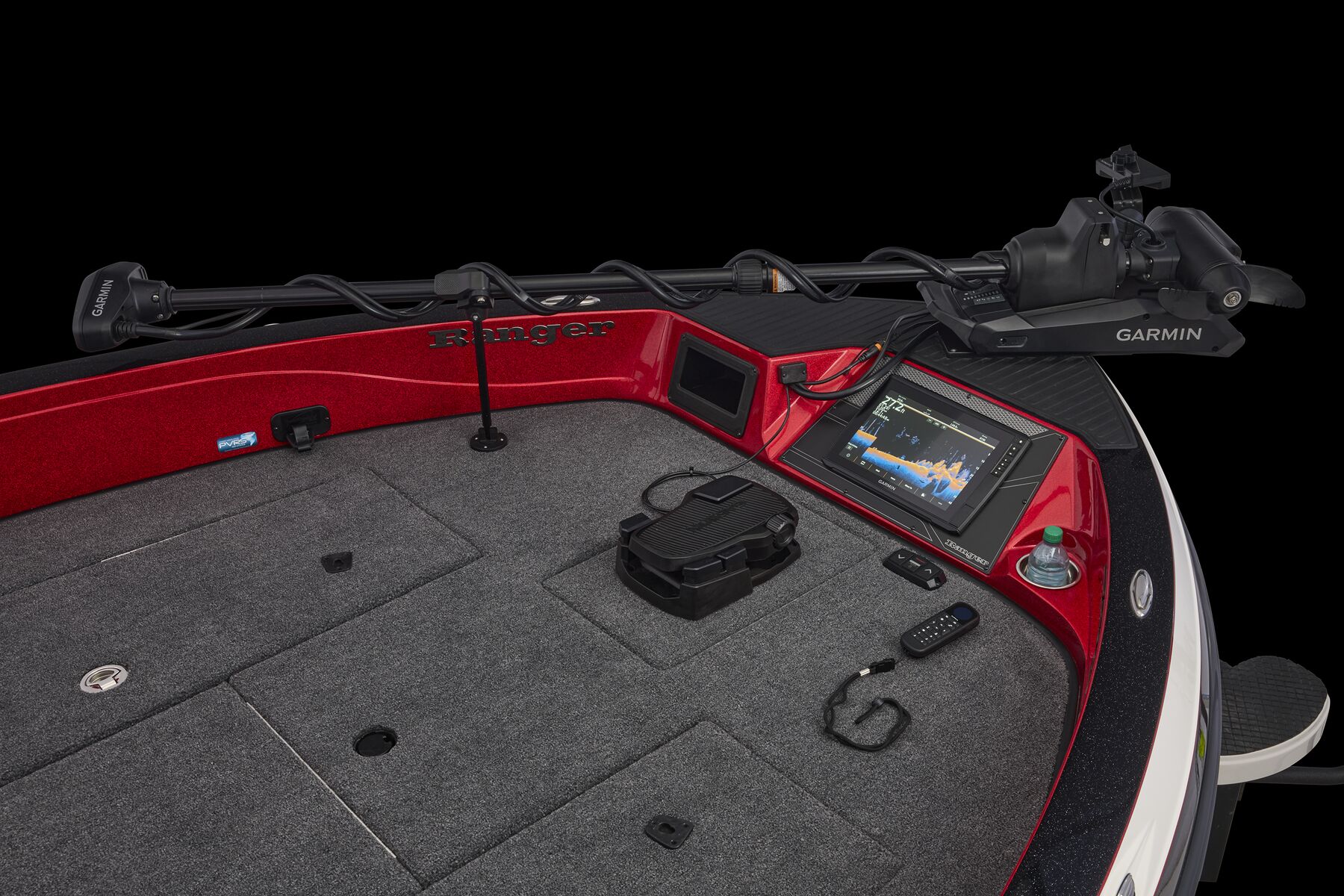

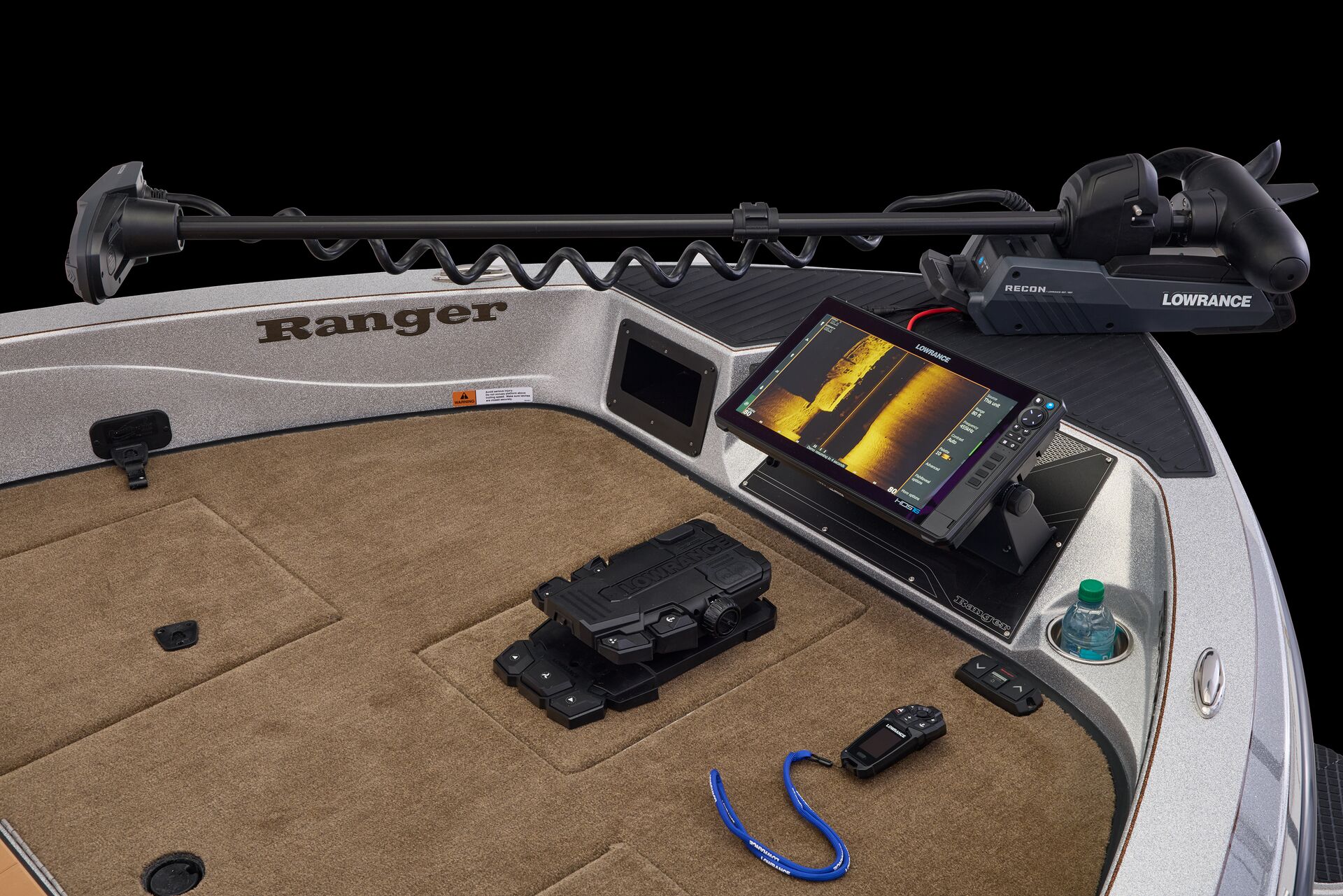

- Minn Kota® Terrova 112lb / DSC / 60" / 36V trolling motor
- Lowrance® Elite FS™ 9 at bow
- Lowrance® Elite FS™ 9 w/ Active Imaging™ HD at console
- 12V power receptacle with USB
- Additional manual key switch
- NOCO™ GB40 jump starter w/ on-board USB charging
