2023

Z520R

w/ 250 L Pro XS Torque Master 1.75 Mercury®
Boat, Motor, & Trailer
View Price w/ Prep & Freight:
NO HAGGLE NO HASSLE® National Price
$84995
USD

REDEFINING PROFESSIONAL GRADE

With an unmatched legacy and never-ending drive for domination, we’ve created the next iteration of the go-to for anglers at every level.



The Ranger Z520R is the next chapter in bass boat evolution and a quantum leap in design, functionality and dominating performance at every level. From the outset, we took the legendary Z Comanche “C” hull, digitally scanned and perfected it, resulting in an instant hole shot and stronger top-end.



Every appreciable element of the cockpit, decks, and storages has been revamped to complement the enhanced performance of the R Series. We’ve also gone to great lengths to incorporate more standard technology into the R Series to not only raise the bar for the industry, but to give you greater convenience and peace of mind.

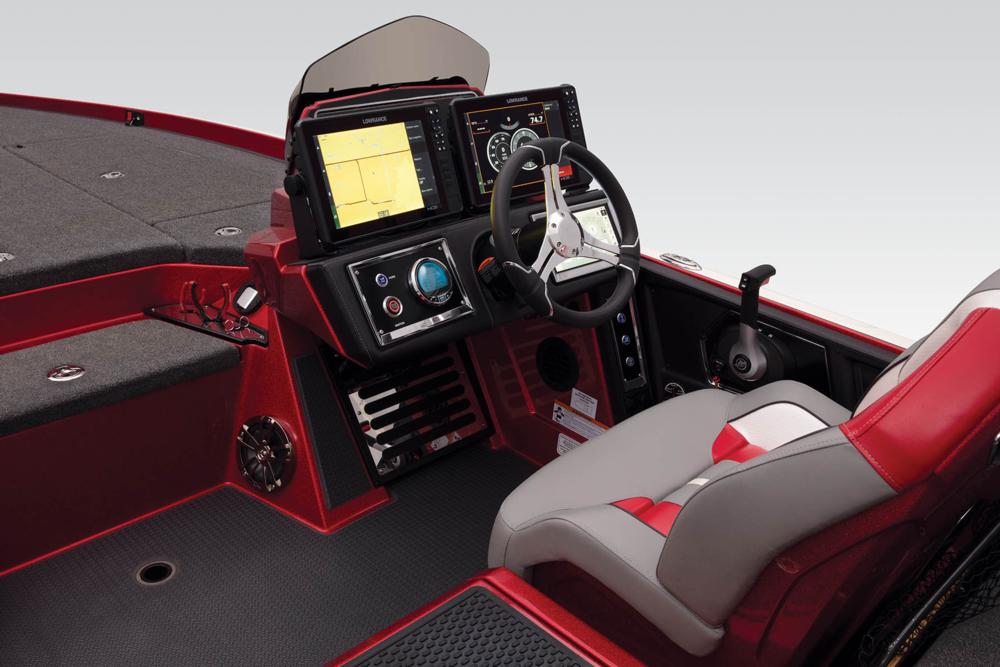

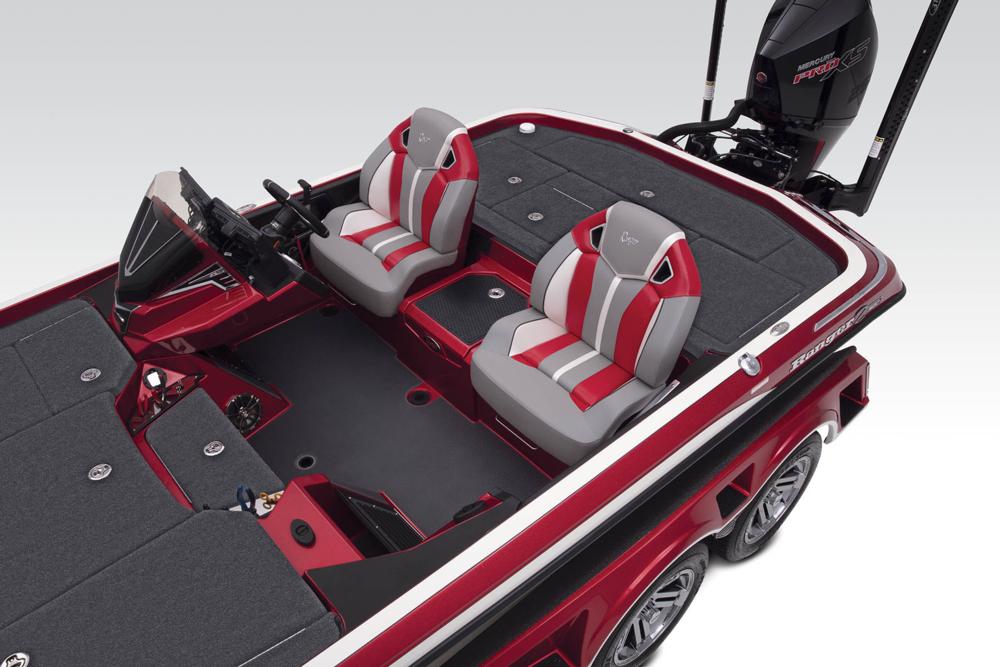

An all-new console carries dual graphs or a single 16” unit and the touchscreen Ranger RIDE system that gives you control over every boat and engine function. The all-new seats rest on slides and CloudNine™ air ride shock system that takes the teeth out of chop. A key fob and new push-button ignition let you start up quicker and deliver greater security when you’re on the road. Inside the coin box is a wireless phone charger, and in the battery box are standard lithium batteries.

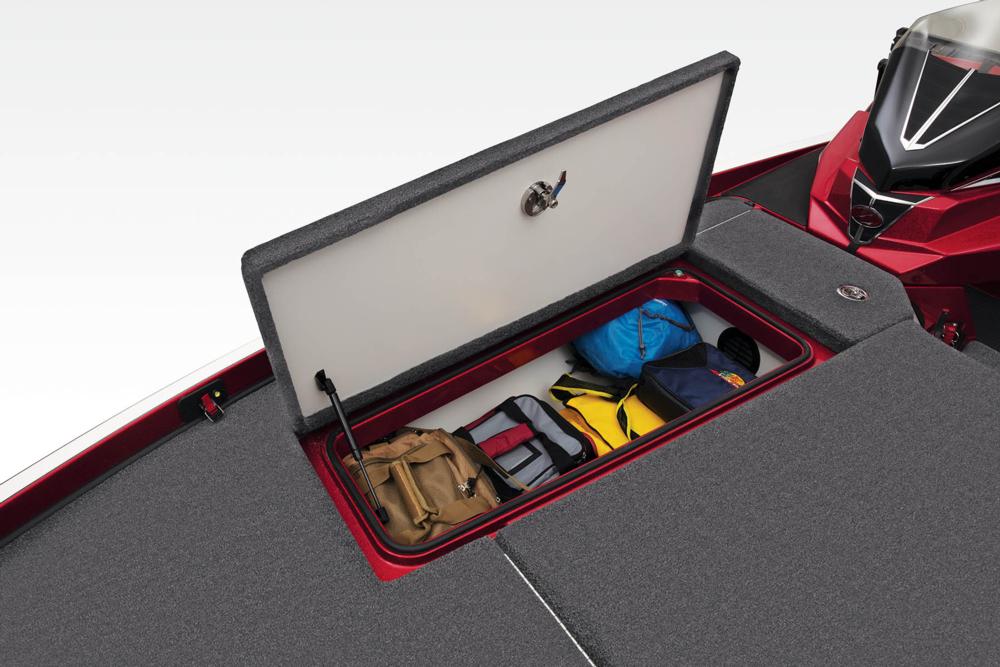

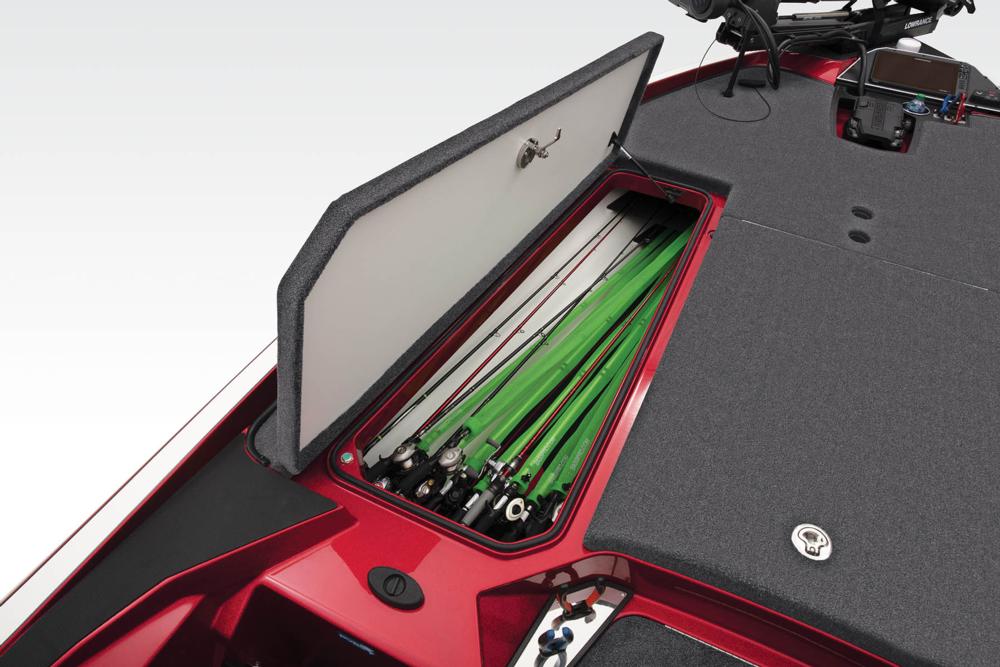

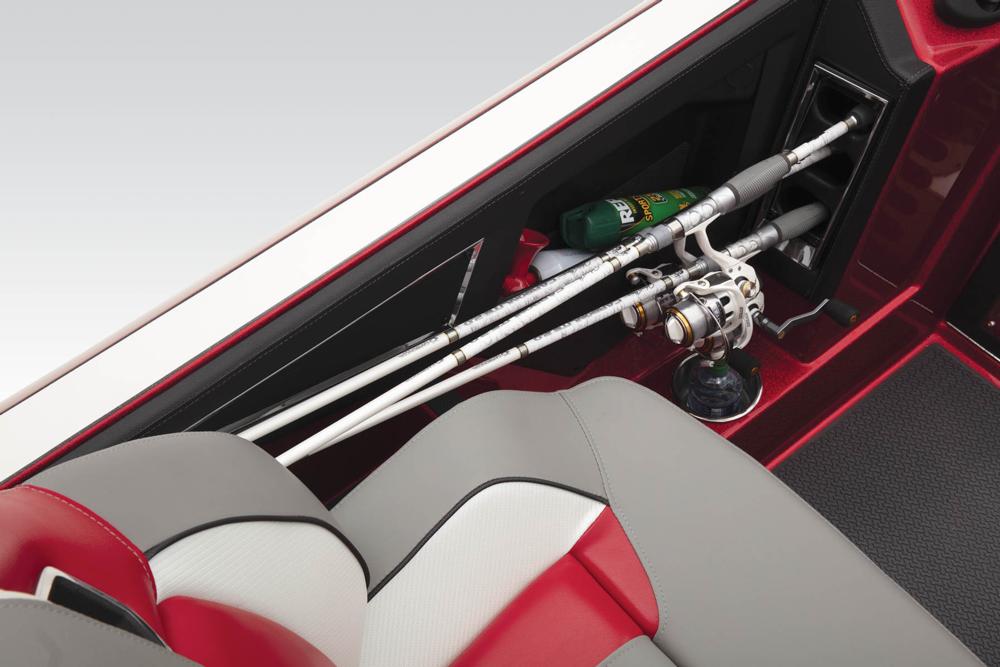

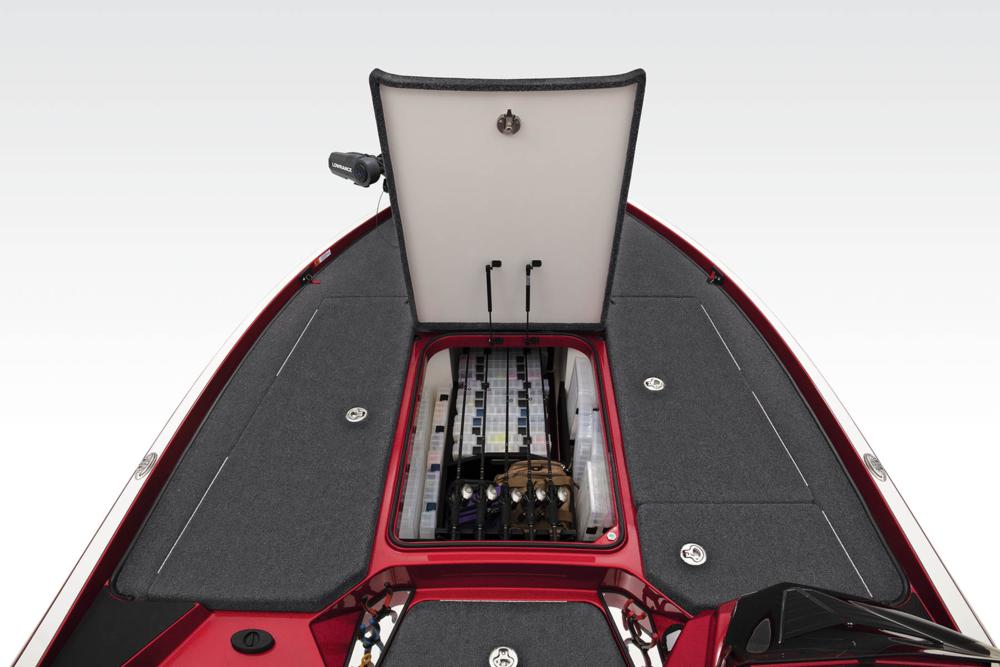

Storage boxes are demonstrably larger, thanks to redesigned stringer system that builds on our One-Piece Feel Interloc™ Construction. The rod boxes feature a tri-level storage shelf system that simplifies rod management and offers more room for sticks up to 9’.



Inside and out, the Z520R lets you release a new level of domination. The Z520R. It’s a whole new era of Ranger.



Learn even more about the new R Series here: https://www.rangerboats.com/learning-center/r-boats.html

Key Features

  • Proven hull w/ all-new decks
  • Standard Ranger RIDE system
  • NEW shellback bolstered seating
  • Standard Tracker lithium batteries
  • Peak all-around performance
Z520R
rt178
Z520R Bass Fishing

Video Walkaround


Specifications

Length 6.38 m 20' 11''
Beam 2.44 m 96''
Max. Recommended HP 250 HP
Engine Shaft Length 50.8 cm 20''
Inside Depth 55.88 cm 22''
Fuel Capacity 204.39 L 54 gal.
Livewell Capacity 117.34 L 31 gal.
Total Person, Motor, Gear 748.43 kg 1650 lbs.
Approximate Boat Weight 839.15 kg 1850 lbs.
Rod Box Length - Port 2.44 m 8'
Rod Box Length - Center Row 1 2.44 m 8'
Rod Box Length - Center Row 2 2.29 m 7' 6''
Max. Person Capacity 4 persons
Trailer GVWR 2449.4 kg 5400 lbs.
Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate) 8.25 m 27' 1''
Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate) 7.62 m 25'
Width On Trailer 2.59 m 102''

Motor Options

AVAILABLE MOTOR
Mercury®

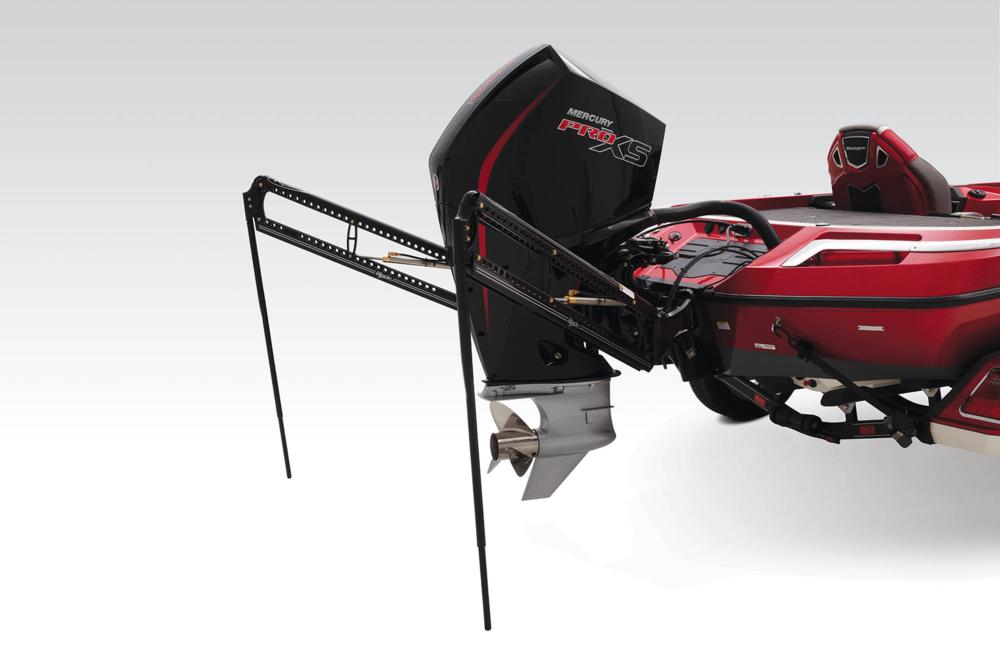

250 L Pro XS Torque Master 1.75
$84995

USD
Select Dealer

Standard Features

Custom Details
  • Special 55th Anniversary badging
  • 3 Level rod shelves port rod locker
  • 2 Level rod shelves STBD rod locker
  • Power Ventilation Rod Storage™
  • Integrated rod and tackle management system
  • Double wall insulated cooler (10 gal) w/ drain
  • Stainless steel seat bases
  • Line spooling station under aft lid

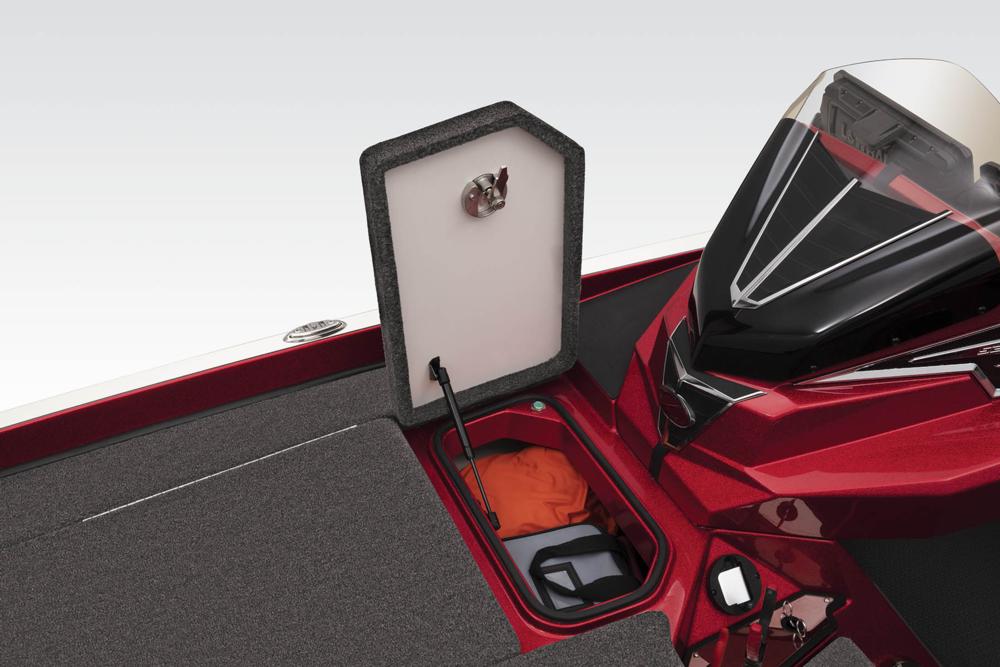

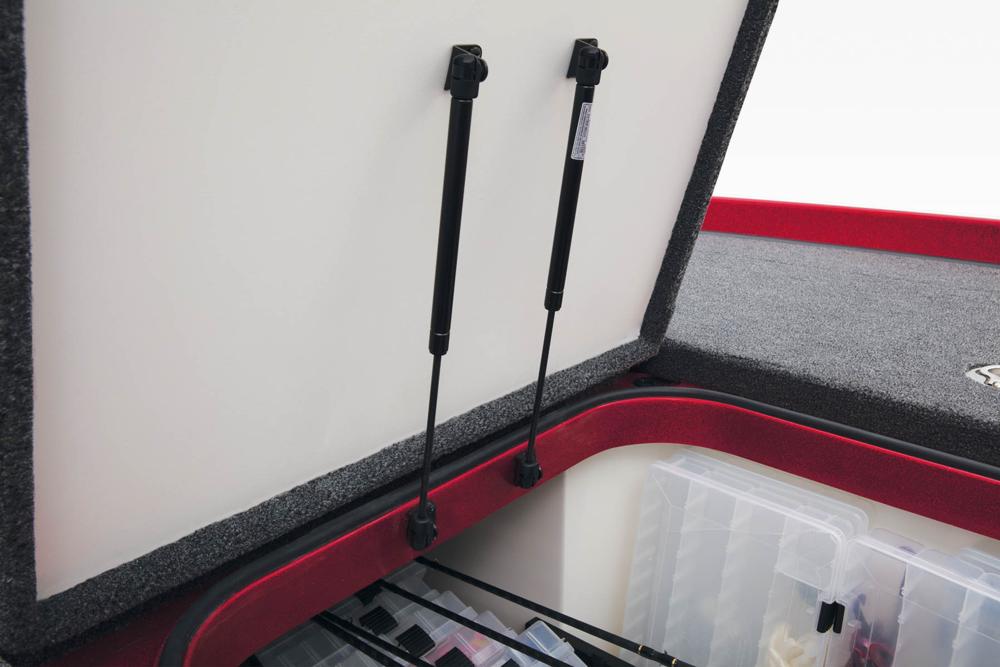

  • Gas spring lid assists

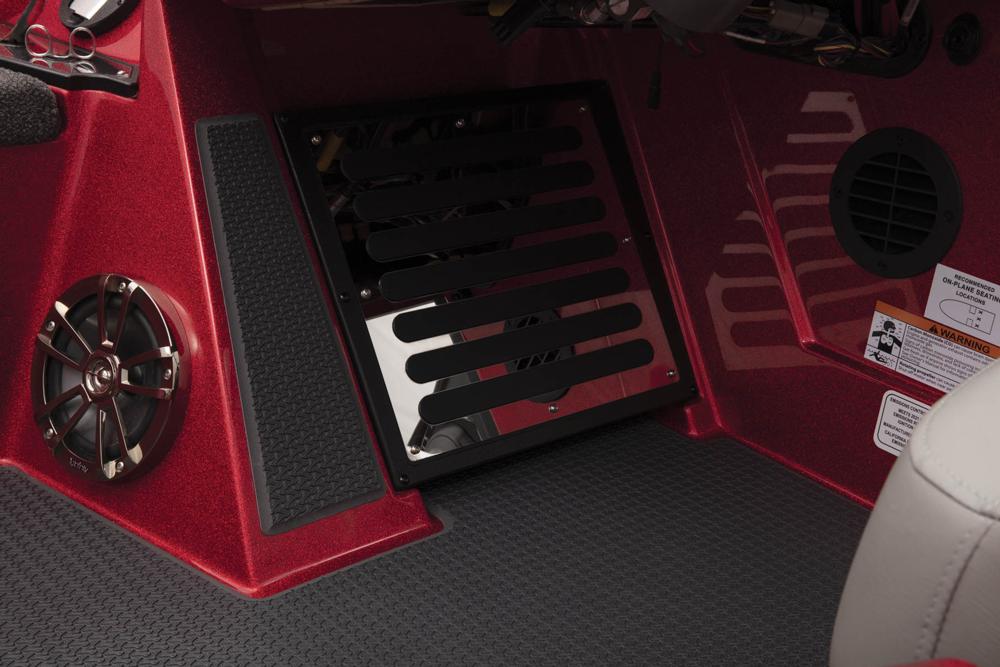

  • Molded-in driver/ passenger footrests

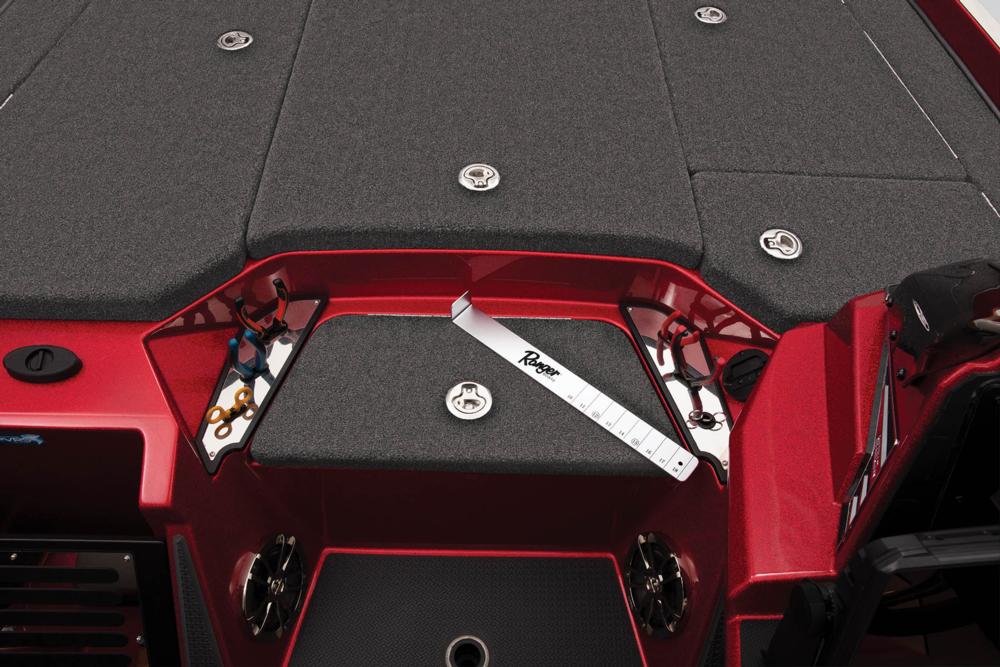

  • Ranger® tournament measuring board

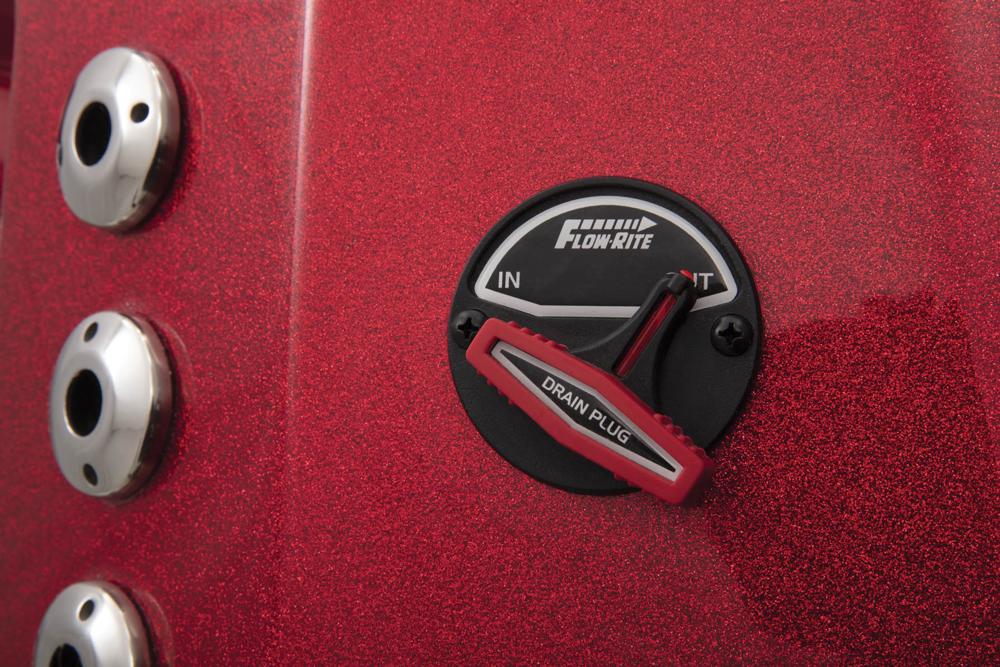

  • Remote drain plug

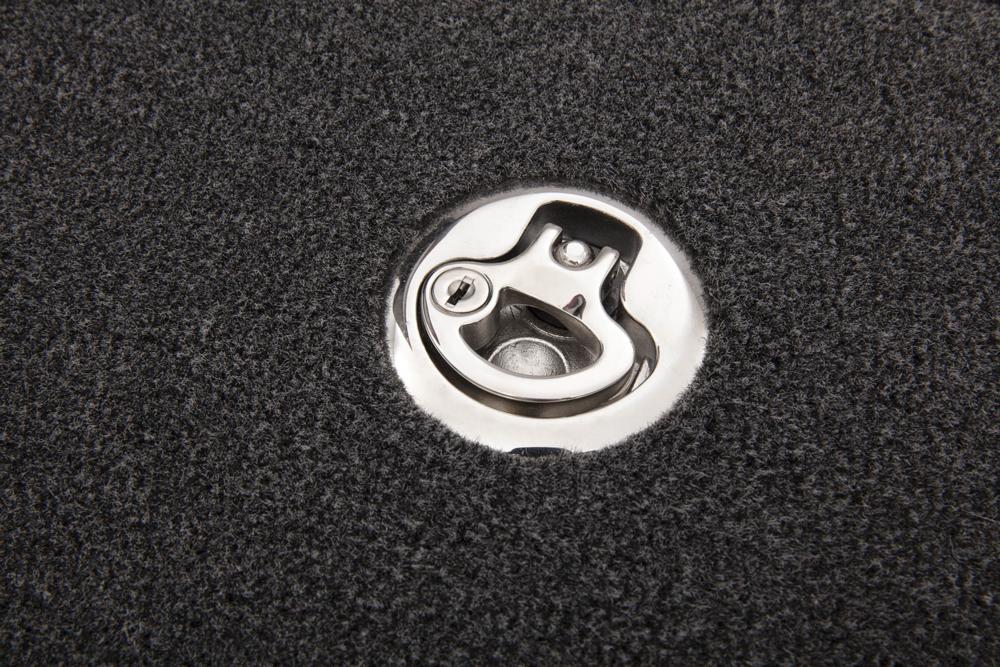

  • Stainless steel compression lid locks
Electronics

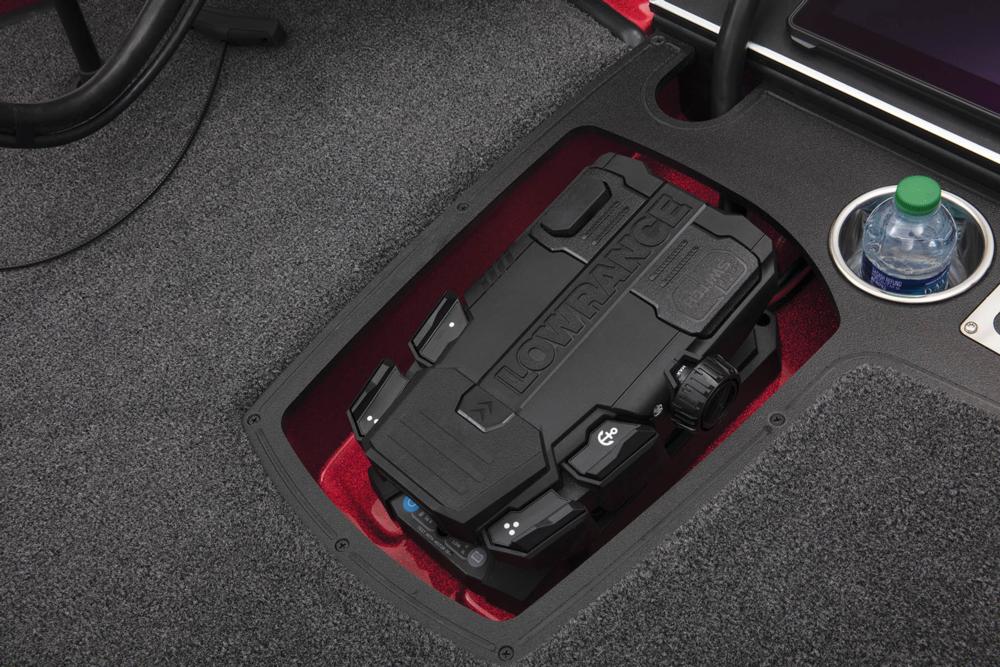

  • Lowrance® HDS-9 LIVE w/ AI at console

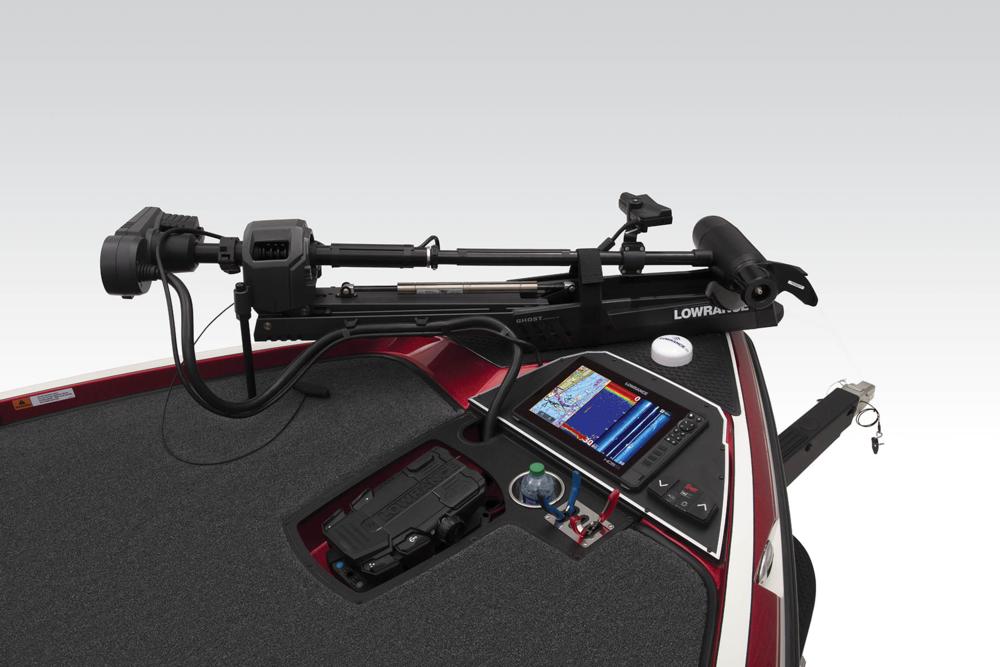

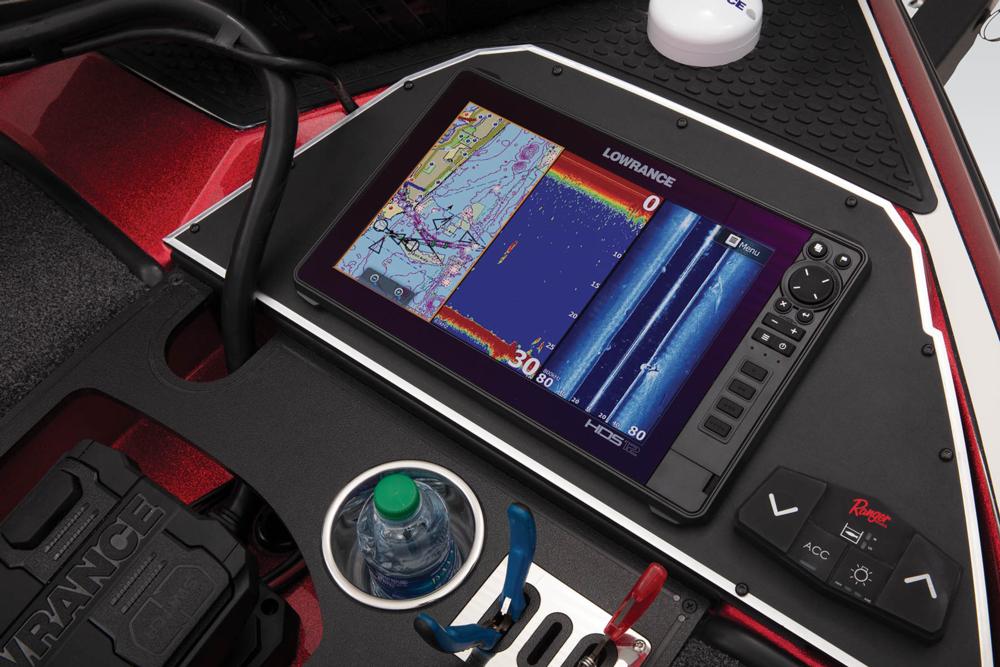

  • Lowrance® HDS-7 LIVE at bow

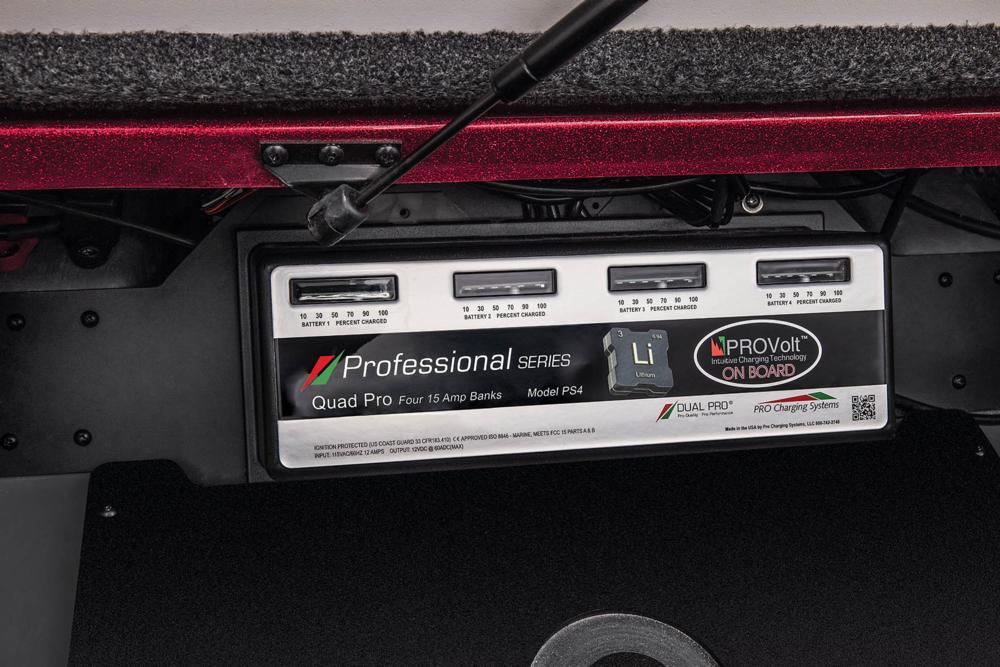

  • On-board Dual Pro™ charger, 15 x 3, auto detect lithium capable
  • Push to Start Ignition system with proximity keyfob
  • New Digital switching at bow with foot activated trim buttons
  • Console panel w/ Ranger® RIDE System (Ranger Intelligent Display Engine), integrating full-boat control and monitoring via 9" touchscreen
  • Heavy duty 6-gauge trolling motor wiring w/ 60 amp breaker

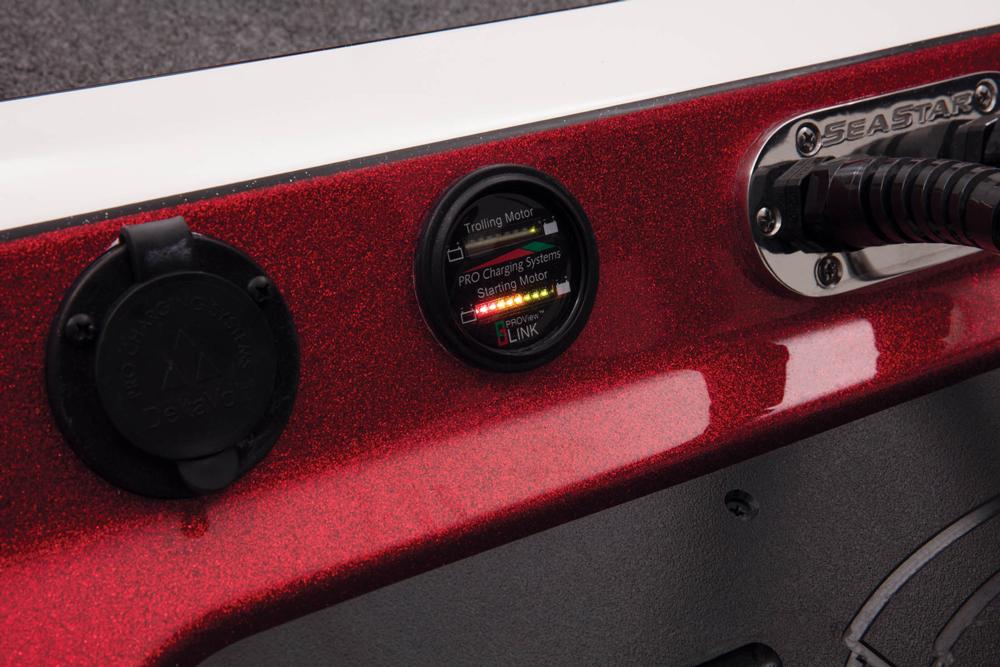

  • 12V DC power receptacle with USB

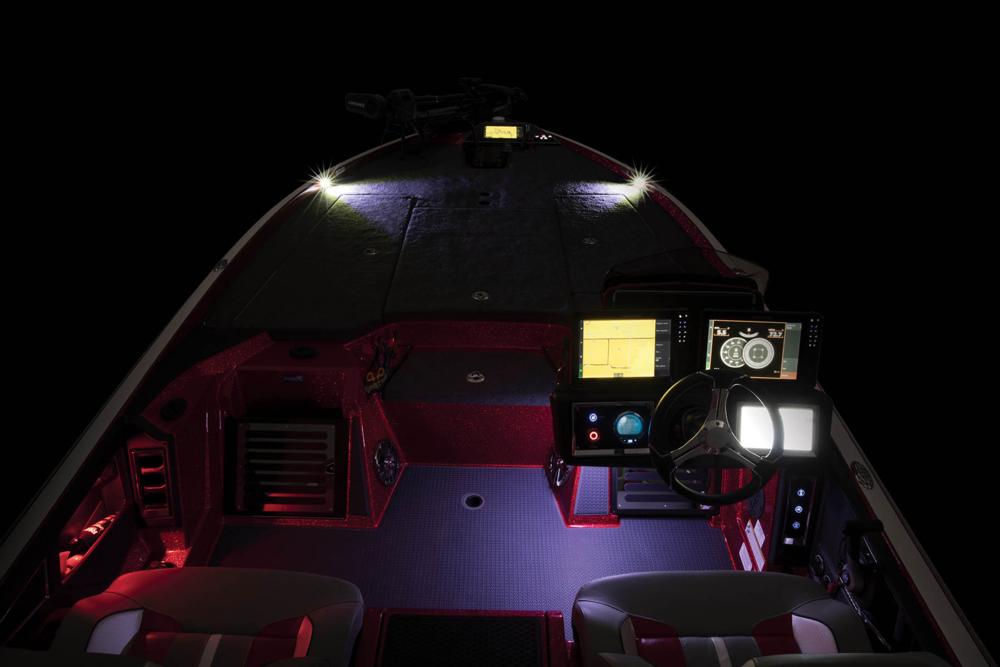

  • LED compartment & livewell light package
  • Automatic box light sensors
  • Integrated LED bow navigation lights
  • Removable LED stern light
  • LED courtesy light(s)
  • Heavy duty 6-gauge electronics (MFD) wiring w/ 30 amp breaker
  • Solid state resettable switching w/ 30A master breaker

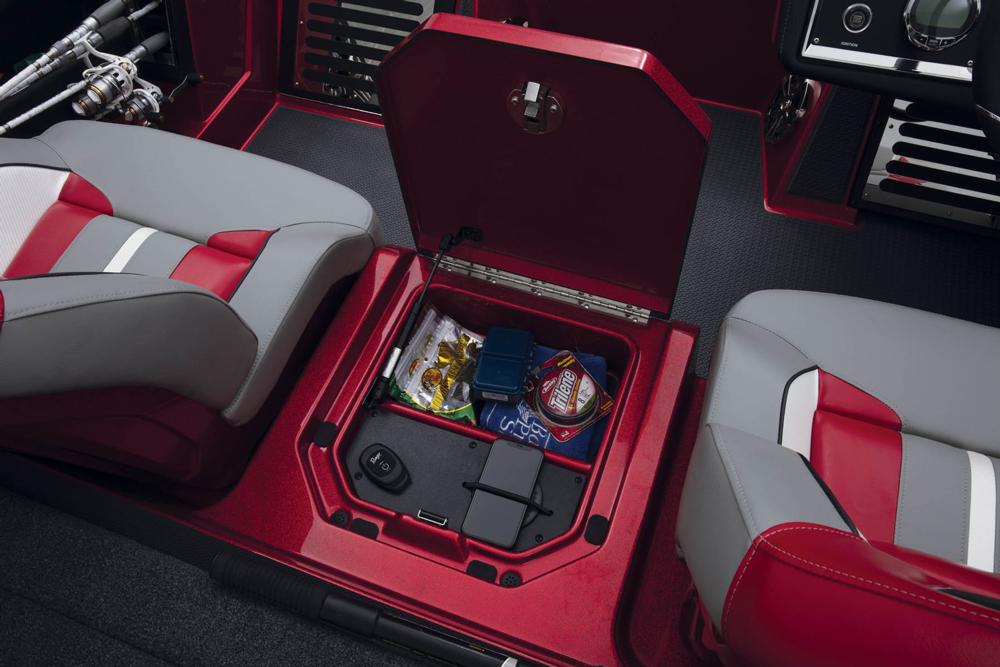

  • Wireless phone charger in coin box
Power/Performance

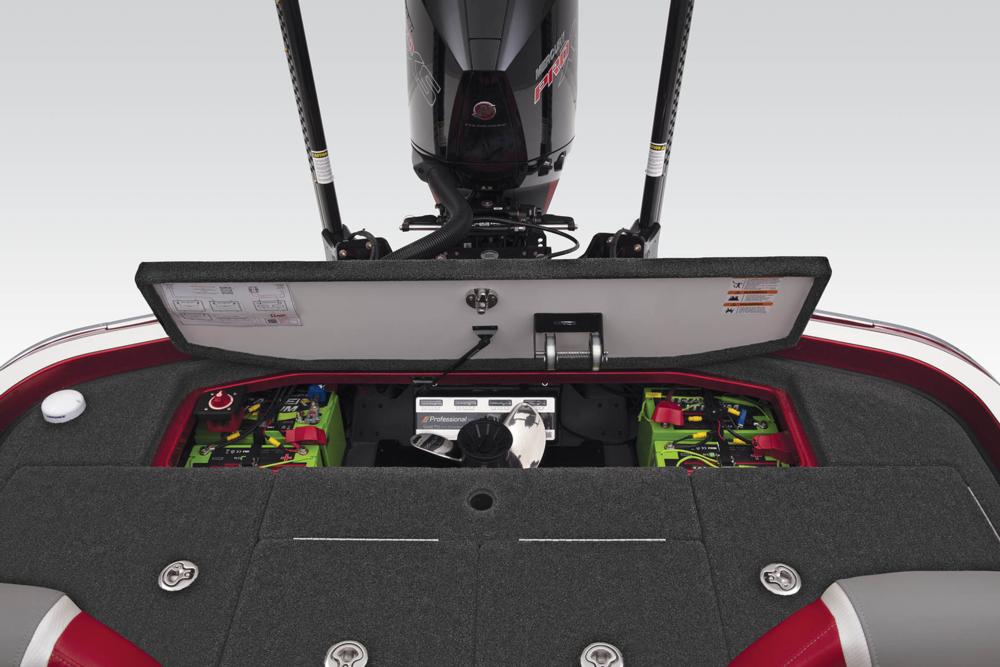

  • AGM Starting battery w/ tray
  • Minn Kota® Fortrex 80 24V trolling motor
  • High performance stainless steel prop
  • Flush-mounted remote throttle control
  • (2) WRM80 lithium trolling motor batteries
  • Foam-filled unitized 1 pc fiberglass stringer system
  • Ranger I Beam Pultruded Fiberglass transom

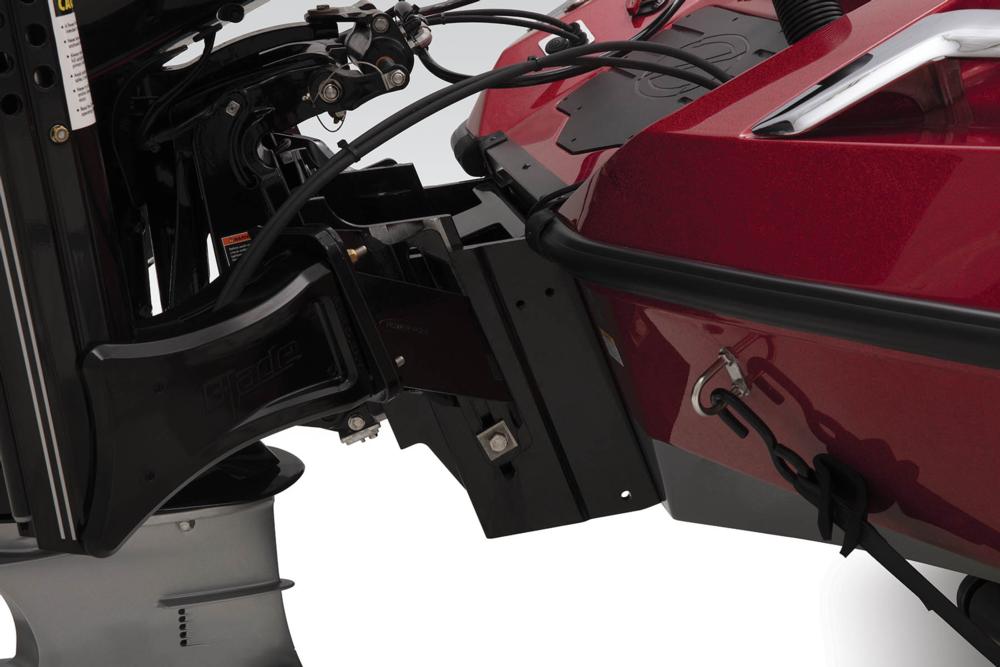

  • Manual 10" setback plate
  • High performance steering wheel

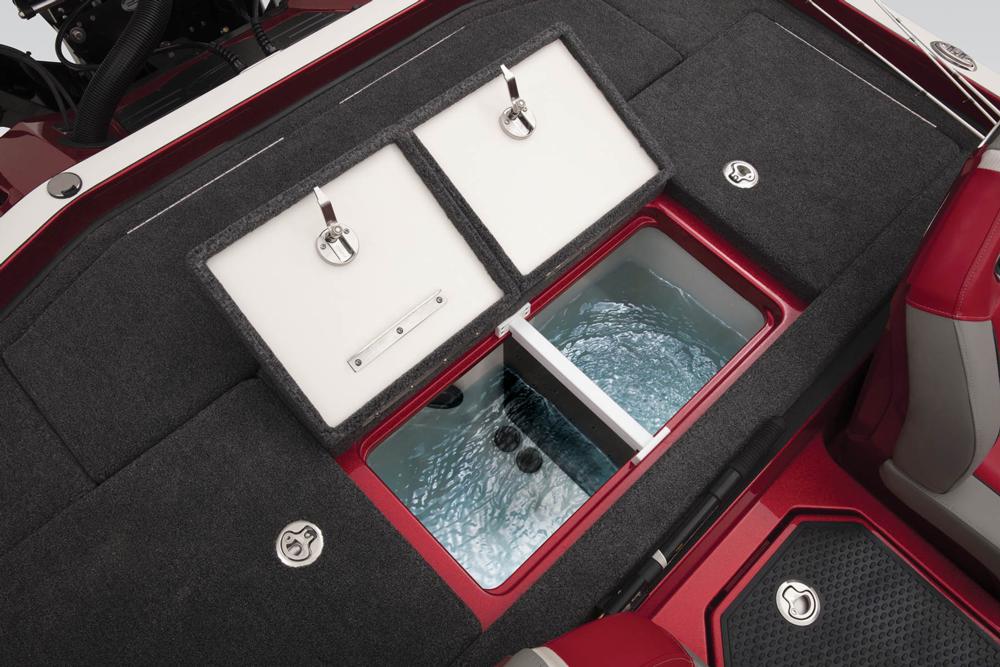

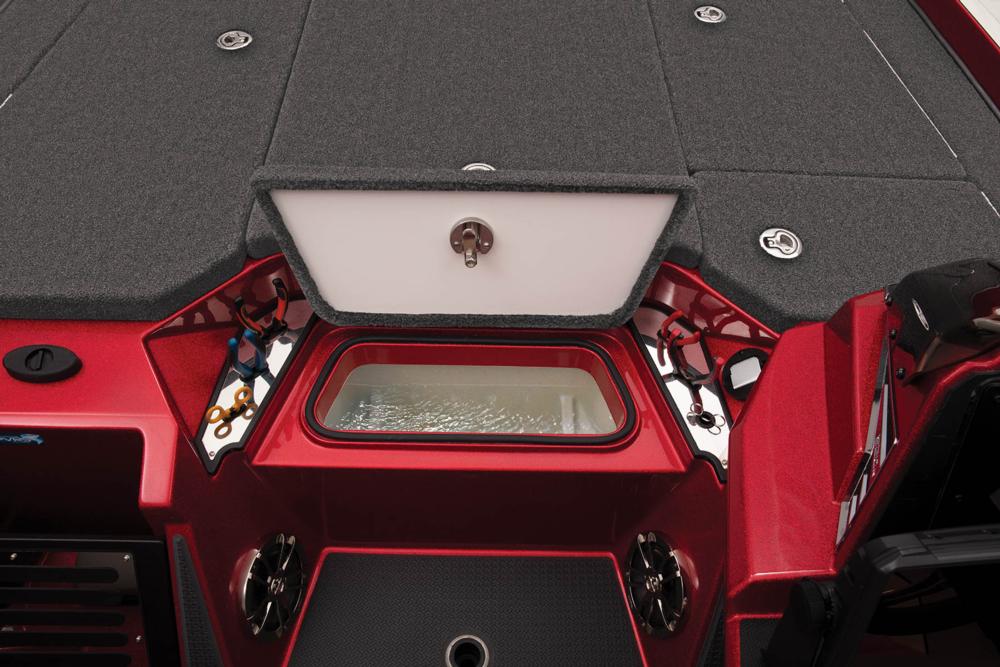

  • Recirculating aerated livewell w/ removable divider
  • Dual livewell lids with cull bouy organizer STBD side
  • Venturi Air & livewell pump-out system
  • Integrated engine setback

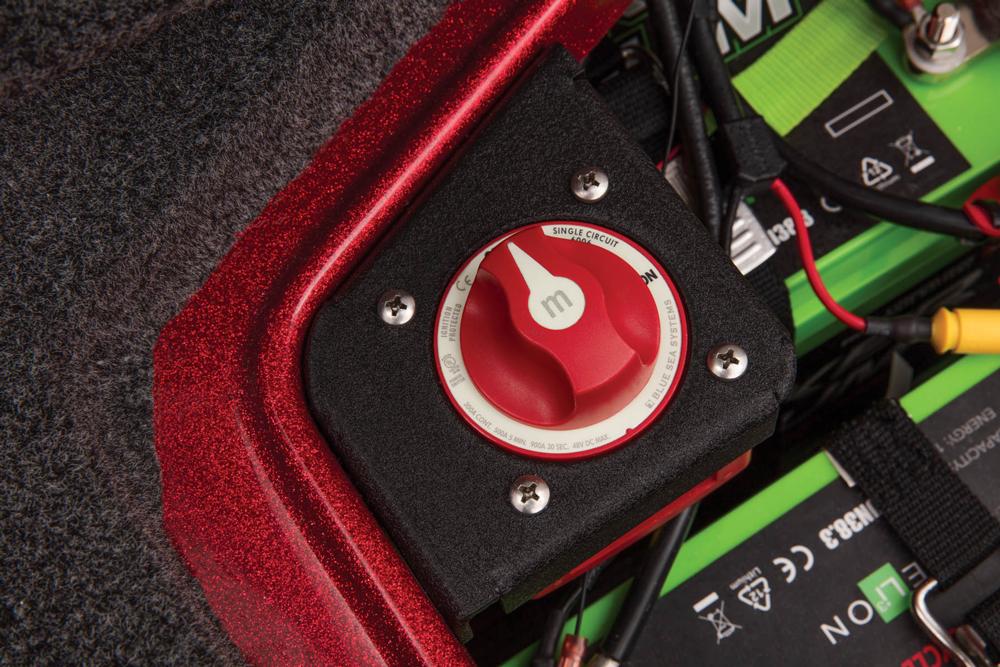

  • Electrical system disconnect on/off switch
  • NOCO™ GB40 jump starter
  • Tilt hydraulic steering
  • Power trim
  • Recessed trolling motor foot pedal
Safety/Comfort
  • Upright, level flotation

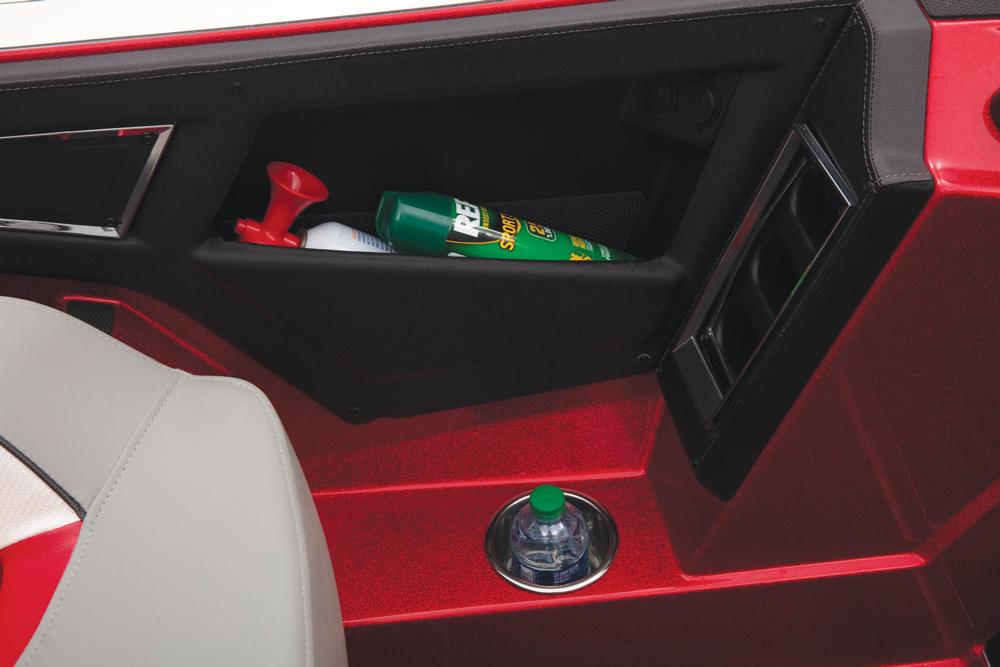

  • Fire extinguisher & horn
  • Tinted windshield(s)

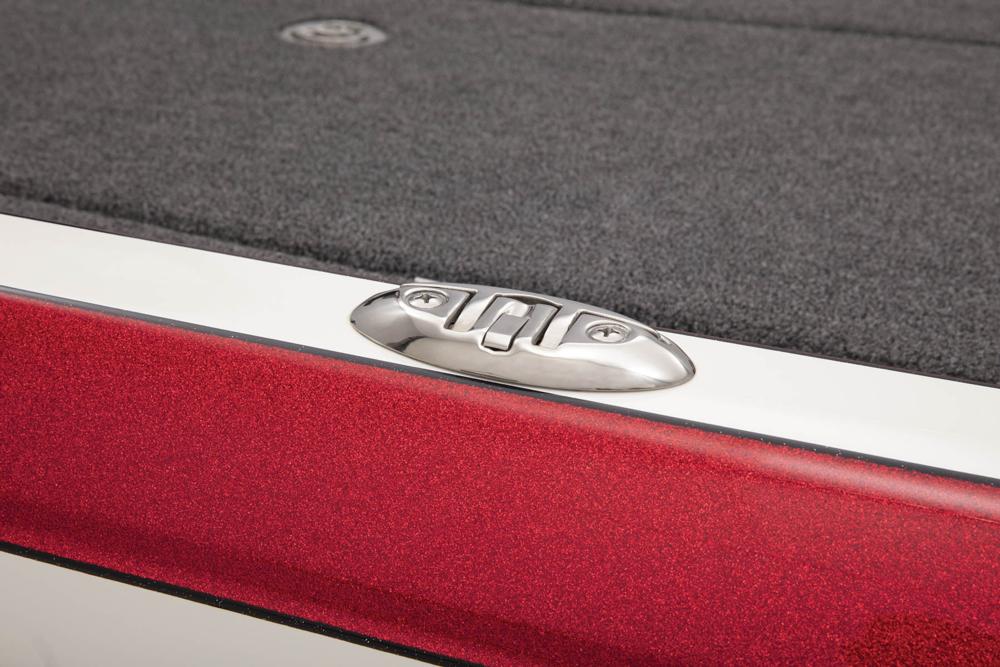

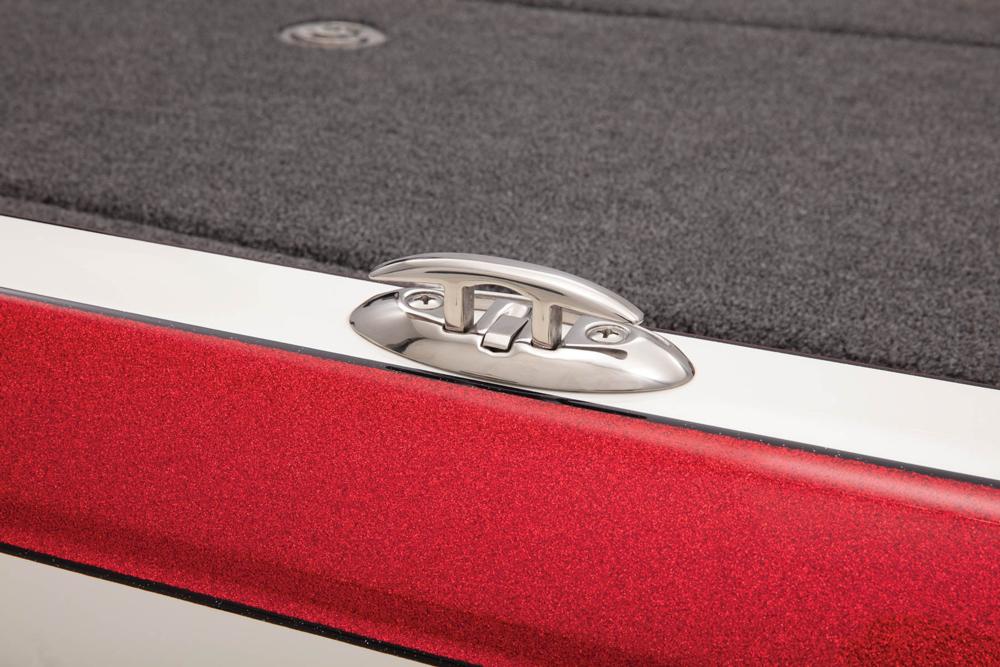

  • Pop-up tie cleats (drivers side cleat for easy tie up STD)
  • Integrated grab handles
  • Skid resistant material on bow
  • Automatic and manual bilge pump

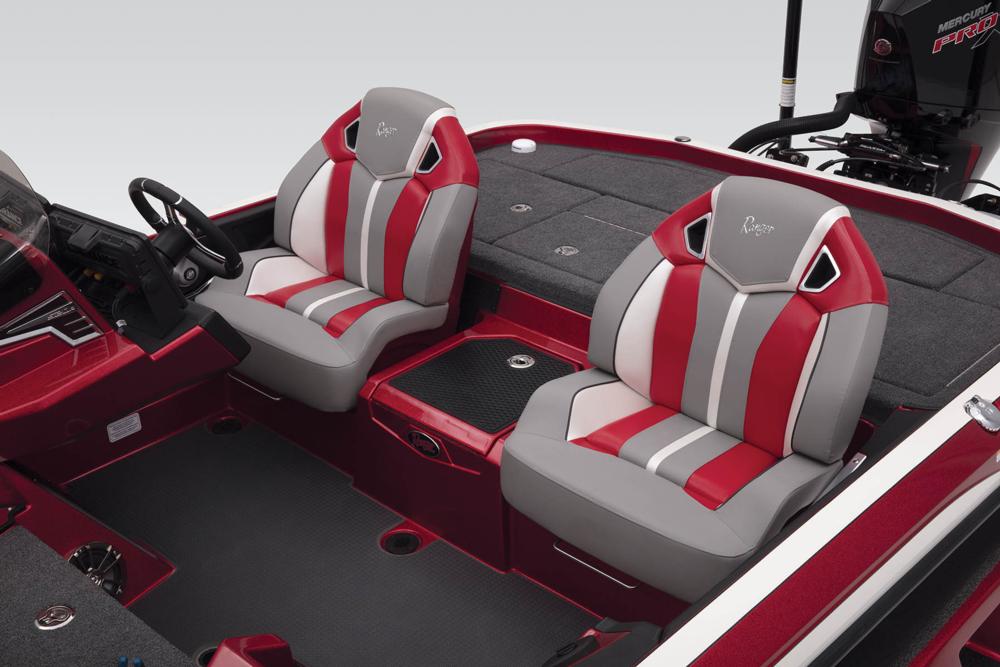

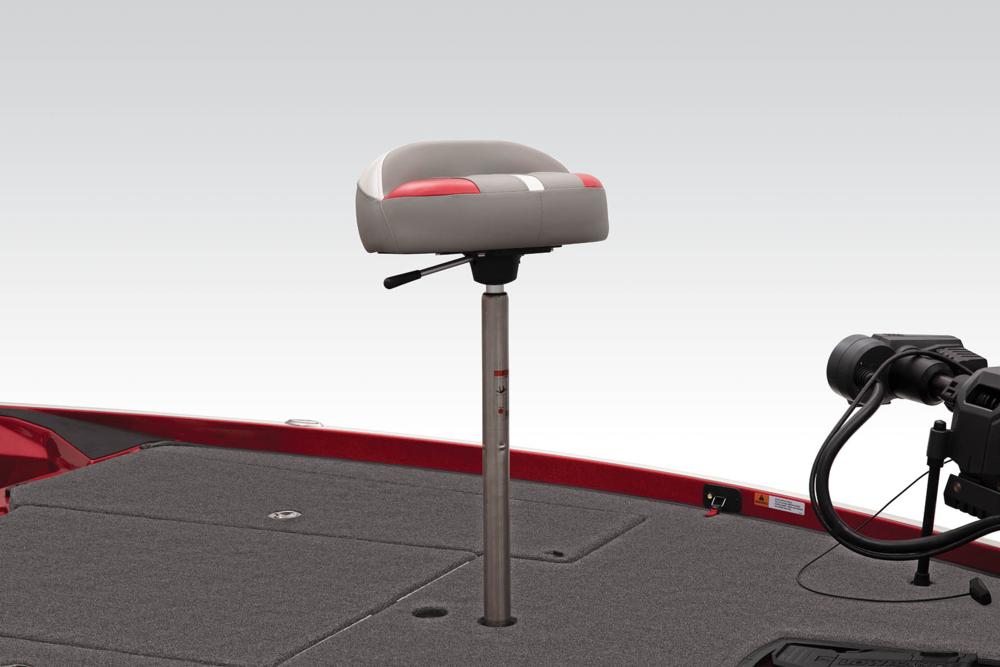

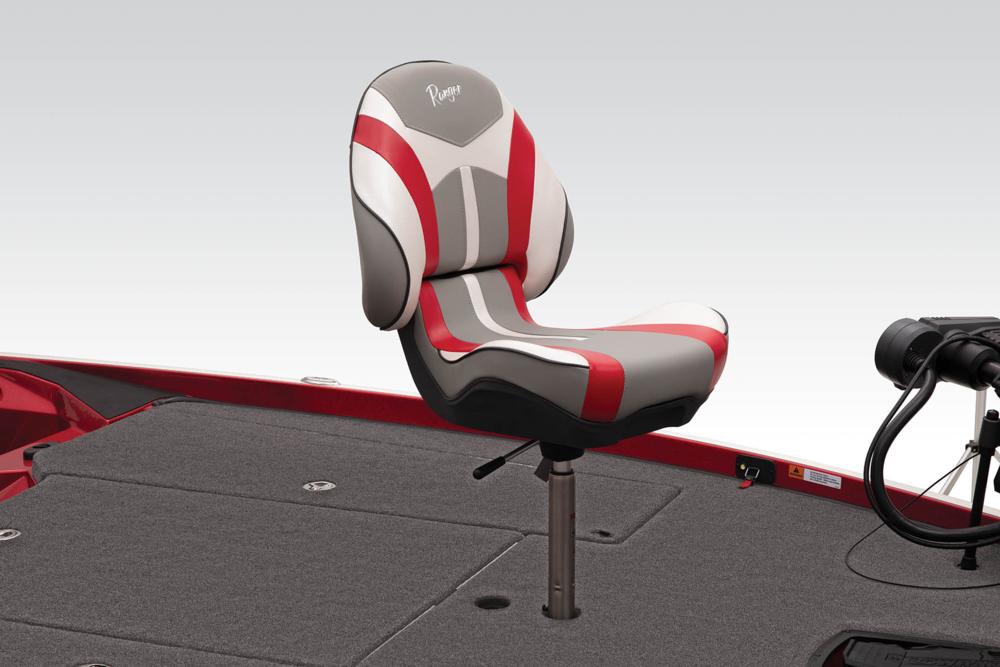

  • Custom-fitted premium marine upholstery - Soft Ride Seating (SRS) bucket seats w/ center storage, (1) bike seat w/ pro pole, (1) SRS all-weather fold down w/ power pedestal
  • NASCAR-inspired molded fiberglass (CCBM) seat back color matched to boat
  • Stainless steel seat bases
  • NEW integrated boarding ladder
  • Padded front deck
Trailer Features

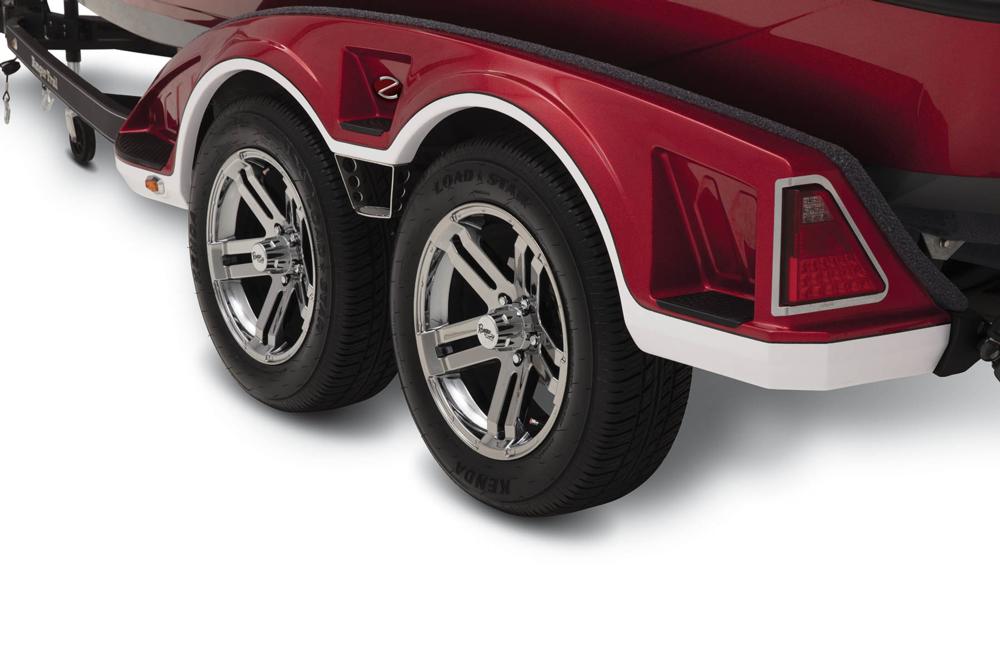

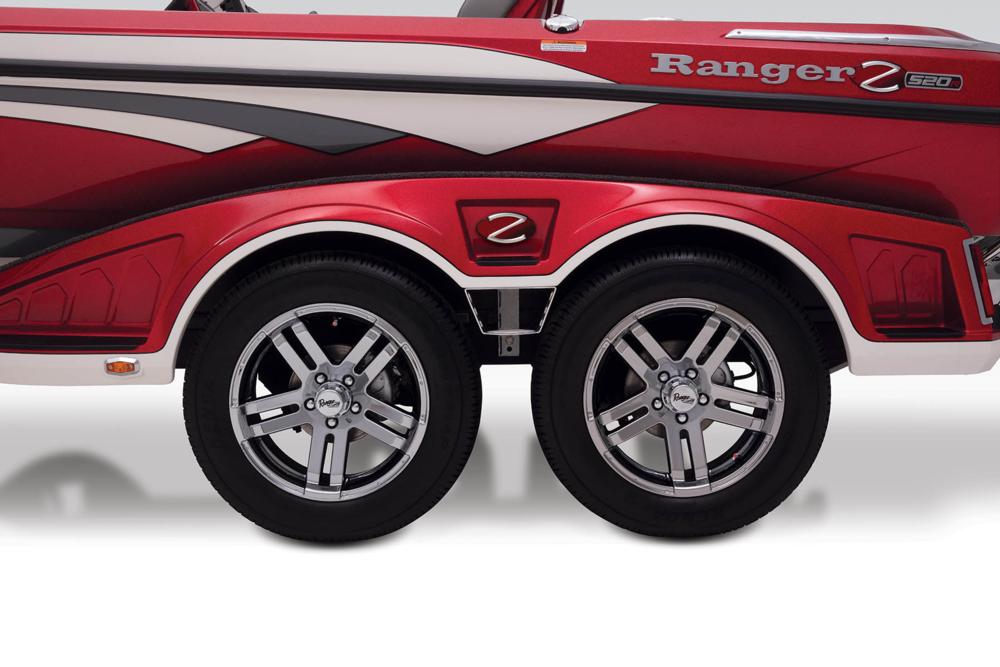

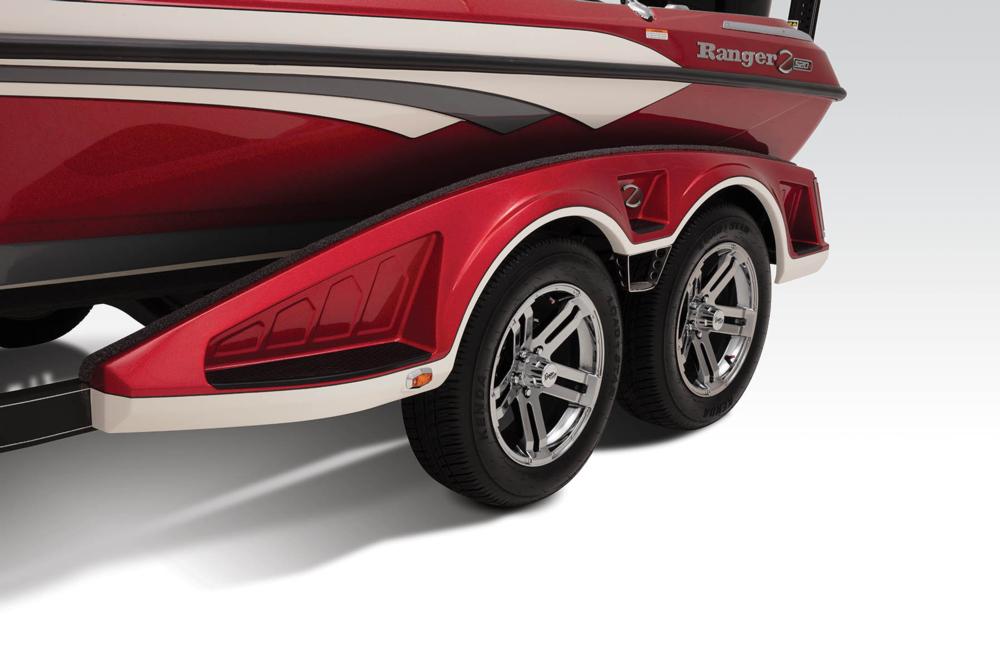

  • Tandem axle trailer
  • Aluminum wheels w/ matching spare tire & wheel
  • Matching fiberglass fenders w/ step pads
  • Hydraulic surge disc brakes
  • Swing-away tongue
  • Center swing jack (black powder coated)
  • NMMA®/NATM certified
  • Ranger Trail® Vault® Hub lubrication system
  • Ranger® Boats Road Armor Equipped® trailer protectant
  • Torsion axles

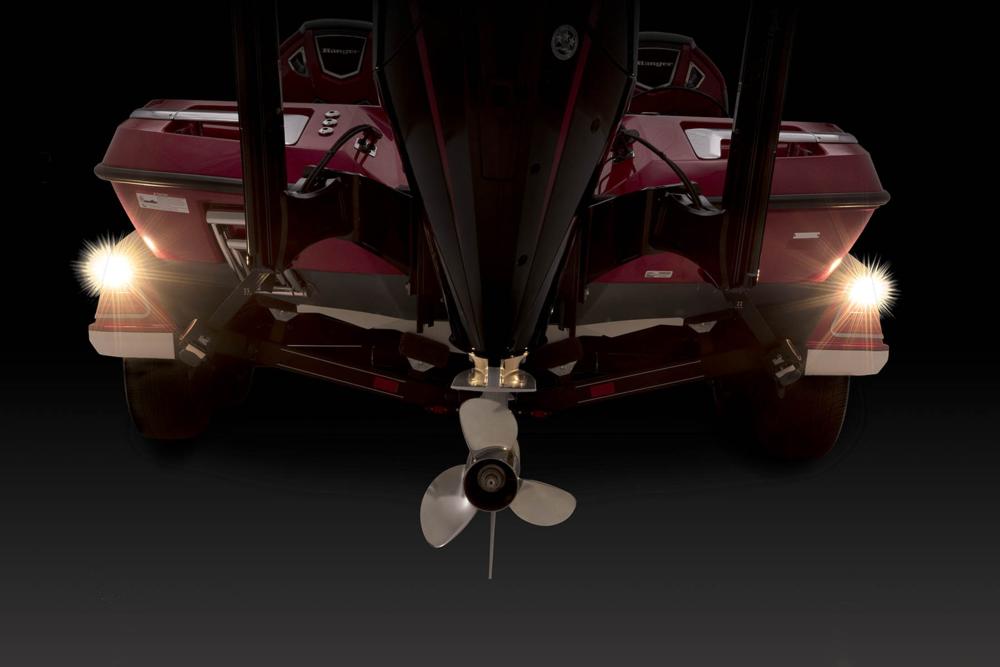

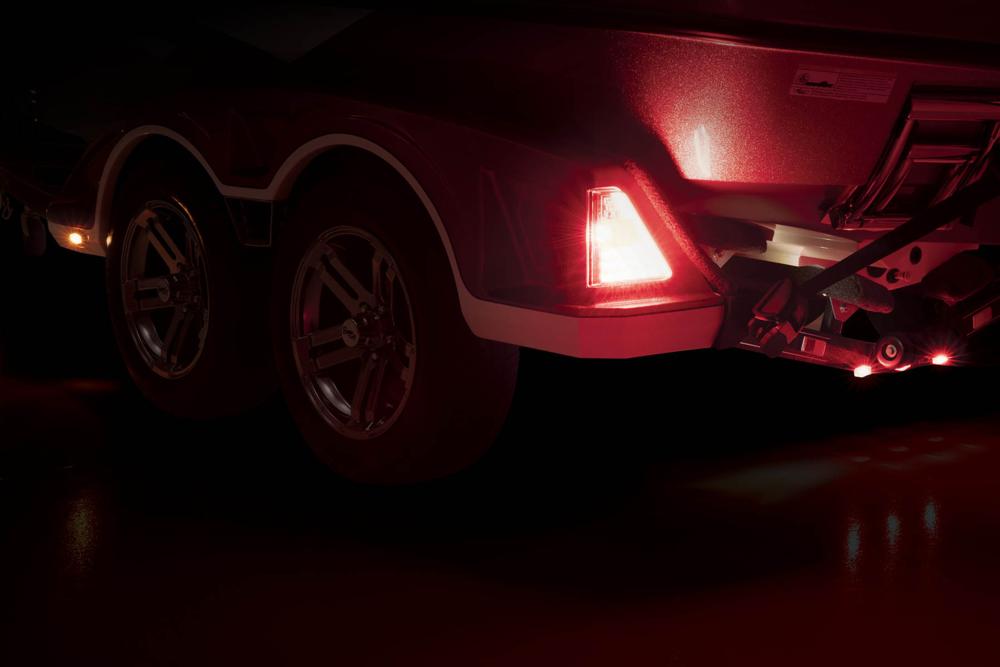

  • LED lighting
  • Stainless steel ratchet tie downs
  • (2) Back-up lights
