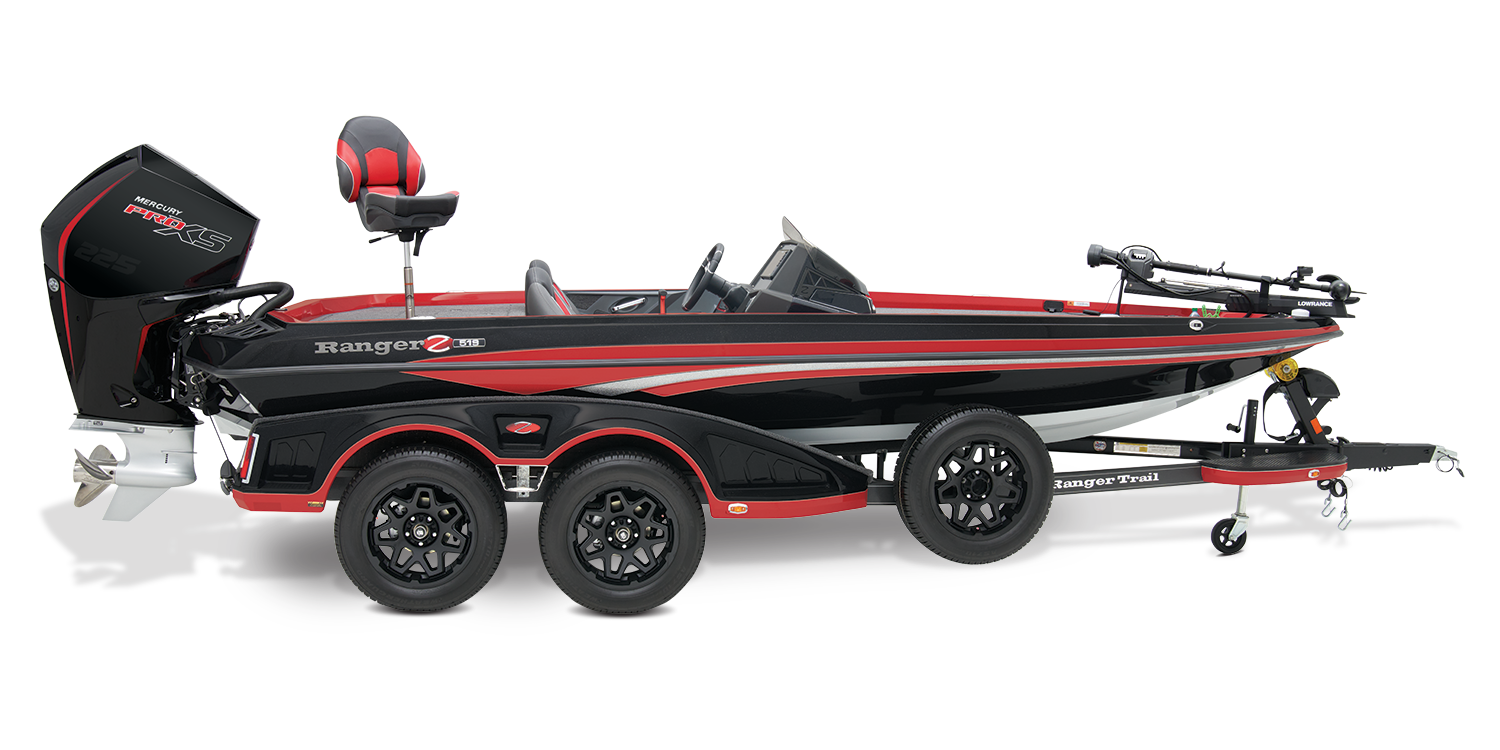

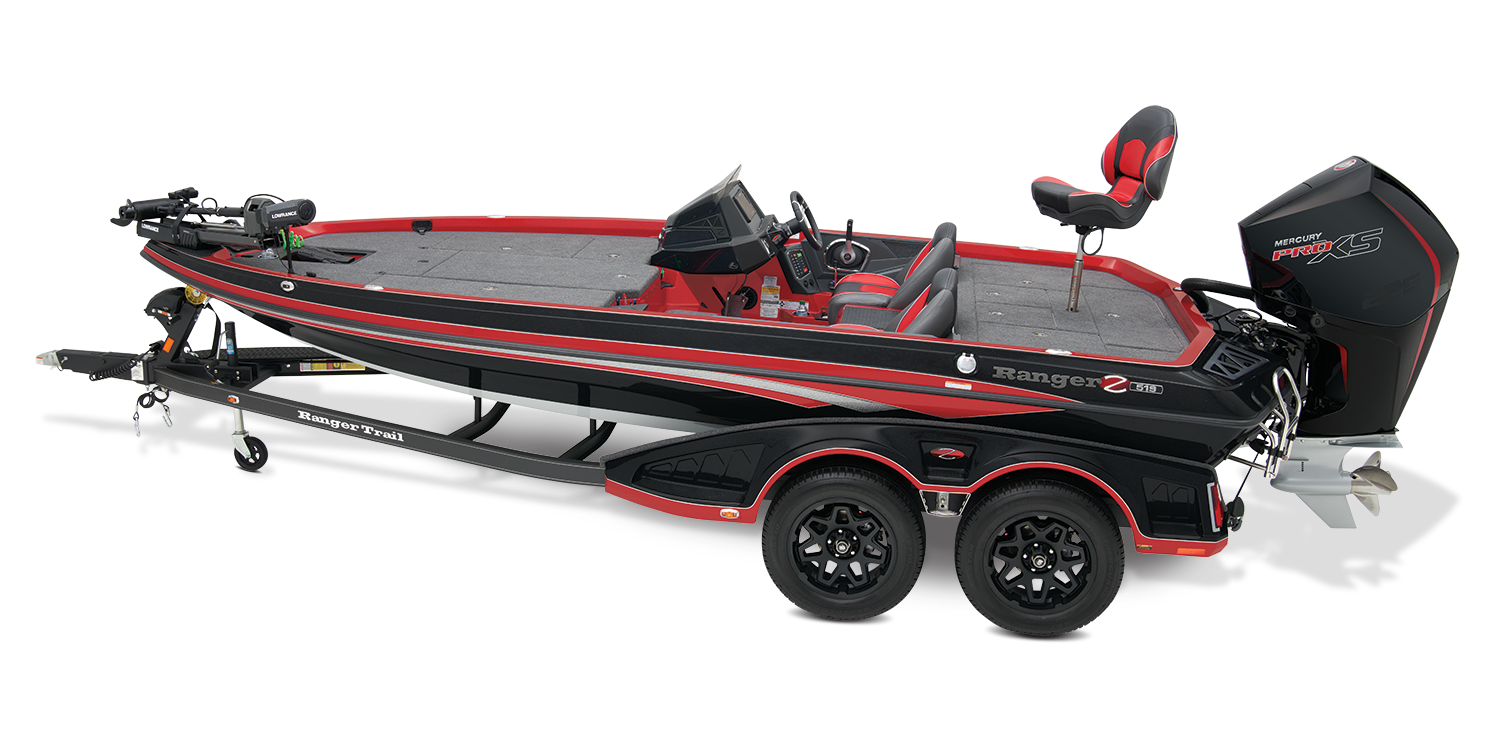

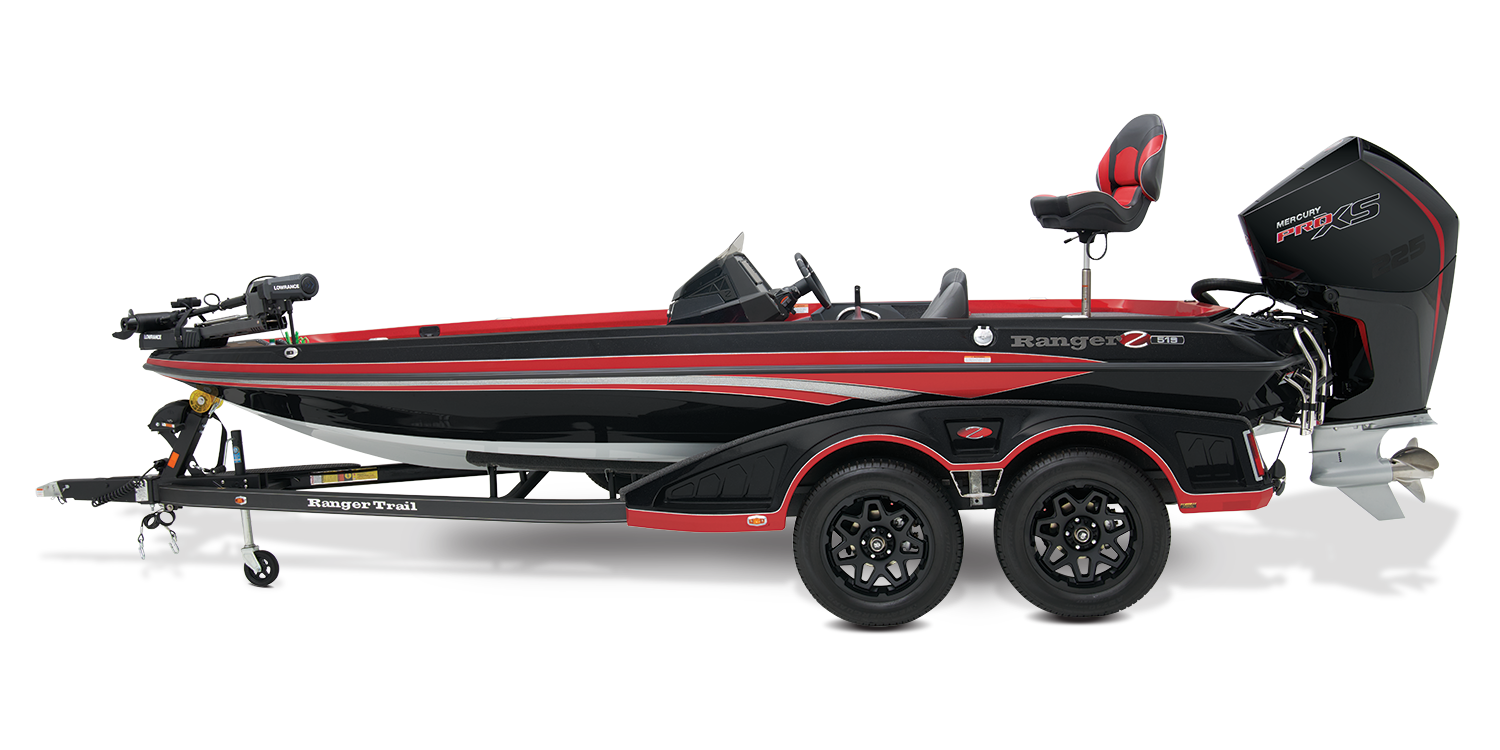

Ranger 519 Cup w/ Lowrance Trolling Motor

Photos may show optional equipment.

Ranger Cup Equipped Upgrade Packages
Custom Rigged to Dominate

Z519 Ranger Cup Equipped

w/ 225L Pro XS Torque Master Mercury®

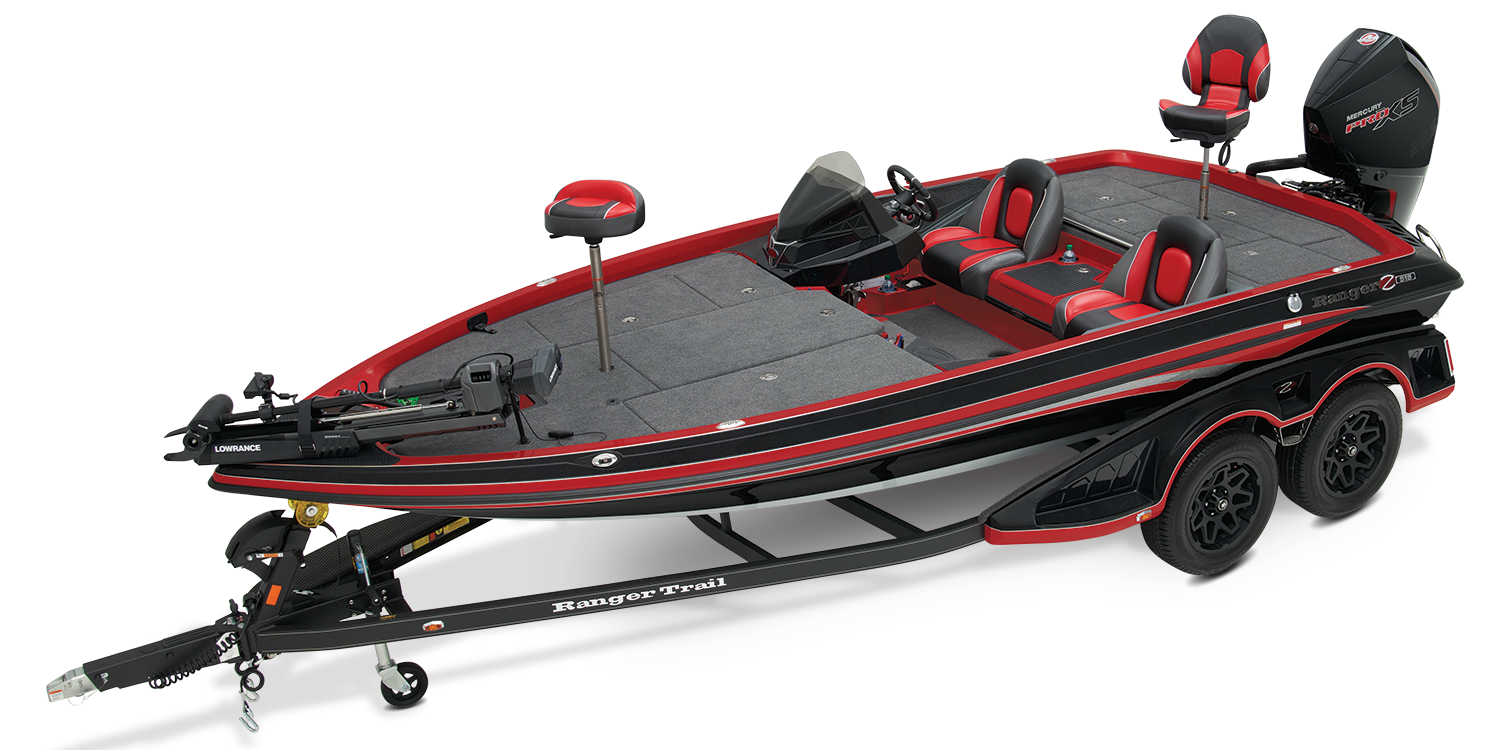

Boat, Motor, & Trailer
View Price w/ Prep & Freight:

Standard with your choice of tournament proven technology

Lowrance Upgrade Package


Garmin Upgrade Package

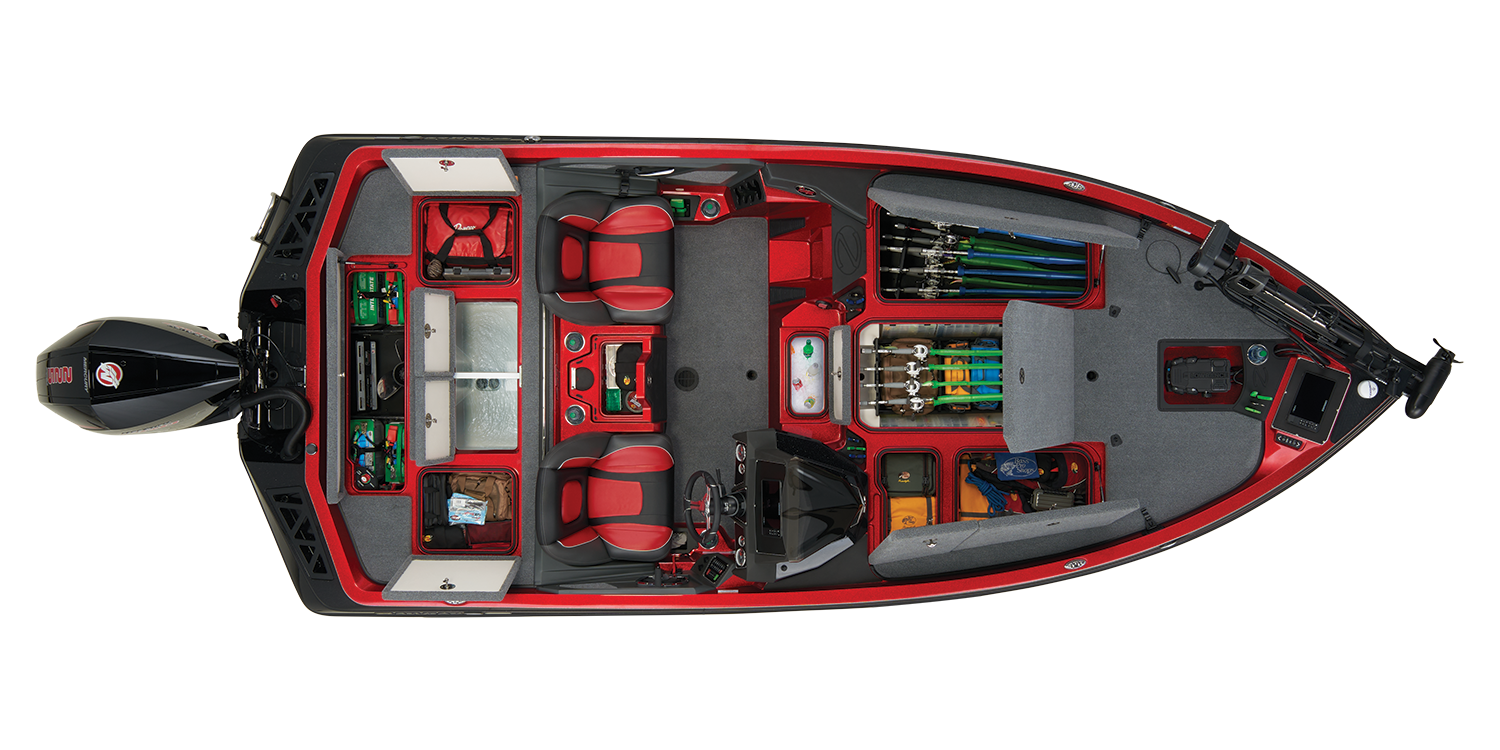

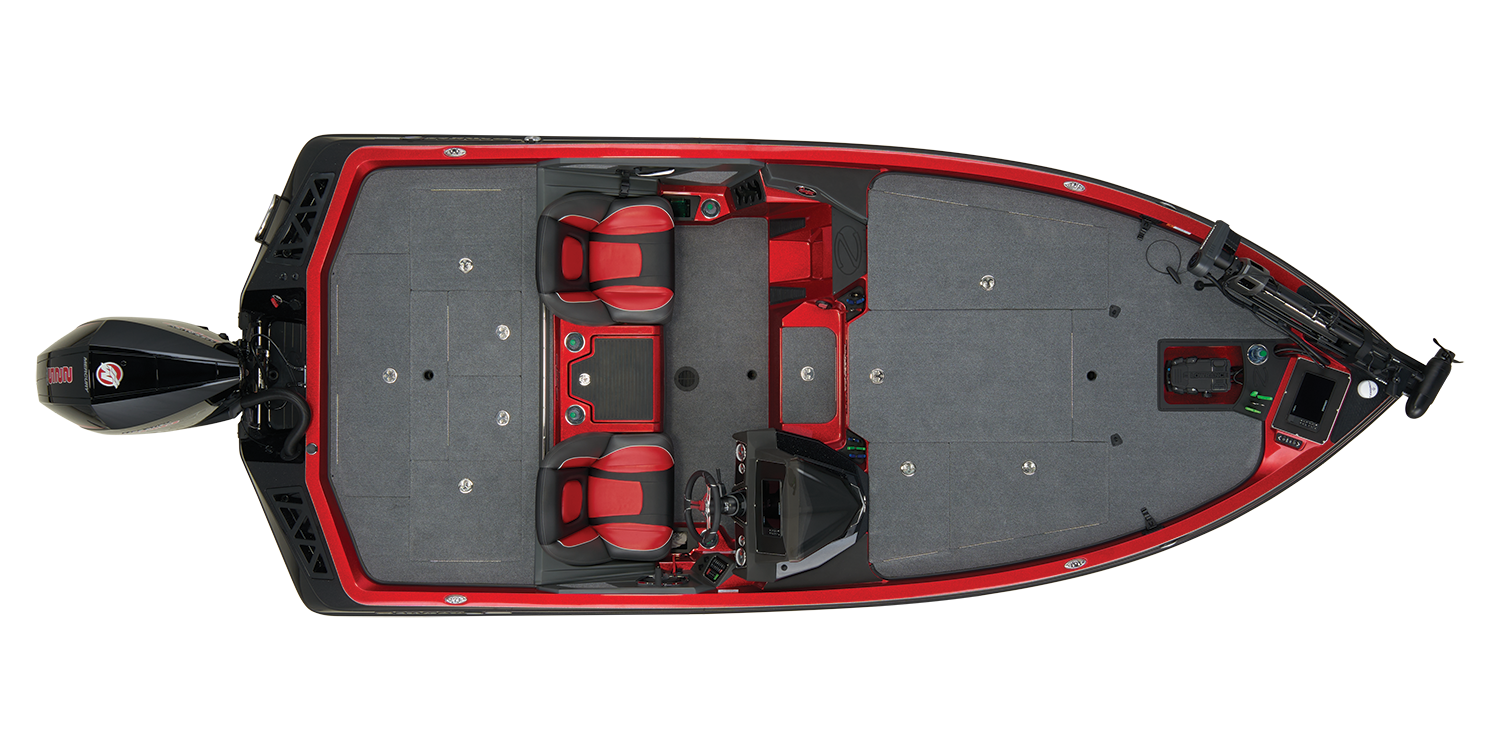

The wide, stable beam of the Z519 Ranger Cup Equipped boasts a tour-grade layout and delivers the stability, performance and confidence only Ranger ® can provide. Exceptional fishability comes by way of a huge front deck with an 8’ center rod locker and flush-mounted bow electronics. Highlighting the cockpit is a bold console with a full complement of gauges and capability to carry 15” screens, along with plush seats covered in premium, marine-grade upholstery and co-angler rod storage. The back deck features a timed, aerated and divided livewell nestled between monster storage boxes and just fore of the battery box. With a full palette of custom color options and the outboard of your choice, the Z519 Ranger Cup Equipped is the go-to tournament rig for those who refuse to lose.

Key Features

  • Lowrance® HDS-9 Live w/ Active Imaging @ bow & console
  • On-Board Dual Pro® auto detect lithium capable charger
  • Lowrance® Ghost 47" 36V Trolling Motor
  • Hot Foot Throttle
  • Remote drain plug



Length 6.02 m 19' 9''
Beam 2.46 m 97''
Max. Recommended HP 225 HP
Engine Shaft Length 50.8 cm 20''
Inside Depth 55.88 cm 22''
Fuel Capacity 147.62 L 39 gal.
Livewell Capacity 98.41 L 26 gal.
Total Person, Motor, Gear 716.68 kg 1580 lbs.
Approximate Boat Weight 793.79 kg 1750 lbs.
Rod Box Length - Port 2.44 m 8'
Rod Box Length - Center 2.44 m 8'
Max. Person Capacity 5 persons
Trailer GVWR 2041.17 kg 4500 lbs.
Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate) 7.42 m 24' 4''
Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate) 6.81 m 22' 4''
Width On Trailer 2.59 m 102''

Motor Options

225L Pro XS Torque Master
Select Dealer

Standard Features

Ranger Cup Equipped - LOWRANCE® Package

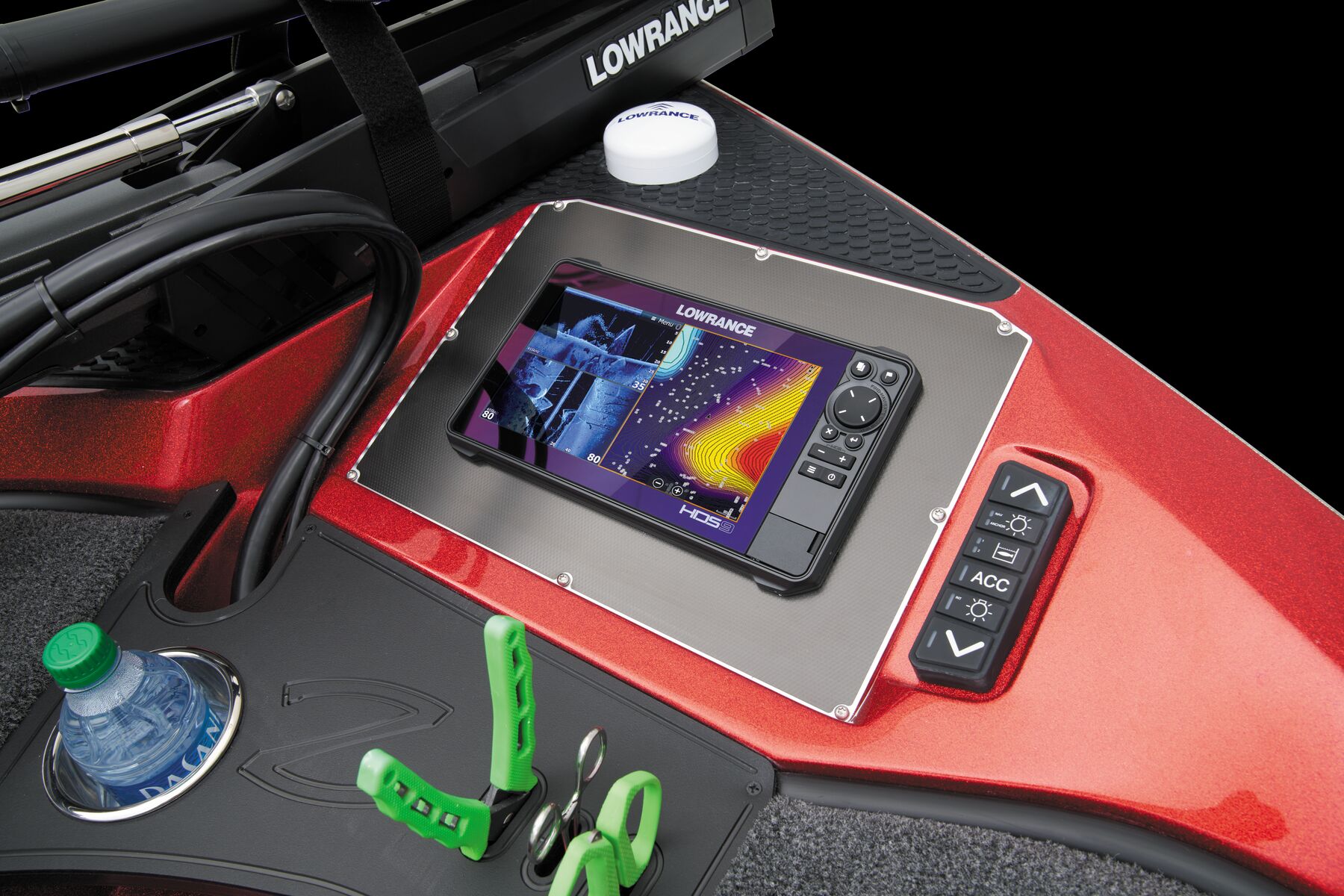

  • Lowrance® HDS® 9 PRO at bow
  • Lowrance® HDS® 9 PRO at console w/ ActiveImaging™ HD
  • Lowrance® Active Target™ 2 Live Sonar

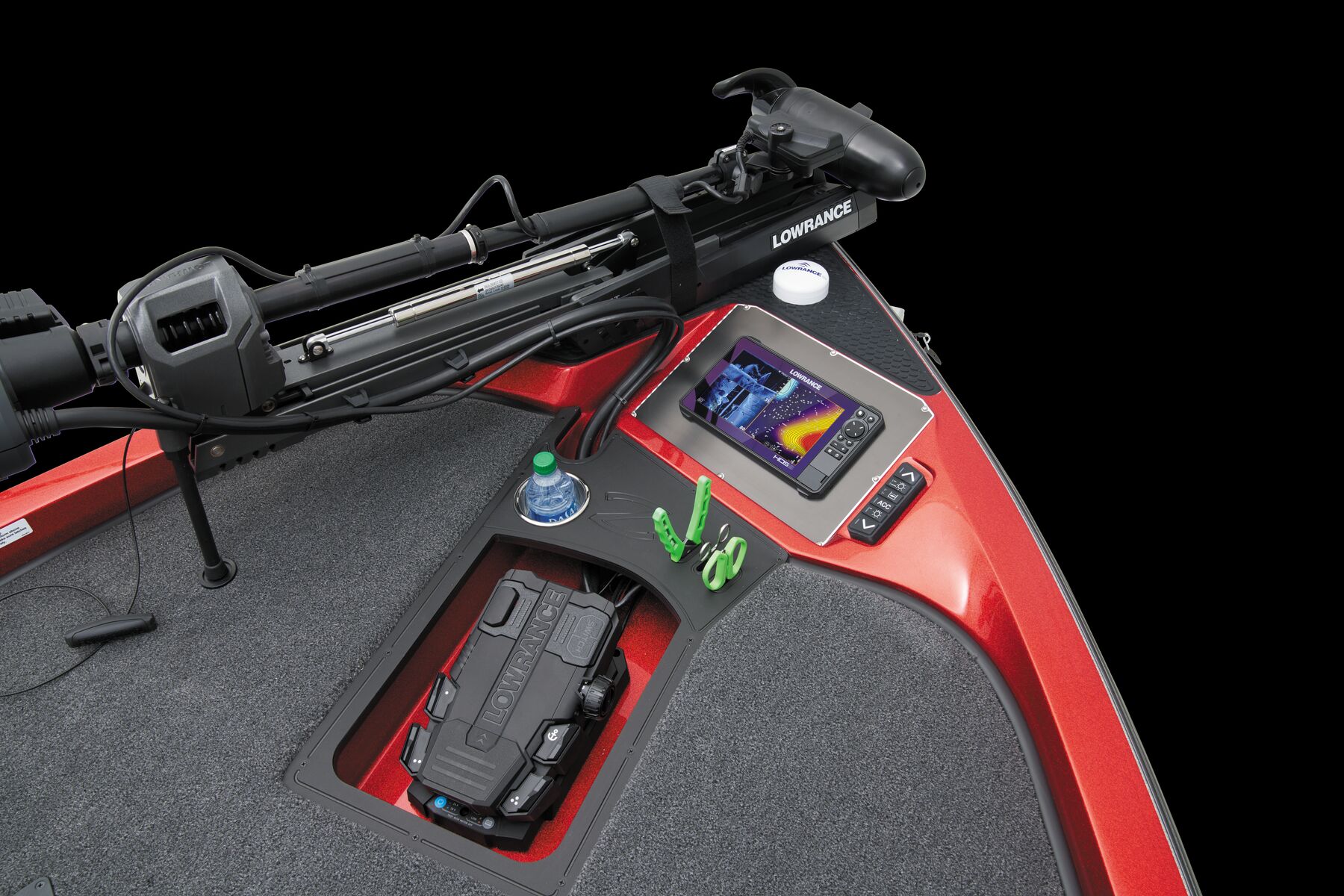

  • Lowrance® Ghost 45" 36V Trolling Motor
  • Dual Pro™ on-board charger, 15A x 4 bank w/ auto-detect technology & remote charging port
  • Blinker Trim
  • Hot Foot
Ranger Cup Equipped - GARMIN® Package
  • GARMIN® ECHOMAP™ UHD2 96sv at bow
  • GARMIN® ECHOMAP™ UHD2 96sv at console
  • GARMIN® Live Scope™ Plus LVS34 Live Sonar
  • GARMIN® Force 45" 36V Trolling Motor
  • Dual Pro™ on-board charger, 15A x 4 bank w/ auto-detect technology & remote charging port
  • Blinker Trim
  • Hot Foot
Custom Details
  • Power Ventilation Rod Storage™
  • Integrated center-storage rod & tackle management system
  • Insulated step-up cooler
  • Ranger® tournament measuring board integrated at front deck step
  • Runnin' rod rack w/ retractable strap
  • Remote drain plug
  • Stainless steel compression lid locks
  • Tool holders at bow and front deck step
  • Multi-function custom gauge package: speedometer, tachometer, fuel, trim, water pressure, temp, volt
  • Keyed ignition and premium analog switching
  • Digital 6-function keypad at bow
  • Heavy Duty 6-gauge trolling motor wiring harness w/ 60A breaker
  • Master Power on/off battery disconnect switch
  • NOCO™ GB40 jump starter w/ on-board USB charging
  • LED storage compartment lighting & LED courtesy & livewell lighting
  • Integrated LED bow navigation lights & removable LED anchor light
  • 12V DC power receptacle with USB
  • Ranger Cup Equipped Trolling Motor (see RCE)
  • (3) Trolling Battery trays (tray only)
  • AGM starting battery w/ tray
  • Dual Pro™ on-board charger, 15A x 4 bank w/ auto-detect technology & remote charging port
  • One-Piece-Feel Interloc Construction
  • Pultruded fiberglass transom
  • Integrated engine setback
  • 10" manual setback plate
  • Tilt hydraulic steering
  • Recirculating aerated livewell w/ removable divider
  • Venturi Air & livewell pump-out system
  • Recessed trolling motor foot pedal
  • High performance stainless steel prop
  • Upright Level Flotation exceeding all USCG & NMMA standards
  • Custom-fitted premium marine upholstery - Soft Ride Seating (SRS) bucket seats w/ color-matched fiberglass seat shell, coin box, (1) bike seat w/ pro pole, & (1) SRS all-weather fold down w/ power pedestal
  • Fire extinguisher & horn
  • Stainless steel seat bases
  • Fire extinguisher & horn
  • Pop-up tie cleats & driver seat cleat
  • Integrated grab handles
  • Rite Track Keel®
  • Automatic & manual bilge pumps
  • Integrated re-boarding ladder
Trailer Features
  • Ranger Trail® single axle trailer w/ torsion axles and c-channel frame
  • Ranger® Boats Road Armor Equipped® trailer protectant coating
  • 14" Machined/painted Raptor wheels w/ matching spare
  • Ranger Trail® Vault® Hub lubrication system
  • Fiberglass fenders w/ step pads
  • Hydraulic surge disc brakes
  • Swing-away tongue
  • Integrated center-swing jack finished in black powdercoat
  • Stainless steel ratcheting tie-downs
  • LED lighting
  • LED back-up lights
  • NMMA®/NATM certified
