Ranger Cup Equipped Upgrade Packages
Custom Rigged to Dominate
2024

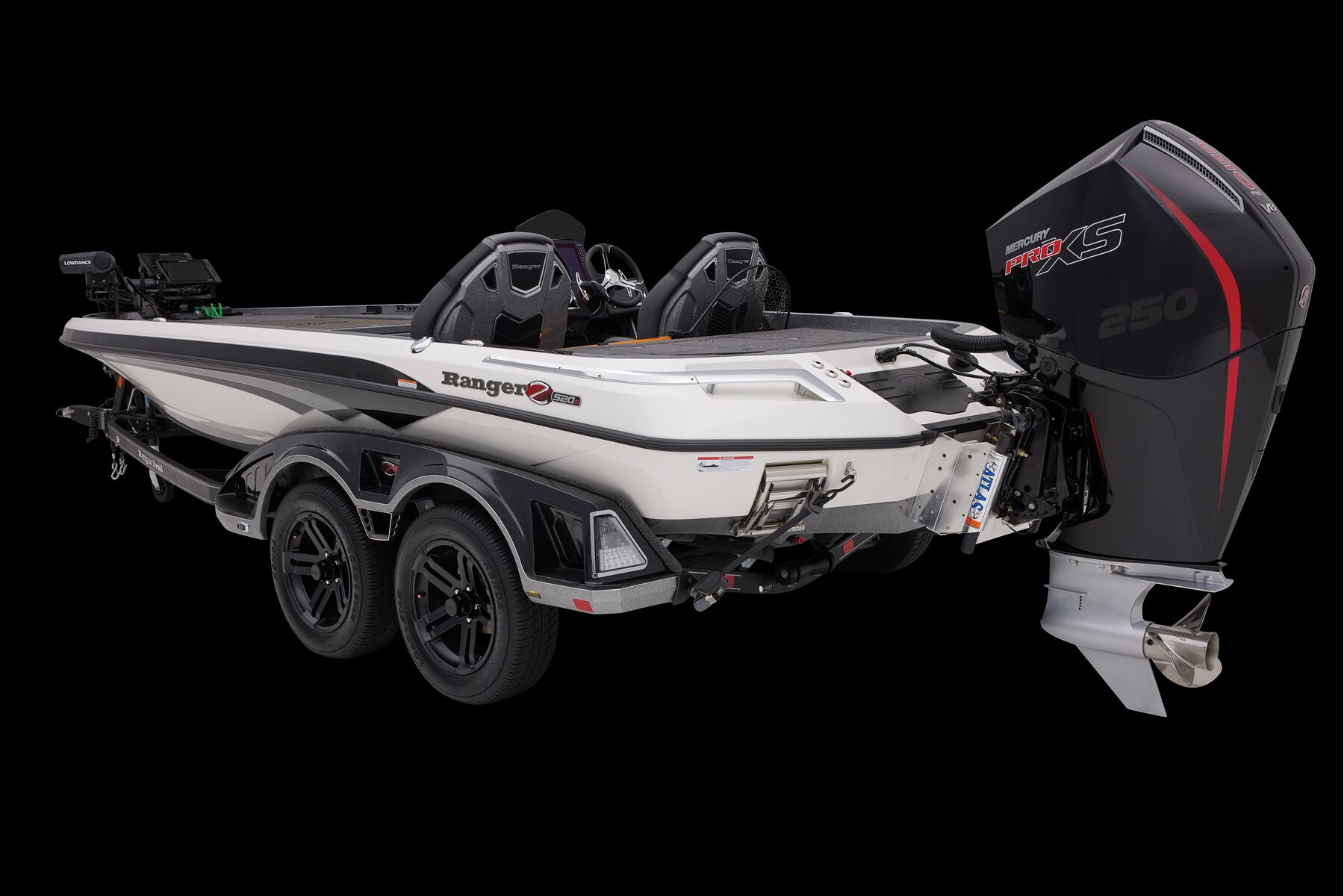

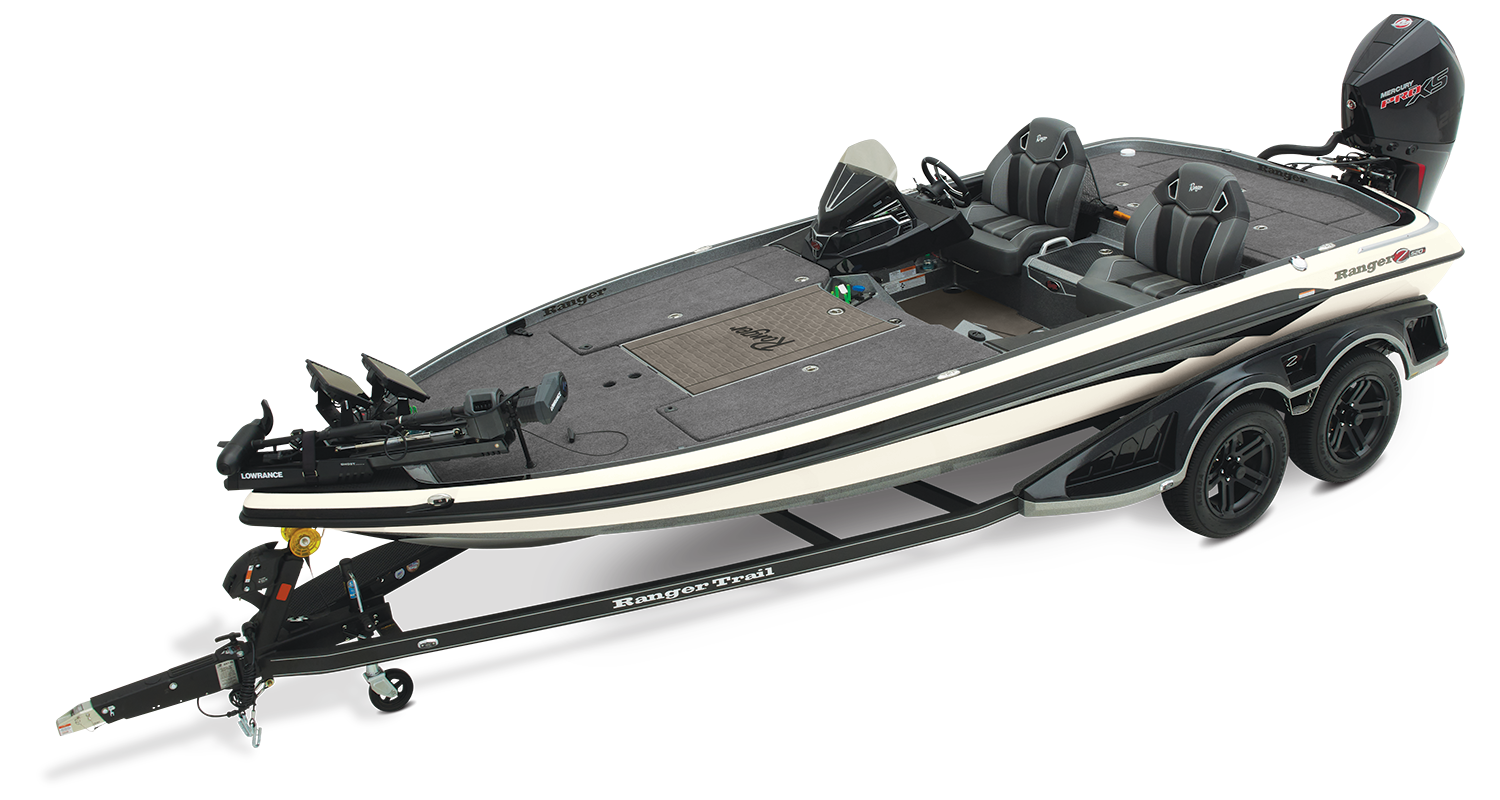

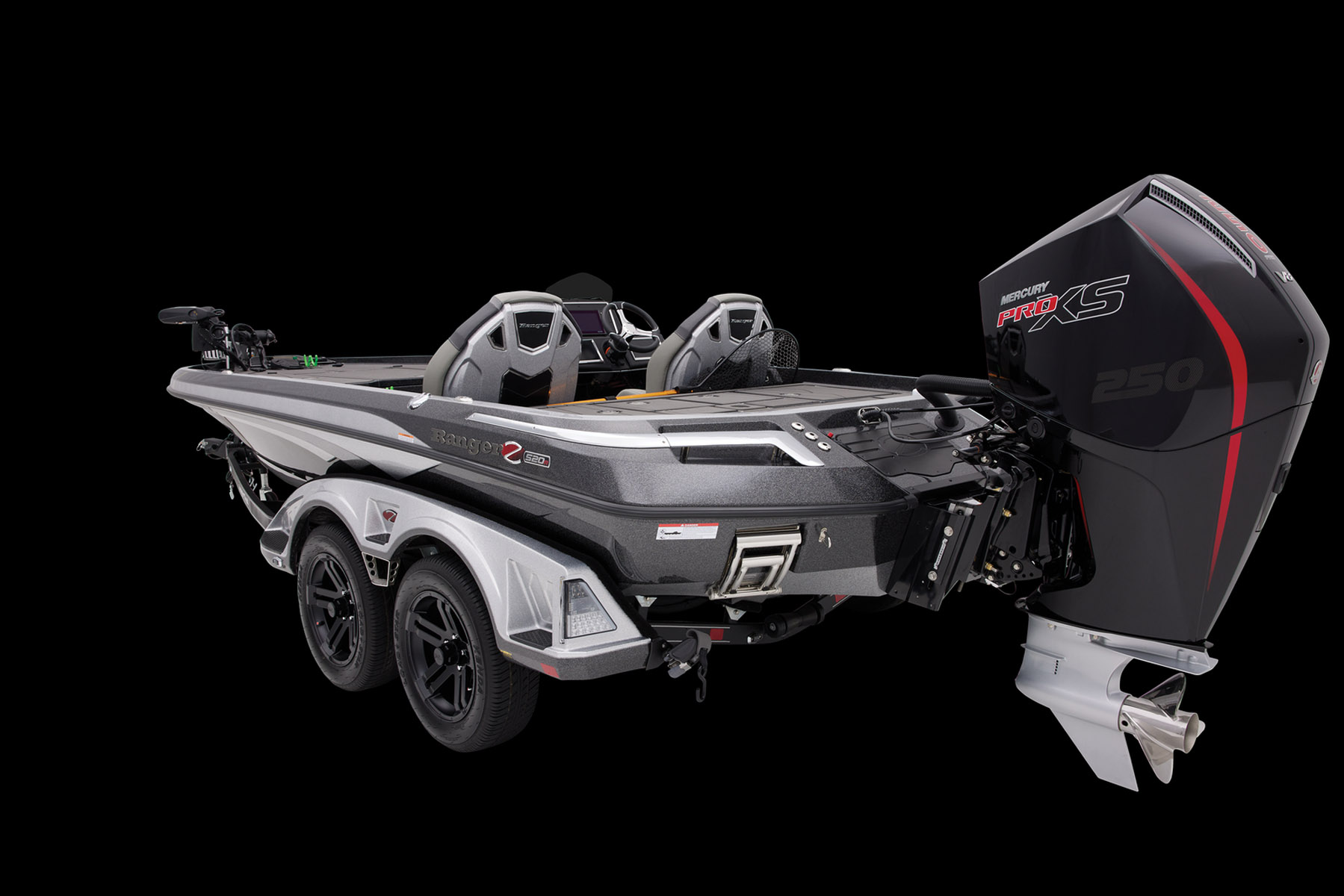

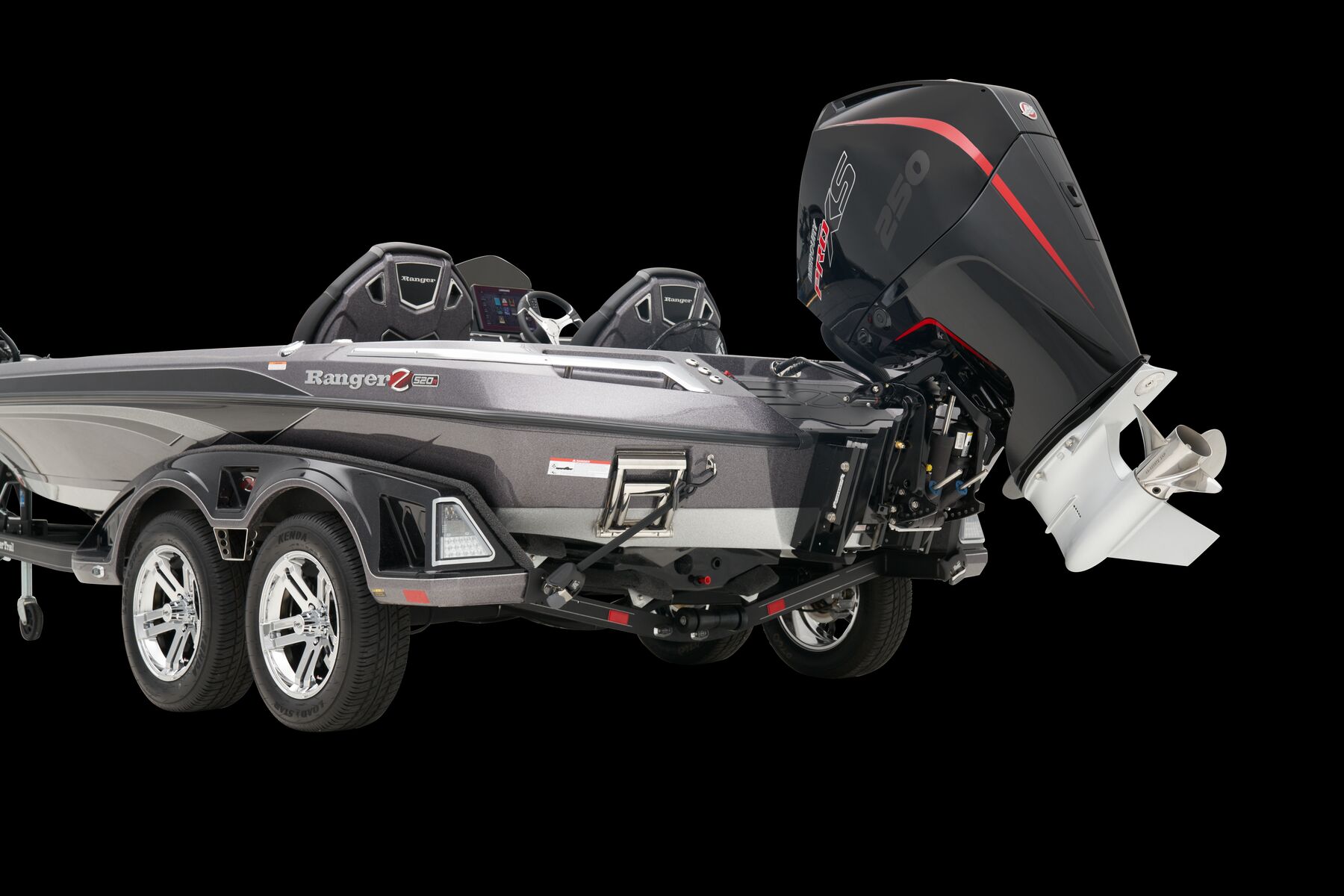

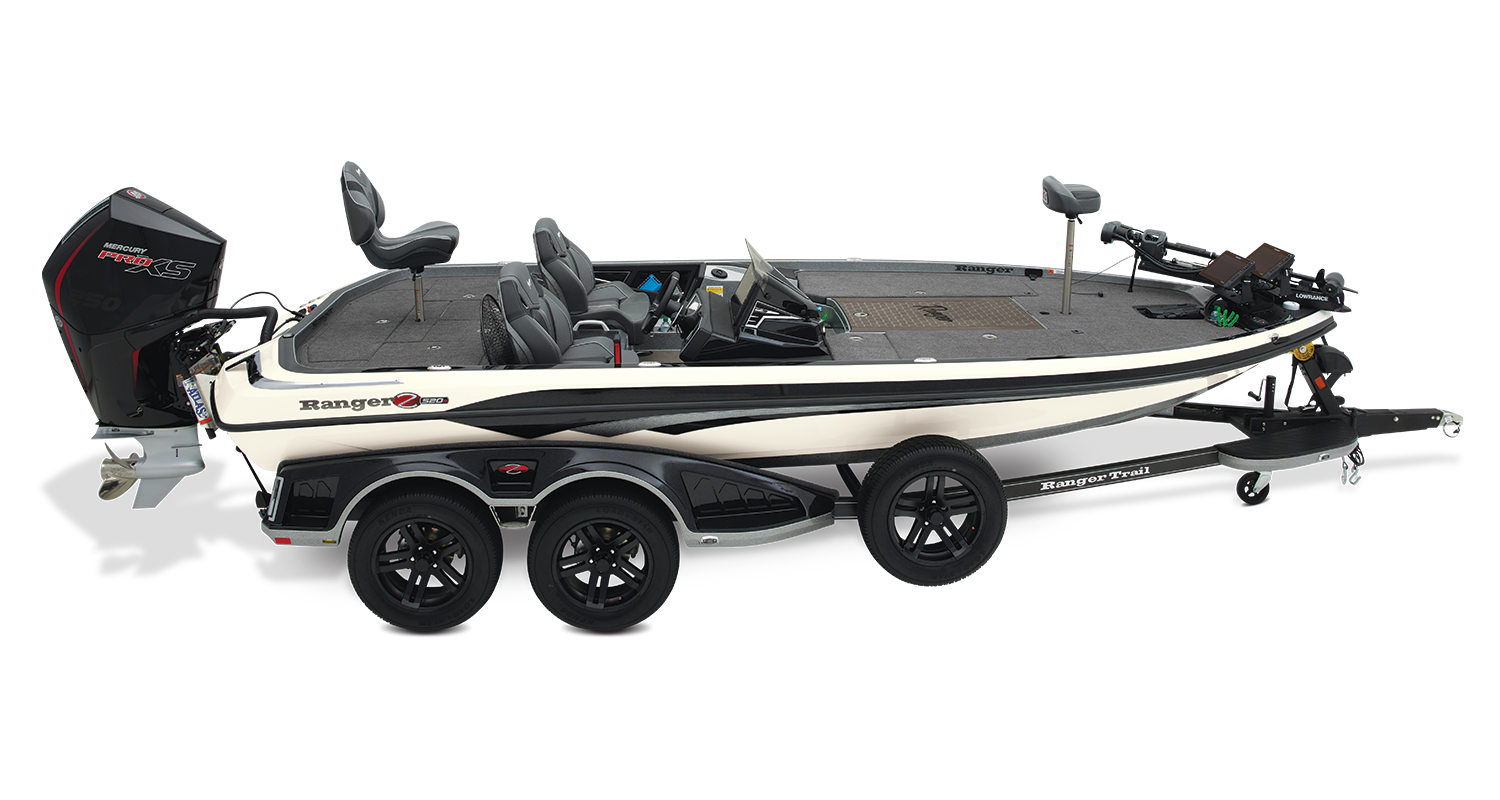

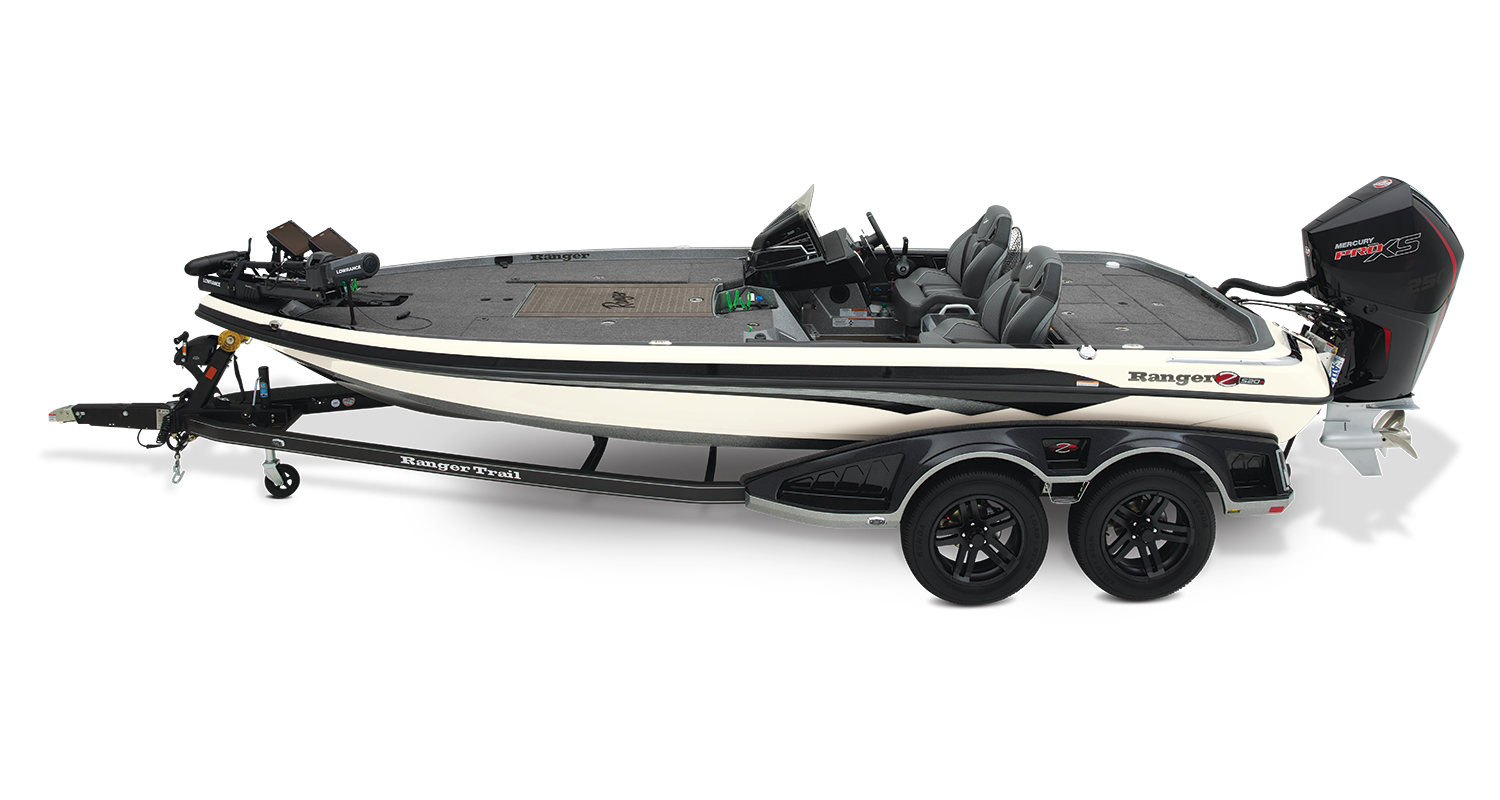

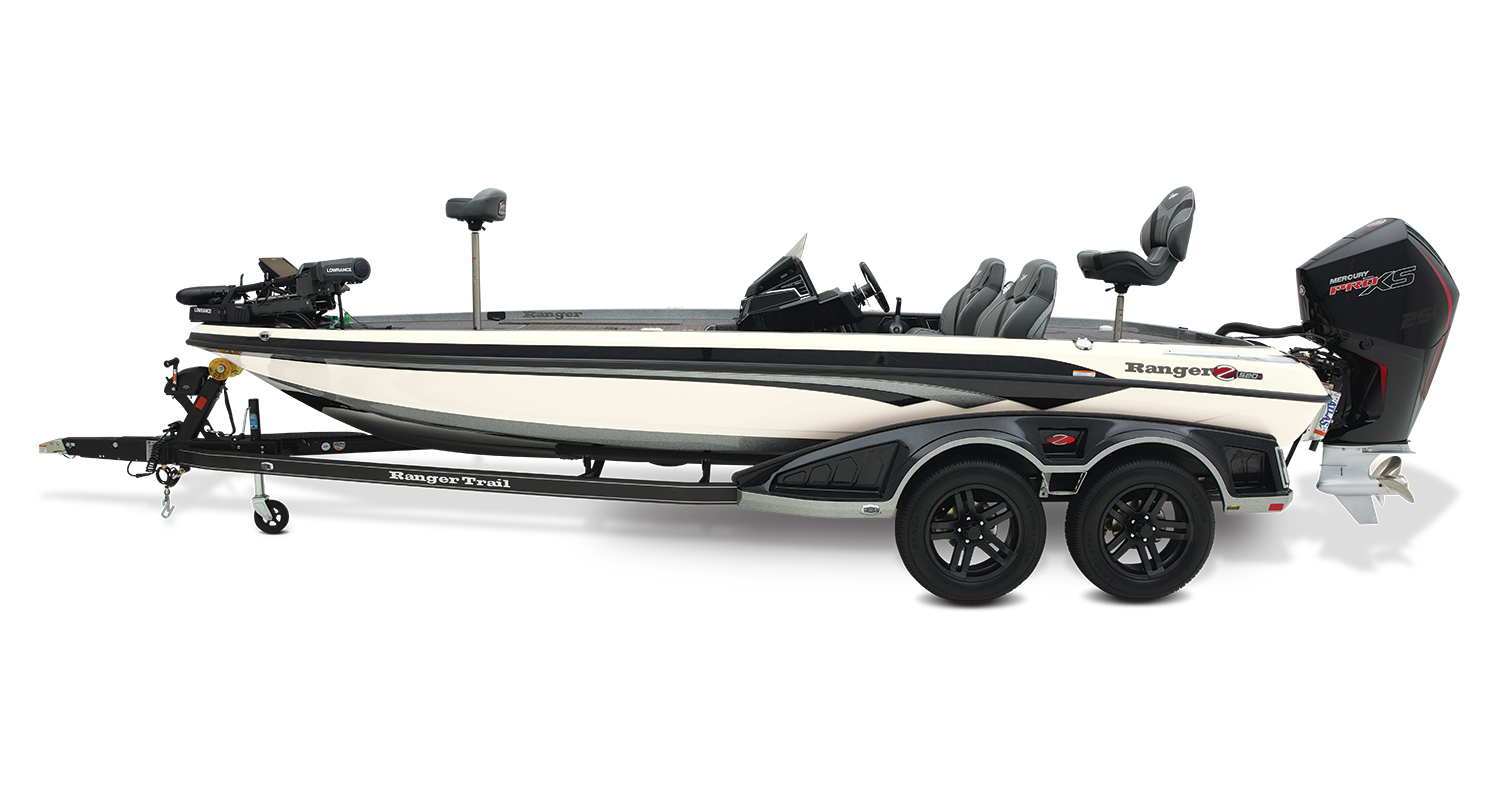

Z520R Ranger Cup Equipped

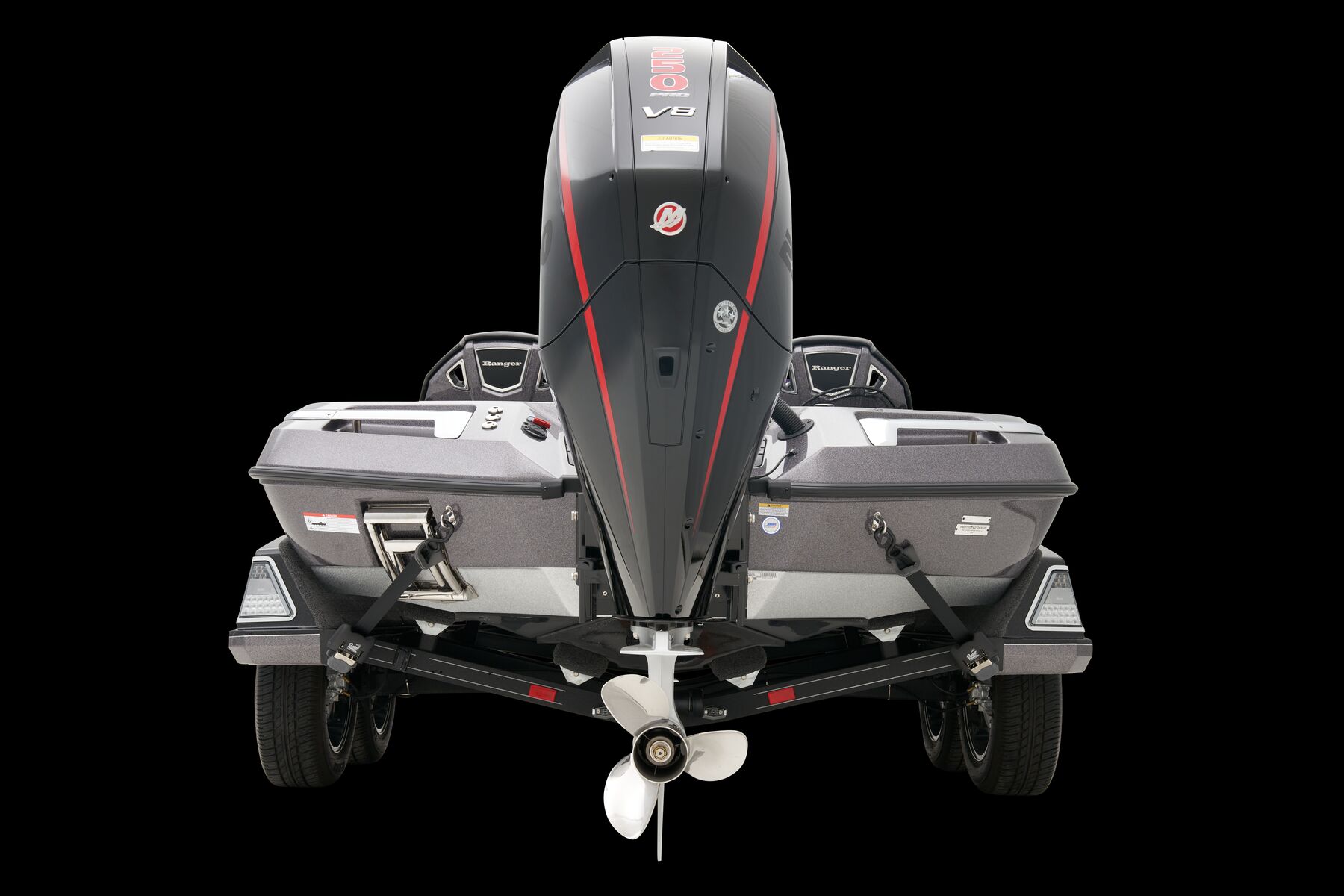

w/ 250L Pro XS Torque Master Mercury®

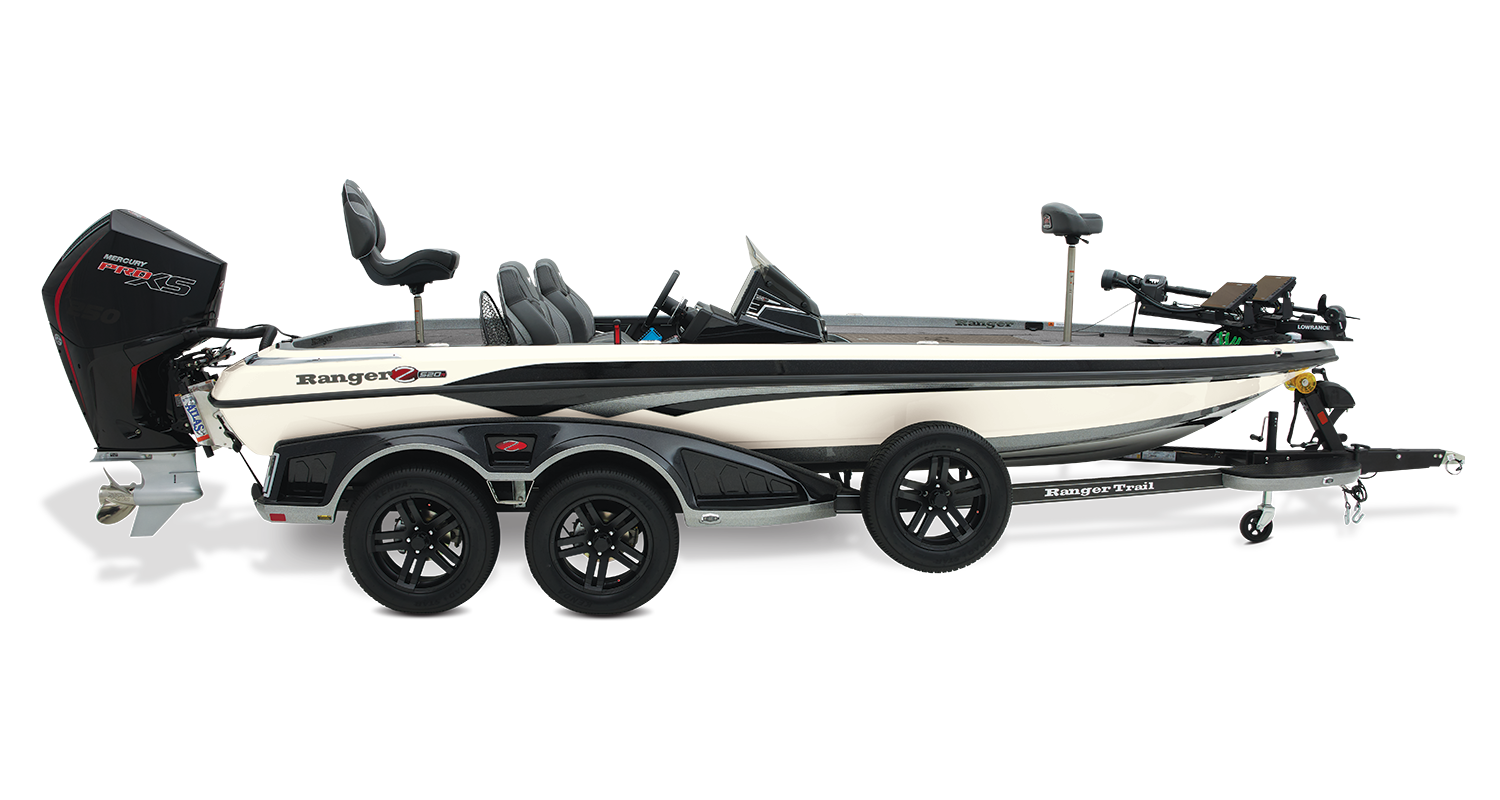

Boat, Motor, & Trailer
View Price w/ Prep & Freight:
NO HAGGLE NO HASSLE® National Price
$89995
USD

Standard with your choice of tournament proven technology


Lowrance Upgrade Package

or

Garmin Upgrade Package

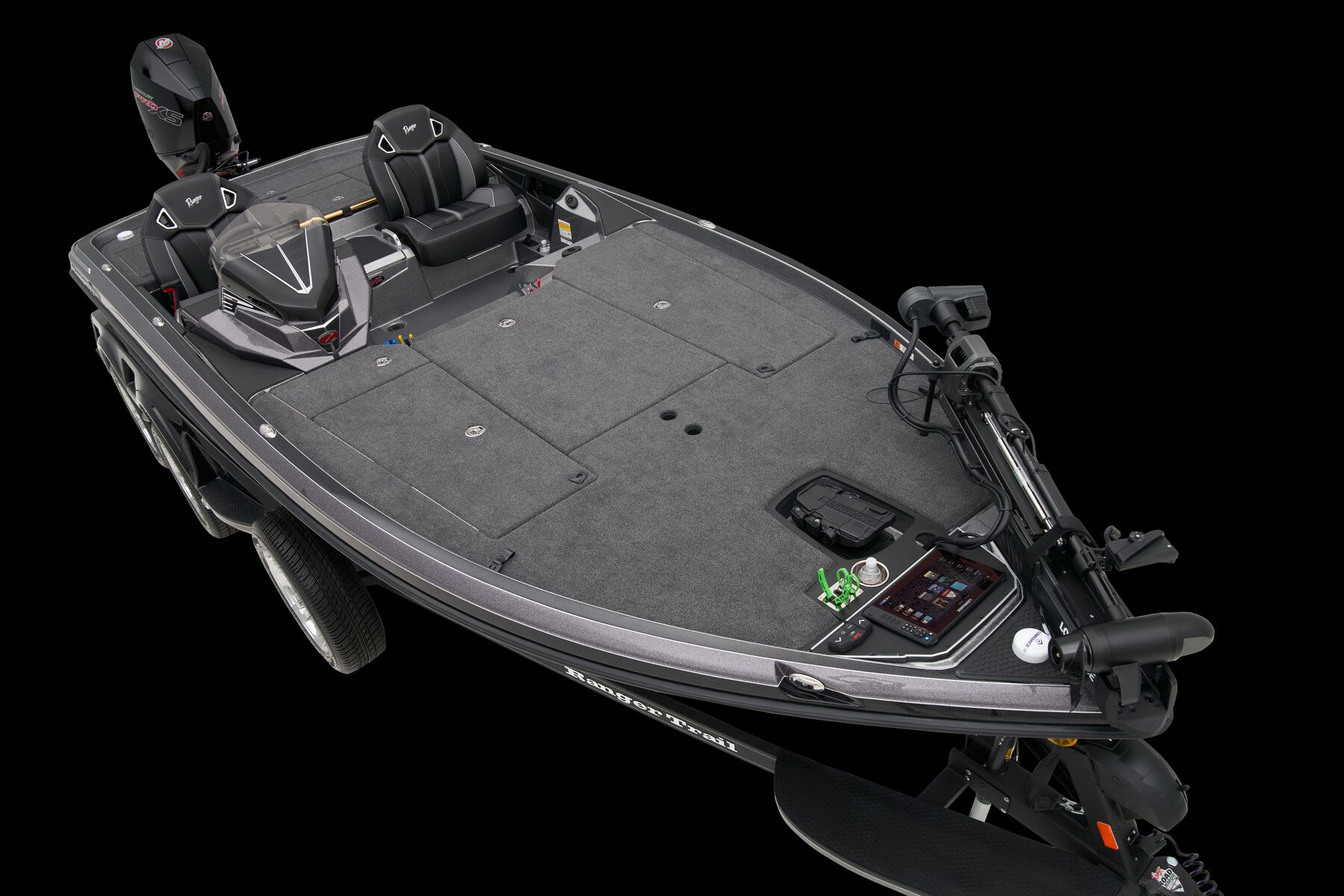

Z520R Bass Fishing
rt178
Z520R

THE FAST TRACK TO THE PODIUM



With an unmatched legacy and never-ending drive for domination, we’ve created the next iteration of the go-to for anglers at every level. With the Ranger Cup Equipped package, your Z520R comes with pro-preferred, factory-rigged add-ons that let you hit the water running—and saves you a little coin, too.

The Ranger Z520R is the next chapter in bass boat evolution and a quantum leap in design, functionality and dominating performance at every level. From the outset, we took the legendary Z Comanche “C” hull, digitally scanned and perfected it, resulting in an instant hole shot and stronger top-end.

Every appreciable element of the cockpit, decks, and storages has been revamped to complement the enhanced performance of the R Series. We’ve also gone to great lengths to incorporate more standard technology into the R Series to not only raise the bar for the industry, but to give you greater convenience and peace of mind.

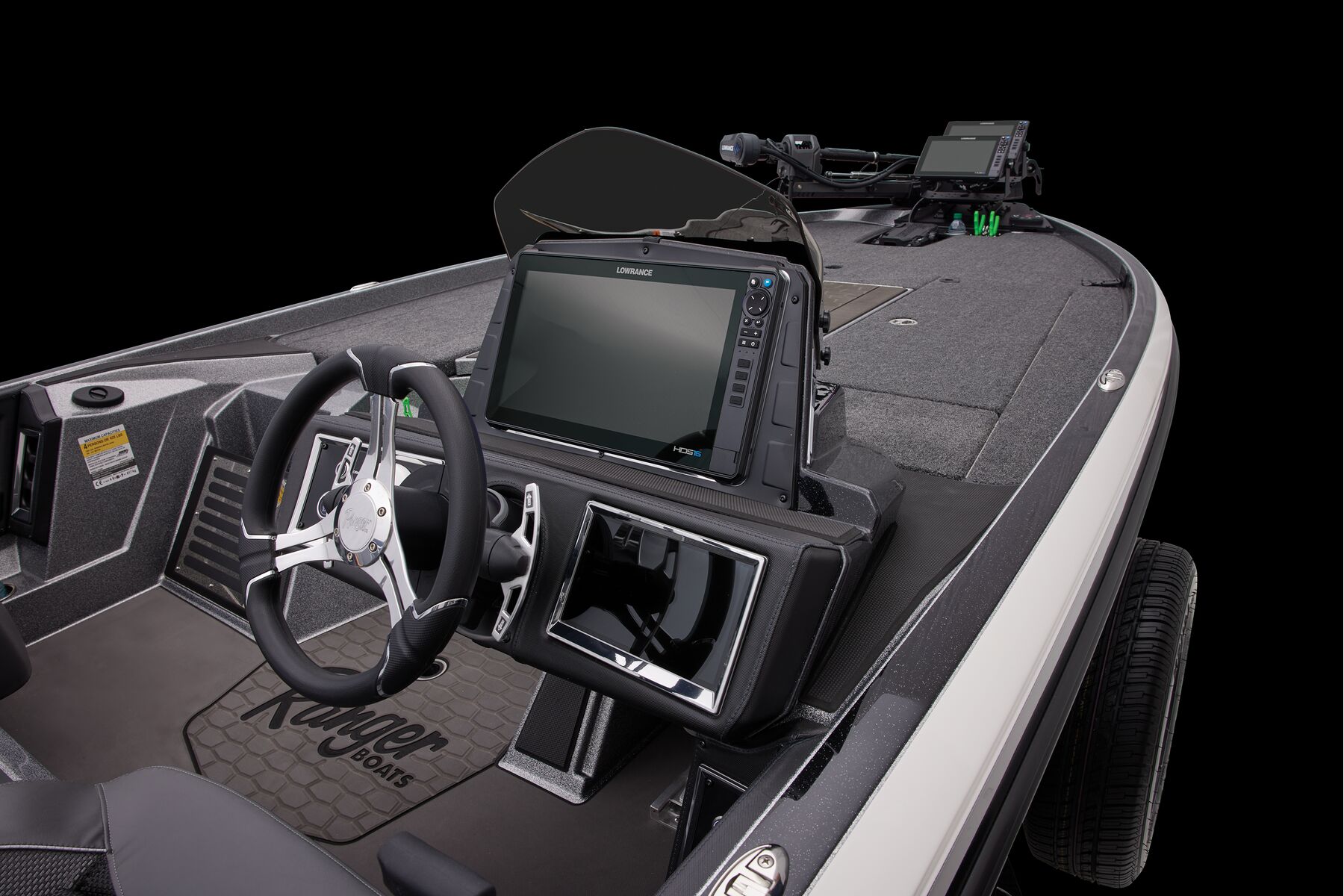

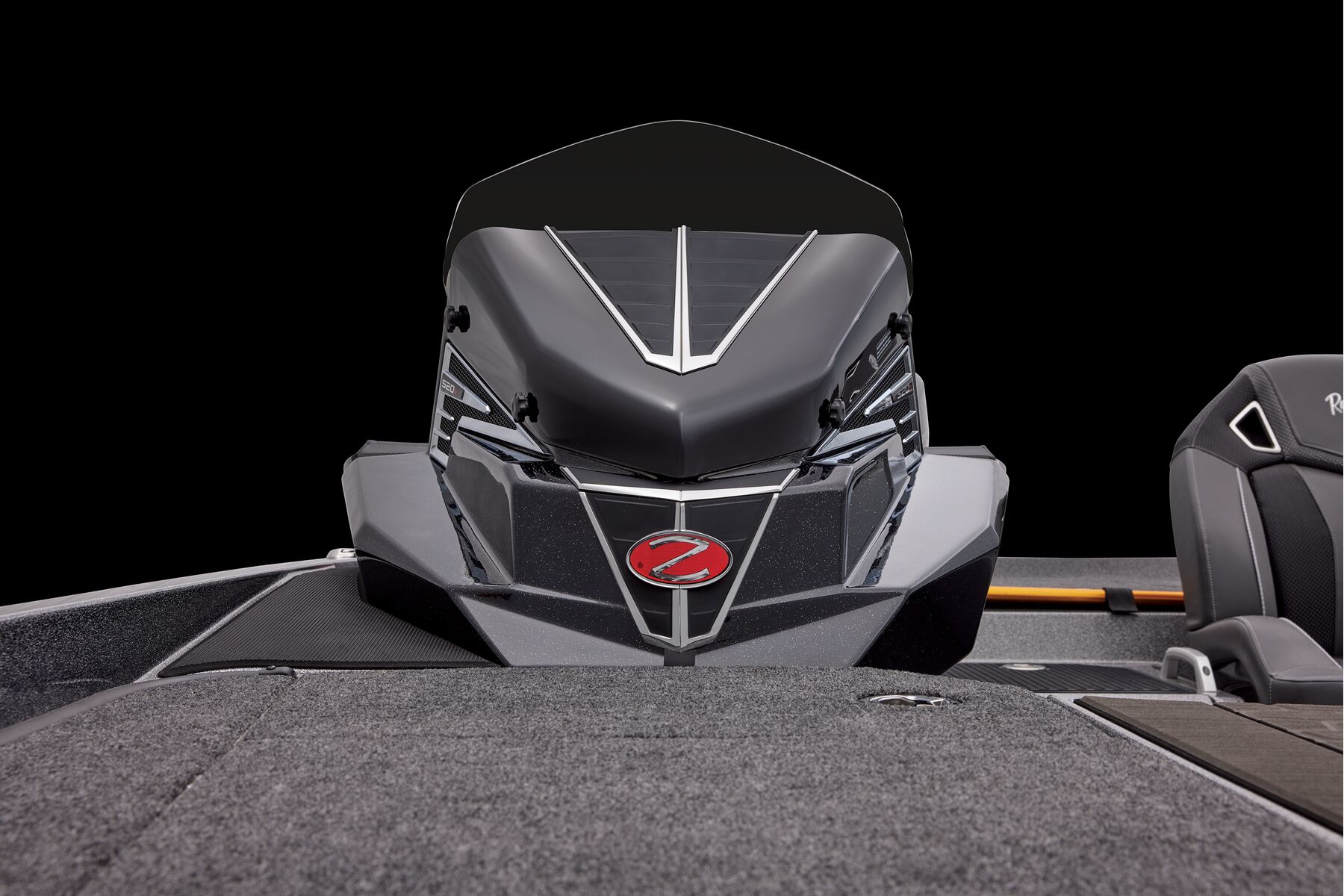

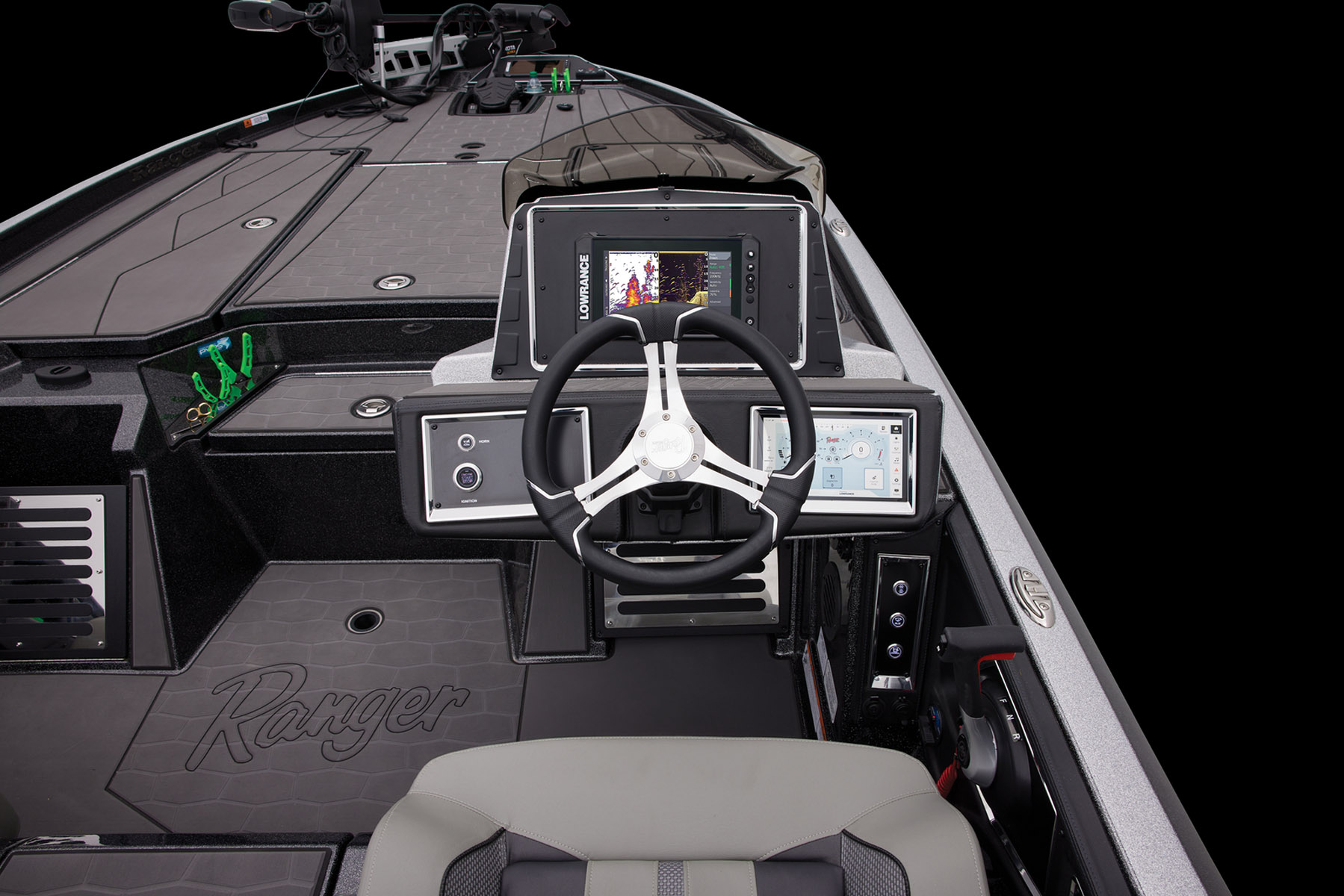

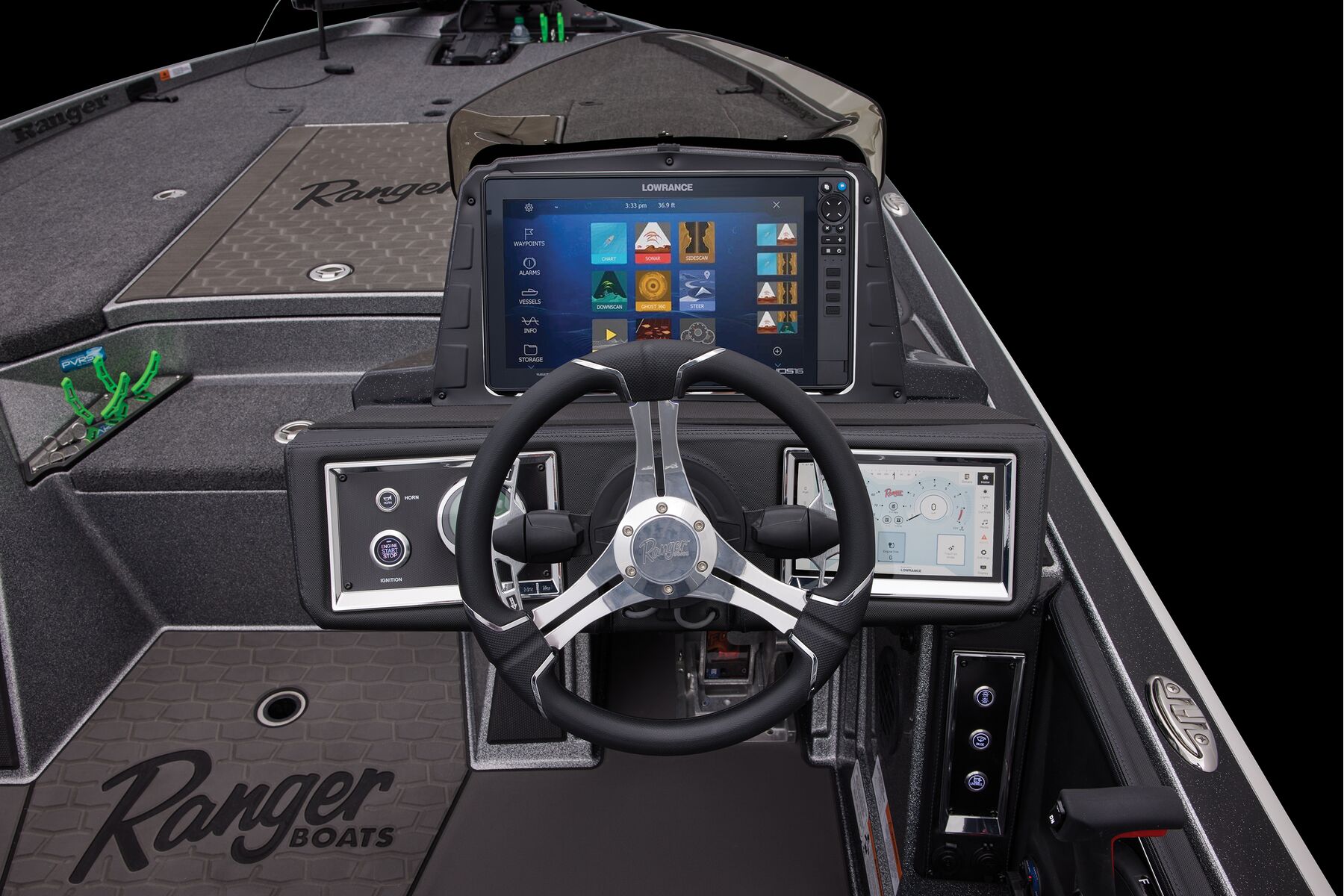

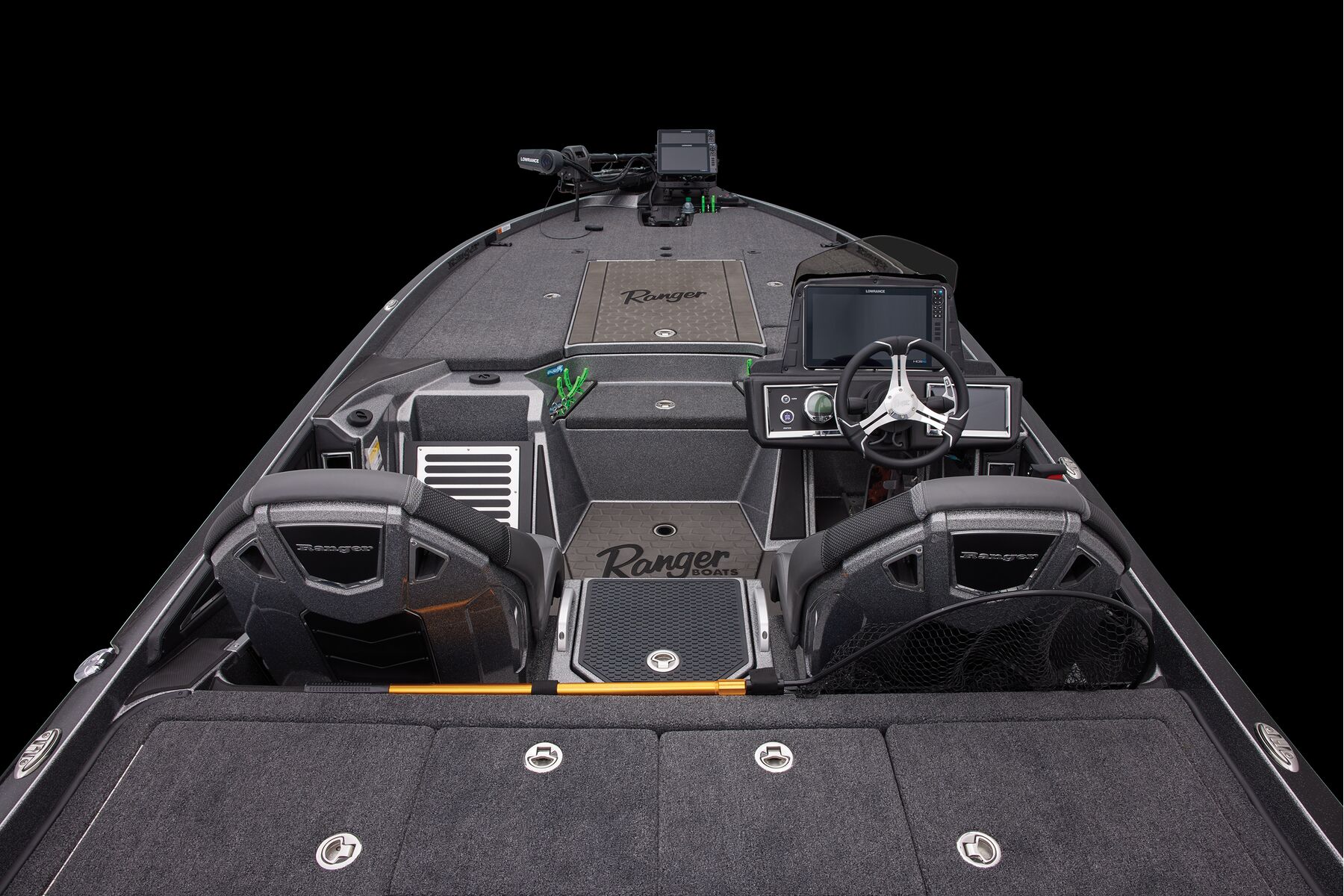

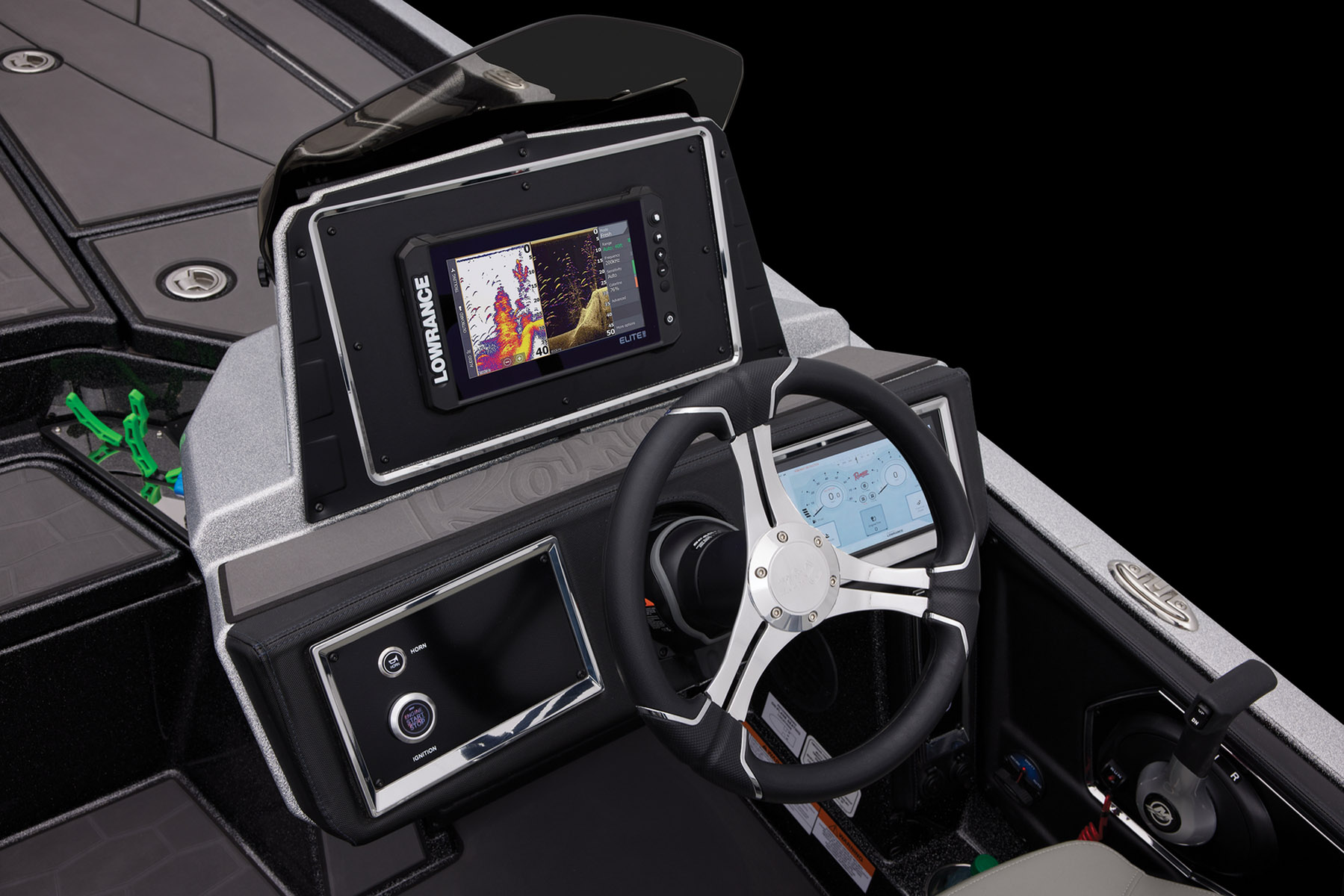

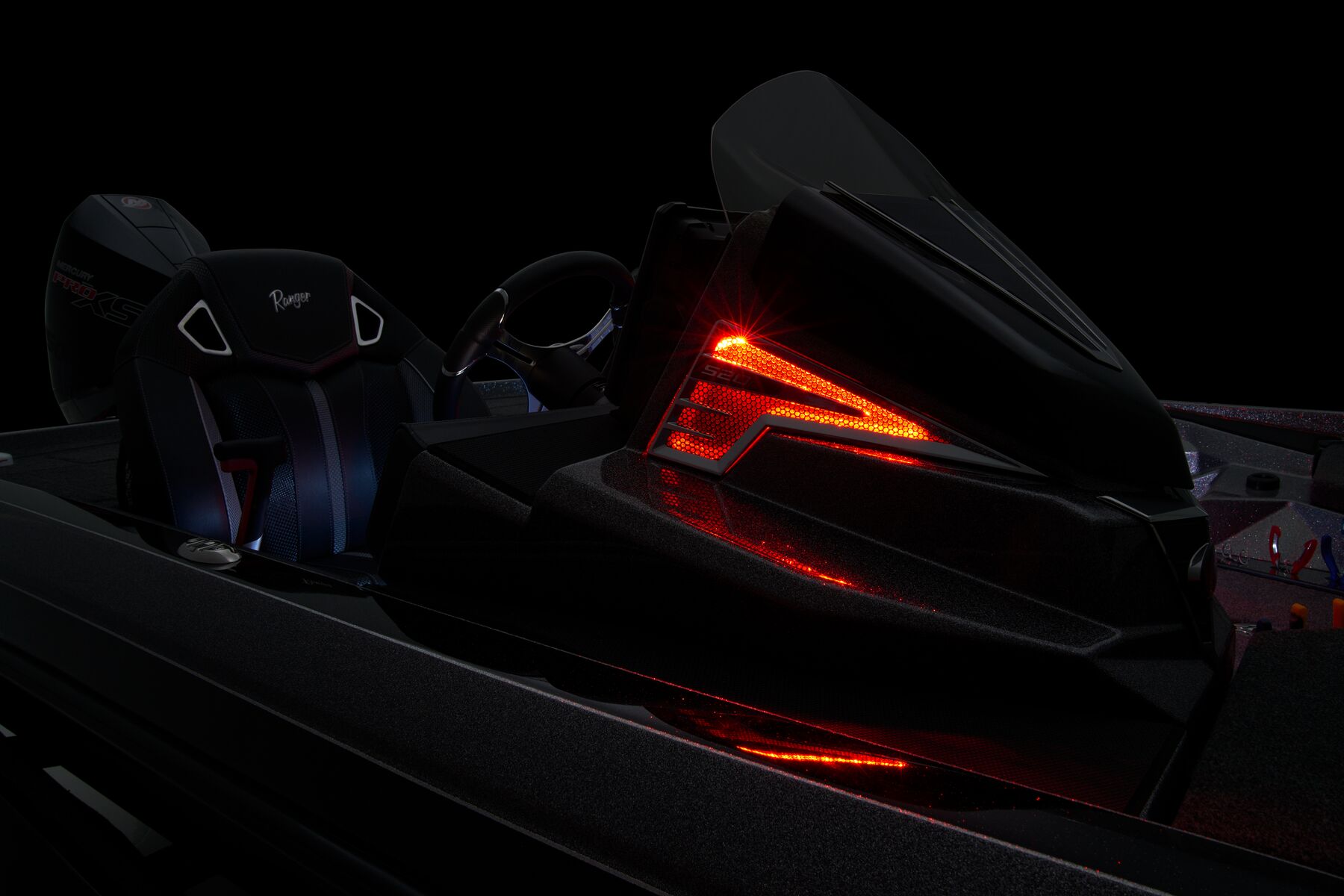

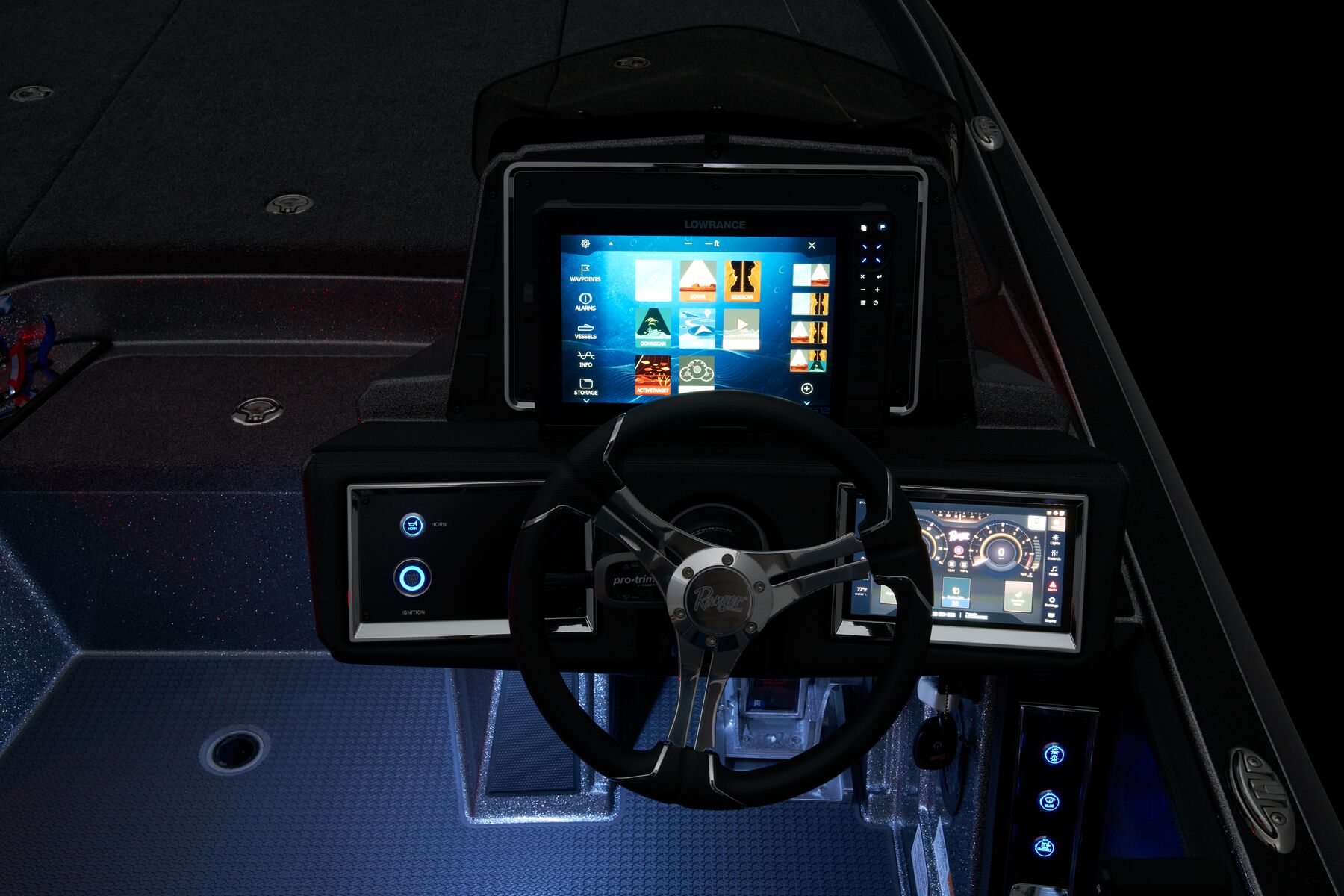

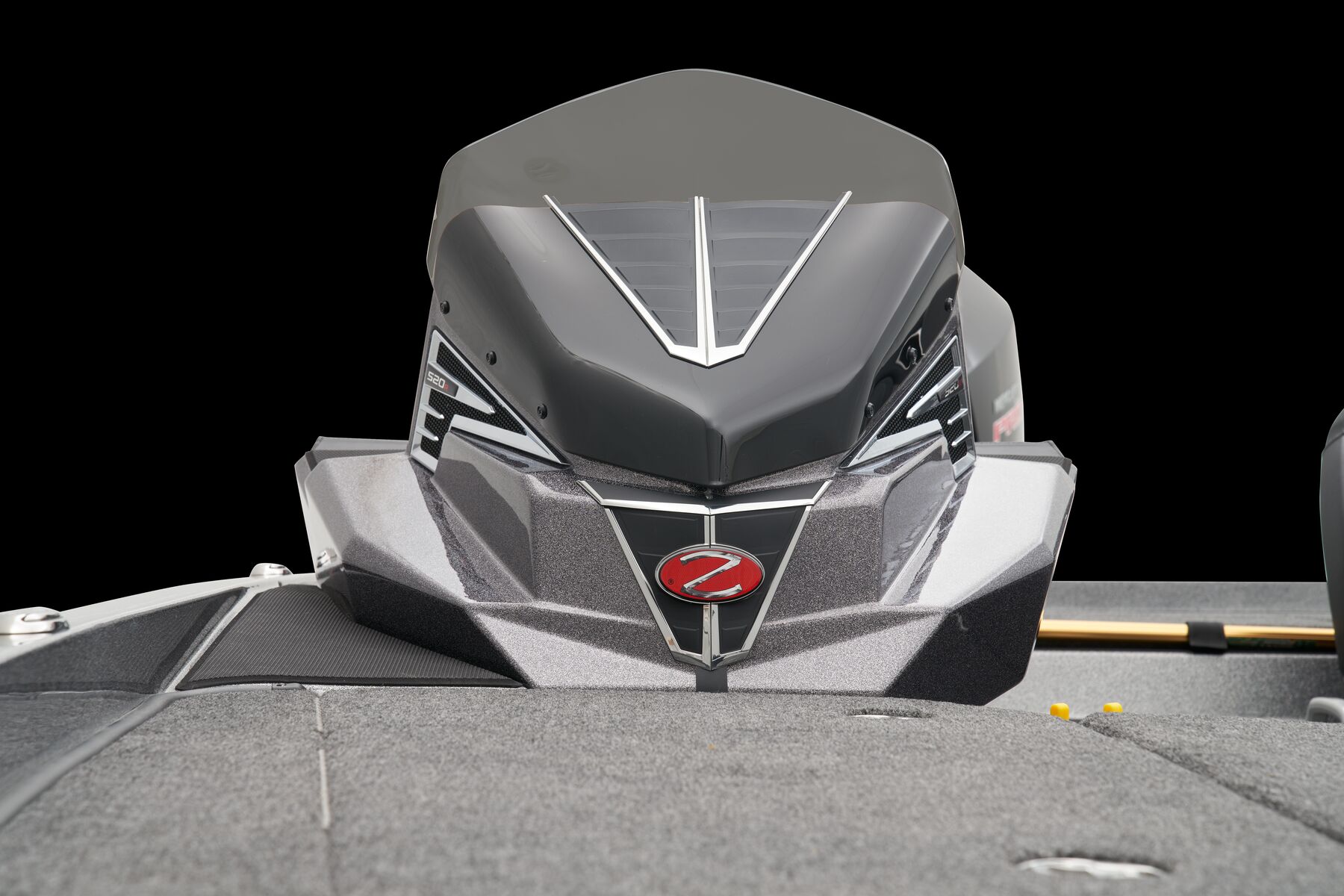

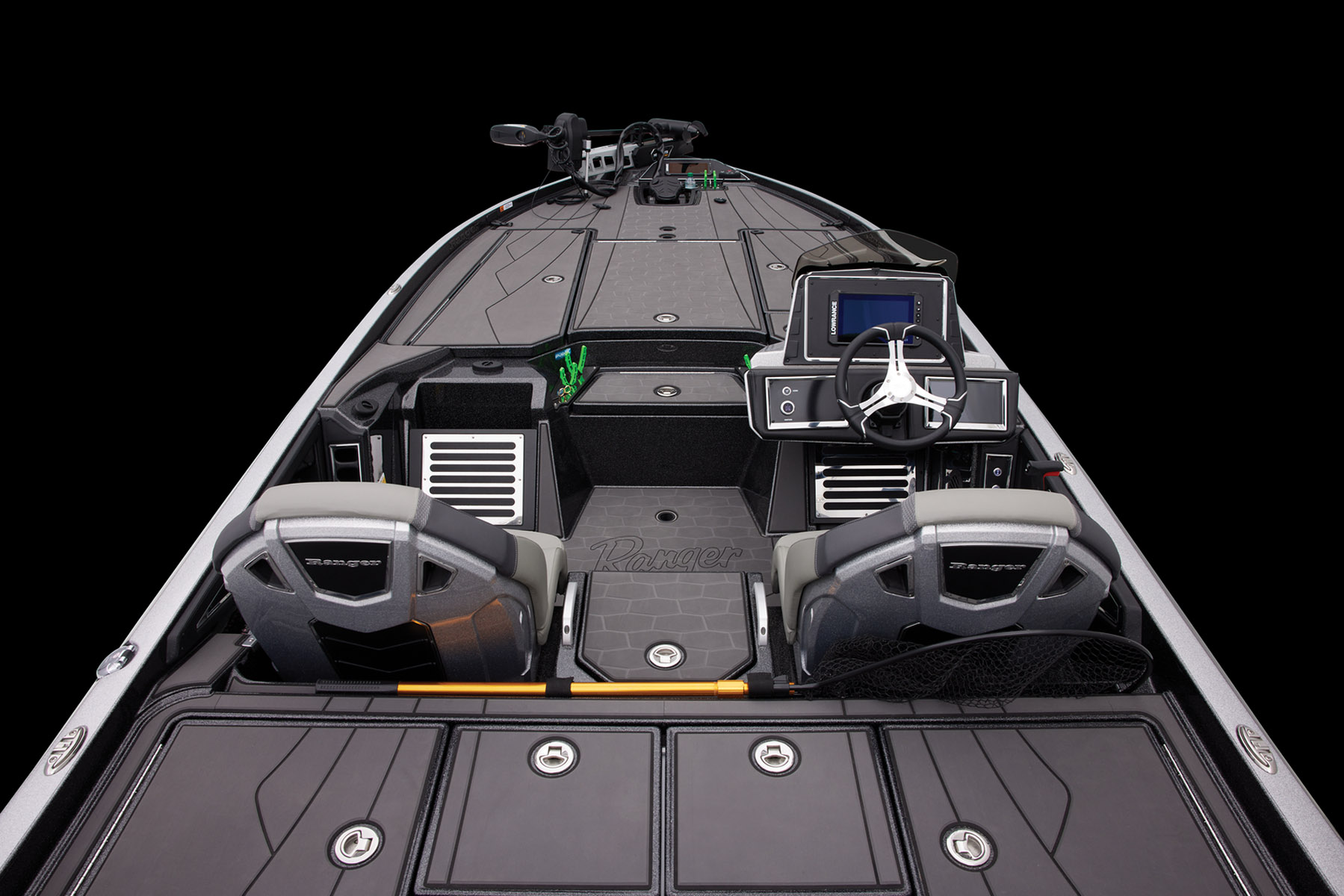

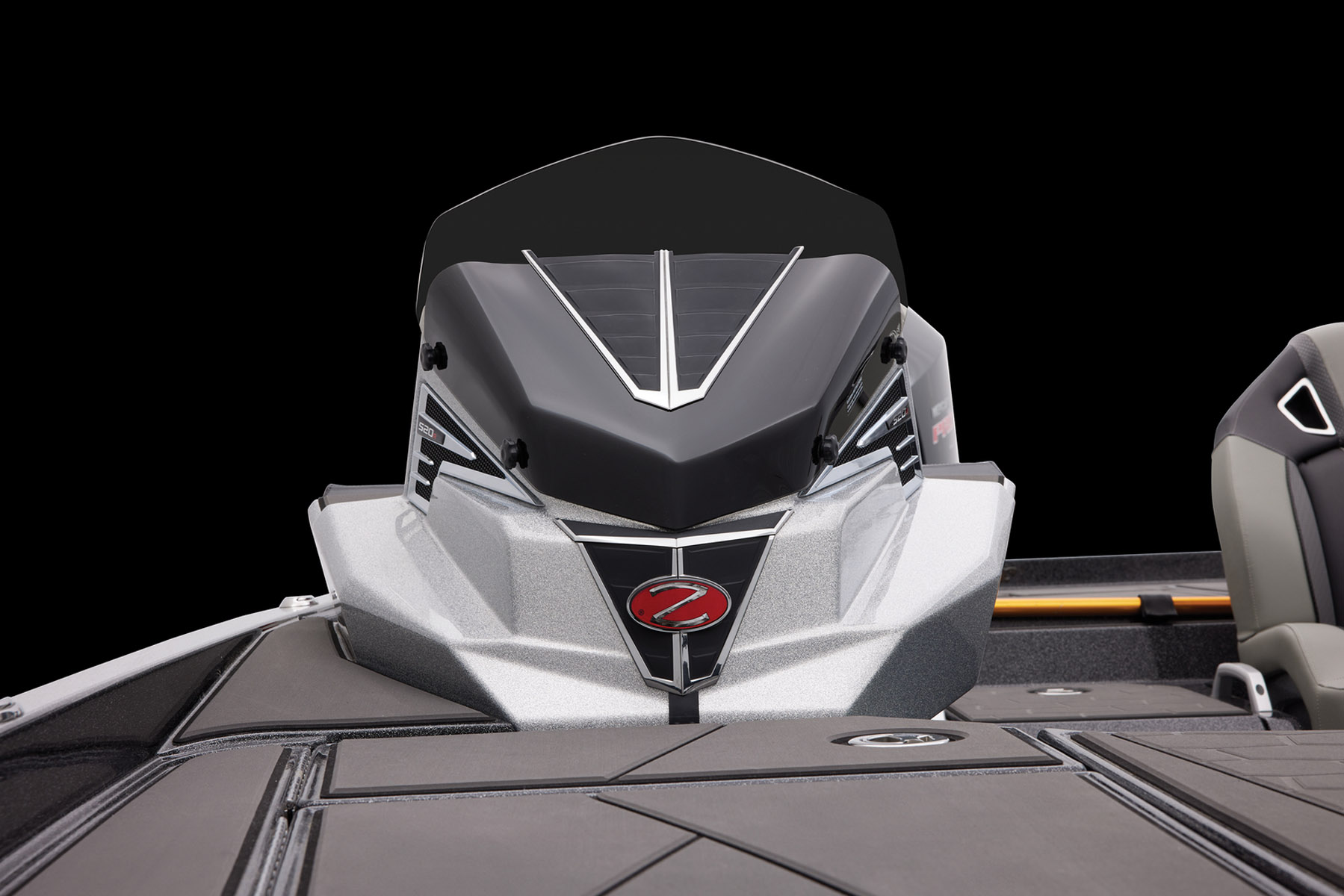

An all-new console carries dual graphs or a single 16” unit and the touchscreen Ranger RIDE system that gives you control over every boat and engine function. The all-new seats rest on slides and CloudNine™ air ride shock system that takes the teeth out of chop. A key fob and new push-button ignition let you start up quicker and deliver greater security when you’re on the road. Inside the coin box is a wireless phone charger, and in the battery box are standard lithium batteries.

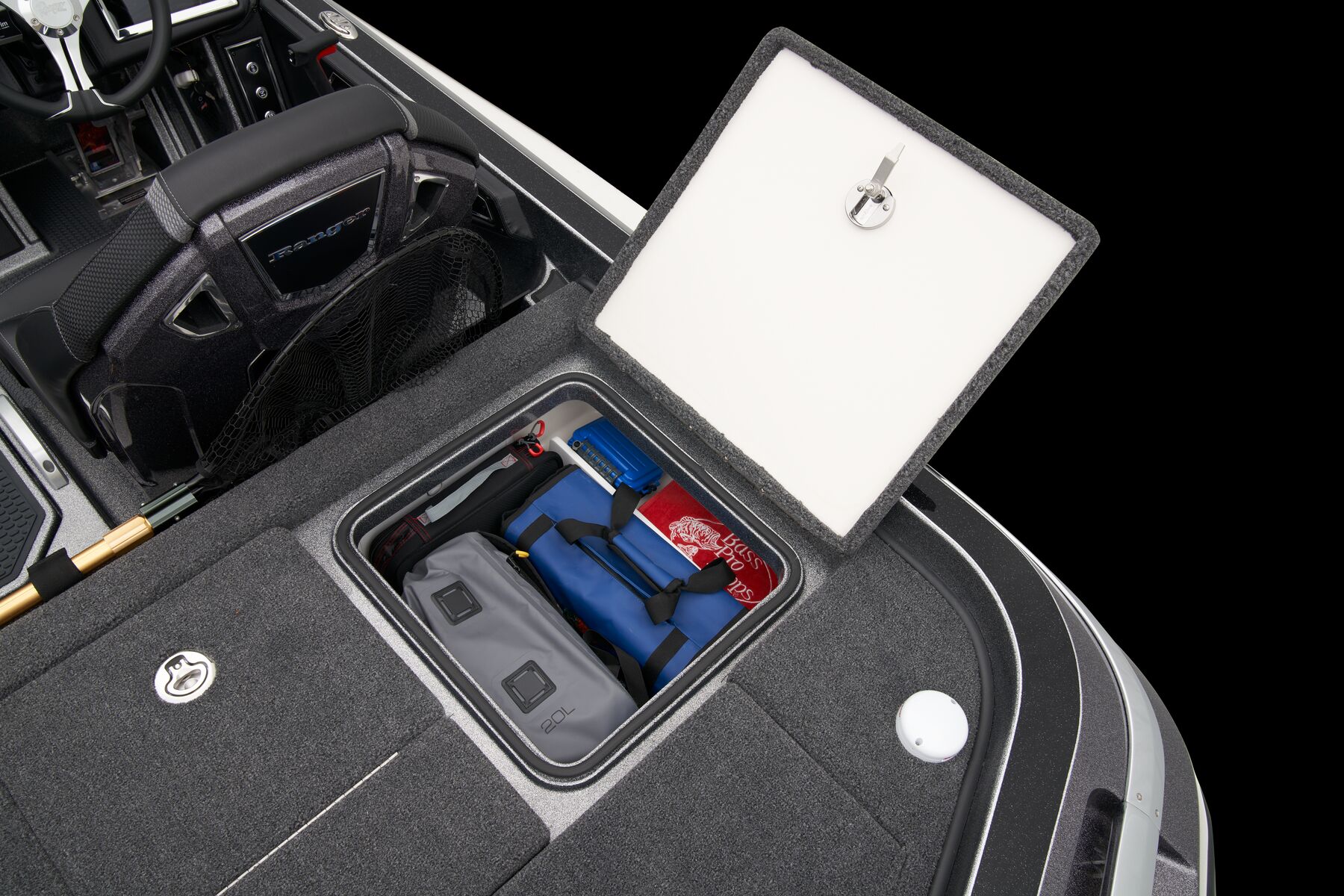

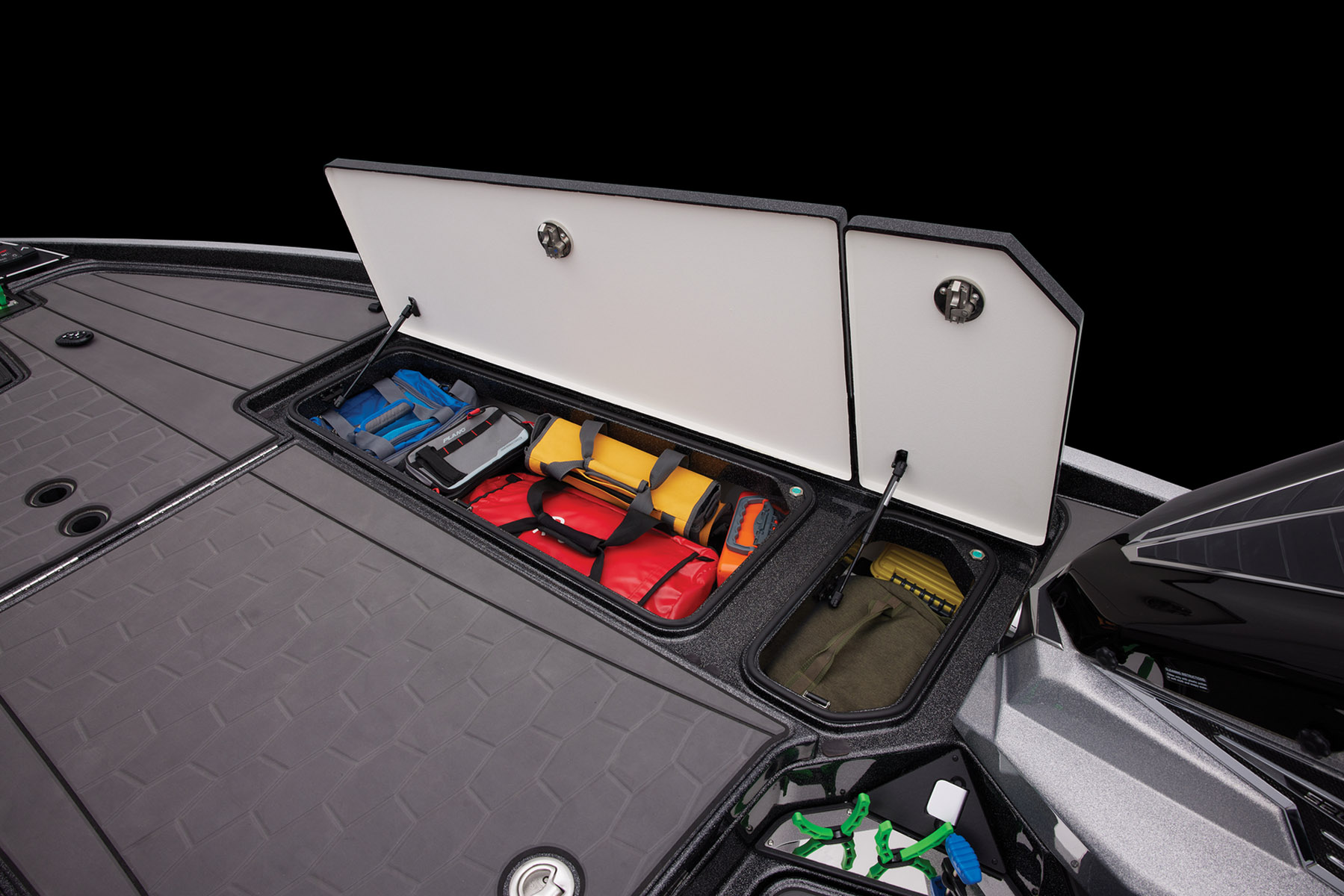

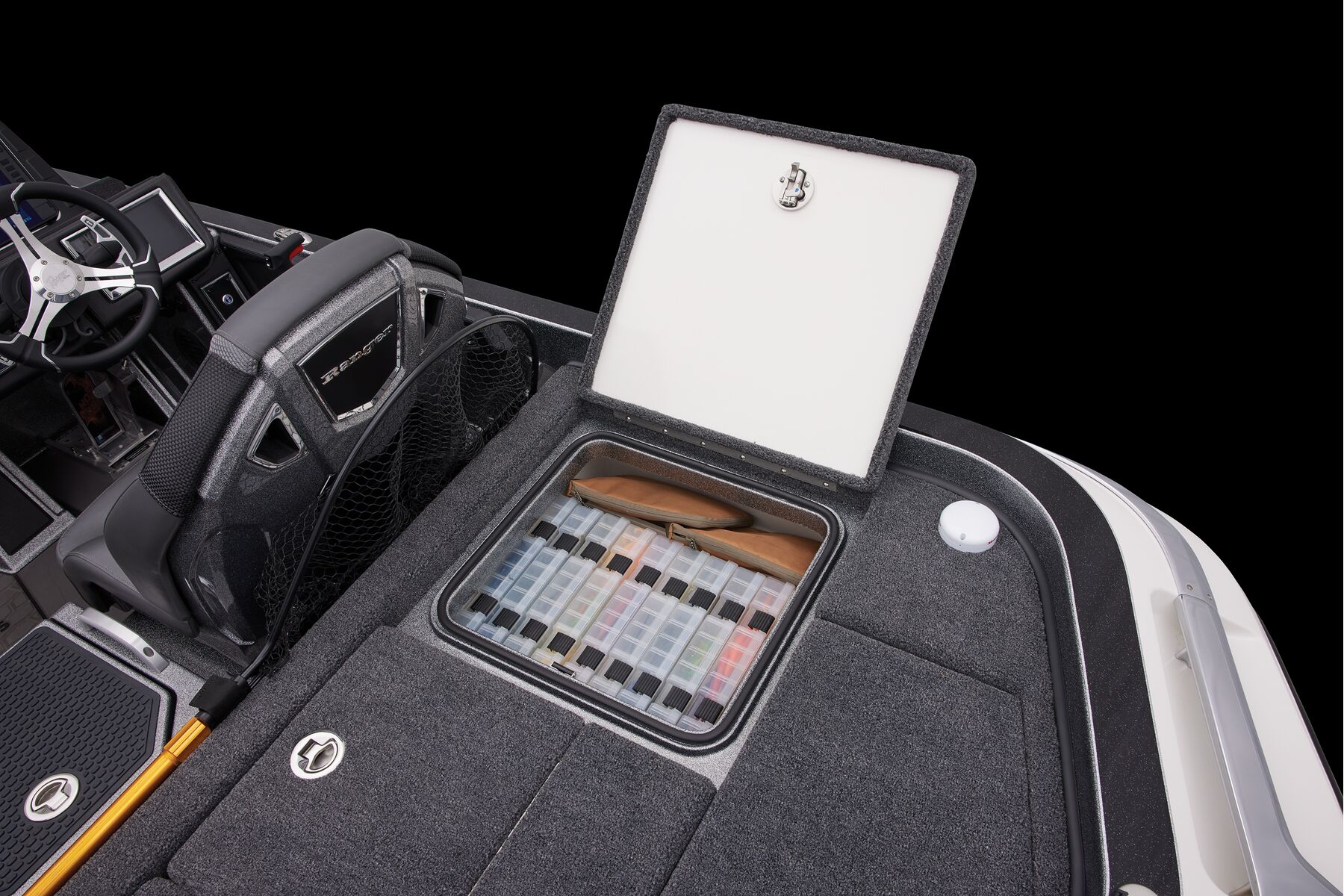

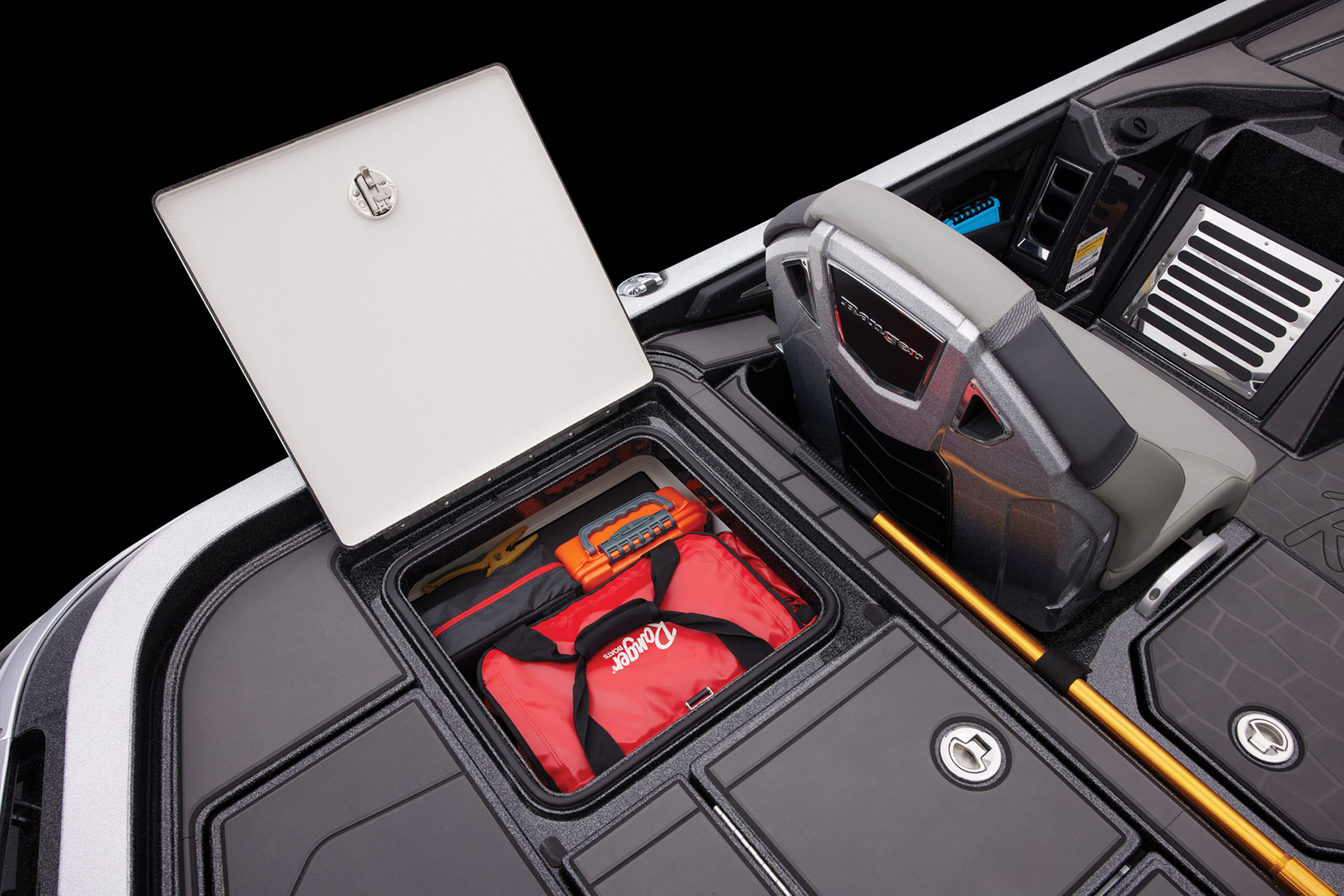

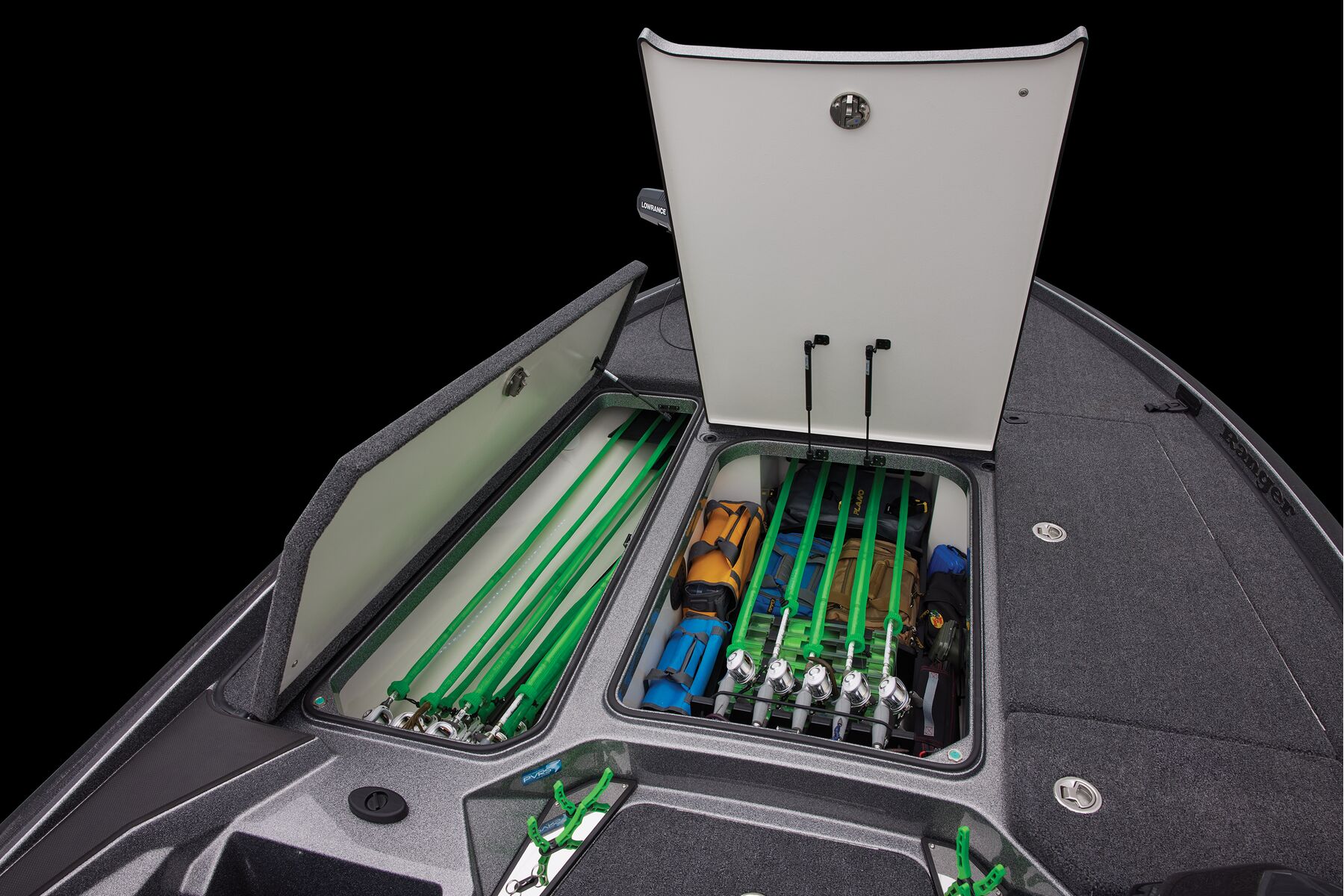

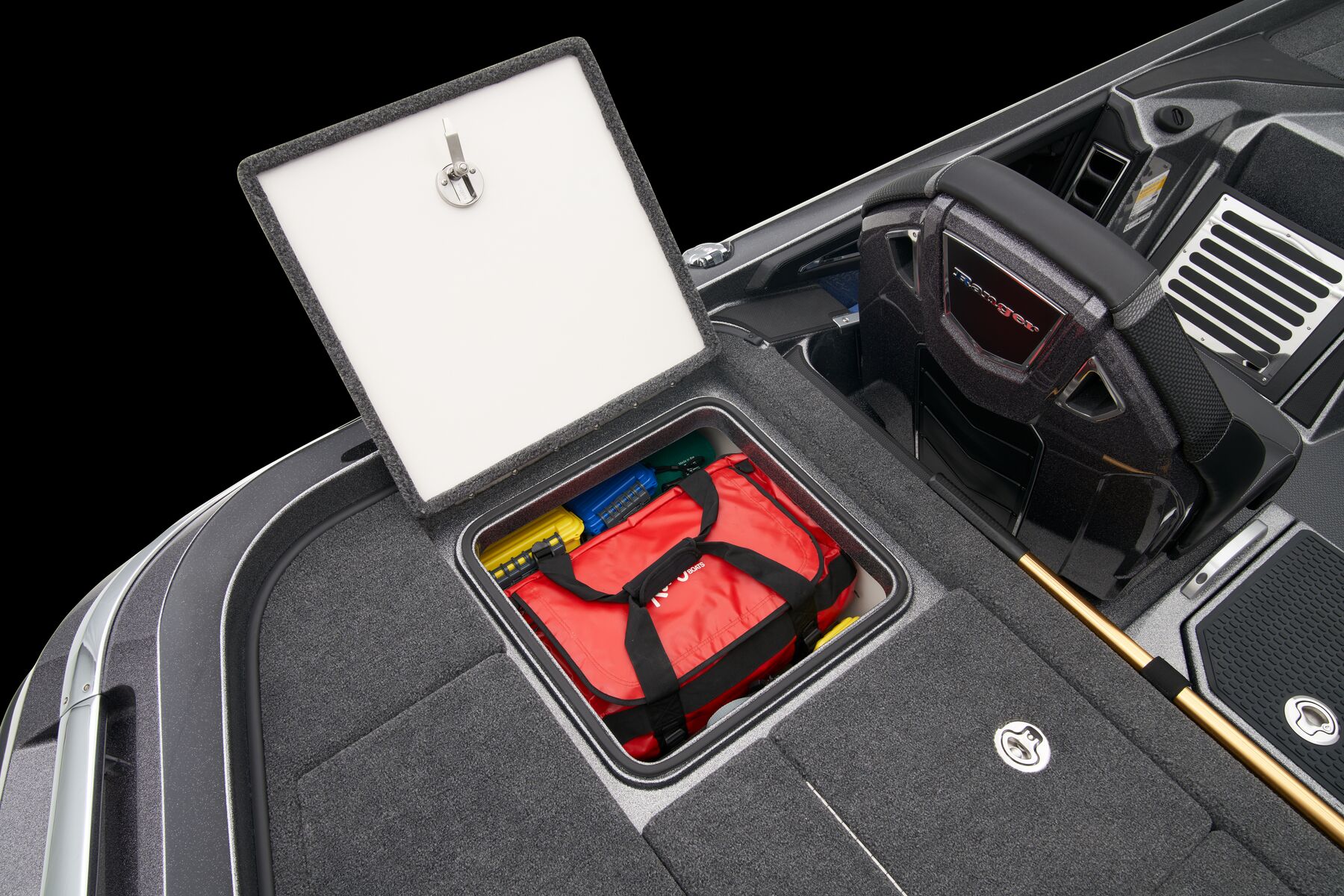

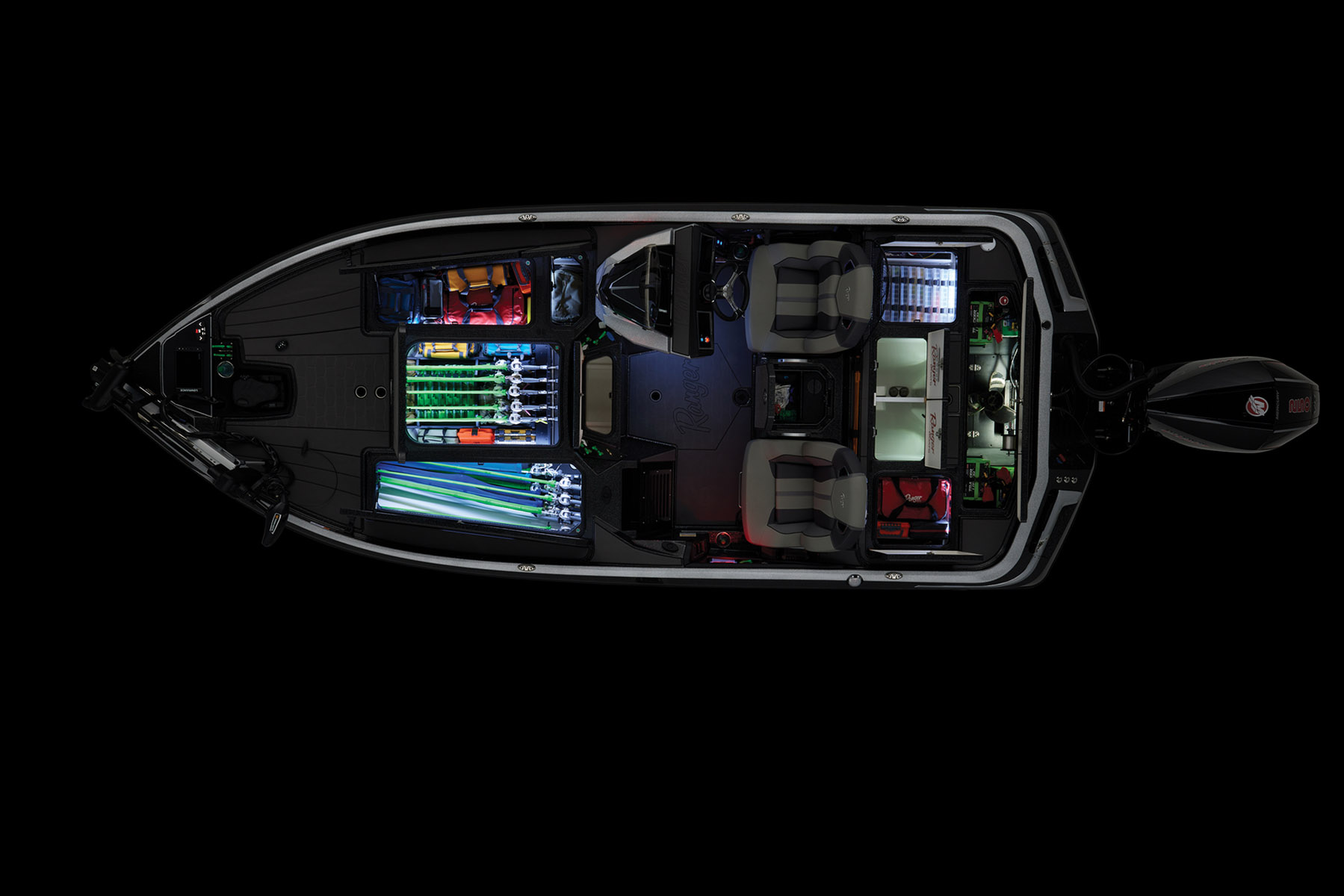

Storage boxes are demonstrably larger, thanks to redesigned stringer system that builds on our One-Piece Feel Interloc™ Construction. The rod boxes feature a tri-level storage shelf system that simplifies rod management and offers more room for sticks up to 9’.

Inside and out, the Z520R lets you release a new level of domination. The Z520R. It’s a whole new era of Ranger.

Learn even more about the new R Series here: https://www.rangerboats.com/learning-center/r-boats.html



Key Features

  • Lowrance Ghost 36V trolling motor 47"
  • Three lithium trolling motor batteries

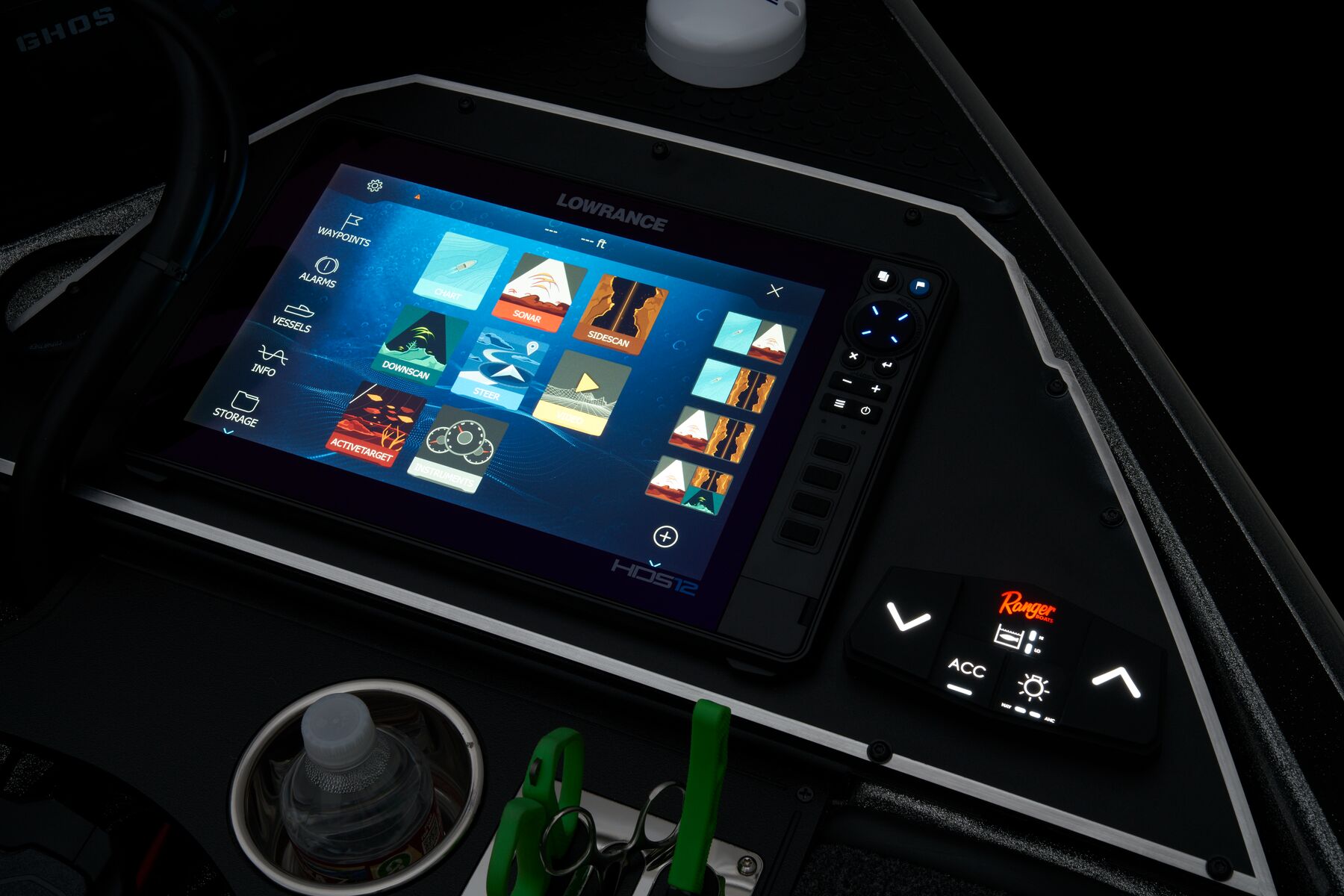

  • Lowrance® HDS-12 LIVE at bow & console
  • Ranger® RIDE System, integrating full-boat control and monitoring via 9" touchscreen

Specifications

Length 6.38 m 20' 11''
Hull Length 6.38 m 20' 11''
Beam 2.44 m 96''
Max. Recommended HP 250 HP
Engine Shaft Length 50.8 cm 20''
Inside Depth 55.88 cm 22''
Fuel Capacity 204.39 L 54 gal.
Livewell Capacity 117.34 L 31 gal.
Total Person, Motor, Gear 748.43 kg 1650 lbs.
Approximate Boat Weight 839.15 kg 1850 lbs.
Rod Box Length - Port 2.44 m 8'
Rod Box Length - Center Row 1 2.44 m 8'
Rod Box Length - Center Row 2 2.29 m 7' 6''
Max. Person Capacity 4 persons
Trailer GVWR 2449.4 kg 5400 lbs.
Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate) 8.25 m 27' 1''
Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate) 7.62 m 25'
Width On Trailer 2.59 m 102''

Motor Options

AVAILABLE MOTOR
Mercury®

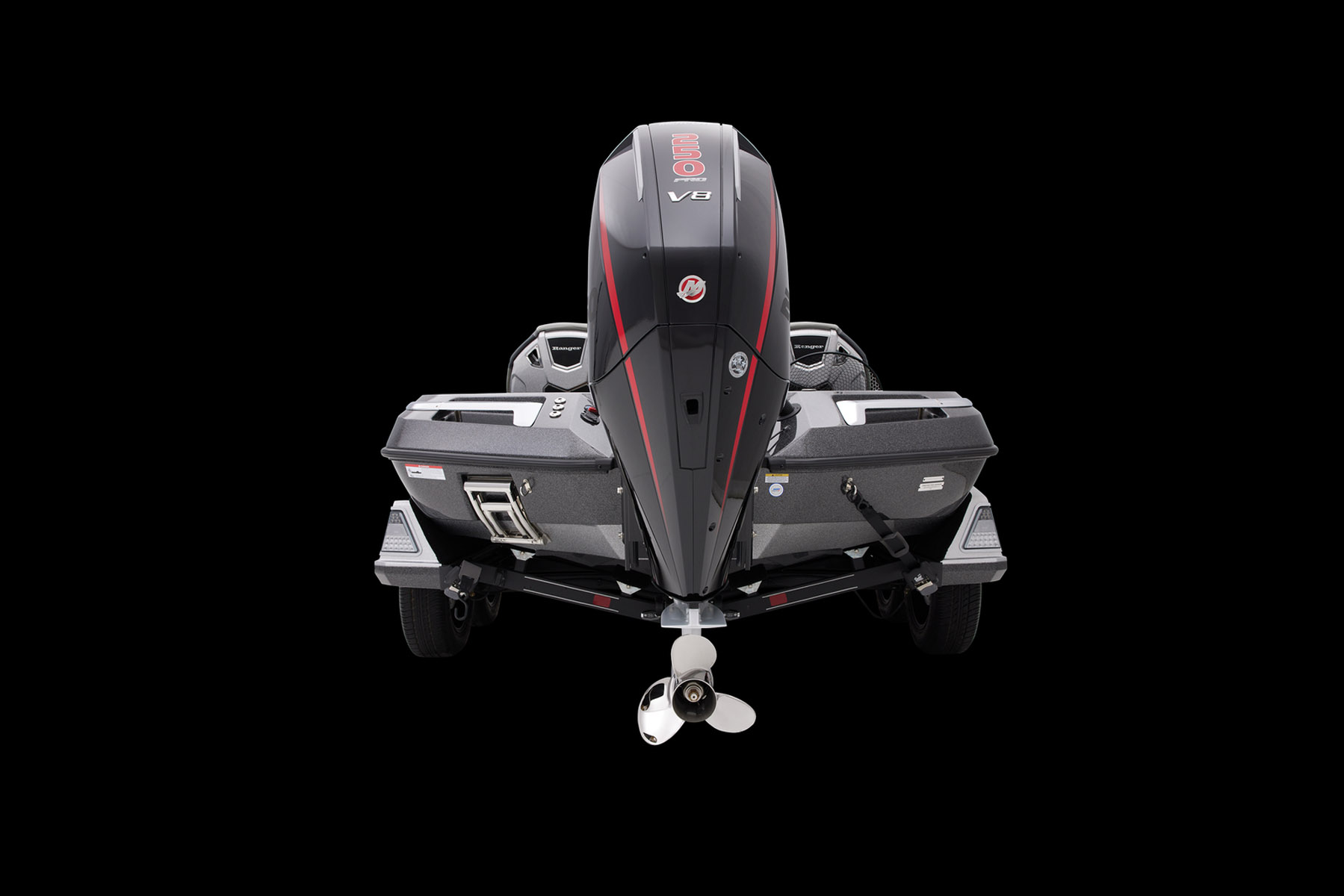

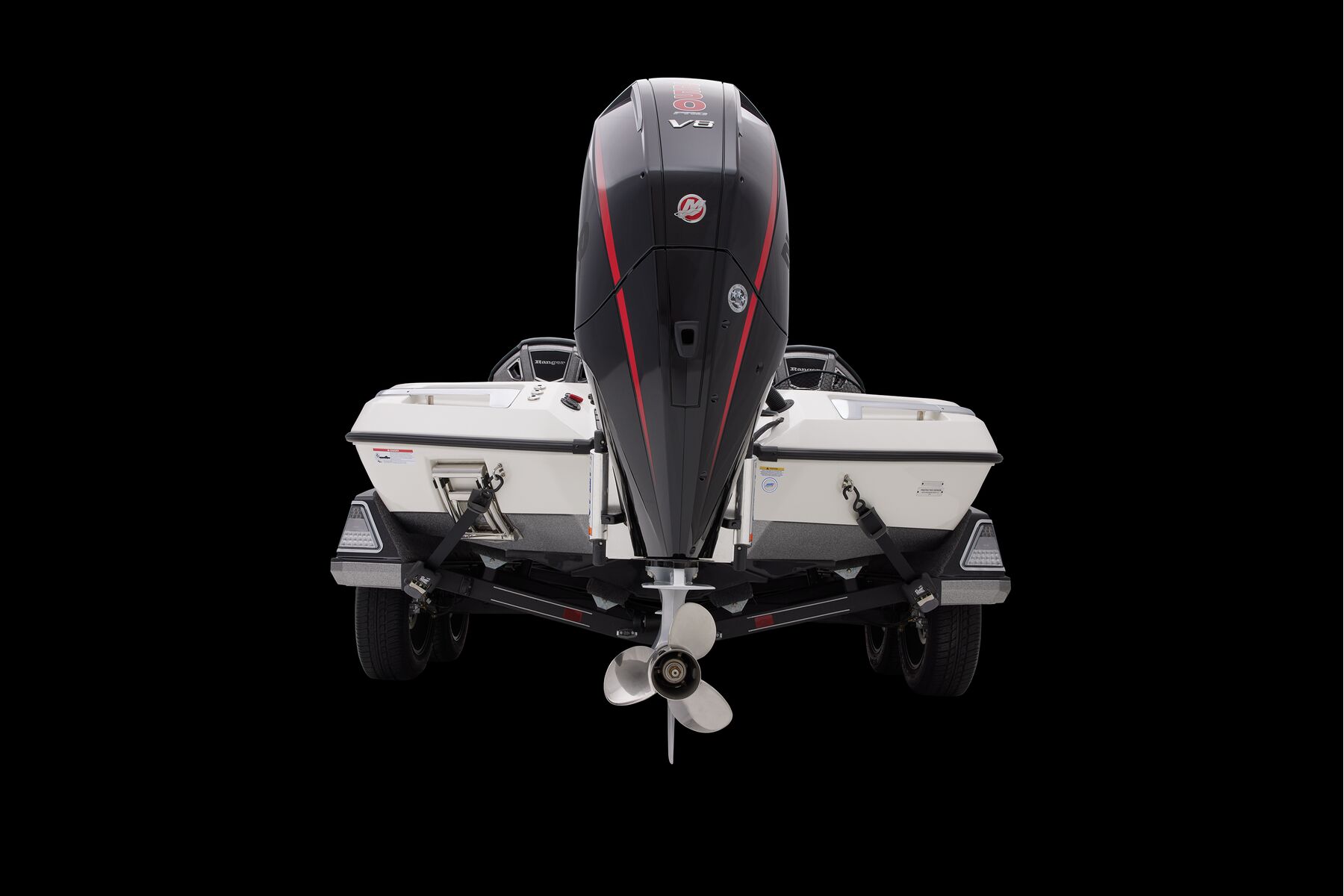

250L Pro XS Torque Master
$89995

USD
Select Dealer

Standard Features

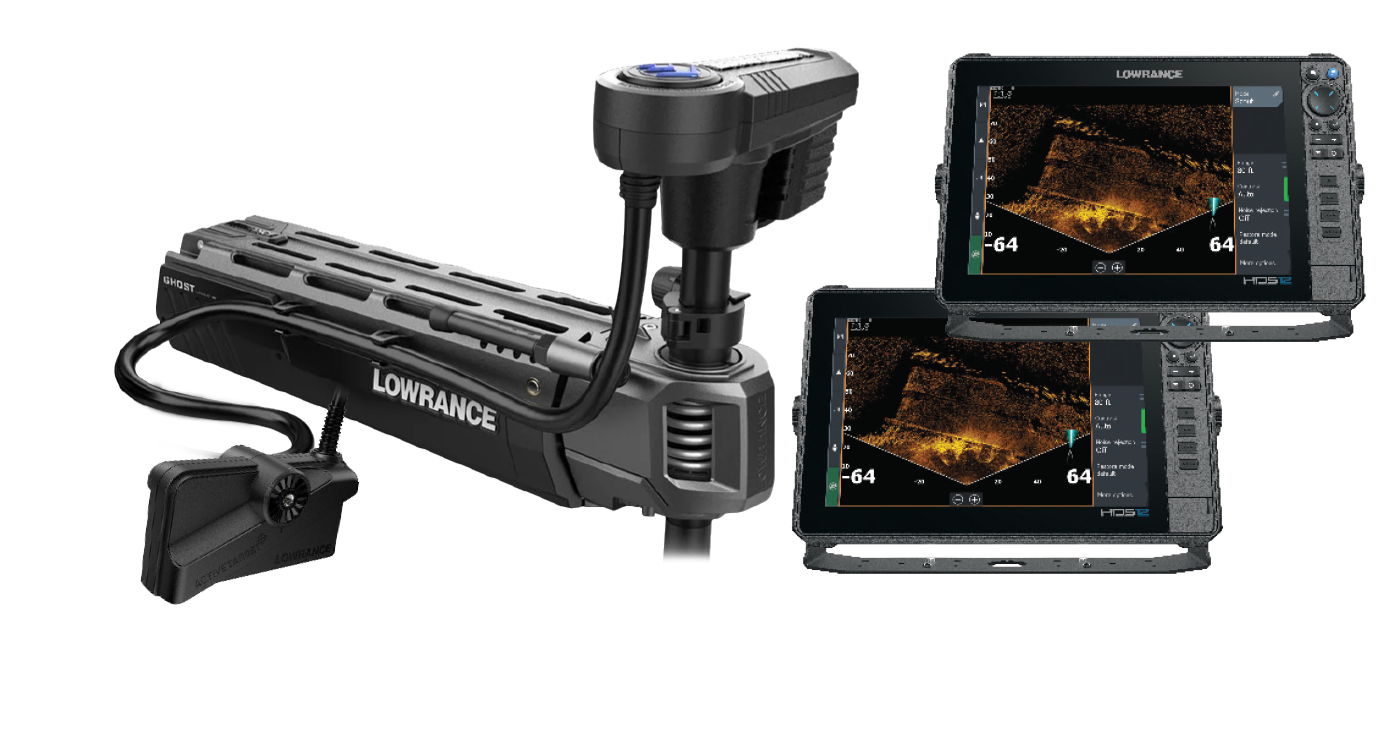

Ranger Cup Equipped - LOWRANCE® Package

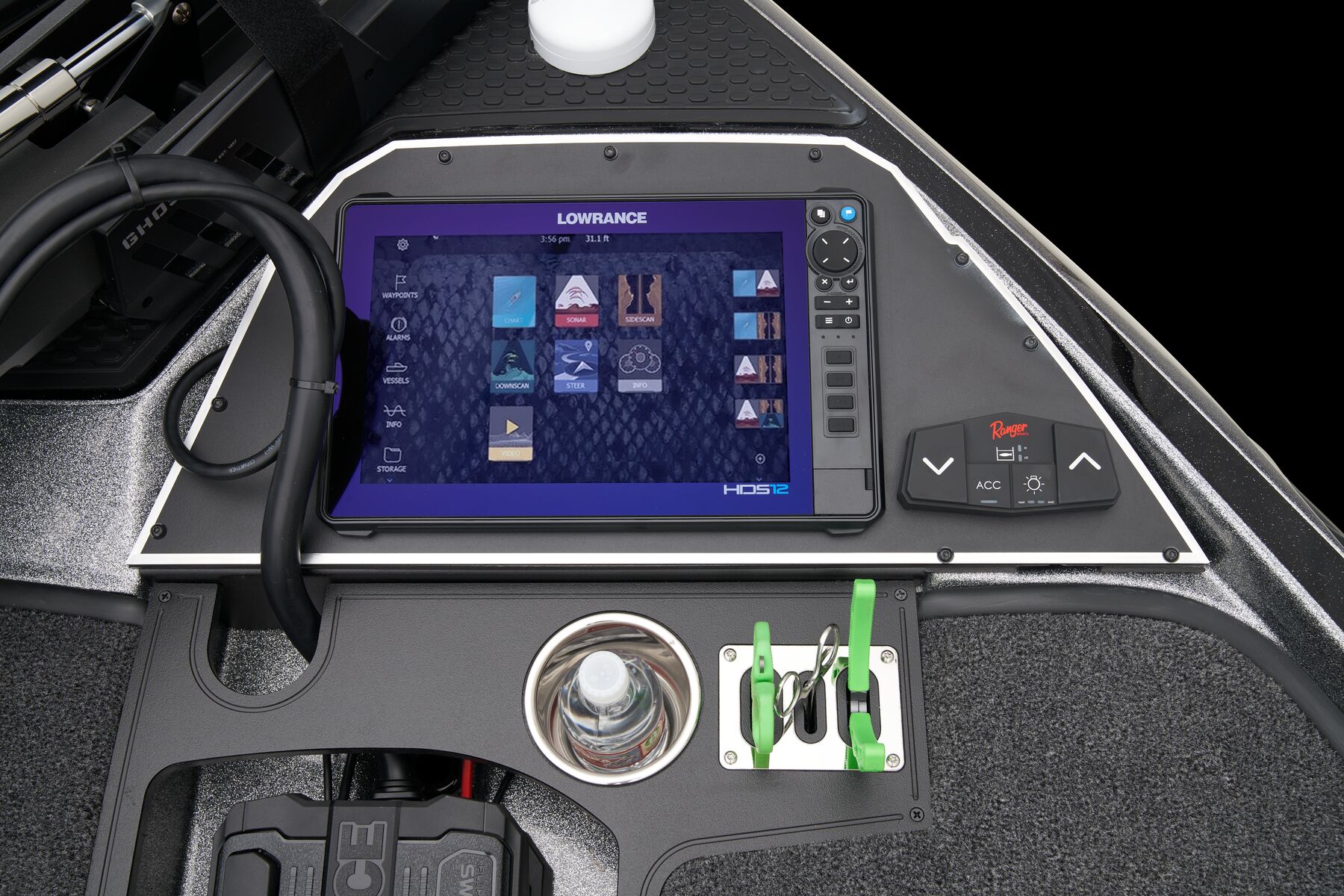

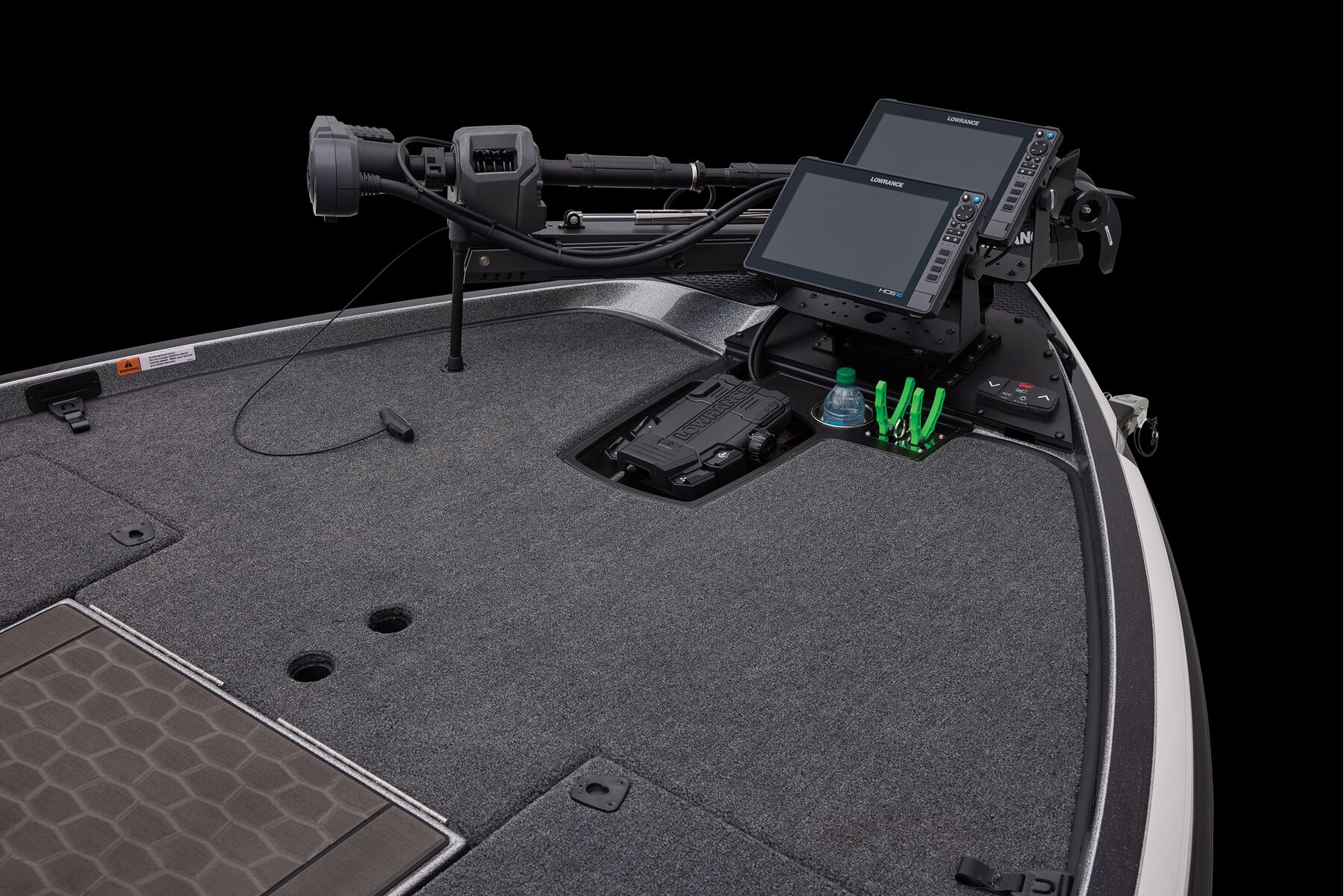

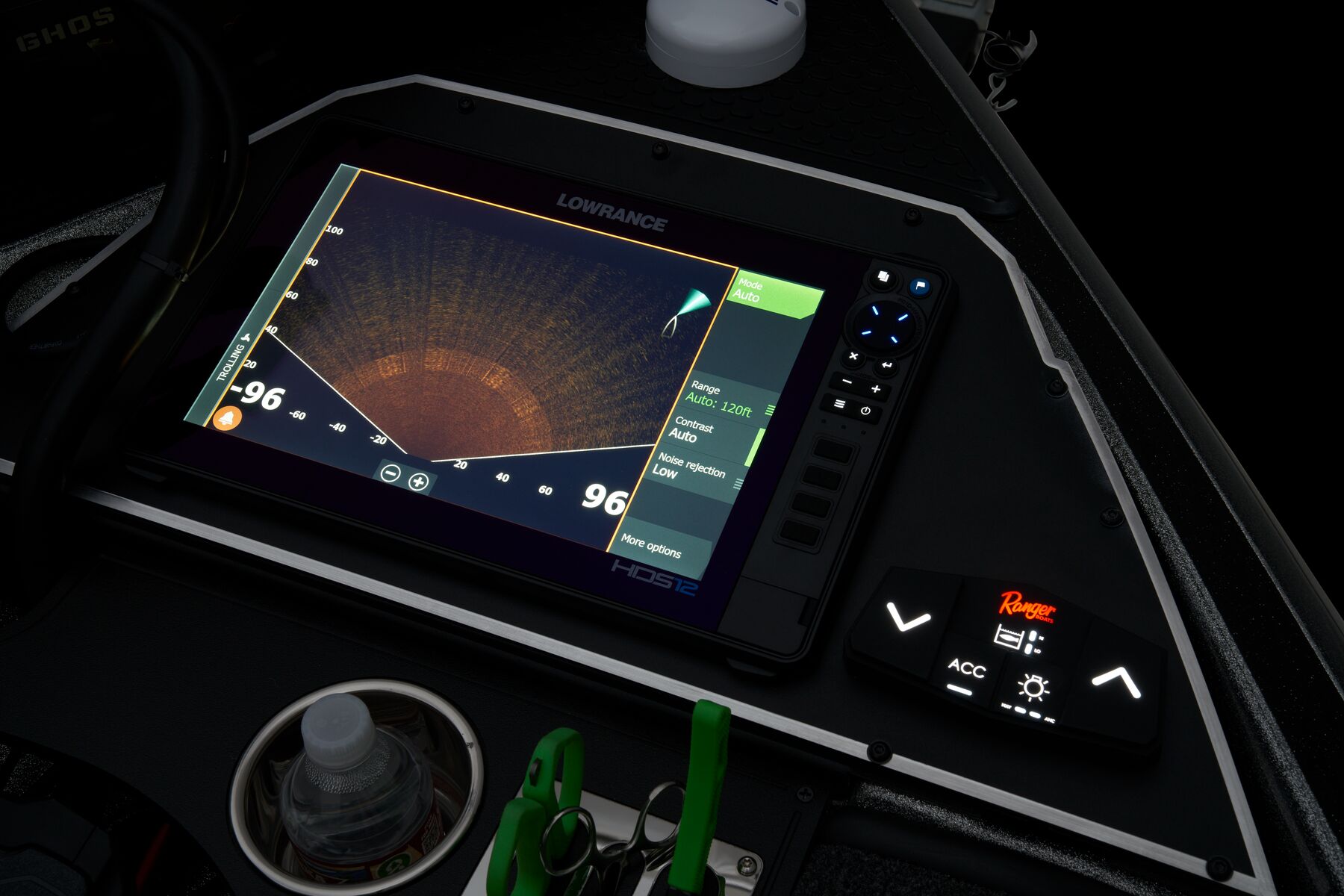

  • Lowrance® HDS® 12 PRO at bow
  • Lowrance® HDS® 12 PRO at console w/ ActiveImaging™ HD
  • Lowrance® Active Target™ 2 Live Sonar

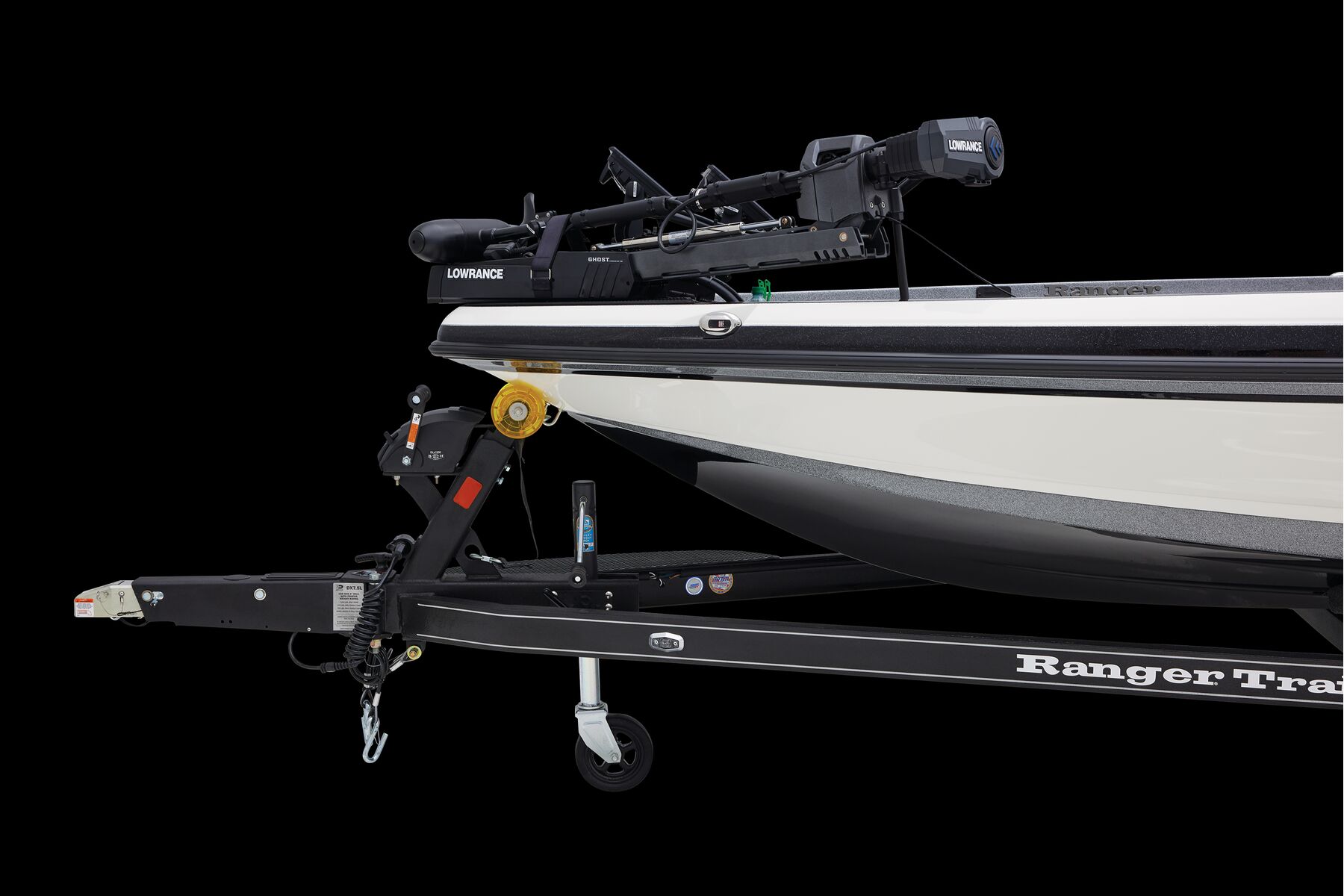

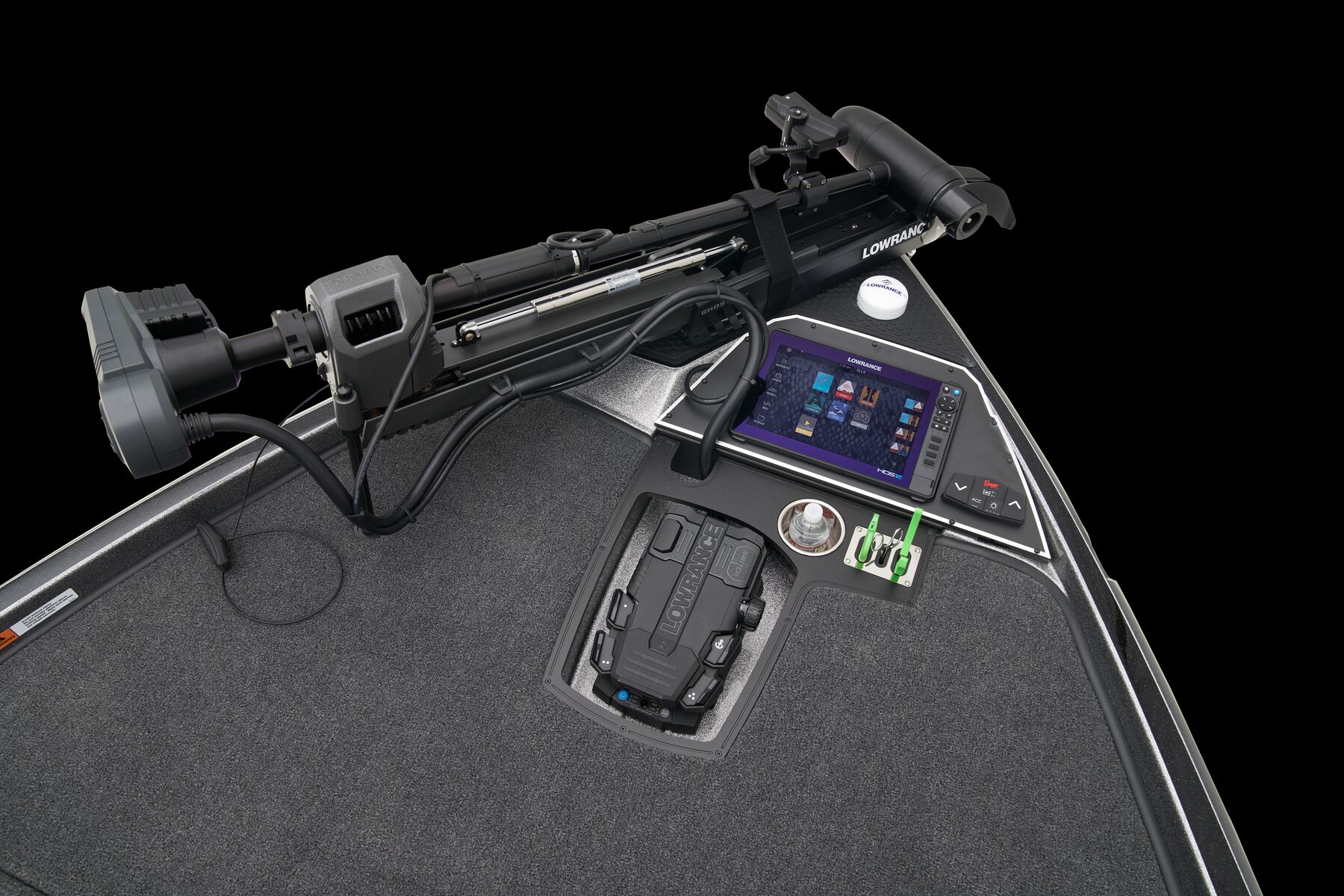

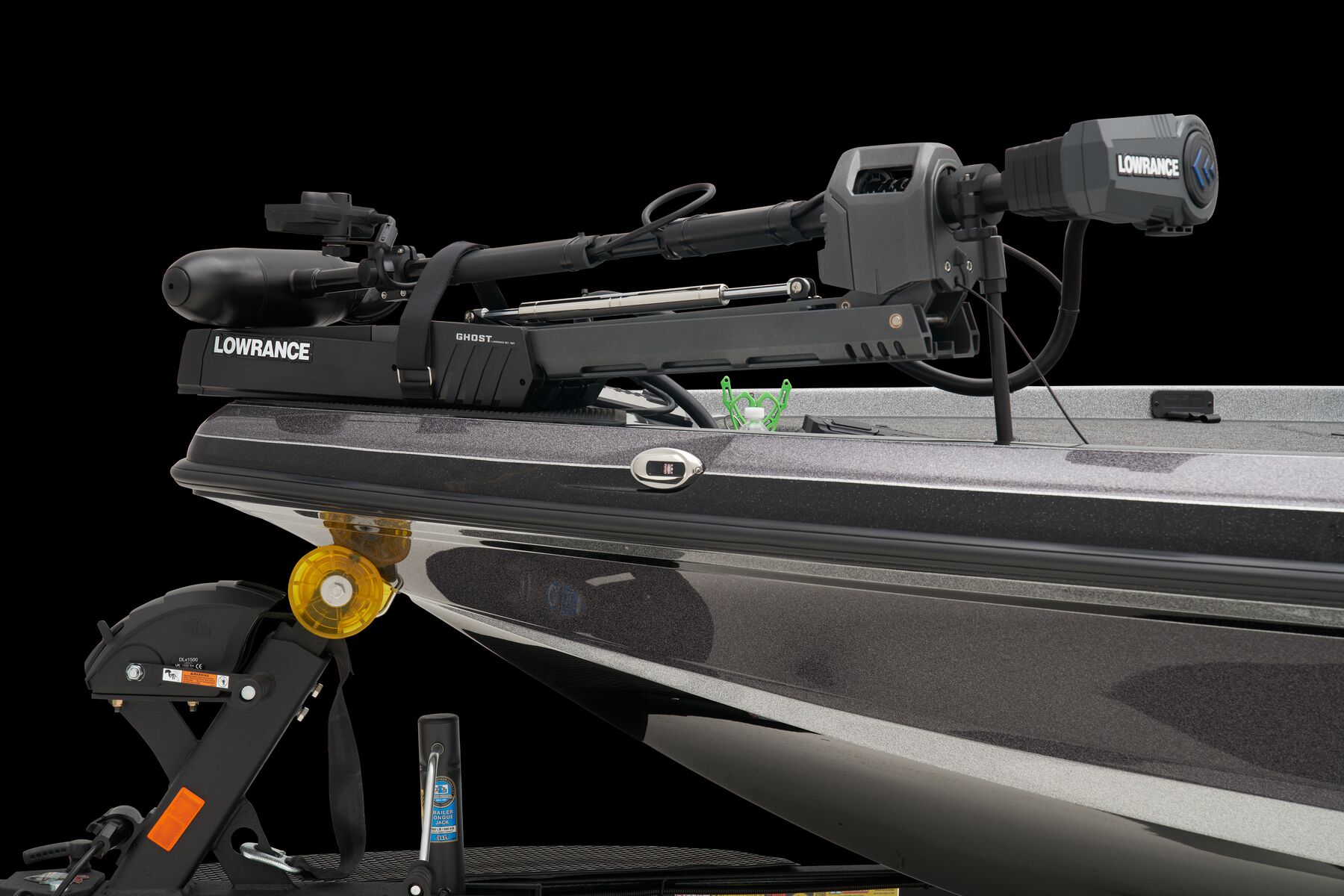

  • Lowrance® Ghost 45" 36V Trolling Motor

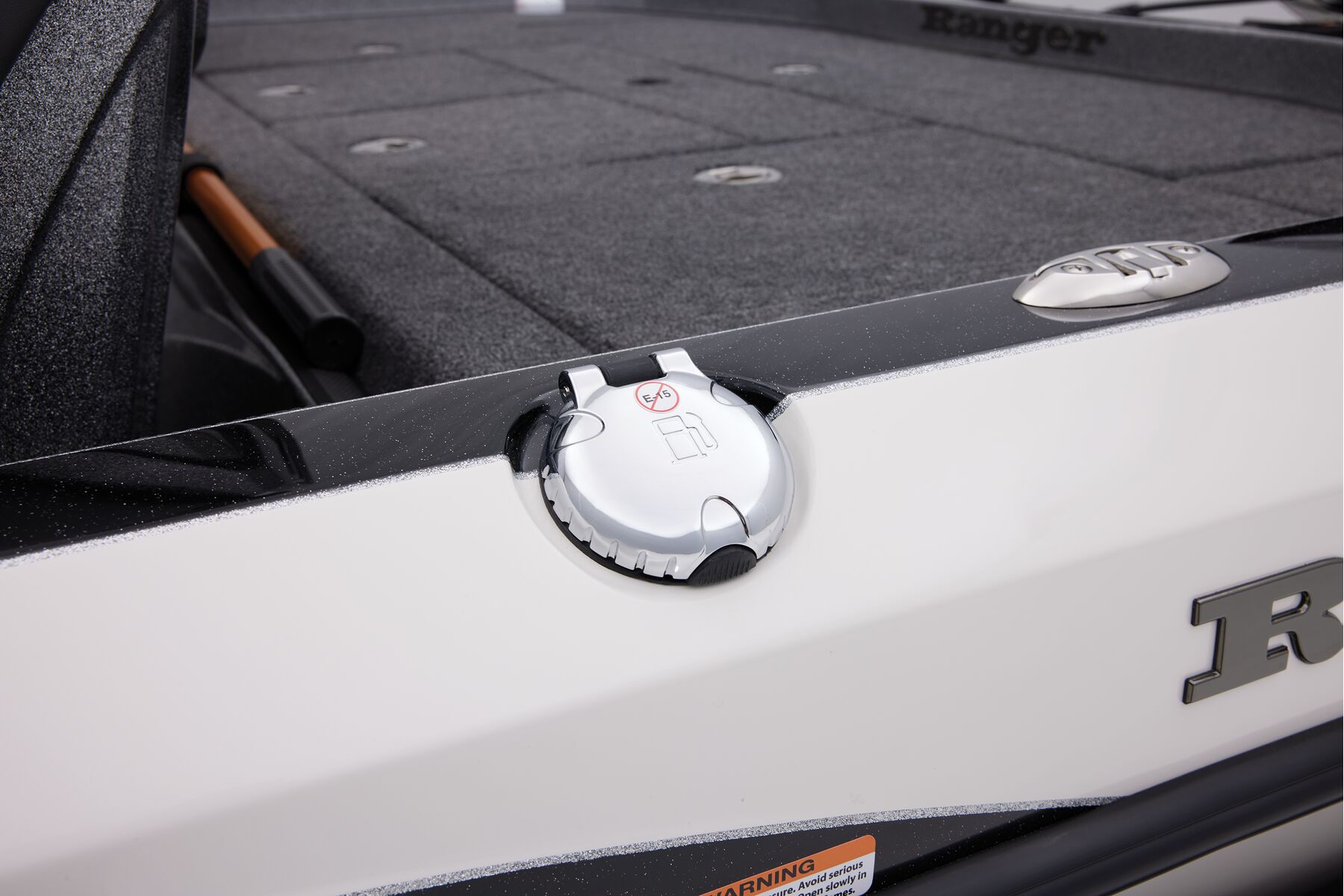

  • Dual Pro™ on-board charger, 15A x 4 bank w/auto-detect technology & remote charging port
  • Blinker Trim
  • Hot Foot
  • 17" Challenger II wheels w/ matching spare

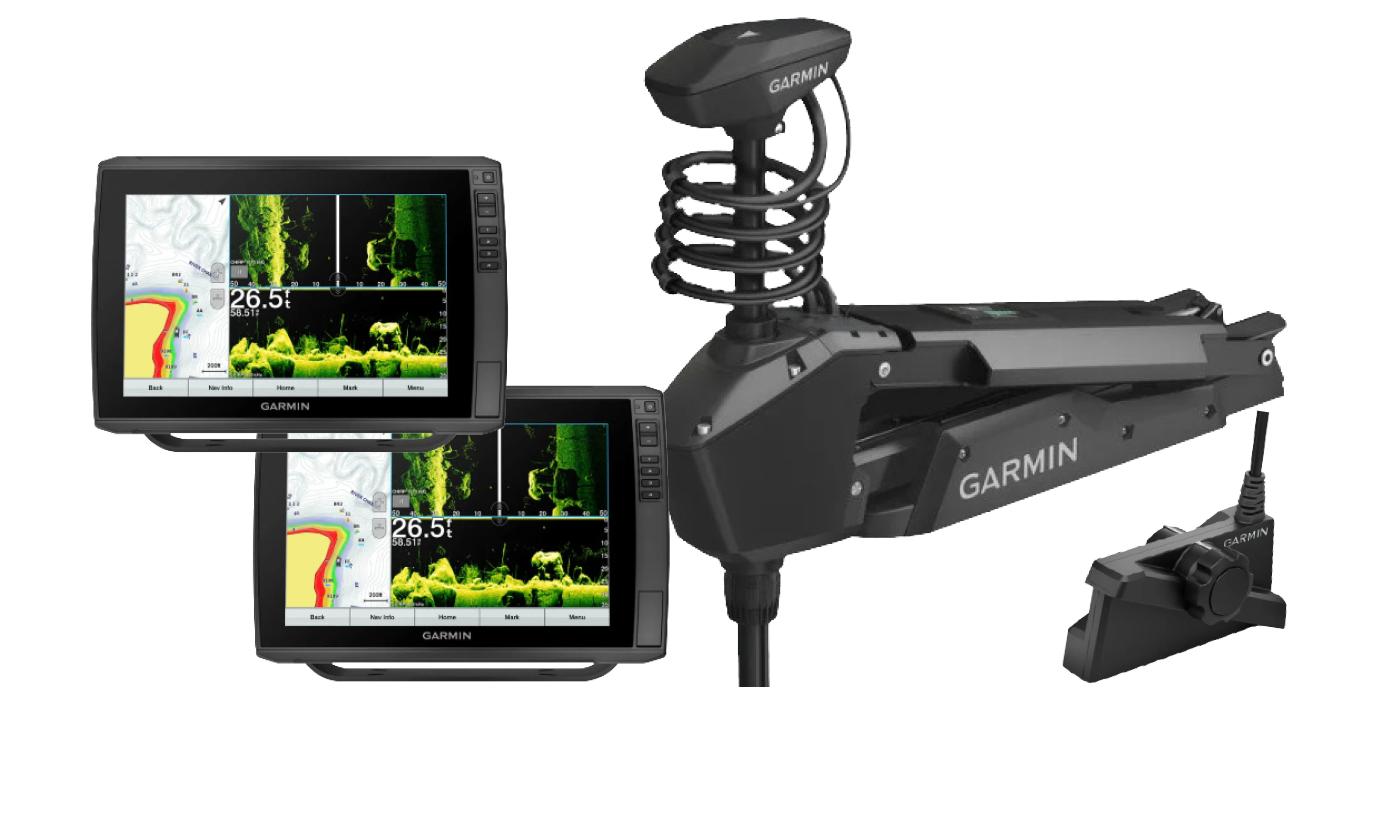

Ranger Cup Equipped - GARMIN® Package
  • GARMIN® ECHOMAP™ Ultra 126sv at bow
  • GARMIN® ECHOMAP™ Ultra 126sv at console w/ Transducer
  • GARMIN® Live Scope™ Plus LVS34 Live Sonar
  • GARMIN® Force 45" 36V Trolling Motor
  • Dual Pro™ on-board charger, 15A x 4 bank w/auto-detect technology & remote charging port
  • Blinker Trim
  • Hot Foot
  • 17" Challenger II wheels w/ matching spare
Custom Details

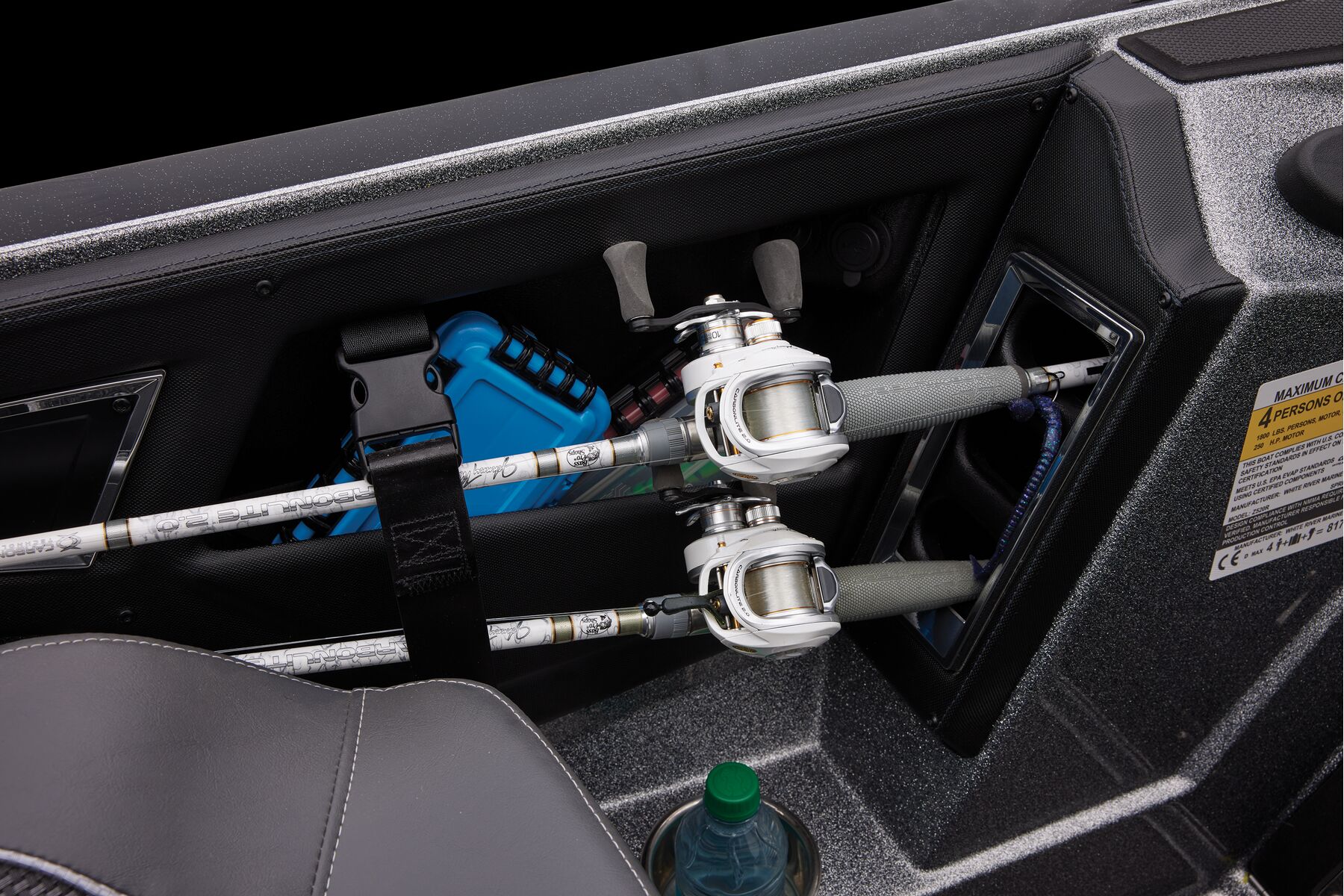

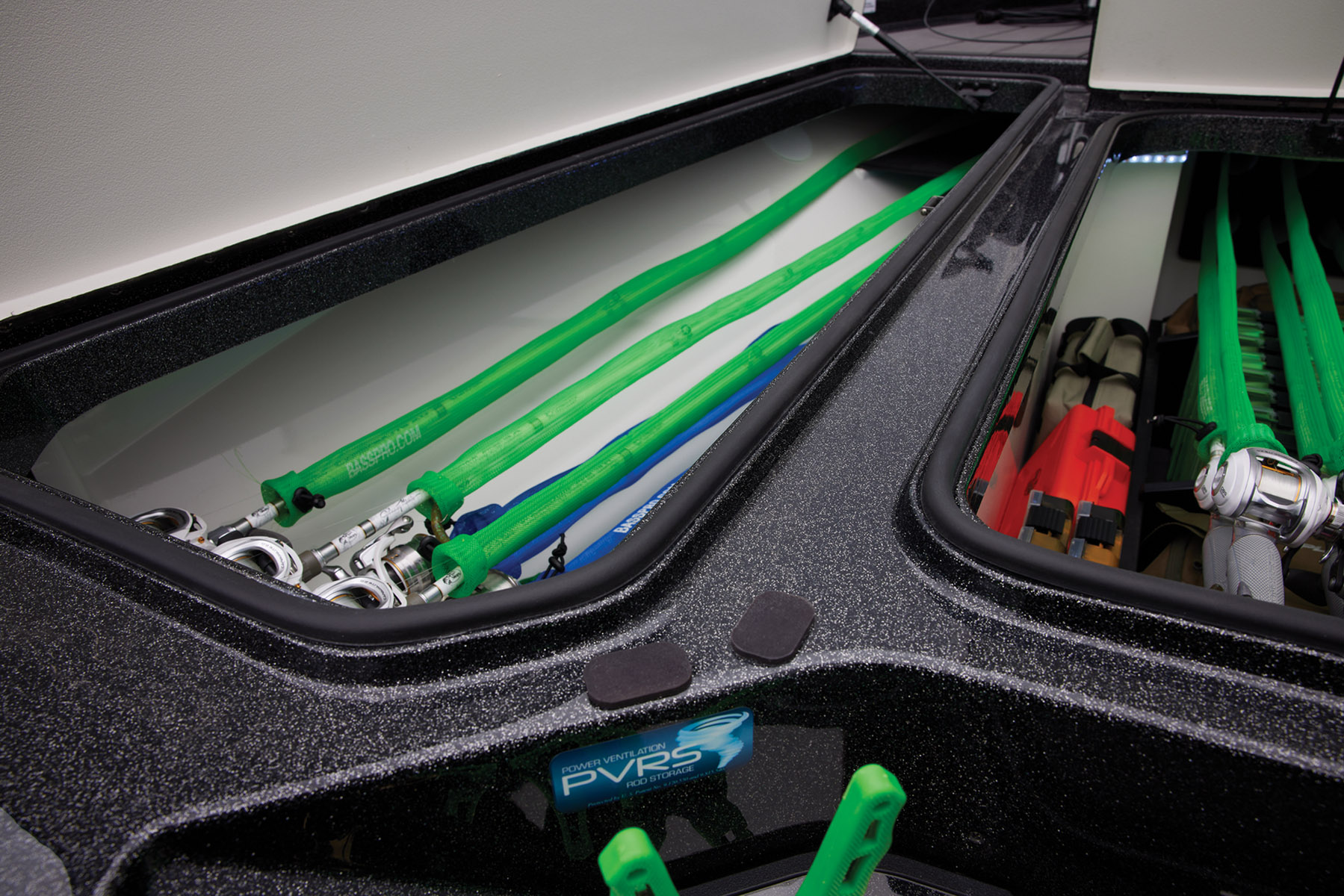

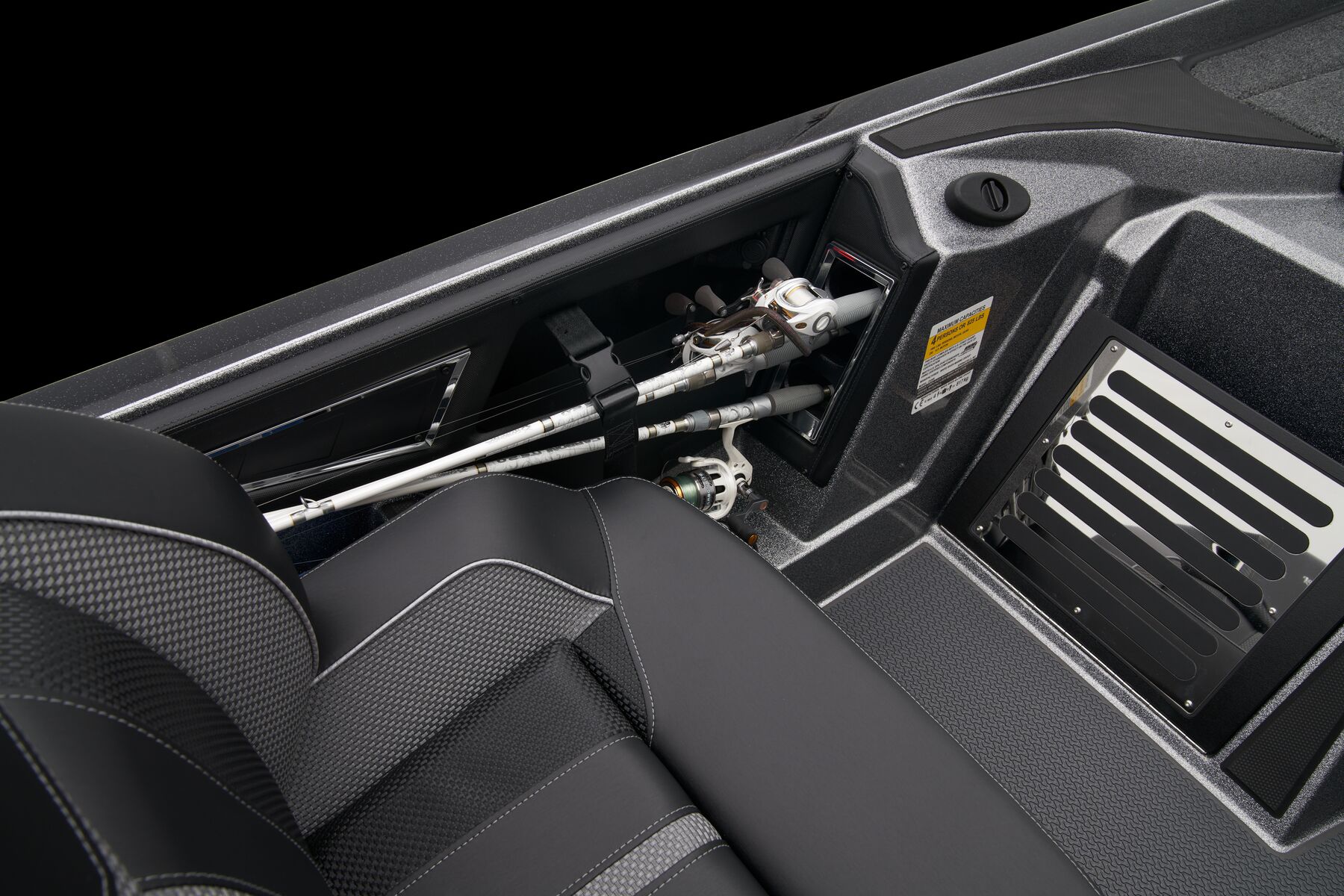

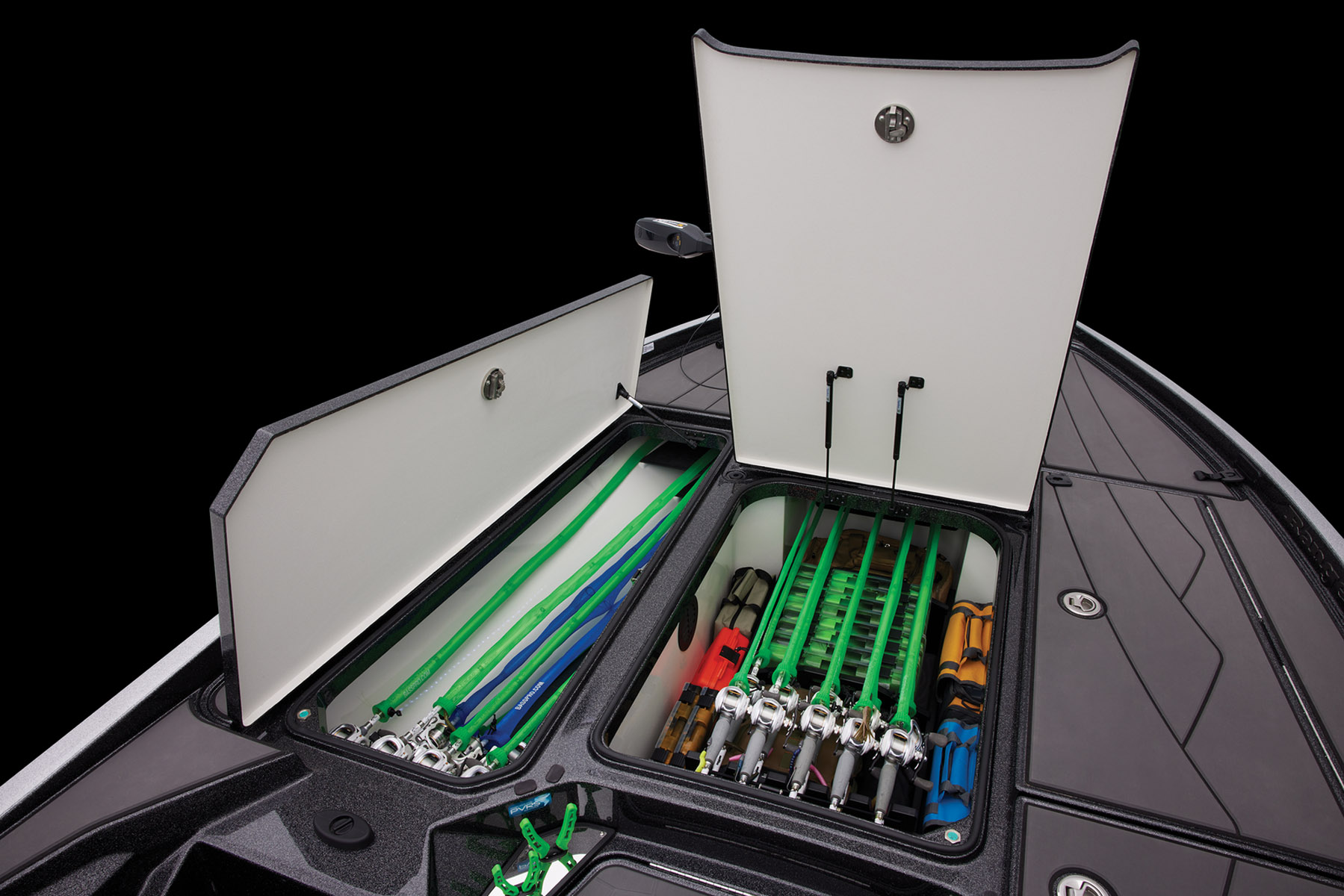

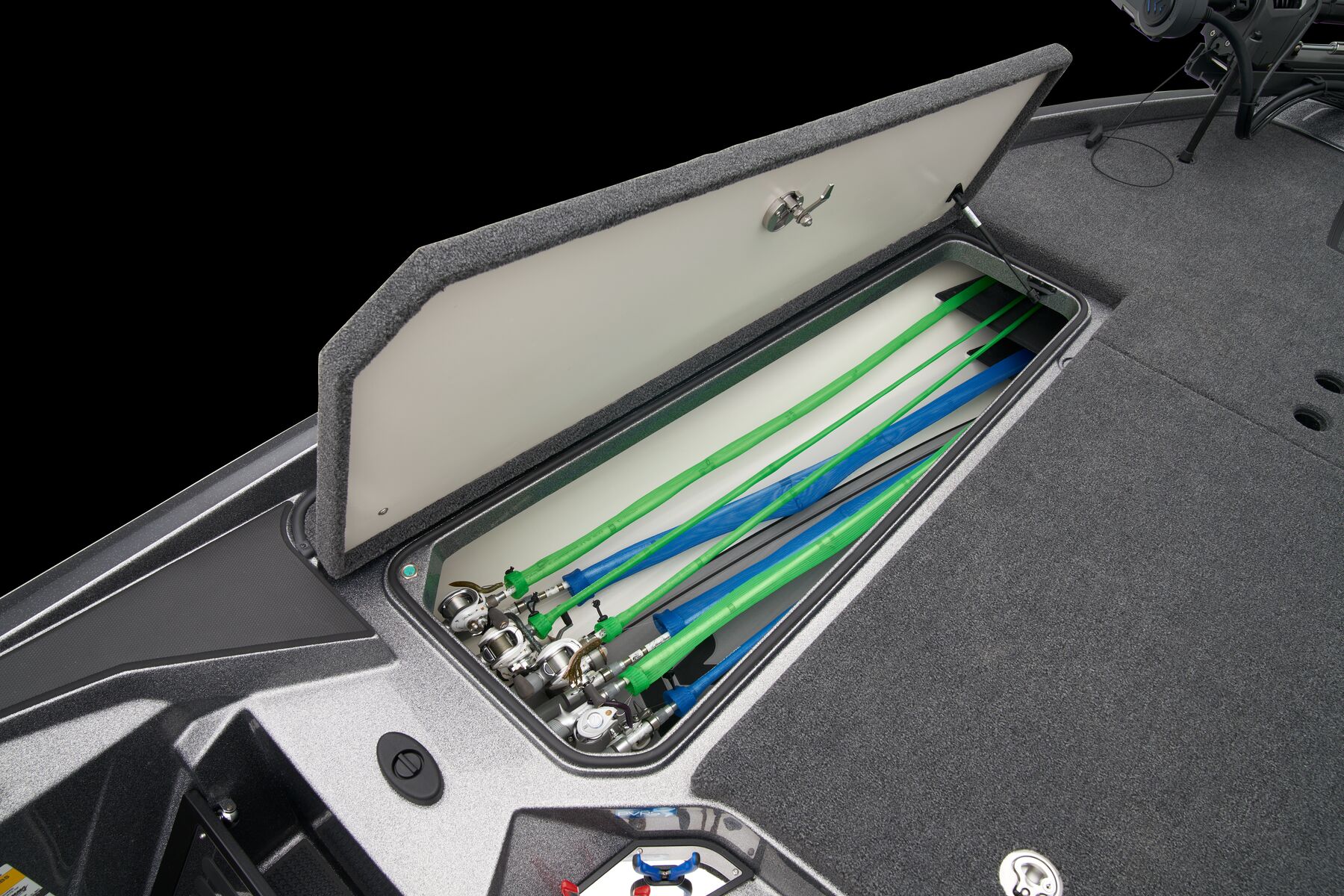

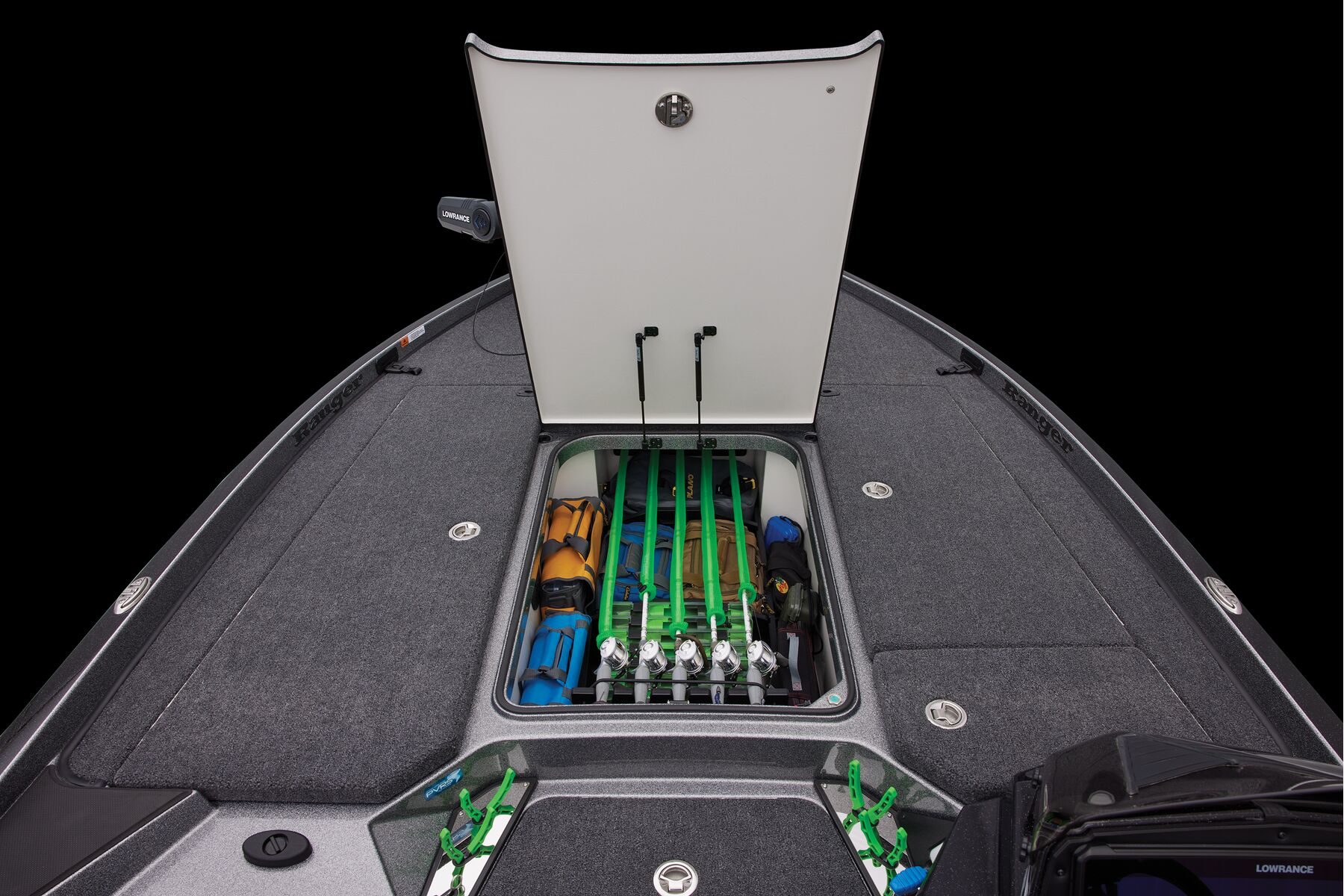

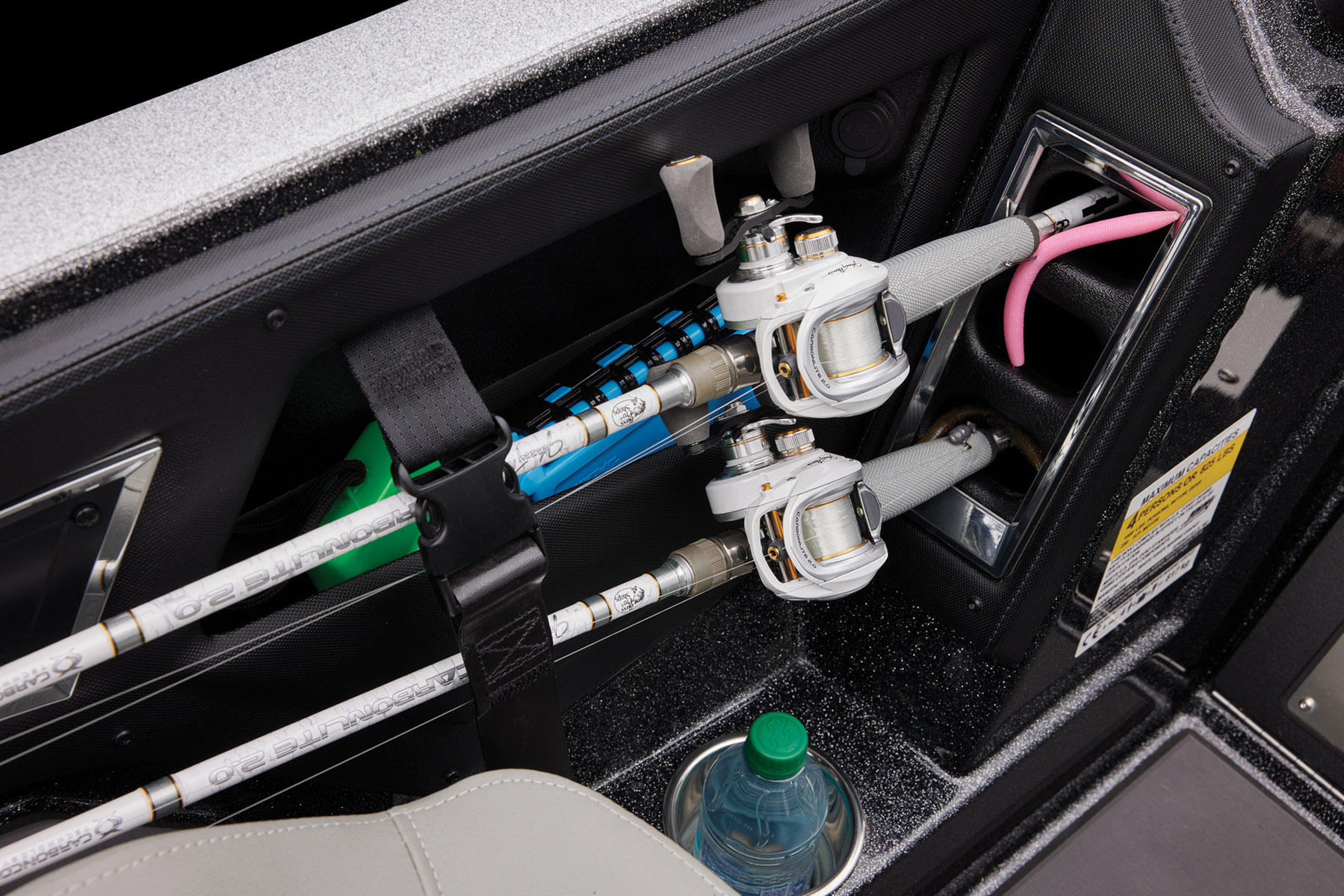

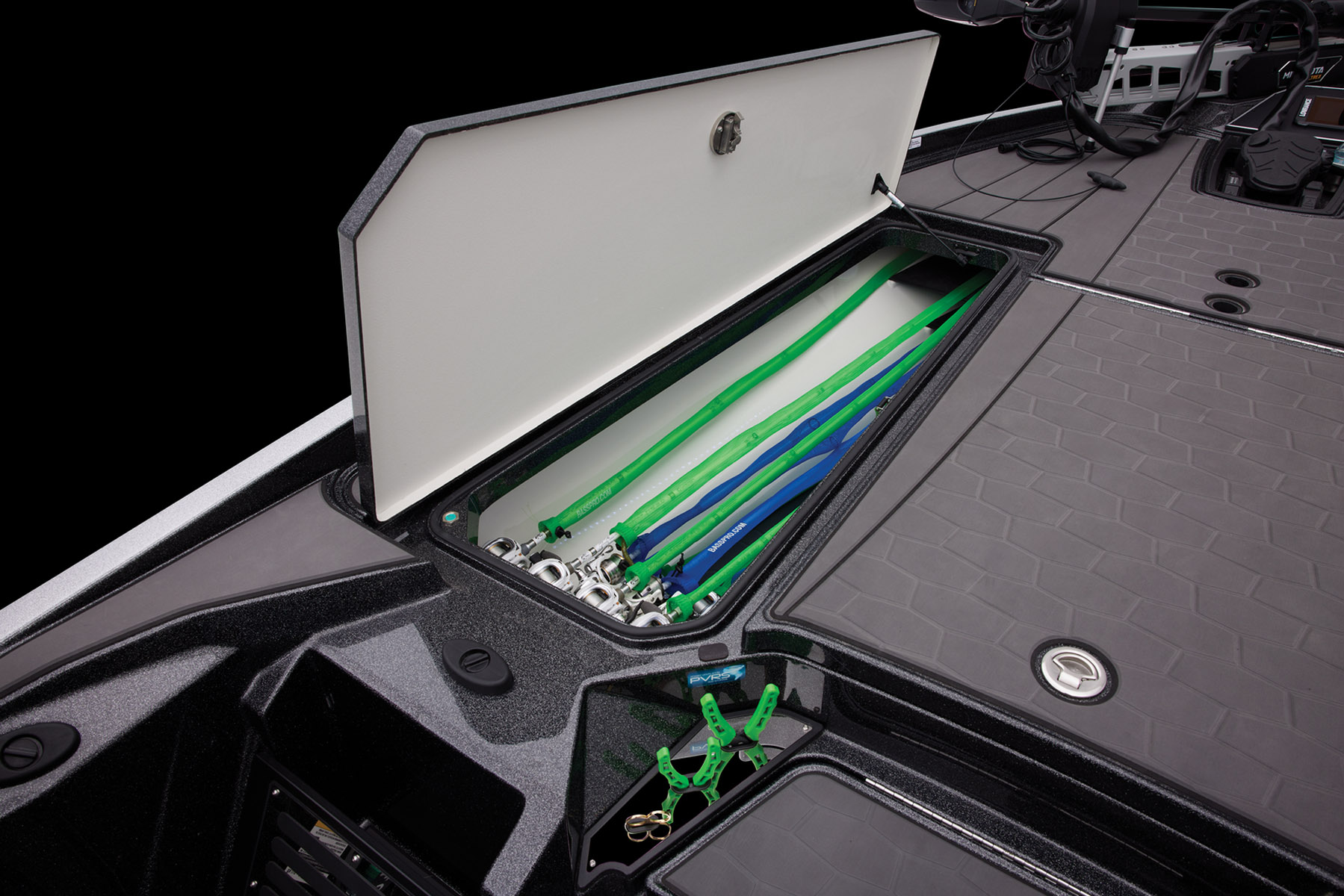

  • Ranger Echelon™ Rod Storage System - 3-tiered port & 2-tiered starboard rod lockers

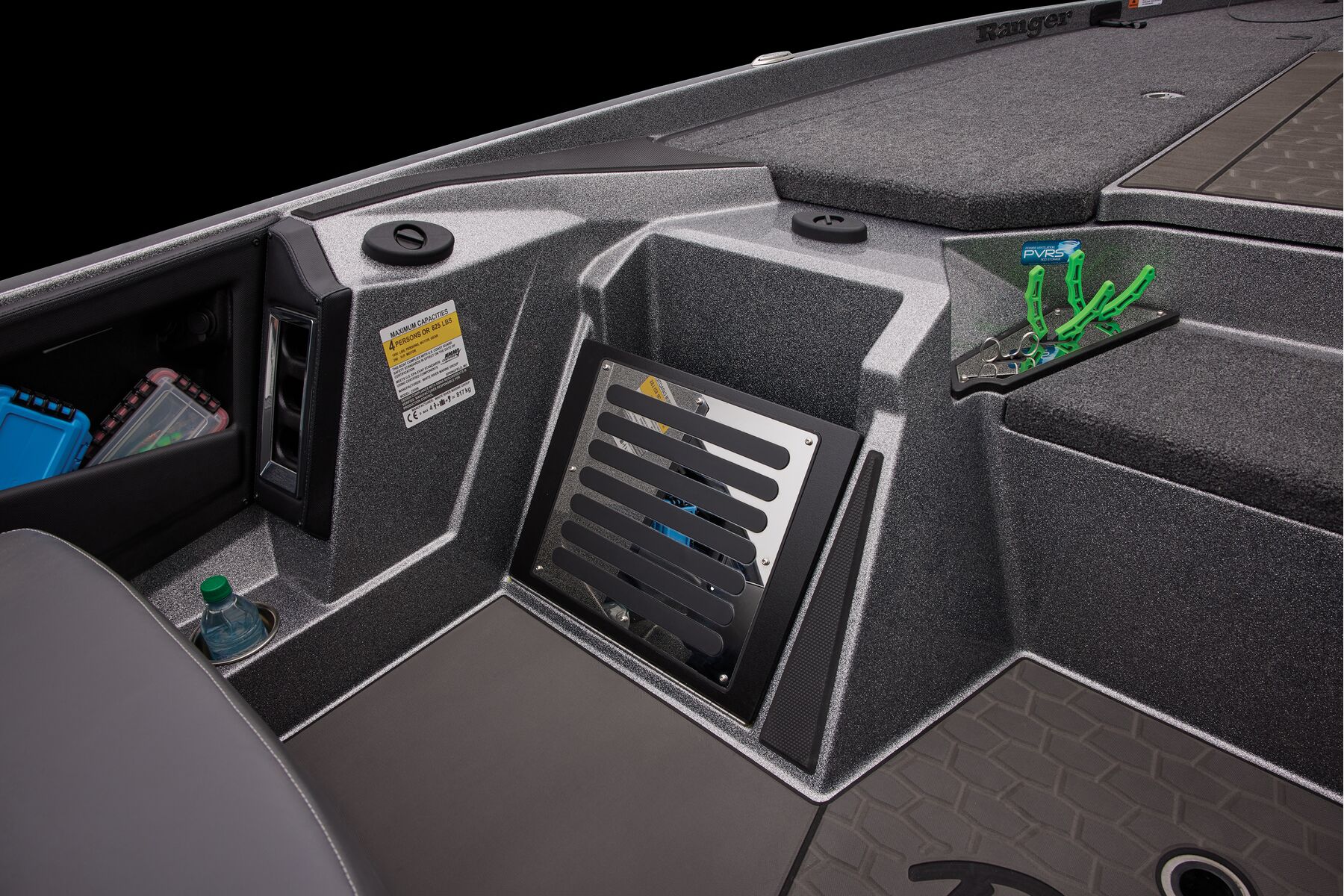

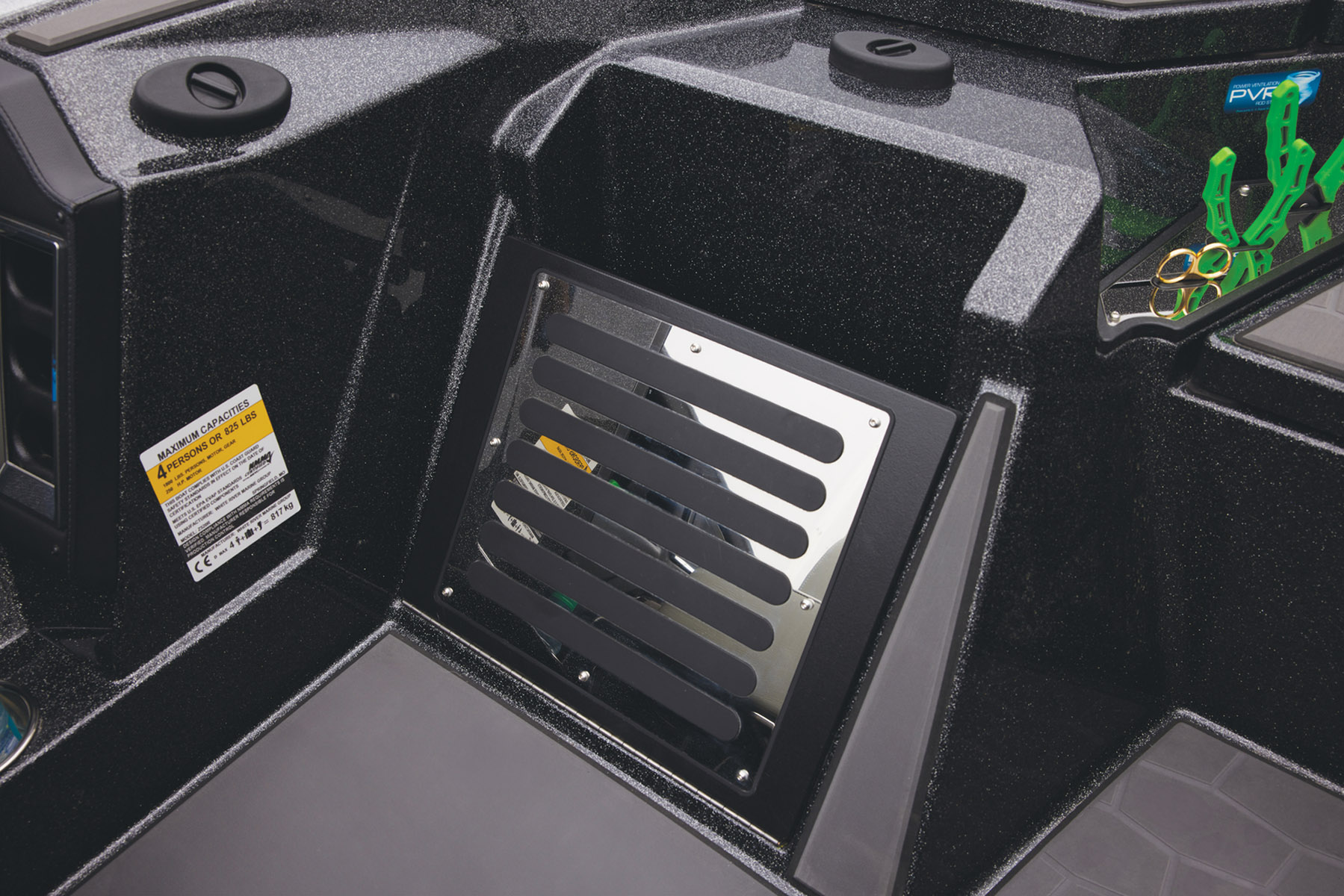

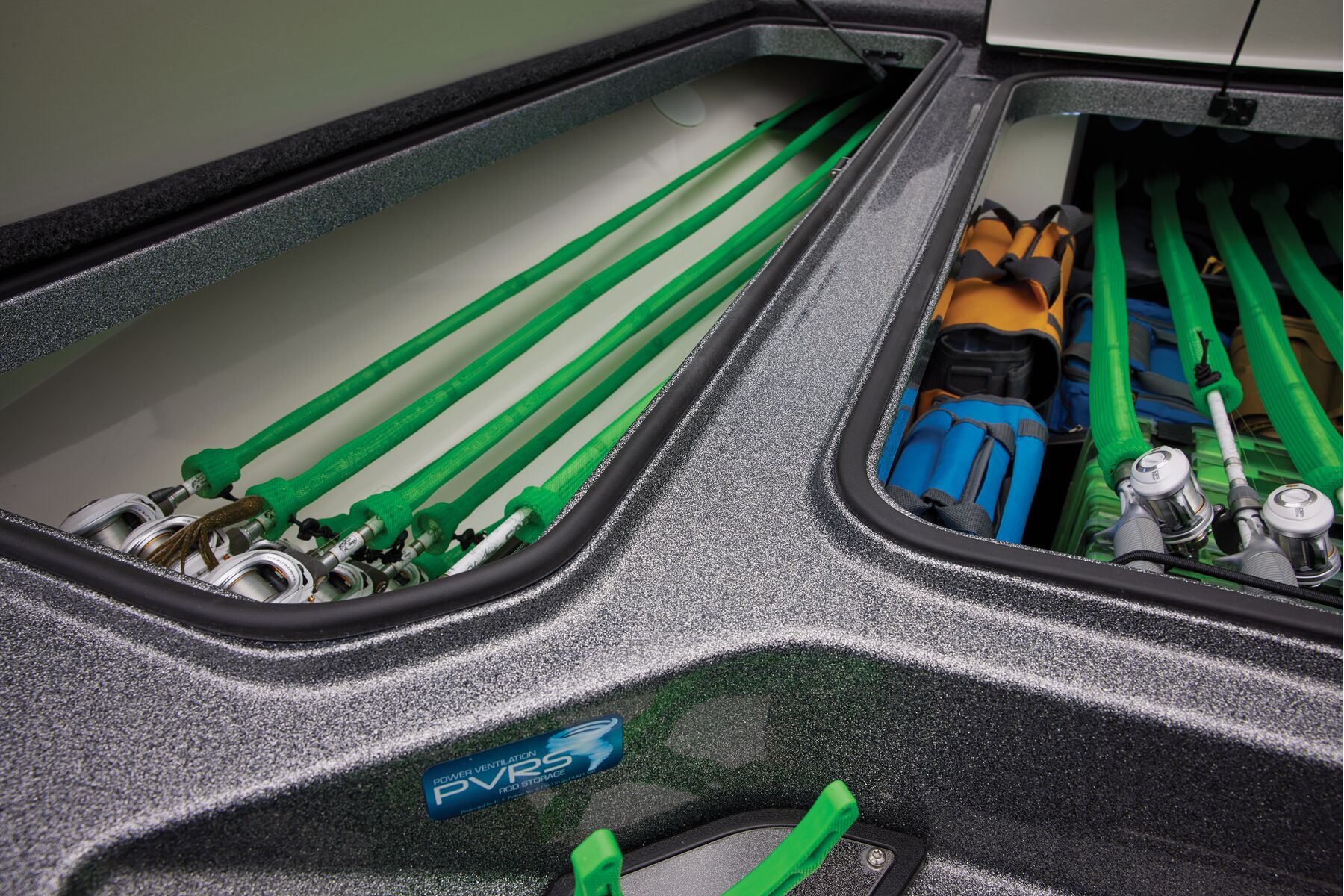

  • Power Ventilation Rod Storage™
  • Integrated center-storage rod & tackle management system

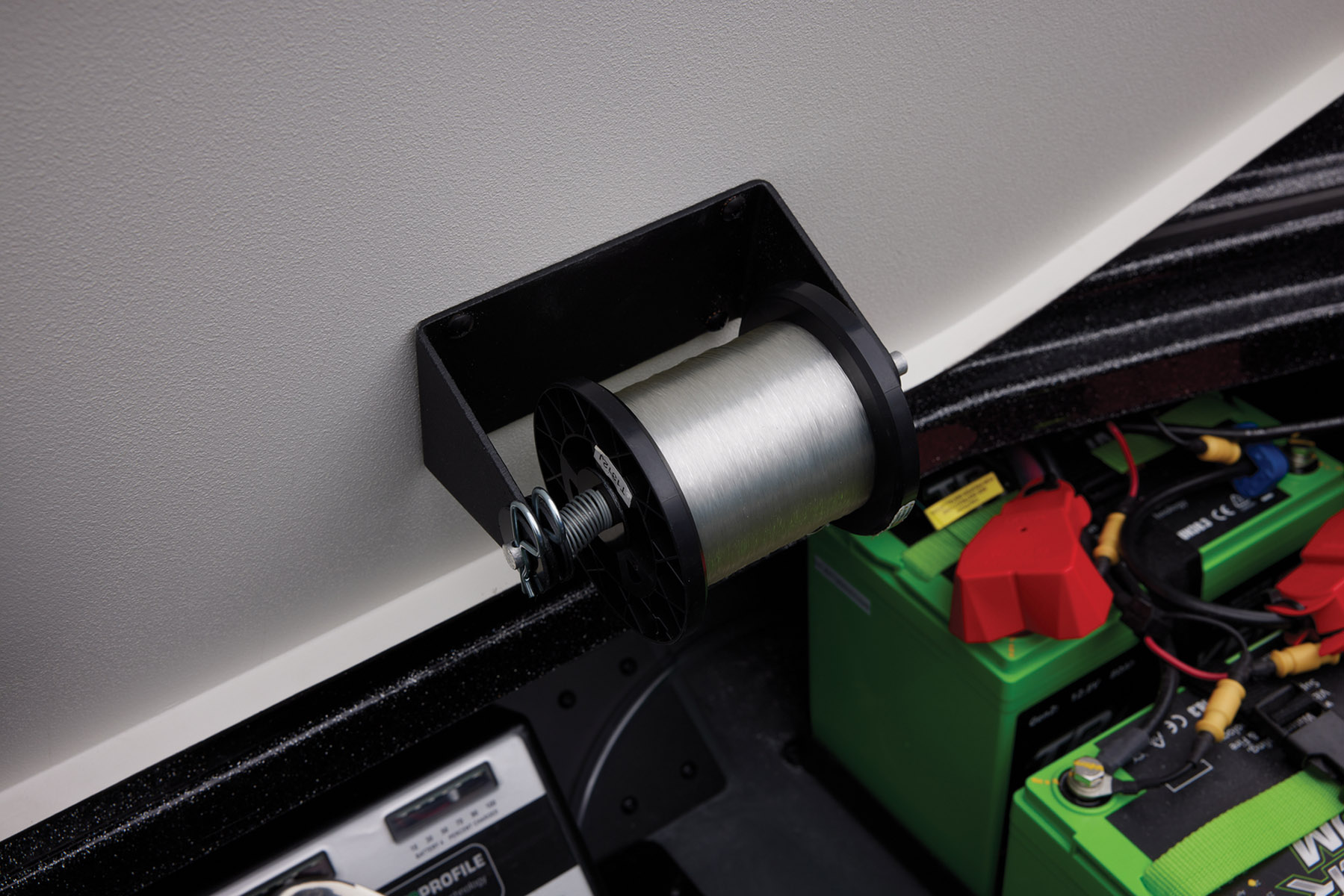

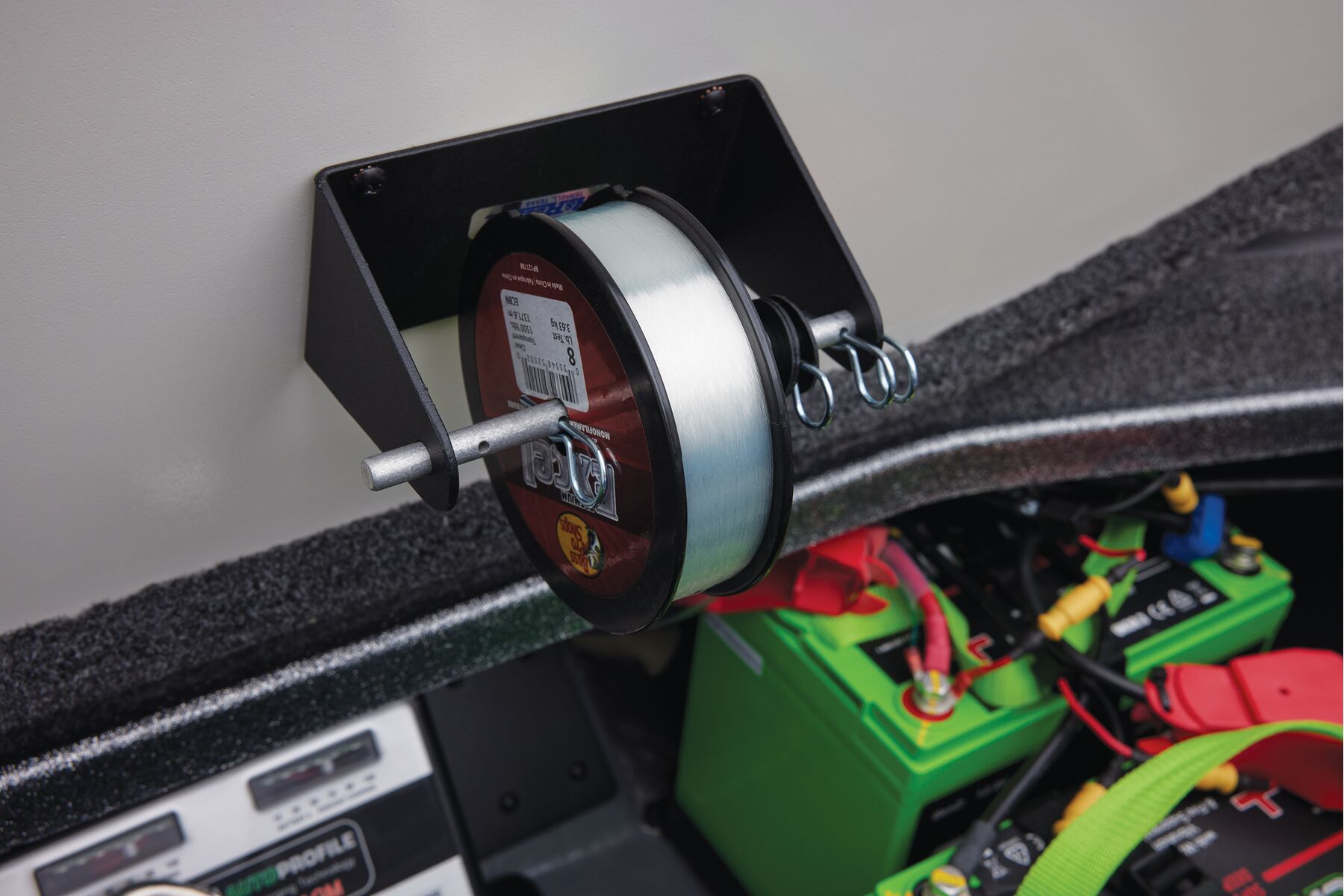

  • Spooling station integrated under battery lid

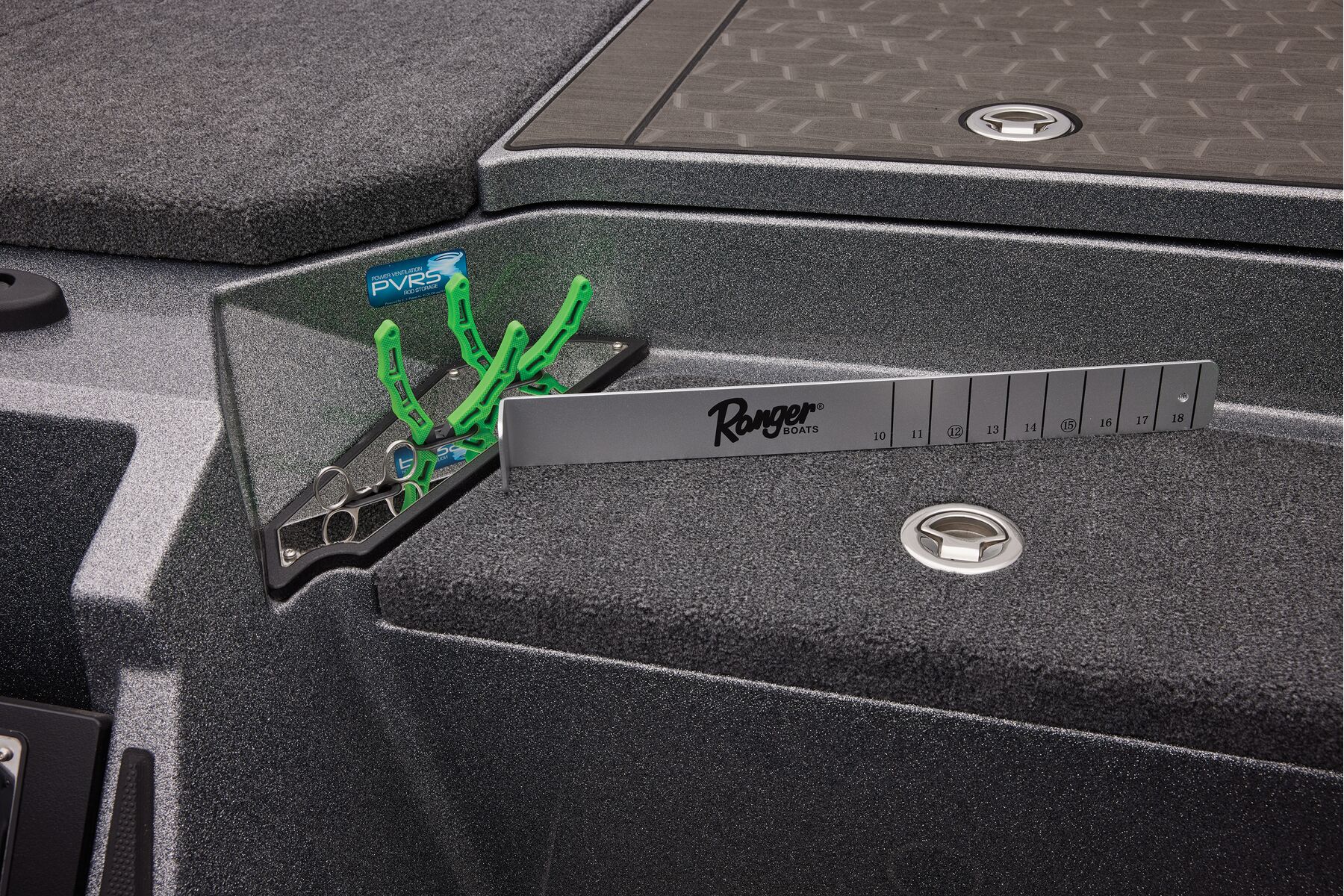

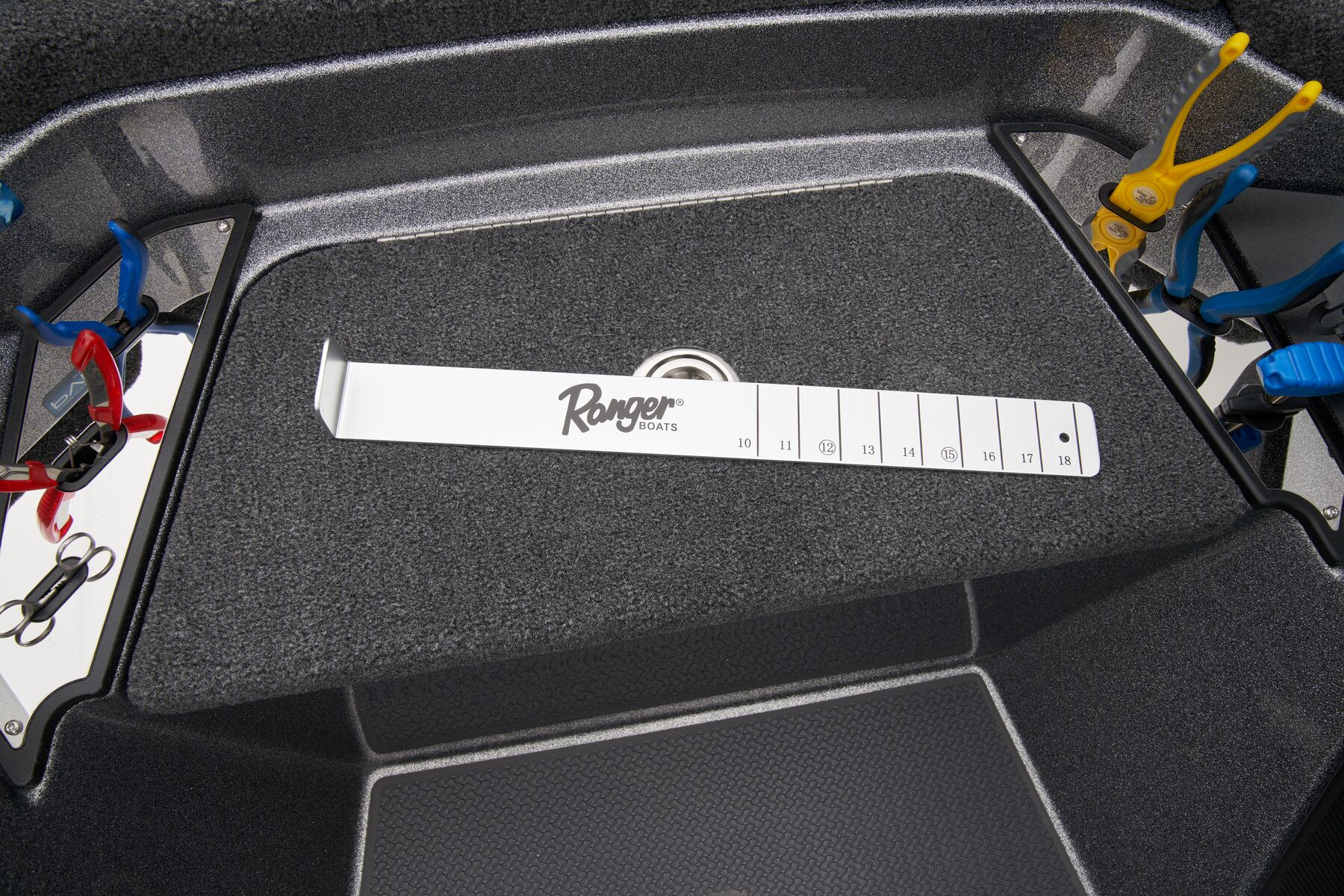

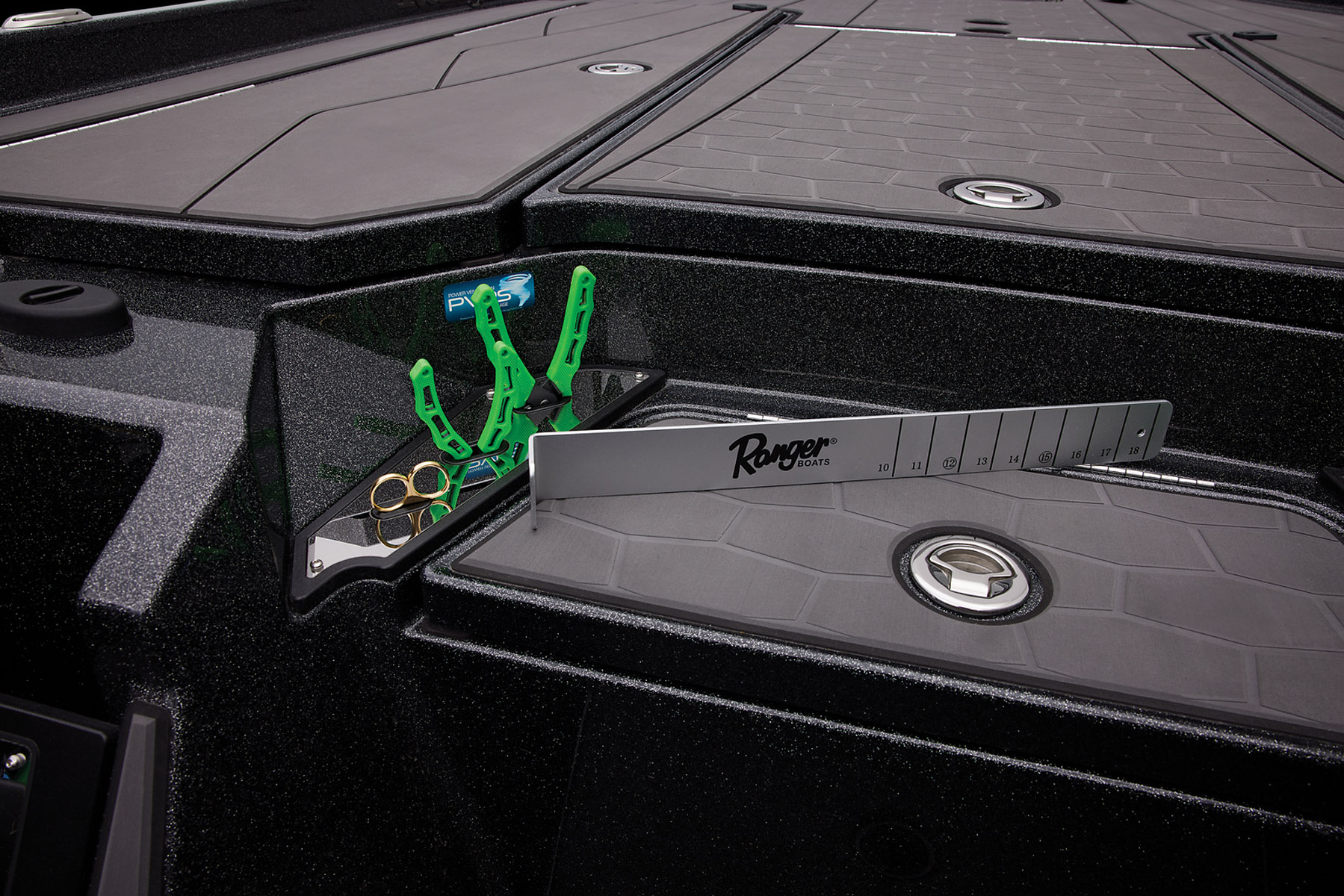

  • Ranger® tournament measuring board integrated at front deck step
  • Remote drain plug

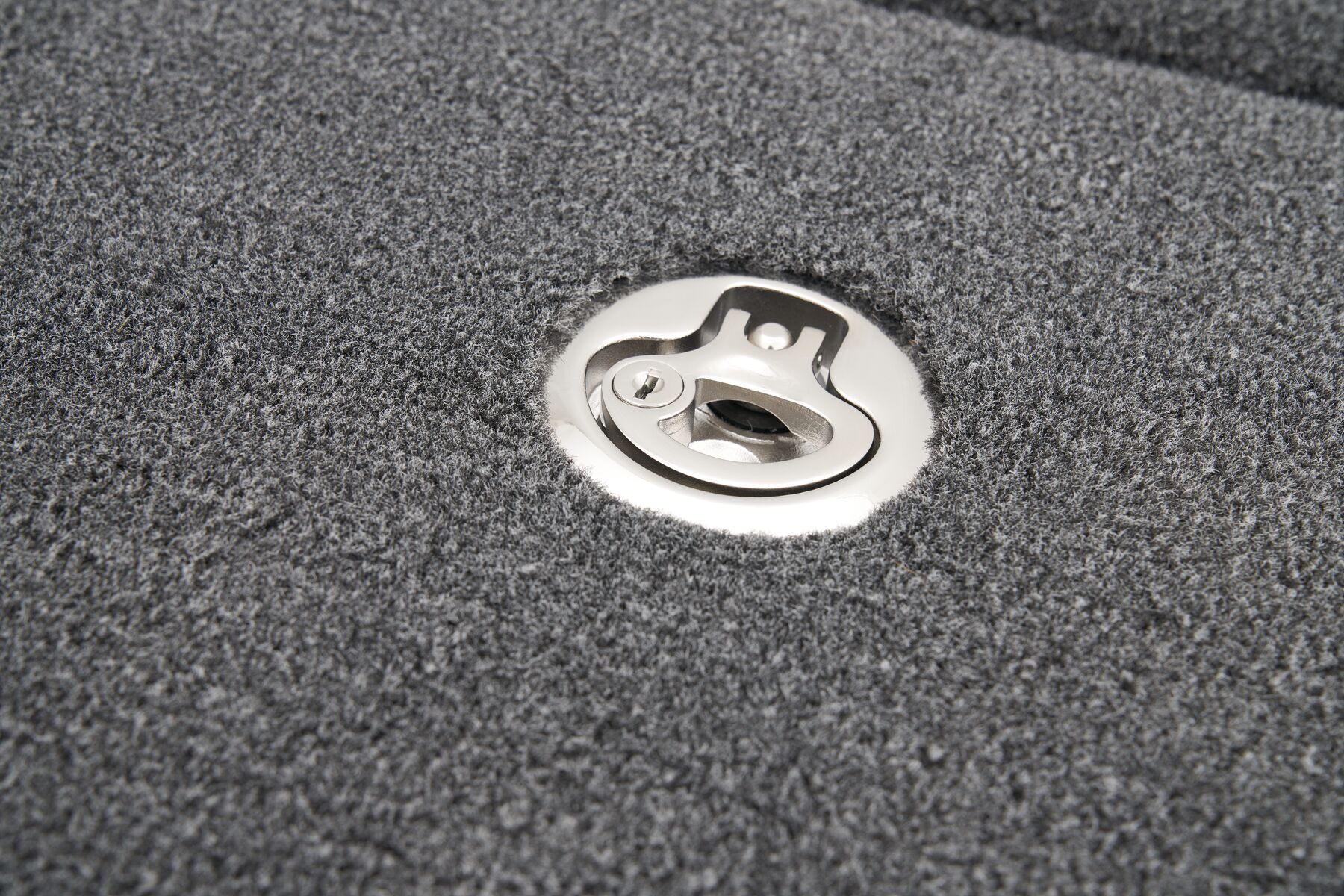

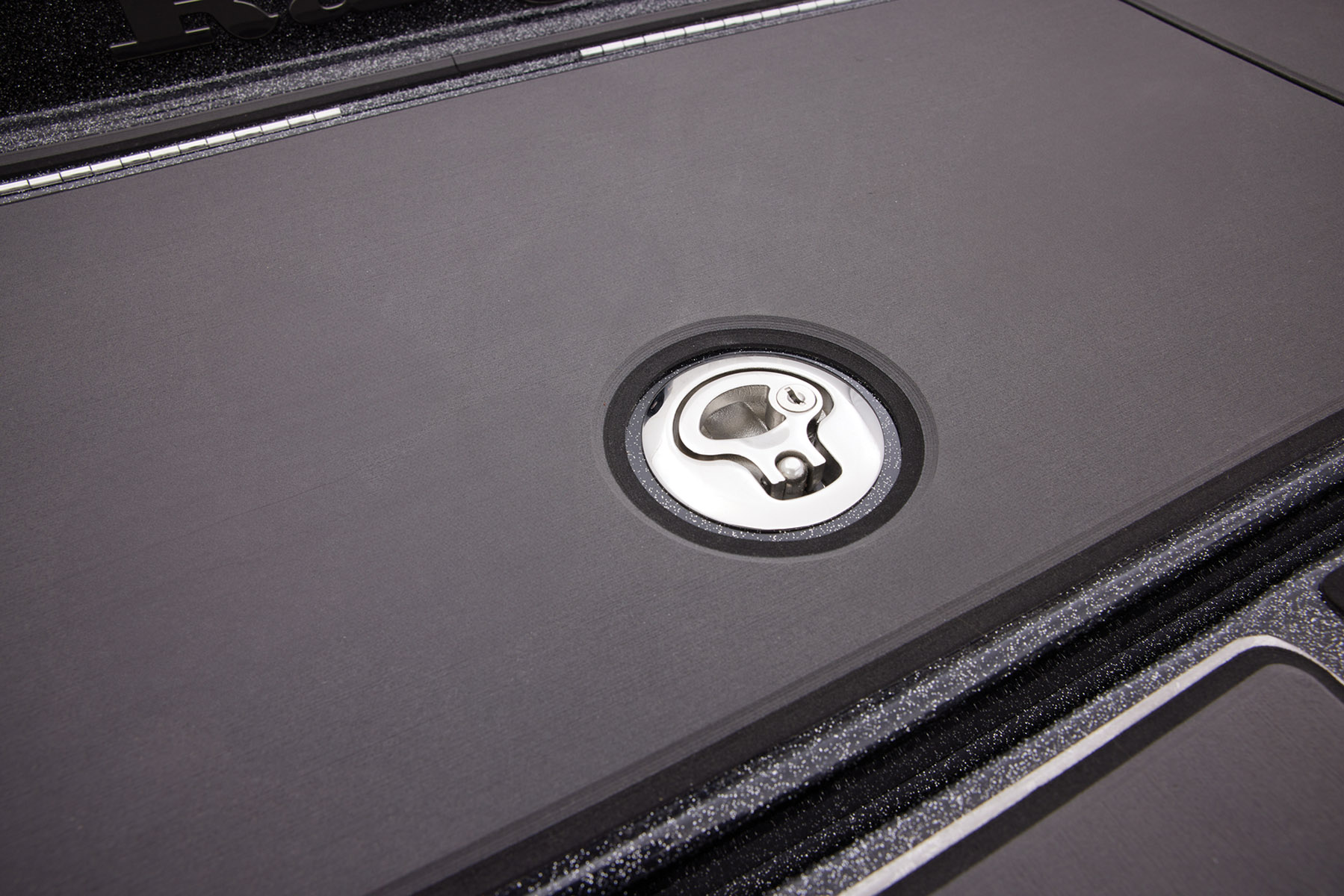

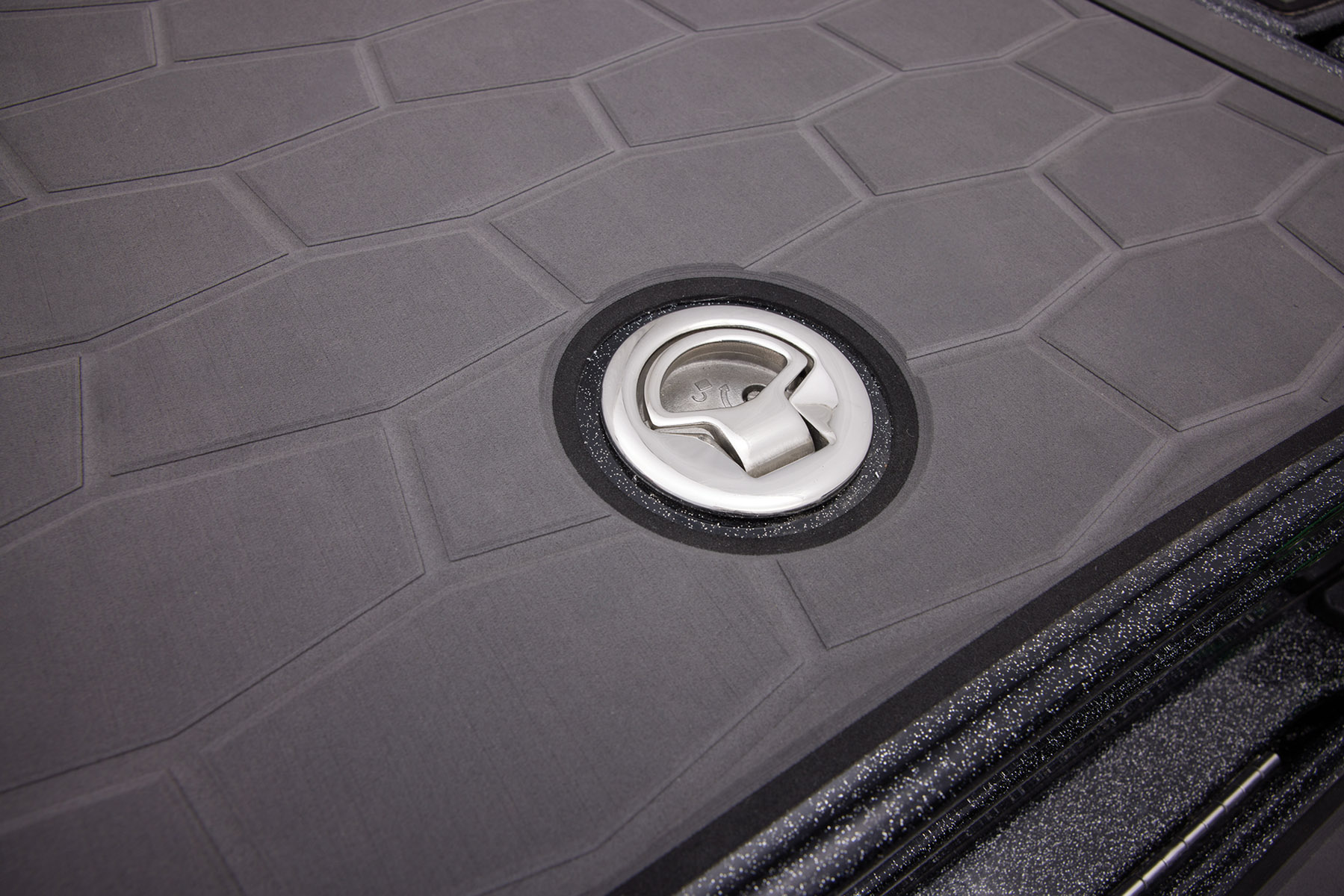

  • Stainless steel compression lid locks
  • Stainless steel seat bases
Electronics

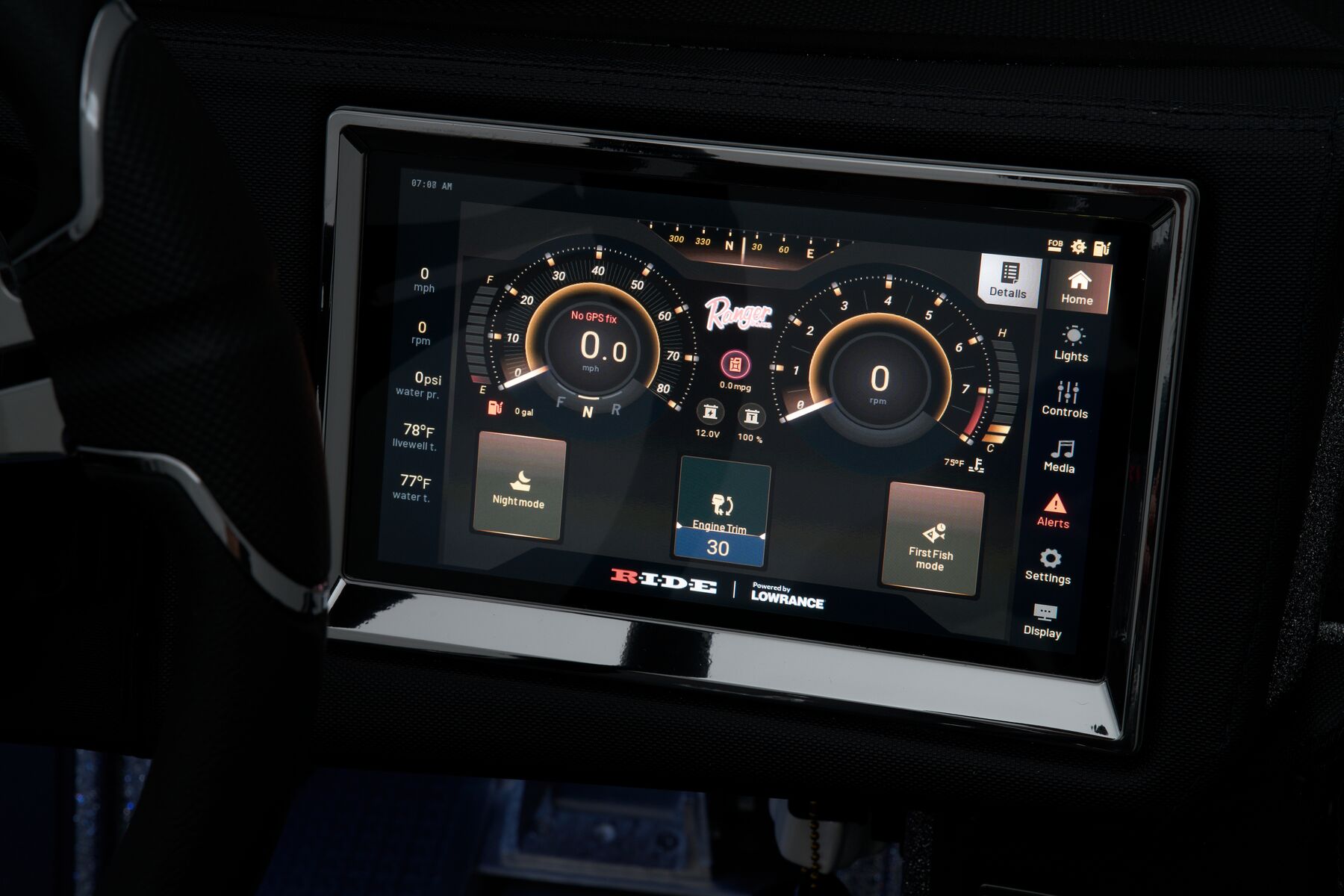

  • Ranger® RIDE™ (Ranger Intelligent Display Engine) -integrated full-boat network control and monitoring via 9" touchscreen

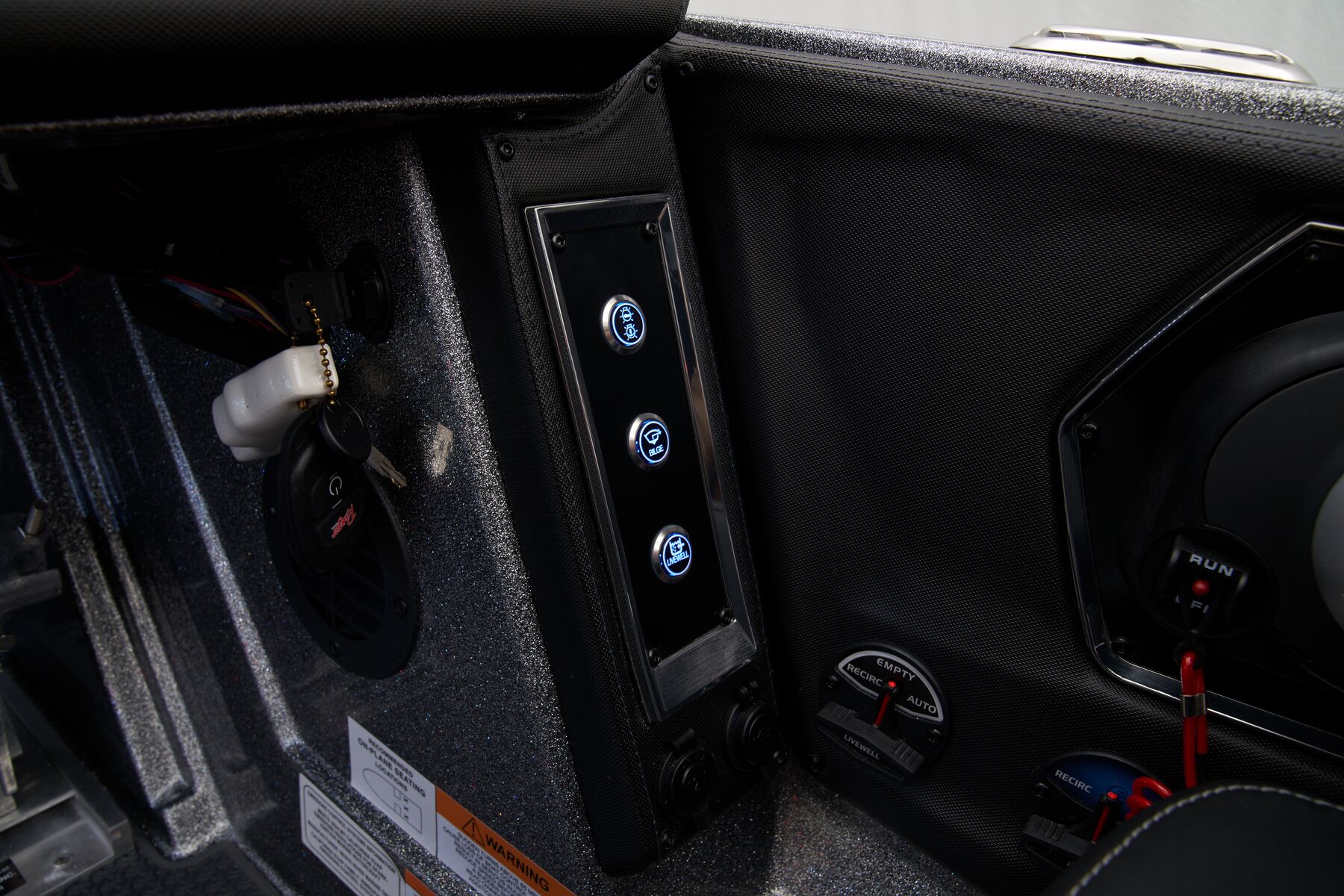

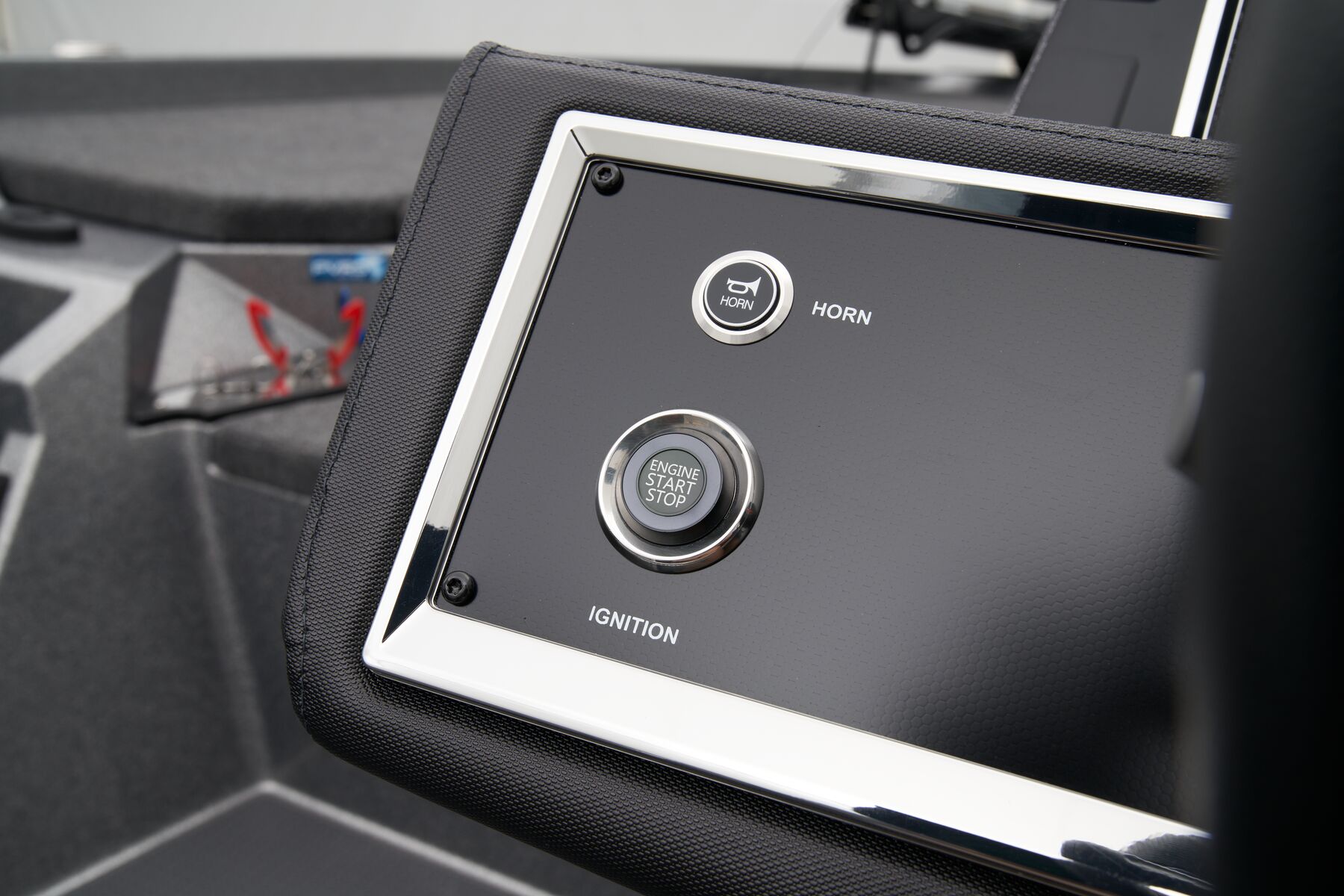

  • Push to Start Ignition with proximity key
  • Ranger Cup Equipped Electronics Package (see RCE)
  • Ranger® Clean & Clear™ dedicated bow-to-stern 6-gauge electronics wiring harness w/ 30A breaker

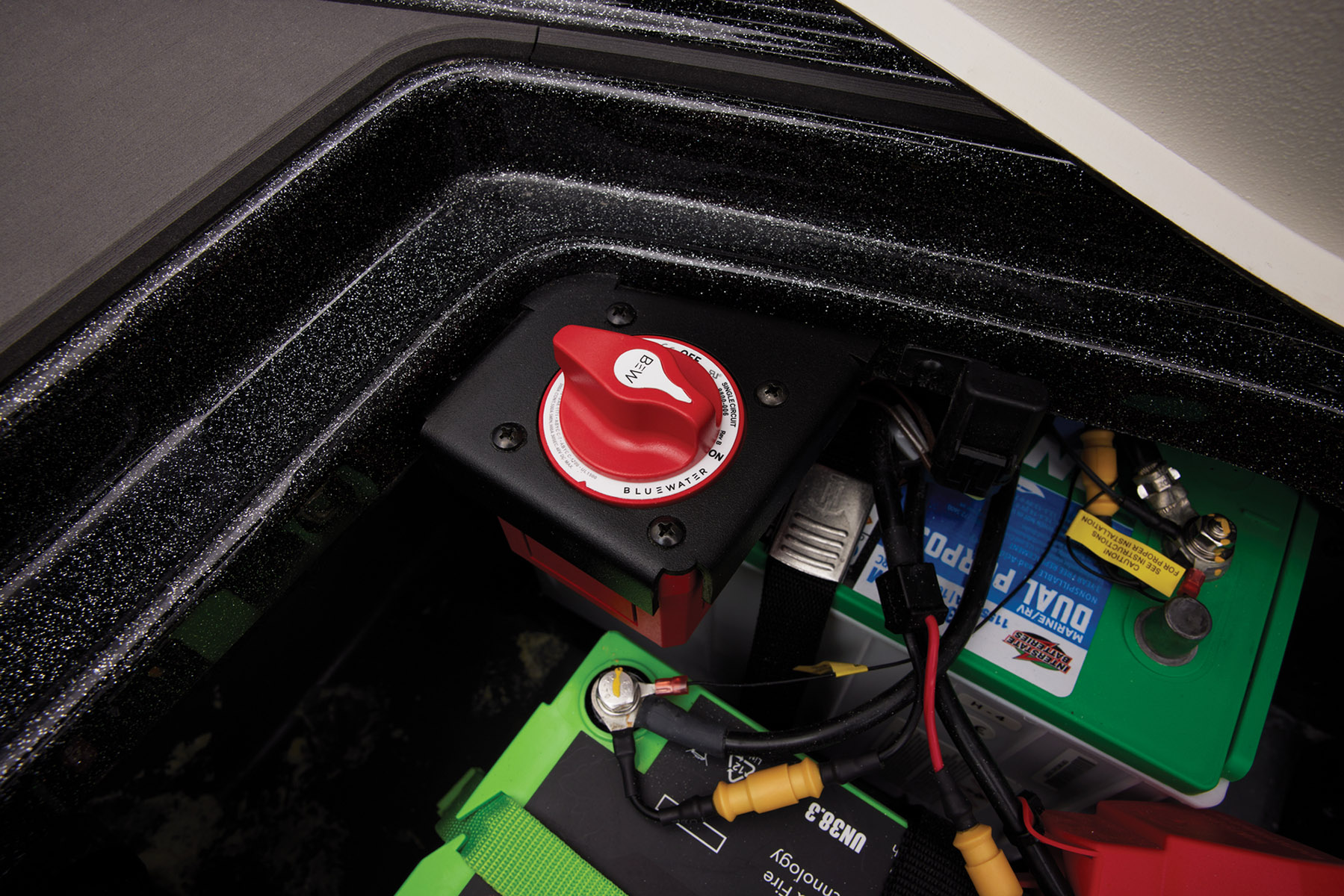

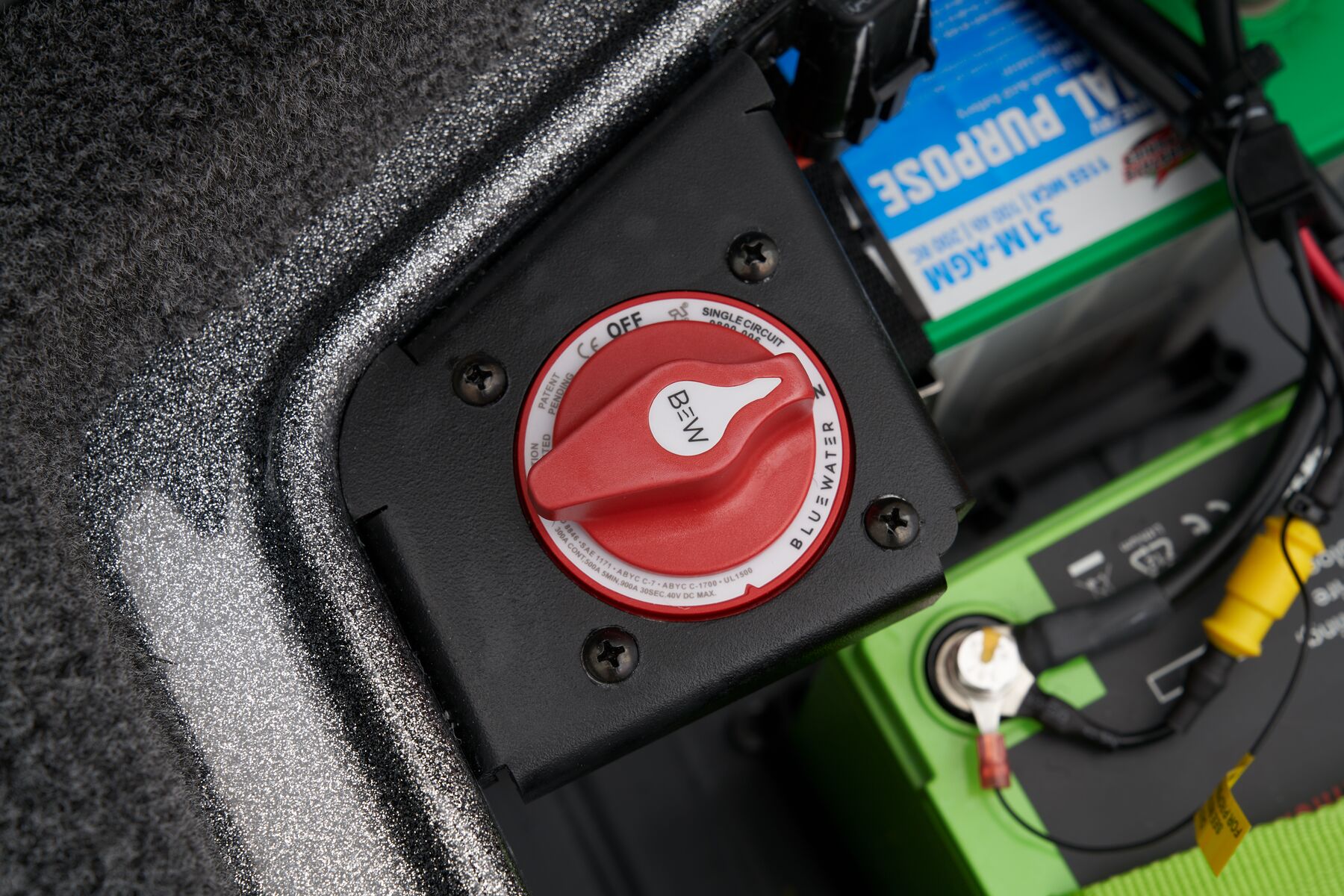

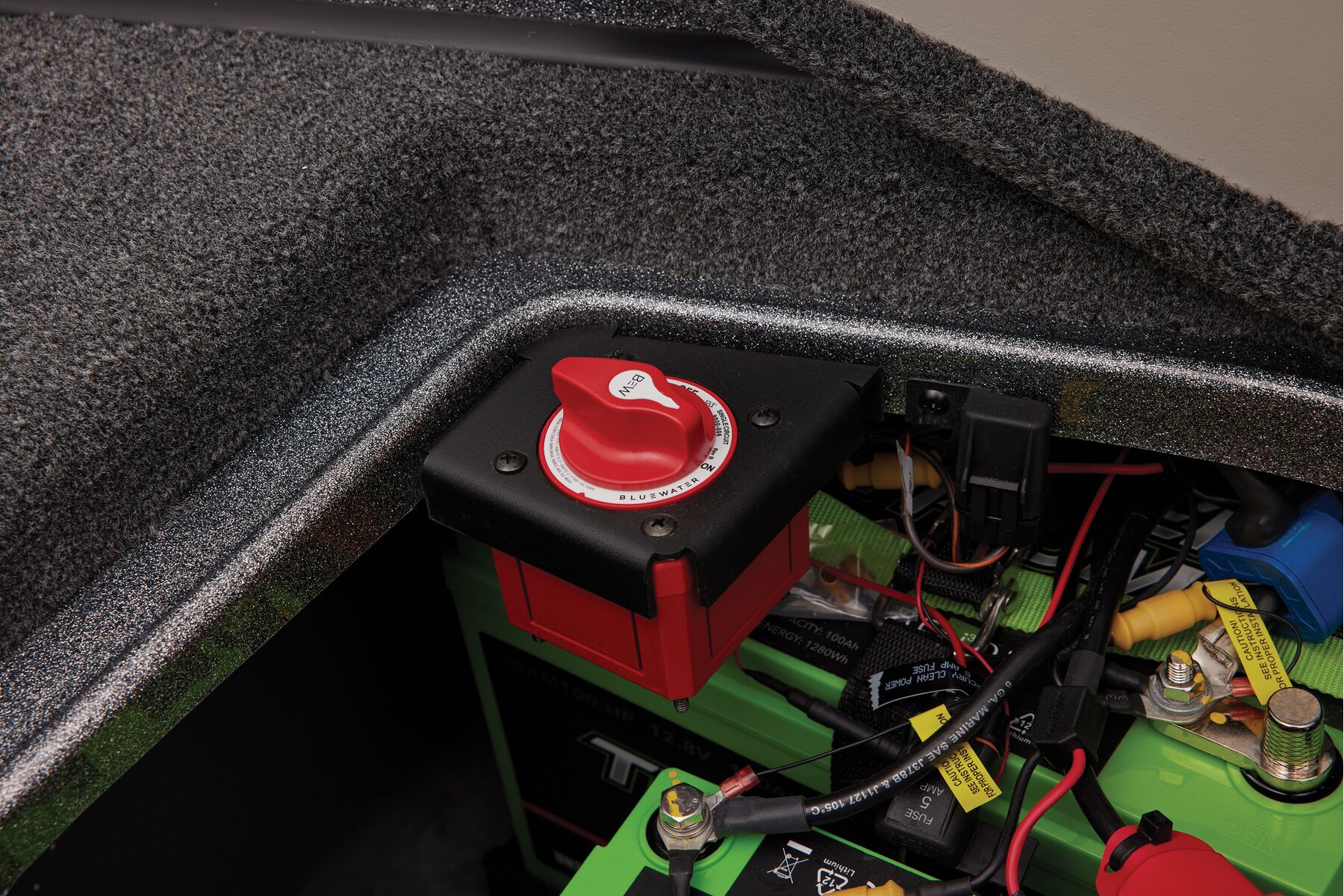

  • Master Power on/off battery disconnect switch
  • NOCO™ GB40 jump starter w/ on-board USB charging

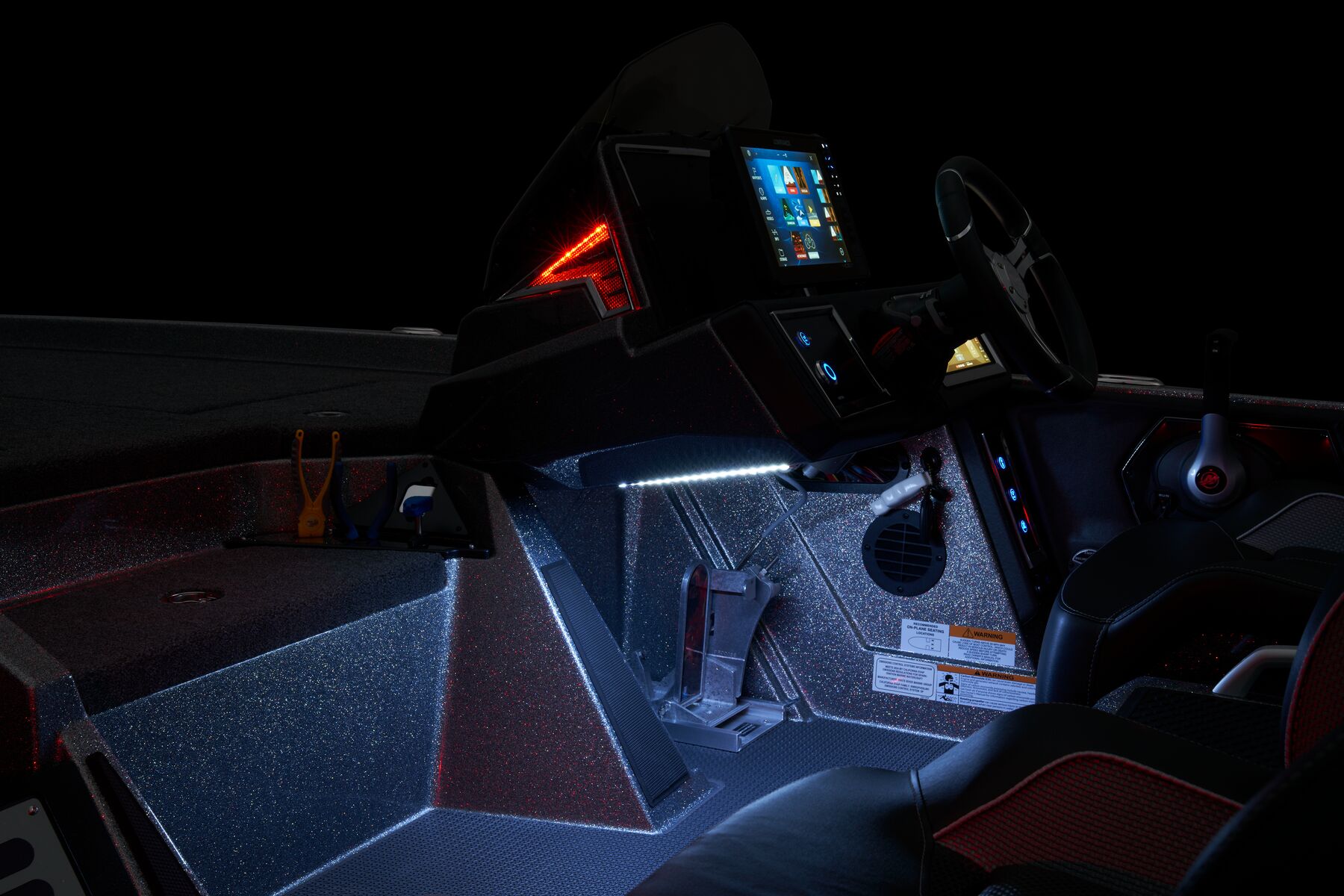

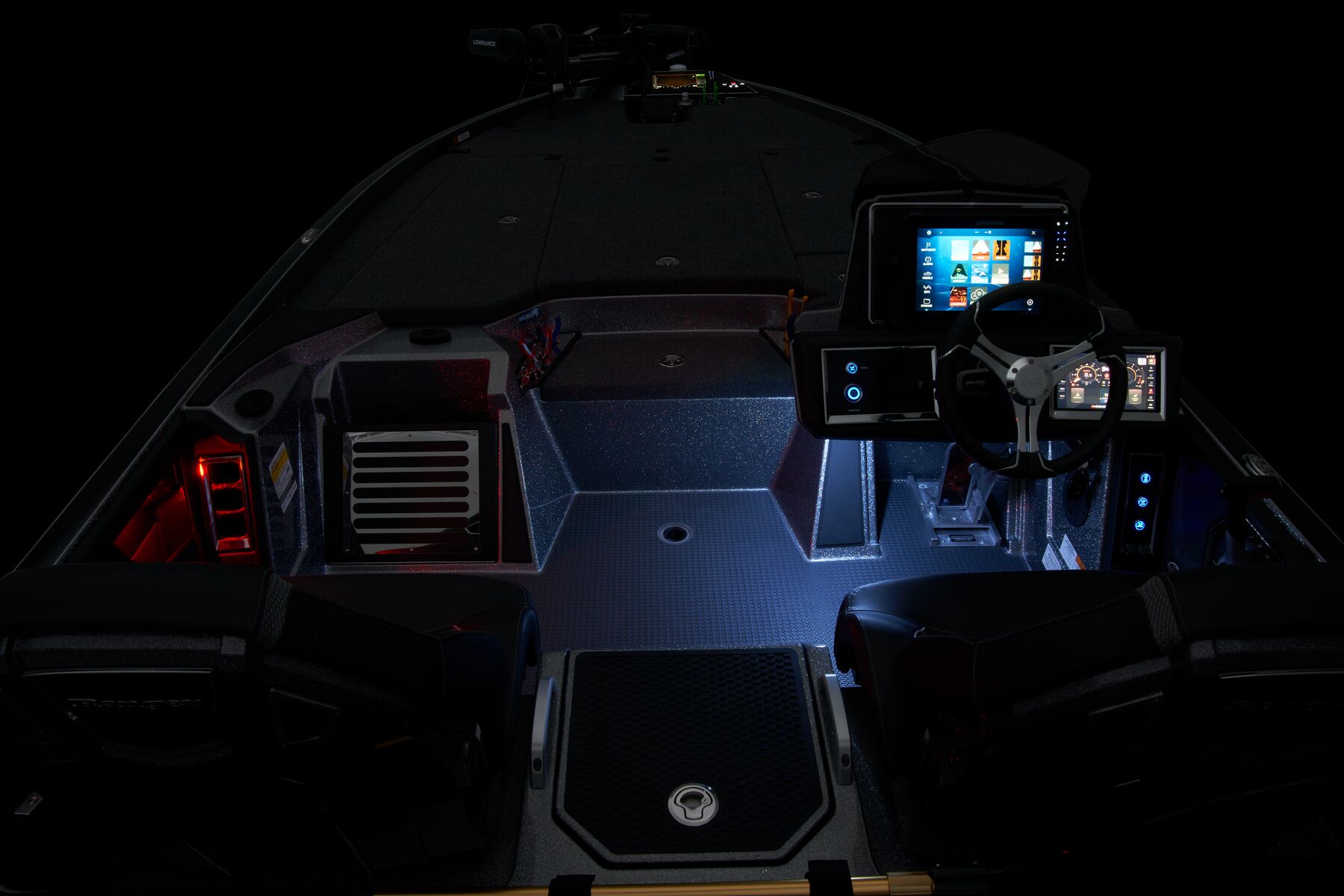

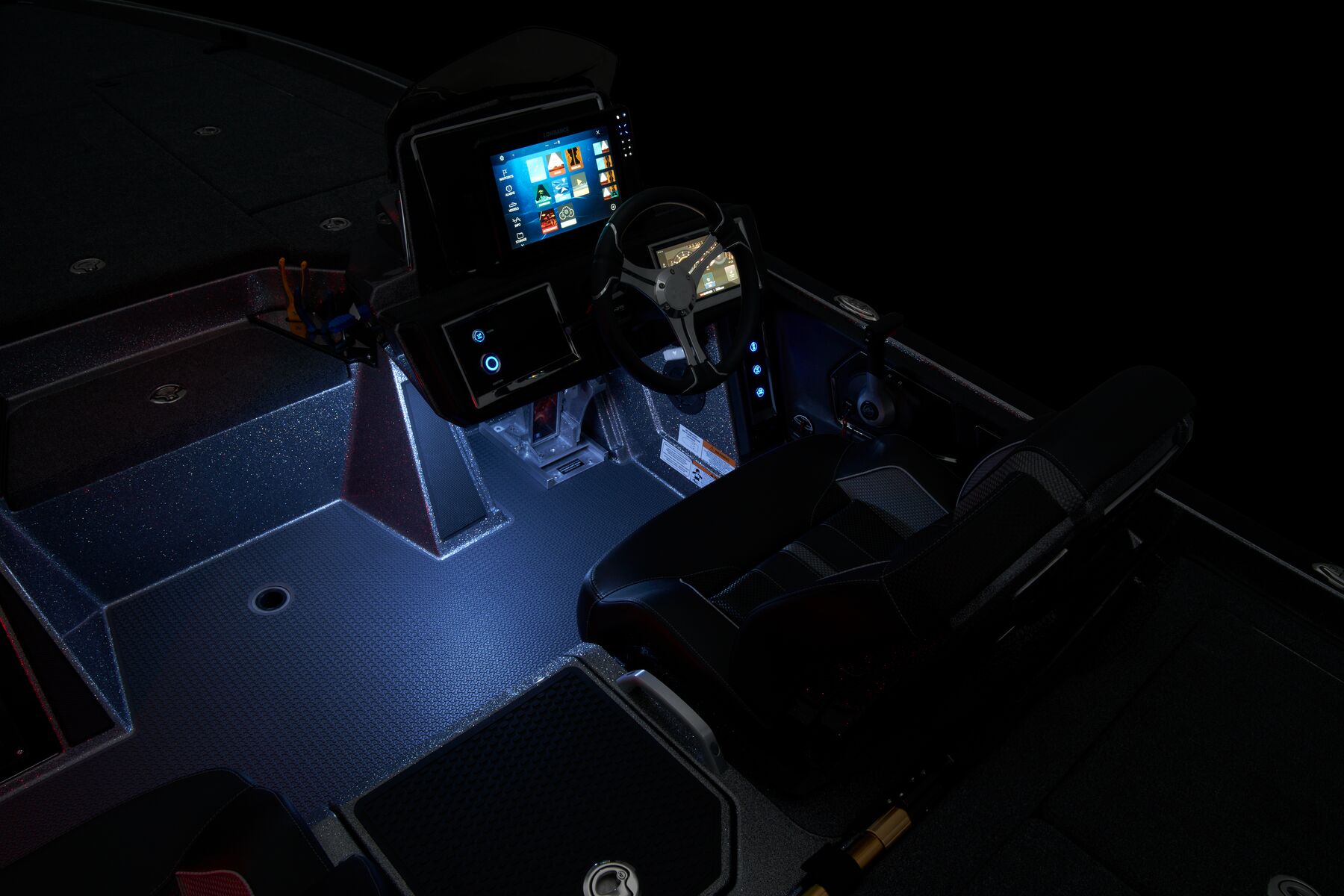

  • Auto-on LED storage compartment lighting & LED courtesy & livewell lighting

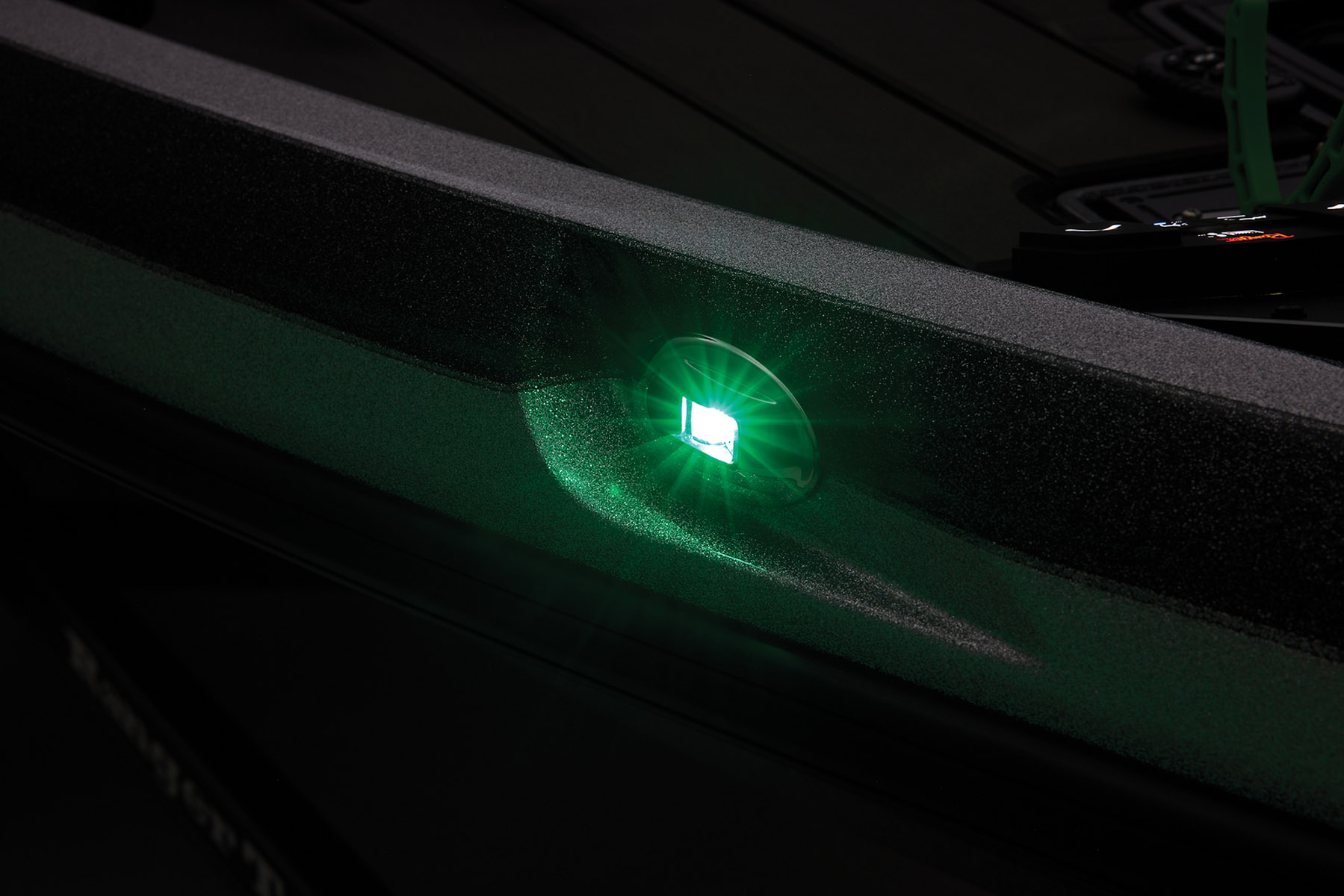

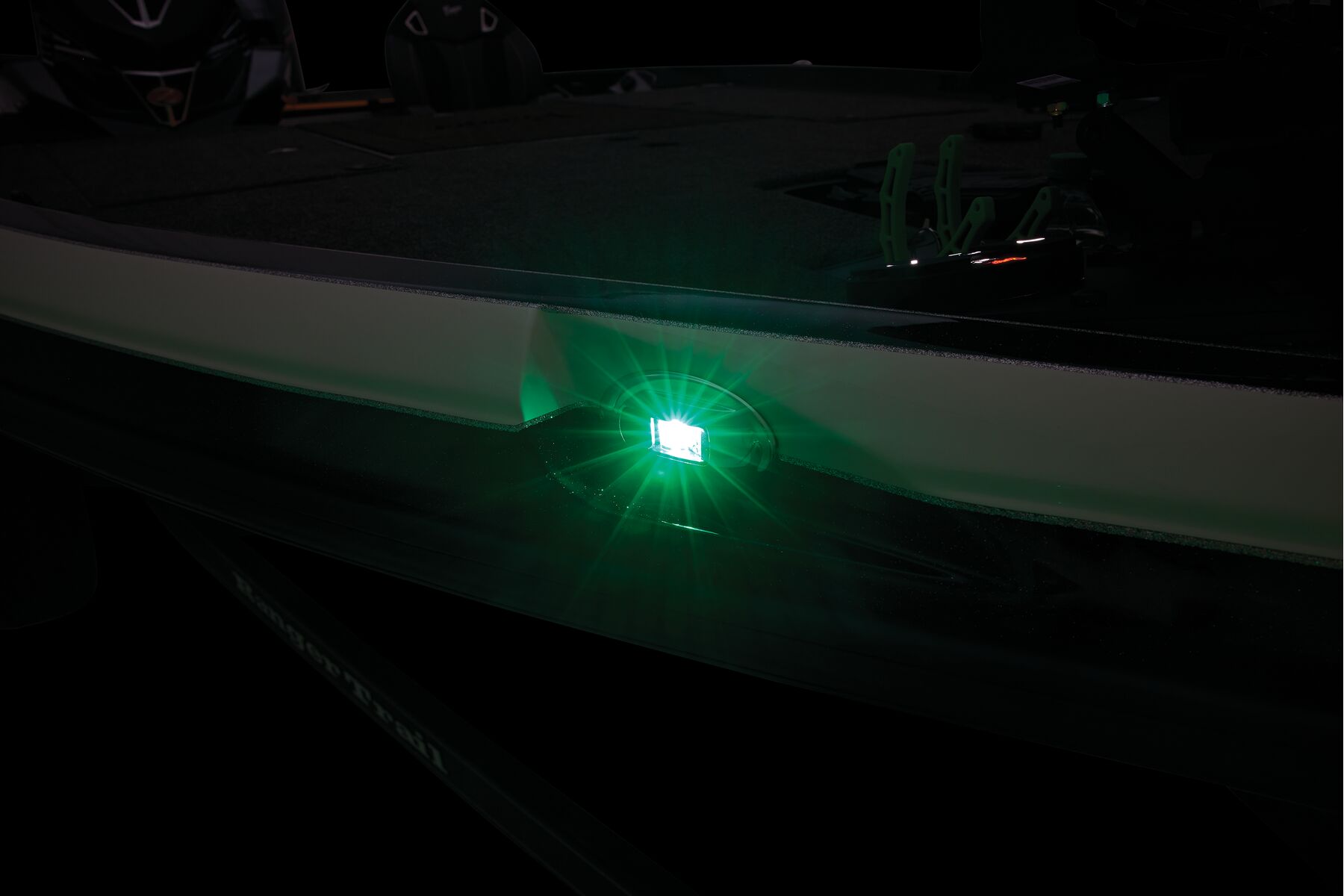

  • Integrated LED bow navigation lights & removable LED anchor light

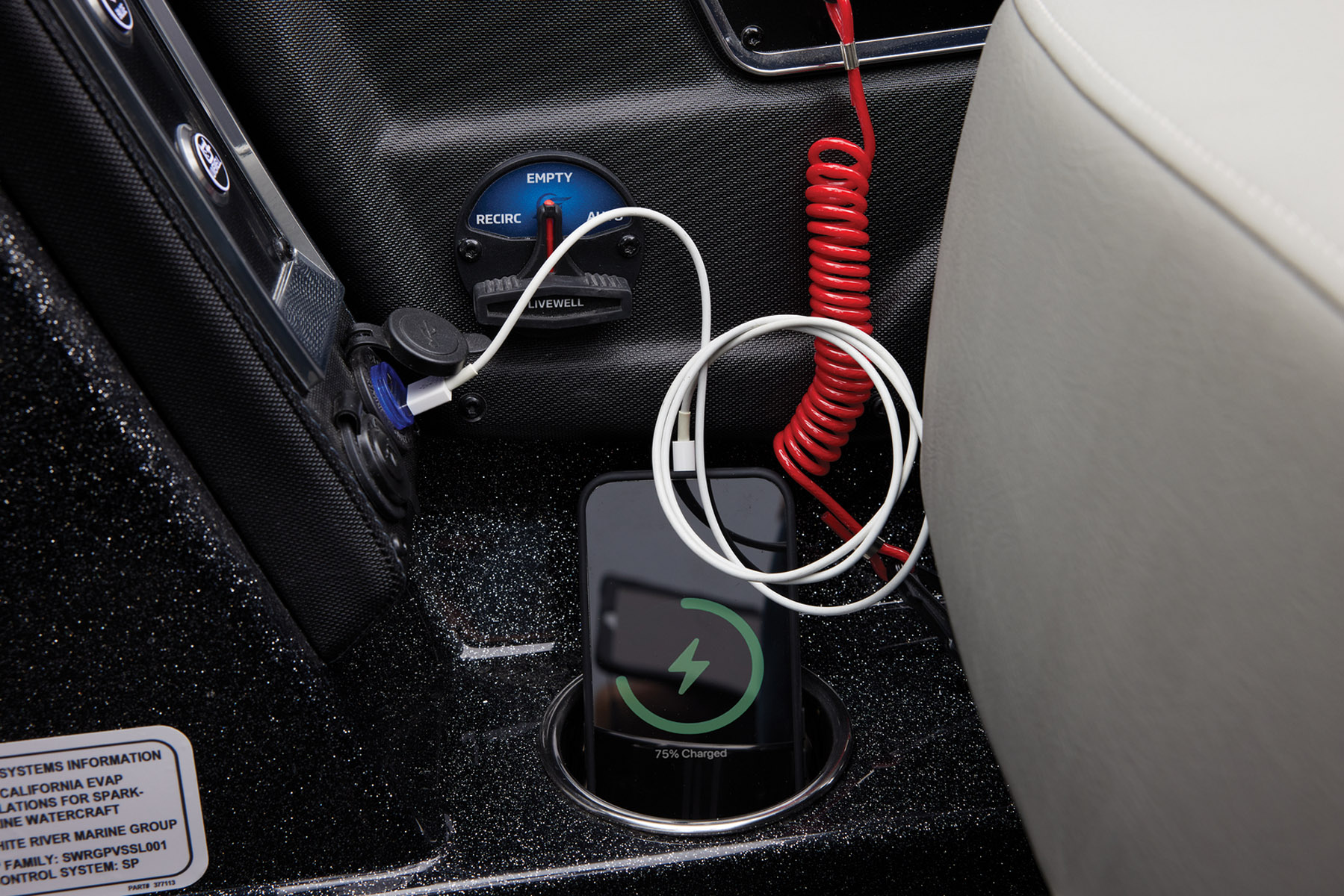

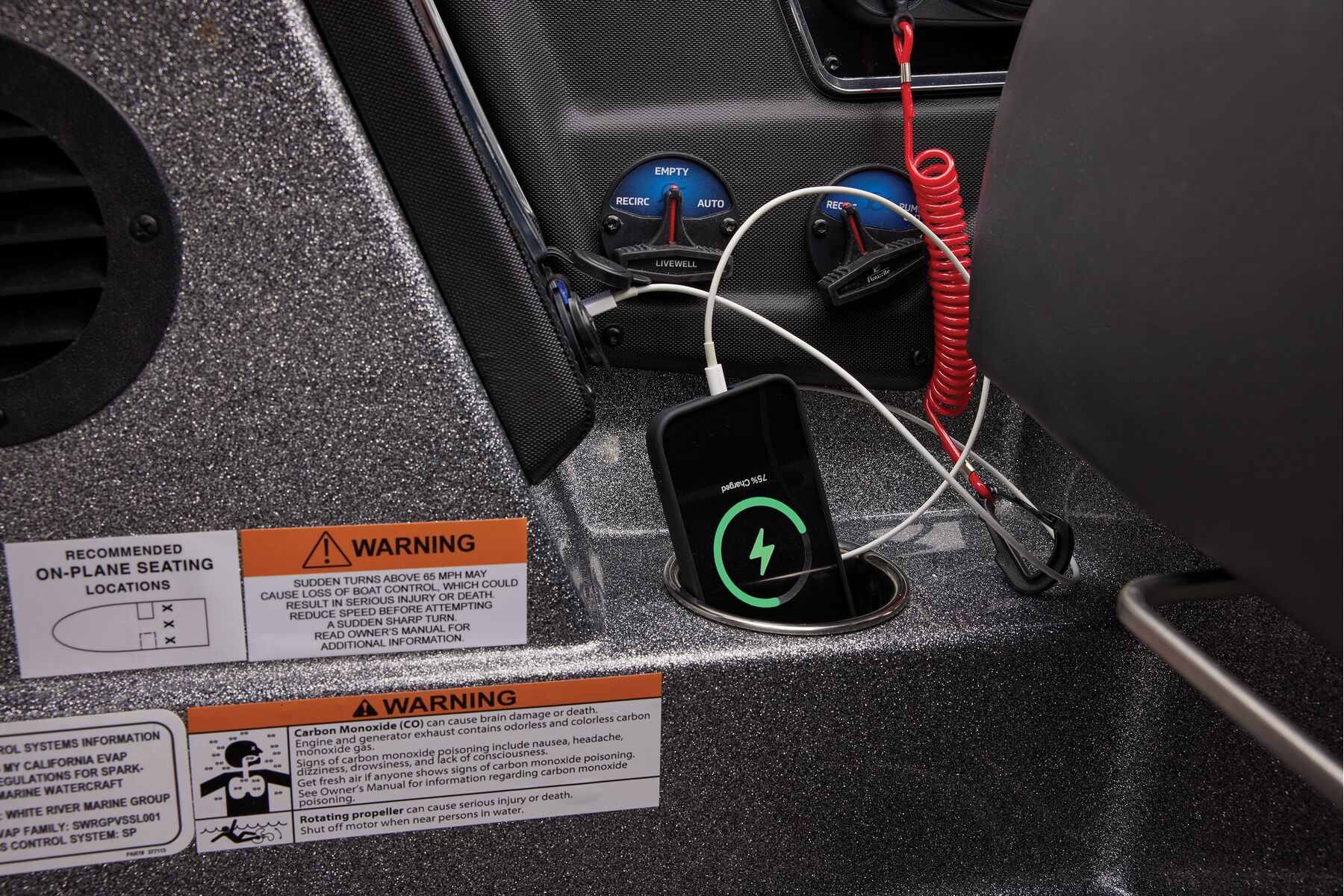

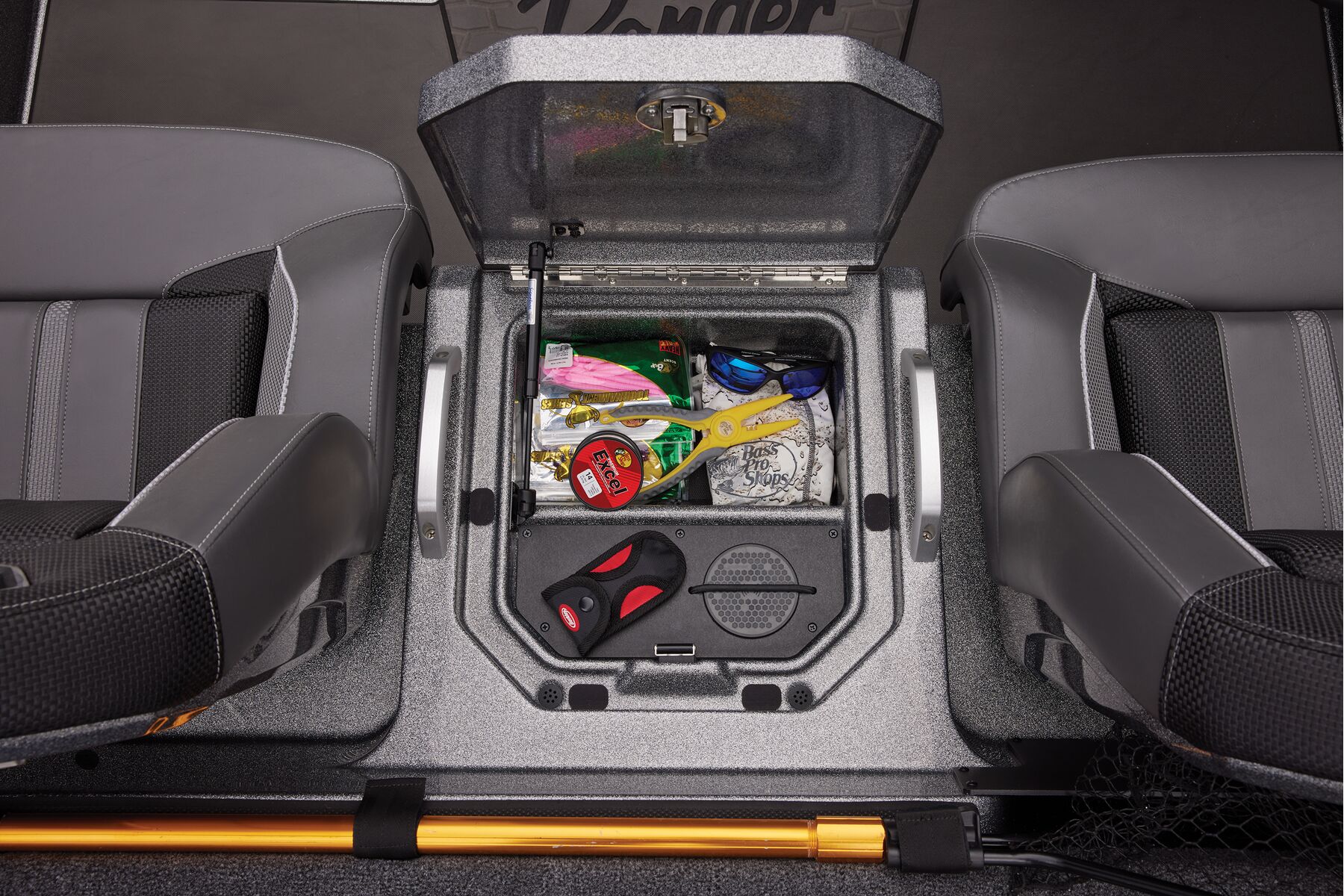

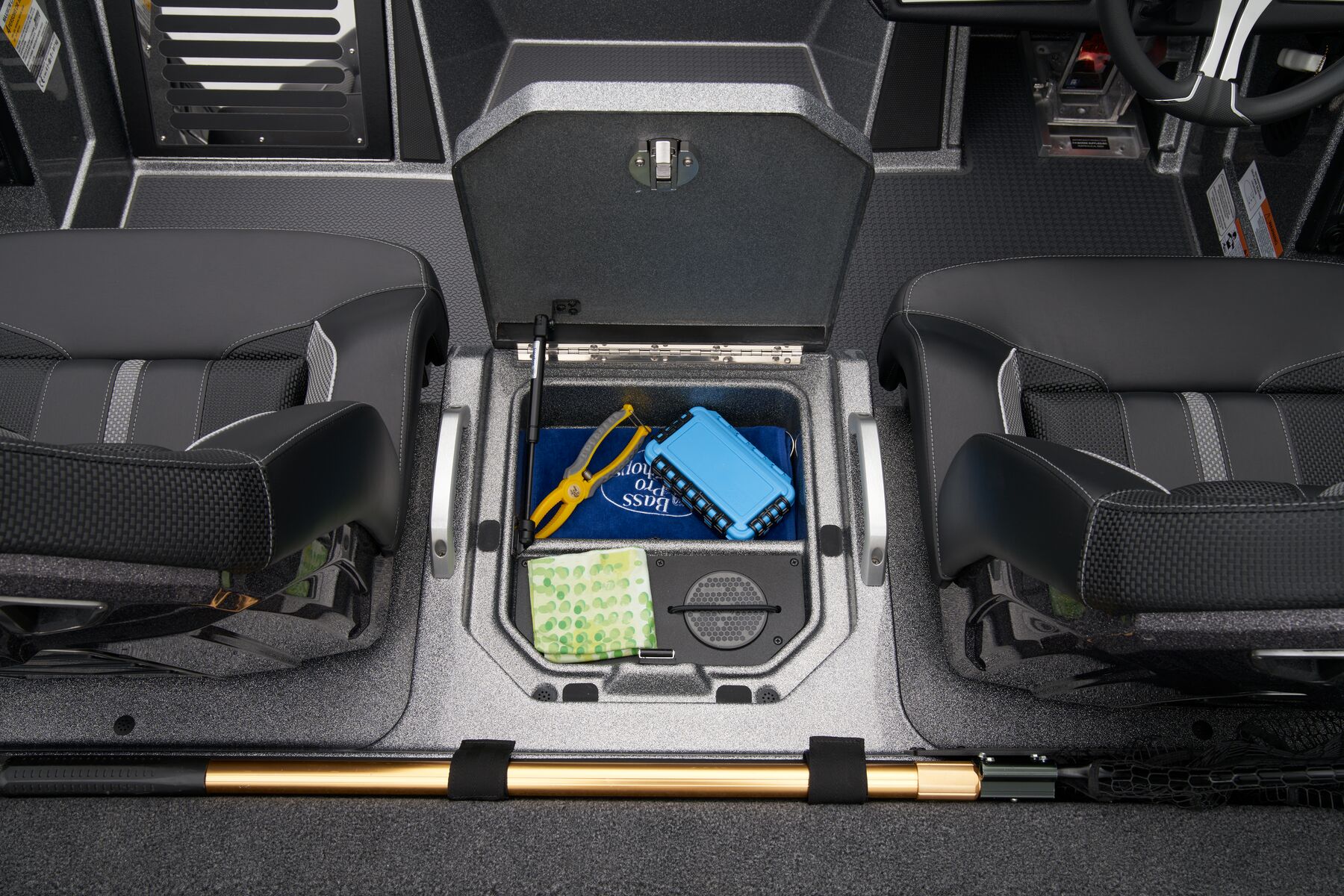

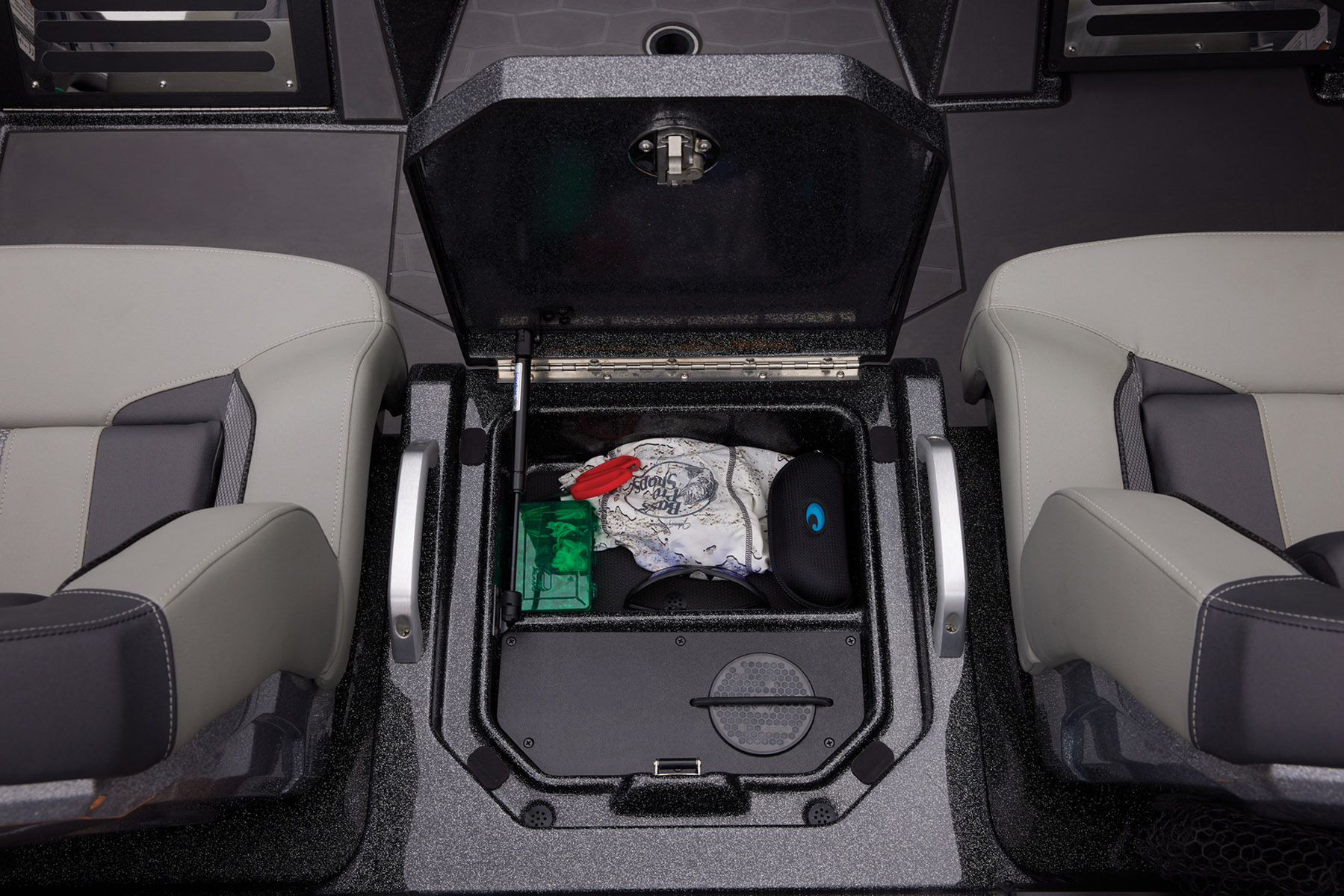

  • Wireless charging station in Coin Box

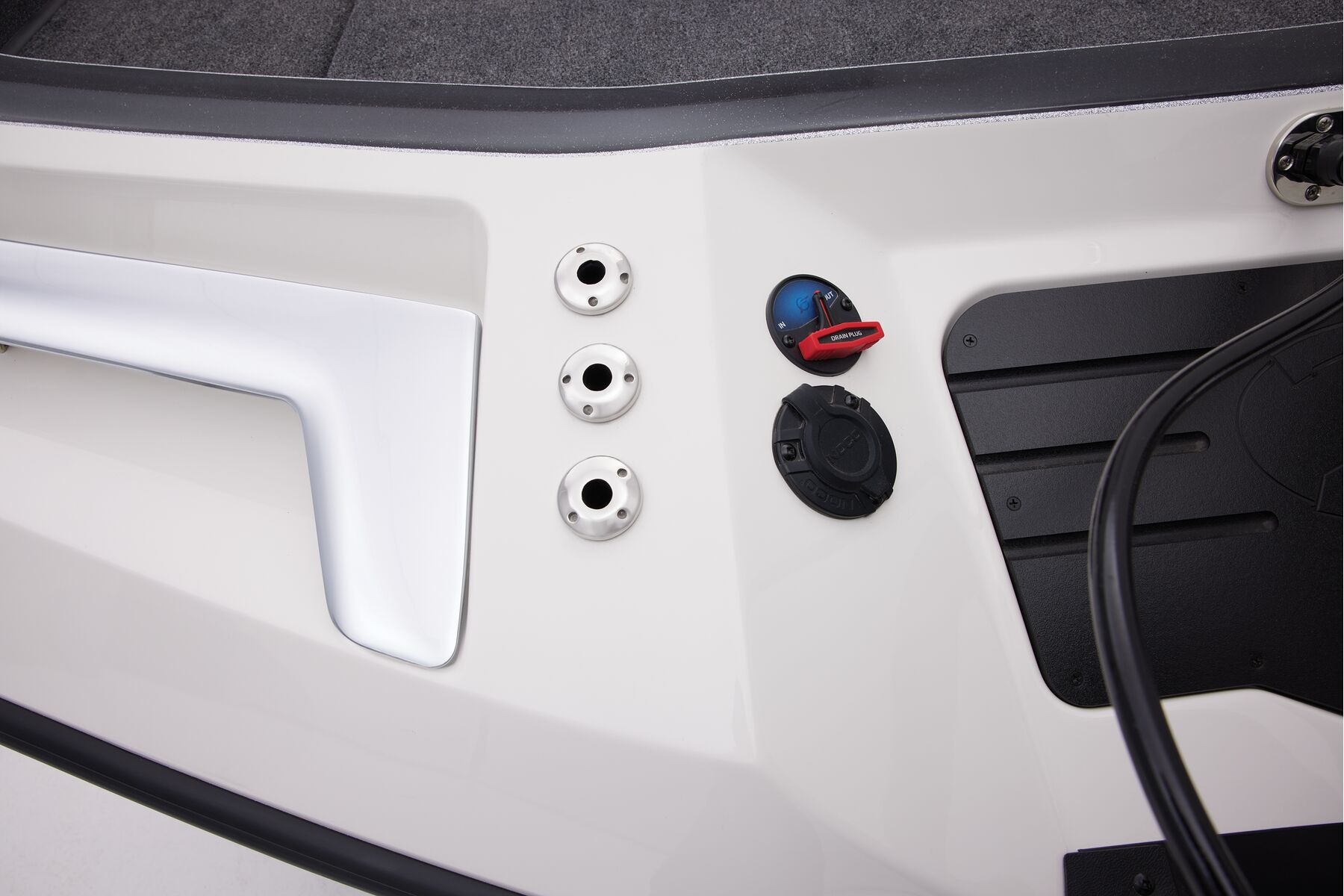

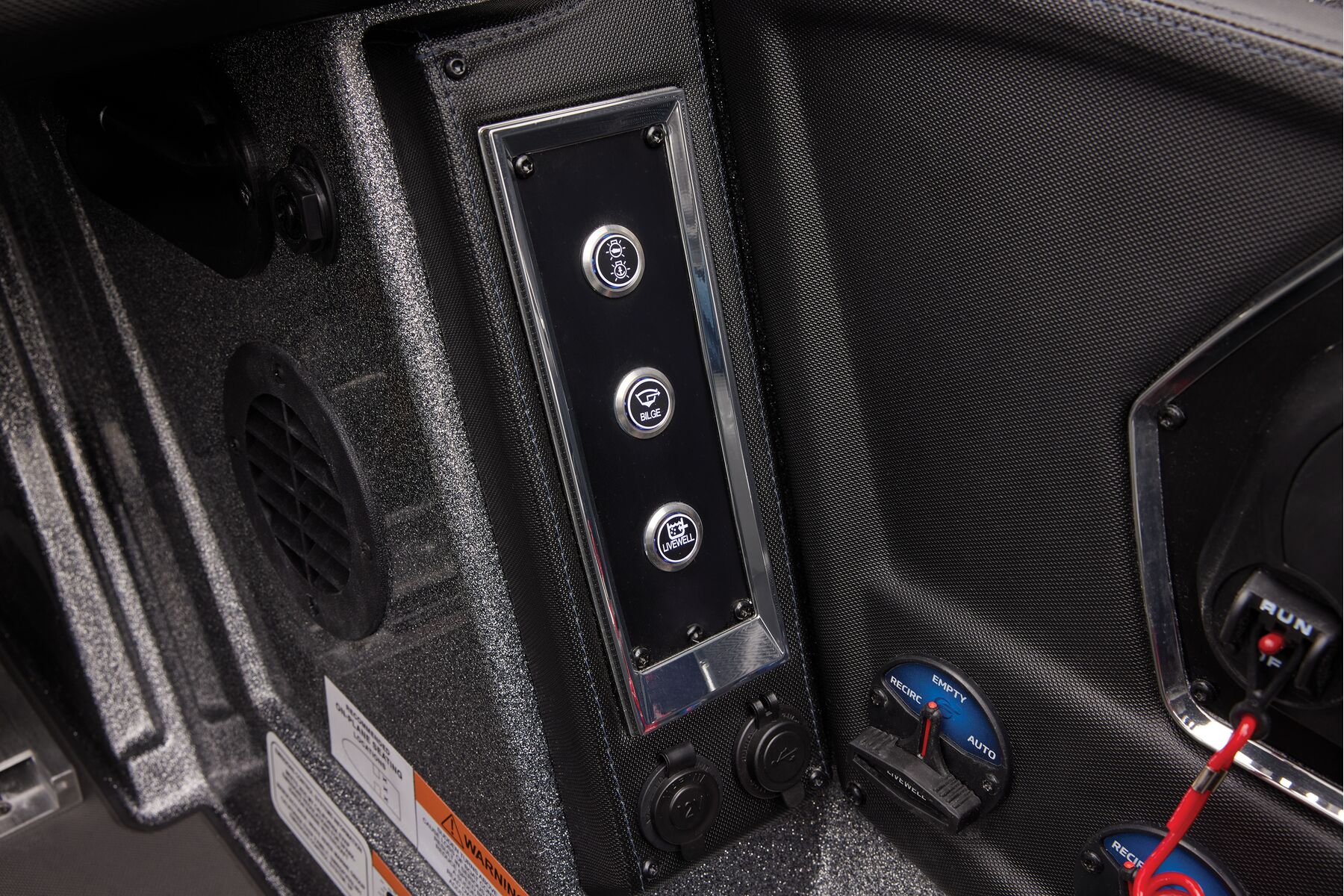

  • 12V DC power receptacle with USB
Power/Performance
  • Ranger Cup Equipped Trolling Motor (see RCE)

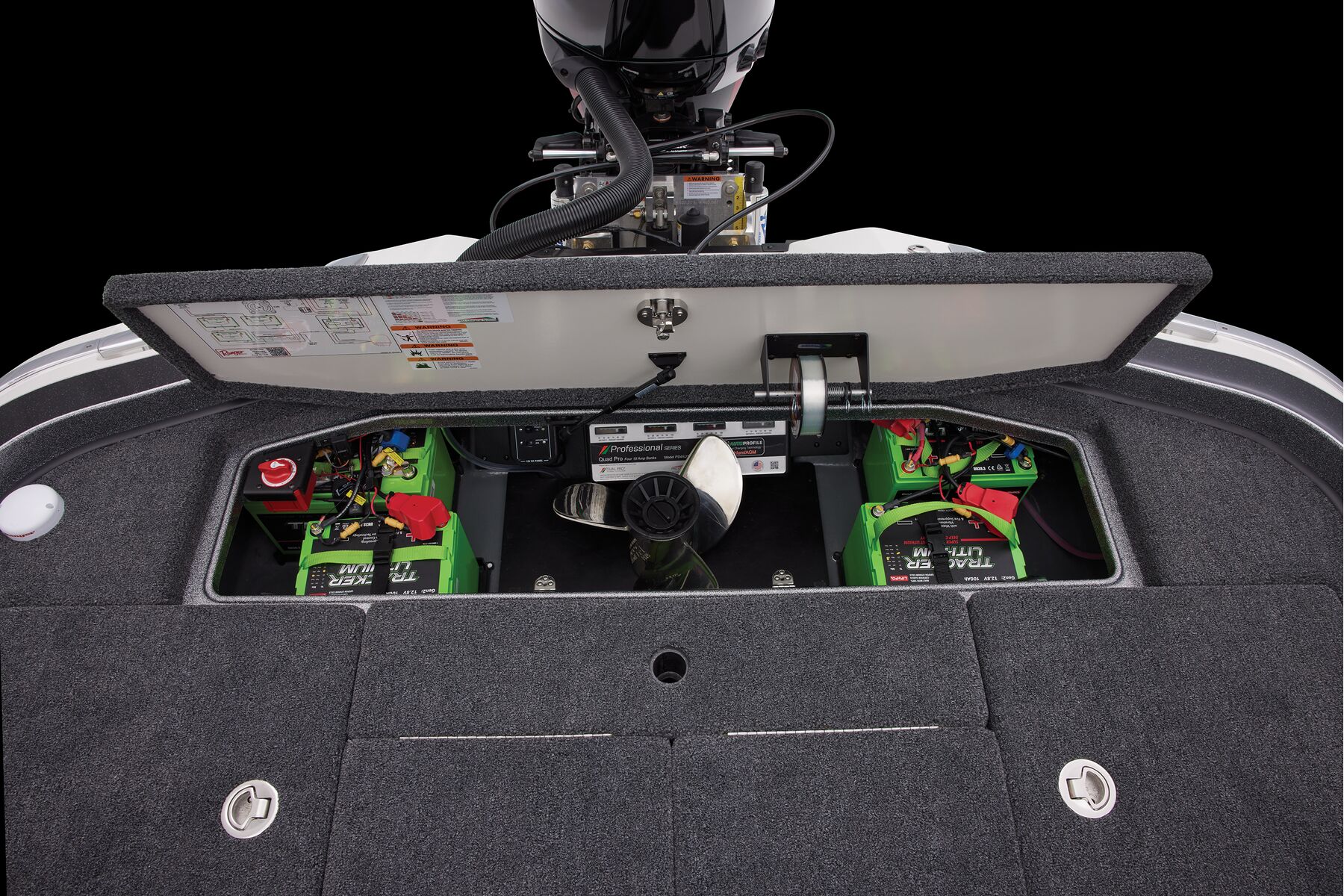

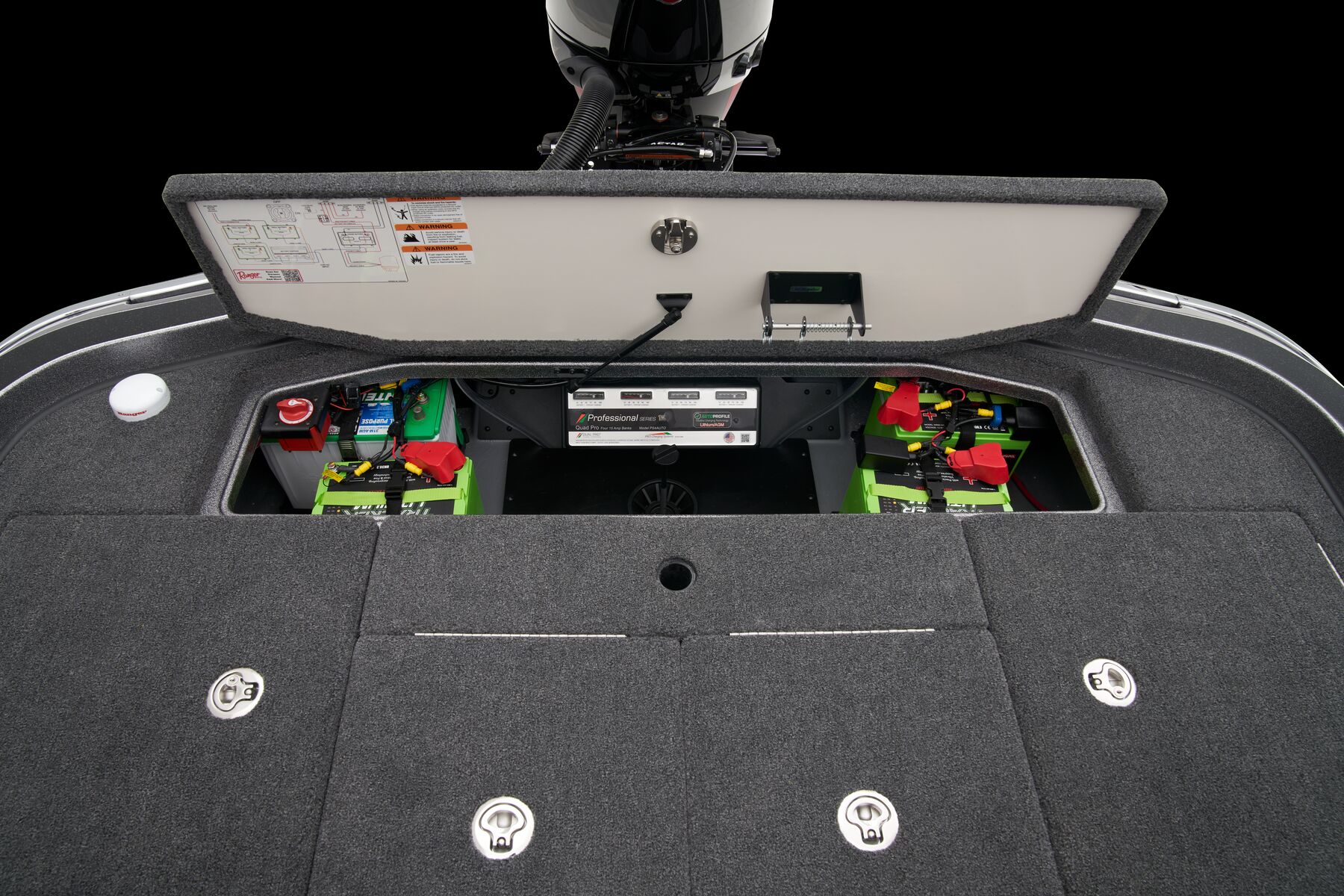

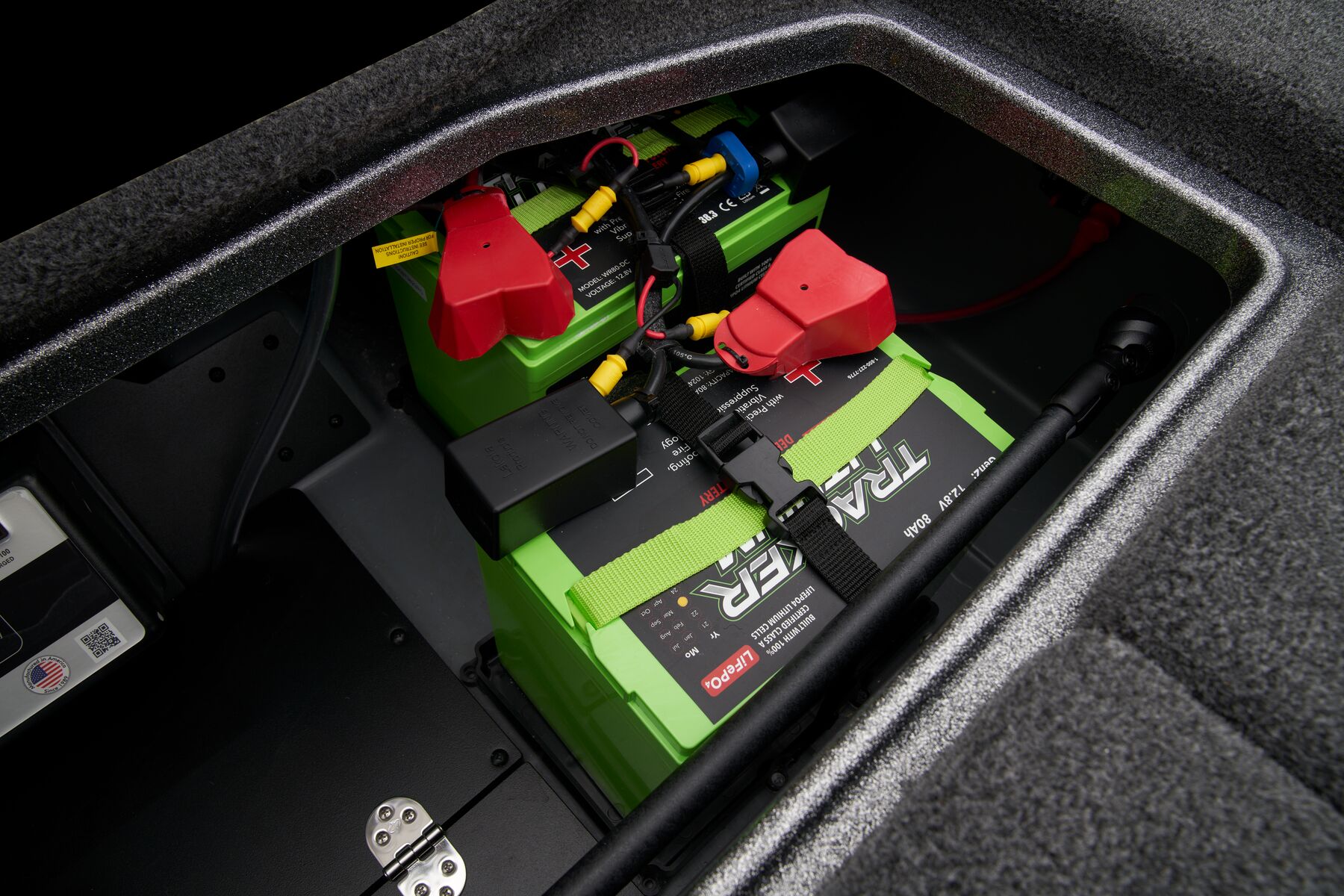

  • (3) 80AH Lithium trolling batteries w/trays
  • AGM starting battery w/ tray

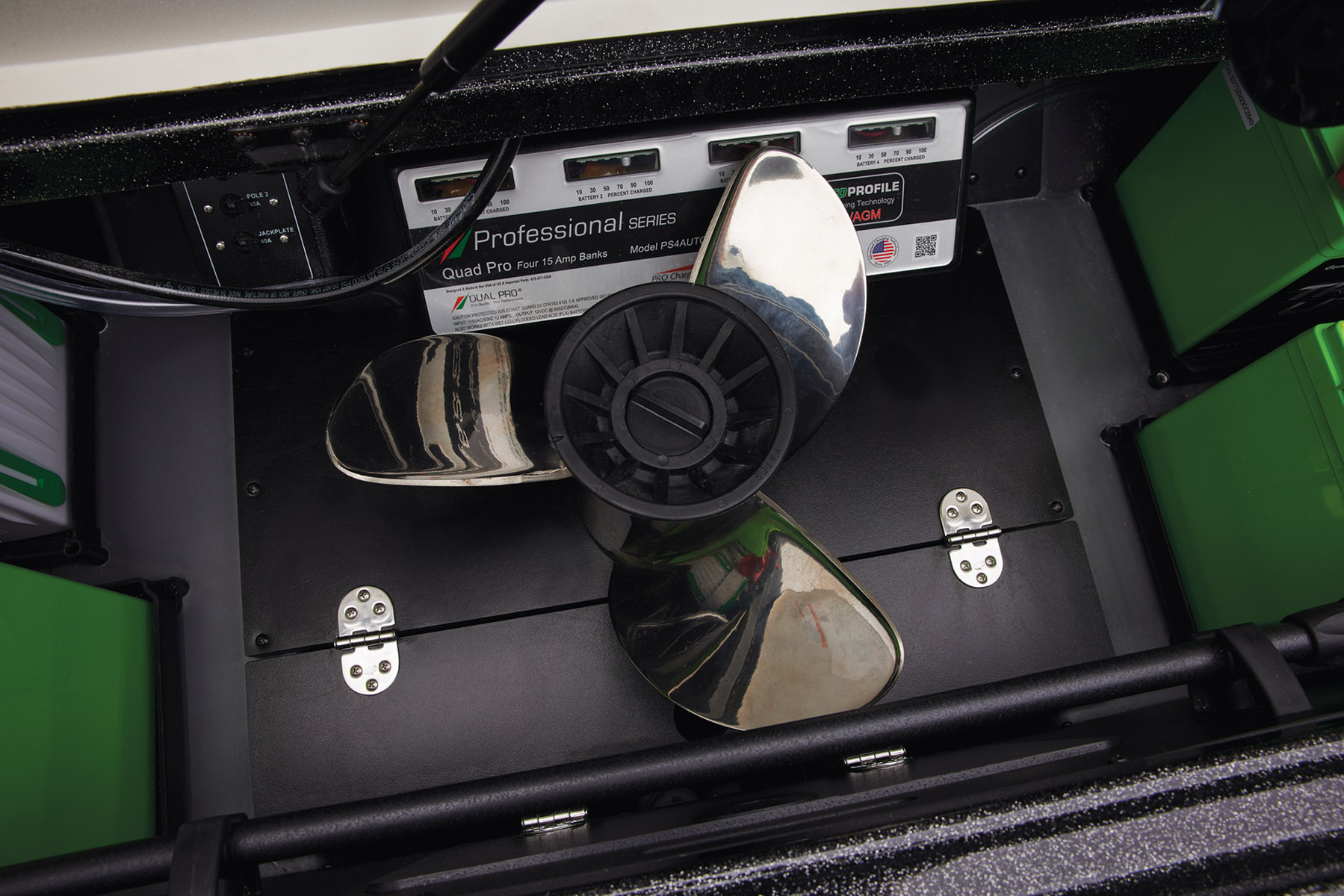

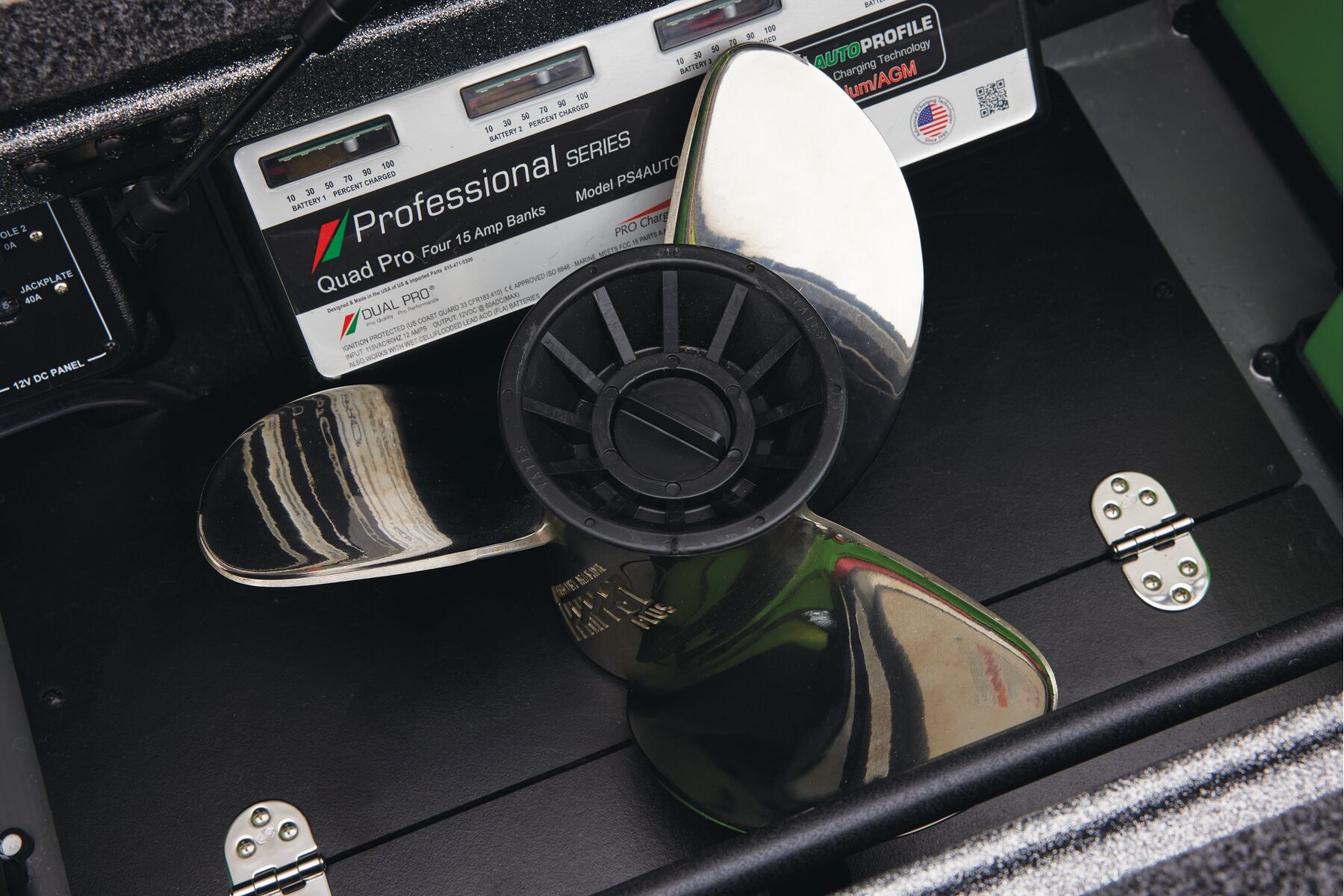

  • Dual Pro™ on-board charger, 15A x 4 bank w/auto-detect technology & remote charging port
  • One-Piece-Feel Interloc Construction
  • Pultruded fiberglass transom
  • Integrated engine setback

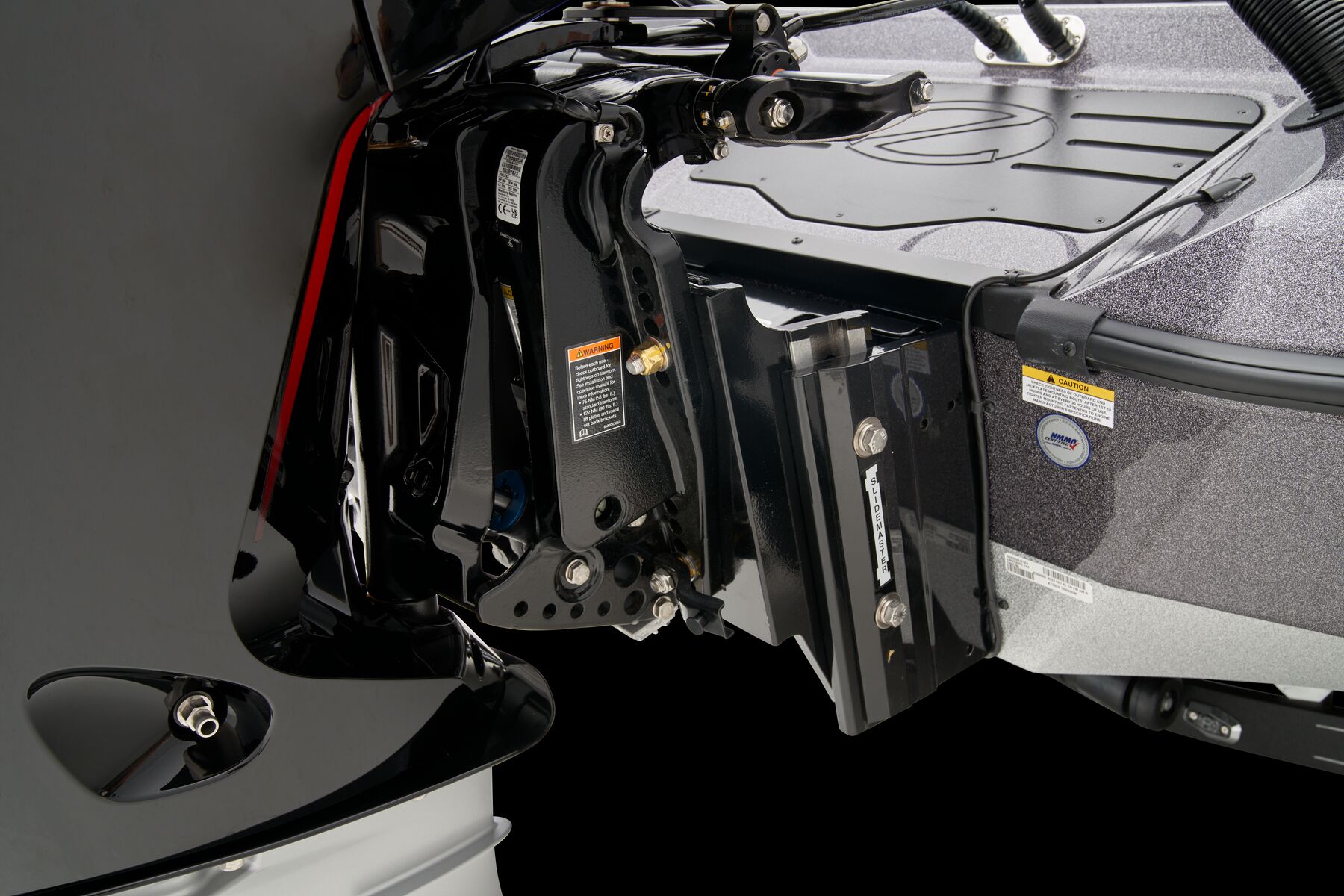

  • 10" manual setback plate
  • Tilt hydraulic steering

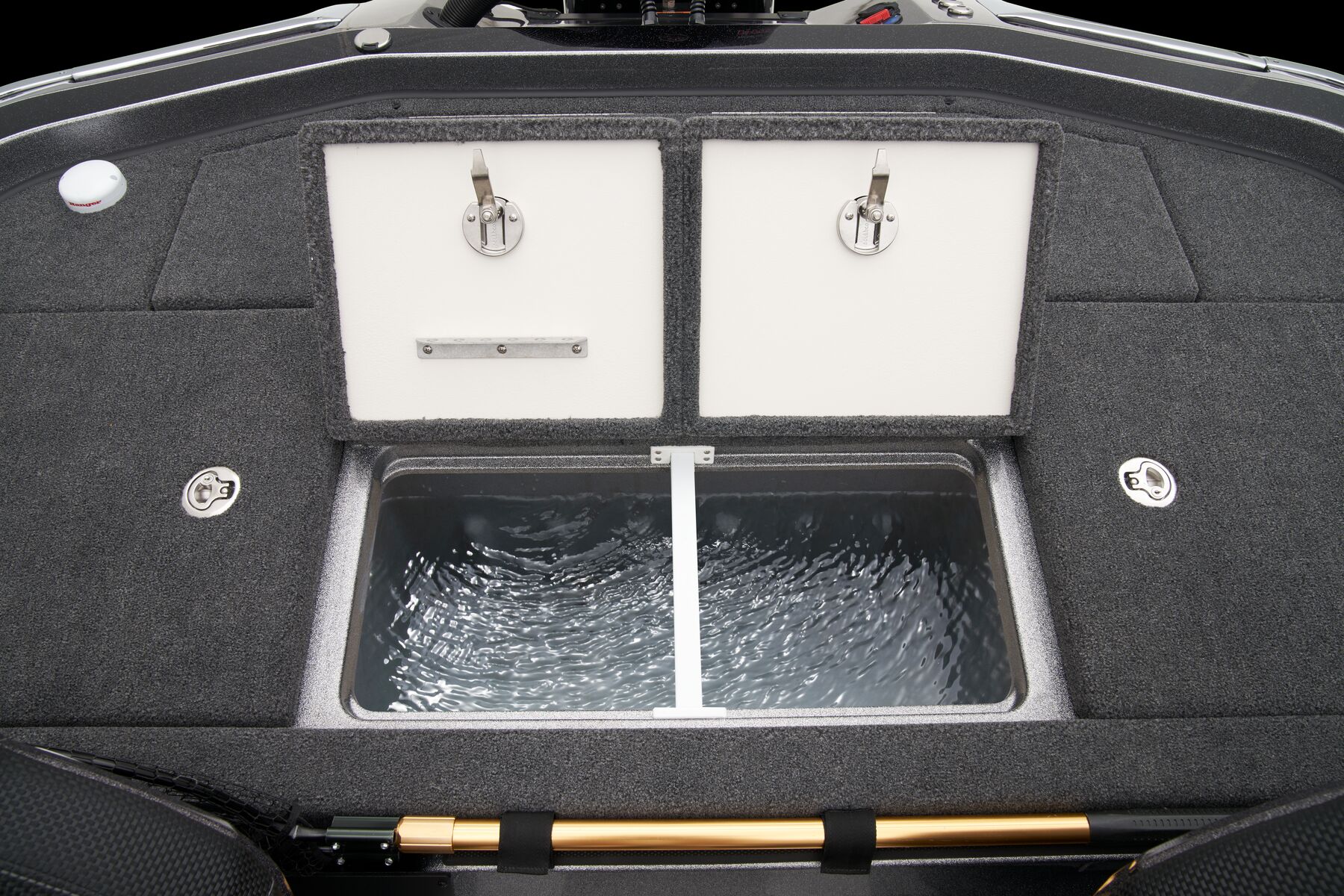

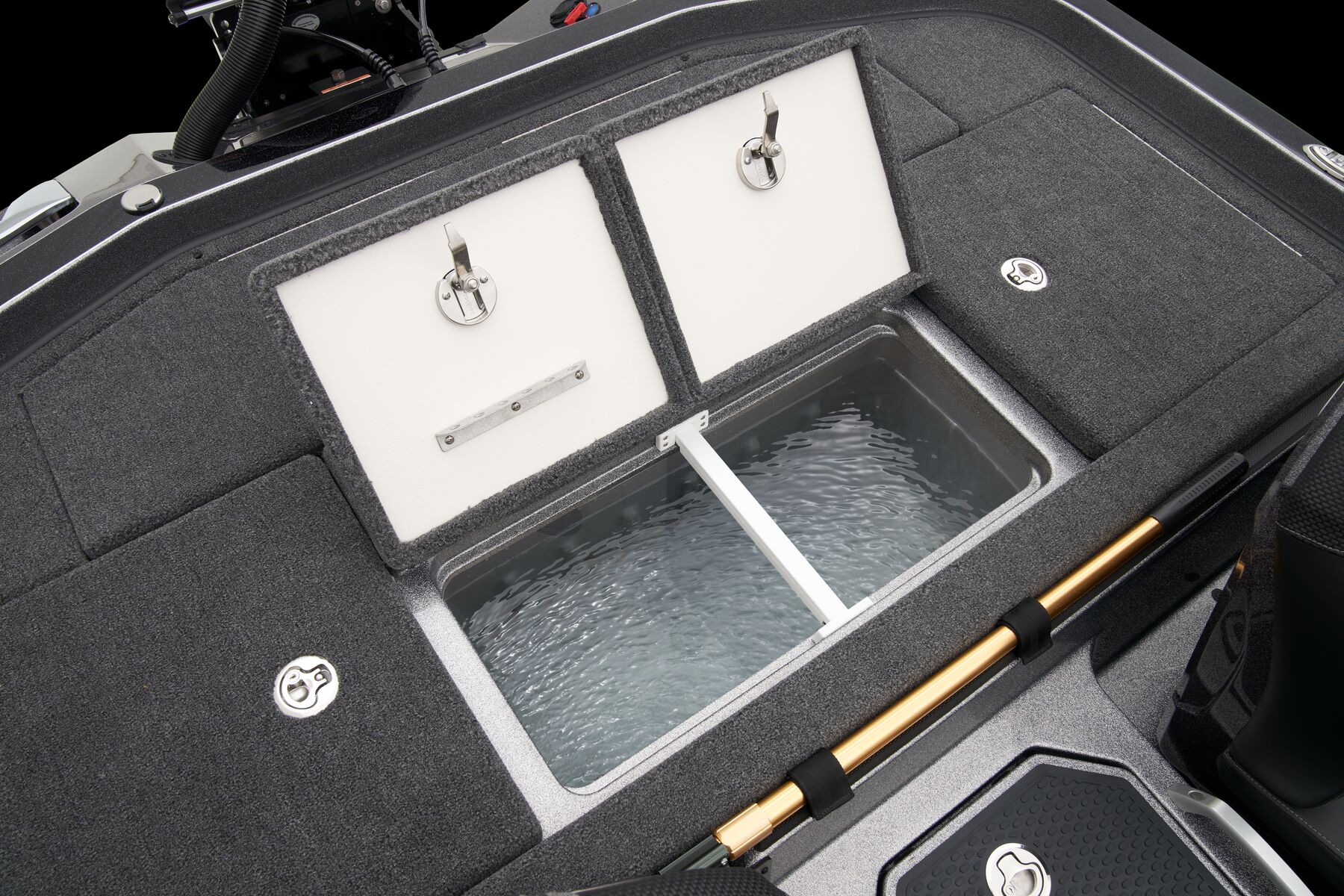

  • Recirculating aerated livewell w/ removable divider & integrated cull tag system
  • Venturi Air & livewell pump-out system

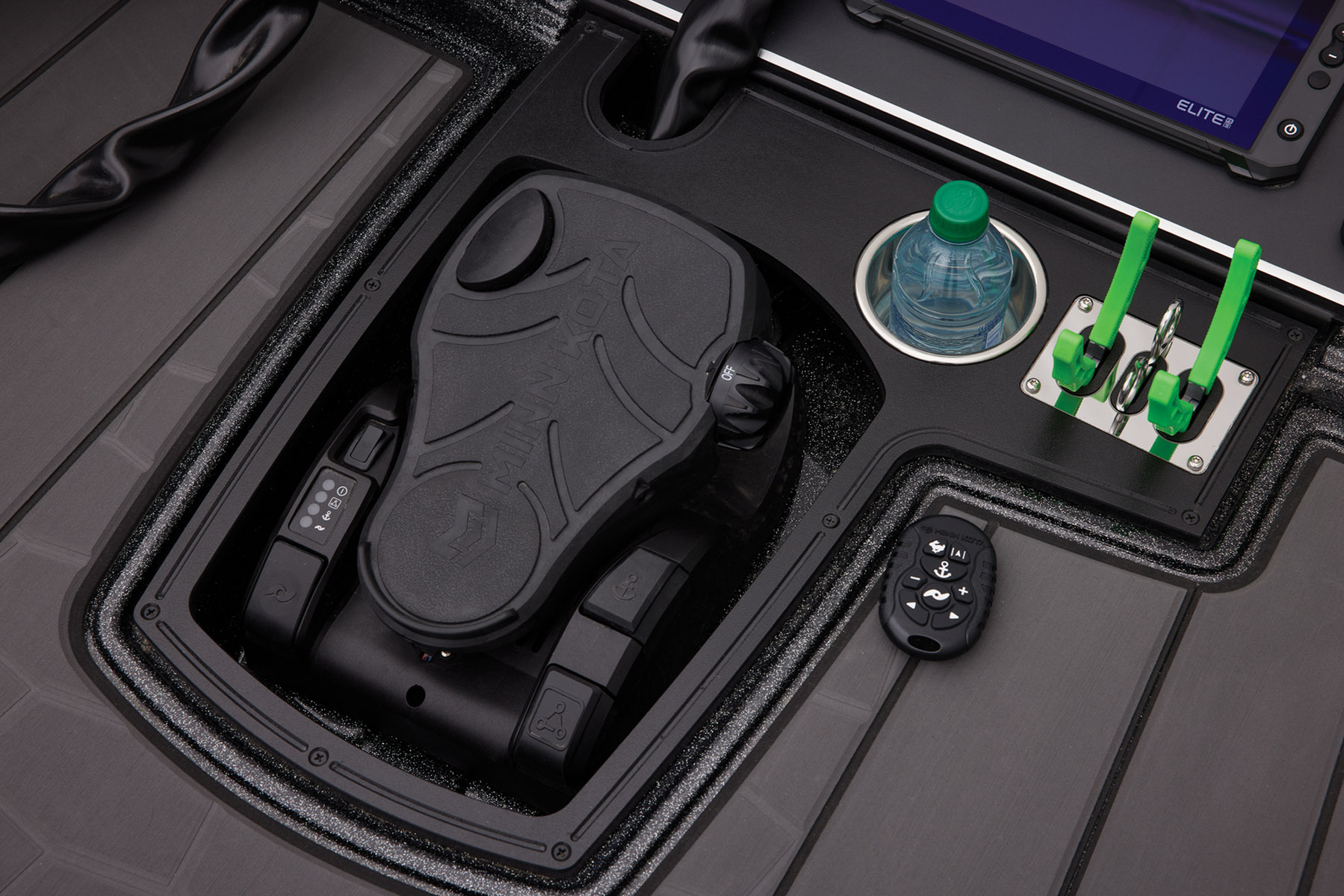

  • Recessed trolling motor foot pedal
  • High performance stainless steel prop
Safety/Comfort
  • Upright Level Flotation exceeding all USCG & NMMA standards
  • Padded front deck

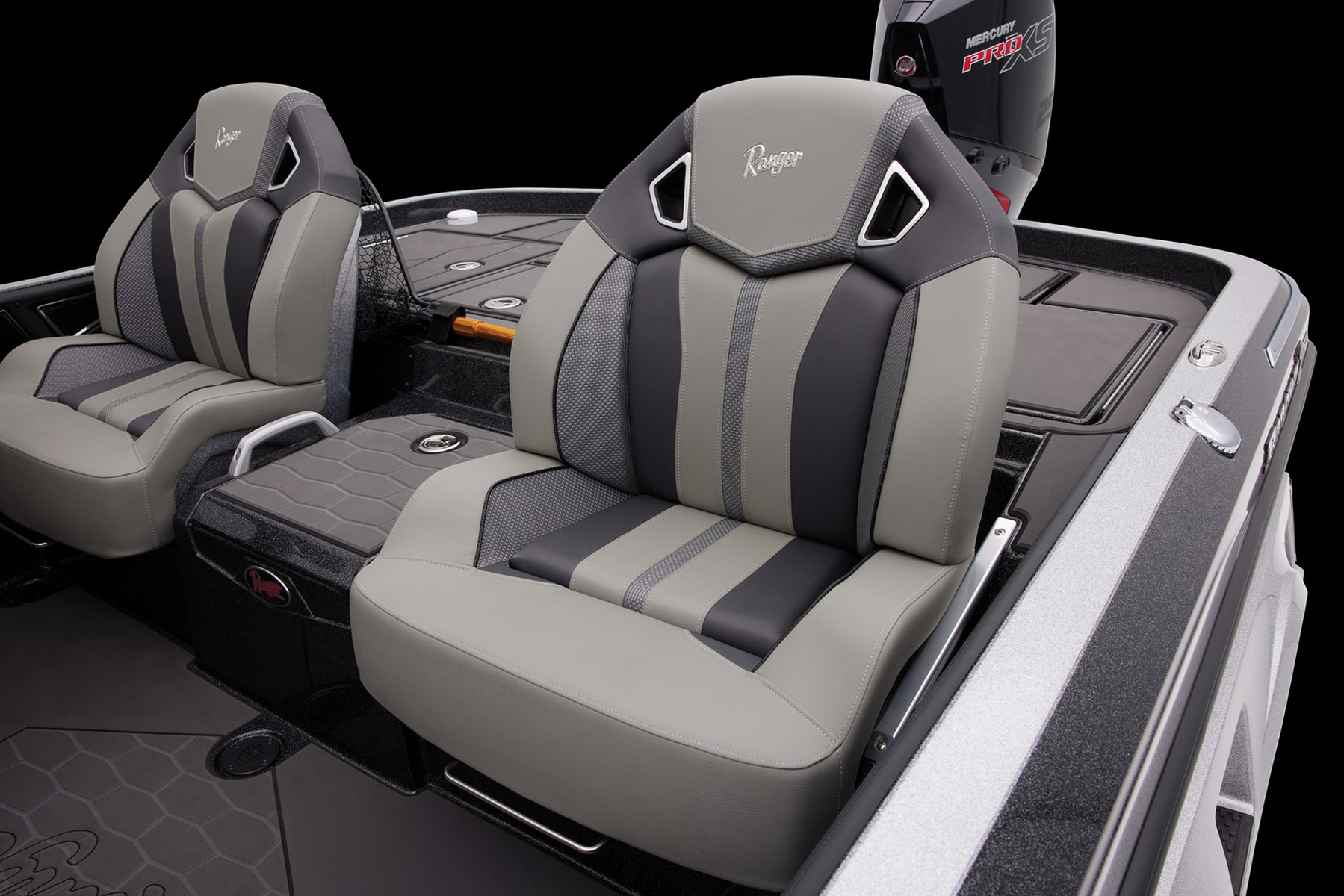

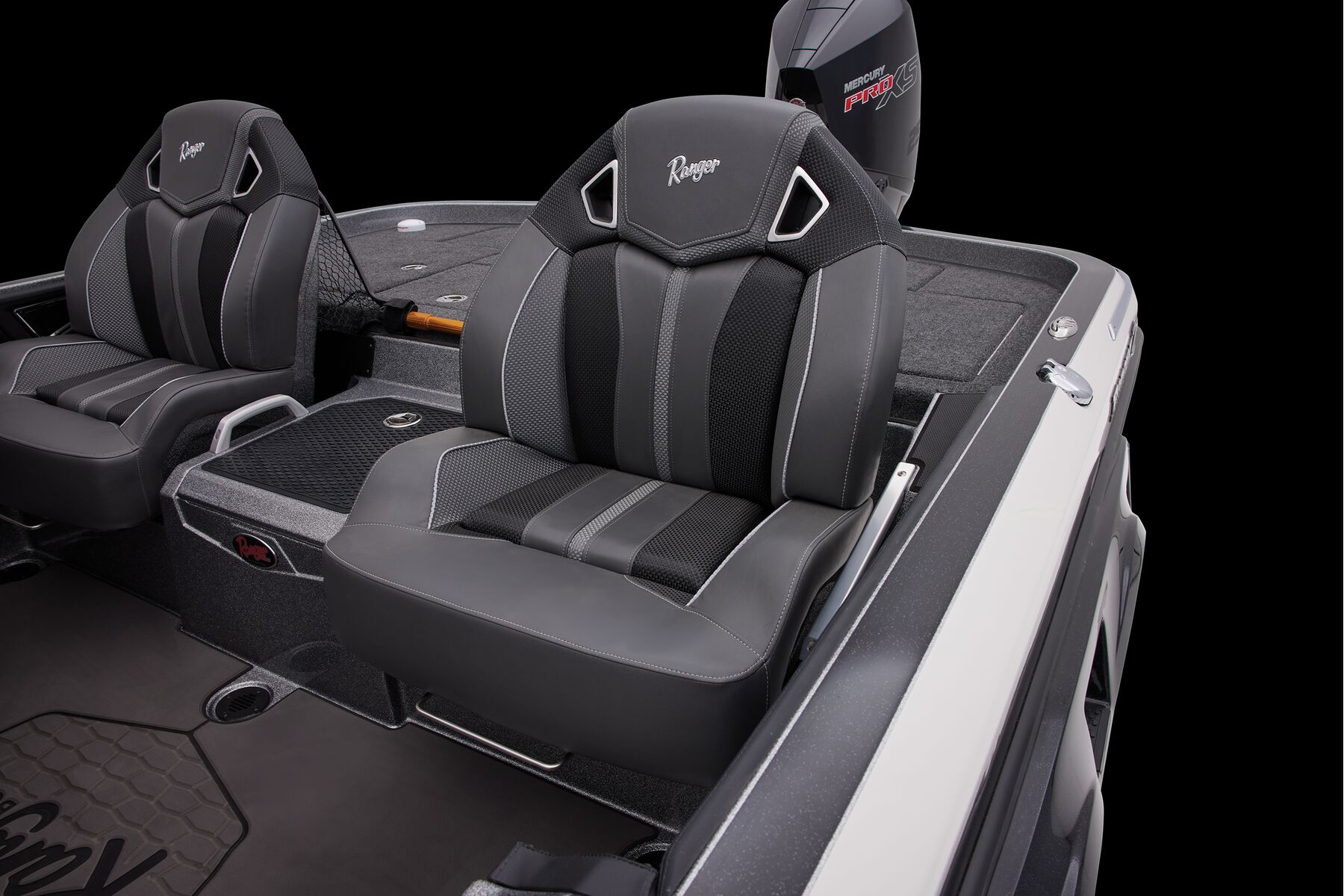

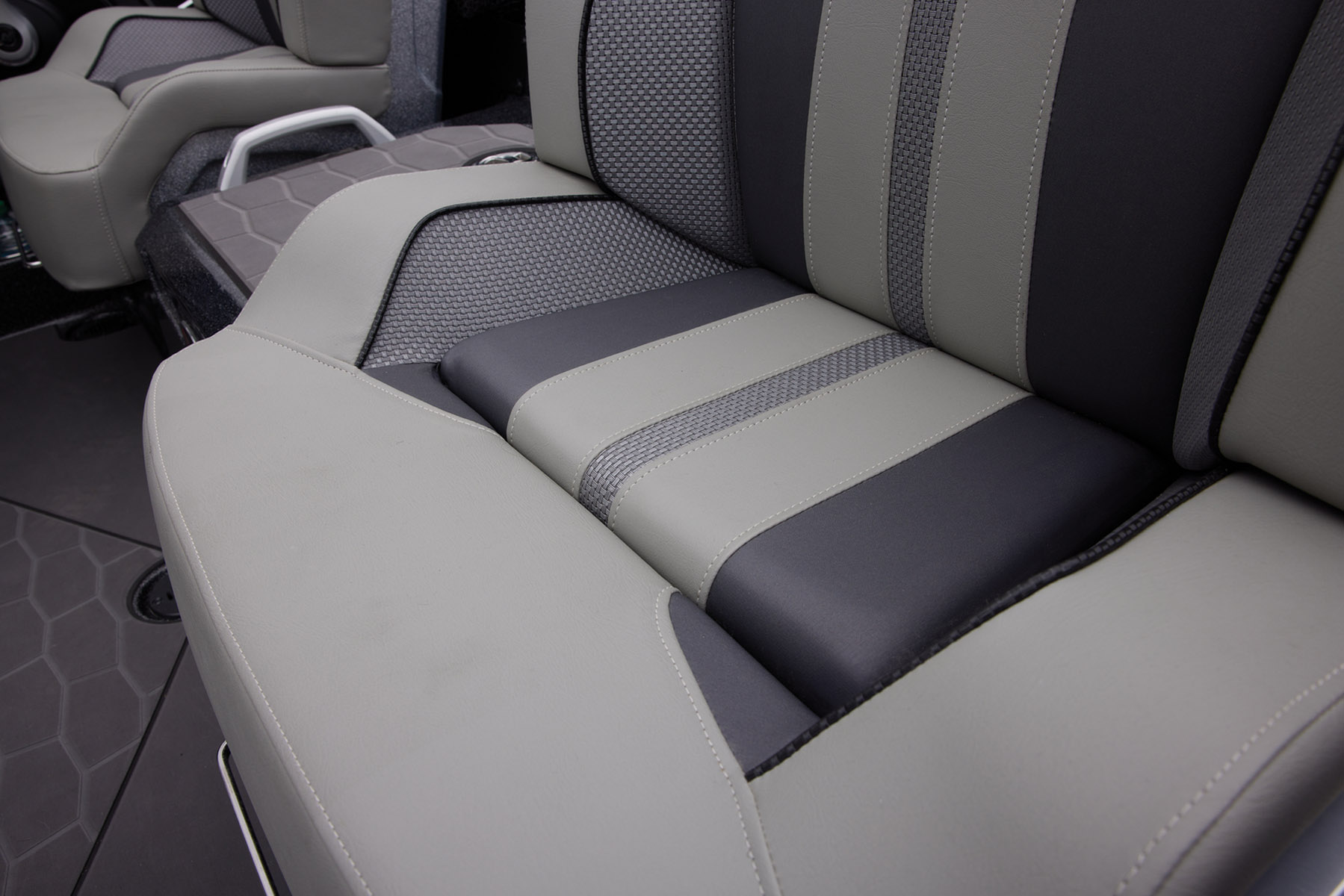

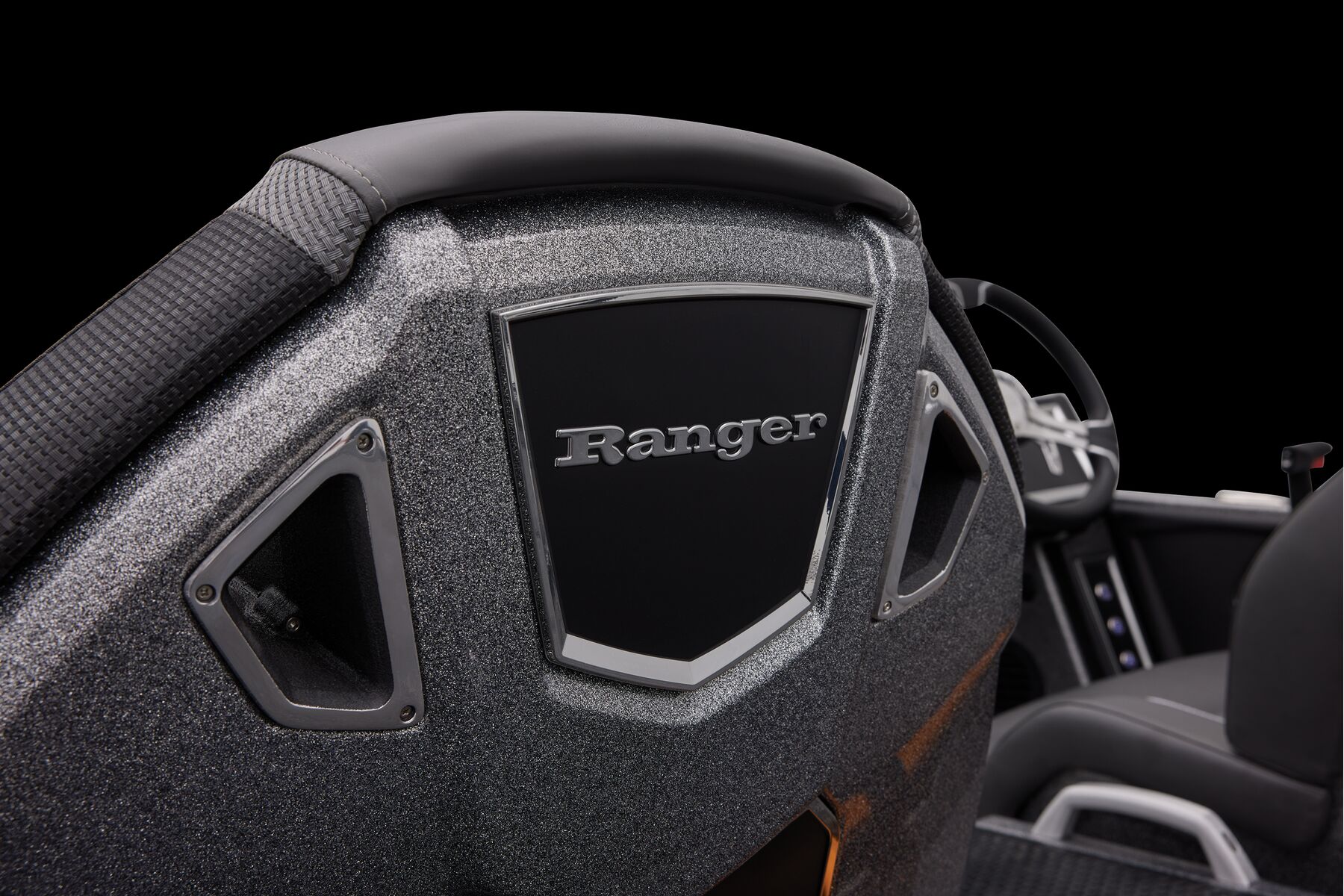

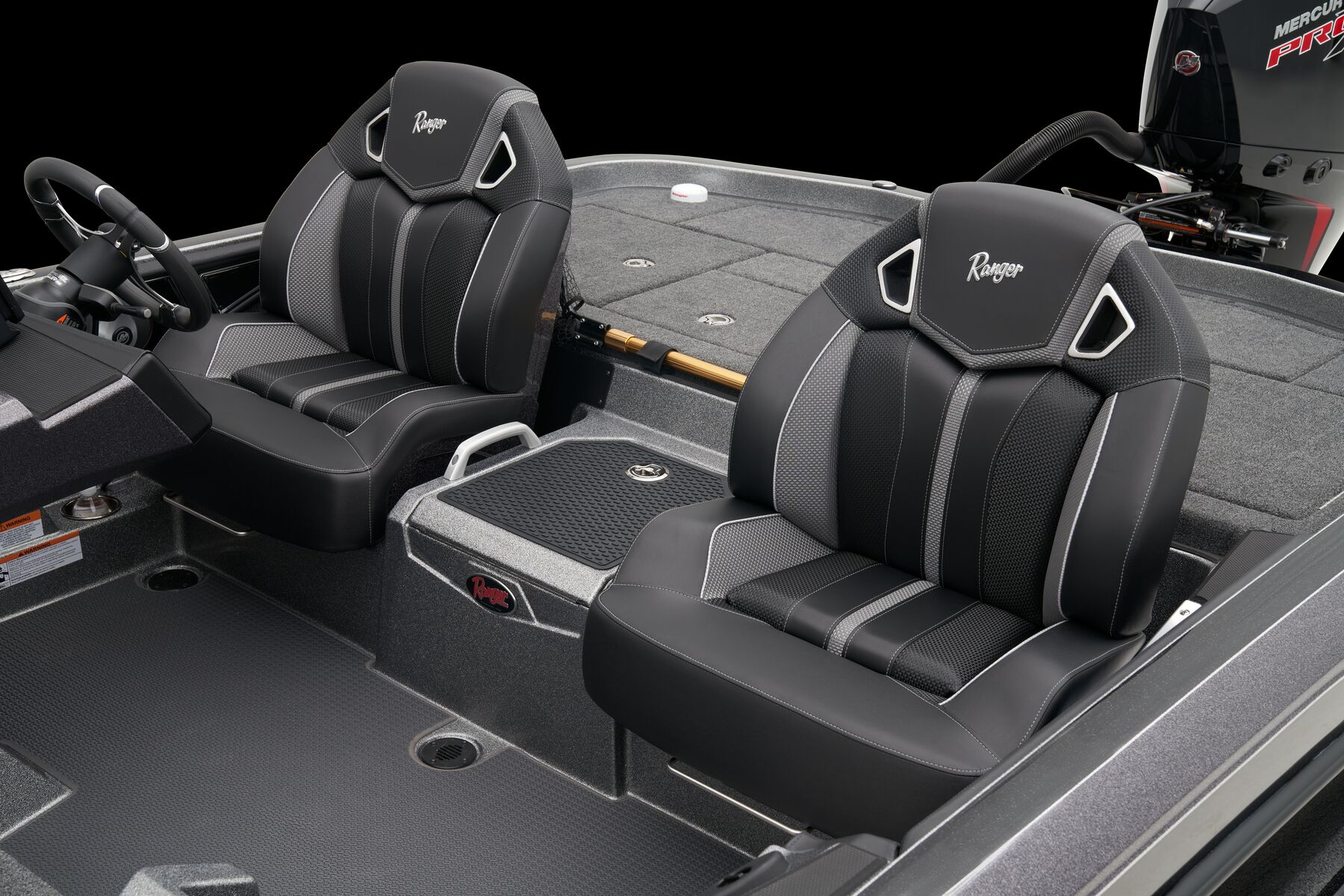

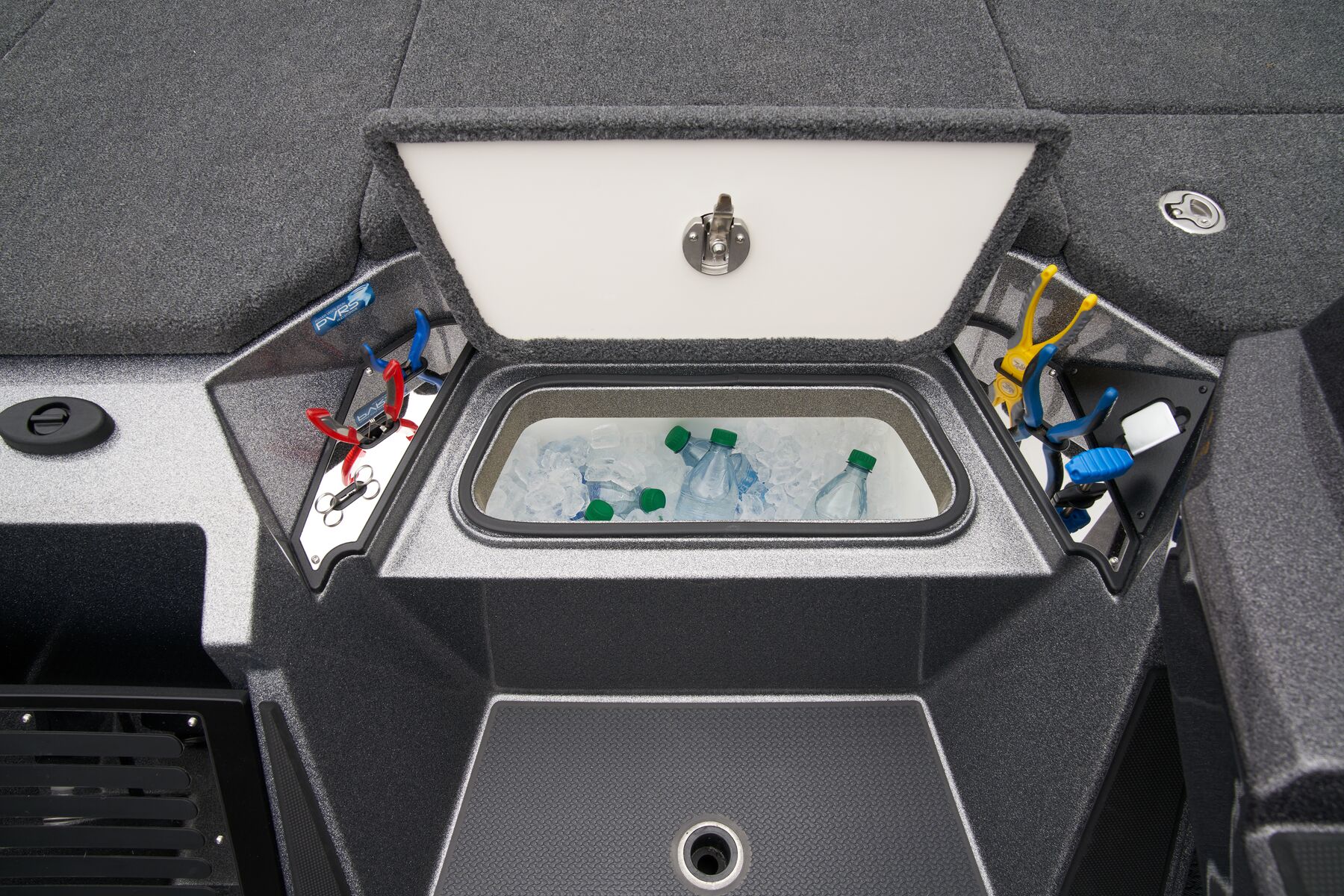

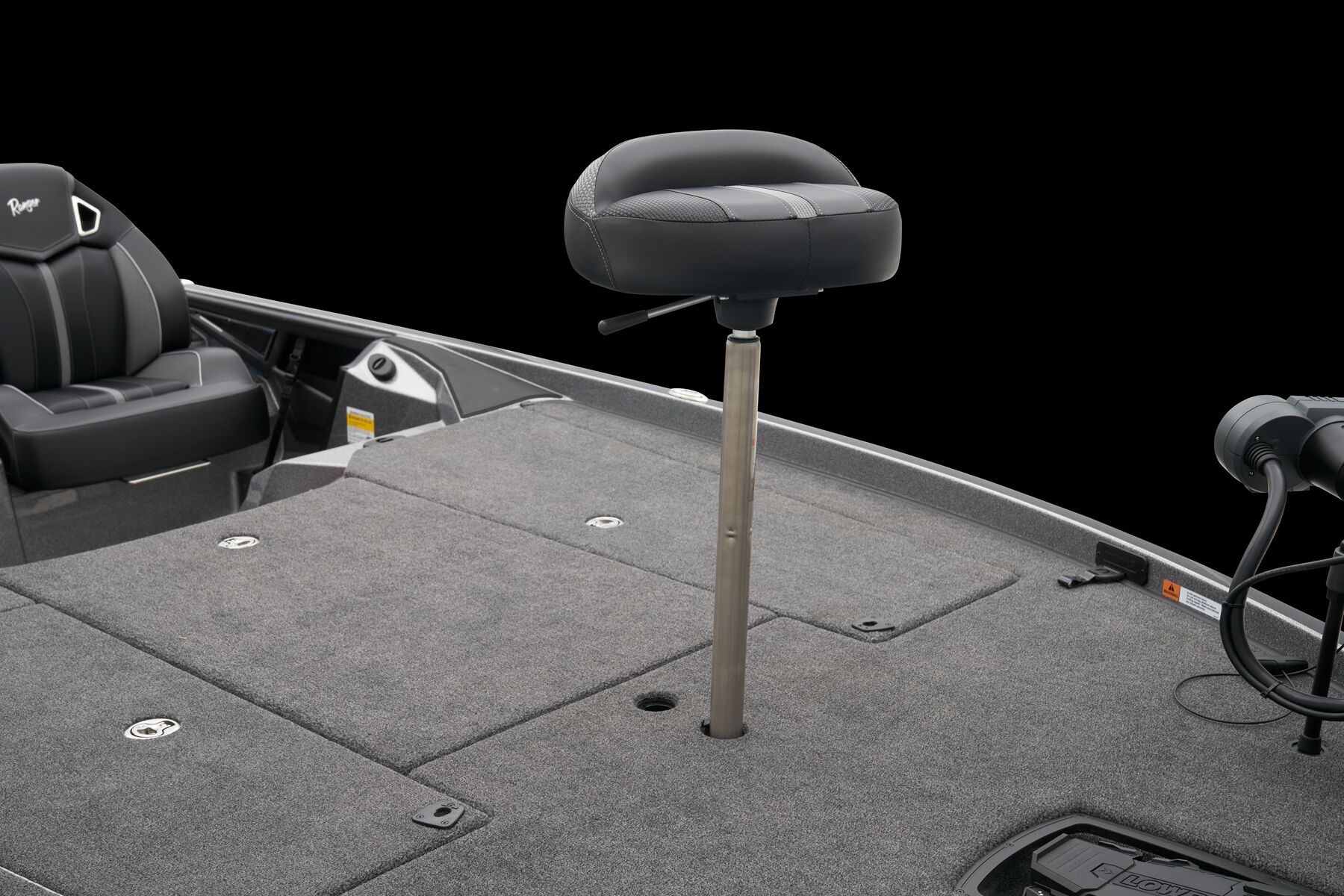

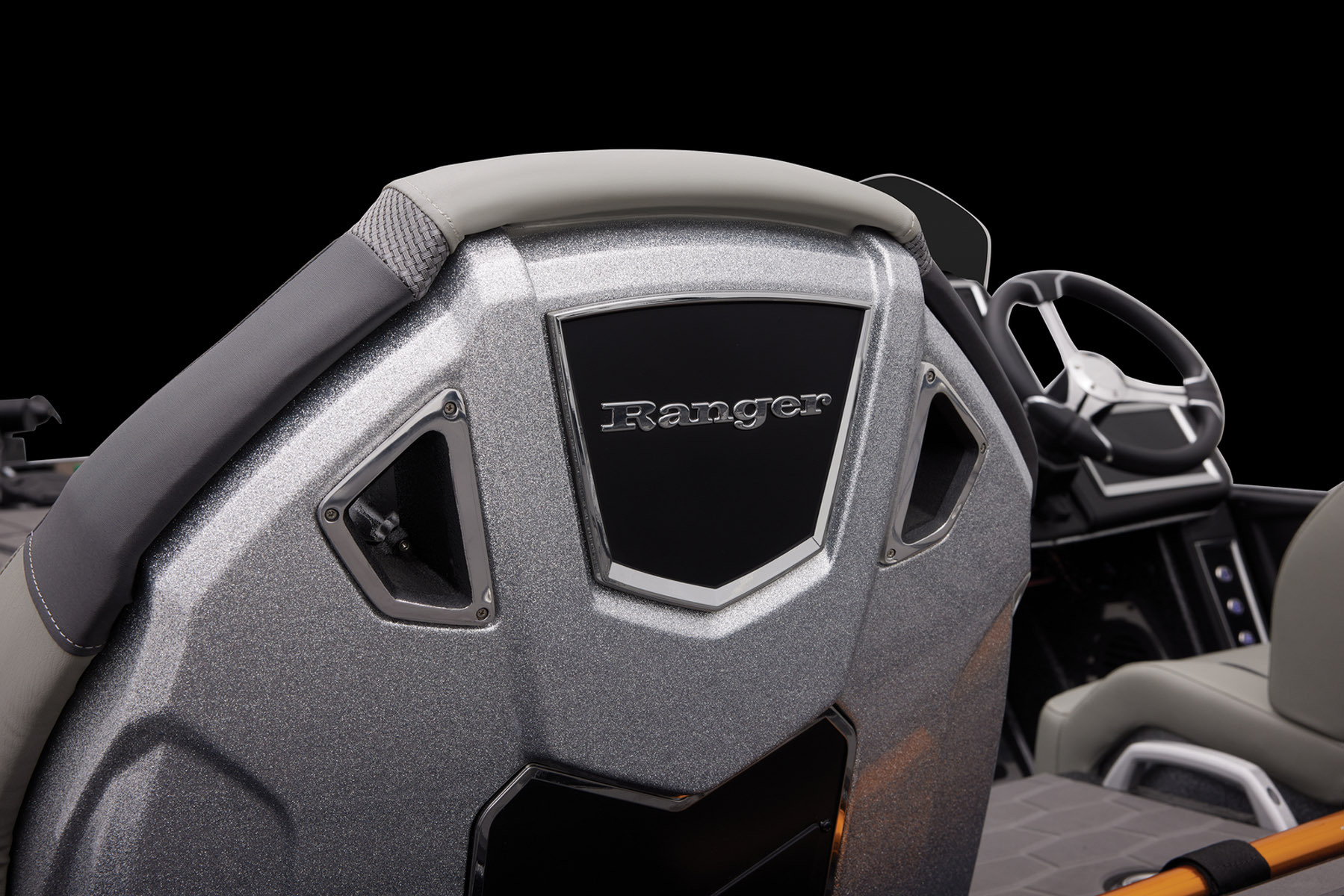

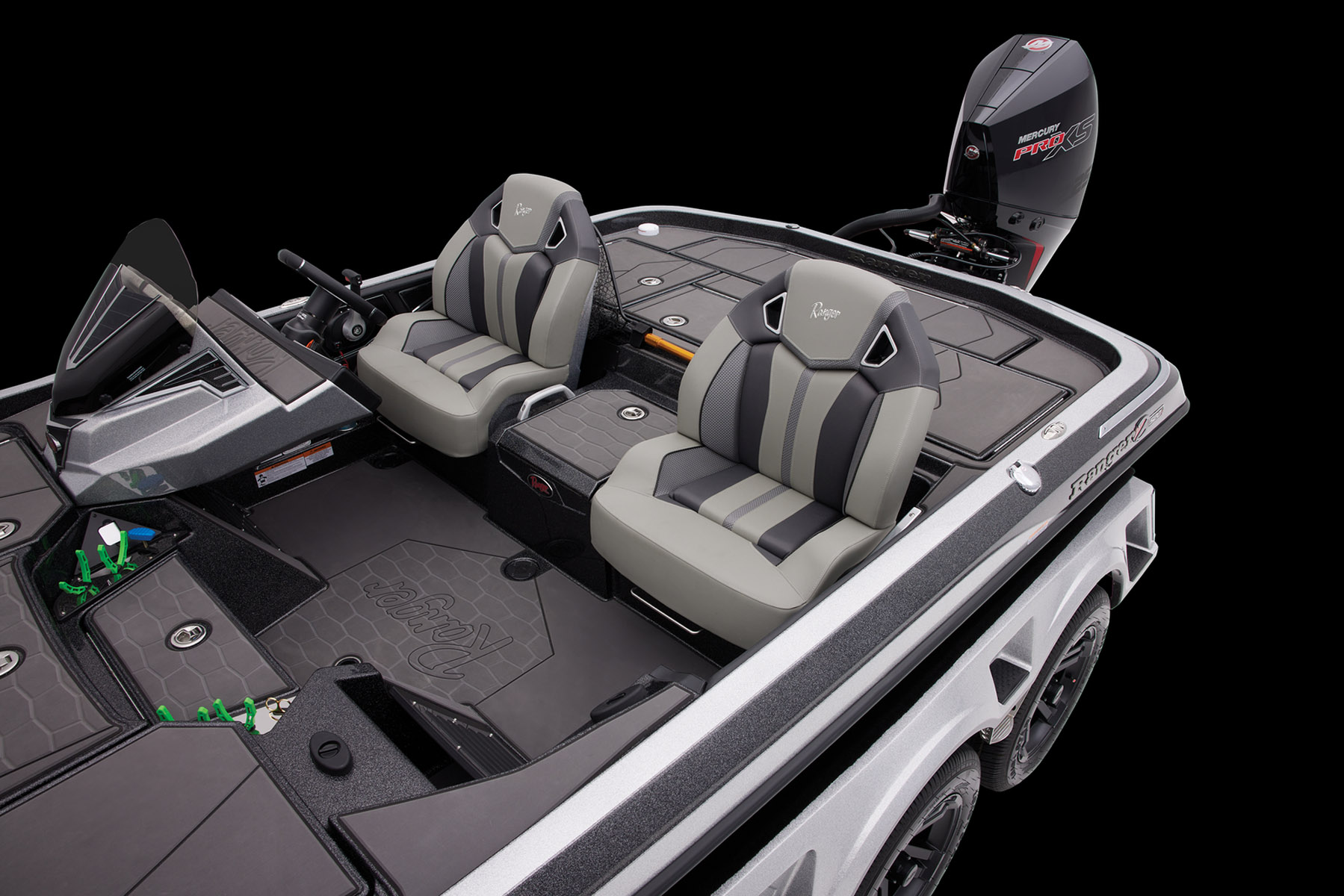

  • Custom-fitted premium marine upholstery - Soft Ride Seating (SRS) bucket seats w/ color-matched fiberglass seat shell, coin box, (1) bike seat w/ pro pole, & (1) SRS all-weather fold down w/power pedestal
  • Stainless steel seat bases
  • Fire extinguisher & horn

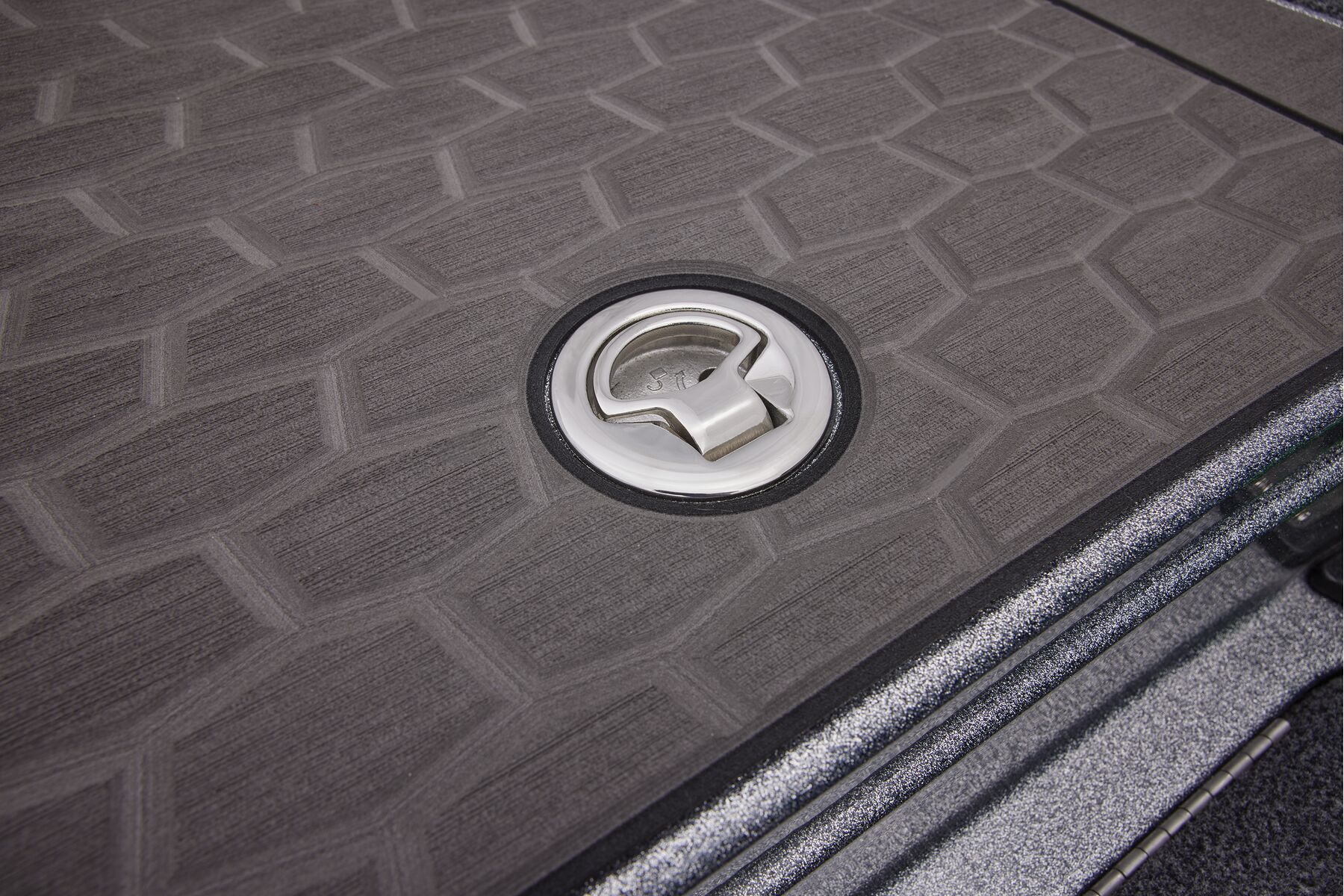

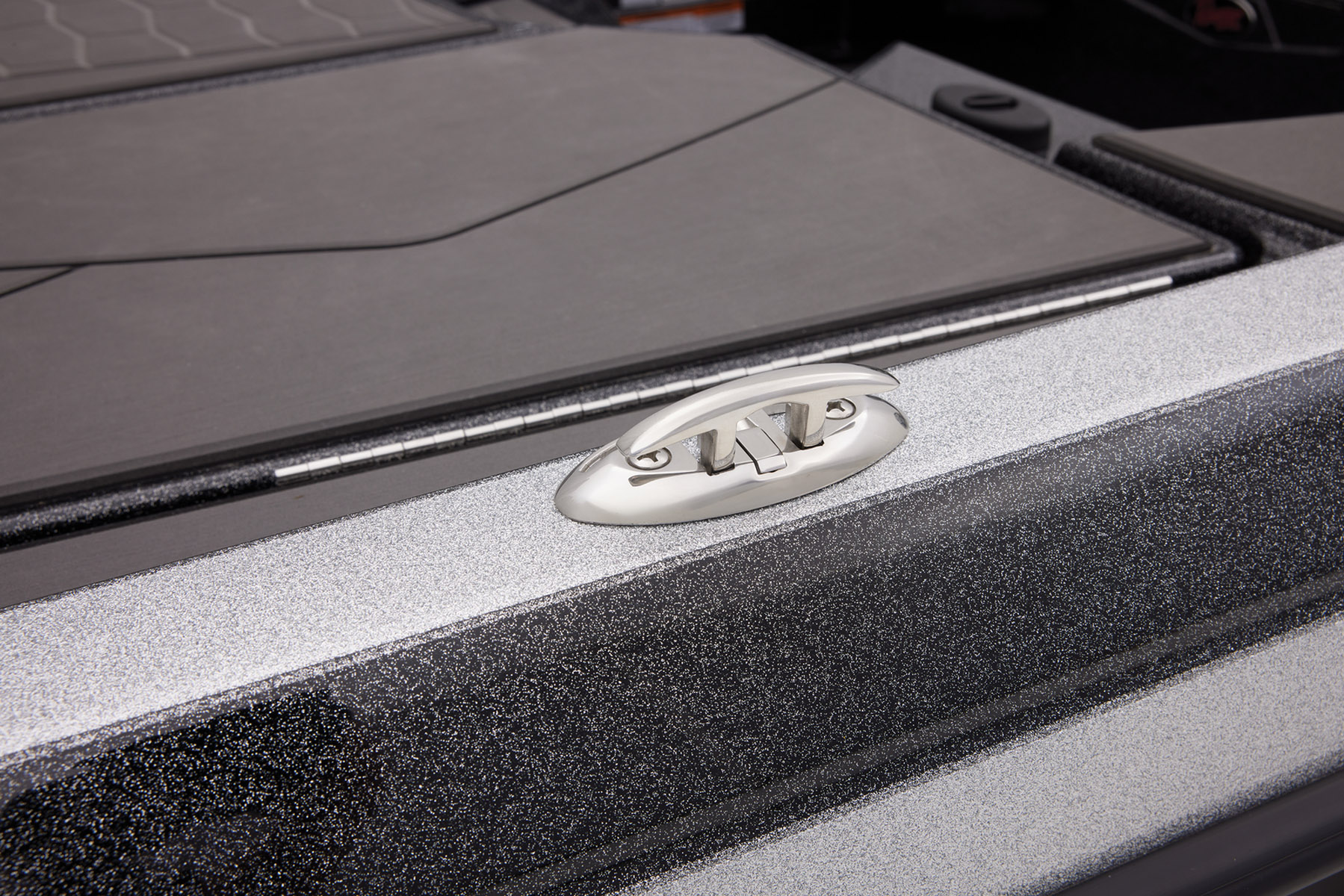

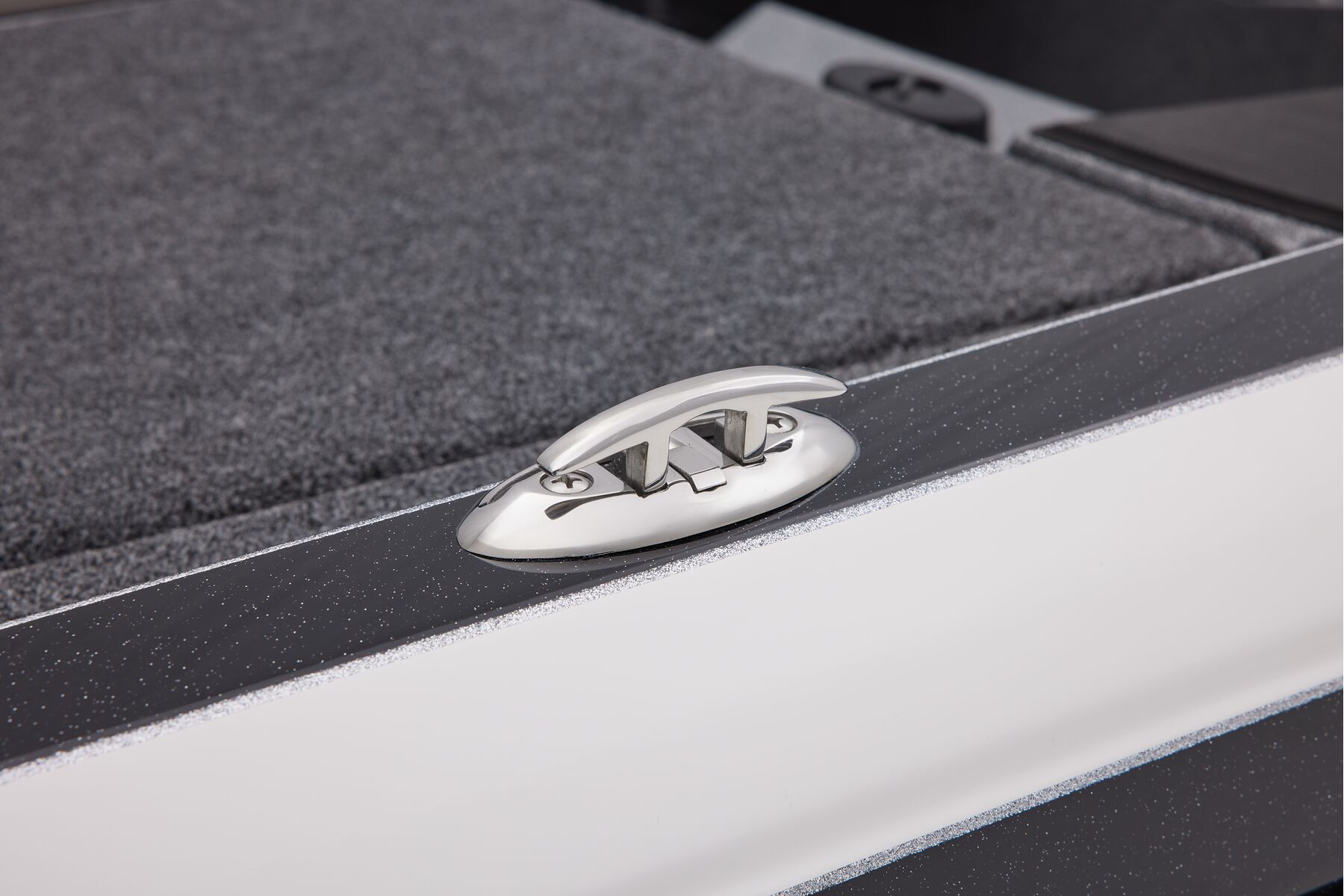

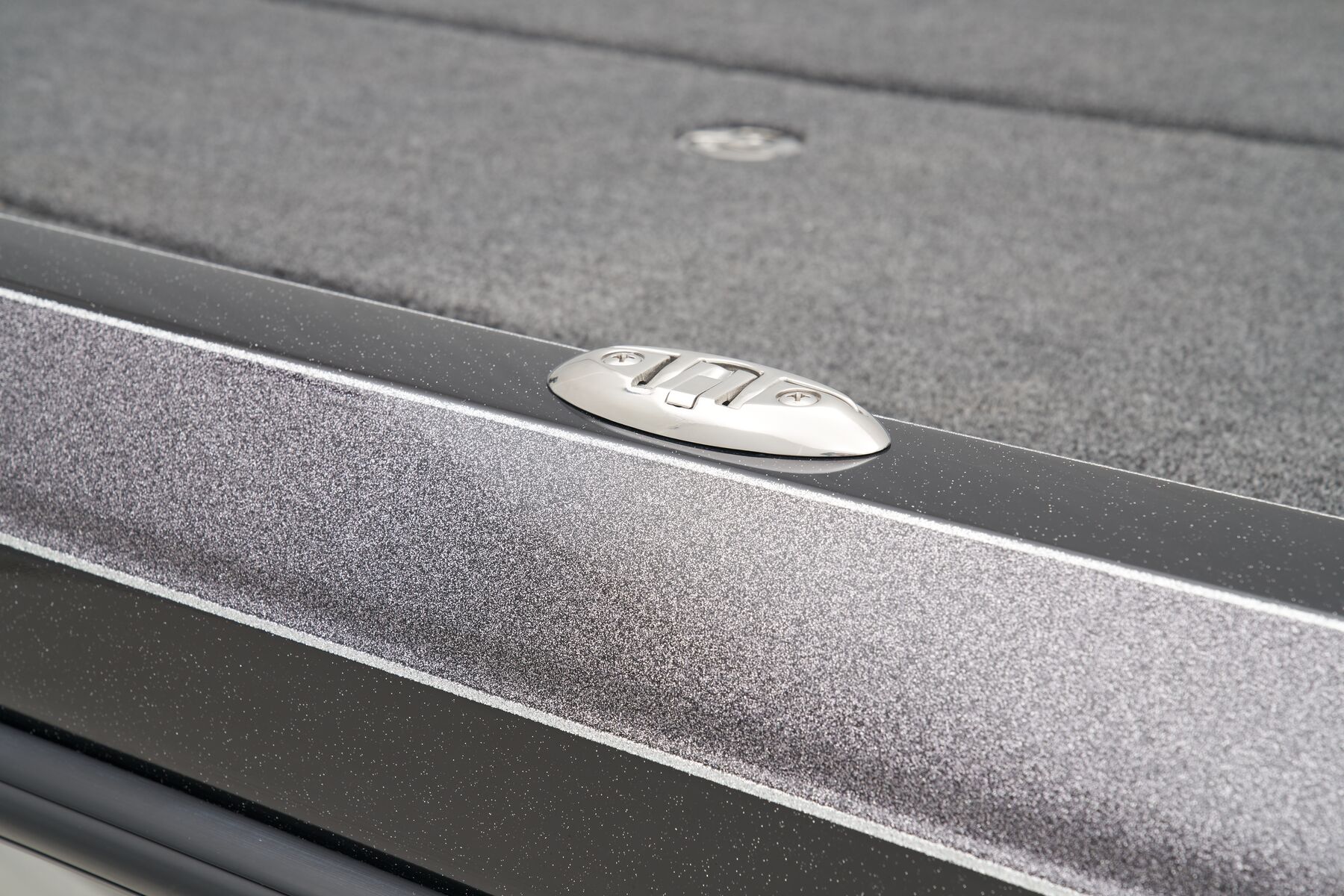

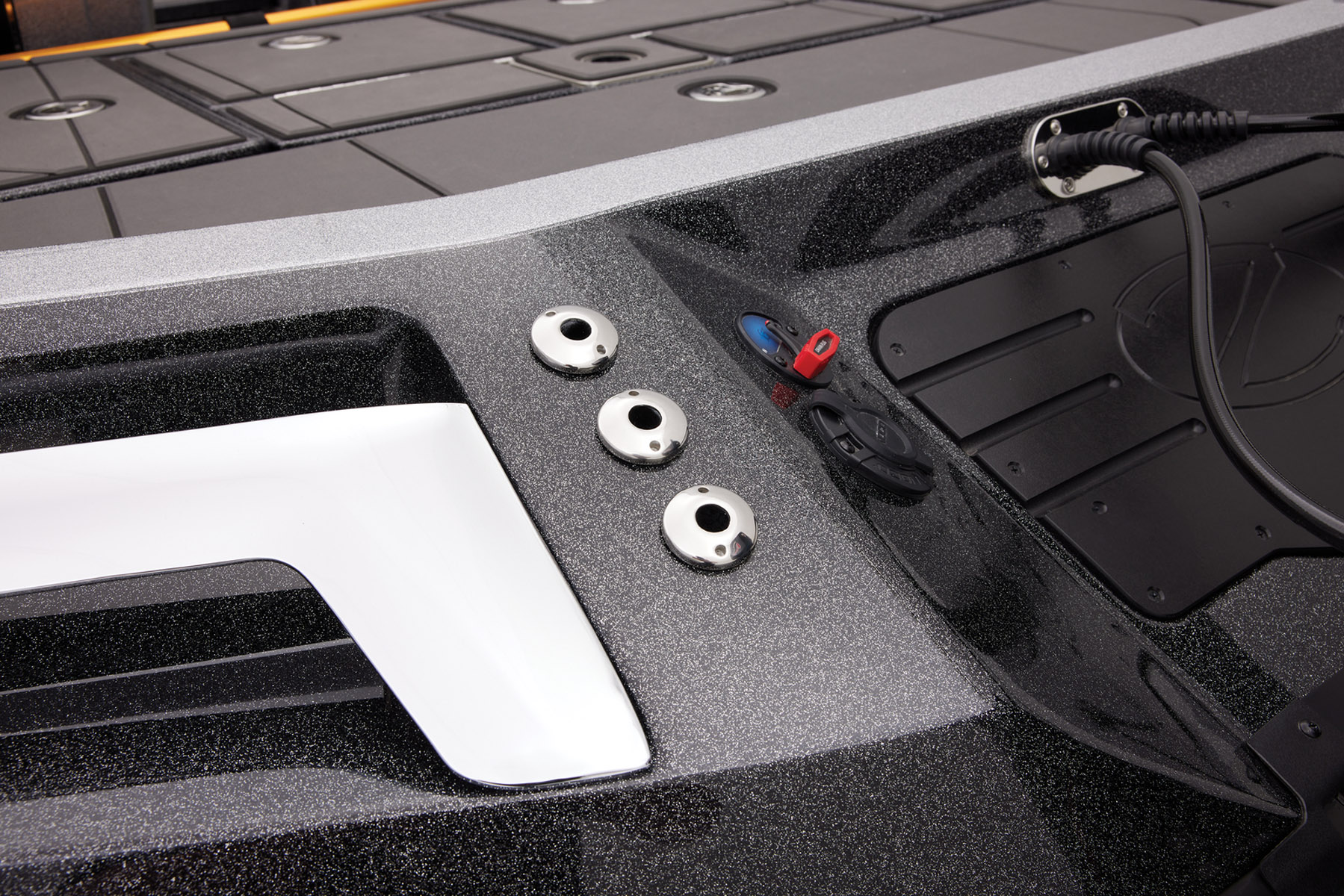

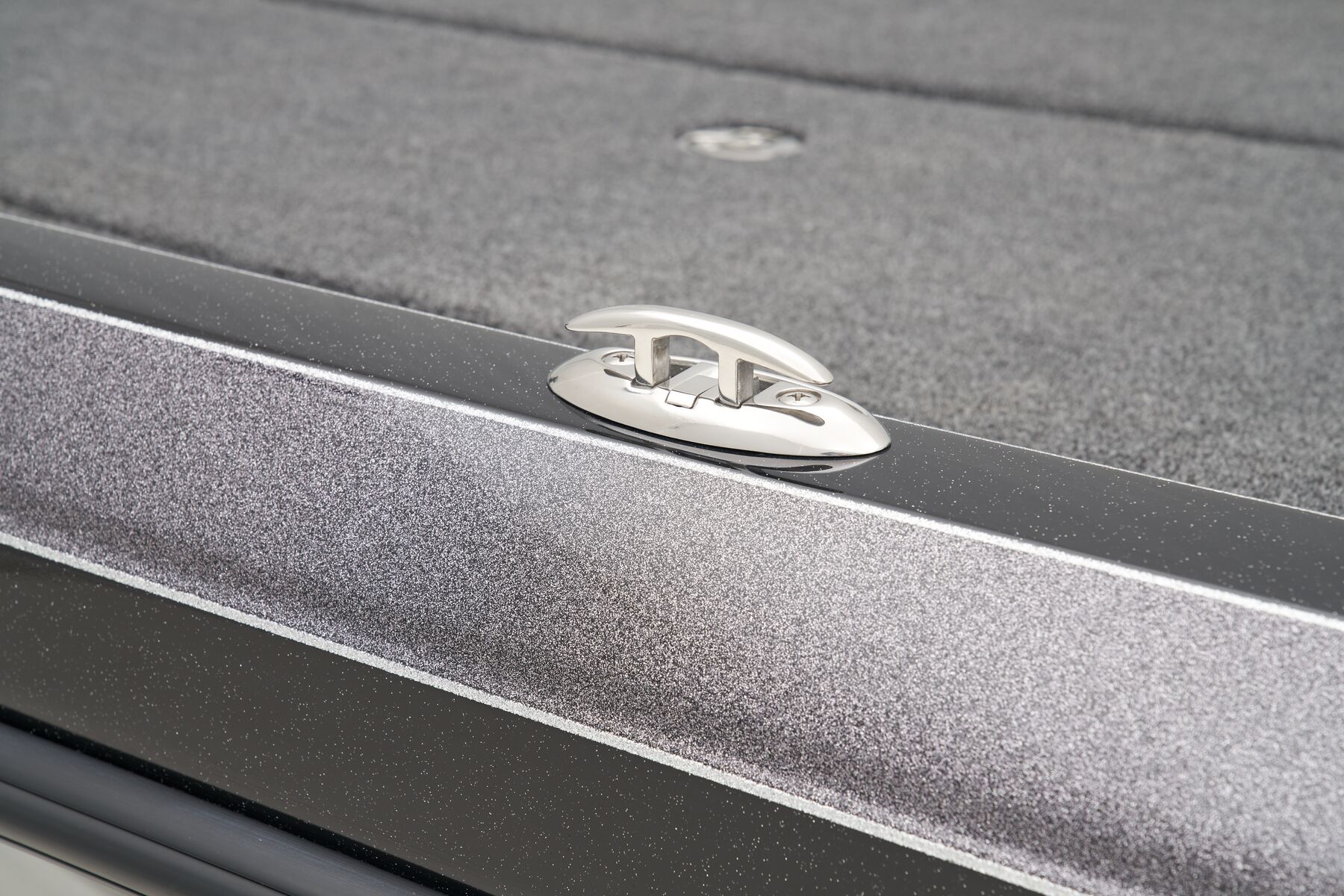

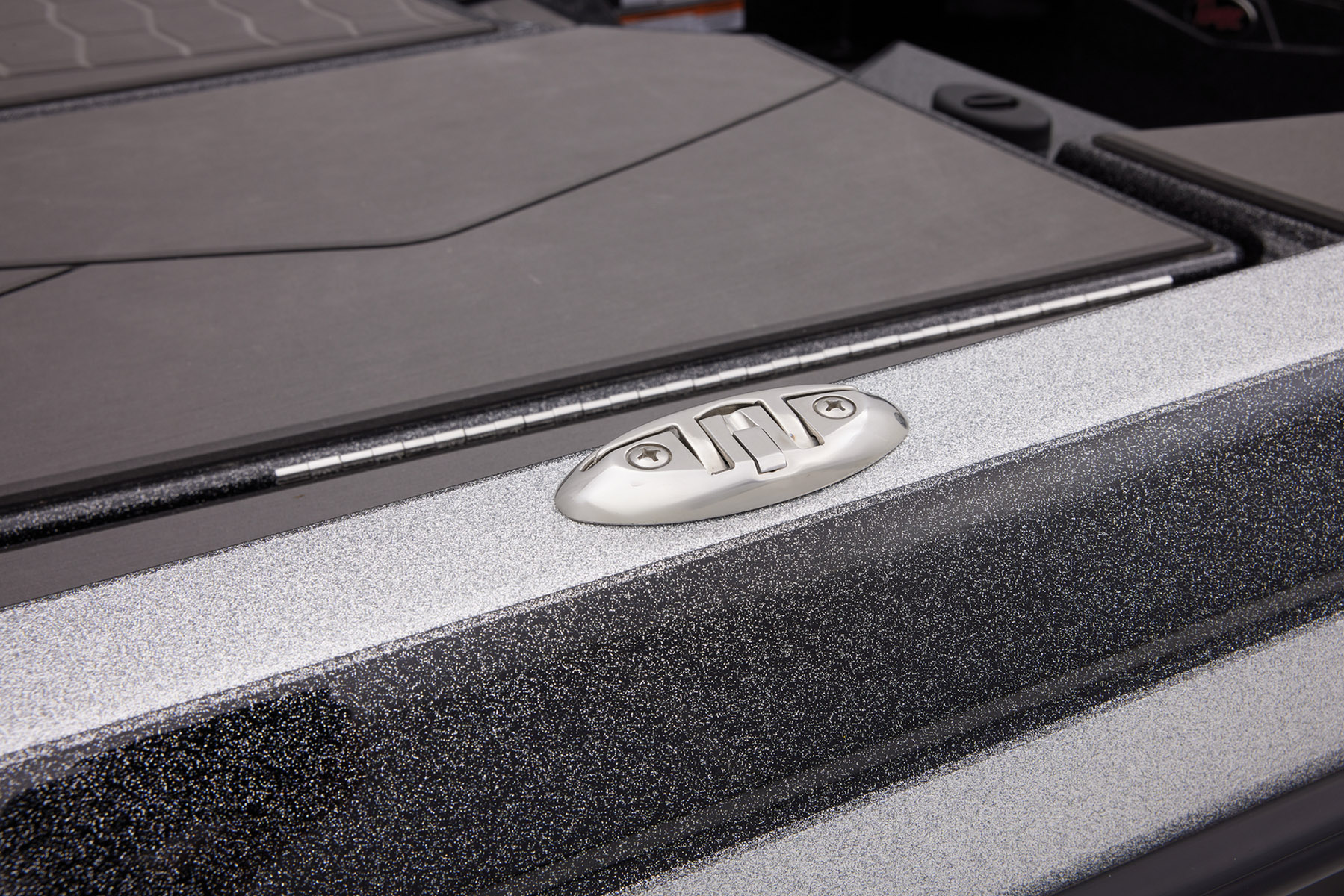

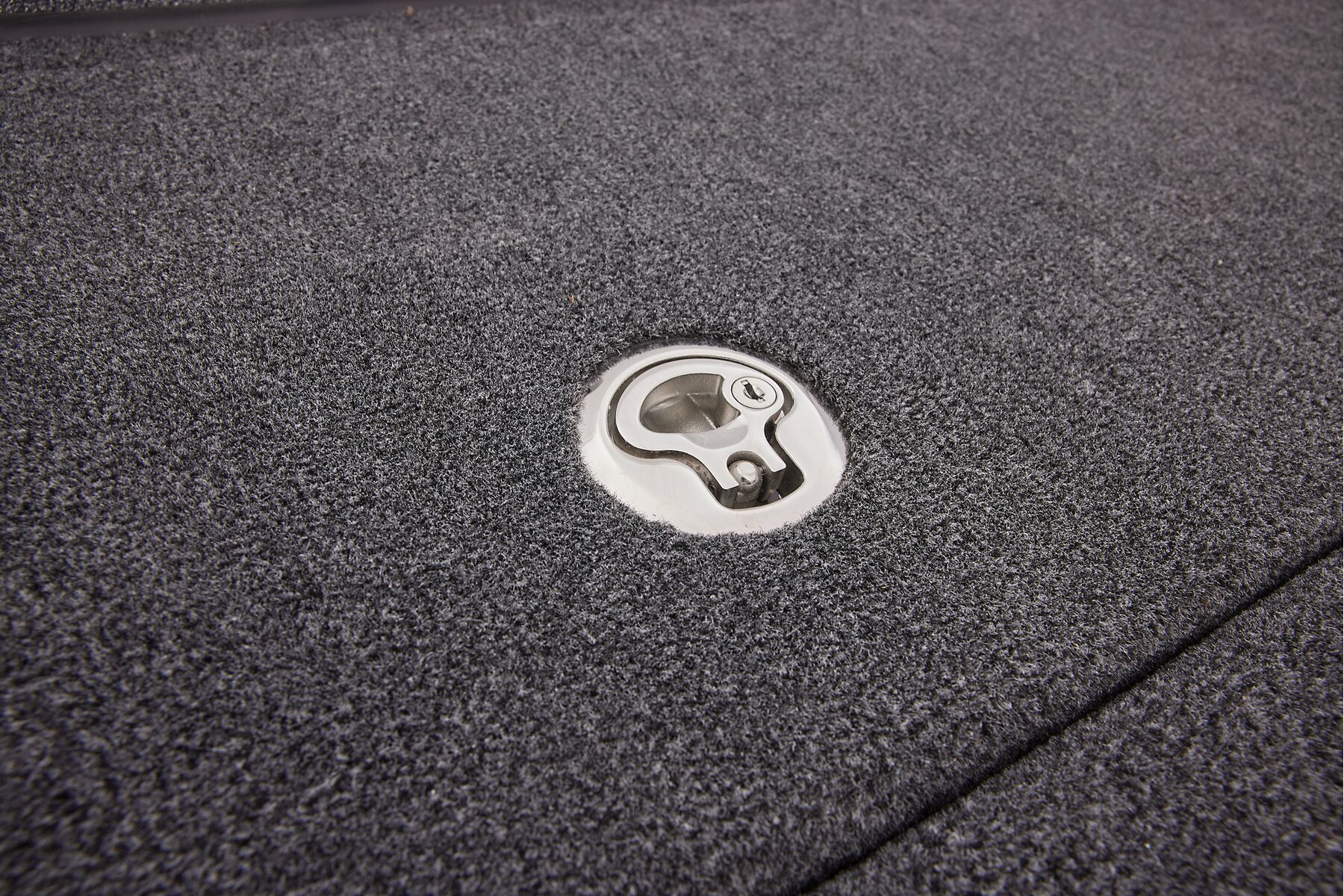

  • Pop-up tie cleats & drivers seat cleat
  • Integrated grab handles
  • Rite Track Keel®
  • Automatic and manual bilge pumps

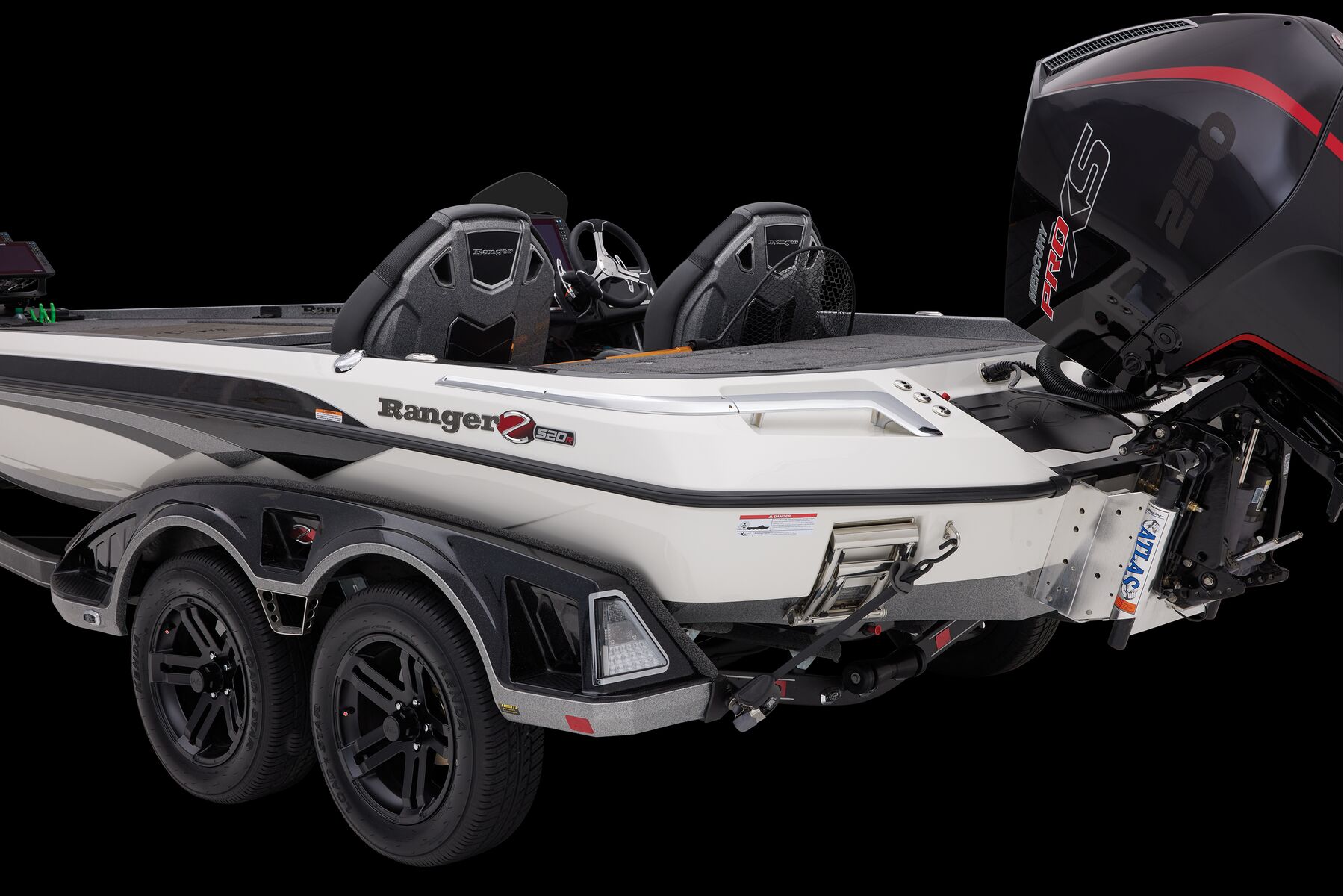

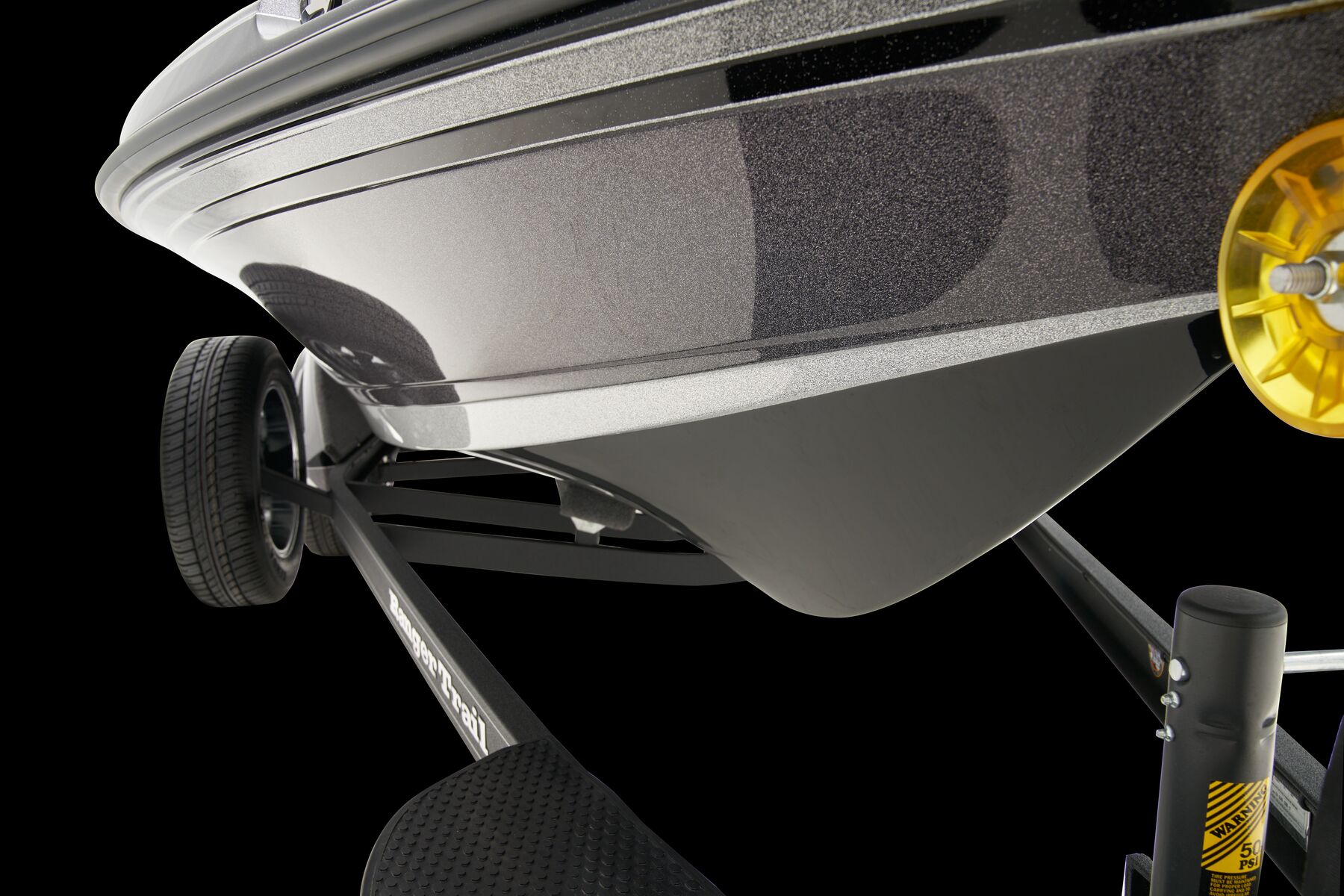

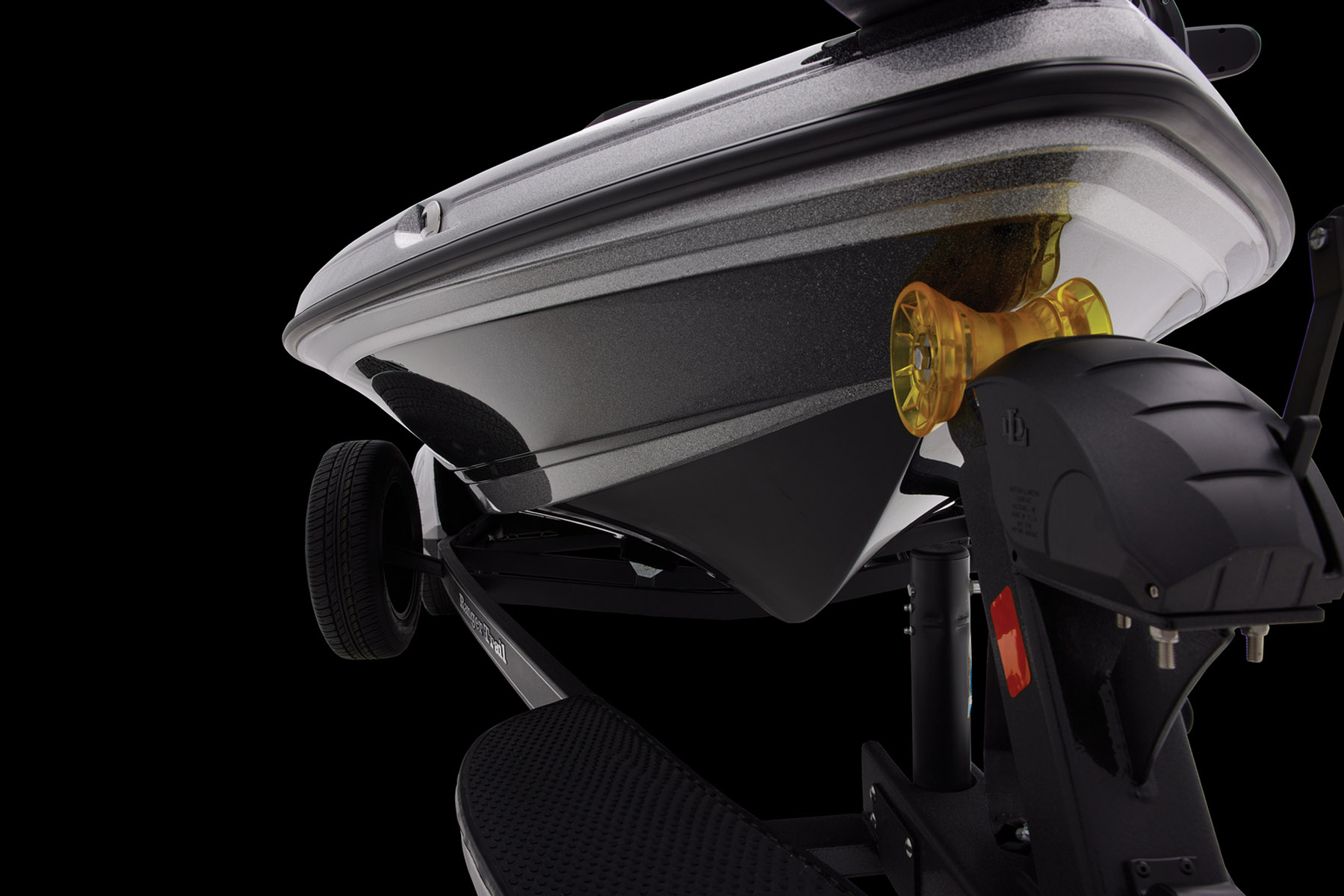

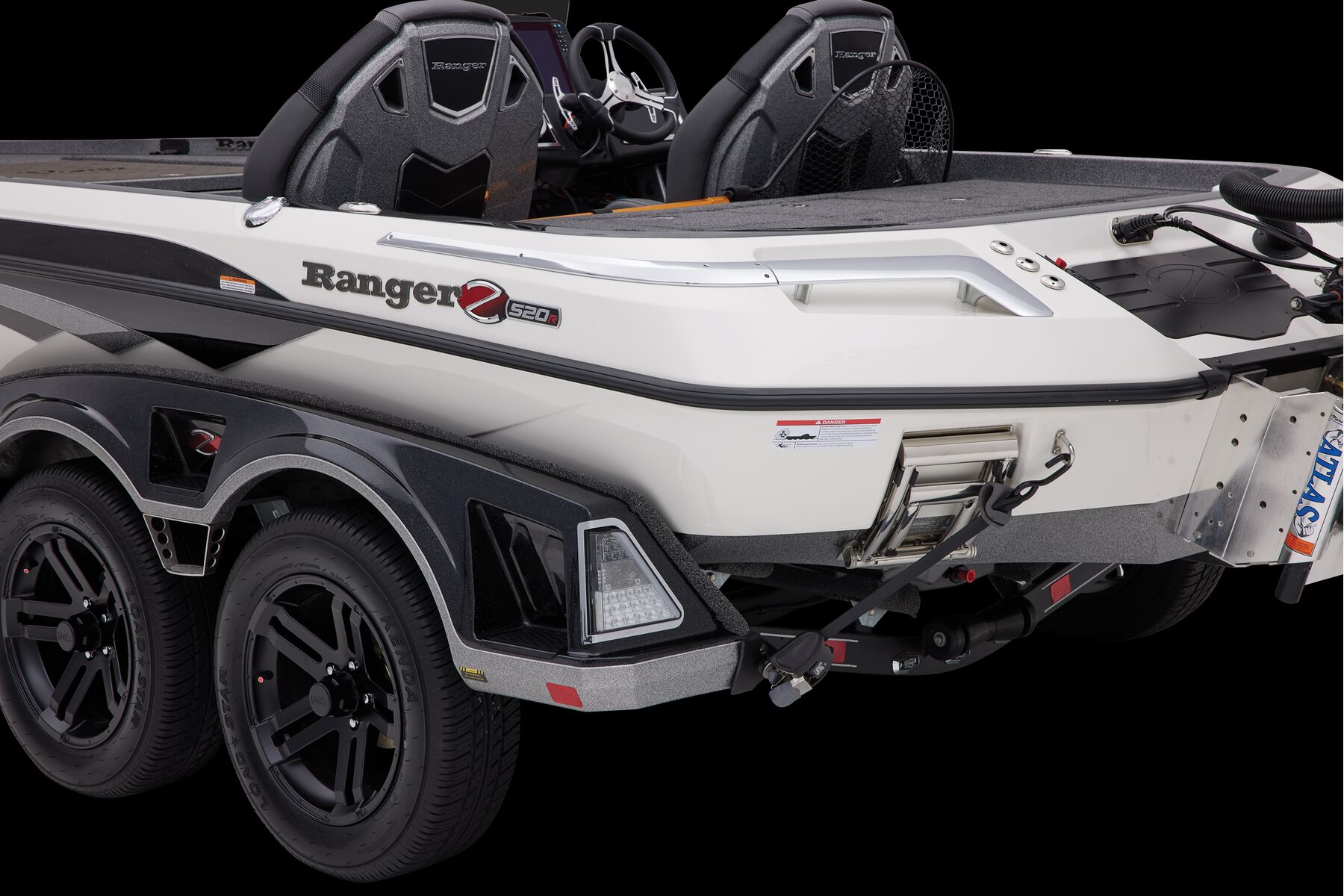

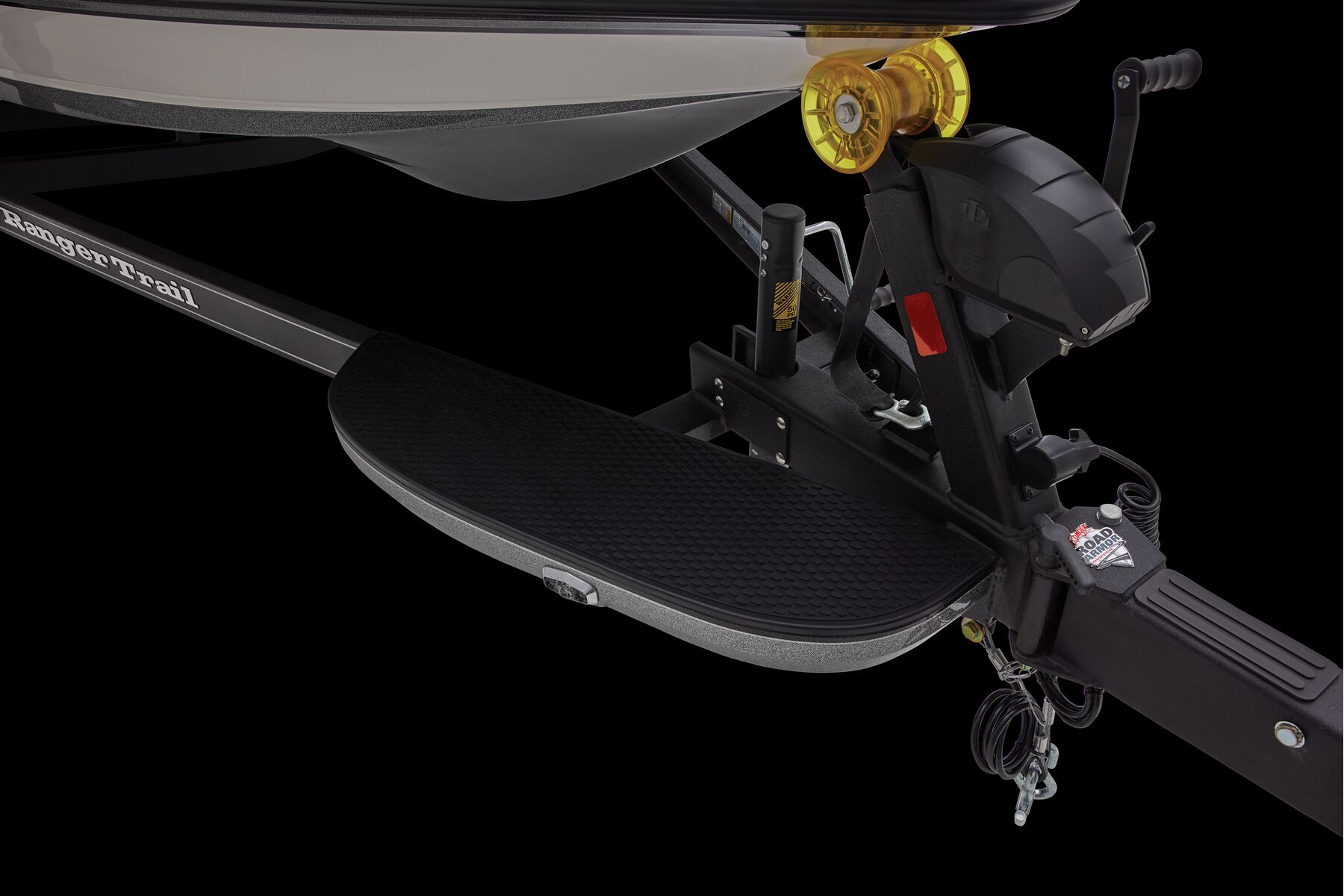

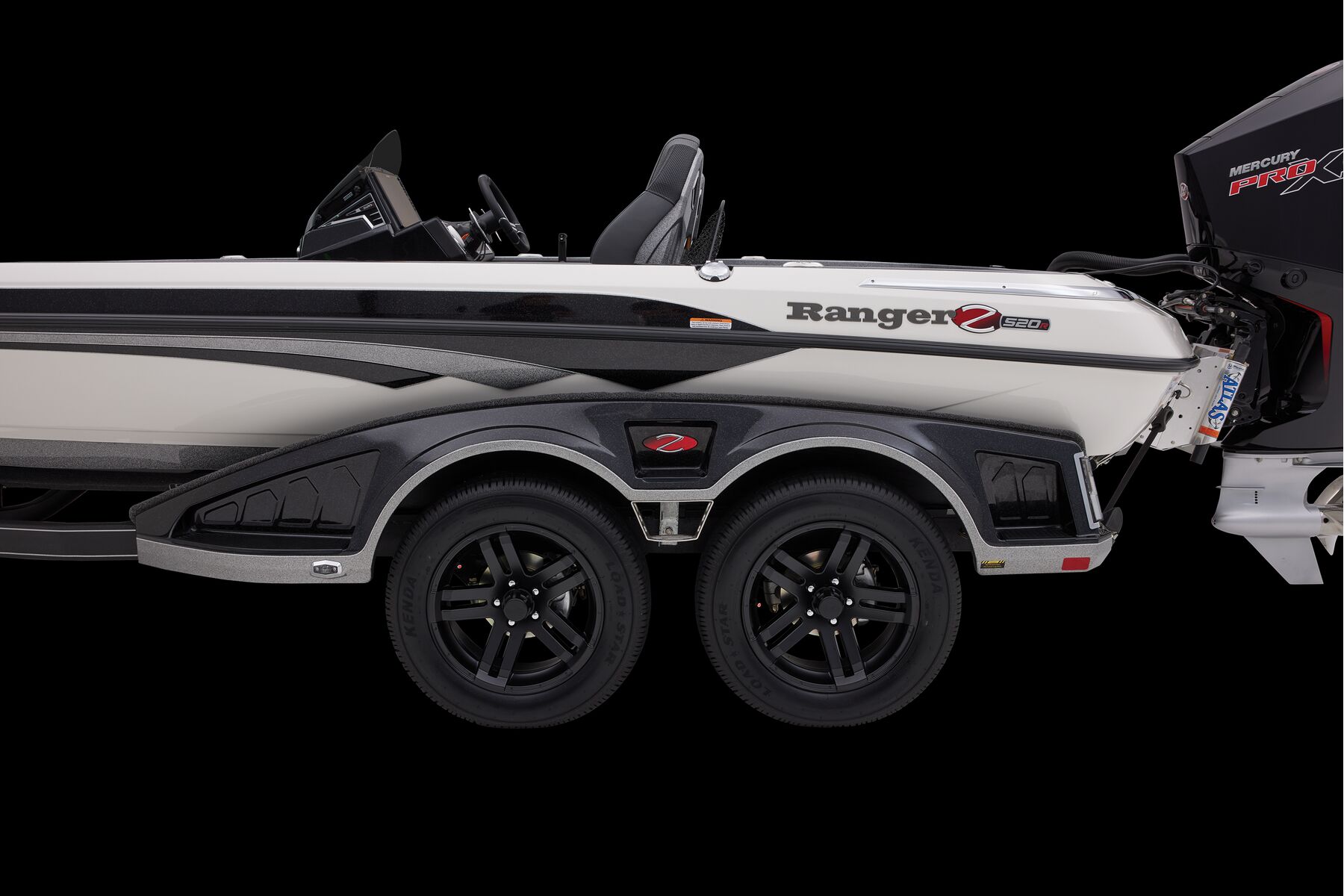

Trailer Features
  • Ranger® Boats Road Armor Equipped® trailer protectant coating

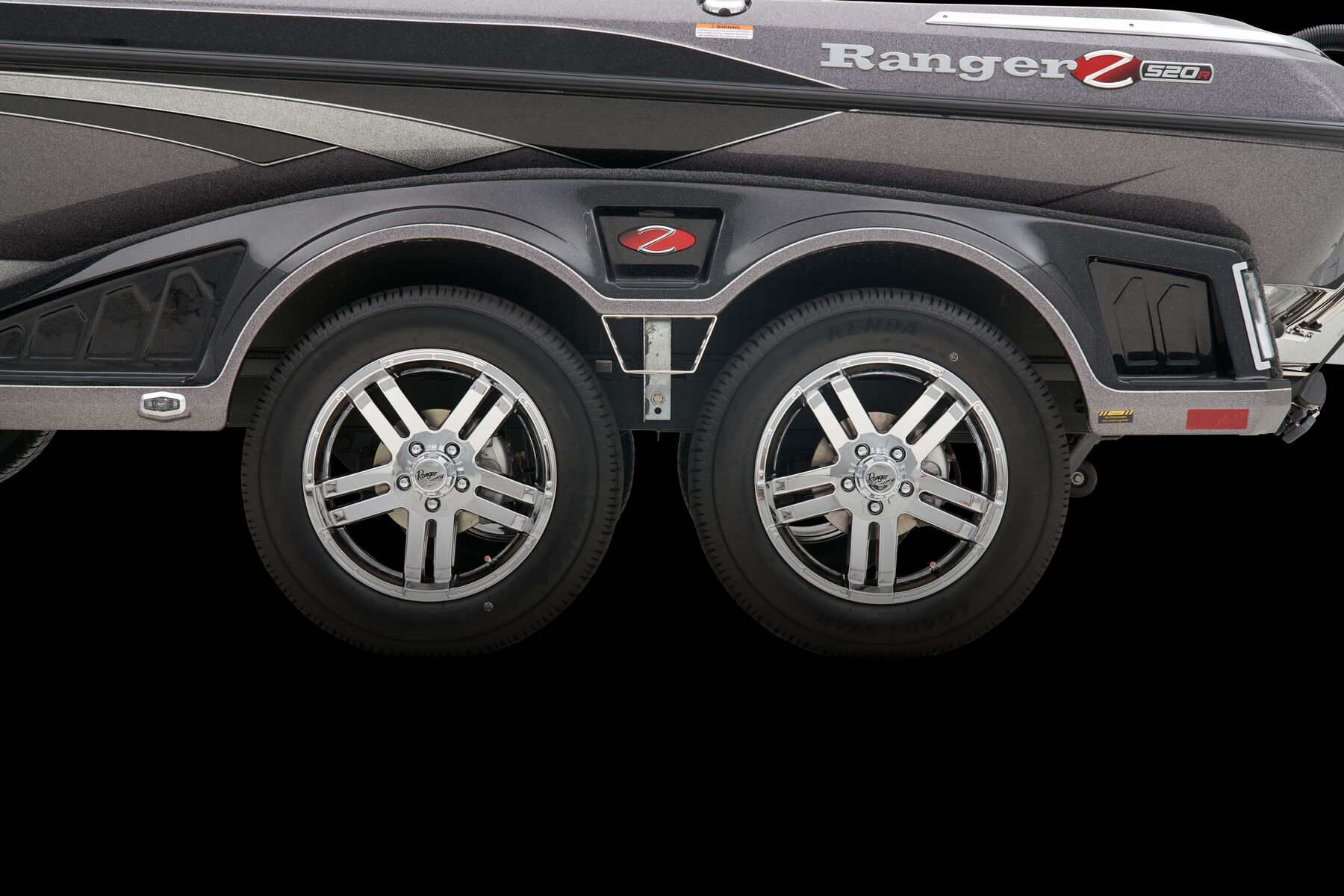

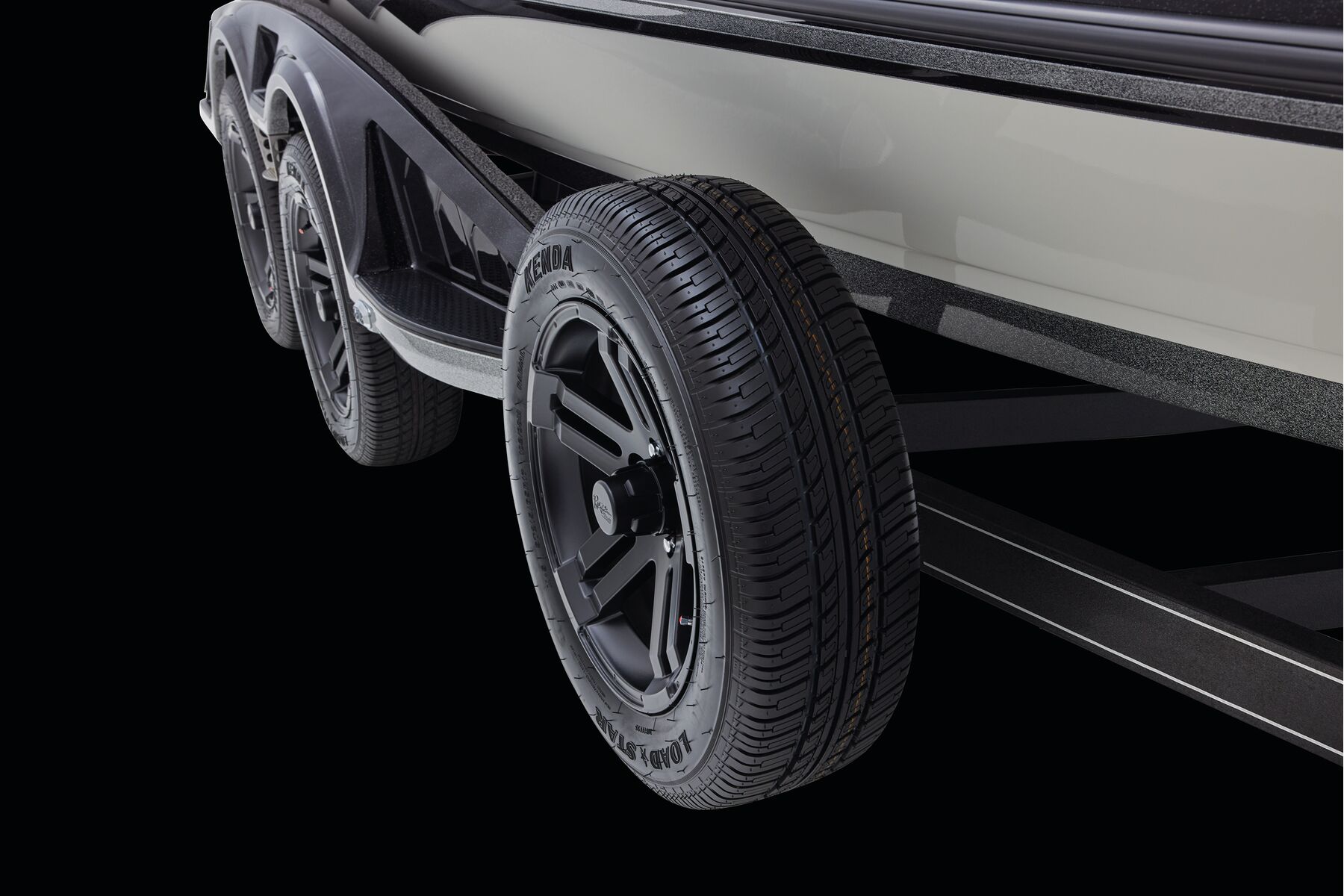

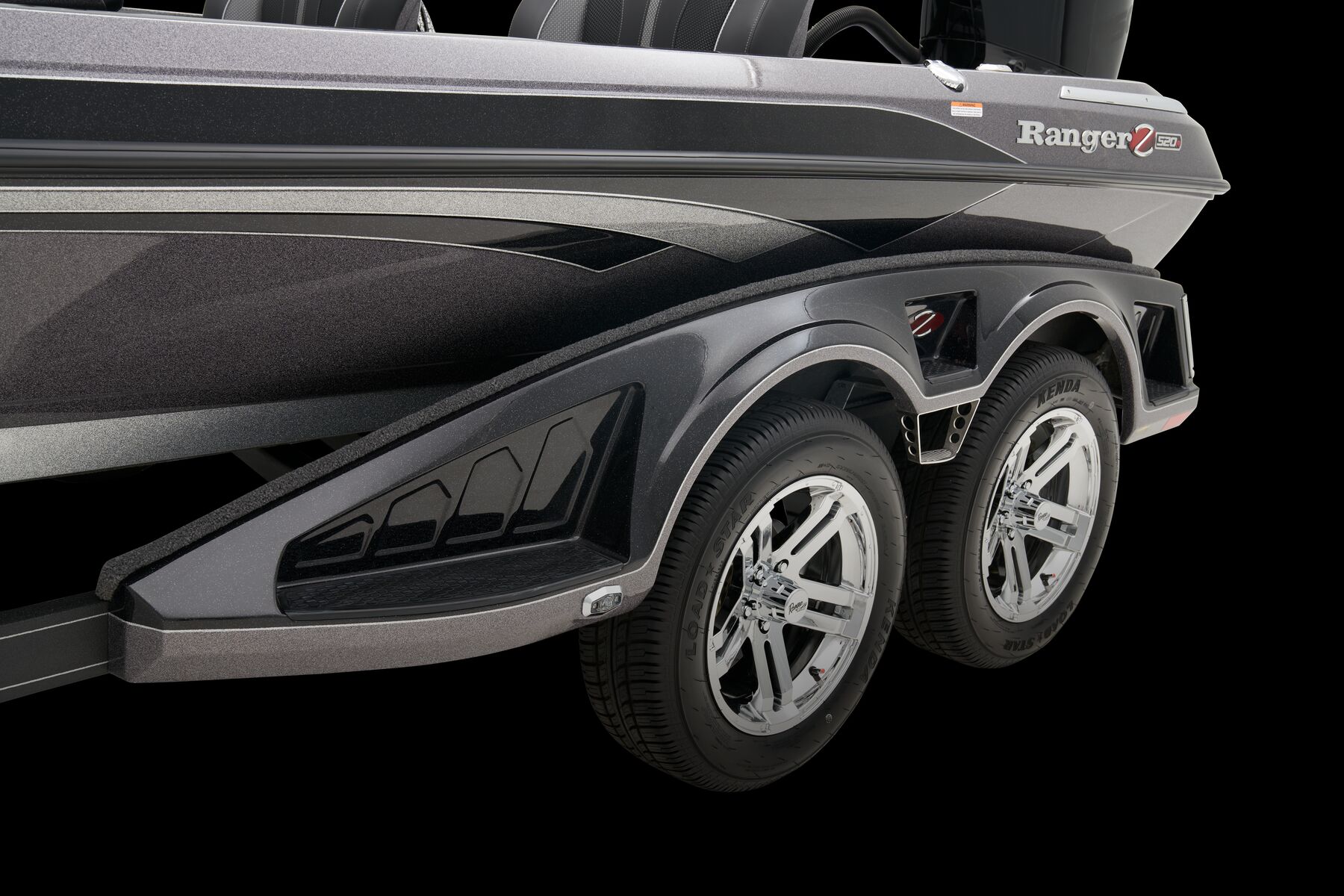

  • 17" Challenger II wheels w/ matching spare
  • Ranger Trail® Vault® Hub lubrication system

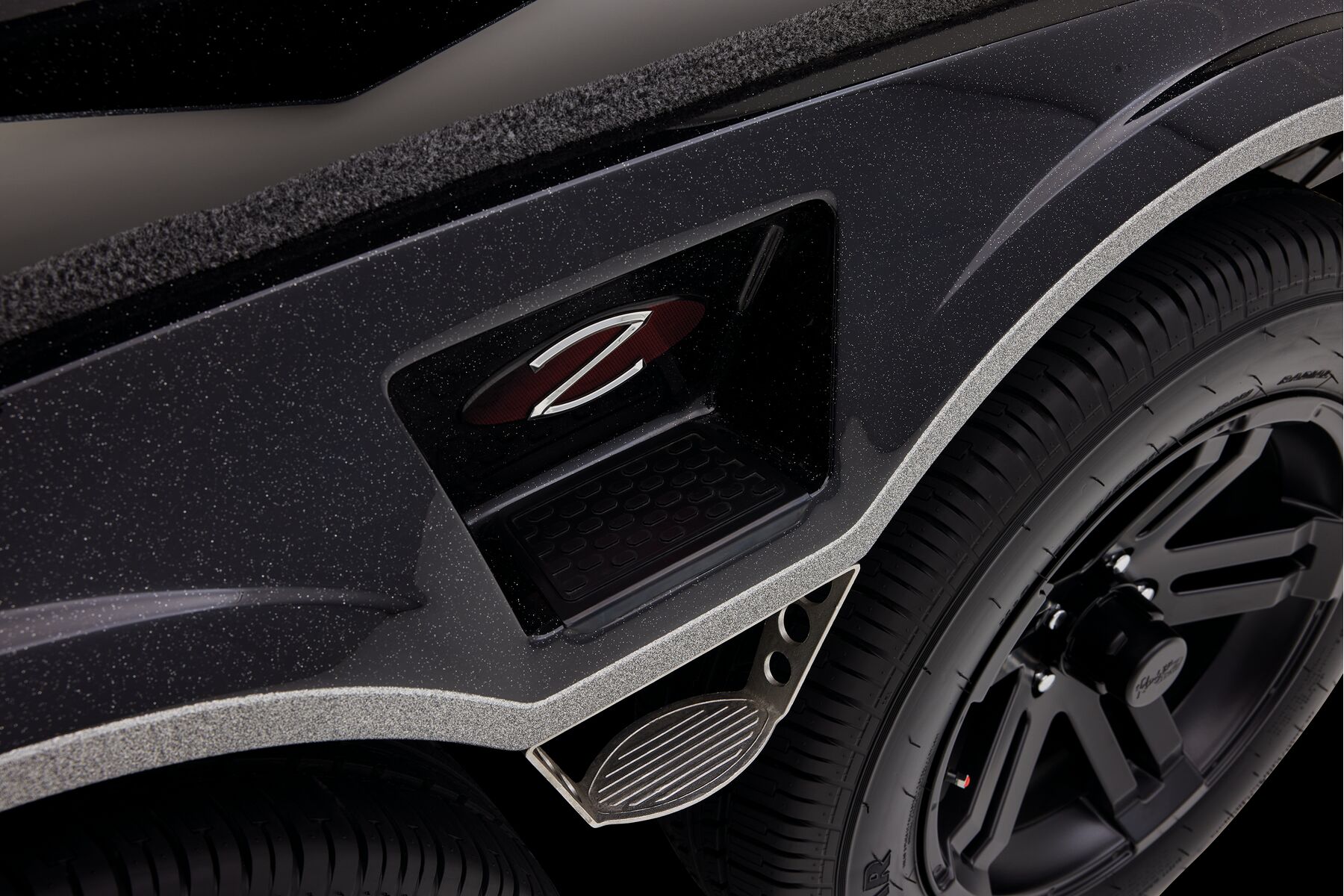

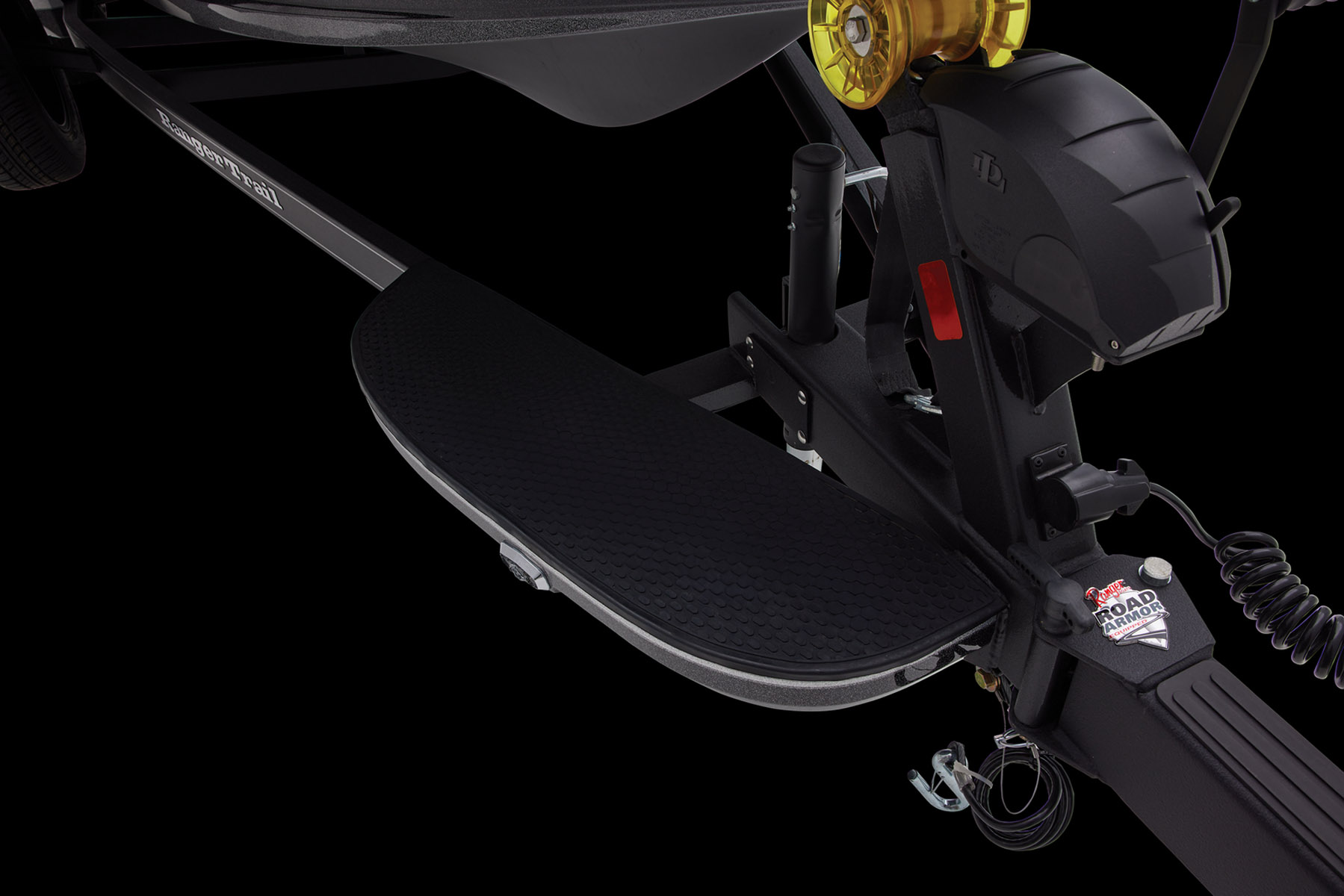

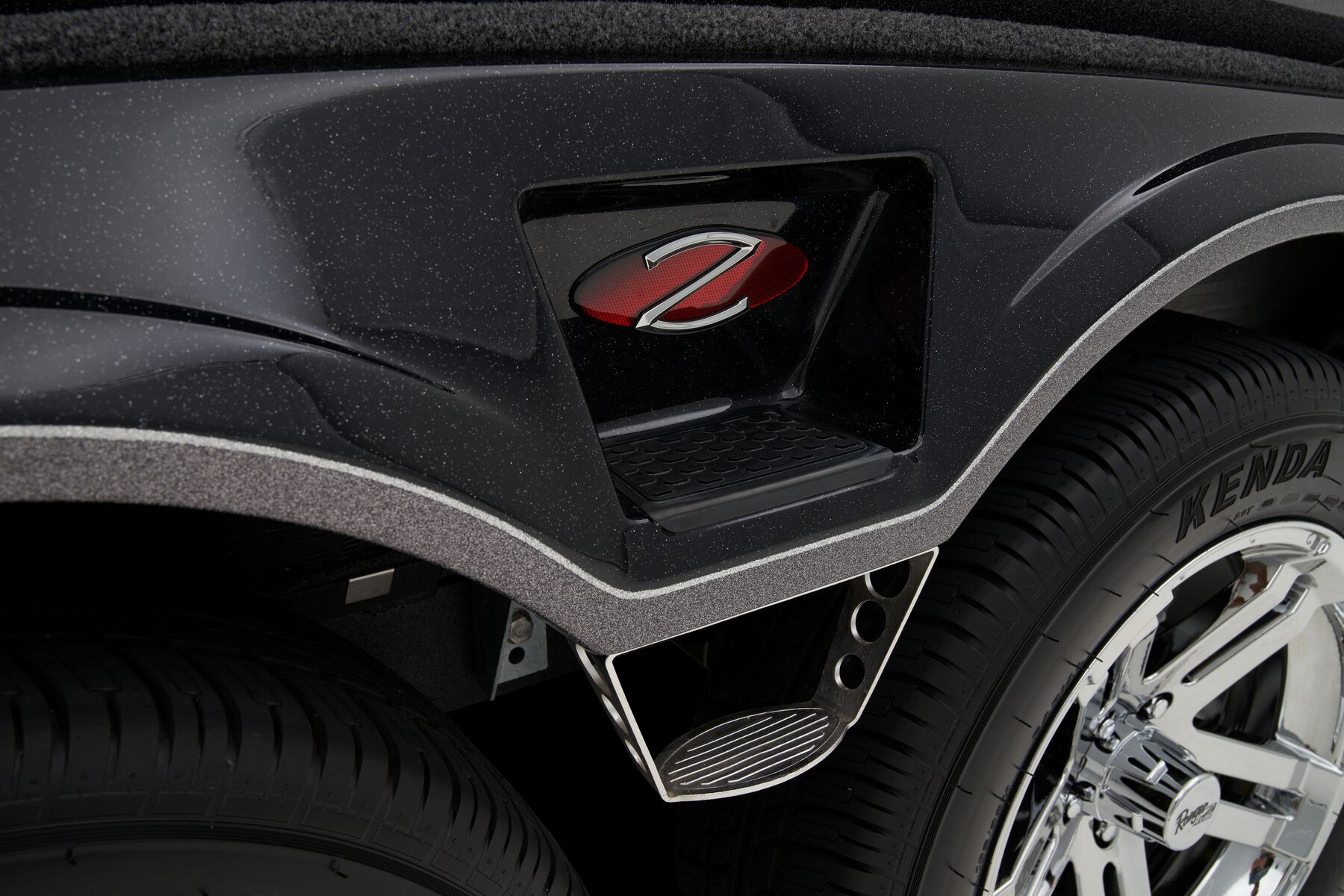

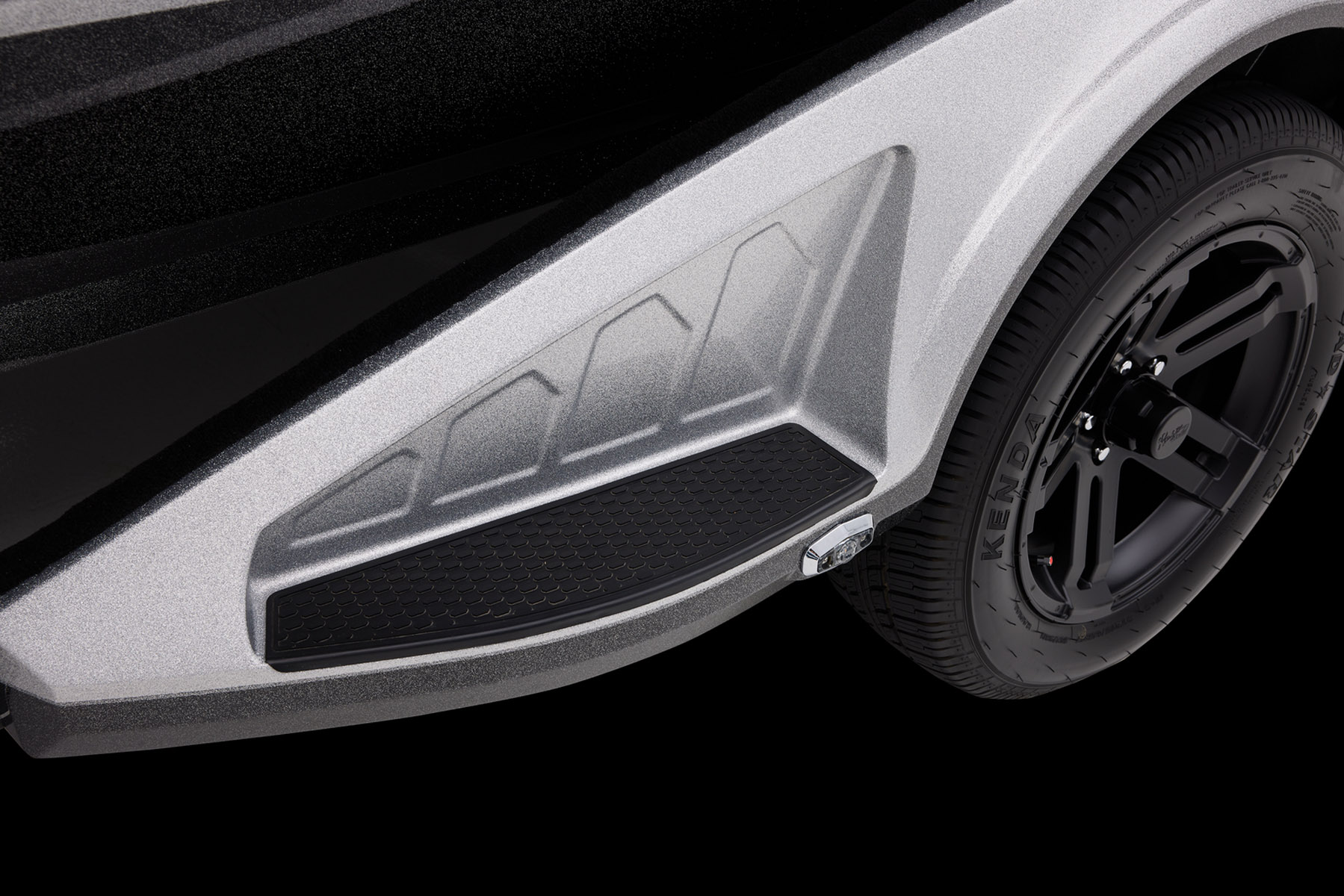

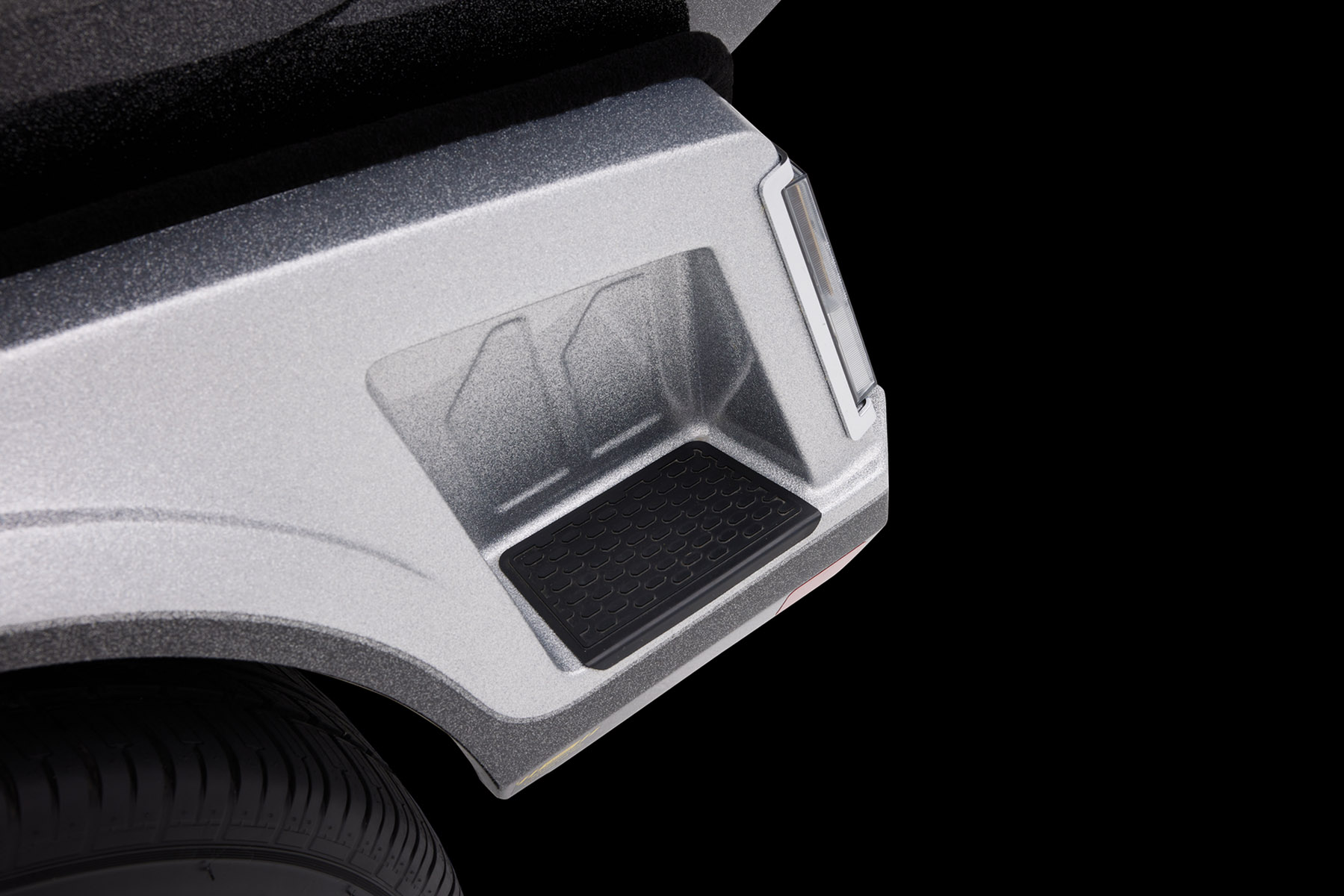

  • Fiberglass fenders w/ step pads

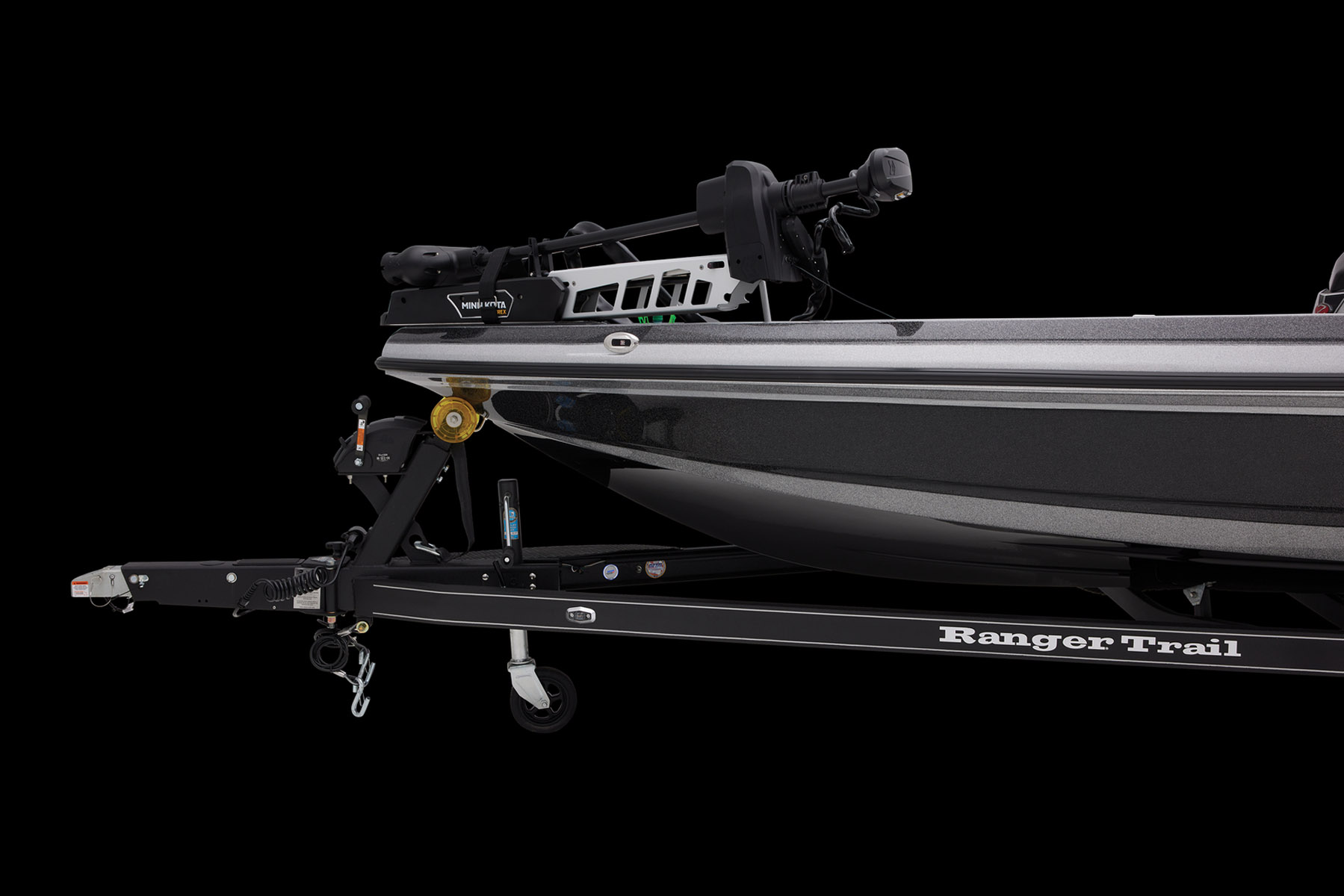

  • Swing-away tongue
  • Integrated center-swing jack finished in black powdercoat
  • Stainless steel ratcheting tie downs
  • LED lighting
  • LED back-up lights
  • NMMA®/NATM certified

Options
